Technical Specifications	Klarstein Fan 10032447
Product Type	Fan
Power	Variable depending on the model
Number of Speeds	3 adjustable speeds
Additional Features	Oscillation, timer
Dimensions	Specific dimensions to check on the packaging
Weight	Specific weight to check on the packaging
Usage	Ideal for cooling indoor spaces
Maintenance	Regular cleaning of grills and blades
Safety	Do not use near water, unplug before cleaning
General Information	Check warranty and return conditions before purchase

Frequently Asked Questions - 10032447 Klarstein

How do I assemble the Klarstein Fan 10032447?

To assemble the fan, follow the instructions provided in the manual. Generally, you just need to attach the base, mount the pole, and install the fan head. Make sure all parts are properly in place.

The fan does not turn on, what should I do?

First, check that the fan is properly plugged into a working outlet. If the problem persists, try resetting the device by unplugging it for a few minutes before plugging it back in.

How do I clean the Klarstein Fan 10032447?

Unplug the fan before cleaning. Use a soft cloth to wipe the blades and the casing. For a more thorough cleaning, remove the grills if possible, wash them with soapy water, and let them dry before putting them back.

The fan makes a strange noise, what should I do?

A strange noise can be caused by misaligned blades or trapped debris. Check that the blades are securely attached and that nothing is blocking their movement. If the noise persists, contact customer service.

Does the Klarstein Fan 10032447 have a timer function?

Yes, the fan is equipped with a timer function that allows you to program it to turn off after a set duration. Refer to the manual to learn how to set this function.

What is the power of the Klarstein Fan 10032447?

The power of the Klarstein Fan 10032447 is 50 watts, which allows effective air circulation in your space.

Is the fan quiet?

The Klarstein Fan 10032447 is designed to be relatively quiet, but the noise level may vary depending on the chosen speed setting. For quieter operation, choose the lower speeds.

Where can I buy spare parts for the Klarstein 10032447?

Spare parts can be ordered directly from Klarstein customer service or on their official website. Make sure you know the exact model to get the correct parts.

USER MANUAL 10032447 Klarstein

Diagram of a fan or vent system with numbered parts labeled 1 to 6, showing internal structure and airflow path.

Diagram of a front-mounted air conditioner fan with numbered parts and control panel labeled 11

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 8

Declaration of Conformity 8

Safety Instructions 9

Device Overview 9

Operation 10

Cleaning and Care 12

Hints on Disposal 12

TECHNICAL DATA

Article number 10032447, 10032448
Power supply 220-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

• Children over 8 years of age and physically restricted people should only use the unit if they have been previously familiarised with the functions and the safety precautions by a supervisor. Ensure that children do not play with the device. Children 8 years and older may only clean the device under supervision.
  • Make sure the power cord and plug are clean and dry.
• Check the voltage on the device label before use. Only connect the device to mains sockets that correspond to the voltage of the device.
• Do not place the device near open flames, water or flammable materials.
• Only use the device in the presence of children only when they are under supervision.
  • Make sure the device is level before starting it.
• If you will not be using the device for a long time, unplug it from the power outlet and store it in a clean dry place.

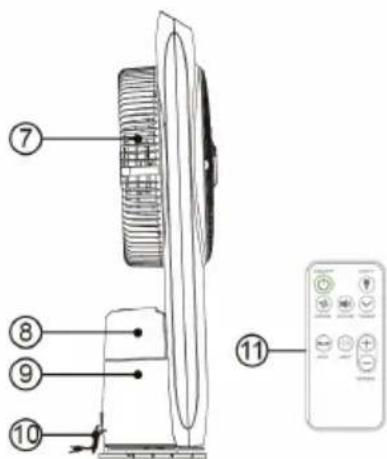

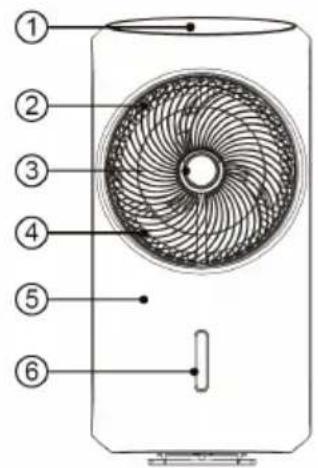

DEVICE OVERVIEW

Diagram of a fan or vent with numbered parts labeled 1 to 6, showing internal structure and airflow direction.

Diagram of an electric fan with numbered parts and a control panel labeled 11

1 Control panel 7 Back fan grill
2 Front fan grill 8 Tank
3 Decorative ring 9 Tank housing
4 Fan blades 10 power cable
5 Front housing 11 Remote control
6 Decorative ring

OPERATION

Remote control operation

• The maximum distance between the remote control and the unit is between 3.5-5 metres.
- Mute: When turned on, the unit will run in normal mode. Press the VOICE button on the remote control to activate muting.

Control panel and button functions

OSC TINER MIST MAX MIST MIN 88 °C SPEED H ECO NORMAL E NATURAL SLEEP

A	MIST button (nebulizer)
B	TIMER button
C	OSC button (oscillating function)
D	MODE button (mode)
E	SPEED button (speed)
F	ON / OFF button (turn device on / off)

Note: If you do not press any of the buttons for more than 60 seconds, the backlight of the control panel will automatically turn off. Press any key to turn it back on.

MIST button

• The nebulizer function can be used independently of the other functions, even if the fan is not running.
  • By default, this feature is turned off.

Note: Make sure that there is water in the tank before using this feature. If the tank is empty or the water is running low, the timer light will flash and a warning signal will sound. In this case, add water immediately. Always refill with fresh water.

TIMER button

• The timer can be set to a maximum of 9 hours.
- The set time is shown on the display. In standby mode the display shows the temperature.

OSC button

• Press the button to swing the fan left and right.
• Press the button again to exit the oscillation function.

MODE button

• When switched on, the device will run in normal mode.
• Press the MODE button several times to enter the mode in the following selection sequence: Normal (Normal Mode) > Natural (Natural Mode) > SLEEP (Sleep Mode) > ECO (Sleep Mode).
• The corresponding icon of the selected mode will light up in the display.
• As long as the device is connected to the mains, the set mode will be saved and called up the next time it is used.

ECO mode (energy-saving mode)

After selecting the ECO mode, the device will check the current room temperature and then select the appropriate function:

Temperature Function

>22°C normal mode + speed level 1

22-25°C normal mode + speed level 2

25-28°C normal mode + speed level 4

28-32°C normal mode + speed level 7

>32°C normal mode + speed level 8

Note: The ECO mode takes about 30 seconds to determine the current room temperature.

SPEED button

• The device has 8 speed levels.
- Press the button several times to set the desired speed, and the display will show the corresponding value.

CLEANING AND CARE

Note: Before cleaning, disconnect the plug from the socket and allow the device to cool completely.

Never immerse the power cord, plug, or device in water or other liquids. Soften the outside with a damp cloth, being careful not to allow water to enter the housing. Do not use scouring pads or chemical cleaners.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
