Technical Features	Klarstein Skyscraper 3G pedestal fan, 50W power, 3 fan speeds, 90° oscillation.
Dimensions	Height adjustable up to 1.30 m, base diameter 40 cm.
Usage	Ideal for cooling living spaces, easy to move thanks to its light weight.
Maintenance	Regularly clean the blades and grille with a damp cloth, do not immerse in water.
Safety	Overheat protection, safety grille to prevent accidents.
General Information	Operates on mains power, 1.5 m power cable, noise level 55 dB.

Frequently Asked Questions - Skyscraper 3G Klarstein

How do I assemble the Klarstein Skyscraper 3G?

To assemble the Klarstein Skyscraper 3G, follow the instructions provided in the user manual. Generally, you just need to attach the base to the pole and fix the top of the pole to the fan motor.

The fan does not turn on, what should I do?

Check that the fan is properly plugged into a working outlet. Also make sure the switch is turned on. If the problem persists, contact customer service.

How do I adjust the fan speed?

The Klarstein Skyscraper 3G has multiple speed settings. Use the control panel or remote control to select the desired speed.

The fan is making noise, is this normal?

A slight noise is normal when using the fan. However, if you hear unusual or loud noises, check if the fan blades are clean and properly installed.

How do I clean the Klarstein Skyscraper 3G?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior surface. Do not immerse the fan in water and do not clean internal components.

Does the fan have an oscillation function?

Yes, the Klarstein Skyscraper 3G has an oscillation function that allows cool air to be distributed over a larger area. You can activate this function via the control panel or remote control.

Does the fan have a timer?

Yes, the Klarstein Skyscraper 3G is equipped with a timer that allows you to program the operating time. Refer to the manual to learn how to set the timer.

What is the height of the Klarstein Skyscraper 3G?

The Klarstein Skyscraper 3G is approximately 1.2 meters tall, making it ideal for use in living and working spaces.

Can the fan be used in winter?

Yes, the Klarstein Skyscraper 3G can be used in winter to circulate warm air in the room, but it should not be used as a heat source.

Where can I find spare parts?

For spare parts, contact Klarstein customer service or visit their website for more information on available parts.

USER MANUAL Skyscraper 3G Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SICHERHEITSHINWEISE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Product Overview 11

Use and Controls 12

Modes and Settings 13

Cleaning and Care 13

Hints on Disposal 14

TECHNICAL DATA

Item number 10027939, 10027941, 10027942, 10027943

Power supply 220-240 V ~ 50-60 Hz

Power 50 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

• Remove the packaging and make sure that the appliance is intact. If in doubt, do not use it and contact qualified personnel only.
• Packaging materials (plastic bags, polystyrene, staples etc.) Must be kept out of the reach of children as they could be hazardous.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance operations must not be performed by children without supervision
• Before connecting the appliance, check that the appliance rating corresponds to the mains rating.
• This appliance must only be used for the purpose for which it has been manufactured. As a stand fan. The manufacturer is not responsible for any damage caused by improper or incorrect use.
• The installation/assembly of the device will be made according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible
• Before cleaning or carrying out maintenance on the appliance, disconnect it from the electrical mains by removing the plug from the electrical outlet or by switching off the system switch.
• If the appliance is faulty and/or operating incorrectly, switch it off without tampering with it. If the above is disregarded, the safety of the appliance may be compromised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not power the device using multiple sockets.
• Do not use adapters and/or extension cable
• The device must not be switched on using external timers and/or other remote control devices which are not specified in this manual.
• Do not use or store the device near heat sources (heaters, stoves).
• Do not dip the device in water or other liquids; in case the accidental fall in the water do not try to take it out, but first of all unplug immediately the power cable from the socket.
• If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.
• Plug and unplug the power cable with dry hands and hold it firmly.
• Before plugging the plug into a wall outlet, make sure that the unit is switched off.
  • Always unplug the power cable to avoid the overheating and avoid stretching it.
• Make sure that all air intakes and outlets are free and not covered so that the unit does not overheat.

• Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be damaged easily.

• Do not hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

• Place the device at a proper distance from the objects or surrounding walls making sure that its functioning will not cause accidental damages.
• Do not use the device near gas stoves or open flames in general.
• Do not use the device near curtains or textiles.
• Do not cover the device during functioning.
• Do not expose yourself for a long period to the air flow generated by the device because it can cause damage to the health
• If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place.
  • Always remember to unplug the power cable of the device if it is not used for a long period, before storing, cleaning or performing any maintenance operation.
• Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
• This product is intended for household use only and not for commercial / industrial or outdoor use.

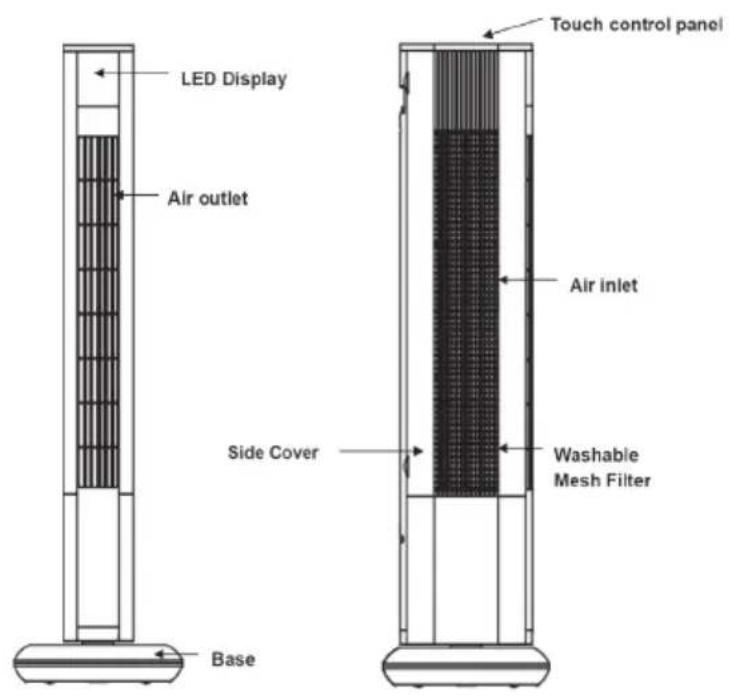

PRODUCT OVERVIEW

LED Display Air outlet Side Cover Base Touch control panel Air inlet Washable Mesh Filter

Front View
Side View

USE AND CONTROLS

• Unpacked all the packaging material from the box and insert the plug into a power supply outlet.
• Press the function keys on the Touch-control panel.
  • Blue LED display shows the current room temperature.
• All functions performed with the remote controller works identically to the control panel.

POWER	Turn the fan on by pressing the Power key, to turn off the fan just press the power key again.
SPEED	Adjust the fan speed to a desired level: HI, MID, LOW. The fan speed is default as LOW level.
MODE	Press this key to set the fan mode: Normal, Natural and Sleep.
TIMER	Press Timer key, to set between from 0.5 hour to 8 hours timer setting (0.5 h per setting). The Blue LED display will show the time being pressed. The fan will automatically shut off when the timer is over.
SWING	Press SWING key to turn on the oscillation function. Press once to turn off the function.

MODES AND SETTINGS

Natural mode: The device automatically changes the speed, starting from the speed that is selected when the mode is activated, to emulate the natural ebb and flow of the wind.

Sleep mode: Similar to the natural mode, the device starts at the speed that is selected when the mode is activated and automatically changes the speed, creating a natural wind-like ebb and flow. After every hour, the fan switches to the next lower speed level. Upon reaching the lowest speed, it remains in this silent mode until it is switched off by the sleep timer or manually.

CLEANING AND CARE

• Always unplug the unit before moving or servicing.
- Do not immerse the power cord, plug and the whole unit into water or rinse under the tap!
- Do not use detergent, gasoline, benzene, thinner, or other solvents to clean the unit to avoid damage of the appliance.
- Unplug the unit and wait until the fan stop running before cleaning.
- Use a damp cloth to clean the surface of the fan.
- Take off the Cover carefully and take out the Mesh Filter. You could wash the filter under running water. Rinse and dry the filter before place back.
- It is not recommended to take the fan apart, except the authorized agent or any agent qualified to undertake electrical repairs.
- If the fan will not be used for a long time, store it in the cool, dry, safety place and far away from children. Do not store the appliance in hot place and under sunshine.
• It is recommended to clean the fan every month.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
