10032421 - Fan Klarstein - Free user manual and instructions

Product type	Pedestal fan
Brand	Klarstein
Model	10032421
Power supply	220-240 V ~ 50-60 Hz
Power consumption	60 W
Number of speeds	3 (low, medium, high)
Oscillation function	Yes, integrated into speed positions
Lighting	LED light ring (on when operating)
Adjustable height	2 heights (with or without center tube)
Power cable	Length not specified, with plug
Materials	Plastic, metal
Protection	Protective grille
Operating temperature	Up to 40°C
Safety	Turn off and unplug before cleaning, do not immerse, do not use near heat sources
Assembly	Requires assembly of tubes and base (follow steps)
Cleaning	Soft dry cloth, do not disassemble the grille
Recycling	WEEE compliant, do not dispose with household waste
Intended use	Domestic, indoor
Compliance	CE (EMC, LVD, RoHS, ErP)
Dimensions (estimated)	Max height approx. 130 cm, base diameter approx. 30 cm
Weight (estimated)	Approx. 3.5 kg

Frequently Asked Questions - 10032421 Klarstein

How to assemble my Klarstein 10032421 fan?

Follow steps 1 to 7 in the manual. Place the weight under the base, assemble the tubes (upper, center, lower) by screwing them together, feed the power cable through, connect the motor plug and attach the fan to the upper tube. Use the provided screws. The fan can be used without the center tube for a lower height.

How to adjust speed and oscillation?

Use the rotary knob behind the motor. Positions 1, 2, 3 correspond to low, medium, and high speeds. Positions (1), (2), (3) add oscillation. Position 0 to stop.

What to do if the light ring does not turn on?

Check that the fan is plugged in and the knob is not at 0. If the ring remains off, contact customer service. Do not attempt to repair yourself.

Can I use the fan without the center tube for a lower height?

Yes, the manual indicates you can skip steps 2 and 3 of assembly and screw the upper tube directly into the lower tube for a shorter height.

How to clean the fan?

Before cleaning, turn off the appliance and unplug it. Use a soft dry cloth for external surfaces. Never disassemble the protective grille or immerse the appliance in water. Do not use solvents or chemical cleaners.

What to do if the fan stops working?

Check the socket and cable. Ensure the knob is not at 0. If the problem persists, turn off immediately and contact a specialist or the manufacturer. Do not attempt to repair yourself.

Can the fan be used outdoors?

No, the appliance is designed for domestic indoor use. Do not use outdoors or near heat sources or flammable substances.

How to store the fan after the season?

Unplug it, clean with a dry cloth, put it back in its original packaging, and store in a dry place.

Can I run the fan continuously?

Yes, but ensure air inlets and outlets are not obstructed to avoid overheating. Do not leave it unattended if children are present.

What does the light ring mean?

The light ring turns on when the fan is operating and off when turned off. It simply indicates that the appliance is powered.

USER MANUAL 10032421 Klarstein

m = 311 ;

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 11

Declaration of Conformity 11

Safety Instructions 12

Hints on Disposal 13

Appliance Components 14

Assembly 15

Operation 18

Care and Cleaning 18

TECHNICAL DATA

Item number 10032421
Power supply 220-240 V ~ 50-60 Hz
Power consumption 60 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

• Remove the packaging and make sure that the appliance is intact. If in doubt, do not use it and contact qualified personnel only.
• Packaging materials (plastic bags, polystyrene, staples etc.) must be kept out of the reach of children as they could be hazardous.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance operations must not be performed by children without supervision
• Before connecting the appliance, check that the appliance rating corresponds to the mains rating.
• This appliance must only be used for the purpose for which it has been manufactured, i.e. as a stand fan. The manufacturer is not responsible for any damage caused by improper or incorrect use.
• The installation/assembly of the device will be made according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible
• Before cleaning or carrying out maintenance on the appliance, disconnect it from the electrical mains by removing the plug from the electrical outlet or by switching off the system switch.
• If the appliance is faulty and/or operating incorrectly, switch it off without tampering with it. If the above is disregarded, the safety of the appliance may be compromised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  DO NOT power the device using multiple sockets.
  DO NOT use adapters and/or extension cable
• The device must not be switched on using external timers and/or other remote control devices which are not specified in this manual.
  DO NOT use or store the device near heat sources(heaters, stoves etc.).
• DO NOT dip the device in water or other liquids; in case the accidental fall in the water DO NOT try to take it out, but first of all unplug immediately the power cable from the socket.
• If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.
• Plug and unplug the power cable with dry hands and hold it firmly.
• Before plugging make sure the start button of the device is in the "OFF" position (turned off).
• Always unplug the power cable to avoid the overheating and avoid stretching it (do not pull it, tug it or use it to drag the device to which is connected).

• Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be damaged easily.

• DO NOT hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

• Place the device at a proper distance from the objects or surrounding walls making sure that its functioning will not cause accidental damages.
  DO NOT use the device near gas stoves or open flames in general.
  DO NOT use the device near curtains or textiles.
• DO NOT cover the device during functioning.
  DO NOT expose yourself for a long period to the air flow generated by the device because it can cause damage to the health
• If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place.
• Always remember to unplug the power cable of the device if it is not used for a long period, before storing, cleaning or performing any maintenance operation.
  Max. ambient temperature 40^
• Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
• This product is intended for household use ONLY and not for commercial / industrial or outdoor use.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

APPLIANCE COMPONENTS

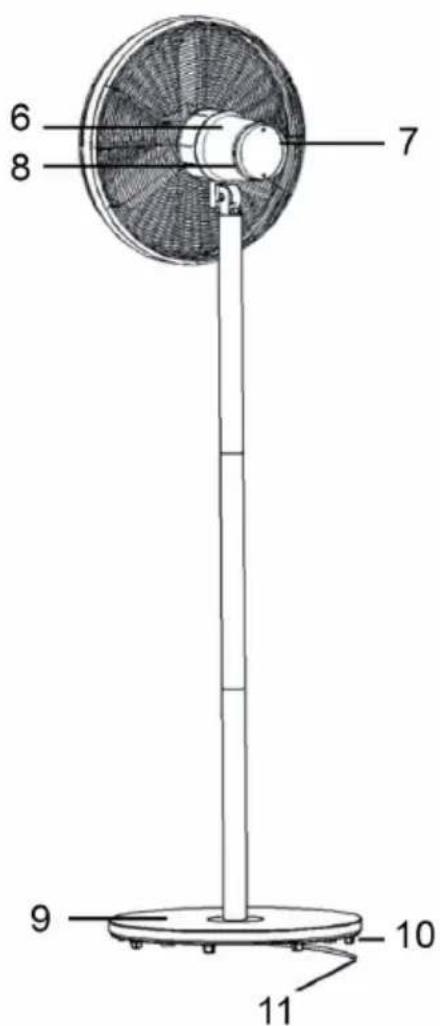

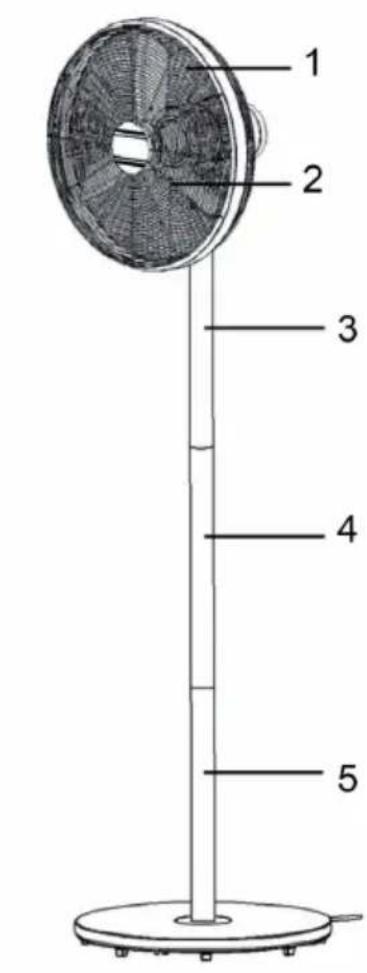

1 Grid 7 Off/Speed knob
2 Blades 8 Light ring
3 Upper tube 9 Base
4 Middle tube 10 Weight of the base
5 Lower tube 11 Power cord
6 Motor

ASSEMBLY

1	2
Place the weight of the base under the base and insert the lower tube through the holes of them. Fix the parts together by using the nut provided.	Connect the middle tube to the lower tube by screwing them together.
3	4
Connect the upper tube to the middle tube by screwing them together. The upper tube has 2 holes on the top.	Insert the power cord through the base, the bottom tube, the middle tube and the upper tube. The connector of the power cord should come out a little bit from the upper tube.
5	6
Link the connector coming out from the upper tube to the connector coming out from the head of the fan and fix them by rotating the plastic nut.	Fix the head of the fan to the upper tube by using the 2 screws provided.
7
	Fix the power cord under the base by using the cable holder and the 2 screws provided.

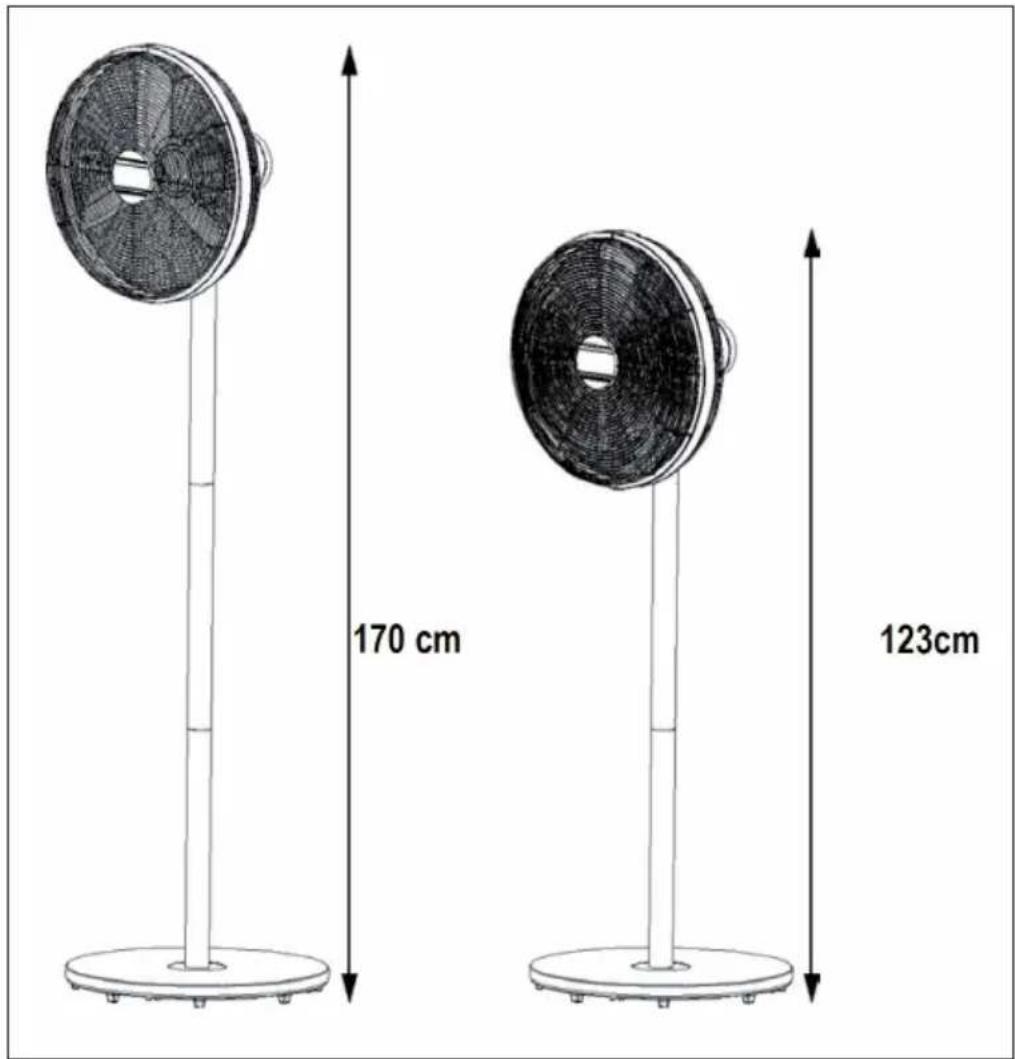

The fan can be installed at two heights depending on whether or not the middle tube is used:

If the smaller size is needed please avoid the point 2 and 3 of assembly and proceed to connect the upper tube to the lower tube by screwing them together.

ATTENTION: do not connect the fan to electrical supply until the unit is fully assembled.

OPERATION

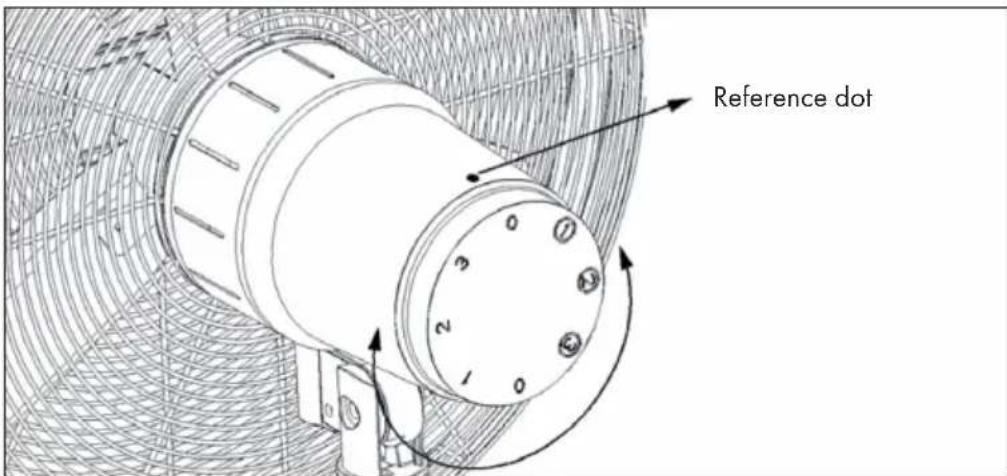

Place the fan on a flat and stable surface. Make sure the Off/Speed knob is in Off position ("0") then plug it into a correct socket. To select the desired speed it's enough to rotate the Off/Speed knob; the desired speed must be aligned at the reference dot place on the motor. If the fan is working the light ring will be on; if the fan is off, the light ring will be off.

0	off	2	medium speed
1	minimum speed	3	maximum speed
(1)	minimum speed with left/right oscillation
(2)	medium speed with left/right oscillation
(3)	maximum speed with left/right oscillation

CARE AND CLEANING

Note: Before carrying out the regular cleaning operations turn the fan off and unplug it.

• For external cleaning use a soft and dry cloth.
  DO NOT disassemble the fan: this fan cannot be disassembled. DO NOT dip the device in water, or splash it with any other liquids.
  DO NOT use solvents or any other chemical products for cleaning it.
• Pack the fan in the original box and place it in a dry, well-ventilated place when it is not to be used for a long period of time.
