USER MANUAL Classic EZ09002S ORIENT

MECHANICAL WATCH WITH POWER RESERVE INDICATOR

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

WARNING

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.

② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.

③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.

CAUTION

④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.

⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.

⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.

⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.

⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.

⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person sweeping or cleaning a surface (no text or symbols)

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is “☐FT01002B☐”, the caliber number is “FT”.

2. Searching by the case code

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.
B: If the case code is 8 or 9 digits, the first three digits indicate the movement number. Search the caliber number corresponding to the movement number referring to the correspondence table.

Example A

TIBAO 20187 20187 COTOMA INCH F301-D1 CA Case code

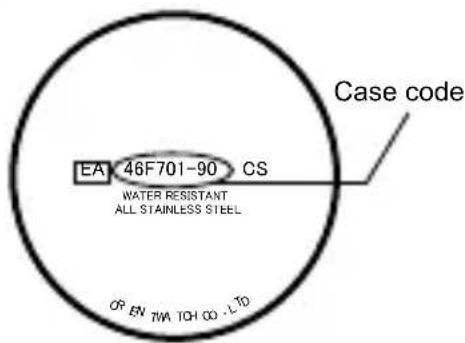

Example B

Case code EA 46F701-90 CS WATER RESISTANT ALL STAINLESS STEEL OR EN TWA TOH CO - LTD

Example A: When the case code is "FT01-D1", the caliber number is "FT".

Example B: When the case code is "46F701-90", the movement number is "46F". The caliber number corresponding the number will be found "EW" on the table.

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

◆ SPECIFICATIONS

Caliber Number of Jewels Date Indicator Daily accuracy Remark1*
EW 46F 21		-+25~-15s/day -
EX 46G 21		○	+25~-15s/day	10:00 p.m.-2:00 a.m.
EZ 46J 23 Hand Indicating type			+25~-15s/day	10:00 p.m.-2:00 a.m.
FD 46N 21		○	+25~-15s/day	10:00 p.m.-2:00 a.m.
FH 46S 23		-+25~-15s/day -
FM 46U 21 Hand Indicating type			+25~-15s/day	10:00 p.m.-2:00 a.m.
FR 46X 23		-+25~-15s/day -
FT 46R 21		-+25~-15s/day -

(1) Vibrations: 21,600 vibrations/hour
(2) Running time: More than 40 hours
(3) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following coditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
- Due to the characteristics of the automatic winding watch, the time may deviate from the stated “daily accuracy” depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

CAUTION

* Avoid setting the date during the time periods listed in “Remark1” above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

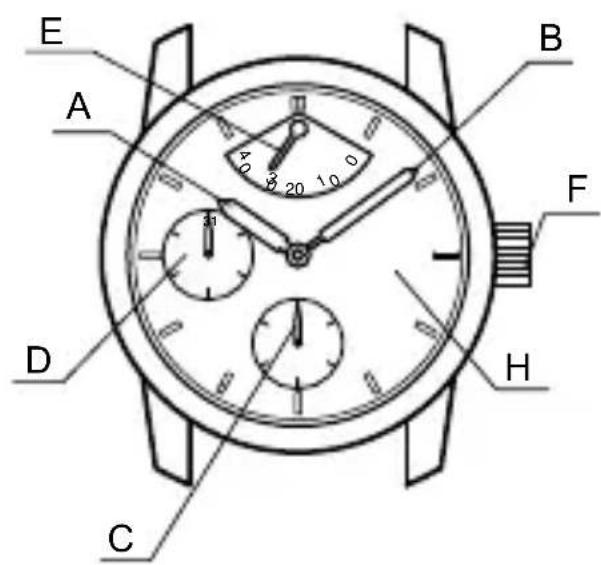

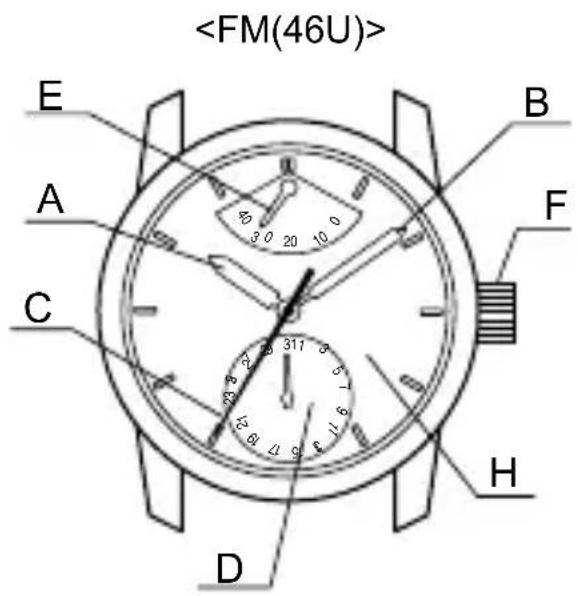

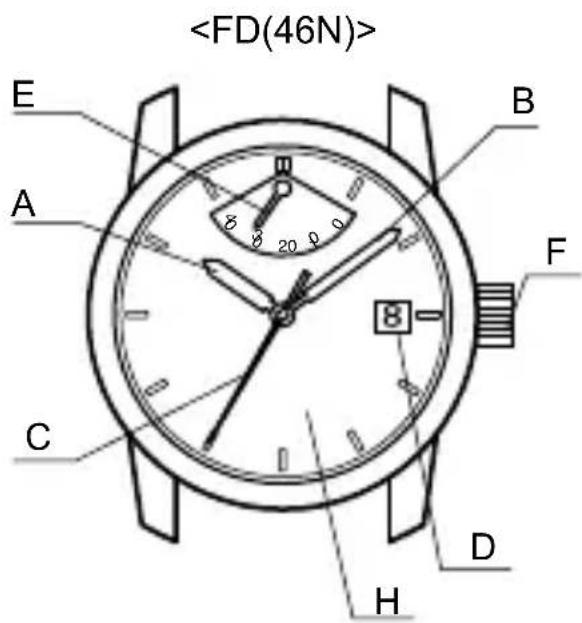

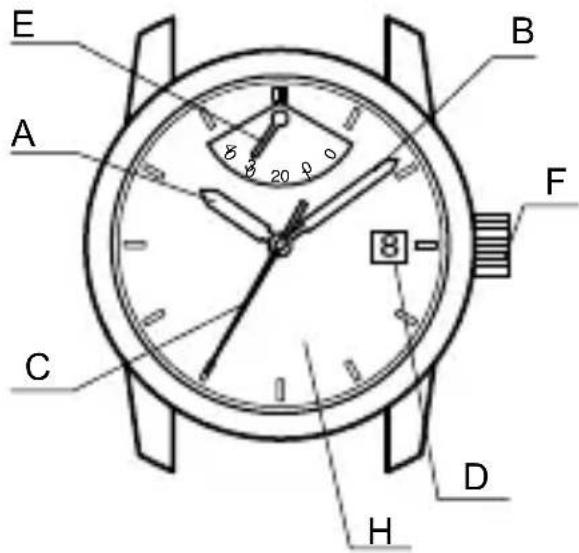

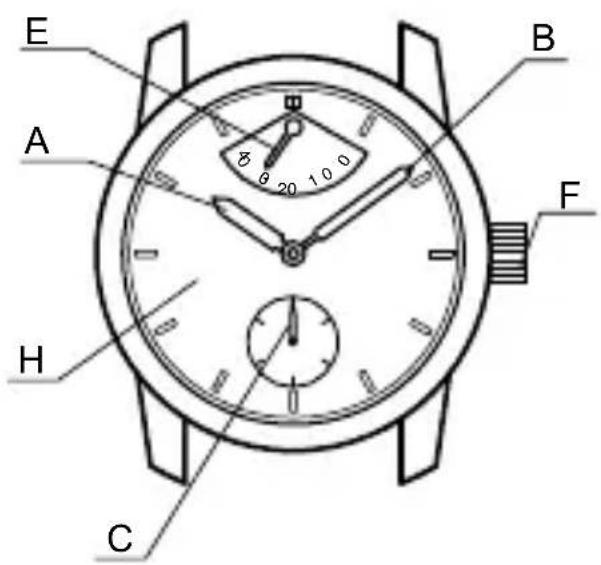

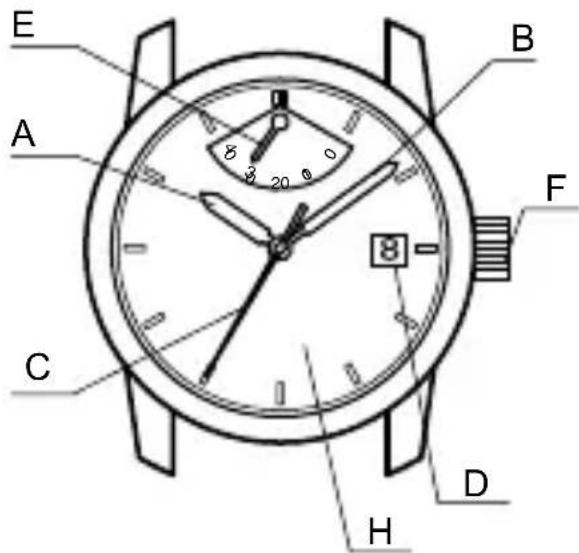

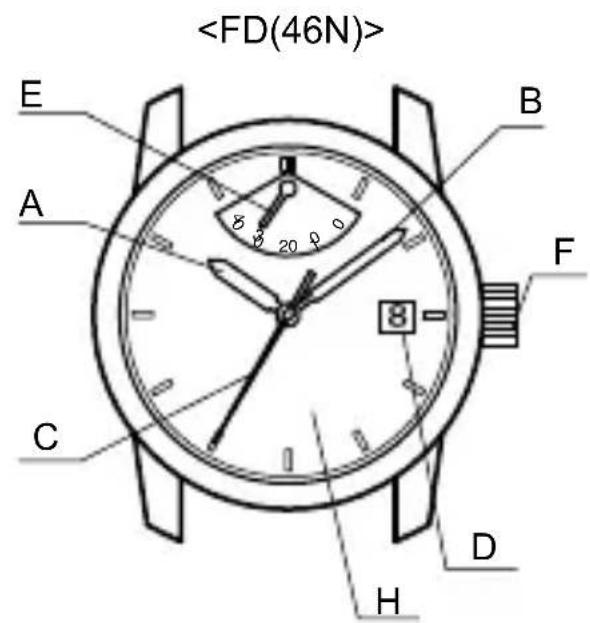

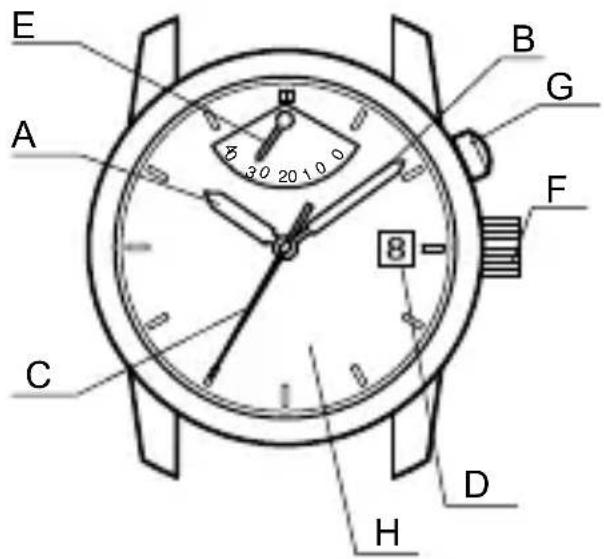

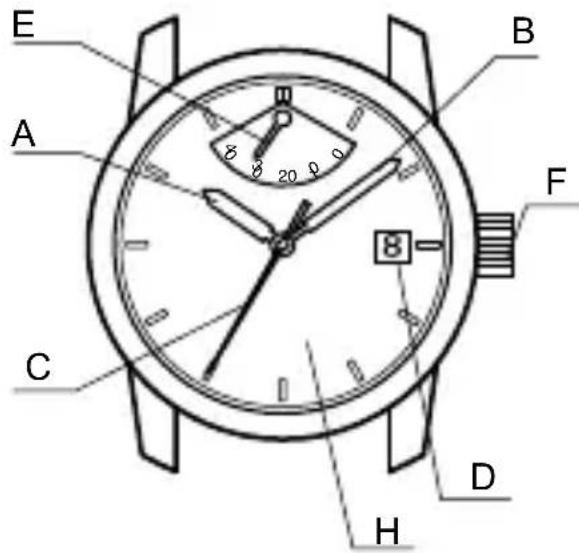

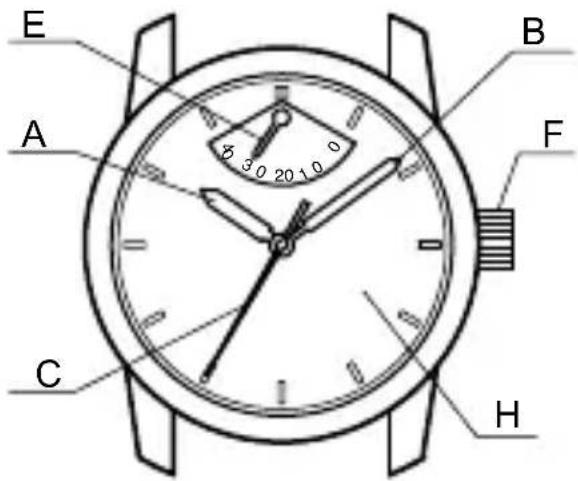

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Hour hand
B: Minute hand
C: Second hand
D: Date
E: Power reserve hand
F: Crown
G: Click button
H: Dial

E A 5 3 0 20 10 0 B F C H

E A B G F C 8 D H

E A B 5 20 0 F 8 C D H

* The position of the crown, date indicator, etc. may vary on some models.

E A C B F H D

E A B 6 20 10 0 F H C

E A 40 35 20 10 0 B F D H C

* The position of the crown, date indicator, etc. may vary on some models.

◆ AUTOMATIC WINDING MECHANISM

(1) This is an automatic winding mechanical watch.
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.
(3) If your watch stops, swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.

(4) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

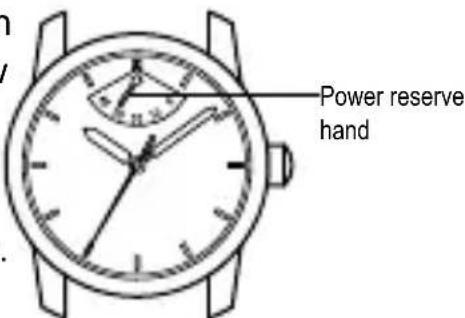

◆ POWER RESERVE INDICATOR

The power reserve indicator shows how much the watch is wound, allowing you to see how much longer the watch will run at a glance. The time pointed to by the power reserve hand is the remaining time.

The remaining time shown is only an approximation. The time shown may be different from actual remaining time.

Power reserve hand

This model has an automatic-winding system which comes with a power reserve indicator function. The mainspring will be automatically wound by your natural arm movements while you wear it on your wrist. The power reserve hand is pointing to the fully-wound position (40H). The amount the watch is wound will change with the frequency of your arm movements and the length of time you wear the watch, so the hand will not always point to the fully-wound

position. If you remove the watch from your arm and do not wind manually, the power reserve hand will move toward zero as time passes.

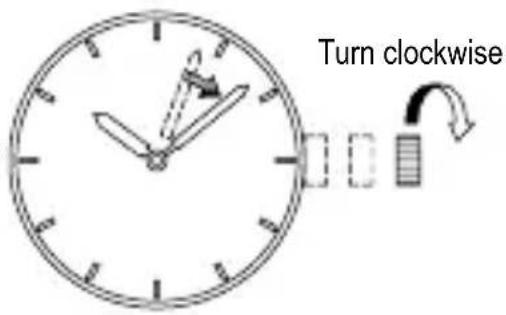

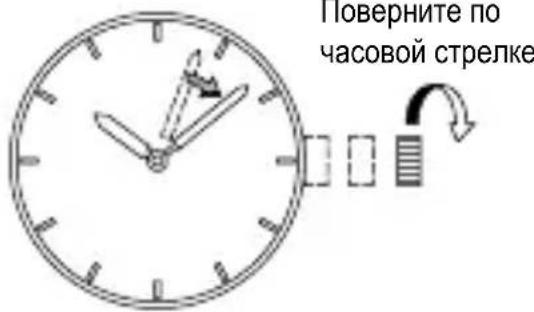

◆ HOW TO SET THE TIME [EZ(46J), FD(46N), FM(46U)]

(1) Pull out the crown to the second click. The second hand does not stop.

Diagram of a clock face with directional arrow indicating time measurement or sequence

(2) Turn the crown clockwise and set the current time.

Since this watch comes with a calendar, make sure that you set either a.m. or p.m. without fail.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

Turn clockwise

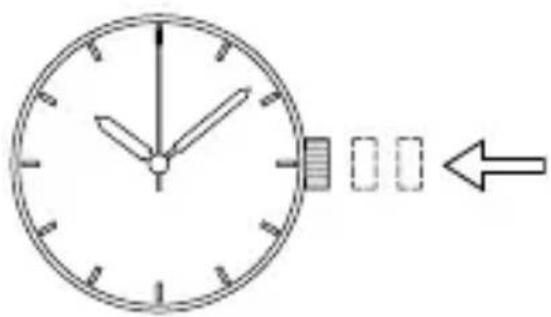

(3) Press the crown in to the normal position.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

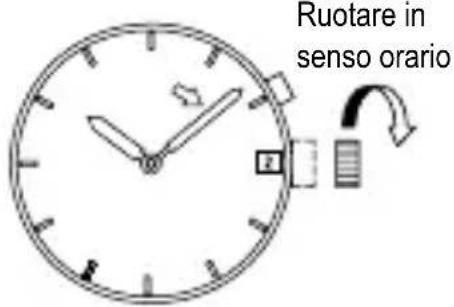

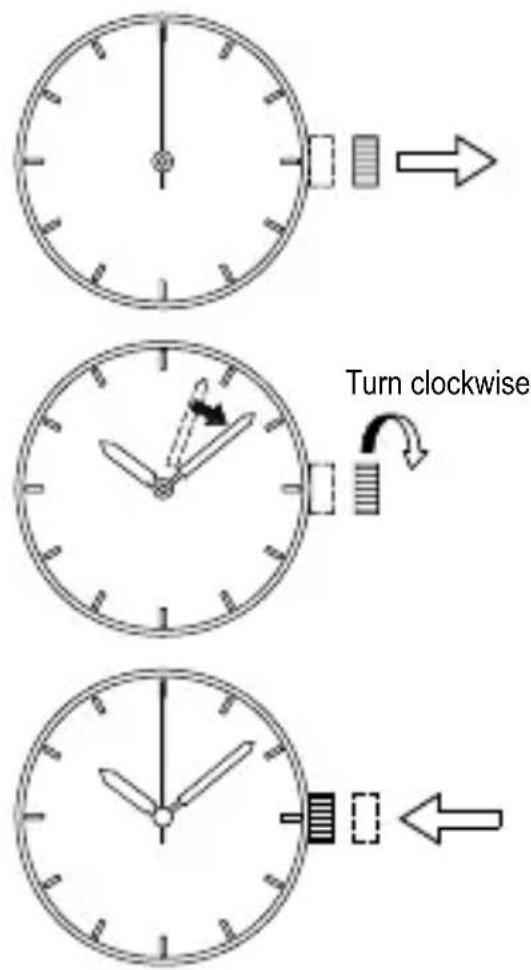

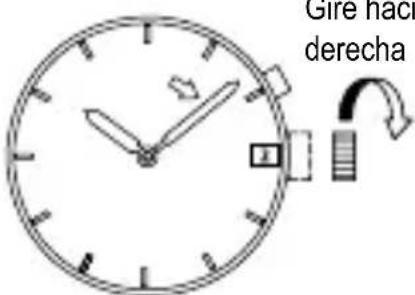

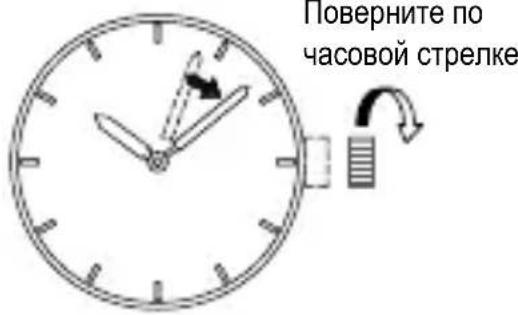

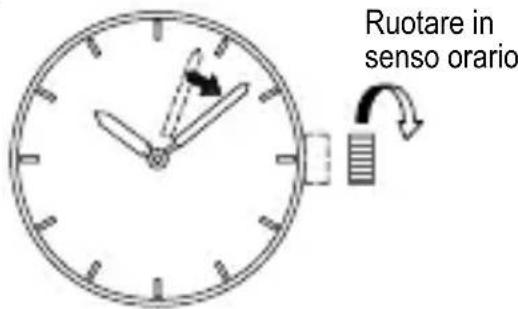

◆ HOW TO SET THE TIME [EW(46F), FH(46S), FT(46R), FR(46X)]

(1) Pull the crown out. (The second hand does not stop.)

(2) Turn the crown clockwise and set the current time.

When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(3) Press the crown in to the normal position.

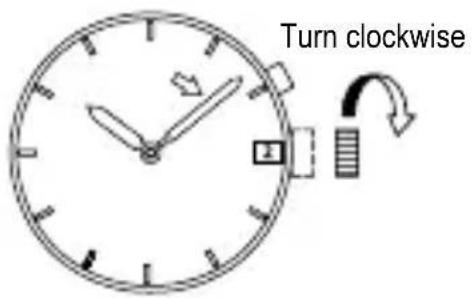

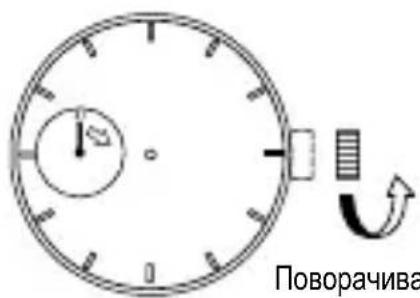

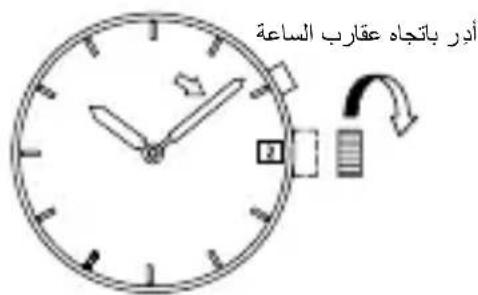

◆ HOW TO SET THE TIME & THE DATE [EX(46G)]

(1) Press the click button and set the date of the previous day.

* For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

* The date can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

(2) Pull the crown out. (The second hand does not stop.)

(3) Turn the crown clockwise and set the current time.

* This watch comes with a calendar. Be sure to set either a.m. or p.m. The date changes at [twelve o'clock midnight].

* When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the normal position.

* About date correction at month's end:

Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

Simple analog clock face with hour and minute hands (no numbers or text)

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Turn clockwise

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

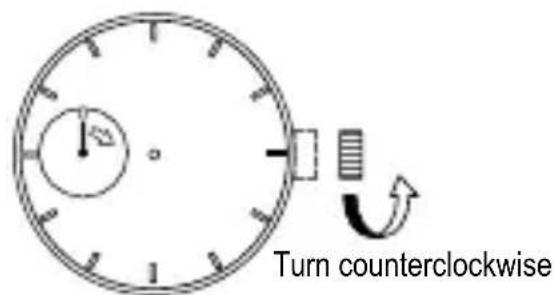

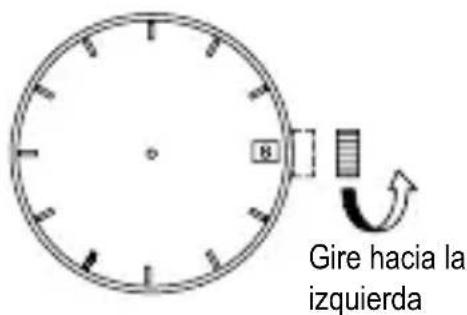

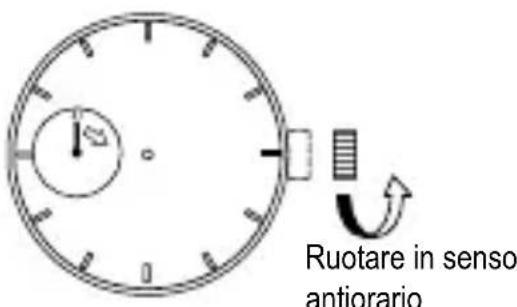

◆ HOW TO SET THE DATE [EZ(46J), FM(46U)]

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

(2) Turn the crown counterclockwise until you reach today's date.

(3) Press the crown in to the normal position.

Simple analog clock face with hour and minute hands, showing time approximately 2:30 (no text or symbols beyond clock face markings)

Turn counterclockwise

Diagram of a clock face with hour and minute hands, showing time scale and directional arrow

* About date correction at month's end: Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

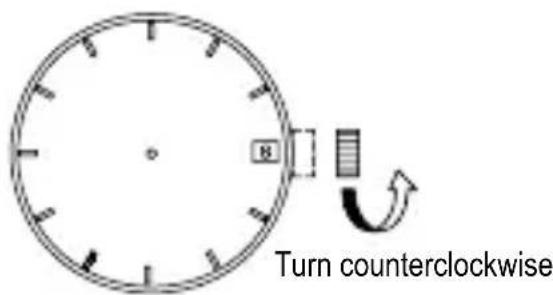

◆ HOW TO SET THE DATE [FD(46N)]

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

(2) Turn the crown counterclockwise until you reach today's date.

(3) Press the crown in to the normal position.

Simple analog clock face with hour and minute hands, showing a small object near the center (no text or symbols)

Turn counterclockwise

Simple line drawing of a clock face with an arrow pointing to the left (no text or symbols)

* About date correction at month's end:

Date correction is necessary for months with 30 days or less.

In this case, set the date to the [1st day] on the first day of the next month.

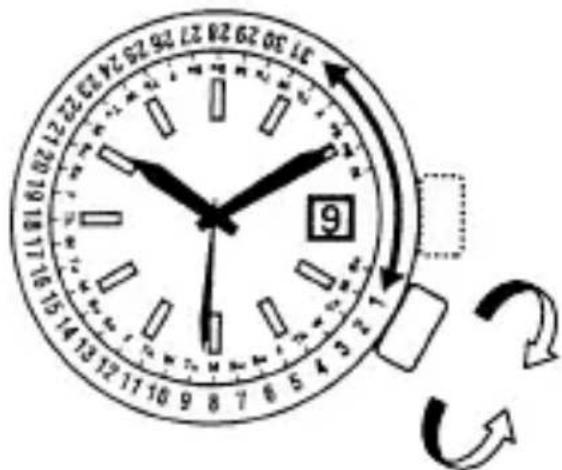

◆ HOW TO SET THE MONTHLY CALENDAR

Some models come with a calendar function which uses an inner ring or bezel on the exterior of the case to indicate the date.

The monthly calendar can be used by turning the crown to set the rotating ring inside the watchcase and aligning it with the day of the week that is printed on the dial.

Turn the crown to align the first day of the month to the appropriate day of the week.

* Note that when setting the first day of the month, if the days at the end of the month (31st, etc.) are aligned with the section that does not have the days of the week printed on the dial (3 - 4 o'clock side), days of the week will not be indicated at the end of the month.

31:30 12:30 12:27 12:26 12:25 12:24 12:23 12:22 12:21 12:20 9

* The position of the inner ring crown and details of the date indicator may vary depending on the model.

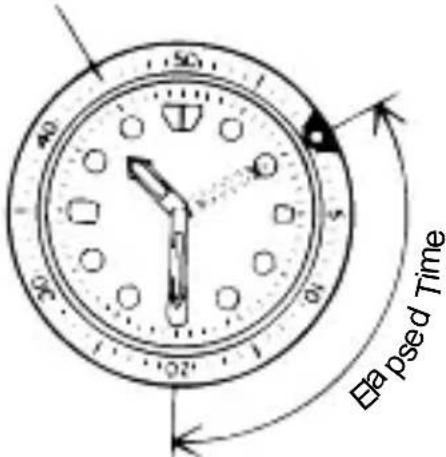

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock.

Figures on the bezel could also help you to read the current time easily.

Rotating bezel

Eapsed Time

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator bezel does not apply to some models.

DEUTSCH

MECHANISCHE UHR MIT GANGRESERVEZEIGER

BEDIENUNGSANLEITUNG

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperatur

E A B G F C 8 D H

E A B C F 8 D H

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

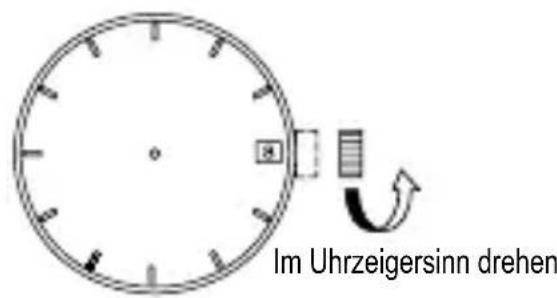

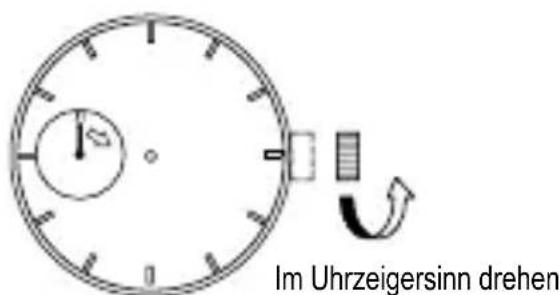

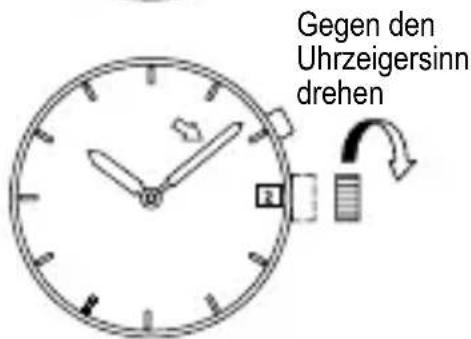

◆ MODELLE MIT VERSCHRAUBBARER KRONE

Diagram of a clock face with hour and minute hands, showing a 3:5 ratio between 100 and 240, followed by an arrow indicating rightward movement.

Simple analog clock face with hour and minute hands, showing time approximately 2:30 (no text or symbols beyond clock face markings)

Diagram of an analog clock showing time and duration with a directional arrow indicating leftward movement.

Simple analog clock face with hour and minute hands (no numbers or text)

Simple line drawing of a circular dial with tick marks and an arrow pointing right (no text or symbols)

Simple line drawing of a circular dial with directional arrows indicating left and right motion (no text or symbols)

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Simple analog clock face with hour and minute hands, no visible text or numbers

Simple line drawing of a clock face with hour and minute hands, showing an arrow pointing right (no text or symbols)

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple line drawing of a person using a golf club to dig (no text or symbols)

(3) Magnétisme

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(5) Température

E A B G F C 8 D H

E A B 5 20 0 C F 8 D H

Line drawing of a wristwatch face showing dial, wrist, and frame (no text or symbols)

Diagram of a clock face with an arrow indicating rightward movement, showing time and duration.

Simple analog clock face with hour and minute hands, no text or symbols present

◆ RÉGLAGE DE L'HEURE [EW(46F), FH(46S), FT(46R), FR(46X)]

Simple analog clock face with hour and minute hands, no text or symbols present

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ RÉGLAGE DE L'HEURE ET DE LA DATE [EX(46G)]

Simple analog clock face with hour and minute hands, no text or numbers visible

Simple line drawing of a circular dial with tick marks and an arrow pointing right (no text or symbols)

Simple line drawing of a clock face with an arrow pointing to the left (no text or symbols)

Diagram of a clock face with hour and minute hands, showing time scale and directional arrow

Tournez dan

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Tournez da inverse de

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Illustration of a person using a golf club to dig (no text or symbols)

(3) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Temperatura

E A B G F 8 C D H

E A B C F 8 D H

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ MODELLO DI TIPO CON CORONA AD AVVITAMENTO

Technical diagram of a wristwatch with dual dials and caliper markings

Diagram showing a clock face with hour and minute hands, followed by an arrow indicating time or duration.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 3:00 (no text or symbols)

◆ IMPOSTAZIONE DELL'ORA [EW(46F), FH(46S), FT(46R), FR(46X)]

Simple analog clock face with hour and minute hands, showing time measurement (no text or numbers)

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Simple analog clock face with hour and minute hands (no numbers or text)

Simple line drawing of a circular dial with tick marks and an arrow pointing right (no text or symbols)

Simple line drawing of a circular dial with tick marks and an arrow pointing to it (no text or symbols)

Simple analog clock face with hour and minute hands, no text or symbols present

Ruotare in senso antiorario

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Ruotare in antiorario

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple line drawing of a person riding a three-wheeled vehicle with motion lines indicating speed (no text or symbols)

(5) Temperaturas

Simple line drawing of a person using a golf club to walk (no text or symbols)

E A B G F C 8 D H

E A B 5 20 0 F 8 C D H

Illustration of a hand holding a wristwatch with motion arrows indicating rotation (no text or symbols)

Diagram of a clock face with an arrow indicating rightward movement, showing time measurement and directional arrow.

Simple analog clock face showing 3 o'clock with hour and minute hands, next to a blank time box and arrow (no text or symbols)

◆ PUESTA EN HORA [EW(46F), FH(46S), FT(46R), FR(46X)]

Simple analog clock face with hour and minute hands (no numbers or text)

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a circular dial with tick marks and an arrow pointing to the right side (no text or symbols)

Simple line drawing of a clock face with hour and minute hands, showing an arrow pointing right (no text or symbols)

Simple line drawing of a circular dial with a pointer and an arrow pointing left (no text or symbols)

Simple analog clock face with hour and minute hands, showing 2:05 (no text or numbers)

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(5) Температура

E A B G F 8 C D H

E A B 20 0 F C B D H

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ МОДЕЛИ С ЗАВИНЧИВАЮЩЕЙСЯ ГОЛОВКОЙ

Line drawing of a wristwatch with dual dials and dial (no text or symbols)

Diagram of a clock face with an arrow indicating rightward movement, showing time measurement.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

◆ УСТАНОВКА ВРЕМЕНИ [EW(46F), FH(46S), FT(46R), FR(46X)]

Diagram of a clock face with an arrow indicating rightward movement, showing time measurement.

Diagram of an analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ УСТАНОВКА ВРЕМЕНИ И ДАТЫ [EX(46G)]

Simple line drawing of a clock face with hour and minute hands (no numbers or text)

Simple line drawing of a circular dial with directional arrows indicating movement (no text or symbols)

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple analog clock face with hour and minute hands, showing time approximately 2:30 (no text or symbols beyond clock face markings)

Поворачива

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Поворачива

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple line drawing of a circular clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a clock face with hour and minute hands, showing no text or symbols

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

Simple line drawing of a clock face with no text or symbols

Simple line drawing of a circular dial with tick marks and an arrow pointing right (no text or symbols)

Diagram showing a circular dial with directional arrows and a label 'S' on the left side.

Diagram showing a clock face with hour and minute hands, followed by an arrow indicating rightward movement.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

Illustration of a hand holding a wristwatch with motion arrows indicating rotation (no text or symbols)

E A B G F C 8 D H

			ملاحظة ١٠*النقطياليو Municipal Tournamentόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουόουός
-	10~20+			EW46F21-
10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:	10~20+	○		EX46G21
10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:	10-10+			EZ46J23-
10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10.10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:10:
10-20+				FD46N21
10-20+				FH46S23-
10-20+				FM46U21-
10-20+				FR46X23-
10-20+				FT46R21-

Simple line drawing of a person using a golf club to dig (no text or symbols)

(٢)prec#

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)
