K5735 - Wristwatch Calypso - Free user manual and instructions

Brand	Calypso
Model	K5735
Product Type	Digital Watch
Water Resistance	50 meters (5 ATM)
Power Source	Button cell battery (not specified, likely CR2032)
Display	LCD with electroluminescent (EL) backlight
Main Functions	Time, stopwatch, alarm, calendar, hourly chime
Buttons	A (Adjust), B (Mode), C (Backlight), D (Start/Stop)
Time Format	12H / 24H
Stopwatch	Unit: 1/100 second, capacity: 0'00 to 23:59:59
Alarm	Daily, 60-second duration, repeats every 5 minutes
Hourly Chime	Enable/disable (hourly alert)
Calendar	Day, month, date, year (display on demand)
Backlight	Activation via button C, 3-second duration
Care and Cleaning	Soft cloth and clean water; avoid chemicals and soap
Safety	Do not open the case, avoid strong shocks, extreme temperatures, electric fields
Repairability	Spare parts not specified; end-of-life recycling via selective collection

Frequently Asked Questions - K5735 Calypso

How do I set the time on my Calypso K5735 watch?

Press B to enter setting mode. The seconds flash. Press D to reset them to zero. Use A to change selection (minutes, hours, date, month, day of week) and D to increase values. Press B to return to time mode.

How do I use the stopwatch?

In stopwatch mode (selected with B), press D to start and stop. Press A to reset. For a split time, press A while the stopwatch is running; the internal counter continues. Press A again to return to total time.

How do I set the alarm?

Enter alarm mode with B. The hours flash: use D to adjust. Press A to switch to minutes, then D to set. Press B to confirm and return to alarm mode.

How do I stop the alarm when it sounds?

Press D to stop it temporarily (it will ring again in 5 minutes). Press A to stop it completely until the next day.

How do I activate the backlight?

From any mode, press button C to turn on the EL backlight for 3 seconds.

How do I enable or disable the hourly chime?

In time setting mode, hold A to access the alarm screen, then press B to enable/disable the chime.

How do I view the calendar (year, month, date)?

In time setting mode, hold D to display the year, month, and date.

What should I do if water or condensation appears inside the watch?

Have the watch checked immediately by a professional. Water can corrode internal electronic components. Avoid using the buttons underwater.

How do I clean my watch?

Use a soft cloth and clean water only. Avoid chemicals, especially soap, which can damage the case.

What precautions should I take to avoid damaging the watch?

Avoid strong shocks, extreme temperatures, strong electric fields, and static electricity. Never attempt to open the case or remove the back cover.

USER MANUAL K5735 Calypso

EL Backlight Stopwater Calendar 100M Water Alarm Chime Battery (1616)

Resistant

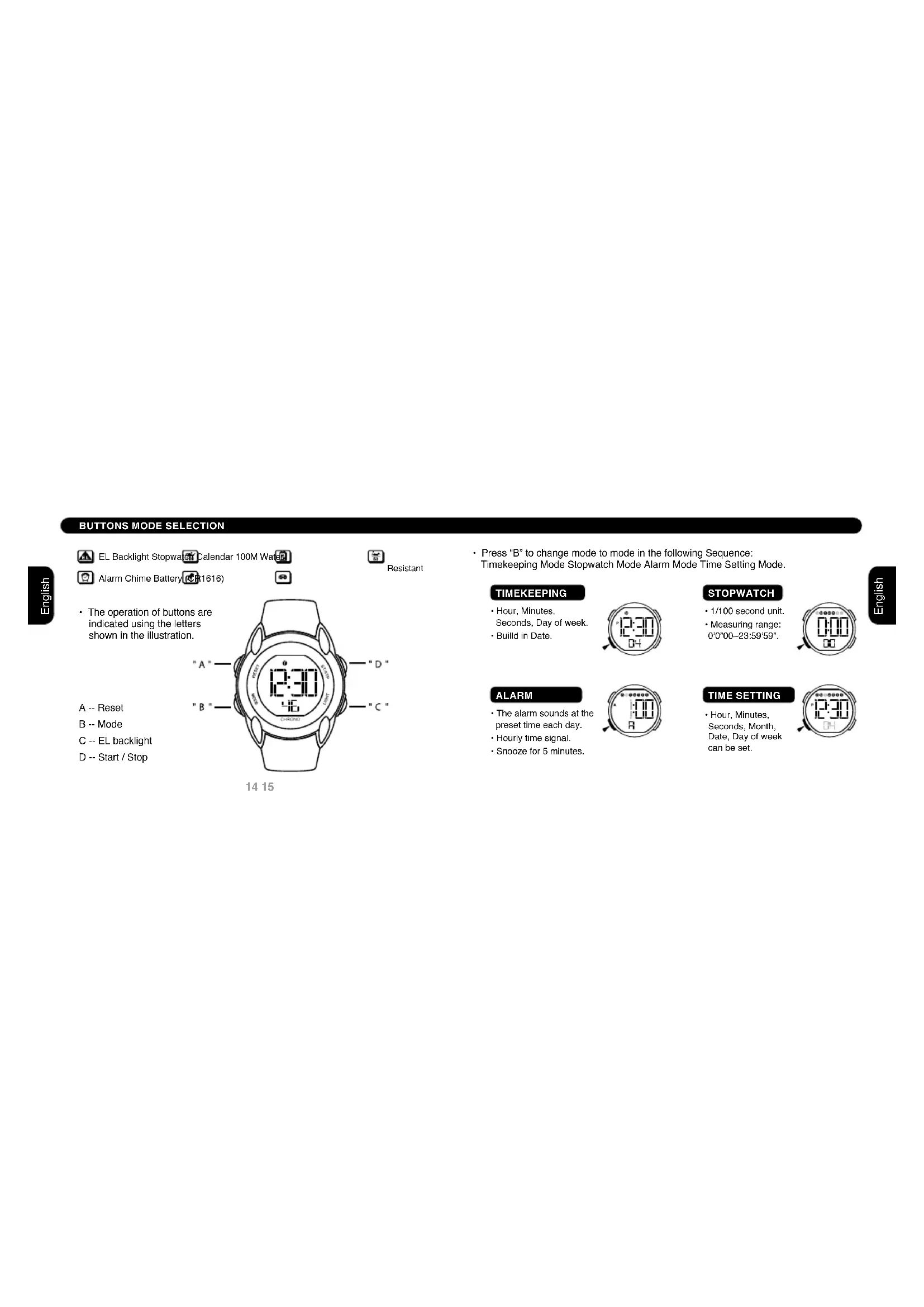

• The operation of buttons are indicated using the letters shown in the illustration.

A--Reset

B--Mode

C--EL backlight

D--Start/Stop

1415

• Press "B" to change mode to mode in the following Sequence: Timekeeping Mode Stopwatch Mode Alarm Mode Time Setting Mode.

TIMEKEEPING

• Hour, Minutes, Seconds, Day of week.
• Build in Date.

ALARM

The alarm sounds at the preset time each day. Hourly time signal.

• Snooze for 5 minutes.

STOPWATCH

1/100 second unit.
- Measuring range:
0'0"00~23:59'59".

TIME SETTING

• Hour, Minutes, Seconds, Month, Date: Day of week can be set.

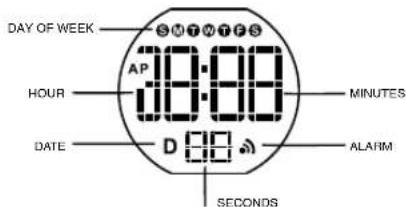

DISPLAY TIMEKEEPING

The screen shown in below:

BACKLIGHT

The backlight that uses an EL (electroluminescent) cause the display to glow for easy reading in the dark.

Use EL Backlight

• In any mode, press "C" to illuminate the display about 3 seconds.

Display The Date

• In the timekeeping mode, press and hold "D" to display the date.

On/Off The Alarm

1. In the timekeeping mode, press and hold "A" display the alarm time.
2. Press "D" at the same time to on/off the alarm.

On/Off The Chime

1. In the timekeeping mode, press and hold "A" display the alarm time;
2. Press "B" at the same time to on/off the chime.

ALARMSTOPWATCH

A Lap Time Split Time

1. In the stopwatch mode, press "D" to start the stopwatch.
2. To stop the stopwatch by pressing "D" again.
3. Press "A" to reset the stopwatch.

1. In the stopwatch mode, press "D" to start the stopwatch.
2. Press "A" to display the split time, stopwatch timing continues internally.
3. Press "A" to clear the split time and to continue time measurement.
4. Repeat step 2 and 3, you can measure the multi split time.
5. Press "D" to stop the stopwatch.

Alarm Time Setting

1. In the alarm mode, the hour to flash.
2. Press "D" to increase the hour, press and hold to increase at high speed.
3. Press "A" to select the minutes.
4. Press "D" to increase the minutes, press and hold to increase at high speed.
5. Press "B" to return the timekeeping mode, after you set.

Snoopze

The alarm sounds at preset time each day for about 60 seconds.
Press "D" to break it, the alarm continues after 5 minutes.
- Press "A" to stop it.

TIME SETTING

1. In the time setting mode, the seconds to flash.
2. Press "D" to reset the seconds.
3. Press "A" change to the next selection.
4. Press "D" to increase the number, press and hold to increase at high speed.

1. Repeat step 3 and 4, the selection in the following sequence: Seconds Minutes Hour Date Month Day of week
2. Press "B" to return the timekeeping mode, after you set. 12/24H formats can be selected, when hour setting.

CARE OF YOUR WATCH

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and static electricity.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.
