Technical Features	Hi-Fi system with Bluetooth connectivity, CD player, and USB input.
Output Power	2 x 20 W RMS.
Frequency Response	40 Hz - 20 kHz.
Usage	Ideal for listening to music at home, compatible with various audio formats.
Maintenance	Regularly clean the grills and surfaces, check audio connections.
Safety	Do not expose to moisture, use an appropriate power cable.
General Information	Compact dimensions, modern design, remote control included.

Frequently Asked Questions - ORC 610 DABB OK

How do I connect my OK ORC 610 DABB to a TV?

Use an RCA audio cable to connect your TV's audio output to the audio input of your OK ORC 610 DABB.

Why is the sound of my OK ORC 610 DABB distorted?

Check that the connection cables are properly plugged in and not damaged. Also ensure the volume is not too high.

How do I reset my OK ORC 610 DABB to factory settings?

Press and hold the "Power" and "Volume -" buttons simultaneously for about 5 seconds until the display shows "Reset".

My OK ORC 610 DABB won't turn on, what should I do?

Make sure the device is properly plugged into a working power outlet. Also check the fuse if necessary.

How do I update the firmware of my OK ORC 610 DABB?

Visit the manufacturer's official website to download the latest firmware version and follow the provided instructions for the update.

My OK ORC 610 DABB does not detect Bluetooth devices, what should I do?

Make sure Bluetooth is enabled on your device and it is within range. Try turning Bluetooth off and on again on the OK ORC 610 DABB.

How do I adjust the bass and treble on my OK ORC 610 DABB?

Use the "Bass" and "Treble" controls on the front panel or remote control to adjust the levels according to your preferences.

My OK ORC 610 DABB does not play CDs, what should I do?

Check that the CD is clean and not scratched. Also try other CDs to determine if the problem persists.

How do I clean my OK ORC 610 DABB?

Use a soft, dry cloth to clean the outside of the device. Never use harsh chemical products.

USER MANUAL ORC 610 DABB OK

Black portable electronic device with dual speakers and a digital display (no visible text or symbols)

DS GEBRAUCHSAMÄKSIUNG 1 DL RIGHT & SPHERE 12 EN USER MANUAL 21

63 MANUAL DE INSTRUCCIONES 12 78 MODE O'EMPLOY 77 95 POLIASZENÁLÓ KID KÓNYV 45

A B C D E F G H I/K W V U T S

L M O A B C D E F G H I J K L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33 L34 L35 L36 L37 L38 L39 L40 L41 L42 L43 L44 L45 L46 L47 L48 L49 L50 L51 L52 L53 L54 L55 L56 L57 L58 L59 L60

Technical diagram of a vacuum cleaner with labeled parts and connection points

14.096012.0785A.138-81(2007.31p)

CLASS I LASER PRODUCT

• Language
• Time Update
• Factory Reset
• SW version

CD/USB

Three-step line drawing showing hand holding a disc and a circular object, no text or symbols present

TECHNISCHE DATEN

CLASS I LASER PRODUCT

Three-step line drawing showing hand holding a CD or DVD, no text or symbols present

SPECIFICATIONS

Υποστηριζόμενα bitrates MP3: 32 kbit/sec - 320 kbit/sec

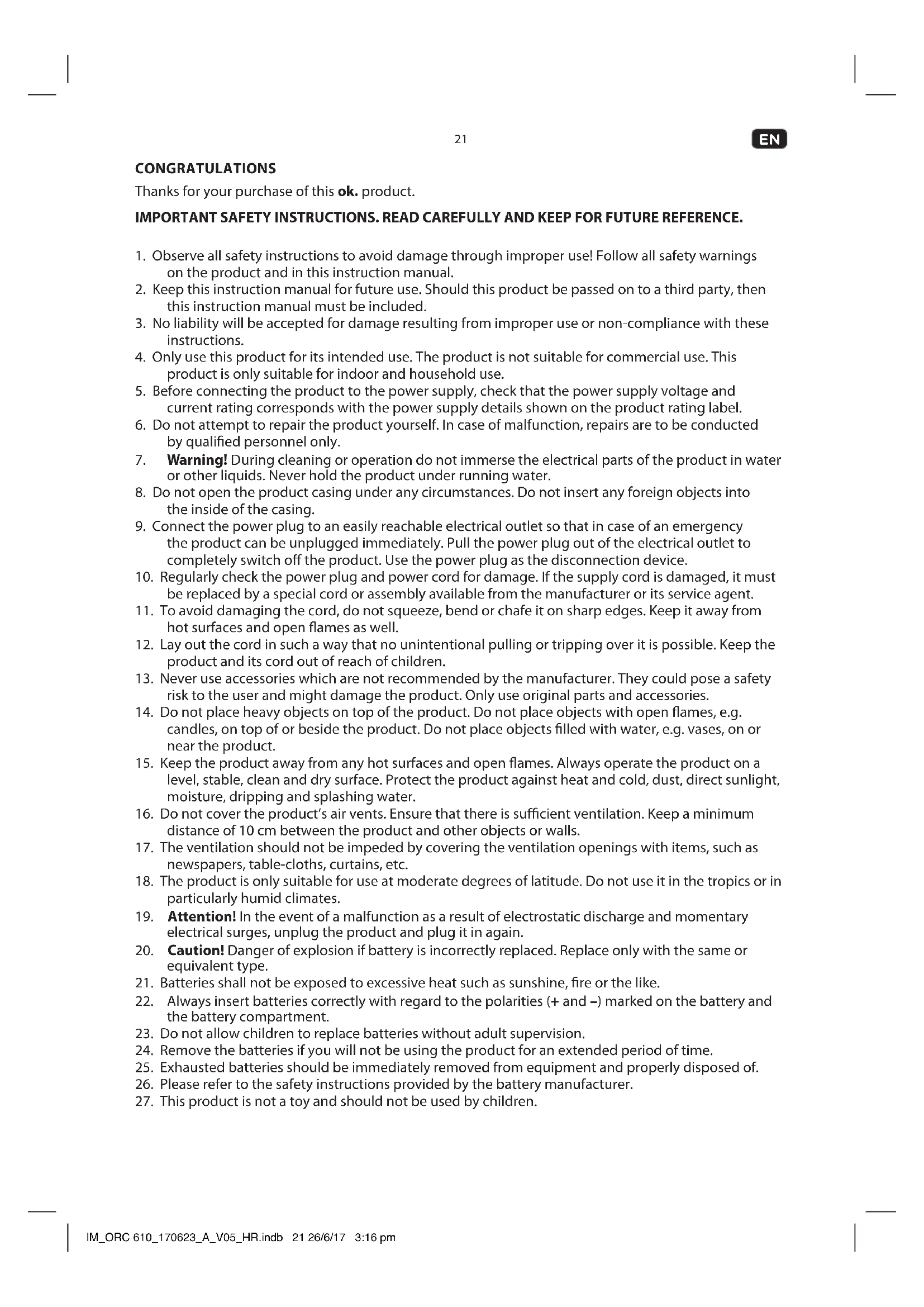

Thanks for your purchase of this ok. product.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Observe all safety instructions to avoid damage through improper use! Follow all safety warnings on the product and in this instruction manual.
2. Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included.
3. No liability will be accepted for damage resulting from improper use or non-compliance with these instructions.
4. Only use this product for its intended use. The product is not suitable for commercial use. This product is only suitable for indoor and household use.
5. Before connecting the product to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label.
6. Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
7. Warning! During cleaning or operation do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.
8. Do not open the product casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
9. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the product. Use the power plug as the disconnection device.
10. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
11. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well.
12. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the product and its cord out of reach of children.
13. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the product. Only use original parts and accessories.
14. Do not place heavy objects on top of the product. Do not place objects with open flames, e.g. candles, on top of or beside the product. Do not place objects filled with water, e.g. vases, on or near the product.
15. Keep the product away from any hot surfaces and open flames. Always operate the product on a level, stable, clean and dry surface. Protect the product against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
16. Do not cover the product's air vents. Ensure that there is sufficient ventilation. Keep a minimum distance of 10cm between the product and other objects or walls.
17. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
18. The product is only suitable for use at moderate degrees of latitude. Do not use it in the tropics or in particularly humid climates.
19. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the product and plug it in again.
20. Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
21. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
22. Always insert batteries correctly with regard to the polarities (+ and −) marked on the battery and the battery compartment.
23. Do not allow children to replace batteries without adult supervision.
24. Remove the batteries if you will not be using the product for an extended period of time.
25. Exhausted batteries should be immediately removed from equipment and properly disposed of.
26. Please refer to the safety instructions provided by the battery manufacturer.
27. This product is not a toy and should not be used by children.

EN

22

1. The information on the compact disc is read by a laser through an optical lens (do not touch). If you take the product from a cold to a warm room, moisture may condense on the lens, and the playback may be hampered. In this case leave the product for one hour at room temperature before use. Take the disc out of the product. Should the problem persist, have the product checked by qualified personnel.

CLASS I LASER PRODUCT

This label on the product informs the user that this is a class 1 laser product containing a laser component.

Do not touch the lens inside the disc compartment.

CAUTION! Use of controls or adjustments of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER! Invisible laser radiation when open and safety interlock failed or defeated. Avoid direct exposure to the beam. Do not touch the lens.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRIQUE-NE PAS OUVRIR

The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" inside the enclosure of this product, which may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product.

INTENDED USE

This product is only intended for audio entertainment. This product is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the product or injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

BEFORE FIRST TIME USE

• Remove all packaging materials.
• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
• Clean the product Cleaning and care).
• Important! Before first use, remove the protective sheet from the disc compartment.

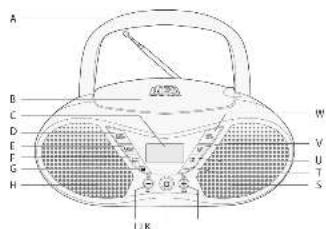

COMPONENTS

Fold out front and rear page for product illustrations.

A. Handle

B. CD compartment lid

C. Display

D. SLEEP/SNOOZE button

E. Playback/Pause▶/ENT.CLOCK

F. STOP/MENU button

G. PRE./ button

H. Speaker left

I. Volume control VOL - / AL.1

J. On/Off button/function button

K. Volume control VOL + / AL.2

L. Telescopic antenna

M. Headphone jack

N. USB port

O. Battery compartment

P. Power cable with plug

Q. AC socket

R. AUX IN jack

S. Speaker right

T. INFO button

U. Skip to previous track |TUN+

V. Skip to next track ▶FUN -

W. AMS/MODE

POWER SUPPLY

AC supply

Attention!

• Do not use this product with AC supply and battery operation simultaneously.
• Remove all of the batteries when operating this product via power supply.
• Disconnect the product before insert batteries.

1

Connect the power cable to the AC socket.

2

Connect the power plug to a suitable electrical outlet.

Note: Alternative you can use the product with batteries.

Battery operated

Attention!

• Do not use this product with AC supply and battery operation simultaneously
  • Unplug the product before inserting batteries.

3

Remove the battery compartment cover.

4

Insert 6 batteries (type C / R14, 1.5 V---, not included) in the battery compartment. Match the polarities + and -, as indicated on the batteries.

5

Close the battery compartment cover.

EN

SETTING THE CLOCK

Note: The clock will be set automatically in DAB+ Mode!

6 Press ⏻ button to turn off the product.
7 Activate clock setting mode: Press and hold ▶ /ENT.CLOCK for 2 seconds. 24H starts blinking on the display.

Press ▶ on to choose between 12-hour/24-hour format. Press to confirm. The hour indicator starts blinking.

8 1. Press ▶▶ or ◀ set the hour. Press to dbnfirm. The minute indicator starts blinking.

1. Press or to set the minute. Press to confirm. The year indicator starts blinking.
2. Press the or to set the year. Press to confirm. The month indicator starts blinking.
3. Press the or to set the month. Press to confirm. The day indicator starts blinking.
4. Press the or to set the day. Press to confirm. The date and clock are set.

Note: If the product is disconnected from power, the clock setting needs to be reset.

SETTING ALARM

Press ⏻ to turn off the product.

Activate alarm setting mode (VOL-/AL1 for alarm 1 and VOL+/AL2 for alarm 2):

Press and hold VOL-/AL1 for 3 seconds.

The hour indicator starts blinking on the display.

1. Press▶▶I or I◀◀ to set the hour. Press VOL-/AL1 to confirm. The minute indicator starts blinking.
2. Press▶▶I or ◀◀ to set the minutes. Press VOL-/AL1 to confirm. The alarm mode starts blinking.
3. Press ▶▶I or ◀◀ to choose one of the mode: USB > Buzz > FM > DAB > CD. Press VOL-/AL1 to confirm.
4. Set the volume for the alarm by pressing or and confirm with VOL-/AL1.

Once you completed the alarm setting an alarm symbol will appear on the display.

Deactivate the alarm

Press VOL-/AL1 or VOL+/AL2 shortly to choose "Alarm off" and confirm with VOL-/AL1 or VOL+/AL2.

OPERATION

Switching on and off

Press the ⏻ button to turn on the product. To turn off the product, press and hold the ⏻ button for approx. 2 seconds.

Mode selection

Press the button shortly to switch between the modes: FM > DAB > CD > USB > Aux

Volume control

The volume can be easily controlled by pressing the buttons VOL+ or VOL-. The volume will be shown on display for a moment.

Sleep function

Press the SLEEP/SNOOZE button shortly to adjust the sleep timer in 10 minutes steps from 120 minutes to 10 and 5 to OFF.

ANTENNA

For optimal reception, extend the antenna, move to fully extend and adjust.

FM RADIO

9 Press the button to select FM. The radio plays the last station selected.

10 Select a FM station

a) Automatic frequency selection: Press and hold the AMS/MODE button approx. 3 seconds. The system scans the entire frequency band for radio stations. Any stations found will be preset from lowest to highest frequency.

b) Manual frequency selection: Press TUN+/TUN- to change the frequency at intervals of 0.05 MHz.

FM Menu

11 Press STOP/MENU to select the FM radio menu. Select with TUN+/TUN- one of the following options:

- Scan setting

• All stations (scans all available stations)

• Strong stations (scans stations with strong signals)

- Audio setting

• Stereo allowed (Selects stereo playback)

- Forced mono (selects mono playback)

- System

• Language (language setting)

• Time Update (choose to update the time)

• Factory Reset (reset to default setting)

• SW version (displays software version)

Press ENT.CLOCK to confirm the selection.

Select fm station and info display

12 You can store up to 20 preset FM stations. Press PRE/FOLDER to select one of the stored stations. Station information can display by pressing INFO button.

EN

DAB RADIO

13 Press the ⏻ button to select DAB. The radio will automatically do a full scan of DAB+ stations. The list of stations is then stored, eliminating the need for another full scan when the radio is turned on next time. When the scan is complete, the stations are stored in alphabetical order. The first available station will be played back.

Note:

If there is no DAB+ reception at any time, change the position of the unit or adjust the antenna. Press and hold the AMS/MODE for approx. 3 seconds to start a new search.

DAB Menu

14 Press STOP/MENU to select the DAB radio menu. Select with TUN+/TUN- one of the following options and confirm with ENT.CLOCK:

- Full scan

The radio will automatically perform a full scan of DAB+ stations.

- Manual tune

1. Select with TUN+/TUN- „Manual tune“ and confirm by pressing ENT.CLOCK. On the display the frequencies will be shown.
2. Select a frequency with TUN+/TUN- and confirm by pressing ENT.CLOCK.

- DRC

Dynamic Range Control removes or adds the degree of adaptation, required for the differences in dynamic range between stations.

Press TUN+/TUN- to select „DRC“ and confirm by pressing ENT.CLOCK. Following options are available on the display:

• DRC high: DRC turned on; default setting recommended for noisy environments.

• DRC low: DRC is set to half the normal level.

• DRC off: DRC is turned off.

- Prune

Removes all invalid stations from the station list.

1. Press TUN+/TUN- to select Prune. Confirm by pressing ENT.CLOCK.
2. Select "Yes" by pressing TUN+/TUN- and confirm with ENT.CLOCK. Or choose "No" to cancel.

- System

• Language
• Time Update
• Factory Reset
• SW version

CD/USB MODE

15 Press button to turn on the product. Press until "CD" appears on the display.

16 Open the CD compartment door and insert a CD with the label facing up.

17 Close the CD compartment door.

or

18 Connect a USB storage device to the USB port .Note

• Connect the USB device directly to the USB port of the product. Using an extension cable is not recommended and may cause interference and failure of data transfer.
  • This product supports USB 1.1 and 2.0 up to 64 GB with file system FAT16 and FAT32.
  • External devices cannot be charged via USB with this product.

19 Press Button to turn on the product. Press until "USB" appears on the display.

Note: If no CD or USB storage is inserted, the display shows "NO DISC"/"NO USB".

CD/USB PLAYBACK

20

1. Start or pause playback: Press . ▶pause mode, remain time of the playing track will flash on the display.
2. Stop playback: Press STOP. In stop mode, total number and time of tracks will appear on the display.
3. Skip to next track: Press . Press and hold to fast forward.
4. Skip to previous track: Press . Press and hold to fast reverse.
5. During playback, press AMS/MODE repeatedly to switch the playback modes as follows:

Press Display Result

1x Normal Normal playback
2x Repeat One Repeat one track
4x Repeat All Repeat all tracks
5x Random Play a track randomly
6x Normal Normal playback

3x Repeat Folder Repeat Album (only available for MP3)

Notes:

• This product reads CD, CD-R/-RW and MP3-CD discs. Other discs are not supported.
- When playing CD-R/RW discs the playback quality might be influenced by the quality of the burned disc. When burning CD-R/RW disks with audio files we recommend using the slowest burning speed.

PROGRAM PLAYBACK

Notes:

• Up to 20 CD tracks or up to 99 MP3 tracks can be programmed for a playback in any desired order.
• Programmed playback can only be made from one single source - it cannot include tracks from CD disc and USB storage at the same time.

21

1. Stop playback: Press STOP.
2. Enter program settings: Press AMS/MODE. MEM and P01 will show on the display.
3. Select desired track: Press o▶▶.I ◀◀◀
4. Store selected track into the program memory: Press AMS/MODE again. P02 will now show on the display.
5. Repeat step 3 and 4 to program additional tracks.
6. After programming all the desired tracks, press to start program playback. MEM appears on the display.
7. Stop playback: Press 1x STOP.
8. Cancel program playback: Press 2x STOP. MEM disappears from the display.

EN

AUXILIARY (AUX) PLAYBACK

Warning!

Observe the relevant safety information for use with other devices when connecting an external device.

22

Press button until "Aux" appears on the display.

23

Connect auxiliary device to the AUX-IN socket using 3.5 mm jack audio cable (not included).

If an auxiliary device is connected, all playback functions of this device need to be used.

COMPATIBLE CDs

• Only use CD compact discs with digital audio signals.
- The making of unauthorized copies of copyright-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence under your national law. This equipment should not be used for such purposes.

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not function	Interrupted power supplyDue to electrostatic discharge	Check the power supplyUnplug and plug it in again after a while
Poor Audio quality	CD is scratched	Insert a new CD
NO appears on display	CD not correctly insertedUSB not correctly connected	Re-insert the CDEnsure correct connection of USB stick
No radio reception	Poor radio reception	Place the product to another place and adjust the antenna again

CLEANING AND CARE

• WARNING! Before cleaning, always switch off the product and disconnect the plug from power.
  • Never immerse the product in water or other liquids.
• Clean the product with a soft, slightly damp cloth. Make sure that no moisture is entering the product during cleaning.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your product.
  • Dry the product thoroughly after cleaning.
  • Store the product in a cool, dry location, away from children and pets.

CD MAINTENANCE

• Small amount of dust or scratches will usually not have an impact on the quality of a disc. The discs should, however, be treated with care.
• Protect your compact discs from dust and scratches.
  • Store your compact discs in their covers when not in use.
• To maintain the original quality of sound, you should occasionally wipe your compact discs with a soft cloth, from the centre to the edge (not with circular movements). Never use gasoline or other solvents for cleaning.
  • Only hold a compact disc by its edges!

SPECIFICATIONS

Rated voltage: 230 V\~, 50 Hz

Rated power: 12 W

Battery: 9 V ---, 6 x 1.5 V = (type C / R14) (not supplied)

Supported formats: CD Audio, MP3/CD Audio, MP3

USB Port: supports up to 64 GB

Supported MP3 bitrates: 32 kbit/sec - 320 kbit/sec

Radio frequency band: 88 - 108 MHz (FM)

174.928 - 239.200 MHz (DAB+)

Maximum radio-frequency power: 98 - 103 dBm

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

ES

FELICIDADES

CLASS I LASER PRODUCT

Three-step line drawing showing hand holding a disc and a separate circular object (no text or symbols)

SPECIFICATIONS

CLASS I LASER PRODUCT

Three-step illustration showing hand holding a disc and a separate object, no text or symbols present

CARACTERISTIqUES

Port USB: supports up to 64 GB

Débits binaires MP3 pris en charge: 32 kbit/sec - 320 kbit/sec

CLASS I LASER PRODUCT

Three-step line drawing showing hand holding a CD or DVD, no text or symbols present

SPECIFIKÁCIÓ
