Brand	Christiaan van der Klaauw
Model	Supernova CKSN3366
Product Type	Astronomical complication watch
Movement	Mechanical self-winding and manual winding
Power	Kinetic energy from wrist movement; manual winding possible
Main Functions	Hours, minutes, seconds; date (day and month); date (day of month); moon phase with quarters
Illumination	Luminova coating on hands
Settings	Crown at 3 positions (winding, date/moon adjustment, time adjustment) and pusher at 10 o'clock for day adjustment
Moon Phase	Visual indication by image: left (first quarter), center (full moon), right (last quarter), invisible (new moon)
Calendar	Perpetual with display of day of week, month, and date
Water Resistance	Not water resistant – avoid any contact with water
Strap	Replaceable alligator leather
Care	Protect from water; use a watch winder if not worn
Cleaning	Wipe with a soft dry cloth
Safety	Avoid shocks and magnetic fields
Spare Parts	Strap available from an authorized dealer
Repairability	Contact an authorized Christiaan van der Klaauw dealer
General Information	Handmade watch, astronomical theme, perpetual movement

Frequently Asked Questions - Supernova CKSN3366 Christiaan van der Klaauw

How to wind my Supernova watch?

The watch winds automatically with your wrist movements. You can also wind it manually by turning the crown clockwise in position 0 (crown pushed in).

How to set the date and moon phase?

Pull the crown to position 1. Turn it down to set the date and month, up for the moon phase. First set to the previous day, then adjust the time in position 2.

How to set the time?

Pull the crown to position 2. Turn it clockwise to the desired time. Avoid setting between 8 PM and 2 AM to avoid damaging the mechanism (unless already set to the previous day).

What does the moon phase display mean?

The moon displayed on the left indicates the first quarter; in the center, the full moon; on the right, the last quarter. If it is not visible, it is the new moon.

Can I wear my watch in the shower?

No, the watch is not water resistant. Avoid any contact with water, including showers and baths.

How to change the strap?

The alligator strap is replaceable. Contact an authorized dealer Christiaan van der Klaauw for replacement.

What to do if my watch stops?

Wind it manually (20 to 30 crown turns) or place it on an automatic watch winder. If it does not restart, consult a watchmaker.

What is the accuracy of the watch?

As a mechanical watch, its accuracy is typically -10 to +20 seconds per day, depending on use and condition.

How to clean my watch?

Gently wipe the case and crystal with a soft dry cloth. Avoid any chemicals.

Where to find spare parts?

Contact an authorized dealer Christiaan van der Klaauw. The strap is the main replaceable part.

USER MANUAL Supernova CKSN3366 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

SUPER NOVA
INSTRUCTION MANUAL SUPERNOVA

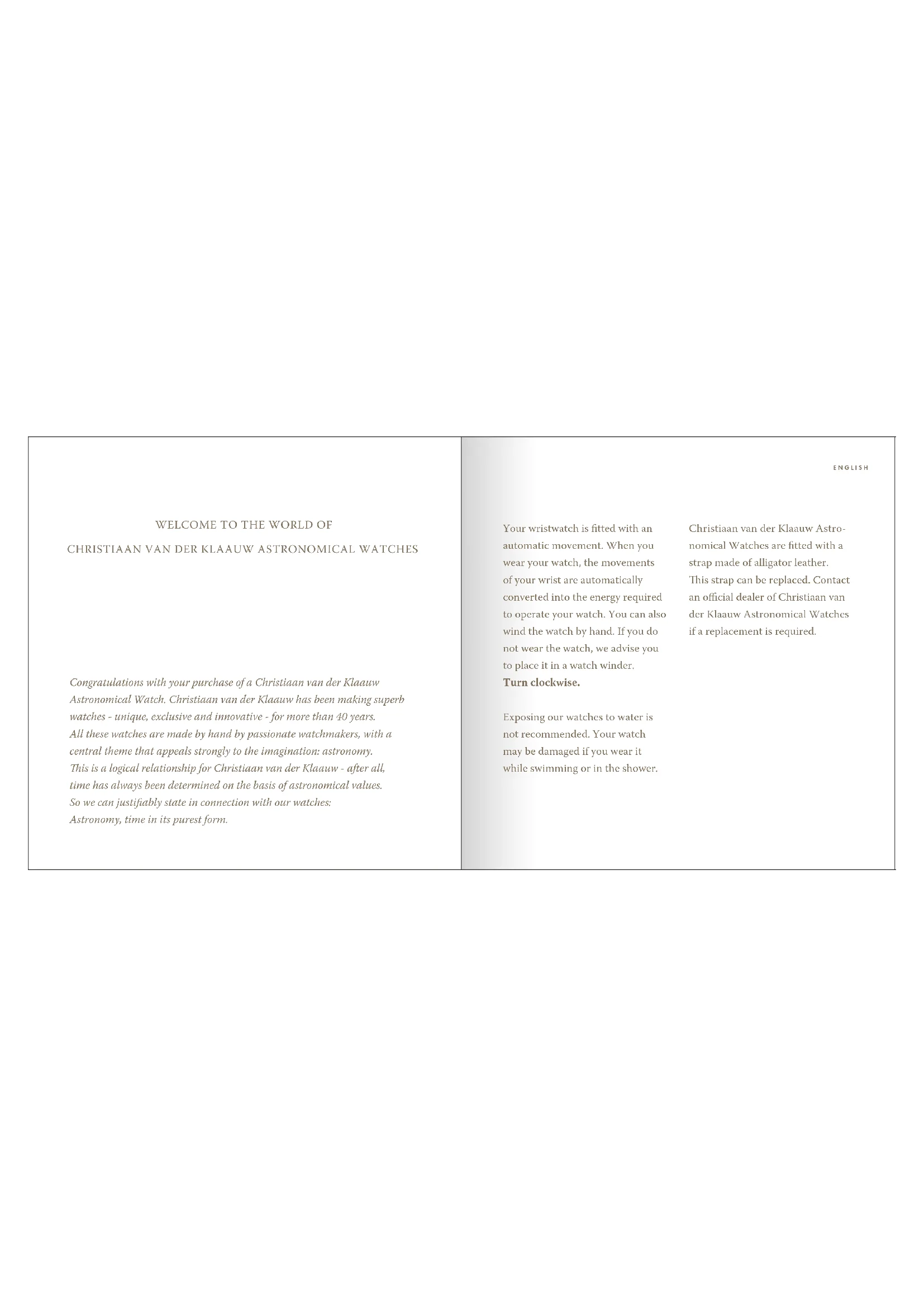

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

ENGLISH

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

The following information is displayed on the Supernova:
hours with luminova;
⑥ minutes with luminova;
©seconds;
date(day of the week ^+ month);
E calendar day;
the moon phase.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button ()

The crown has three positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the date and the moon phase.
② setting the time.

To adjust the settings of the Supernova, pull out the crown to position ②. You can now set the time to 12:00. Caution: do not do

this at 24:00. Then push the crown in by one position ① to set the date and month by turning the crown counterclockwise. Set the moon phase by turning the crown clockwise.

Important

Always set the moon phase to the previous day. Once this is the case, use the enclosed accessory to push in the push button ① located at the 10 o'clock position on the left-hand side of the watchcase to set the day. Set this to the previous day as well. When the correct month is shown in the window and the day, date and moon phase are set to the previous day, then pull out the crown to position ②, and then turn the hands clockwise until everything is set to today. When the hands also show the right time, then push the crown in again completely.

ENGLISHENGLI

Functionalities

The day and month are displayed at the 12 o'clock position.
The hand with the arrow at the end points to the calendarday of the month.

The moon phases are shown at the 6 o'clock position. When the moon picture is shown left of the centre, the Moon is in the first quarter. When the image is in the middle, it is full moon, and when it is on the right, the Moon is in the last quarter. If the image is not visible, then it is new moon.

ENGLISH ENGLISH

WILLKOMMEN IN DER WELT VON CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW HORLOGE ATELIER B.V. BUSINESSPARK FRIESLAND-WEST 47,8447 SL HEERENVEEN, THE NETHERLANDS T: [phone], [e-mail], WWW.KLAAUW.COM
