10032000 - Air purifier Klarstein - Free user manual and instructions

Brand	Klarstein
Model	10032000
Product type	Air purifier
Power supply	220-240 V ~ 50-60 Hz
Power	Not specified
Dimensions (L x W x H)	Not specified
Weight	Not specified
Filtration type	Pre-filter, HEPA filter, activated carbon filter, UV-C lamp (TiO2)
Fan speeds	3 speeds (low, medium, high)
UV-C lamp	Yes, can be activated by dedicated button
Recommended coverage area	Not specified
Noise level	Varies by speed
Filter maintenance	Monthly cleaning of the pre-filter/activated carbon filter with a vacuum cleaner; replace the HEPA filter when it becomes gray/black; replace the UV-C lamp if necessary
Safety	Do not immerse in water; do not obstruct vents; use under supervision of children; unplug before maintenance
Spare parts	Combined filter (pre-filter + activated carbon + HEPA), UV-C lamp
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Compliance	European directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Intended use	Domestic and similar (offices, hotels, guesthouses)
Warranty	Not specified

Frequently Asked Questions - 10032000 Klarstein

How to turn on the Klarstein 10032000 air purifier?

Turn the adjustment knob clockwise. The device starts at low speed and the operation indicator lights up.

How to change the fan speed?

Turn the adjustment knob clockwise to go from low to medium, then to high. To turn off, turn counterclockwise to the OFF position.

How to activate the UV-C lamp?

Press the UV button on the control panel. To turn it off, press again. The UV-C lamp helps eliminate germs and odors.

How often should the filters be cleaned?

The pre-filter and activated carbon filter should be cleaned at least once a month with a vacuum cleaner. The HEPA filter should be replaced when it becomes gray or black.

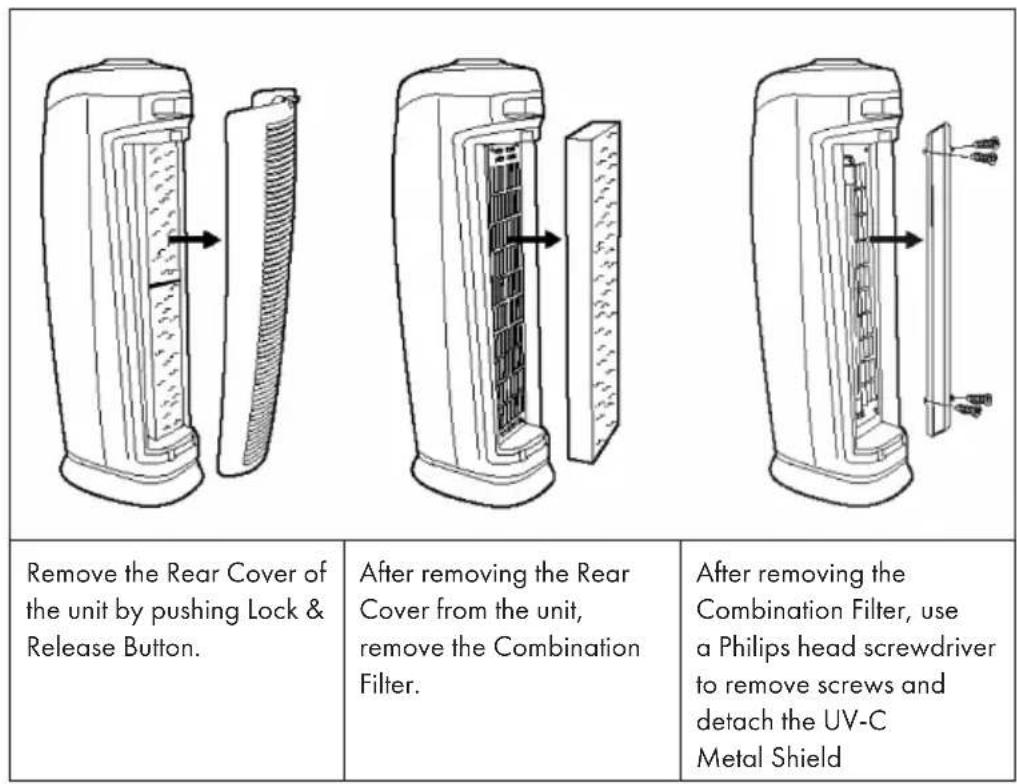

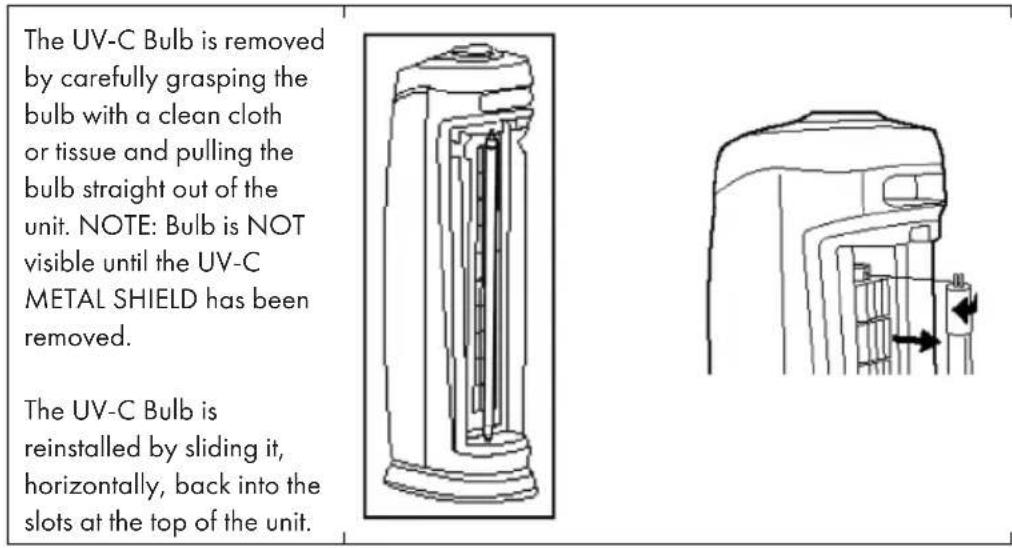

How to replace the UV-C lamp?

Unplug the device, remove the rear cover and metal plate. Gently pull out the old lamp with a clean cloth, then insert the new one into the slot at the top.

What to do if the device does not work?

Check that the plug is properly inserted and the outlet works. Make sure the combined filter and rear cover are correctly installed.

Why is the air not circulating?

Unplug the device and check the filters. Clean them if necessary. If the HEPA filter is clogged, replace it.

What does a flashing red indicator mean?

A flashing red indicator means the filters need to be replaced. Replace the combined filter and restart the device.

What to do if the device becomes noisy?

Check the filters: they may be dirty. Clean or replace the HEPA filter if necessary.

Can I use the air purifier continuously?

Yes, the device is designed for continuous use. However, unplug it if not used for an extended period.

USER MANUAL 10032000 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 11

Declaration of Conformity 11

Safety Instructions 12

Product Description and Keys 13

Air Cleaning Layers 14

Before first Use 15

Use and Operation 15

Care and Cleaning 17

Troubleshooting 17

Hints on Disposal 18

TECHNICAL DATA

Item number 10032000
Power supply 220-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Read all instructions before using appliance.
• Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 220~240V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  DO NOT run cord under carpeting.
  DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
  DO NOT use outdoors.
  DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

PRODUCT DESCRIPTION AND KEYS

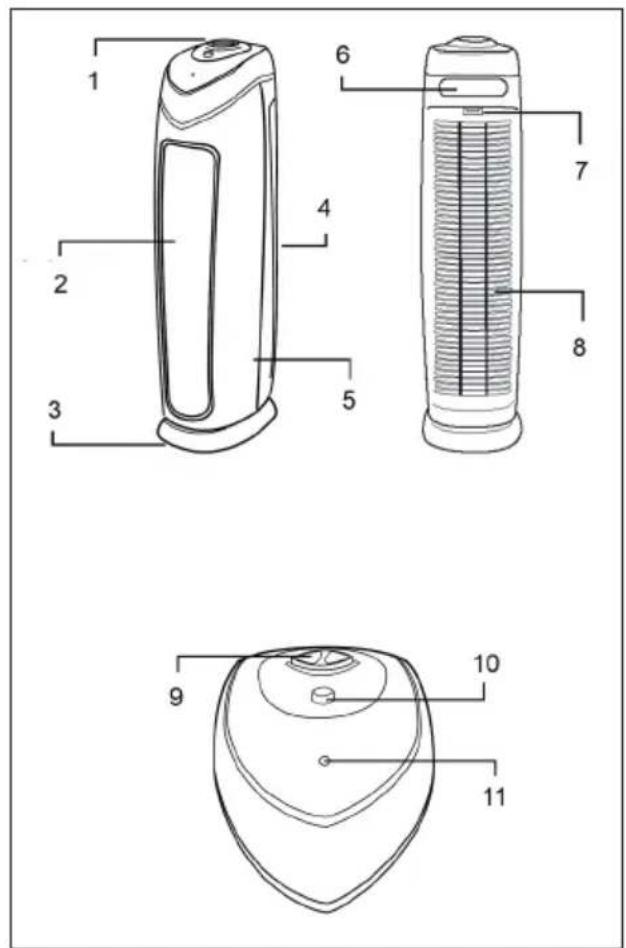

Product

1 Control Panel
2 Air outlet
3 Base
4 Air inlet
5 Unit body
6 Carrying handle
7 Lock & Release Button (for accessing Filter and Bulb)
8 Filte access cover

Control Panel

9 Power knob
10 UV-C lamp on/off
1.1 Power indicator

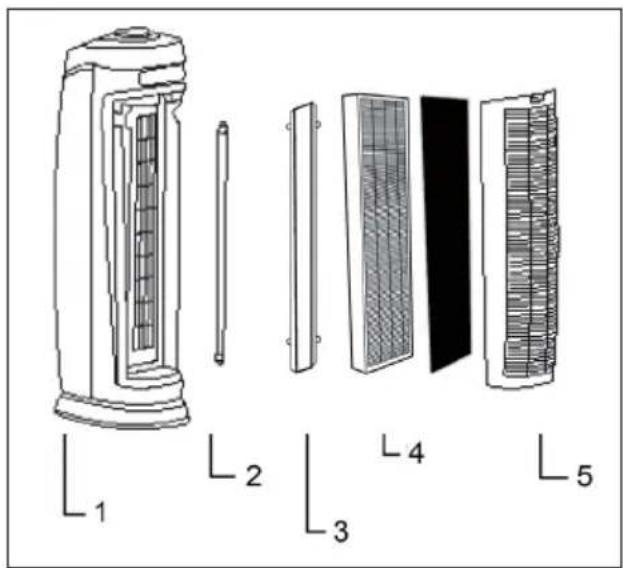

Filter

1 Main unit
2 UV-Clamp
3 UV-C metal shield
4 Combination filter (includes Pre, Charcoal & True HEPA filters)
5 Rear cover with air inlet Grill

AIR CLEANING LAYERS

Improve your indoor air quality with your new Air Cleaning System. Multiple levels of cleaning include a combination True HEPA filter that captures allergens, and Charcoal filter to remove odors. UV-C light technology enhances germ-killing.

• Pre-Filter: Captures initial dust and allergen particles. Pre-Filter and Charcoal Filter are combined into one layer that attaches to the HEPA Filter.
• Charcoal Filter (aka Activated Carbon): Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs and mold.
  True HEPA Filter: Captures 99.97% of dust and allergens.
  UV-C Light: UV-C light technology works with Titanium Dioxide (TiO2) to enhance the elimination of airborne germs. TiO2 is activated by the UV-C light to decompose remaining odor molecules caused by smoking, cooking and pets.

Installing & removing combination filter

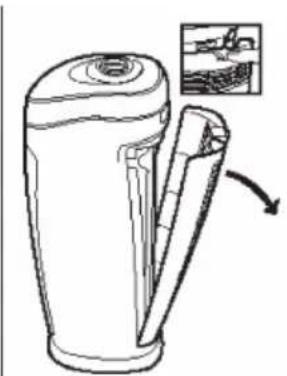

Press the Lock & elease Button and remove the Rear Cover from the unit.

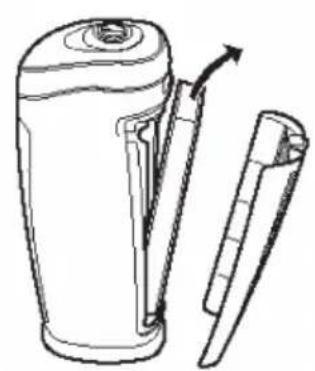

Remove the used Combination Filter (Filter C) and dispose of it in the garbage.

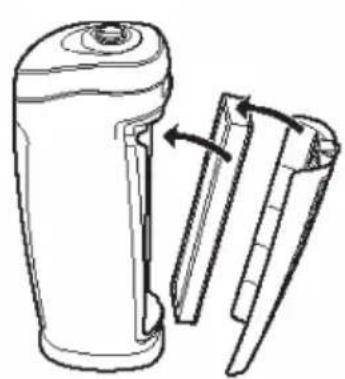

Insert filter system into the unit. Consult the arrow on the filter for correct installation direction.
Reattach the Rear Cover of the unit and securely latch into place.

BEFORE FIRST USE

1 Select a firm, level and flat location for the air purifier. For proper air flow, locate the unit at least 1 foot from any wall or furniture. Make sure none of the grills are blocked.
2 Plug the power cord into a 220~240V AC outlet.

NOTE: When moving the air purifier, always lift unit by the carrying handle located on back.

USE AND OPERATION

1 Turn the air purifier ON by rotating POWER KNOB clockwise.
2 Upon turning the air purifier ON, the power indicator will be lit and the unit will be in LOW mode [ ]
3 Rotate the POWER KNOB clockwise further to set the air purifier to MEDIUM mode [V].
4 Continue to rotate the POWER KNOB clockwise to set the air purifier to HIGH mode [W]
5 To activate the UV-C Bulb, press the UV button. Press the button again to turn OFF the UV-C Bulb.
6 To turn the unit OFF, rotate the POWER KNOB counter-clockwise to OFF mode [ ]

CARE AND CLEANING

The air purifier should be cleaned at least once every month and the outer Pre-/ Charcoal Filter attached to the HEPA Filter should be cleaned every month. More frequent cleaning may be required depending on environmental conditions.

Pre-/Charcoal Filter

Clean with the brush attachment of your vacuum cleaner. This will remove lint and dirt.

True HEPA Filter

Remove the Combination Filter from the back of unit. Remove the Pre-/Charcoal Filter to expose the HEPA filter. When the HEPA Filter turns from white to grey or black it should be replaced with a new one. If the HEPA filter is still white, it does NOT need to be replaced.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter. The Combination Filter is one filter system. The multiple layers include: the Pre-/Charcoal Filter and the True HEPA Filter.

Air Purifier

Use a clean, dry, soft cloth to wipe the external surface of the unit.

TROUBLESHOOTING

Problem Possible cause	and solution approach
Unit does not operate. Check that the unit is plugged in.
Unit shuts off unexpectedly.	Check that the unit is plugged into a working electrical outlet. Check that the HEPA Filter is firmly in place.
	Check that the Rear Cover is latched firmly in place.
	Überprüfen Sie, ob die wichtere Abdeckung richtig sitzt.
No air circulating from unit.	Unplug unit. Check Pre-/Charcoal and HEPA Filters. Clean Pre-/Charcoal Filter if necessary.
	Replace HEPA Filter if necessary.
	Ersetzen Sie den HEPA-Filter, falls notig.
Increase in noise level. Make sure the filters are clean. Replace if necessary.
Red light is flashing. Replace filter and reset system.
Blue ring on product is flashing.	Replace bulb and reset system.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
