Mini 10030103 - Oven Klarstein - Free user manual and instructions

Features	Details
Device type	Oven
Capacity	Not specified
Power	Not specified
Cooking functions	Not specified
Dimensions	Not specified
Weight	Not specified
Body material	Not specified
Energy consumption	Not specified
Safety system	Not specified
Maintenance	Recommended interior and exterior cleaning
Included accessories	Not specified
Warranty	Not specified

Frequently Asked Questions - Mini 10030103 Klarstein

How do I preheat the Klarstein Mini 10030103 oven?

To preheat the oven, turn the temperature knob to the desired temperature and let the oven run for about 10 minutes before placing your food inside.

What is the capacity of the Klarstein Mini 10030103 oven?

The Klarstein Mini 10030103 oven has a capacity of 20 liters, making it ideal for small kitchens or meals in reduced portions.

How do I clean the Klarstein Mini 10030103 oven?

To clean the oven, unplug it, let it cool down, then use a soft, damp cloth with a little mild detergent. Avoid abrasive products that could scratch the surface.

Does the Klarstein Mini 10030103 oven have a timer?

Yes, the oven is equipped with an adjustable timer that allows you to track cooking time up to 60 minutes.

Can I use glass dishes in the Klarstein Mini 10030103 oven?

Yes, you can use glass dishes, but make sure they are suitable for oven cooking and heat resistant.

What is the power of the Klarstein Mini 10030103 oven?

The Klarstein Mini 10030103 oven has a power of 800 watts, making it efficient for baking, grilling, and roasting.

Does the Klarstein Mini 10030103 oven have a grill function?

Yes, the oven is equipped with a grill function that allows you to brown and crisp your dishes.

What should I do if the oven does not heat?

Check that the oven is properly plugged in and that the outlet is working. Also, make sure the temperature is set correctly. If the problem persists, contact customer service.

Does the Klarstein Mini 10030103 oven have an interior light?

Yes, the oven is equipped with an interior light that allows you to monitor cooking without opening the door.

Is the Klarstein Mini 10030103 oven easy to transport?

Yes, thanks to its compact size and light weight, the oven is easy to transport and move around your kitchen.

USER MANUAL Mini 10030103 Klarstein

Row of white kitchen and appliance icons including blender, keyboard, refrigerator, washing machine, fan, microwave, and air conditioner (no text or symbols)

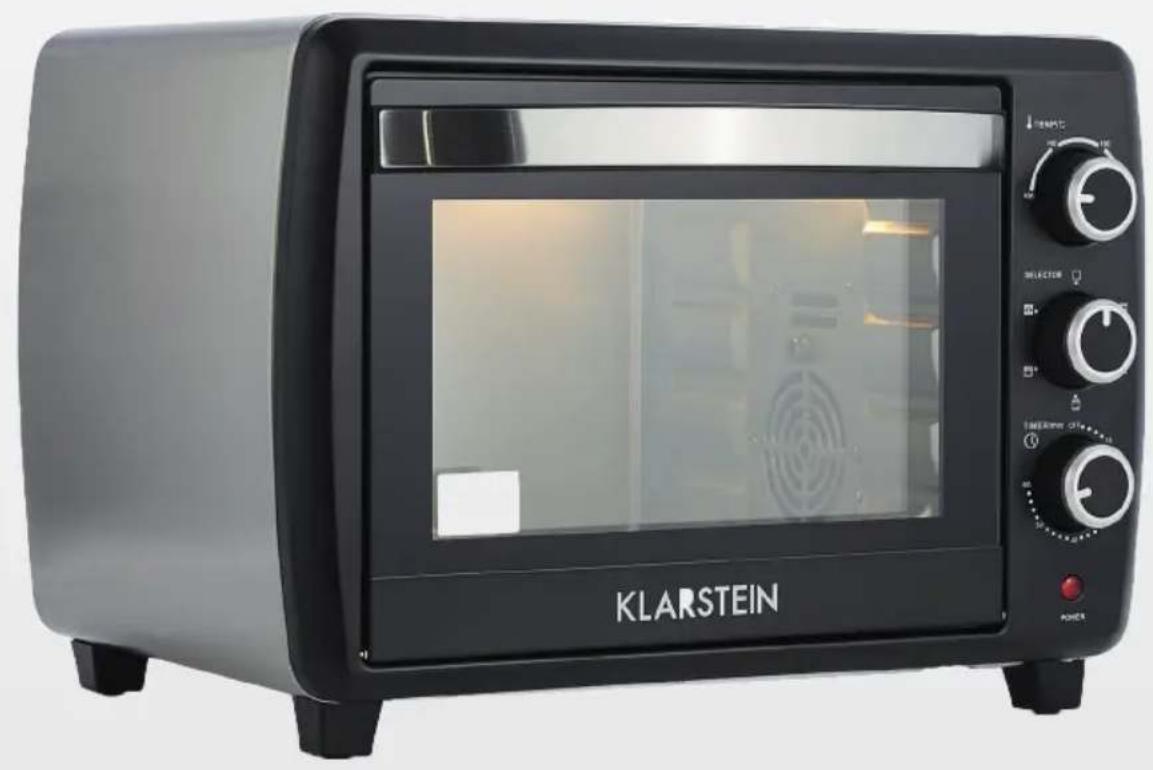

Black KLARSTEIN toaster oven with open door and control knobs (no visible text or symbols on main body)

Mini-Backofen 30 l

10030102

10030103

KLARSTEIN

Illustration of a tray with a lid and radiating lines, emitting light (no text or symbols)

Illustration of a hand using a crossed-out megaphone to clean food (no text or symbols)

Illustration of a hand holding a tool near a square frame, with no visible text or symbols

Illustration of a hand holding a spray gun with droplets, no text or symbols present

Labeled diagram of a microwave oven with numbered parts for identification

16 15 14 13 12

Diagram of a device interior with internal airflow arrows and a central black object (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including zoomed-in insets of components.

links
rechts

Diagram showing a device inside an enclosure with labeled parts, including numbered annotations ① and ②.

Diagram showing a mechanical setup with labeled components, including a central gray area and two numbered parts.

Simple line drawing of a Y-shaped object with a protruding rod (no text or symbols)

Diagram of airflow or heat transfer through a vehicle's air duct system, showing directional arrows and pressure indicators (no text or labels)

Circular diagram with concentric rings and surrounding symbols (no text or labels)

Funktionswahlregler

Illustration of kitchen cleaning steps: hand holding a wall, microwave oven with brush, and two containers (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Content

Technical Data 14
Safety Instrucions 15
Device Overview 18
Usage....19
Cleaning 24
Disposal Considerations 25
Declaration of Conformity 25

Technical Data

Item number 10030102 10030103
Power supply 220-240 V~ 50/60	Hz
Power 1500 W

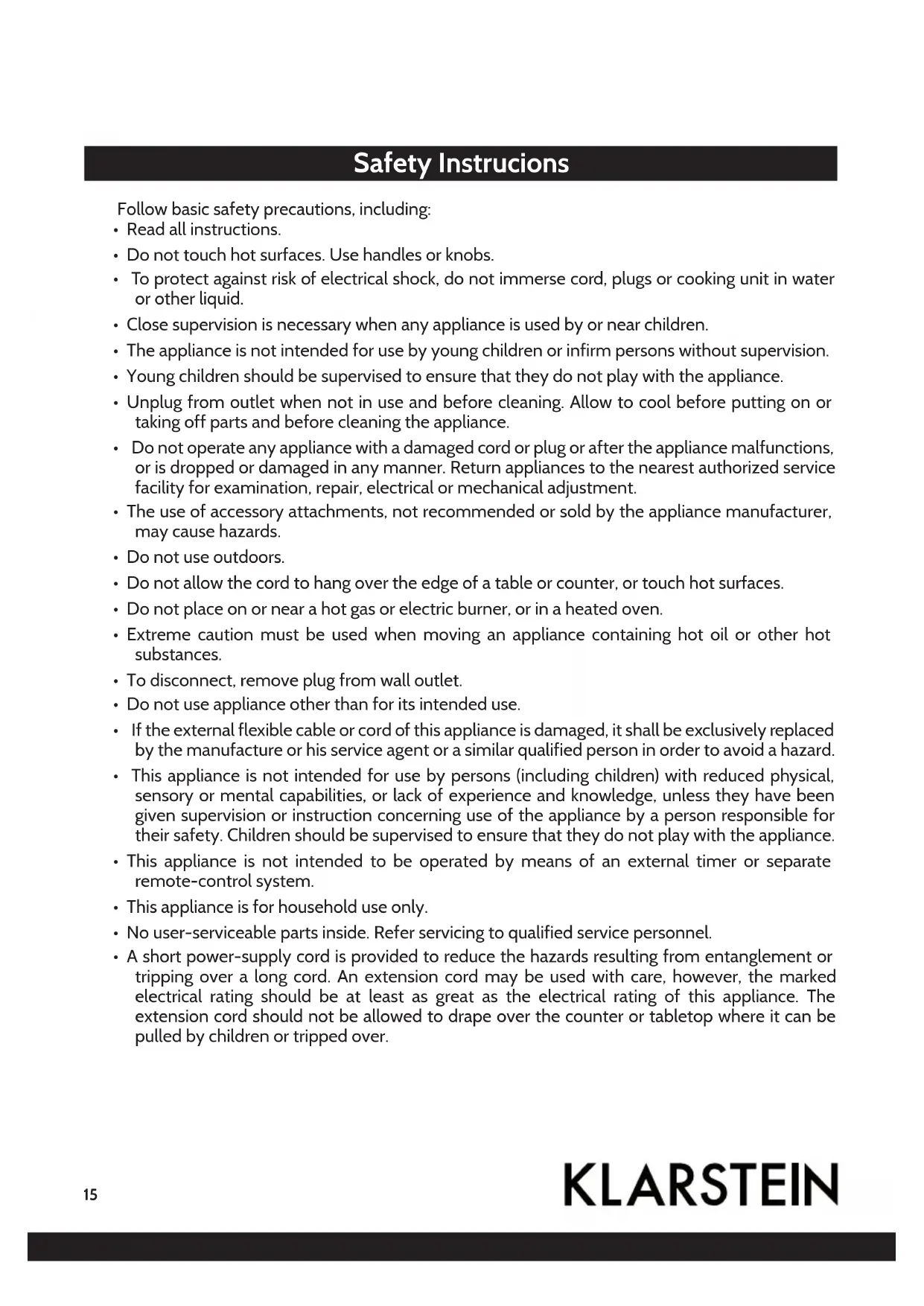

Safety Instrucions

Follow basic safety precautions, including:

- Read all instructions.

- Do not touch hot surfaces. Use handles or knobs.

- To protect against risk of electrical shock, do not immerse cord, plugs or cooking unit in water or other liquid.

- Close supervision is necessary when any appliance is used by or near children.

- The appliance is not intended for use by young children or infirm persons without supervision.

- Young children should be supervised to ensure that they do not play with the appliance.

- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliances to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment.

- The use of accessory attachments, not recommended or sold by the appliance manufacturer, may cause hazards.

- Do not use outdoors.

- Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

- Extreme caution must be used when moving an appliance containing hot oil or other hot substances.

- To disconnect, remove plug from wall outlet.

- Do not use appliance other than for its intended use.

- If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacture or his service agent or a similar qualified person in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• This appliance is for household use only.

- No user-serviceable parts inside. Refer servicing to qualified service personnel.

- A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care, however, the marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to drape over the counter or tabletop where it can be pulled by children or tripped over.

Device usage safety

Illustration of a tray with a lid and radiating lines, no text or symbols present

Always use the food fork when inserting or removing the tray. Touching these will cause severe burns.

Hand holding a crossed-out kitchen microwave oven with a hand pointing at it (no text or symbols)

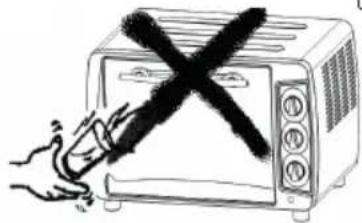

When hot, do not apply water to the glass window. It may cause the glass to break.

Illustration of a hand holding a small object with a magnified view, surrounded by abstract shapes (no text or symbols)

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

GAS

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Illustration of a hand holding a spray gun with droplets, no text or symbols present

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

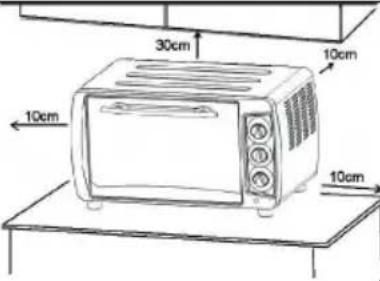

	If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc. are not in contact with the body.Do not put anything between the bottom of the body and the surface on which it is set. An object so placed could be burned.

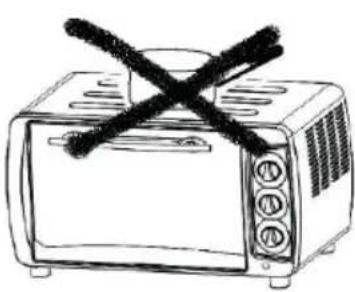

	Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

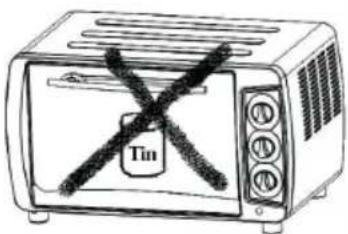

	Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person.
	Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.
	AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

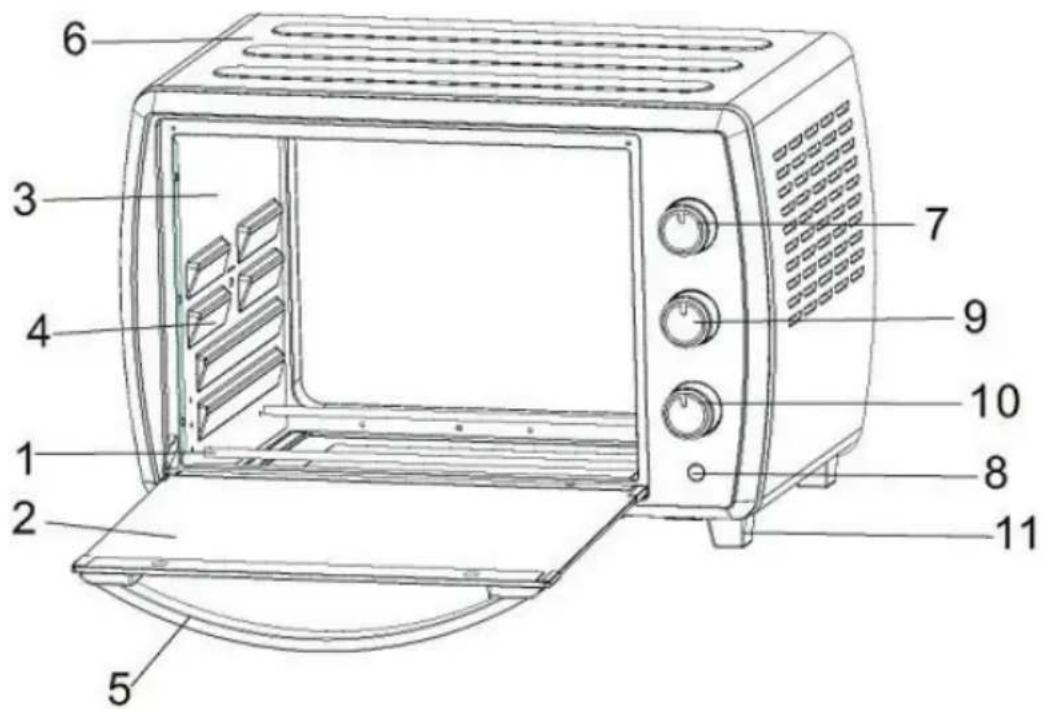

Device Overview

Labeled diagram of a microwave oven with numbered parts for identification

Technical diagram showing labeled components of a mechanical or electrical assembly, including parts 12 through 16.

1 Heating element
2 Glass
3 Cavity
4 Rack support
5 Door handle
6 Housing
7 Thermostat knob
8 Indicator light
9 Switch knob
10 Timer knob
11 Stand

12 Wire rack

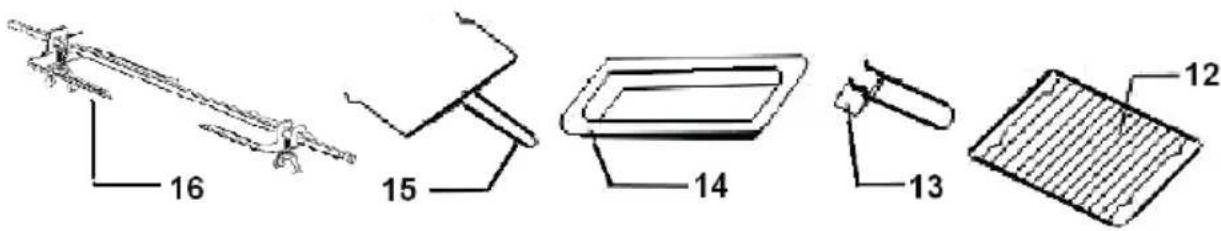

13 Tray handle
14 Bake tray
15 Rotisserie handle
16 Rotisserie Wheel

Usage

Before using the unit for the first time:

Heat the empty oven

1. Insert the tray and wire rack.
2. Set the heater operating switch to "UPPER & LOWER", set the temperature control dial to "230m °C" and heat the empty oven for about 10 minutes.

Note: There may be some smoke and a burning smell at first, but this is not a malfunction.

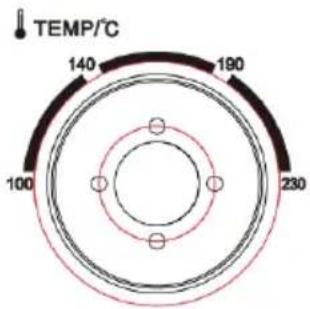

Temperature control dial

- Set the Temperature Control Dial for the dishes which you are going to cook.

Heat Operating Switch

Select "Upper" "Lower" or „Upper and Lower" according to the dishes you are going to cook. You can observe whether the heaters are working or not by observing the front Indicator light.

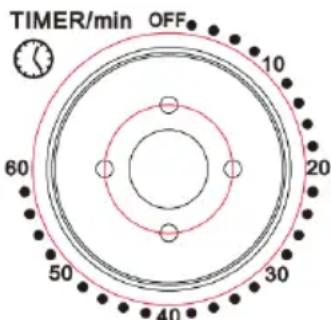

1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
2. Set the Timer by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring. When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.
3. The oven can be turned off manually during cooking by turning the Timer counter-clockwise to the "OFF" position.

TIMER/min OFF 60 20 50 30 40

Note:

If the inside of the oven is dirty, cooking may take slightly longer than usual.

Use of the accessories

Bake Tray and Wire Rack
Accessory Food (examples)	How to use Tray Handle
	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods.
	Baked potatoes, Dry food.
	For food which will drip, e.g. boiled fish, etc.

Be careful when removing pudding and other hot liquids.

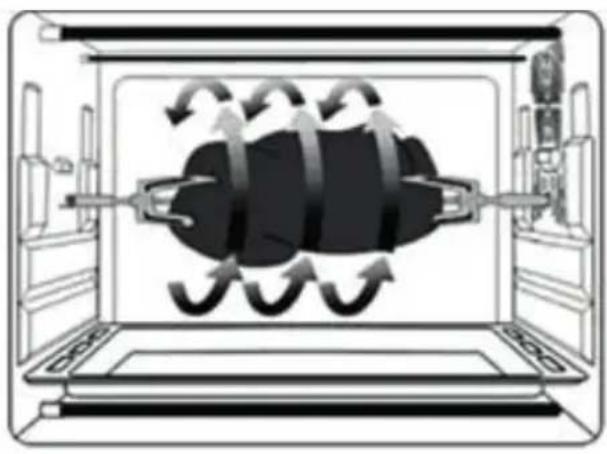

Rotisserie Function

Use with Rotisserie Forks Install Rotisserie Forks

Diagram of a device interior with internal airflow arrows and a central black object (no text or symbols)

With this function, even baking will be provided.

Rotisserie forks can carry food under 3 kilograms.

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including zoomed-in views of components.

left
right

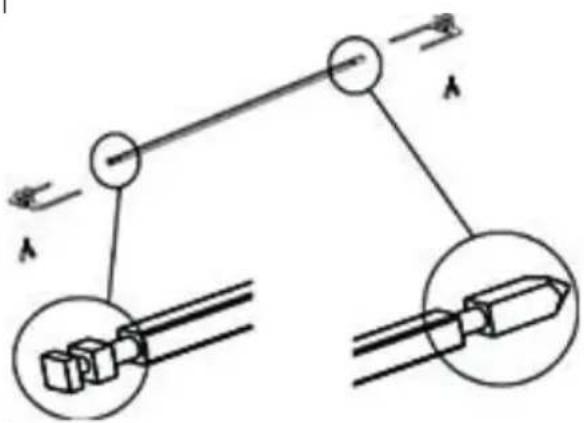

Install Rotisserie Forks Remove

Diagram showing a device with labeled components, including numbered parts ① and ②, likely illustrating a process or assembly.

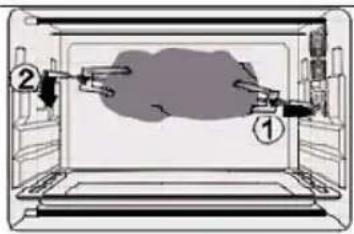

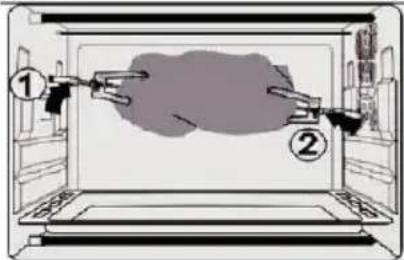

Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.

Rotisserie Forks Rotisserie Handle

Diagram showing a mechanical setup with labeled components, including a numbered component and directional arrows indicating motion or movement.

Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole.

CAUTION:BewareofHOT dripping oil!

Simple line drawing of a Y-shaped object with no text or symbols

Please always use Rotisserie Handle to take out the Rotisserie Forks.

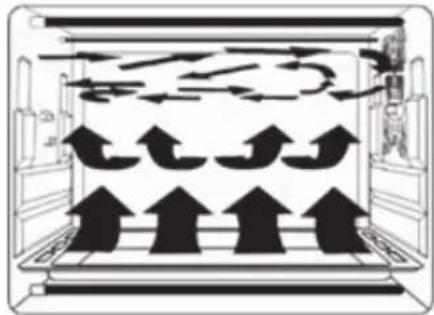

Convection function

Diagram of airflow patterns inside a storage or ventilation chamber with multiple upward-pointing arrows indicating movement (no text or symbols)

Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.

Function control

1. Set the "Temperature Control" by turning clockwise to select the suitable temperature according to the dishes you are going to cook.

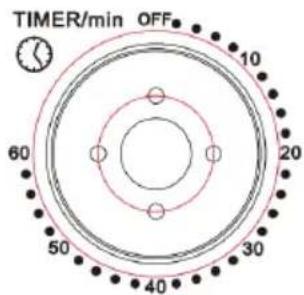

2. Set the "Timer" to the number which indicates the cooking time (minutes). Now, the oven is working.

TIMER/min OFF 60 50 40 30 20 10

Caution: danger of scalding

DO NOT open the glass door during cooking!

Upper & Lower Heating + Convection

Upper Heating + Convection

Upper & Lower Heating

Upper Heating + Rotisserie Function

Upper & Lower Heating + Rotisserie & Convection Function

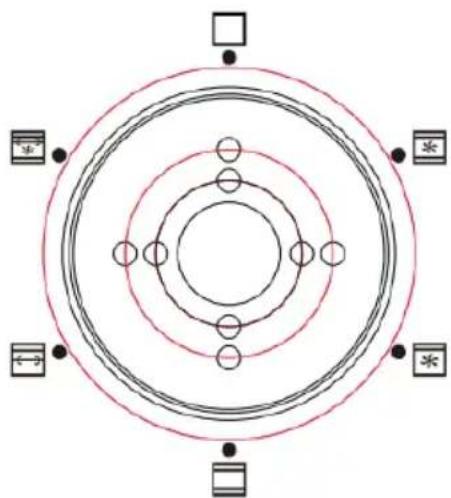

Circular diagram with concentric rings and surrounding symbols (no text or labels)

function selector

Table of cooking times

Type of food Number or thickness Temperature (°C) Timer (min.)
Sandwich 2-3 pcs	200 2-3
Toast 2-4 pcs 230	2-5
Hamburger 2-3 pcs	200 3-5
Fish / 200 7-10
Ham 2 cm 200 7-12
Sausage 3-4 pcs	200-230	8-10
Cake / 150	20-30
Steak	1-2 cm	230 10-15
Chicken	Half chicken	175-200	30-40

Cleaning

Illustration showing a hand inserting a small black object into a microwave oven while another uses a spoon (no text or symbols)

Take off the plug and cool down before cleaning.

When cleaning, wash the interior and exterior surface, tray, grid, and rotisserie fork with soft cotton (or sponge) with neutral cleaner. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the wire rack and the rotisserie fork.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

Disposal Considerations

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)

Chère cliente, cher client,

Illustration of a tray with a lid and radiating lines, no text or symbols present

Illustration of a hand using a crossed-out megaphone to clean food (no text or symbols)

Illustration of a hand holding a tool near a square frame, with no visible text or symbols

Illustration of a hand holding a spray gun with droplets, no text or symbols present

Labeled diagram of a microwave oven with numbered parts for identification

16 15 14 13 12

Diagram of a device interior with internal airflow arrows and a central black object (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including zoomed-in insets of components.

droitegauche

Diagram showing a device with labeled components, including numbered parts ① and ②, likely illustrating a process or assembly.

Diagram showing a mechanical setup with labeled components, including a central gray component and two numbered parts.

Simple line drawing of a Y-shaped object with no text or symbols

Diagram of airflow or heat transfer through a vehicle's air duct system, showing directional arrows and pressure indicators (no text or labels)

Concentric circles diagram with surrounding symbols (no text or labels)

Illustration of kitchen cleaning steps: hand holding a wall, microwave oven with brush, and two containers (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Illustration of a tray with a lid and radiating lines, no text or symbols present

Hand holding a crossed-out microwave oven with a hand pointing at it (no text or symbols visible)

Hand holding a pen with a square object above it, no text or symbols visible

Illustration of a hand holding a spray gun with droplets, no text or symbols present

Labeled diagram of a microwave oven with numbered parts for identification

Technical diagram showing labeled components of a mechanical or electrical assembly, including parts 12 through 16.

Diagram of a device interior with internal airflow arrows and a central black object (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including zoomed-in insets of components.

Sinistro
Destro

Inserire lo spiedo Rimuovere lo spiedo Impugnatura spiedo

Diagram showing a device with labeled components, including numbered parts ① and ②, likely illustrating a process or assembly.

Diagram showing a mechanical setup with labeled components, including a central gray component and two numbered parts.

Simple line drawing of a Y-shaped object with a protruding rod (no text or symbols)

Diagram of airflow or heat transfer through a vehicle's air duct system, showing directional arrows and pressure indicators (no text or labels)

Circular diagram with concentric rings and surrounding symbols (no text or labels)

Illustration showing a hand inserting a small black object into a microwave oven while another uses a spoon (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Illustration of a tray with a lid and radiating lines, no text or symbols present

Hand holding a crossed-out microwave oven with a hand pointing at it (no text or symbols visible)

Hand holding a pen with a square object above it, no text or symbols visible

Illustration of a hand spraying water with a spray gun (no text or symbols)

Labeled diagram of a microwave oven with numbered parts for identification

16 15 14 13 12

Diagram of a device interior with internal airflow arrows and a central black object (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including zoomed-in insets of components.

derechalzquierda

Diagram showing a device with labeled components, including numbered parts ① and ②, likely illustrating a process or assembly.

Diagram showing a mechanical setup with labeled components, including a central gray component and two numbered parts.

Simple line drawing of a Y-shaped object with a protruding rod (no text or symbols)

Diagram of airflow or heat transfer through a vehicle's air duct system, showing directional arrows and pressure indicators (no text or labels)

Concentric circles diagram with surrounding symbols (no text or labels)

Illustration showing a hand inserting a small black object into a microwave oven while another uses a spoon (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
