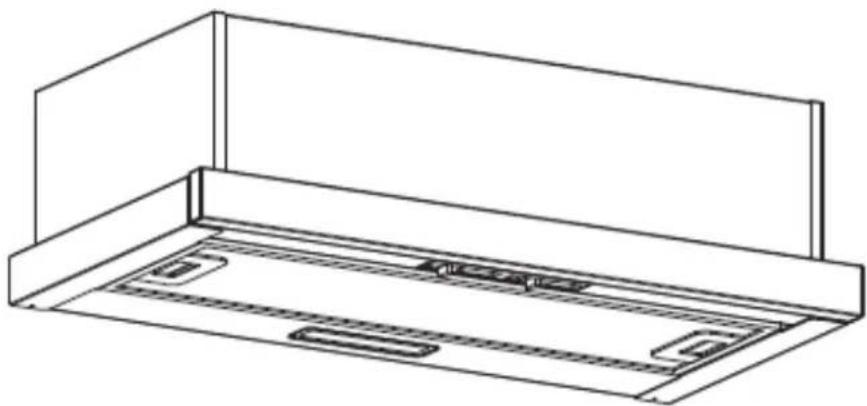

USER MANUAL CBT92403X CANDY

Line drawing of a 3D architectural or mechanical component with no visible text, numbers, or symbols.

ENGLISH(EN)----PAGE 001

Line drawing of a 3D technical diagram of a cabinet or enclosure with mounting brackets and internal compartments (no text or symbols)

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

These instructions shall also be available in an alternative format, e.g. on a website or on request from the user in a format such as a DVD.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
  ● Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
  ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  ● There is a fire risk if cleaning is not carried out in accordance with the instructions
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
  ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
  ●Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
  ● WARNING: Danger of fire: do not store items on the cooking surfaces.
  ●A steam cleaner is not to be used.
  ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

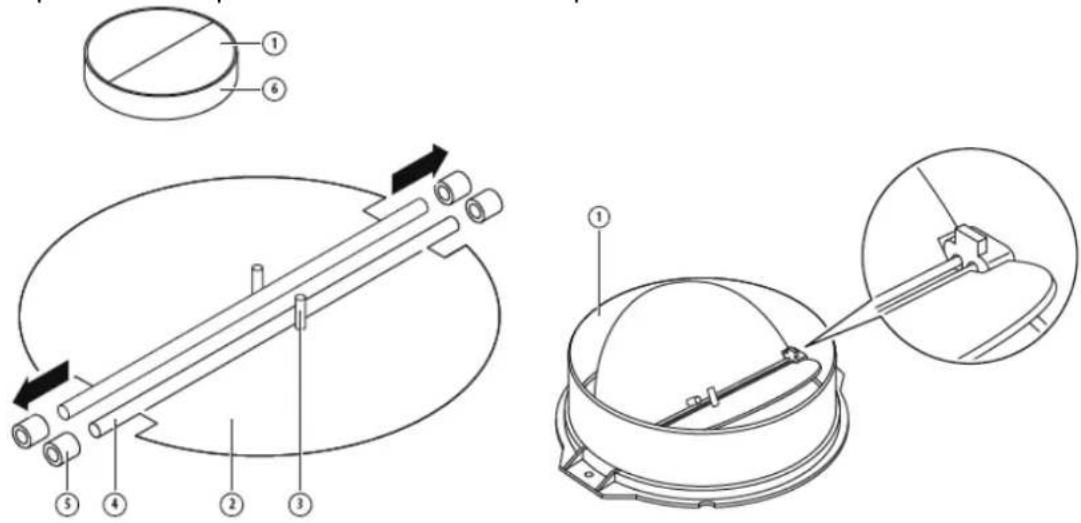

MOUNTING OF THE V-FLAP (Optional)

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

Technical diagram showing mechanical assembly with numbered components and a close-up of a component detail

A. INSTALLATION (Wall Mounting)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1

65cm 75cm PIC 1

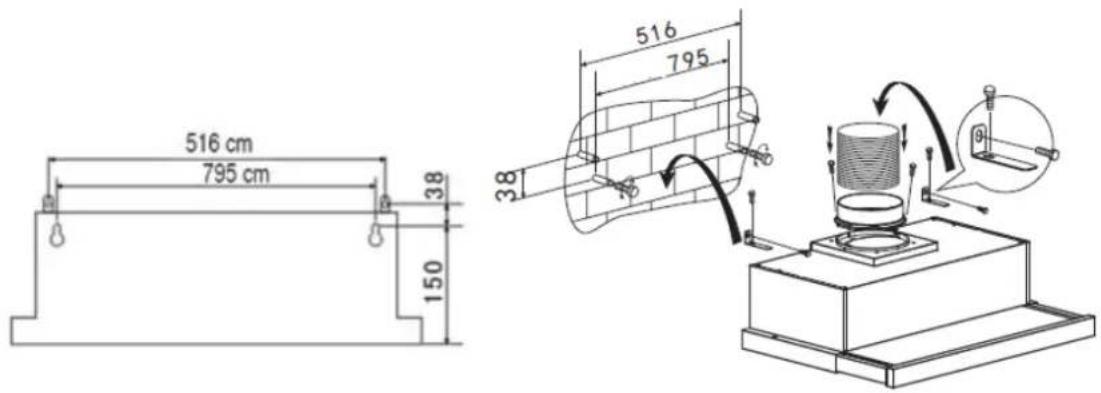

1. To install onto the wall, drill 4 holes of ∅ 8mm on a suitable place according with the centre distance of hole in the back of the cooker hood. See Pic below.

516 cm 795 cm 38 150 516 795 38

1. Insert the nut into the holes.

2. Insert the screws into the nuts and tight.

3. Hang the cooker hood onto the fixed screws.

4. Attach the one way valve onto the cooker hood. Lay the expansion pipe on the valve. Lift up the expansion pipe till it out of the wall through the hole on the wall.

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

B. INSTALLATION (Cabinet Mounting)

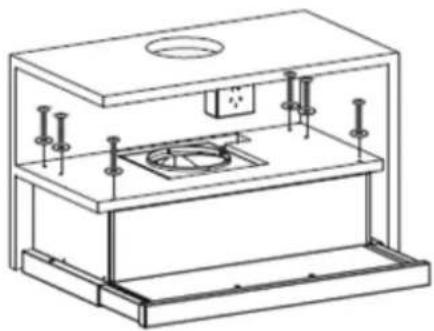

1. Drill 6 holes of ∅ 4mm at the bottom of the hanging cupboard.

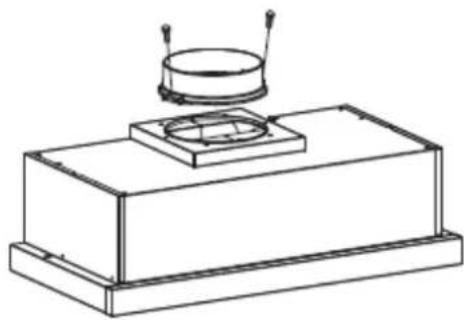

2. Put the one way valve on the air outlet of cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the cooker hood with enclosed 4 M4 screws and flat washers.

Technical line drawing of a mechanical component with a cylindrical top and base plate (no text or symbols)

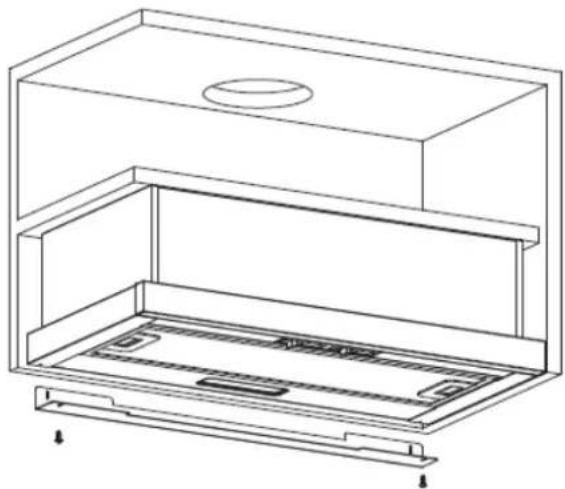

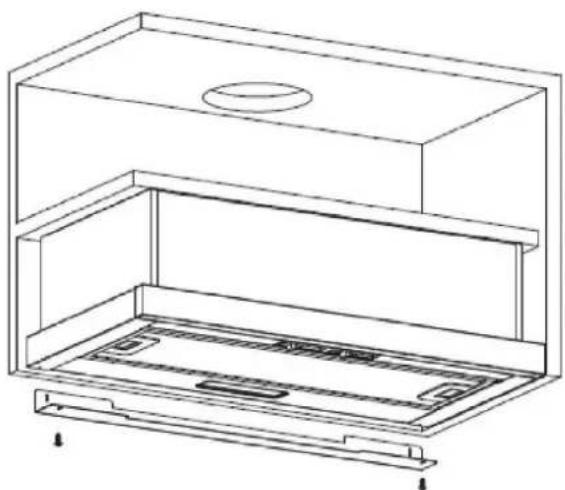

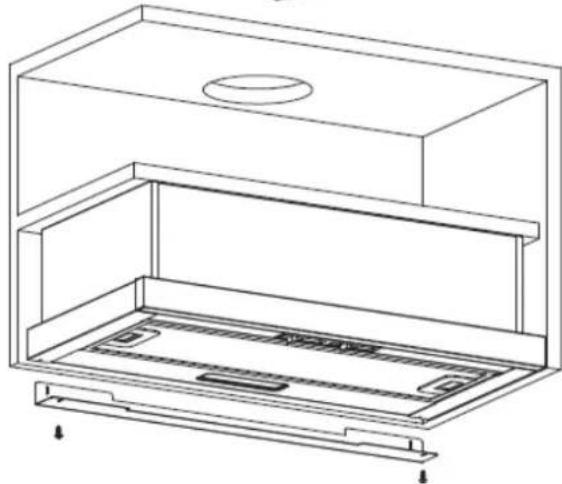

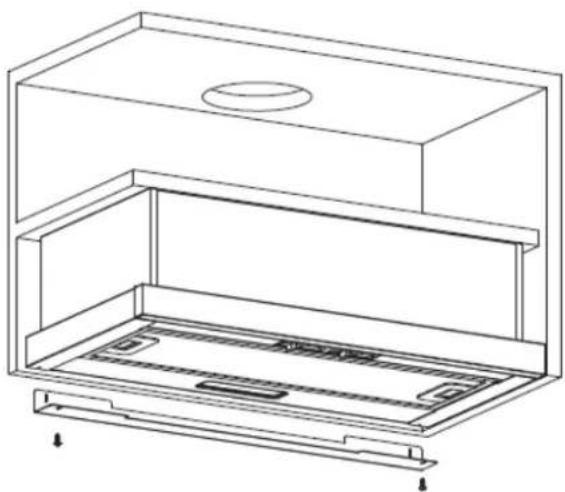

1. Install the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.
2. Lay the expansion pipe on the valve. Lift up the expansion pipe till it out of the wall through the hole on the wall.

516 60 194 210 67 210 50 55

Technical line drawing of a laboratory apparatus with no visible text or symbols

Technical line drawing of a 3D enclosure or enclosure with internal compartments and mounting feet (no text or symbols)

WARNING:

Yellow triangular warning sign with black exclamation mark symbol

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Toggle switch

O I

①

O I II III

Simple geometric diagram with two vertical gray bars inside a rectangle (no text or symbols)

②

1. Lamp – Turn on/off light

“O” – to switch off light

“I” – to switch on light

Power – Slide out drawer, power on; slide in drawer, power off.

2 .Speed –select speed to suit cooking conditions

“O” – to switch off motor

Low( I )— light frying/boiling

Medium( II ) – frying/wok cooking/heavy boiling

High ( III ) – grilling, intensive frying and wok cooking

Power – Slide out drawer, power on; slide in drawer, power off.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working Broken/Faulty globes		Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized figure holding a device, with no visible text or symbols

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

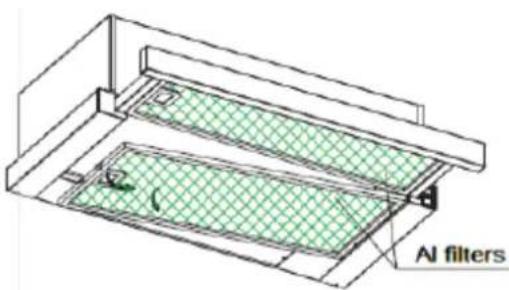

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

AI filters

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

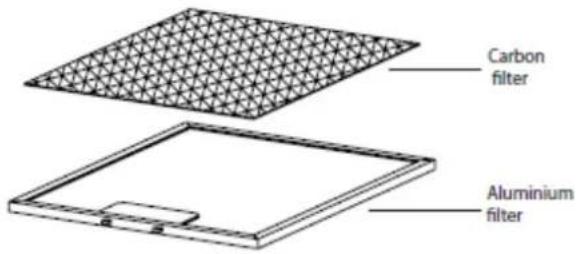

CARBON FILTER

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Put the carbon filter on the back side of the aluminium filter.
2. Insert the steel wire into the frame of the aluminium filter, one on each side. You need to bend it to insert into the other end of the frame.
3. Make sure the steel wire fix the carbon filter onto the aluminium filter.

Carbon filter Aluminium filter

Square grid pattern with no text or symbols, enclosed in a diamond border (no readable text or symbols)

Grid of 25 rectangular panels with no visible text, numbers, or symbols

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

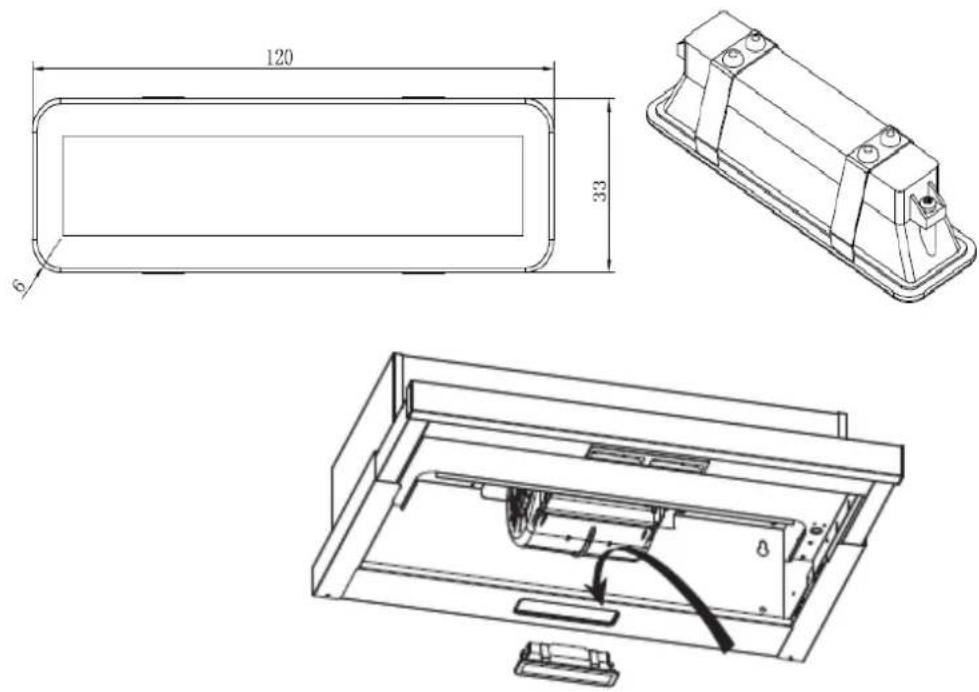

Changing the light

Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2/65-H-120/33
• LED modules -rectangle lamp

• Max wattage: 1X2 W
  – Voltage range: AC 220-240V

• Dimensions:


ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

Hotte aspirante Manuel d' instruction

Line drawing of a 3D technical diagram of a cabinet or enclosure with mounting brackets and internal compartments (no text or symbols)

Sommaire

Illustration of a steaming pot and burning flames with a crossed-out blade (no text or symbols)

Illustration of a desk lamp illuminating a steaming lamp with a black cross symbol (no text or symbols present)

À toujours faire :

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly.

A. INSTALLATION (montage mural)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and square base (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Technical line drawing of a laboratory apparatus with mounting base and control panel (no text or symbols)

Technical line drawing of a 3D enclosure or enclosure with internal components and mounting base (no text or symbols)

AVERTISSEMENT :

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric shape with two vertical gray bars inside a rectangle (no text or symbols)

②

Abstract line drawing of a stylized animal figure with a cat-like head, possibly a lion or mythical creature, against a plain background (no text or symbols)

AI filters

Carbon filter Aluminium filter

REMARQUE :

Technical line drawing of a mechanical assembly with no visible text or symbols

PROTECTION DE L'ENVIRONNEMENT

Line drawing of a 3D architectural or mechanical component with no visible text, numbers, or symbols.

Inhalt

Illustration of a laboratory setup with a lamp, beaker, and heating element (no text or symbols)

Prohibition sign with two pictograms showing a person and child against a circle, indicating no prohibition or disapproval.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

A. INSTALLATION (Wandmontage)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and base, no text or symbols present

B. INSTALLATION (Schrankmontage)

Technical line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Technical line drawing of a laboratory apparatus with mounting base and control panel (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

WARNUNG:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Simple geometric diagram with two vertical gray bars on white background (no text or symbols)

②

Abstract black-and-white illustration of a stylized figure with a cat and a pig, no text or symbols present.

Square frame with a grid pattern, no text or symbols visible

Grid of black rectangular panels with repeated 'F' and 'R' text, likely a digital display or interface panel.

HINWEIS:

Line drawing of a 3D technical sketch of a cabinet or enclosure with mounting brackets and internal compartments (no text or symbols)

Inhoud

Prohibition sign with pictogram of two people crossed out, one holding a diagonal line above them

INSTALLATIE (VENTILATIE BUITEN)

MONTAGE VAN DE V-KLEP (optioneel)

Technical diagram showing mechanical assembly with numbered components and a close-up of a component detail

A. INSTALLATIE (montage op de muur)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Technical line drawing of a laboratory apparatus with no visible text or symbols

Technical line drawing of a multi-chamber appliance housing with mounting base (no text or symbols)

WAARSCHUWING:

Yellow triangular warning sign with black exclamation mark, commonly used for safety alerts

Abstract line drawing of a stylized figure with a cat and a pig, no text or symbols present

Aluminium filters

VETFILTERS VAN GAAS INSTALLEREN

Square grid pattern with diagonal lines, no text or symbols present

Cropped image of a grid of handwritten or printed text blocks, possibly from a document or form.

OPMERKING:

Square grid pattern with no text or symbols, enclosed in a white border (no readable symbols or text)

Grid of 24 identical rectangular panels with uniform dark patterns, no visible text or symbols

ملاحظة:

Abstract line drawing of a stylized animal figure with a cat-like body, no text or symbols present

الصيانة والتنظيف

تنيه:

Technical line drawing of a laboratory apparatus with mounting base and control panel (no text or symbols)

Technical line drawing of a 3D enclosure or enclosure with internal compartments and mounting feet (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up of a spherical component with internal structure.

Diagram of airflow around a mechanical component with directional arrows indicating motion (no text or symbols)

Prohibition sign with two pictograms showing a person and child crossed out, indicating no prohibition or rejection.

Line drawing of a 3D technical diagram showing a rectangular enclosure with internal components and mounting holes (no text or symbols)

CBT9240/3X

مدخنة موقد الطهي

دليل التعليمات

Line drawing of a 3D cabinet or enclosure structure with mounting brackets and internal compartments (no text or symbols)

001 صفحة (AR) عربي
