Brand	Swatch
Model	Black Rebel SUOB702
Product Type	Analog wristwatch
Movement	Analog quartz
Water resistance	200 m (Scuba 200 Chrono)
Case material	Plastic / Resin
Strap material	Silicone
Case diameter	Approximately 41 mm
Case thickness	Approximately 10 mm
Weight	Approximately 30 g
Power source	Button cell (type not specified, standard Swatch)
Battery life	Approximately 2 to 3 years
Main functions	Hours, minutes, seconds (via hands), date, day, alarm, Scuba chronograph, Loomi lighting, Touch mode, interactive game
Time setting	Crown in position C (pulled all the way out), rotate
Date and day setting	Crown in position B (pulled halfway), rotate counterclockwise for date, clockwise for day
Alarm	Yes, with Touch function, setting via crown, demonstration and stop
Lighting	Loomi: activated by tapping on the glass
Scuba function	Rotating bezel to measure elapsed time (timer)
Touch function	Tap to activate alarm, game, demonstration
Warranty	2 years (manufacturer)
Care and cleaning	Rinse with fresh water after immersion in salt water; avoid violent impacts

Frequently Asked Questions - Black Rebel SUOB702 SWATCH

How to set the time on my Swatch Black Rebel SUOB702?

Pull the crown to position C (all the way out). Turn it in the desired direction to set the hours (fast turn) and minutes (slow turn). Push the crown back to position A to finish.

How to set the date and day?

Pull the crown to position B (halfway). Turn it counterclockwise to set the date, then clockwise to set the day. Push the crown back to position A.

How to use the Loomi (lighting) function?

Tap lightly on the watch glass (Loomi zone). The light turns on to illuminate the dial.

How to set and use the alarm?

Press the crown to toggle between ON and OFF modes. Pull the crown to position 1 to set the alarm time (slow turn = minutes, fast turn = hours). Push the crown in to activate the alarm. For a demonstration, press the crown for 2 seconds.

How to stop the alarm?

Tap the watch (Touch zone) to stop the alarm.

How to use the Scuba bezel to measure elapsed time?

Rotate the bezel to align the reference mark with the minute hand. The minute hand then indicates the elapsed time on the bezel.

How to test and initialize the watch after a battery change?

Press the crown for 5 seconds. If the hands indicate exactly noon/midnight, the test is successful. Otherwise, pull the crown to position 2, adjust the hands (hour hand clockwise, minute hand counterclockwise), then push the crown in.

How to play with the Touch function?

Tap your Swatch. The hands rotate to noon/midnight then stop randomly. The result is displayed for a few seconds before returning to the time.

What to do if the alarm ON/OFF display is incorrect?

If the hands do not correctly display ON or OFF, the alarm needs recalibration. Pull the crown to position 1 and reset the alarm time, then push the crown in.

How to maintain my Swatch Black Rebel SUOB702?

Rinse the watch with fresh water after immersion in salt water. Avoid violent impacts. For cleaning, use a soft cloth. Do not expose to extreme temperatures.

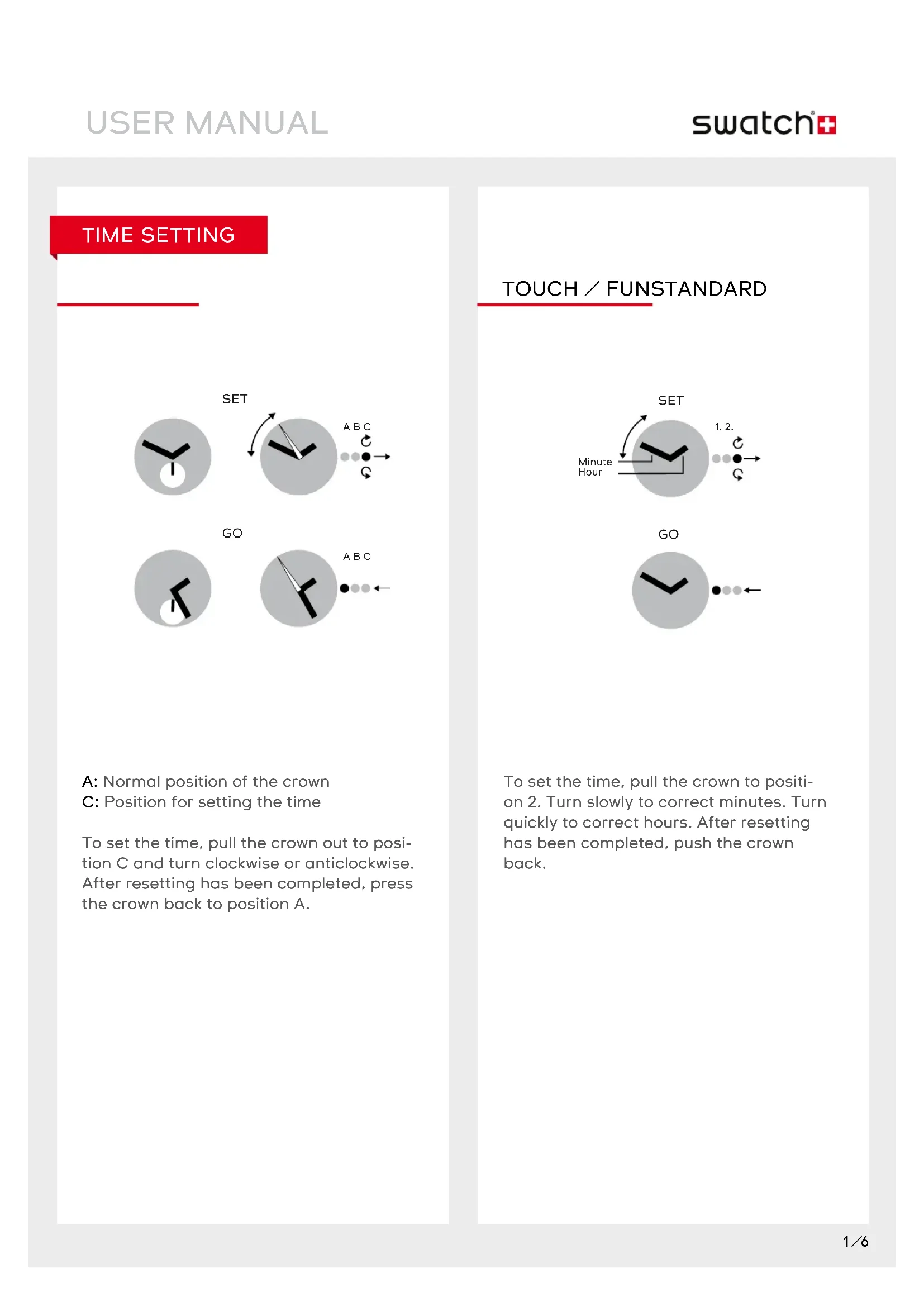

USER MANUAL Black Rebel SUOB702 SWATCH

A: Normal position of the crown
C: Position for setting the time

To set the time, pull the crown out to position C and turn clockwise or anticlockwise. After resetting has been completed, press the crown back to position A.

TOUCH/FUNSTANDARD

To set the time, pull the crown to position 2. Turn slowly to correct minutes. Turn quickly to correct hours. After resetting has been completed, push the crown back.

DATE OR DAY SETTING

STANDARD

To set the date, pull the crown out to position B, and turn anticlockwise. To set the day, turn the crown in a clockwise direction. After resetting has been completed, press the crown back to position A.

READJUSTMENT

TOUCH/FUN

TEST/OK

ADJUST HAND/+HOUR

ADJUST HAND/+MINUTES

GO

Push crown for 5 seconds. If both hands go to 12 o'clock, test is ok. Push crown again and hands go back to time.

If hands are not exactly at 12 o'clock, pull crown to position 2. Turn clockwise to readjust hour hand. Turn counter clockwise to readjust minute hand. Push crown back and hands turn back to show time.

LOOMI FUNCTION: DISPLAY

TOUCH LOOMI

TOUCH YOUR SWATCH

LOOMI ON

LOOMI

LIGHT FUNCTION

POP

POP-IN

POP-OUT

POP ON CLOTHES

Note: Wear your Swatch simply with its band or try „popping" it directly onto your clothes.

TOUCH ALARM

SHOW ALARM TIME

4 secs.

Touch your Swatch.

Hands move to show alarm time for approx. 4 seconds.

STOP ALARM

Touch your Swatch to stop alarm.

ALARMON/OFF

...CHANGE ON/OFF

SHOW LAST ALARM

...SET NEW ALARM

GO

Switch alarm on/off and set alarm time Press crown and hands go to actual mode on or off.

Press crown again to change mode.

Pull crown to position 1 and the hands go to the last alarm time.

To set a new alarm time, turn crown (turn slowly = minutes, turn quickly = hours).

Then push crown back and hands turn back to time and alarm mode will be "on".

ALARM DEMO

Press crown for 2 seconds to start alarm demo.

To stop, press crown again.

IMPORTANT: When the hands do not show correctly ON-OFF (alarm mode), the Touch Alarm must be adjusted (e.g. after battery change or a hard knock).

TOUCH GAME

Touch your Swatch.

Hands come together at 12 o'clock and start to rotate at least on full turn.

IMPORTANT: If hands are not exactly at 12 o'clock, they have to be readjusted.

4 secs.

Hands stop by accident and show the result of your game for some seconds... ...then, hands turn back to time.

SCUBA FUNCTION: ELAPSED TIME

Using the adjustment ring

For setting the start time and duration of an activity, line up the marker on the adjustment ring with the minute hand. Timing starts at the time indicated by the marker. The elapsed time is indicated by the minute hand pointing the number on the adjustment ring.

WARNING NOTE

IMPORTANT: After being submerged in salt water, the Scuba 200 Chrono should always be rinsed with fresh water.

CAUTION: The Irony Scuba 2OO Chrono is not a professional diving watch.

ZEIT EINSTELLEN

EINSTELLLEN

BETRIEB

TIPPEN SIE AUF IHRE SWATCH

LOOMI GEHT AN

LOOMI

BELEUCHTUNG

POP

LOOMI-FUNCTIE: SCHERM

TOUCH LOOMI

RAAK JE SWATCH AAN

LOOMI ON

LOOMI

LICHT-FUNCTIE

POP

ERIN DRUKKEN

UITWIPPEN

AAN KLEDEDING BEVESTIGEN
