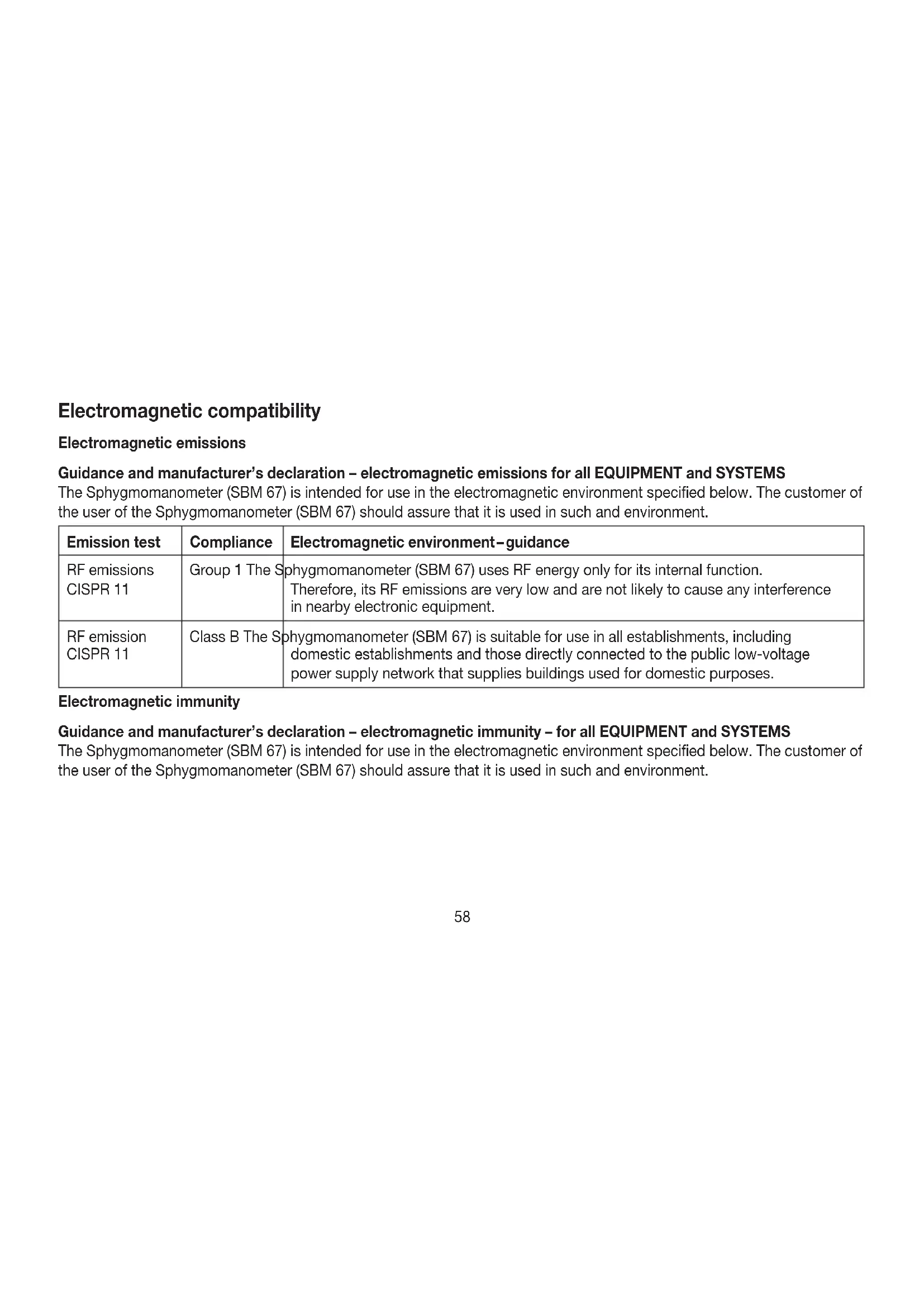

Electromagnetic emissions
Guidance and manufacturer's declaration - electromagnetic emissions for all EQUIPMENT and SYSTEMS
The Sphygmomanometer (SBM 67) is intended for use in the electromagnetic environment specified below. The customer of the user of the Sphygmomanometer (SBM 67) should assure that it is used in such and environment.
| Emission test | Compliance | Electromagnetic environment–guidance |
| RF emissions CISPR 11 | Group 1 The Sphygmomanometer (SBM 67) uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. |
| RF emission CISPR 11 | Class B The Sphygmomanometer (SBM 67) is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. |
Electromagnetic immunity
Guidance and manufacturer's declaration - electromagnetic immunity - for all EQUIPMENT and SYSTEMS
The Sphygmomanometer (SBM 67) is intended for use in the electromagnetic environment specified below. The customer of the user of the Sphygmomanometer (SBM 67) should assure that it is used in such and environment.
| Immunity test IEC 60601 test level | Compliance level | Electromagnetic environment–guidance | |
| Electrostatic discharge (ESD) IEC 61000-4-2 | ±6 kV contact ±8 kV air | ±6 kV contact ±8 kV air | Floors should be wood, concrete or ceramic tile. If floor are covered with synthetic material, the relative humidity should be at least 30%. |
| Power frequency (50Hz) magnetic field IEC 61000-4-8 | 3A/m | 3A/m | Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment. |
Guidance and manufacturer's declaration - electromagnetic immunity for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING
The Sphygmomanometer (SBM 67) is intended for use in the electromagnetic environment specified below. The customer or the user of Sphygmomanometer (SBM 67) should assure that it is used in such an environment.
| Immunity test IEC 60601 test level | Compliance level | Electromagnetic environment–guidance |
| | Portable and mobile RF communications equipment should be used no closer to any part of the Sphygmomanometer (SBM 67), including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance. |
| Conducted RF IEC 61000-4-6 | 3 V rms150 kHz to80 MHz | 3 V rms | d=[3.5/V1]√P |
| Radiated RF IEC 61000-4-3 | 3 V/m80 MHz to2.5 GHz | 3 V/m | d=[3.5/E1]√P80 MHz to 800 MHz |
| d=[7/E1]√P800 MHz to 2.5 GHz |
| | | Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveya should be less than the compliance level in each frequency rangeb. Interference may occur in the vicinity of equipment marked with the following symbol: |
| NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. |
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Sphygmomanometer (SBM 67) is used exceeds the applicable RF compliance level above, the Sphygmomanometer (SBM 67) should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Sphygmomanometer (SBM 67).
b Over the frequency range 150kHz to 80MHz , field strengths should be less than 3V / m .
Recommended separation distances
Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT or SYSTEM that are not LIFESUPPORTING
Recommended separation distances between portable and mobile RF communications equipment and the Sphygmomanometer (SBM 67).
The Sphygmomanometer (SBM 67) is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Sphygmomanometer (SBM 67) can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Sphygmomanometer (SBM 67) as recommended below, according to the maximum output power of the communications equipment.
| Rated maximum output power of transmitter (W) | Separation distance according to frequency of transmitter (m) |
| 80 MHz to 800 MHz 800 MHz to 2.5 GHz d = [3.5/E1]√P | d = [7/E1]√P |
| 0,01 0.1167 0.2334 | | |
| 0,1 0.3689 0.7378 | | |
| 1 1.1667 2.3334 | | |
| 10 3.6893 7.3786 | | |
| 100 11.6667 23.3334 | | |
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
