Technical Specifications	Combined refrigerator, total capacity of 680 liters, energy class A++
Dimensions	Width: 91 cm, Height: 183 cm, Depth: 75 cm
Cooling Type	Ventilated cooling
Usage	Refrigeration and freezing of food, digital temperature display
Maintenance	Automatic defrost, recommended interior cleaning every 6 months
Safety	Door locking system, high temperature alarm
General Information	2-year warranty, quiet operation (noise level: 42 dB)

Frequently Asked Questions - SJXE680MBK SHARP

The refrigerator does not turn on. What should I do?

Check if the appliance is properly plugged in and if the outlet is working. Also make sure the circuit breaker has not tripped.

There is condensation inside the refrigerator. Why?

Condensation may be due to a door not properly closed or too high ambient temperature. Check the door seal and adjust the temperature if necessary.

The refrigerator makes an unusual noise. What should I do?

Noises can be normal, but if the noise is loud or unusual, check if the appliance is level and if items inside are not vibrating. If the problem persists, contact customer service.

How do I adjust the refrigerator temperature?

Use the control panel located inside the refrigerator to adjust the temperature. The recommended temperature is usually between 2 °C and 5 °C.

The refrigerator is not cooling properly. What should I do?

Make sure the vents are not blocked and the temperature is set correctly. Also check that the door gasket is in good condition.

How do I clean the inside of the refrigerator?

Unplug the appliance, remove all food, then clean the internal surfaces with a mixture of warm water and baking soda. Then wipe with a clean cloth.

Do I need to defrost the refrigerator?

If the model is not automatic defrost, manual defrosting may be necessary when ice builds up. Turn off the appliance and let the ice melt, then clean and restart.

How do I change the refrigerator bulb?

Unplug the appliance, remove the bulb cover and replace the bulb with a new one of the same type. Then plug the refrigerator back in.

Where can I find the refrigerator model number?

The model number is usually located inside the refrigerator, on a label stuck to the side wall or at the back of the appliance.

The refrigerator emits an unpleasant odor. What should I do?

Check if any food is expired or has leaked. Clean the shelves and bins. You can also place a bowl of baking soda inside to neutralize odors.

How do I install the refrigerator correctly?

Place the refrigerator on a flat and stable surface, leave enough space around for air circulation, and check that the appliance is level using a spirit level.

USER MANUAL SJXE680MBK SHARP

Front view of a modern stainless steel refrigerator with dual doors (no visible text or symbols)

SJ-XP680G
SJ-XP700G

Pure diagram of a refrigerator with no text, numbers, or symbols

SJ-XE680M
SJ-XE700M

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

Refrigerator-Freezer Operation manual .... 5

ES

Frigorifico-Congelador Manual de manejo.... 18

IT

• Safety information 5
• Installation 7
• Description 8
• Useful modes 9
  • Control panel 10 (SJ-XP680G, SJ-XP700G)

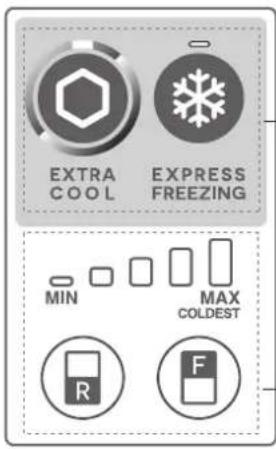

  • Control panel 12 (SJ-XE680M, SJ-XE700M)
• Storing food 14
  • Care and cleaning 15
• Before you call for service 16
• Product FICHE 17

ES Contenido

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

• This refrigerator is intended for making ice cubes, refrigerating and freezing foods.
• This refrigerator is for household use only, with ambient temperature indicated in the table. The climate class is specified on the rating plate.
  The refrigerator is fully functional at the ambient temperature range of the indicated climate class. If the refrigerator is used at colder temperatures, the refrigerator will not be damaged up to a temperature of +5°C.
• The refrigerator should not be subjected to temperatures of -10^ or below for a long period of time.

Household use only

Climate class	Acceptable range of ambient temperature
SN +10°C to 32°C
N +16°C to 32°C
ST +16°C to 38°C
T +16°C to 43°C

EN

Safety information

Warning	This means that there are high risks of death or serious injury.
Caution	This means that there are high risks of material damage or personal injury.

Warning

Refrigerant

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

■ Do not allow any sharp objects to have contact with the refrigeration system. The refrigeration system behind and inside the refrigerator contains refrigerant.
■ Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)
■ Do not use electrical appliances inside the refrigerator.
■ Do not block the space around the refrigerator.
■ Do not use flammable sprays, such as spray paint near the refrigerator.
■ In the case of failure of the refrigeration system, do not touch the wall socket and use open flames.
Open the window and air out the room. Then ask a service agent approved by SHARP for service.

Installation

■ Do not install the refrigerator in a damp or wet location. It may cause the damage to the insulation or electrical leak. Dew may also appear on the outer cabinet and it causes rust.
■ The refrigerator should be installed flatly and firmly on the floor.

Power cord, Plug, Socket

Read carefully the following rules to prevent electric shock or fire.

■ Connect the power plug into the wall socket firmly and directly. Do not use an extension cord or adapter plug.
■ Connect the power plug to the socket with the required rated voltage.
■ Connect the earth pin to the earth terminal properly.

■ Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug.
■ Do not touch the power plug with wet hands.
■ Disconnect from the main electricity supply by removing the main plug from the socket. Do not remove by pulling the power cord.
■ Dust deposited on the power plug may cause fire. Wipe it off carefully.
■ Pull out the plug if the refrigerator is not used for a long time.
■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP, a special cord is required.

In use

■ Do not store volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are easy to explode.
■ Do not store temperature-sensitive products such as pharmaceutical products in the refrigerator. There are high risks of changes in product quality.
■ Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.
■ Do not place any object on the top of refrigerator. If the object falls down from the top, it may cause injury.
This appliance can be used by children aged from 8 years or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way or understanding the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

Care and Cleaning

■ Unplug the refrigerator first to prevent electric shock.
■ Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

Trouble

■ If you smell something burnt, pull out the power plug immediately. Then ask a service agent approved by SHARP for service.
■ In case of gas leak, ventilate the area by opening window. Do not touch the refrigerator or the power socket.

Caution

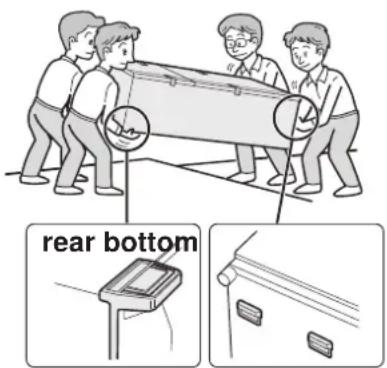

Transportation

■ When you install or move your refrigerator, use curing mat to protect the floor from being damaged.
- Carry the refrigerator by holding the handles located on the rear and bottom side. If you lift up the refrigerator improperly, it may cause injury.

rear bottom

Disposal

■ Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)
■ This refrigerator should be disposed appropriately. Take the refrigerator to a professional recycling plant for flammable refrigerant and insulation blowing gases.

In use

■ Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.
■ Do not touch foods or metal containers in the freezer compartment with wet hands. This may cause frostbite.
- Do not place bottled drinks and cans in the freezer compartment. Especially “Express cool” is in operation, there is a high risk that glass bottles may burst.
■ Do not use other than potable water to make ice cubes.
■ Do not open or close the door when other people put a hand near the door. There is a risk that the other people may get their fingers caught in the door.
■ Do not put oversized object in the pockets of the door. If the object falls down from the pockets, it may cause injury.

Indicator of temperature

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height isn't the coldest zone.)

Symbol

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

BLUE

WHITE

Correct setting Temperature too high, adjust the refrigerator temp. control.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

1 Keep adequate ventilation space around the refrigerator.

- The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

90mm or more 60mm or more 60mm or more

- By keeping greater space, the refrigerator may consume a less amount of power consumption.

- If use the refrigerator in the smaller space dimension than figured, it may cause temperature rise in the unit, loud noise and failure.

- The space between the rear of the refrigerator and the wall should be 60mm or more, and less than 75mm. If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation.

Overall space required in use

1525 mm 1420 mm

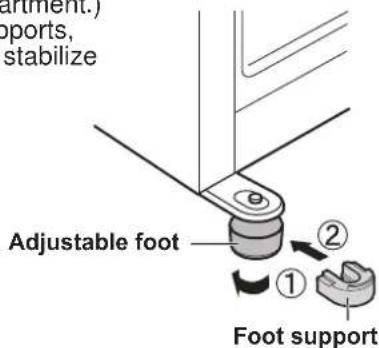

2 Turn the two adjustable feet of the front side to make the spaces to insert the foot supports.

(The foot supports are packed inside the refrigerator compartment.) After inserting the supports, adjust the two feet to stabilize the refrigerator.

Adjustment.) pports, stabilize Adjustable foot Foot support

- The refrigerator is slightly tilted backward by inserting the supports. It is effective to install the refrigerator firmly.

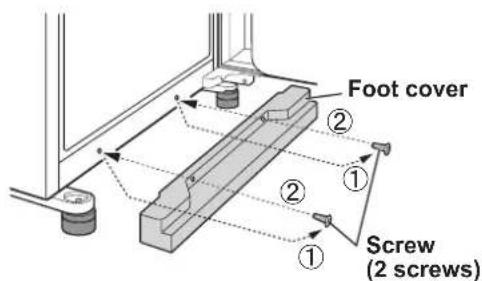

3 Remove the 2 screws of the lower part of the cabinet and use these screws to set the foot cover.

(The foot cover is packed inside the refrigerator compartment.)

Foot cover ② ① ② Screw (2 screws)

Note

- Place your refrigerator to access the plug. - Keep your refrigerator out of direct sunlight and do not place next to heat generating appliance.

- Do not place your refrigerator directly on the ground. Insert suitable stand such as wooden board under the refrigerator.

- When you insert the power plug with the door opened, door alarm sounds but it is not abnormal. This sound stops after closing the door.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

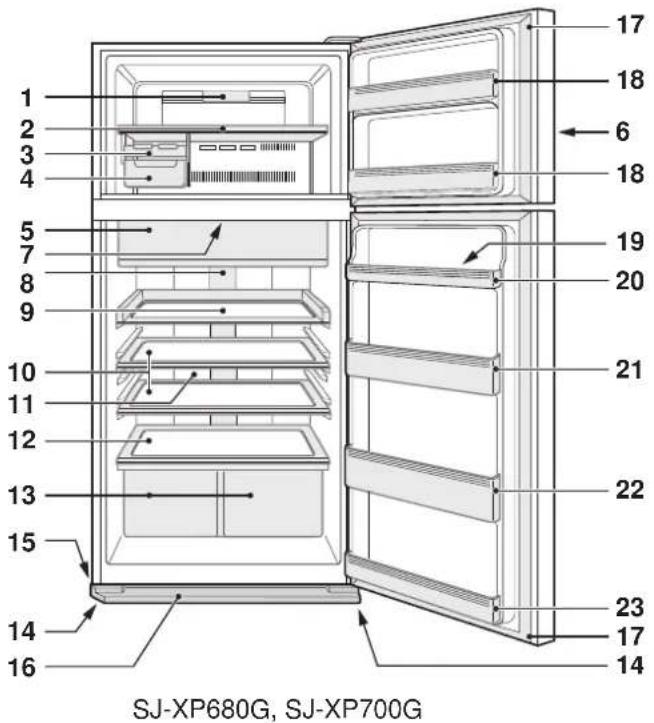

Description

1 2 3 4 5 7 8 9 10 11 12 13 15 14 16 SJ-XP680G, SJ-XP700G 17 18 6 18 19 20 21 22 23 17 14

1. Freezer light
2. Freezer shelf
3. Ice cube maker

1) Do not overfill this tray with water. Otherwise the ice cubes will join together when frozen.
2) When ice cubes are made, turn the lever clockwise to put the ice into the Ice cube box.

1. Ice cube box Note

Lever Ice cube box

To prevent the ice cube box from being damaged, do not pour oil into the box or make ice in it.

1. Fresh case & door (Chill compartment)
2. Control panel
3. Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. There is no need to operate and clean.

1. Refrigerator light

2. Smooth access shelf

You can pull out this shelf.

1. Refrigerator shelf

SJ-XP680G, SJ-XE680M : 1 pc SJ-XP700G, SJ-XE700M : 2 pcs

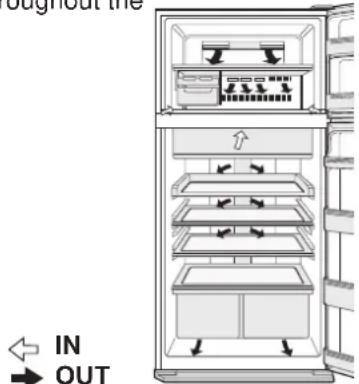

1. Hybrid cooling panel

The panel cools the refrigerator compartment indirectly from the rear. In this way, food is cooled gently without being exposed to cold air flow.

1. Fruit and vegetable shelf
2. Fruit and vegetable crisper (2 pcs)
3. Adjustable foot (2 pcs)

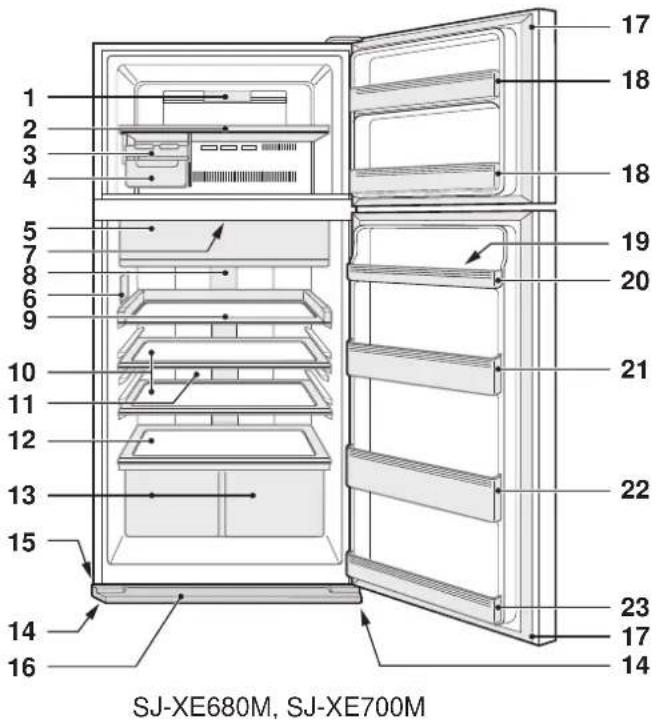

1 2 3 4 5 7 8 6 9 10 11 12 13 15 14 16 SJ-XE680M, SJ-XE700M 17 18 18 19 20 21 22 23 17 14

1. Caster(4 pcs)
   The casters allow the refrigerator to move back and forth.
2. Foot cover
3. Magnetic door seal (2 pcs)
4. Freezer door pocket (2 pcs)
5. Egg holder
6. Egg pocket

SJ-XP680G, SJ-XE680M : 2 pcs

SJ-XP700G, SJ-XE700M : 1 pc

Casters

Interior view of a refrigerator showing open door, shelves, and drawer (no text or symbols)

SJ-XP680G, SJ-XE680M

1. Refrigerator pocket (Upper)
   (Only for SJ-XP700G, SJ-XE700M)
2. Bottle pocket
3. Refrigerator pocket (Bottom)

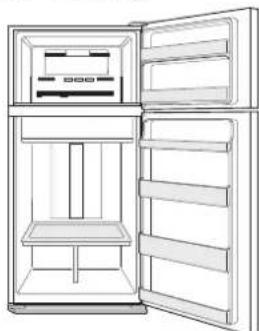

More food can be stored by taking out the internal accessories with normal cooling operation.

You may remove following accessories.

1. Freezer shelf
2. Ice cube maker
3. Ice cube box
4. Smooth access shelf
5. Refrigerator shelf
6. Fruit and vegetable crisper

Line drawing of an open refrigerator with doors open, showing front and interior compartments (no text or symbols)

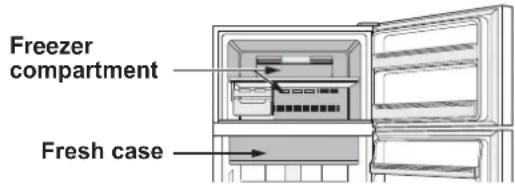

Extra cool

Express freezing

Express cool

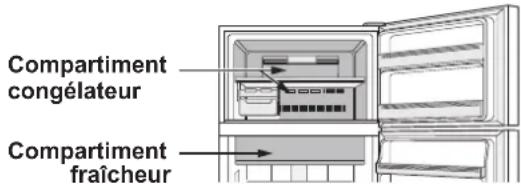

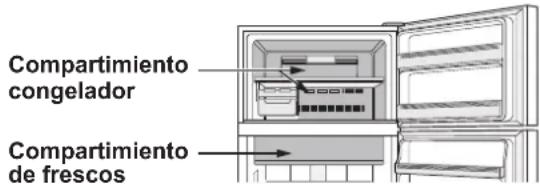

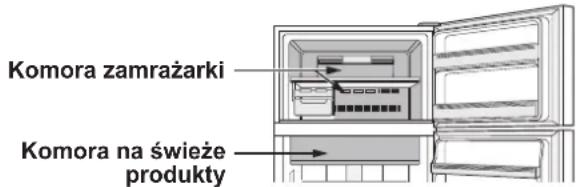

Freezer compartment Fresh case

	Extra cool Express freezing Express cool
Feature This mode	is to cool beverages or foods to ice-cold.Note: Food with high-moisture may freeze.	This mode speeds up the time to freeze food.	This mode is to cool beverages or foods quickly.
Point of use Fresh case Freezer compartment Freezer compartment			Caution: Do not place glass bottles. There is a high risk that they may burst.
Operating time 6 hours * 1		2 hours *1	30 minutes
		• This mode ends automatically.• The alarm does not sound.	• This mode ends automatically.• The alarm sounds.To stop the alarm *2Press enter or Press “Express button. freezing” button.
After the operation completed	• There is no need for taking beverages or foods out.		• Be sure to take the beverages and foods out when the alarm sounds.• If the beverages and foods are left in the freezer compartment over approximately 30 minutes, they may freeze.
At the time of power failure during the operation	• This mode is automatically cancelled.		• This mode is automatically restarted from the previous state at the time of re-power.

*1 It may take more time to complete if the operation overlaps with defrosting. This mode starts after defrosting is completed.
*2 If you do not stop the alarm, it sounds 30 minutes continuously.

Plasmacluster

Use this feature when you want to keep the inside of the refrigerator clean.

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment. These ion clusters inactivate airborne mold fungus.

Note

- There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimum and quickly disappears in the refrigerator.

Note

• Extra cool, Express freezing and Express cool are not available at the same time while one of the modes is in operation.
• Avoid opening the door as much as possible during the operations of these modes.

Energy saving

(Only for SJ-XP680G, SJ-XP700G)

Use this feature when you want to switch the appliance to energy-saving operation.

While this feature is operating, the inside temperature of the refrigerator and freezer compartment becomes higher than the normal operation as follows.

The displayed temperature is not be changed.

	Freezer compartment	Refrigerator compartment
Under “Energy saving” mode	Approx. 1°C plus	Approx. 2°C plus

(When the temperature is set at F: -18°C, R: 3°C.)

Cancel this mode when you feel the beverages are not cooled enough or ice making takes longer time.

Note

- The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food).

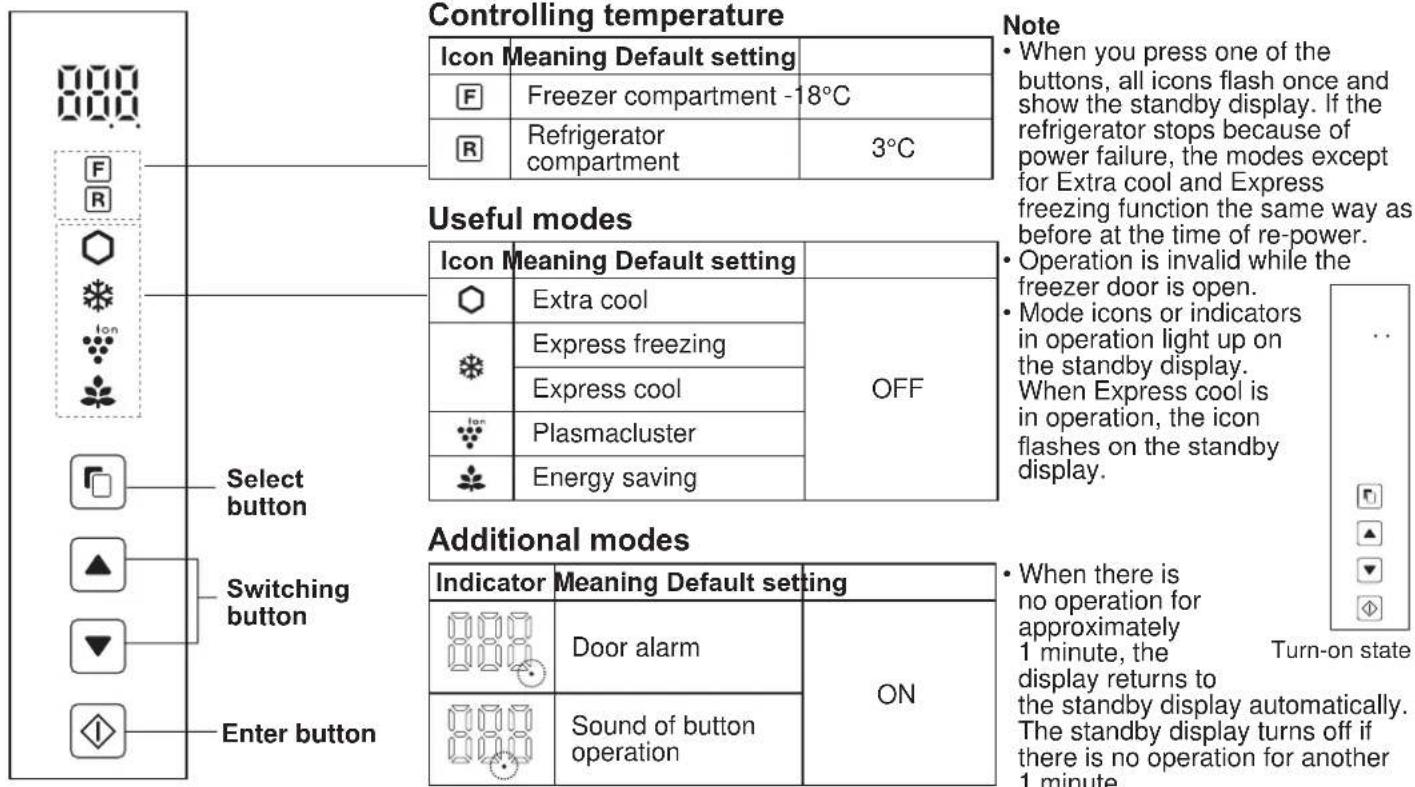

Control panel (SJ-XP680G, SJ-XP700G)

Controlling temperature Icon Meaning Default setting F Freezer compartment -18°C R Refrigerator compartment 3°C Note • When you press one of the buttons, all icons flash once and show the standby display. If the refrigerator stops because of power failure, the modes except for Extra cool and Express freezing function the same way as before at the time of re-power. • Operation is invalid while the freezer door is open. • Mode icons or indicators in operation light up on the standby display. When Express cool is in operation, the icon flashes on the standby display. • When there is no operation for approximately 1 minute, the display returns to the standby display automatically. The standby display turns off if there is no operation for another 1 minute. • Enter button Useful modes Icon Meaning Default setting Extra cool OFF Express freezing Express cool Plasmacluster Energy saving Additional modes Indicator Meaning Default setting Door alarm ON Sound of button operation

Operations of useful modes

Display
1	Select the mode icon.	(e.g. Extra cool) Flashing
2	Select on/off.		(off)
3	Complete the setting. (Beep) "Express cool"only Complete the setting by pressing for 3 seconds or more. (Beep, Beep, Beep)	Mode icon turns on. "Express cool" only (Flashing)	Mode icon turns off on the standby display.

Operation of additional modes

	Summary Cancel operation Display
Door alarm	When the refrigerator door is left open for over 1 minute,door alarm sounds once, and again after 1 minute.If the door is left open for approx. 3 minutes, the alarmsounds continuously.The alarm stops after close the door.	Press and simultaneouslyfor 3 seconds or more.(Beep, Beep, Beep)	The indicatorturns off.
Sound of button operation	When you want to switch off button operation sound.	Press and simultaneouslyfor 3 seconds or more.(Beep, Beep, Beep)	The indicatorturns off.

Note • When you want to turn on the additional mode, follow the same step again. (The indicator turns on.)

Controlling temperature

The refrigerator controls its temperature automatically. However, you can adjust the temperature as below.

EN

How to check the current temperature setting

Press button to select aF icoR.

Setting of Freezer/Refrigerator compartment

Default setting

Freezer compartment Refrigerator compartment
-10	3

Freezer compartment

: Adjustable between -13°C and -21°C in step of 1°C

Refrigerator compartment

: Adjustable between 0°C and 6°C in step of 1°C

Basic operations

Basic operations			Display
1	Select Rr icon.		Freezer compartment	Refrigerator compartment
			{ - 10 } { F }	{ 3 } { R }
			Flashing	Flashing
2	Set the temperature.		▲ (up)	Flashing
			( down )
3	Complete the setting. (Beep)		- 11

When press 📄 button, the icons change in the order shown as below.

Advanced Setting of Freezer/Refrigerator compartment

The temperature of freezer compartment and refrigerator compartment can be adjusted in step of 0.5 °C by following the steps a to c.

a. After the step 1 of "Basic operations".

press ◆ 3 seconds or more.

The current preset temperature returns to "Default setting"

(The display is indicated as the picture on the right.)

b. Press ▲ or and set the temperature.

C. Complete the setting. (Same as the step 3 of "Basic operations".)

Follow the steps a to c again if you want to adjust the temperature in step of 1^ C.

Freezer compartment {- 10} {F}

switch 18:0 F

Refrigerator compartment 30 R

Useful modes

	Button Meaning Default setting
	Extra cool	OFF
	Express freezing
	Express cool
	Plasmacluster ON *
Controlling temperature
	Button Meaning Default setting
	Controlling temperature of Refrigerator compartment	MIN MAX COLDEST
	Controlling temperature of Freezer compartment

* The Plasmacluster operates automatically when the refrigerator is powered on. There is no need to switch on/off.

Controlling temperature

Button Meaning Default setting
	Controlling temperature of Refrigerator compartment
	Controlling temperature of Freezer compartment

Operations of useful modes (Except for "Plasmacluster")

	Start operation		Cancel operation
Extra cool Press the mode button. (Beep)	Lighting		Press the mode button. (Beep)	Turn off
Express freezing	Press the mode button. (Beep)	Lighting	Press the mode button. (Beep)	Turn off
Express cool Press the mode button for 3 seconds or more. (Beep, Beep, Beep)	Flashing		Press the mode button. (Beep)	Turn off

Door Alarm

• When the refrigerator door is left open for over 1 minute, door alarm sounds once, and again after 1 minute.
• If the door is left open for approx. 3 minutes, the alarm sounds continuously.
  • The alarm stops after close the door.

If Door alarm does not stop

If the door alarm does not stop after closing all doors, it is a defect.

Contact the SHARP service center for service.

Method of stopping the door alarm temporarily

• Press "R" button and "F" button simultaneously and continuously for 3 seconds or more.
  • The door alarm sounds again after approximately 2 days.

e. Beep beep beep R F

Controlling temperature

The refrigerator controls its temperature automatically. However, you can adjust the temperature as below.

How to check the current temperature setting

The indicator lights up to show the current temperature level by pressing "F" or "R" button.

Freezer compartment : Press "F" button.

Refrigerator compartment : Press "R" button.

Setting of Freezer/Refrigerator compartment

Freezer compartment

1. Press "F" button.

1. Press "F" button to change the temperature level.

Refrigerator compartment

1. Press "R" button.

1. Press "R" button to change the temperature level.

- Temperature indicator changes as the picture below (3→4→5→1→2→3) by pressing "F" or "R" button.

Level	Indicator
1
2
3Default setting
4
5

Note

• After adjusting the temperature level, the indicator turns off approximately 5 seconds later.

- The temperature setting remains the same even after power failure.

Advanced Setting of Freezer/Refrigerator compartment

The temperature of refrigerator compartment and freezer compartment can be adjusted in 9 levels (level 1 \~ 9) by following the steps a to b.

Freezer compartment

a. Press "F" button first. Hold down "F" button and then press "Express freezing" button for 3 seconds or more.

Beep beep beep

The indicator returns to "Default setting".

b. Press "F" button to change the temperature level.

Follow the steps a to b if you want to adjust the temperature in 5 levels.

Refrigerator compartment

a. Press "R" button first. Hold down "R" button and then press "Express freezing" button for 3 seconds or more.

Beep beep beep

The indicator returns to "Default setting".

b. Press "R" button to change the temperature level.

Follow the steps a to b if you want to adjust the temperature in 5 levels.

- Temperature indicator changes as the picture below (5→6→7→8→9→1→2→3→4→5) by pressing "F" or "R" button.

○ ... OFF - ... Lighting } - { … Flashing

Level Indicator
1
2
3
4
5Default setting
6
7
8
9

Storing food

Refrigeration reduces the rate of food spoilage.

Ensure that the food is of the freshest possible quality to maximize the shelf life of perishable foods.

The following is a general guide to help promote longer food storage.

Fruit / Vegetables

Fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and placed in the Fruit and vegetable crisper to minimize moisture loss.

Dairy Products & Eggs

• Most dairy products have their best-before date on the outer packaging which informs the recommended temperature and shelf life of the foods.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or a dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

For best freezing

• Quality of foods should be fresh.
- Freeze small quantities of food at a time in order to freeze them quickly.
- Food should be properly sealed or covered tightly.
- Place foods in the freezer evenly.
- Label bags or containers to keep an inventory of freezing food.

Advice for preventing dew or frost inside the refrigerator

• Keep the door securely closed. If the food falls down, it may cause a gap between the cabinet and the door. Move it back to the shelf or the pocket.
• Food with high-moisture should be stored in airtight container or sealed tightly.

Note

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods is not be evenly cooled throughout the refrigerator.

OUTOUT the IN OUT

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

Tips for saving energy

• Keep the ventilation space as much as possible around the refrigerator.
• Keep your refrigerator out of direct sunlight, and do not place it next to heat generating appliance.
  ■ Avoid opening the door as much as possible.
  ■ Hot foods should be cooled before storing.
  ■ Place the food evenly on the shelves to allow the cool air to circulate efficiently.

Power consumption

Power consumption of this model is measured according to the international standard of refrigerator performance.

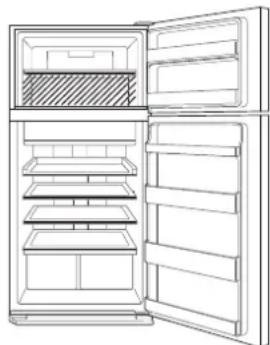

If the refrigerator is operated with the accessories (shaded area) taken out, it works under the most energy efficient condition.

• The amount of power consumption of this model is measured with these accessories taken out as indicated shaded area.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

- The amount of power consumption of this model is measured under the space dimensions on the right picture.

300mm 300mm 60mm90mm

Important

To prevent cracks on inside surfaces and plastic components, follow these tips.

• Wipe out food oil adhered to plastic parts.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, it may result in cracks of plastic parts.

Cleaning

■ Remove the accessories (e.g. shelves) from the cabinet and the door. Wash them by warm soapy dishwashing water. After that, rinse them in clean water and dry. (Only fruit and vegetable shelf is not removable.)
■ Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water thoroughly.
■ Wipe the exterior with a soft cloth each time it gets dirty.
■ Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.
■ Wipe the control panel with a dry cloth.

Note

• Do not use heavy-duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.) which may cause damages.
• If you pull out the power plug once, wait 5 minutes at least before connecting the power plug again.
• The glass shelves weigh approximately 3 kg each. Hold them firmly when remove from the cabinet and carry.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause cracks to inner surface.

Defrosting

Defrosting is automatically operated by a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to replace the light. The light is not to be replaced other than by qualified service personnel.

Before transporting

Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the power plug because refrigeration cycle equipment is extremely hot.

(The evaporating pan is located on the rear of the product.)

Evaporating pan

Switching off your refrigerator

If you want to switch off your refrigerator for an extended period, remove the foods from the refrigerator and clean the inside thoroughly. Pull out the power plug from the socket and keep all doors open.

Before you call for service

Before calling for service, check the following points.

Problem Solution
The outside of the cabinet is hot when touching.		It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.		It is normal for the refrigerator to make the following sounds.Loud noise is made by the compressor when its operation starts-- Sound becomes quieter after a while.The compressor makes loud noise once a day.-- Operating sound is made immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound)-- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound-- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frost or dew appears inside or outside the refrigerator.		This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	SJ-XP680G,SJ-XP700G	Is the refrigerator operated for a long time with refrigerator temperature control set at 0°C?-- Change the temperature control back to around 3°C.Is the refrigerator operated for a long time with freezer temperature control set at -21°C?-- Change the temperature control back to around -18°C.If ambient temperature is low, foods may freeze even if the refrigerator compartment is set at 6°C.
	SJ-XE680M,SJ-XE700M	Is the refrigerator operated for a long time with refrigerator temperature control set MAX COLDEST?-- Change the temperature control to the other setting.Is the refrigerator operated for a long time with freezer temperature control set MAX COLDEST?-- Change the temperature control to the other setting.If ambient temperature is low, foods may freeze even if the refrigerator compartment is set MIN.
Odors in the compartment.		Wrapping is required for the foods with strong odors.Deodorizing unit cannot remove all odors.

If you still require service

Refer to your nearest service agent approved by SHARP.

Product fiche

ANNEX III(EU) Regulation No.1060/2010
ATrade mark		SHARP
B	Model name SJ-XP680G	SJ-XE680M	SJ-XP700GSJ-XE700M
CCategory 7
DEnergy efficiency class A		++
EEU Ecolabel award —
F	Annual energy consumption *1[KWh/year]	350 360
G	Storage volume of all compartments that do not merit a star rating *2[L]	388 430
H	Storage volume of all frozen-foodstorage compartments that merit a star rating [L]	*** 148 148	***
I	The design temperature of “other compartment” warmer than +14°C	—
JFrrost free YES
K	Temperature rise time [h]	19	19
L	Freezing capacity [Kg/24h]	7.0	7.0
M	Climate class	T	T
N	Airborne acoustic noise emission [dB(A)]	36	36
OBuilt-in appliance		No (Free-standing type)

*1 Energy consumption "XYZ" kWh per year, based on standard test results for 24 hours.

Actual energy consumption will depend on how the appliance is used and where it is located.

*2 Includes Chill 31L

Information on Disposal for Users (private households)

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Extra frio

Congelado rápido

Enfriamiento rápido

Notas

b. Press "R" button to change the temperature level.

Interior view of a refrigerator showing the door, front panel, and side shelves with arrows indicating flow direction (no text or symbols)

ENTRADA SALIDA

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Atención:

Line drawing of an open refrigerator with two doors, showing front and side views (no text or symbols)

SJ-XP680G, SJ-XE680M

1. Balconcino portauova (Superiore) (Solo per i modelli SJ-XP700G, SJ-XE700M)
2. Balconcino portabottiglie
3. Balconcino frigorifer (Inferiore)

Line drawing of an open refrigerator with doors open (no text or symbols)

Diagram of an open refrigerator with labeled internal compartments and directional arrows indicating flow or movement.

IT

Nota

R F Bip bip bip

Controllo temperatura

Bip bip bip

Bip bip bip

Interior view of a refrigerator showing the door, shelves, and ventilation system (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Line drawing of an open refrigerator with labeled door and front panel (no text or symbols beyond basic labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Extra froid

Congélation express

Froid express

Compartment congélateur Compartment fraîcheur

R F Bip bip bip

Bip bip bip

Bip bip bip

Interior view of a refrigerator with labeled shelves and doorways (no text or symbols)

ENTREE ÉCHAPPEMENT

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting bracket (no text or symbols)

Bac d'évaporation

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Attention :

SJ-XP680G, SJ-XE680M

1. Receptáculo do frigorífico (Superior)
   (Só para os modelos SJ-XP700G, SJ-XE700M)
2. Receptáculo para garrafas
3. Receptáculo do frigorífico (Fundo)

Line drawing of an open refrigerator with doors open (no text or symbols)

Observações

R F Bip, Bip, Bip

Controlo das temperaturas

F Bip, Bip, Bip

Bip, Bip, Bip

Interior view of a refrigerator showing the door, front panel, and side shelves with arrows indicating flow direction (no text or symbols)

ENTRA SAÍ

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Atenção:

Diagram of a refrigerator interior showing front and back views with labeled door number 20 (no text or symbols beyond basic labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Μεγάλη ψύξη

Ταχεία ψύξη

Γρήγορη ψύξη

Χώρος καταψύκτη

Διαμέρισμα

νωπών προϊόντων

Diagram of an refrigerator interior showing the door, front panel, and internal compartments with Chinese labels.

Σημειωση

Interior view of a refrigerator with labeled shelves and directional arrows indicating flow or movement (no text or symbols present)

ΜΕΣΑ ΕΞΩ

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Προσοχή:

SJ-XP680G, SJ-XE680M : 2 St.

SJ-XP700G, SJ-XE700M : 1 St.

Interior view of a refrigerator showing open door, shelves, and drawer (no text or symbols)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Extra-Kühlen

Hinweise

Interior view of a refrigerator showing the door, front panel, and side shelves with arrows indicating flow direction (no text or symbols)

EINTRITT AUSTRITT

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols)

Verdunstungsbecken

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Extra koel

Snelvriesfunctie

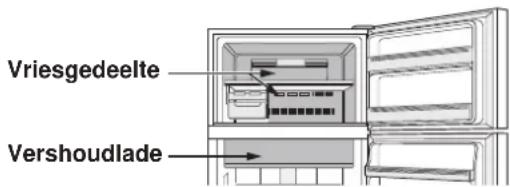

Snel koelen

N.B.

Interior view of a refrigerator showing air flow direction arrows (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Let op:

SJ-XP680G, SJ-XP700G

Line drawing of an open refrigerator with door, shelves, and side panels (no text or symbols)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Ekstra chłodzenie

Szybkie zamrażanie

Szybkie chłodzenie

Uwaga

R F Bip bip bip

Bip bip bip

Bip bip bip

Interior view of a refrigerator showing the door, front panel, and side shelves with arrows indicating flow direction (no text or symbols)

WLOT WYLOT

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Uwaga:

SJ-XP680G, SJ-XE680M : 1 db

SJ-XP700G, SJ-XE700M : 2 db

1. Hibrid hütöpanel

SJ-XP680G, SJ-XE680M : 2 db

SJ-XP700G, SJ-XE700M : 1 db

Line drawing of an open refrigerator with labeled door and front shelves (no text or symbols beyond basic labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Extra hűtés

Expressz fagyasztás

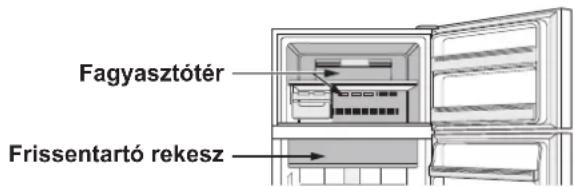

Expressz hütés

Megjegyzés

Interior view of a refrigerator with multiple shelves and ventilation slots (no text or symbols visible)

BE KI

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

300mm 300mm 60mm 90mm

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Răcire suplimentară

Congelare rapidă

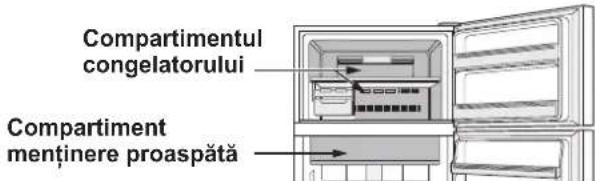

Răcire rapidă

Notă

Bip bip bip

Bip bip bip

Interior view of a refrigerator with multiple shelves and control panel (no text or symbols visible)

INTRĂ IESE

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Placă de evaporare

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Atentie:

Produsul

SJ-XP680G, SJ-XE680M : 2 ks

SJ-XP700G, SJ-XE700M : 1 ks

1 PS 20 20

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Silné zchlazení

Rychlé zmrazení

Rychlé chlazení

Mrazící oddělení

Diagram of an open refrigerator showing the door, front pane, and side shelves (no text or symbols)

Poznámka

R F Pip pip pip

Nastavení teploty

Interior view of a refrigerator showing the door, front shelves, and internal compartments with directional arrows indicating flow or movement (no text or symbols present)

DOVNITŘ VEN

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

SJ-XP680G, SJ-XE680M : 1 ks

SJ-XP700G, SJ-XE700M : 2 ks

1. Hybridný chladiaci panel

SJ-XP680G, SJ-XE680M : 2 ks

SJ-XP700G, SJ-XE700M : 1 ks

1 KS 20 20

SJ-XP680G, SJ-XE680M

1. Priehradka chladničky (Vrchná) (Iba SJ-XP700G, SJ-XE700M)
2. Priehradka na fl'aše
3. Priehradka chladničky (Spodná)

Line drawing of an open refrigerator with doors open (no text or symbols)

Extra chladenie

Expresné zmrazovanie

Expresné chladenie

Priestor mrazničky

Priehradka na udržanie potravín v čerstvom stave

Interior view of a refrigerator showing the door, front pane, and side shelves (no text or symbols visible)

Poznámka

(Iba SJ-XP680G, SJ-XP700G)

R F Pip pip pip

Regulácia teplôt

Interior view of a refrigerator with labeled shelves and directional arrows indicating flow or movement (no text or symbols present)

DNU VON

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Pozor:

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Papildomas vésinimas

Spartusis šaldymas

Paspartintas vésinimas

Šaldiklio kamera

Interior view of a refrigerator showing the door, front pane, and side shelves (no text or symbols visible)

Pastaba

Interior view of a refrigerator with visible door, shelves, and ventilation system (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Dêmesio:

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Papildu dzesēšana

Ātrā saldēšana

Ātrā dzesēšana

Diagram of an open refrigerator with labeled compartments and a directional arrow indicating flow or movement.

Piezīme

Beep beep beep R F

Beep beep beep

Beep beep beep

Interior view of a refrigerator with labeled shelves and doorways (no text or symbols visible)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

SJ-XP680G, SJ-XE680M : 1 tk

SJ-XP700G, SJ-XE700M : 2 tk

SJ-XP680G, SJ-XE680M : 2 tk

SJ-XP700G, SJ-XE700M : 1 tk

20 20

SJ-XP680G, SJ-XE680M

1. Külmiku tasku (Ülemine)
   (ainult mudelitel SJ-XP700G, SJ-XE700M)
2. Pudelitasku
3. Külmiku tasku (Alumine)

Line drawing of an open refrigerator with doors open (no text or symbols)

Ekstrajahutus

Ekspress-külmutus

Ekspress-jahutus

Interior view of a refrigerator showing open door, refrigerator interior, and door handle (no text or symbols visible)

Märkus

Interior view of a refrigerator showing the door, front shelves, and internal compartments with directional arrows indicating flow or movement (no text or symbols present)

SISSE VÄLJA

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

SJ-XP680G, SJ-XE680M

1. Hladilni predal (Zgornji)
   (Le za SJ-XP700G, SJ-XE700M)
2. Predal za steklenice
3. Hladilni predal (Spodaj)

Line drawing of an open refrigerator with doors open, showing front and interior compartments (no text or symbols)

Izjemno hladno

Ekspresno zamrzovanje

Hitro hlajenje

Zamrzovalni predel

Interior view of a refrigerator showing the door, front pane, and side shelves (no text or symbols visible)

Opomba

R F Bip bip bip

Nadzor temperature

Bip bip bip

Bip bip bip

Interior view of a refrigerator with labeled shelves and doorways (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

- Poraba energije pri tem modelu se meri v prostorskih razmerah, ki so prikazane na sliki desno.

300mm 300mm 60mm90mm

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

SJ-XP680G, SJ-XE680M

Line drawing of an open refrigerator with doors open (no text or symbols)

Diagram of an open refrigerator with labeled door and interior compartments, showing a highlighted section with Chinese text.

Примітка

Interior view of a refrigerator showing the door, front panel, and side shelves with arrows indicating flow direction (no text or symbols)

B 13

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Увага:

SJ-XP680G, SJ-XP700G

SJ-XP700G, SJ-XE700M : 2 6p.

SJ-XP680G, SJ-XE680M

1. Хладилна поставка (Горна)
   (Camo 3a SJ-XP700G, SJ-XE700M)
2. Поставка за бутилки
3. Хладилна поставка (Долно)

Line drawing of an open refrigerator with doors open (no text or symbols)

Забележка

Interior view of a refrigerator showing the door, front shelves, and internal compartments with directional arrows indicating flow or movement (no text or symbols present)

НАВЪТРЕ НАВЪН

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Внимание:

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 1EZ, U.K.

Printed in Thailand
