KTF 2221 M - Fan Koenic - Free user manual and instructions
Find the device manual for free KTF 2221 M Koenic in PDF.
| Product type | Metal stand fan |
| Brand | Koenic |
| Model | KTF 2221 M |
| Blade diameter | 9 inches (approx. 23 cm) |
| Rated power | 25 W |
| Rated voltage | 220-240 V~, 50 Hz |
| Protection class | II |
| Weight | Approx. 1.4 kg |
| Maximum air flow | 16.0 m³/min |
| Power consumption in operation | 25 W (max) |
| Standby consumption | 0 W (unplugged) |
| Sound power level | 53 dB(A) |
| Maximum air speed | 2.9 m/s |
| Available speeds | 2 (Low I, High II) |
| Tilt adjustment | Yes, adjustable angle |
| Protective grille | Yes, front and rear |
| Recommended use | Indoor, domestic |
| Cleaning | Soft cloth, mild detergent; do not immerse |
| Safety | Disconnect before cleaning; do not leave unattended; keep out of reach of children <8 years |
| Package contents | 1 fan, 1 user guide |
Frequently Asked Questions - KTF 2221 M Koenic
User questions about KTF 2221 M Koenic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual KTF 2221 M - Koenic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KTF 2221 M by Koenic.
USER MANUAL KTF 2221 M Koenic
| Umsatz 7-10 | — |
| Brasil 11-14 | — |
| Russell 5-8 | — |
| Frankfurt 10-27 | — |
| Magne 23-30 | — |
| Nordstrom 7-9 | — |
| Bucharest 31-36 | — |
| Petro 31-38 | — |
| Karl gas 10-47 | — |
| Sorrea 18-45 | — |
| Lakes 7-20 | — |
3000 Gold
Wardley
150-61-year
(31)
公司公告一：证券：
M. K70012, 16/08 (N) H### - 19/08 15 M
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product. - Cleaning and user maintenance shall not be carried out by children unless they are supervised.
- Keep the product and its cord out of reach of children aged less than 8 years.
- A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
- Ensure that the fan is disconnected off from the supply mains before removing the guard.
English

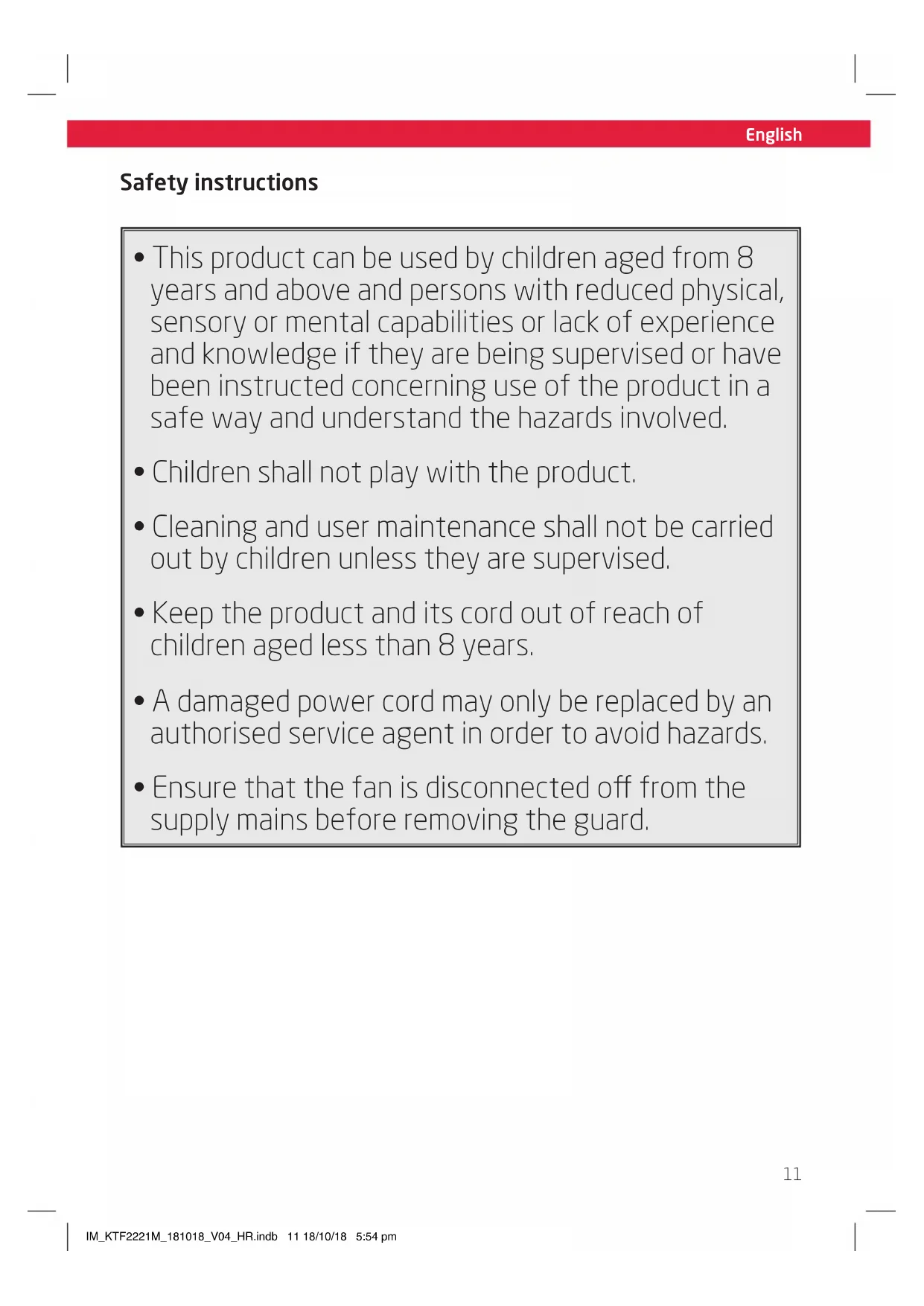

Safety instructions
- Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
- Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
- Never leave the product unsupervised while it is switched on.
- Do not place any objects on top of the product.
- Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
- Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
- The mains voltage must match the information on the rating label of the product.
- Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
- Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
- Only unplug from the power socket by the plug itself. Do not pull on the cord.
- Unplug the product ...
- when the product is not being used,
- in case of malfunctions,
- before attaching / detaching accessories and
-
before cleaning the product.
-
Use this product in dry indoor areas only and never outdoors.
- Place the product on a flat, sturdy and slip-resistant surface.
• Never use, expose or put the product near to:
- direct sunlight and dust;
- fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.
- This product is not intended for commercial use. It is designed for household use only.
- Do not remove the guard or insert any object during operation.
- Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
- In order to avoid overheating, do not cover the product.
- Small children, children and older people should not be exposed to cold air currents for a long time.
- Keep product away from loose objects such as plants, curtains, etc.
- The product may only be connected to the mains once it has been completely assembled.
- Follow the instructions in the chapter Cleaning and care.
Congratulations!
Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.
Intended use
The product is only intended for circulating room air. Only the product to these instructions. Any other use can lead of the damages of the product or injuries.
The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.
Before first time use
Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.
Do not dispose of this appliance as unsorted municipal waste. Return it to a ■ designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
Delivery contents
1 x Metal fan
1 x User manual
Technical data
Rated voltage: 220 - 240 V\~, 50 Hz
Rated power: 25 W
Protection class : II
Fan diameter: 9"
Weight: approx. 1.4 kg
Product information according to (EU) No 206/2012
| Description Symbol Value Unit | |||
| Maximum fan flow rate | F 16.0 m | 3/min | |
| Fan power input P 21.5 W | |||
| Service value S | v | 0.7 (m) | 3/min)/W |
| Standby power consumption | PSB | -- | W |
| Off power consumption | POFF | 0 | W |
| Fan sound power level | LWA | 53 | dB(A) |
| Maximum air velocity | c | 2.9 | m/s |
| Measurement standard for service value | IEC 60879:1986 (corr. 1992) | ||
| Contact details for obtaining more information | Imtron GmbHWankelstraße 5, 85046Ingolstadt, Germany | ||

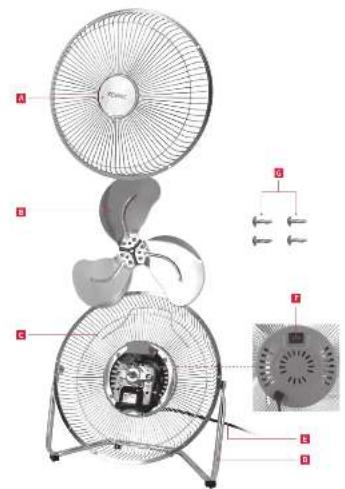

Controls and components
A Front guard
B Fan blade
C Rear guard
D Stand
E Supply cord
F On/Off switch (I O II)
G Screws (4x)
English

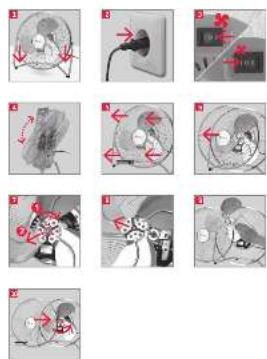

Installation
Fig. 1 Place on a stable, level surface.
Fig. 2 Connect the power plug to a suitable electrical outlet.
Caution
The product may never be operated without the stand or in a horizontal position.
Operation
Fig. 3 To switch on the fan, press I / II. To switch it off, press
| ○ | Switch off |
| I | Low speed |
| II | High speed |
Fig. 4 Adjust it to the desired angle.
Caution
The guard must be completely closed when operating the product.
During operation, do not insert fingers or other objects in the guard.
Cleaning and care
Caution
Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
Please follow the disassembly instruction below.
Fig. 5 Remove the screws to unlock the guard.
Fig. 6 Separate the front guard from the rear guard.
Fig. 7 Remove the screw from the groove.
Fig. 8 Remove the fan blade from the motor shaft.
Fig. 9 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.
Note:
- Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
- Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
• Dry all parts thoroughly before storage.
Fig. 10 After cleaning, assemble the fan in reverse order of disassembly steps.
- Store the product in a cool, dry and clean place, out of the reach of children and pets.
