Product type	Multifunction thermometer (ear, forehead, object)
Dimensions	133 x 40.2 x 38.4 mm
Weight	67 g (without batteries)
Power supply	2 AAA batteries (LR03) 1.5 V
Measurement range (body)	34 °C to 43 °C (93.2 °F to 109.4 °F)
Measurement range (object)	0 °C to 100 °C (32 °F to 212 °F)
Accuracy (body)	± 0.2 °C between 35 °C and 42 °C, otherwise ± 0.3 °C
Accuracy (object)	± 1.5 °C for < 30 °C, ± 5 % for ≥ 30 °C
Memory	Last 30 measurements
Fever indicator	Green LED (normal) / red (≥ 38 °C)
Audible beep	Can be enabled/disabled
Units	°C or °F selectable
Operating conditions	15 °C to 40 °C, humidity ≤ 85 % non-condensing
Storage conditions	-25 °C to 55 °C, humidity ≤ 85 % non-condensing
Cleaning	Tip: soft cloth moistened with disinfectant or alcohol; housing: slightly damp soft cloth
Protection rating	IP22
Standards	CE0197, directive 93/42/EEC, ASTM E1965-98, EN 12470-5
Warranty	3 years
Brand / Manufacturer	Sanitas / Hans Dinslage GmbH, Germany

Frequently Asked Questions - SFT 77 SANITAS

How to use the SFT 77 thermometer to measure forehead temperature?

Turn on the device by pressing the ON/MEASURE button. Place the measuring head with the forehead cap on the temple, hold the button down and slide the thermometer steadily to the other temple. Release the button: the value appears and a beep sounds if the sound is enabled. The green LED indicates normal temperature, the red indicates fever (≥ 38 °C).

How to measure ear temperature with this thermometer?

Remove the forehead cap. For children under one year, gently pull the ear backward; for older children, pull it upward and backward. Insert the sensor tip into the ear canal and press ON/MEASURE for 1 second. The measurement is displayed. Clean the tip after each use.

How to measure object temperature with the SFT 77?

Turn on the device, then press and hold the M and S buttons for 3 seconds to switch to object mode. Point the sensor 3 cm from the object and press ON/MEASURE. The surface temperature is displayed. To exit this mode, press and hold M and S again for 3 seconds.

What to do if the screen shows 'Err'?

The 'Err' message means the ambient temperature is outside the allowed range (15 °C to 40 °C). Place the thermometer in a room at ambient temperature for at least 30 minutes before trying again.

How to replace the batteries of the Sanitas SFT 77?

Open the battery compartment on the back by sliding the cover downwards. Insert two AAA 1.5 V batteries (LR03) observing polarity (+/-). Close the cover. When the battery symbol flashes, replace the batteries promptly.

How to clean the thermometer after use?

Clean the sensor tip and forehead cap with a soft cloth moistened with disinfectant, alcohol or hot water. For the housing, use a slightly damp soft cloth with mild detergent. Do not use harsh chemicals and never immerse the device in water.

How to view the measurement history?

Turn on the device, then press the M button. The last measurement is displayed. Press M again to scroll through the last 30 measurements. The device automatically turns off after 60 seconds.

What is the difference between ear and forehead modes?

Ear mode measures temperature in the ear canal, while forehead mode measures temperature on the forehead. Normal ranges differ: ear between 36.0 °C and 37.8 °C, forehead between 35.8 °C and 37.6 °C. Always use the same mode for consistent monitoring.

Is the thermometer waterproof?

No, it is not waterproof. Avoid direct contact with water or other liquids. Clean it with a damp cloth but do not immerse it. The IP22 protection rating only protects against dripping water when the housing is not tilted more than 15°.

How to enable or disable the audible beep?

When the device is on, briefly press the S button. The speaker symbol appears to indicate the beep is enabled. Press again to disable it. The beep sounds during key presses and at the end of a measurement.

USER MANUAL SFT 77 SANITAS

11. Nettoyage/stockage

[e-mail]

Jei mes paprasysime atsiusti sugedusi gaminj, jj turesite atsiusti toliau nurodytu adresu:

NU Service GmbH

LessingstraBe 10 b

89231 Neu-Ulm

Germany

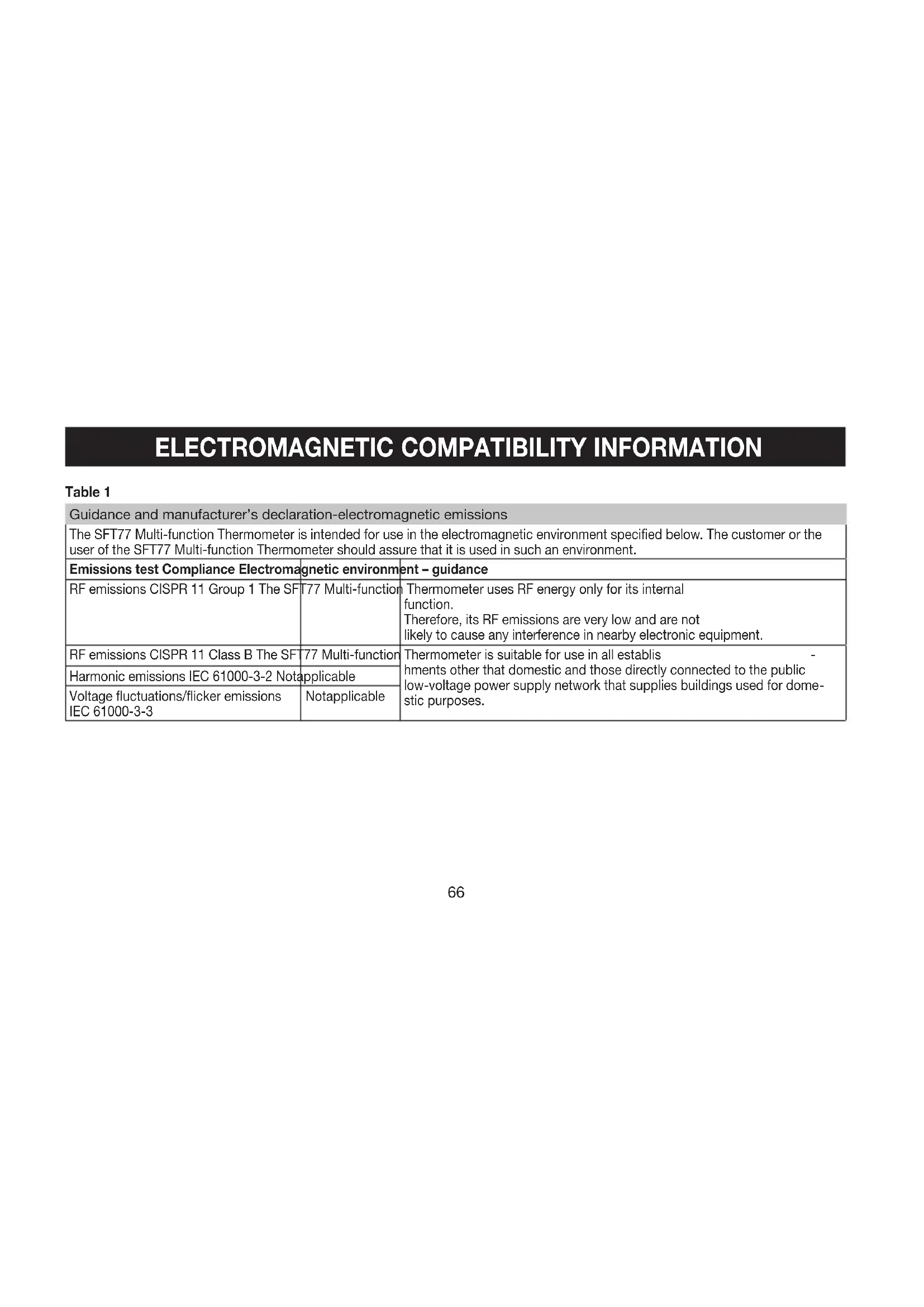

ELECTROMAGNETIC COMPATIBILITY INFORMATION

Table 1

Guidance and manufacturer's declaration-electromagnetic emissions
The SFT77 Multi-function Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the SFT77 Multi-function Thermometer should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions CISPR 11 Group 1 The SF77 Multi-function		Thermometer uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11 Class B The SF77 Multi-function		Thermometer is suitable for use in all establishments other that domestic and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissions IEC 61000-3-2 Not applicable
Voltage fluctuations/flicker emissions IEC 61000-3-3	Not applicable

Table 2

Guidance and manufacturer's declaration - electromagnetic immunity
The SFT77 Multi-function Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the SFT77 Multi-function Thermometer should assure that it is used in such an environment.
IMMUNITY test IEC 60601 test level Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD)IEC 61000-4-2	±6 kV contact±8 kV air	±6 kV contact±8 kV air	Floor should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast transient/burstIEC 61000-4-4	±2 kV for power supply lines±1 kV air for input/out put lines	Not applicable	Mains power quality should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	±1kV differential mode±2kV common mode	Not applicable	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11	<5% UT(>95% dip in UTfor 0.5 cycle40% UT(60% dip in UTfor 5 cycles70% UT(30% dip in UTfor 25 cycles5% UT(>95% dip in UTfor 5 sec	Not applicable	Mains power quality should be that of a typical commercial or hospital environment. If the use of the SFT77 Multi-function Thermometer requires continued operation during power mains interruptions, it is recommended that the SFT77 Multi-function Thermometer be powered from an uninterruptible power supply or a battery.
Power frequency (50/60 Hz)magnetic field IEC 61000-4-8	3 A/m 3 A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
NOTE: UTis the a.c. mains voltage prior to application of the test level.

Table 3

Guidance and manufacturer's declaration - electromagnetic immunity
The SFT77 Multi-function Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the SFT77 Multi-function Thermometer should assure that it is used in such an environment.
IMMUNITY test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Conducted RF IEC 61000-4-6 Radiated RF IEC 61000-4-3	3Vrms 150 kHz to 80 MHz3V/m 80 MHz to 2.5 GHz	3Vrms3V/m	Portable and mobile RF communications equipment should be used no closer to any part of the SFT77 Multi-function Thermometer, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance:d = 1.2 √Pd = 1.2 √P 80 MHz to 800 MHzd = 2.3 √P 800 MHz to 2.5 GHzWhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.bInterference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Field strengths from fixed transmitters, such as base stations from radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast can not be predicted theoretic call with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the SFT77 Multi-function Thermometer is used exceeds the applicable RF compliance level above, the SFT77 Multi-function Thermometer should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the SFT77 Multi-function Thermometer.

Over the frequency range 150kHz to 80MHz , field strengths should be less than [V1] V/m.

Table 4 Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM-for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING

Recommended separation distances between portable and mobile RF communications equipment and the SFT77 Multi-function Thermometer
The SFT77 Multi-function Thermometer is intended for use in an electromagnetic environment in which radiated RF distances are controlled. The customer or the user of the SFT77 Multi-function Thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the SFT77 Multi-function Thermometer as recommended below according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter(W)	Separation distance according to frequency of transmitter(m)
	150 kHz to 80 MHzd=1.2√P	80 MHz to 800 MHzd=1.2√P	800 MHz to 2.5 GHzd=2.3√P
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distanced in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 8- MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Distributed by: Hans Dinslage GmbH, Riedlinger Straße 28, 88524 Uittenweiler, Germany www.sanitas-online.de
EC REP	Wellkang Ltd. 29 Harley St. W1G 9QR LONDON, U.K.
	AVITA Corporation 9F, No. 78, Sec. 1, Kwang-Fu Rd. San-Chung District 24158 New Taipei City Taiwan
