10032344 - Fan Klarstein - Free user manual and instructions

Product type	Pedestal fan
Brand	Klarstein
Model	10032344
Usage	Indoor only
Power supply	Mains 220-240 V ~ 50 Hz
Number of speeds	3 (low, medium, high)
Oscillation function	Yes, control button at the back
Adjustable height	Yes, by telescopic tube
Material	Plastic, metal
Protective grille	Double front and rear grille
Blade diameter (estimated)	45 cm
Total height (estimated)	100 to 130 cm
Weight (estimated)	3.5 kg
Cable length (estimated)	1.5 m
Noise level (estimated)	50-60 dB
Cleaning	Soft damp cloth, do not immerse
Safety	Never use without protective grille
Recycling	Compliant with WEEE directive 2012/19/EU
European standards	2014/30/EU, 2014/35/EU, 2011/65/EU, 206/2012/EU

Frequently Asked Questions - 10032344 Klarstein

How to assemble the Klarstein 10032344 fan?

Attach the feet to the base, then loosen the fixing screws and adjust the height by turning the adjustment ring. Attach the fan base to the inner tube, remove the nuts from the motor shaft, mount the rear grille, attach the blades, then the front grille with the tightening ring.

How to adjust the fan height?

Loosen the fixing screws and turn the height adjustment ring counterclockwise. Adjust to the desired height, then turn the ring clockwise to tighten.

How to use the different speeds?

Turn the control ring on the fan to select the speed: 0 (off), 1 (low), 2 (medium), 3 (high).

How to activate the oscillation function?

The oscillation function button is located at the back of the fan. Press the button to start oscillation; pull it up to stop.

How to clean the fan?

Unplug the device before cleaning. Use a soft damp cloth, possibly with a mild soap solution. Do not let water enter the interior. Clean the grilles with the brush attachment of your vacuum cleaner.

Can I use the fan without the protective grille?

No, it's dangerous. Never use the device without its protective grille, even for cleaning. Risk of injury.

What to do if the power cord is damaged?

If the cable or plug is damaged, have it replaced by the manufacturer, an authorized professional service, or a person with equivalent qualification.

Can I use the fan in a bathroom?

No, do not use the device in very humid or very hot places such as bathrooms.

How to store the fan in winter?

At the end of the season, store the fan in its original packaging or a cardboard box in a cool, dry place.

Is the fan compliant with European standards?

Yes, it complies with European directives 2014/30/EU (EMC), 2014/35/EU (LVD), 2011/65/EU (RoHS) and 206/2012/EU (ErP).

USER MANUAL 10032344 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 7

Declaration of Conformity 7

Safety Instructions 8

Assembly 8

Operation 9

Cleaning and Storage 10

Hints on Disposal 10

TECHNICAL DATA

Item number 10032344
Power supply 220-240 V ~ 50-60 Hz
Power consumption 55 W

DECLARATION OF CONFORMITY

CE

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETYINSTRUCTIONS

• Do not use the appliance for other than its intended use. For domestic indoor use only.
• Place the appliance on a flat, stable, heat-resistant surface. Operating the product in any other position could cause a hazard.
• Never insert anything into the grille when the fan is switched on. Adults should pay special attention when using this fan close to children.
• Never use this fan in hot or humid locations like a bathroom.
• Never leave this fan close to curtains, drapes, plants, etc.
• Always unplug or disconnect the appliance from the mains power supply when not in use or when moving or cleaning it. Do not pull the cord to unplug the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

Risk of injury! Never use without the guards in place. After assembly, do not remove the guards during use or cleaning.

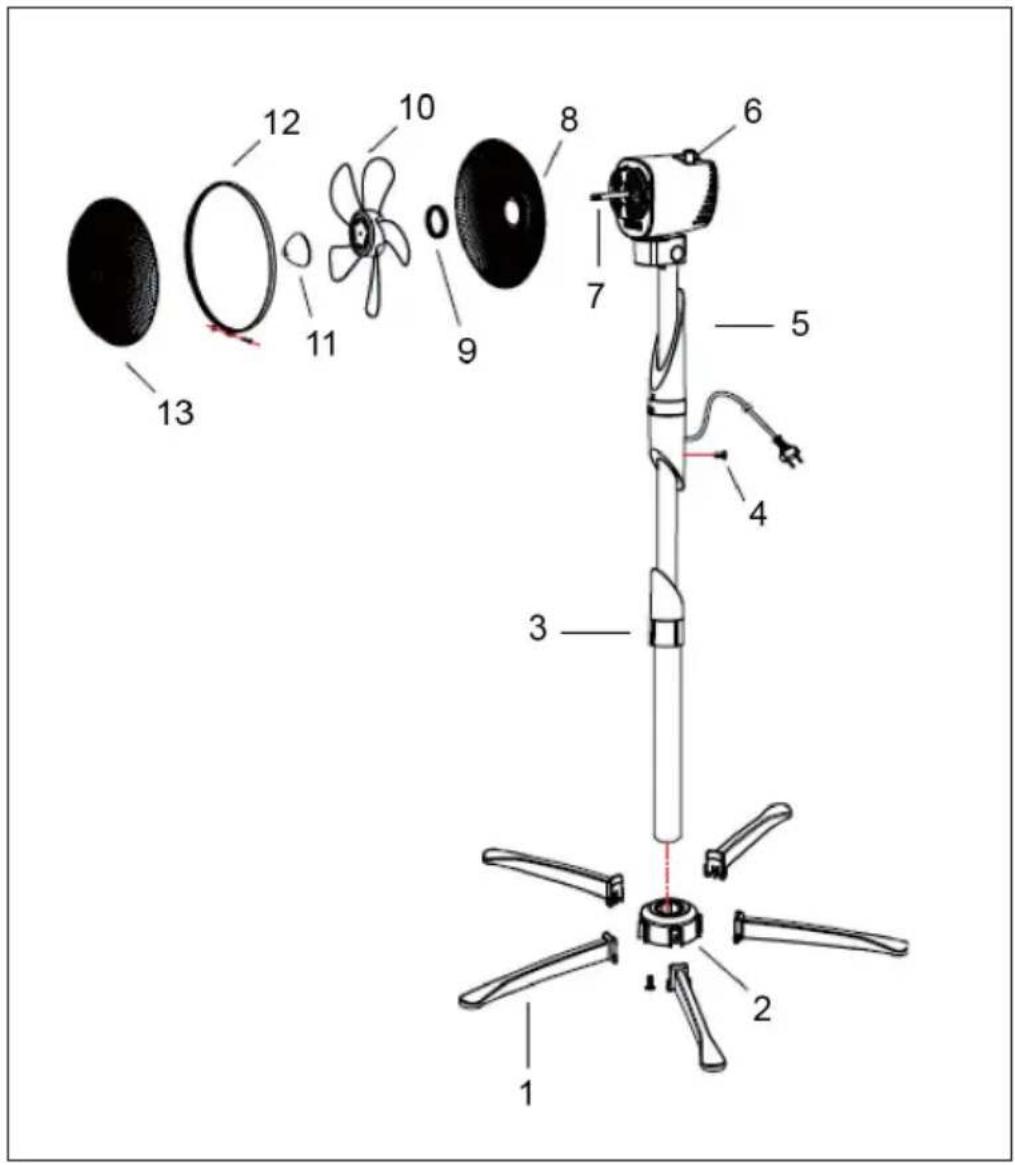

ASSEMBLY

Fix the leg tripod (1) into base (2).
2. Loose the screw (4) from the inner tube and take the inner tube out from the main tube by rotating the height adjusted locker (3) anti-clockwise.
3 Rotate the height adjusted locker (3) clockwise after you adjust the fan body to your desired height.
4 Fasten the fan body (5) to the inner tube by fixing the screw (4).
5 Remove the rare grille nut (9) from the motor shaft (7).
6 Fasten the rare grille to the body of the motor house with the handle positioning on top.
7 Fix the rare grille locker (9) to the motor shaft (7).
8 Place the fan blade (10) on the shaft (7) of the motor so that the notches correspond to the grooves on the shaft. Secure with nut (11).
9 Place the front grille (13) on the rare grille and secure with the fan ring (12) with safety screw positioning at the bottom.

OPERATION

1 Plug the Power Supply Cord into a 220~240V, 50 Hz outlet.
2 The SPEED is adjusted by moving the ring (see picture) on your desired level of cooling comfort: 0(Off) > 1 (Low) > 2 (Medium) >3 (High).
3 The OSCILLATION button is located on the head of the fan. To start oscillation, push button down. To stop oscillation, pull the oscillating knob up.

CLEANING AND STORAGE

• Switch off and unplug from the power supply before cleaning.
• Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.
• Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.
• We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.
• The product can be stored in the off-season, we recommend using the original (or appropriately sized) box. It is important to keep it in a safe, dry location.

Note: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
