Technical Specifications	Klarstein Freezer 10030135
Capacity	100 liters
Energy Class	A+
Dimensions (W x D x H)	55 x 58 x 85 cm
Weight	30 kg
Freezing Temperature	-18C
Noise Level	42 dB
Usage	Ideal for storing frozen food, with easy access thanks to its compact design.
Maintenance	Manual defrosting recommended to maintain efficiency.
Safety	Equipped with a locking system to prevent accidental openings.
General Information	Device suitable for small spaces, ideal for apartments or kitchens with limited space.

Frequently Asked Questions - 10030135 Klarstein

How do I set the temperature on my Klarstein Freezer 10030135?

To set the temperature, use the thermostat located inside the freezer. Turn the knob until you reach the desired temperature. A recommended temperature is -18C.

My freezer is not working, what should I do?

Check if the freezer is properly plugged in and if the electrical outlet is working. Also make sure the door is properly closed. If the problem persists, contact customer service.

How do I defrost my Klarstein Freezer 10030135?

To defrost, unplug the freezer and let the ice melt naturally. You can speed up the process by placing a container of hot water inside. Wipe the water before plugging the device back in.

What is the storage capacity of the Klarstein Freezer 10030135?

The Klarstein Freezer 10030135 has a capacity of 100 liters, allowing you to store a large amount of frozen food.

Can I install the freezer in an unheated garage?

The freezer can be installed in an unheated garage, but it is recommended to place it in a location where the ambient temperature remains between -15C and 43C for optimal operation.

How do I clean the inside of the freezer?

To clean the inside, use a mixture of lukewarm water and mild soap. Avoid abrasive products. Wipe well with a clean, dry cloth after cleaning.

Is the noise from my freezer normal?

A slight noise is normal during freezer operation. However, if the noise becomes excessive or unusual, check if the device is level and if there are no objects blocking the compressor.

How do I extend the life of my freezer?

To extend its life, make sure to defrost regularly, maintain an adequate temperature, and clean the condenser coils every six months.

USER MANUAL 10030135 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Safety Instructions. 12

Product overview. 15

Usage 16

Cleaning and Maintenance. 17

Troubleshooting 18

Disposal Considerations 19

Declaration of Conformity 19

Safety Instructions

Intended use and product safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Power plug and power cord

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.
• Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances.
• The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• The freezer adopts 220~240V/50Hz AC power, voltage fluctuations over the range of 220 - 240V± 10% will cause malfunction or even damage, so a 750 W automatic voltage regulator must be installed in concert with the AC power. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the chest freezer and other electrical appliances considering that spark may cause a fire.
• To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances at the top of the freezer, those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

Related warnings for use

• Authorized demolition or renovation of the freezer is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the freezer must be carried out by professionals. Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained. The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the freezer door to avoid falling articles. Do not pick foods or containers in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.

General safety warnings

• Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer.
• Do not spray or wash the freezer; do not put the freezer in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.
• Do not place heavy objects on the top of the freezer considering that objectives may fall when switching the door, and accidental injuries might be caused.
• Please pull of the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

Warnings related to placing items

• Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.
• Do not place flammable items near the freezer to avoid fires..
• This product is household freezers and shall be only suitable for the storage of foods. According to national standards, household freezers shall not be used for other purposes, such as storage of blood, drugs or biological products.
• Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Disposal

• The R60Oa refrigerant and cyclopentane foam materials of the freezer are combustible materials and discarded freezer should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.
• Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.

Warning: Danger of fire and explosion

The appliance contains the refrigerant R600a (isobutane). It is environmentally friendly but highly combustable. Do not damage the refrigerant circuit. Prevent a gas leakage under any circumstance.

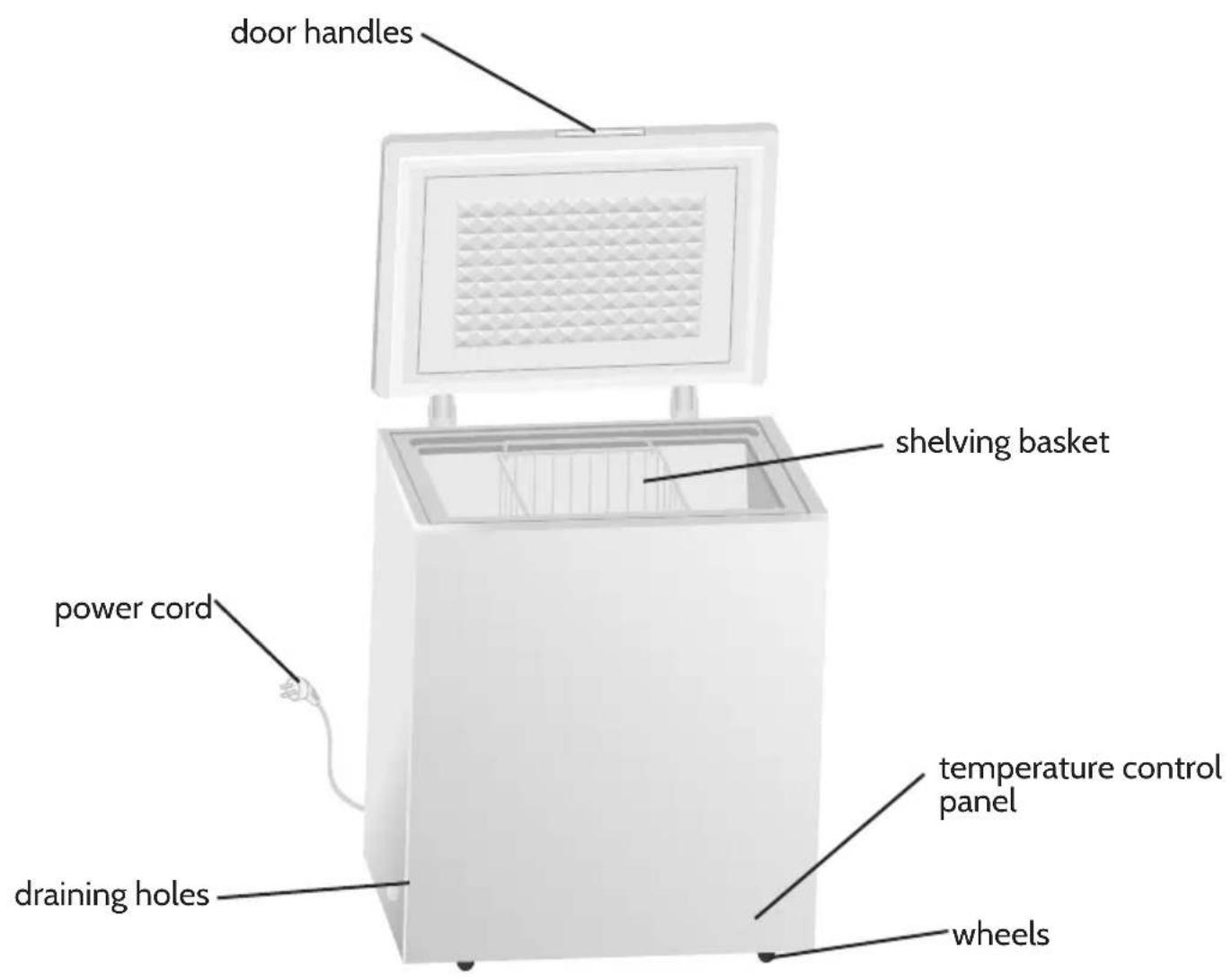

Product overview

Usage

Placement

• Remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, Tear off the protective film on the door and the freezer body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• The freezer is placed in a well-ventilated indoor place. The ground must be flat and sturdy.
• The top space of the freezer shall be greater than 70~cm , and the distances from both sides and the back-side must be more than 20~cm to facilitate the opening and clising and heat dissipation.
• Wipe the freezer inside and outside with a warm moist rag (add a small amount detergent in the warm water and wipe clean finally with clean water).
• The freezer must stay for half an hour before connecting 220 - 240V - ) / 50Hz power when it is firstly started.
• The freezer shall run 2 to 3 hours before loading fresh or frozen foods. The freezer must run for more than 4 hours in summer in advance considering that the ambient temperature is high.

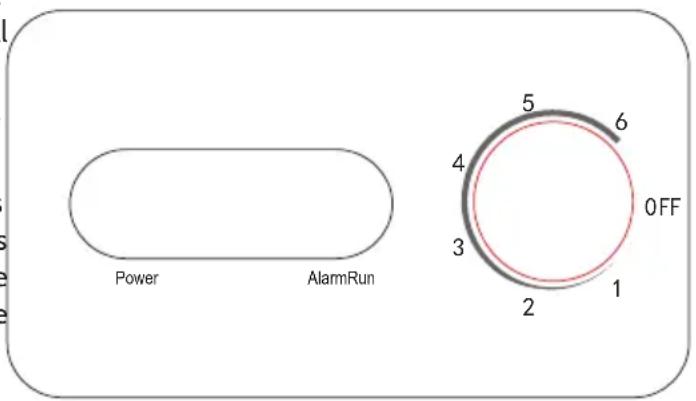

Adjustment of the thermostat

• Connect the freezer to the power supply and the POWER indicator will light. The RUN indicator will shine in operation.
• The ALARM indicator light will shine when the temperature is too high.
• The temperature of the freezer compartment is adjusted by the thermostat knob. The numbers 1,2,3,4,5,6 do not mean a specific temperature, the lower the number is, the higher the temperature inside will be and vice versa.
  OFF: The appliance is out of operation

Cleaning and Maintenance

Cleaning

Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.

Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean chest freezer considering that this may damage the fridge surface and interior. Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components.

Defrost

Freezer shall be manually defrosted.
- Unplug the freezer and open the freezer door, remove foods and drawers before defrosting.
- Open the outflow holes and drainage holes (and place water container at the outflow holes).
- Indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper might be used to the accelerate de-icing process.

Stop using

• Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.
• Please unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odour.
• Do not turn upside, horizontally place or vibrate the freezer, the carrying angle can not be greater than 45^ . Please hold the door and hinge when moving.

Continuous operation is recommended when the freezer is started. Please do not move the freezer under normal circumstances so as not to affect the freezer's service life.

Troubleshooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Problem Check the following issues
The freezer does not operate	Whether the freezer is plugged and connected to power?
	Low voltage?
	Whether temperature control knob is in the work area?
	Failure power or tripping circuit?
Odour	Odorous foods should closely wrapped;
	Whether foods are rotten;
	Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher;
	Do not put too much food in the freezer at one time;
	Do not put foods until they are cooled;
	Frequent opening of freezer door.
Illuminating light does not shine	Whether the freezer is connected to power, whether the indicator light is damaged.
The freezer door can not be properly closed	The freezer door is stuck by food packages;
	Too much food;
	Tilt freezer.
Loud noises	Whether the food is levelled.
	Whether the freezer is balanced
	Whether the freezer parts are properly placed.

Notes:

• The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
• Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.

Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.
- Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
- Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product is conform to the following European Directives:

2004/108/EC (EMC)

2006/95/EC (LVD)

2009/125/EU (ErP)

2010/30/EU (Energy Labelling)
