Technical Specifications	Klarstein Food Processor 10028960
Power	800 W
Bowl Capacity	5 liters
Bowl Material	Stainless steel
Speed	6 adjustable speeds
Included Accessories	Whisk, dough hook, blender
Dimensions	38 x 24 x 30 cm
Weight	5.5 kg
Usage	Preparation of doughs, creams, sauces, and other food mixtures
Maintenance	Bowl and accessories dishwasher safe
Safety	Bowl locking system, overheating protection
General Information	Ideal for amateur and professional cooks, 2-year warranty

Frequently Asked Questions - 10028960 Klarstein

How do I assemble the Klarstein food processor 10028960?

To assemble the food processor, follow the instructions in the provided user manual. Make sure all parts are properly secured before use.

How do I clean the food processor after use?

Disassemble the accessories and wash them with warm soapy water. The body of the machine can be wiped with a damp cloth. Never immerse the body in water.

The food processor won\'t turn on, what should I do?

Check if the machine is properly plugged in and if the outlet is working. Also ensure the lid is properly closed, as some models won\'t start otherwise.

How do I adjust the speed of the food processor?

Use the speed control knob located on the control panel. Turn the knob to select the desired speed depending on the preparation you are making.

The machine makes noise, is this normal?

A certain level of noise is normal during use, but if the noise is excessive or unusual, check that all parts are properly assembled and that no foreign objects are stuck in the mechanism.

How do I use the accessories provided with the food processor?

Each accessory has a specific function. Refer to the user manual for detailed instructions on how to use each accessory.

Where can I find replacement parts for my food processor?

Replacement parts can usually be ordered directly from the manufacturer\'s website or authorized dealers. Check the manual for specific information.

The food processor overheats, what should I do?

If the machine overheats, turn it off immediately and let it cool down. Make sure not to exceed the recommended usage time stated in the manual.

Can I put the accessories in the dishwasher?

Some accessories may be dishwasher safe, but it is recommended to check the user manual for specific recommendations.

How do I register the warranty for my food processor?

To register the warranty, fill out the registration form on the manufacturer\'s website or send it by mail with a copy of your proof of purchase.

USER MANUAL 10028960 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 11

Safety Instructions 11

Product Description and Accessory 13

Soup Maker, Egg Steamer and Controls 14

Food Processor, Egg Beater and Citrus Press 15

Attachments and Speed 17

Cleaning and Care 18

Troubleshooting and FAQ 18

Disposal and Declaration of Conformity 19

Technical Data

Item number 10028959, 10028960
Power supply 220-240 V ~ 50-60 Hz
Power (motor) 800 W
Power (heat) 800 W

Safety Instructions

General Hints

• Please read through the following safety precautions carefully before switching on the machine.
• Failure to follow all the instructions listed may result in electric shock, fire or serious personal injury.
• Before plugging the machine into the mains electrical supply, check that the voltage and power supply comply with the specifications indicated on the rating plate of the appliance.
• Do not plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handling the blade.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always place the machine on a stable, flat, heat-resistant surface. Also ensure that the surface can take the weight of the unit during use.
• The machine is intended for DOMESTIC USE ONLY and should not be used for commercial purposes. The machine should only be used for its intended purpose.
• Always keep the machine out of reach of children. Close adult supervision is necessary when machine is used by or near children. Do not leave the machine unattended when in use.

• Do not move or lift the machine while it is operating or while it is connected to an electrical socket.

• The use of attachments, not specifically recommended by the manufacturer, must not be used as they may cause personal injury or damage to the appliance. Care should be taken when handling the sharp cutting blades, emptying the bowl and heating blender jar during cleaning.

• Do not operate the machine if the plug or power cord has been damaged, is not working properly, has been dropped or has been exposed to water or other liquid.
• Check the machine power cord carefully regularly for damage. If the power cord is damaged in any way, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid an electrical hazard.
• Do not allow the power cord to hang over sharp table edges or come into contact with hot surfaces.
• Make sure that the machine is switched off and remove the plug from the mains electrical supply when it is not in use, before it is cleaned, before changing accessories or moving parts and while it is being repaired.
• To prevent the risk of electrical shock, do not immerse the power cord, plug, or any non-removable parts of this machine in water or any other liquid.
• The machine base must not be submerged in water, as any contact with the electrical parts would create the risk of malfunction and electric shock. Do not use the appliance with wet hands.
• Do not use the machine outdoors.
• Always switch the power OFF before removing the plug from the wall socket.
• To unplug the appliance, grasp the plug firmly and remove it from the mains electrical supply. DO NOT PULL ON THE CORD. Never use the machine or accessories if it is damaged in any way.
• All repairs should be done by a qualified electrician. Improper repairs may place the user at risk.
• When handing this product over to a third party, ensure that this instruction manual accompanies the appliance.

Special Precautions

• Never use your fingers or an object (e.g. a spatula) to push ingredients down the feeding tube while the appliance is running. Only use the Pusher supplied for this purpose.
• Be very careful when you handle the Discs, Soup Maker Blade Unit. Be especially careful when you remove them from the Soup Maker Bowl, when you empty the bowl or jug and when you clean them. Their cutting edges are very sharp.
• Never switch off the appliance by turning the Soup Maker Bowl or the Juicer Bowl. Always switch off the appliance by turning the speed control knob to OFF.
• Switch off the appliance before you detach any accessory.
• Unplug the appliance immediately after use.
• Wait until moving parts stop running before you remove the lids from the bowls or from the jug.
• Never use any accessories or parts from other manufacturers or that supplier does not specifically recommend. Use only the accessories supplied with the Soup Maker & Food processor.
• Do not exceed the maximum content indicated on the Soup Maker jar or food processor bowl.
• Do not use the Juicer if the sieve is damaged.
• Consult the tables in this user manual for the correct quantities and processing times.
• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.
• Allow hot ingredients to cool down before you process them.

Built-in safety lock

This feature ensures that you can only switch on the appliance if you have correctly assembled the Soup maker with cover, the food processor bowl, the Juicer bowl with coupling unit or the Citrus Press onto the motor unit. If they are not assembled correctly, i.e. when it has been turned in the direction of the 'locked' symbol as far as possible ('click'), the built-in safety lock will prevent the appliance from operating.

Product Description and Accessory

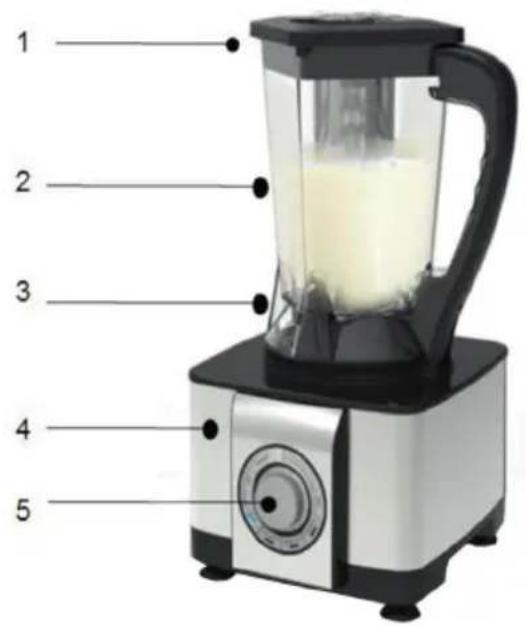

Product Description

1 Soup maker cover
2 Soup maker jar
3 Heating base
4 S.S body
5 Variable speed controller

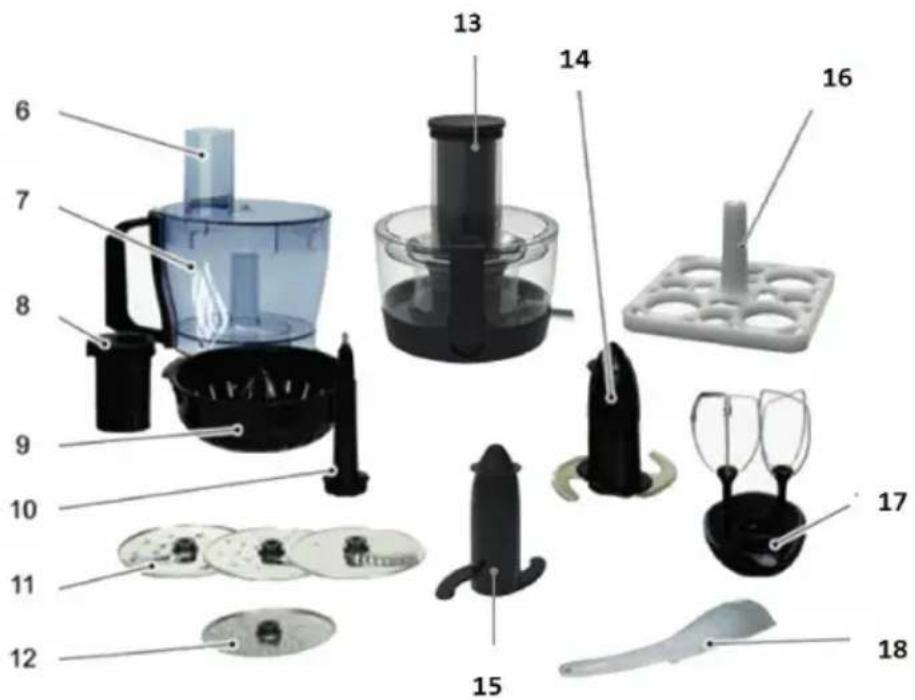

Accessory

6 Food processor feeding chute
7 Food processor bowl
8 Food processor pusher
9 Citrus Juicer
10 Spindle
11 Thick slicing/shredding disc,

Tine slicing/shredding disc,

French fry cutter disc,

12 Potato mashing disc
13 Apple Juicer
14 S.S blade
15 Dough hook
16 Egg holder
17 Whisk
18 Spatula

Soup Maker, Egg Steamer and Controls

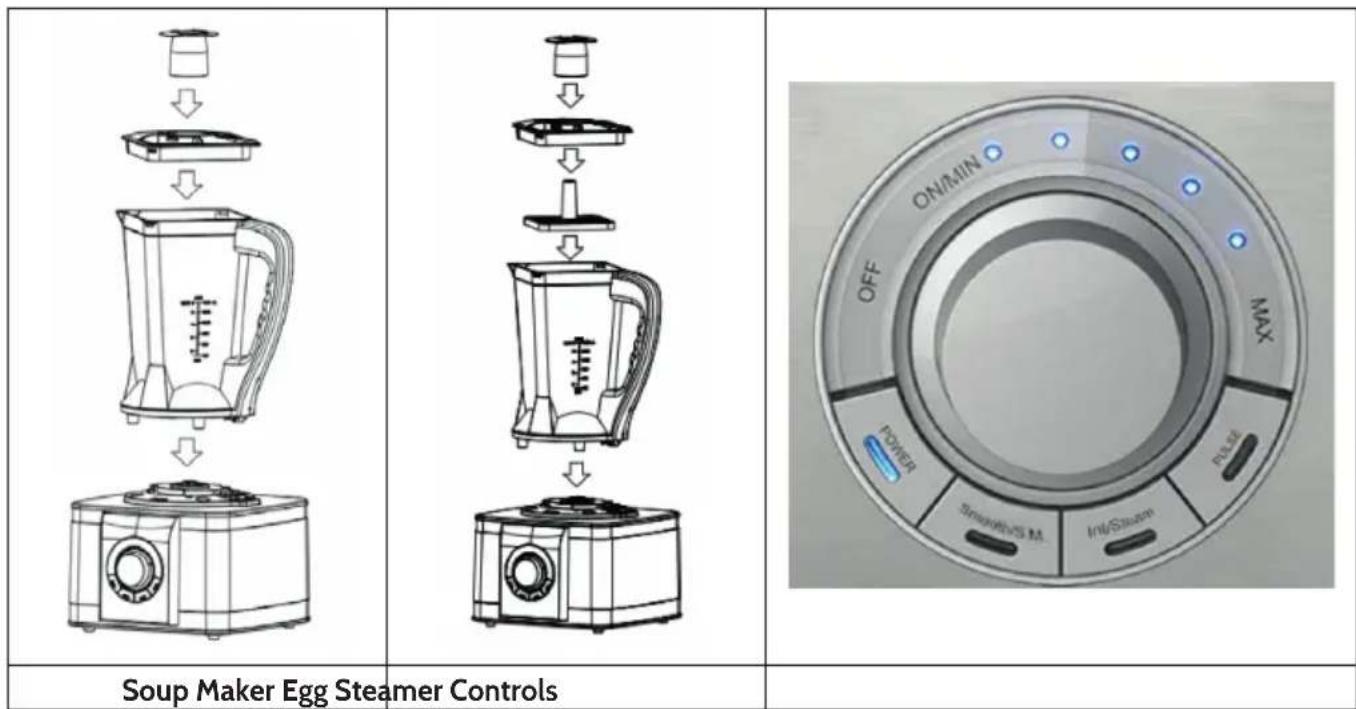

Assembly

3 mode buttons ("Smooth", "INT", "PULSE") are for the functions when using with food processor bowl. Another 3 mode buttons ("S.M.", "Steam", "PULSE") are for the functions when using with soup maker jar.

Use and Operation

Plug the machine and power button, then will see the down side buttons ("S.M." "Smooth" "Steam") with red sparkling lights, then press the function you need, the machine will have 2 times buzz warning then start working.

Button Function
Smooth	This function like normal blender, it could be independent blending fruit, soup or make smoothie.
S.M.	For smoothie soup maker program, preset temperature 100 degree and preset working time 25 minutes (end with 3 minutes Blend-Mixing). Then the soup will be ready and unit stop working automatically with 5 times Beepings.
Int	Interval mode: This function like normal blender, it could be independent blending fruit.
Steam Egg	steamer program setting: 15mins keep heating then stop automatically.
Speed knob	Speed controller when operating with either the food processor bowl or soup maker jar. Press the power button, then 3 mode buttons start flashing, then turn the speed knob clockwise to increase the speed. Or turn the speed knob clockwise to select the speed you want, then press the flashing power button, and the machine will start working.

Note: For Soup maker, It cannot turn to other function when use the re-heating program unless you stop the power. But for the 3 buttons ("S.M." "Smooth" "Steam"), it can change to re-heating function directly.

Soup Maker simple Recipe:

Tomato soup Tomato 600 g, water 600 ml, press “SMOOTH/S.M.” button.

Potato soup Potato 400 g, water 850 ml, press “SMOOTH/S.M.” button.

Celery soup Celery and water total 1250 ml, press “SMOOTH/S.M.” button.

Carrot and potato soup Potato 300 g, carrot 100 g, water 850 ml, press “SMOOTH/S.M.” button.

Carrot and tomato soup Water 850 ml, 200 g tomato and 200 g carrot, press “SMOOTH/S.M.” button.

Egg steam Water 400 ml, use egg holder for 4 eggs, press “INT/STEAM” button.

Cold soup reheating Cold soup 1250g. Press to the temperature you need.

Carrot blending Carrot 640 g, water 960 g. Press “SMOOTH/S.M.” button.

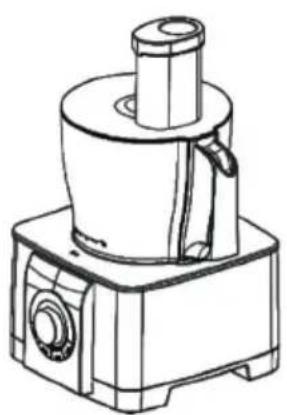

Food Processor, Egg Beater and Citrus Press

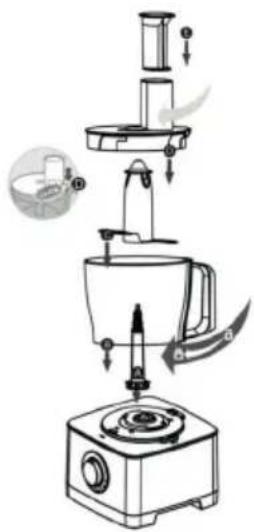

Chopping Blade - Use and Precautions

Place the bowl onto the base and align the mark on the bowl with the mark on the base.

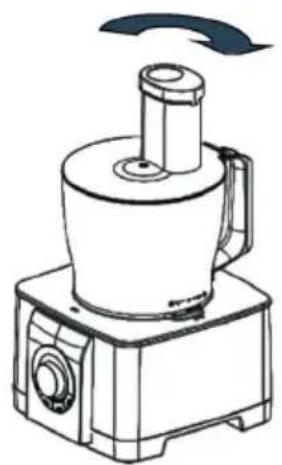

Turn the bowl clockwise, until it clicks into place and the bowl is positioned as per the diagram on the right.

The bowl can be removed again by turning it anti-clockwise.

Hints on Use

• Do not run the appliance too long when chopping hard cheese or chocolate. These ingredients may become hot and begin to melt and turn lumpy.
  Always place the chopping blade in place in the Soup Maker bowl before you add the ingredients.
• Do not use the chopping blade to chop very hard ingredients such as coffee beans, nutmeg, turmeric or ice cubes, as they may damage the blades.
• Do not fill the bowl beyond the MAX indication.

The standard processing time for all chopping is 30-60 seconds. To chop onions, use the PULSE button to control the size of the pieces and prevent the onions from being chopped too finely.

If food sticks to the blade unit or to the inside of the Soup Maker bowl:

1. Switch off the appliance.
2. Remove the lid from the Soup Maker bowl.
3. Remove the ingredients from the blade unit or from the wall of the bowl with a spatula.

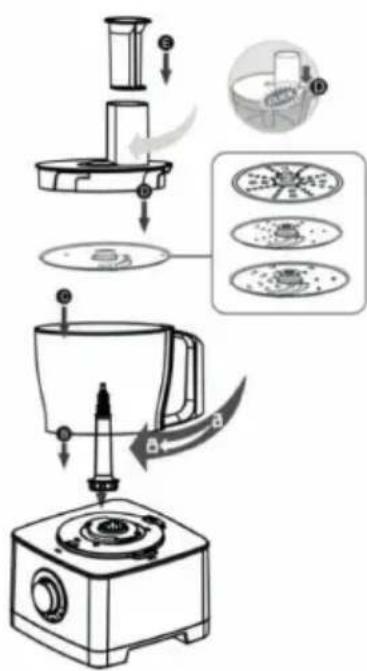

Discs - Use and Precautions

Only use the Pusher when feeding ingredients down the feeding tube. Do not use your fingers or any other utensil. Do not run the appliance for too long when shredding hard cheese. Otherwise the cheese will become hot, start melting and turn lumpy. Do not use the Shredding Disc to shred chocolate. Only use the Soup Maker blade unit for this purpose. Do not fill the bowl beyond the MAX indication.

Preparing the Ingredients

• Pre-cut large ingredients to make them fit into the feeding tube.
• Fill the feeding tube evenly for the best results.
• When you shred or granulate soft ingredients, use a low speed to prevent the ingredients from turning into a puree.
• If the ingredients you are going to shred or slice have a small diameter, put the Outer Pusher in the feeding tube to make the feeding tube smaller. Then use the Inner Pusher to push the ingredients down the feeding tube.
• When processing large amounts of ingredients, process small batches and empty the bowl between batches.

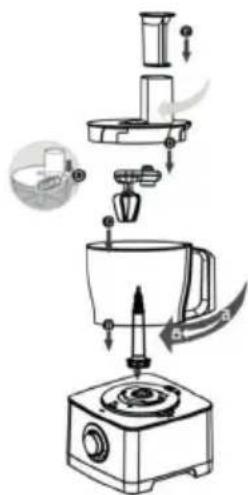

Egg Beaters - Use and Precautions

You can use the Ballon Beaters to whip cream, to whisk eggs and egg whites and to make instant pudding, mayonnaise and sponge cake mixture.

Do not use the Ballon Beaters to prepare cake mixtures with butter or margarine or to knead dough. Use the kneading accessory for these jobs. Do not fill the bowl beyond the MAX indication.

• Make sure the bowl and the Ballon Beaters are dry and free from grease when you whisk egg whites.
  Always clean the Ballon Beaters after use.

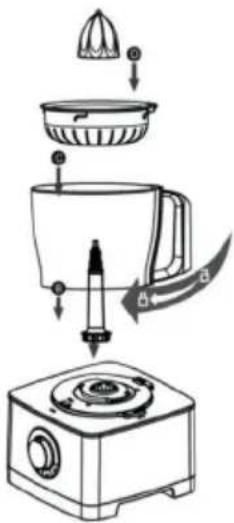

Citrus Press - Use and Precautions

The Citrus Press has a built-in safety lock: the Citrus Press only works when the sieve is assembled properly onto the motor unit and the cone is assembled properly in the sieve. Only when all parts have been assembled properly will the cone starts rotating when it is switched on. Use only the minimum speed setting. Do not fill the bowl beyond the MAX indication.

1. Set the control knob to the minimum speed setting.
2. Cut the fruit to be used in halves. Press the half fruit onto the cone.

Note: It is necessary to remove the pulp from the sieve from time to time. To remove the pulp, switch off the appliance and remove the bowl from the appliance with the sieve and cone on it. Position the bowl with the spout on the right side of the base. It will not operate with the spout positioned on left side.

Accessory and Speed

Tool/ Attachment	Picture Function Speed Max	Maximum capacities	Max working time Rest	time
Knife Blade		Chopping meat, cutting vegetables.	Min.-Max. 50	0 g 30 sec 1 min.
Dough hook (plastic knife)		Dough making Dough keading	Min	500 g flour, 280 ml water	30 sec 1 min.
Discs-slicing/shredding/chipping/		Slicing/shredding/chipping.	Mid.-Max. 1200 ml 1 min. 2 min.
Citrus Press components		Citrus fruits juicing.	Min.	1200 ml 1 min.	2 min.
Whisk components		Egg white.	Max.	2-6 piece	3 min. 3 min.
Juice extractor attachmenr		Apple, Carrot, Pear	Max.	1000g 2 min.	2 min.
		Watermelon, Grape, Strawberry,	Min.

Cleaning and Care

• Always unplug the appliance before removing the attachments and before cleaning the Base.
• Never immerse the Base in water or any other liquid.
• Clean the Base by wiping it with a damp soapy cloth.
• Do not use scouring pads, steel wool or any abrasive cleaning agent to clean the Base as these may damage the outer surface of the appliance.
• The Soup Maker Bowl can be pre-washed with the use of the PULSE button. Simply add some water and washing-up liquid to the dirty bowl and secure the lid. Then press the PULSE button until the bowl or jug is clean. When pre-washing the Soup Maker Bowl in this way, make sure the Soup Maker Blade is assembled in the Bowl.
• Disassemble and clean all the attachments separately. Attachments can be washed in warm soapy water.
• Be careful not to touch blades or any sharp parts during use and cleaning.
• IMPORTANT: Allow all parts to fry fully after cleaning before assembling and using again.
• After washing and drying, store the appliance with its attachments in a dry, safe place out of reach of children.
  DO NOT PUT THE HEATING BLENDER BASE INTO WARTER OR LIQUID.

Troubleshooting

Problem Solution
The appliance does not switch on. Make sure that the indicator marks (on the lid of the bowl, on the bowl and on the motor unit) are aligned.
The appliance suddenly stops running.	The lid of the bowl may have become undone during a heavy processing job. Close the lid properly. The appliance will start working again.
	The appliance is too hot. Set the control knob to OFF to switch off the appliance and remove the mains plug from the wall socket. Allow the appliance cool down to room temperature. Plug the appliance in again and switch it on. Process smaller batches.
The motor of the device runs but cone of the citrus press does not turn.	Check that the shaft on the Citrus Press is properly attached.
	Check that the sieve of the Citrus Press is properly attached. (Indication on the sieve points to indication on the handle of the bowl).
Can I clean all removable parts in the dishwasher?	Yes, except the motor unit and the protection cap for the blade unit.
What does 'PULSE' mean? When you press the PULSE button, the appliance will run at its highest speed as long you keep pressing the button. Using the PULSE button is recommended if you want to have more control over the processing job, for instance when you are chopping.
Why does the motor produce a smell during processing?	It is very common for a new appliance to give off a smell or emit some smoke the first few times it is used. This will stop after using the appliance a few times. The appliance may also give off a smell or emit smoke if it has been used continuously for too long. In that case you have to switch the appliance off and let it cool down for 60 minutes.
What should I do when the motor gets blocked during processing?	Switch the appliance off and use a spatula to dislodge the ingredients that block the blade unit. It is recommended to process small quantities.
Why does the INT function not	To use the INT button, first turn the control knob to position ON. Then push the INT button.

Hints on Disposal

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
