USER MANUAL Bornholm Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: This product is only suitable for well insulated spaces or occasional use.

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 16

Product Data Sheet 17

Product Overview 18

Installation 18

Control Panel 20

Operation 21

Cleaning 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10030918
Power supply 220-240 V ~ 50 Hz
Power 1000 W / 2000 W

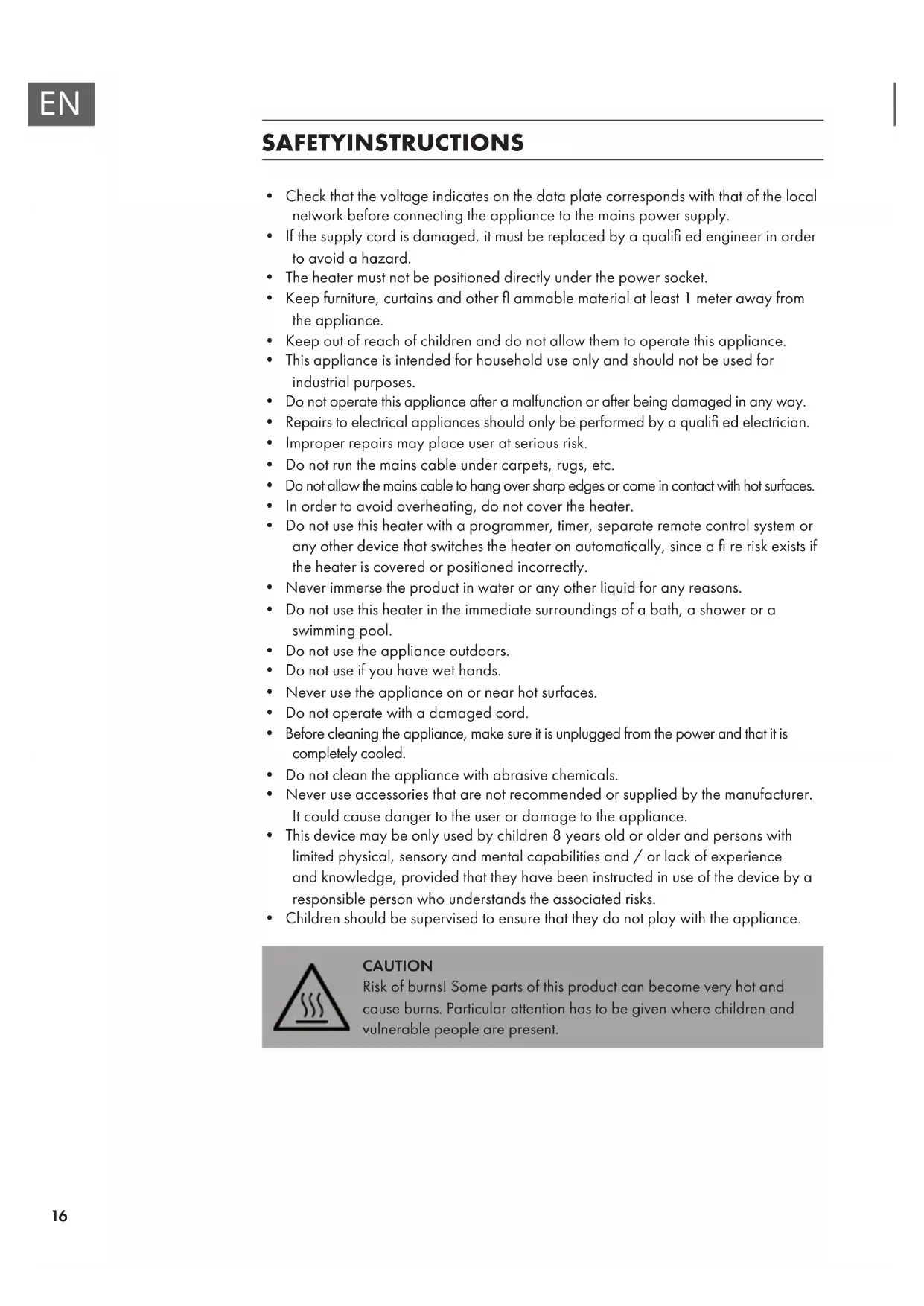

SAFETYINSTRUCTIONS

• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

• The heater must not be positioned directly under the power socket.

• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.

• Keep out of reach of children and do not allow them to operate this appliance.

• This appliance is intended for household use only and should not be used for industrial purposes.

• Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

• Improper repairs may place user at serious risk.

• Do not run the mains cable under carpets, rugs, etc.

• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

• Never immerse the product in water or any other liquid for any reasons.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use the appliance outdoors.

• Do not use if you have wet hands.

• Never use the appliance on or near hot surfaces.

• Do not operate with a damaged cord.

• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

• Do not clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s): 10030917, 10030918
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	2.0 kW	manual heat	charge control, with integrated thermostat		NO
Minimum heat output P	min	1.0 kW	manual heat	charge control with room and/or outdoor temperature feedback		NO
Maximum continuous heat output	Pmax	1.98 kW	electronic heat	heat charge control with room and/or outdoor temperature feedback		NO
Auxiliary electricity consumption					fan assisted heat output	NO
At nominal heat output	elmax	1,875	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,936	kW		single stage heat output and no room temperature control	NO
In standby mode	elsb	0,24	W Two or more manual stages, no room temperature control			NO
					with mechanic thermostat room temperature control	NO
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	YES
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	YES
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

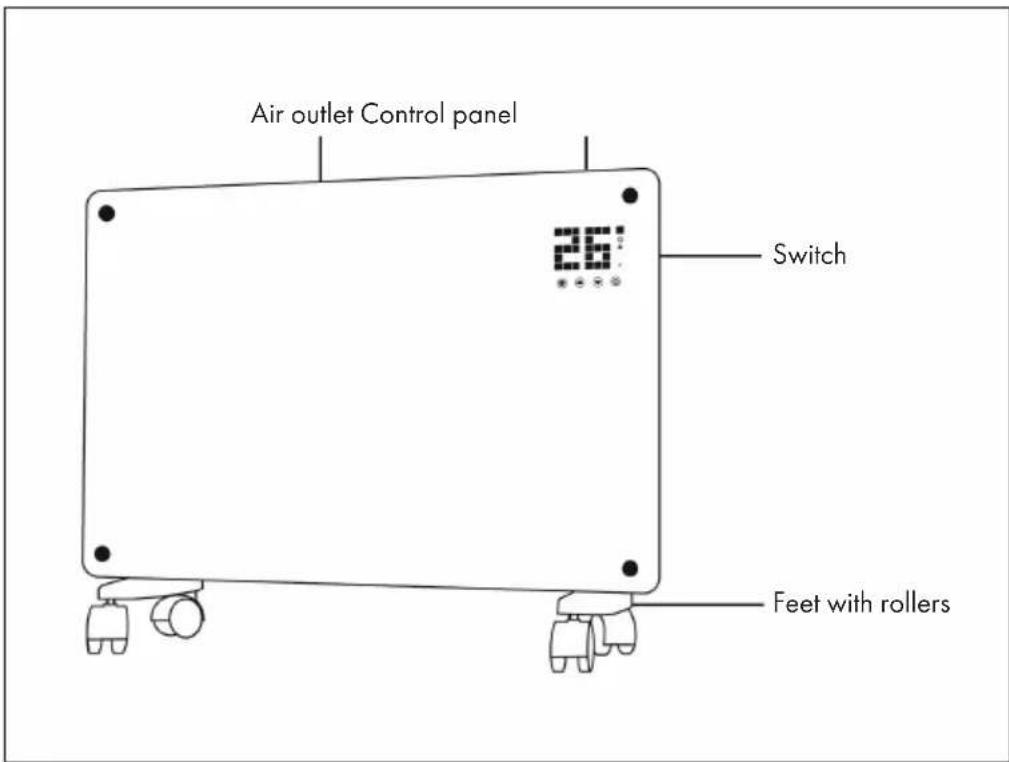

PRODUCT OVERVIEW

INSTALLATION

Freestanding installation with rollers

Assemble rollers Removing the rollers
Push	Push button Pull
When the assembly is complete, you will hear a click.	Press the button to remove the rollers.

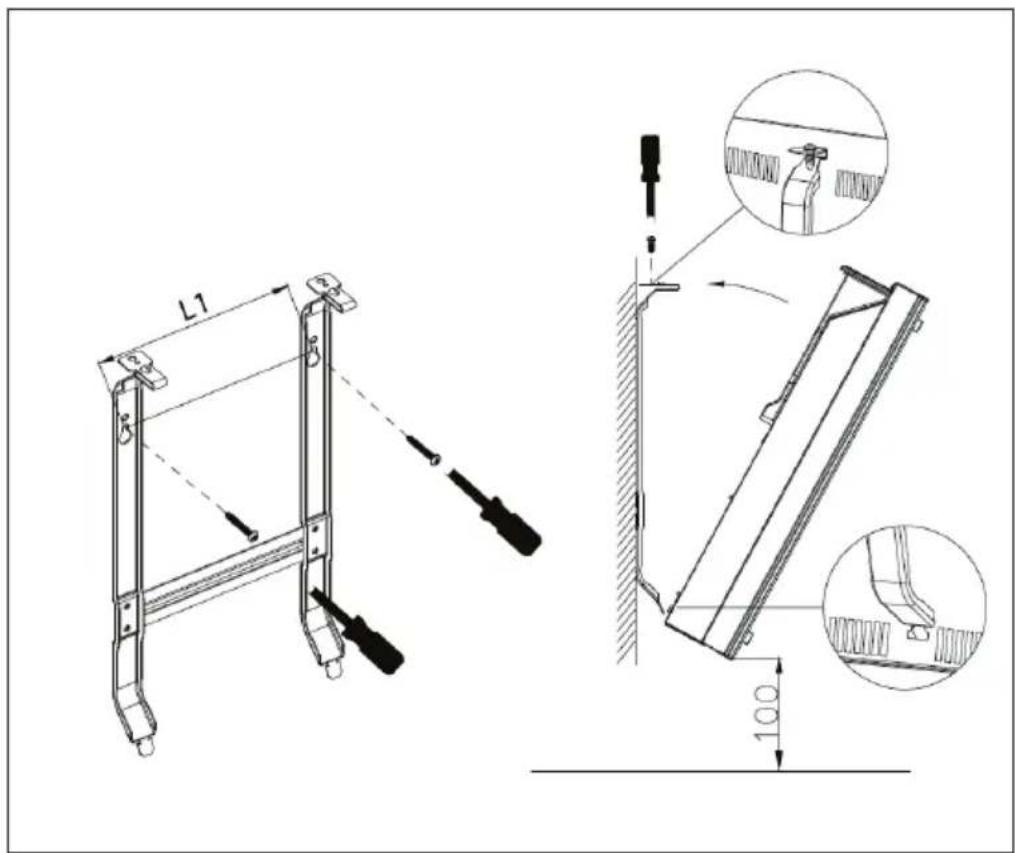

Wall mounting

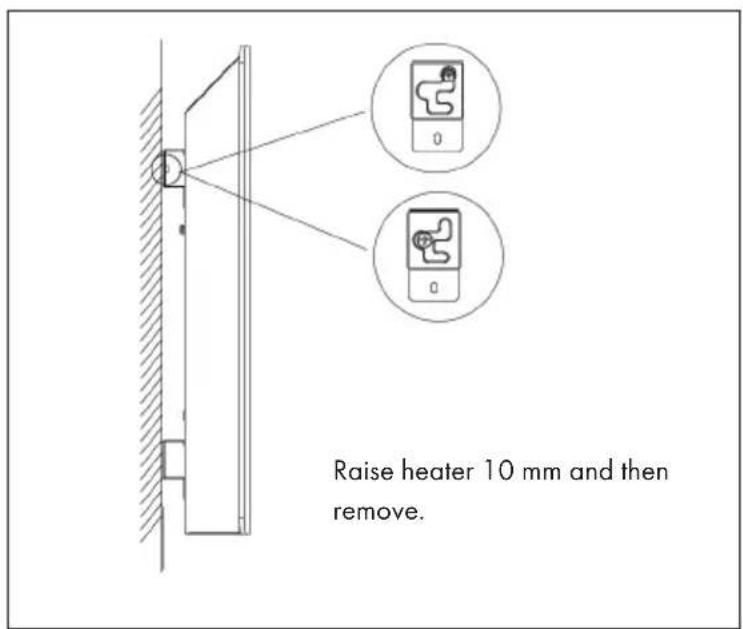

Take down from the wall

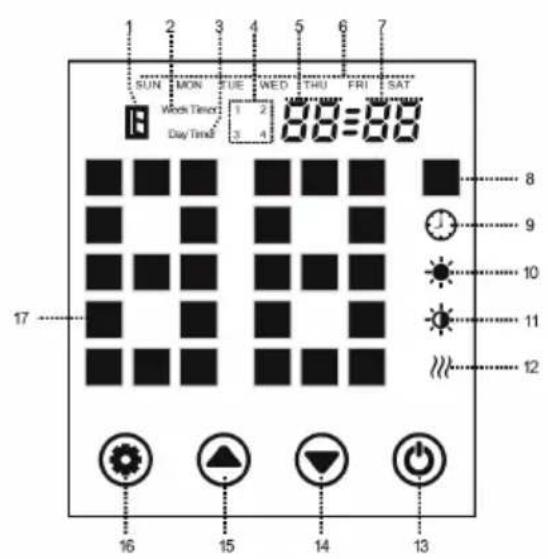

CONTROL PANEL

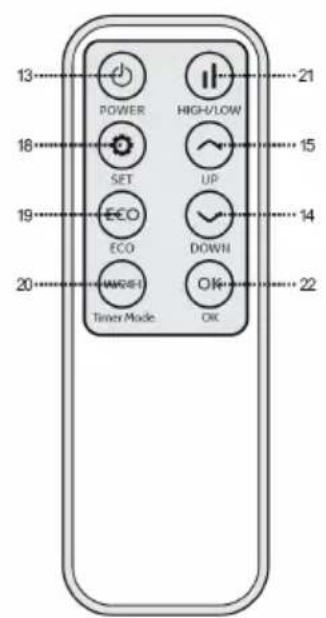

Display indicators Keys
1	"Window open"	13	On/Off switch
2	Weekly timer	14	Value down
3	Day timer	15	Value up
4	Timer period	16	Settings (control panel)
5	Hours	17	Temperature display
6	Week	18	Settings (remote control)
7	Minute 19 ECO mode on/off
8	Temperature unit	20	Day/week change key
9	Timer 21		high/low heating level 22 OK button
10	high heating level
11	low heating level
12	Heating element operating status

OPERATION

Commissioning

1. Carefully remove the unit from the carton. Save the carton for storage outside of the heating season.
2. Make sure the on/off switch is off before connecting the unit.
3. The heater must be fully assembled and mounted according to the assembly instructions.
4. It is better not to use the same electrical connection with other power-hungry devices to avoid overloading the circuit.

Power up

Connect the device to the power supply. Switch on the device with the On/Off key (13). The unit is now in standby mode and the current time is displayed. The keys (13), (14), (15) and (16) light up and go dark again after 10 seconds. Now the display shows the current room temperature.

Time setting

Press and hold the settings (16) and the up arrow key (15) simultaneously for three seconds. The weekly display (6) flashes and the time setting is active. Use the arrow keys to select a day of the week. Press the settings (16) and the hour display (5) flashes. Select the hour again with the arrow keys (14, 15). Press the settings (16) to move to the minutes setting. Select the minute with the arrow keys (14, 15) and confirm the set time with the settings (16).

Temperature setting

Press Settings (16). The temperature display (17) flashes. Then select the temperature with the arrow keys (14, 15). Confirm with the settings (16) or do not make any further entries for 5 seconds so that the settings are automatically accepted.

Selecting the power level

Select the low heating level with the down arrow key (14). The symbol appears in the display. Select the high heating level with the up arrow key (15). The symbol appears in the display. Alternatively, press the key (21) to switch between high and low heating level.

Child lock

Press and hold both arrow keys (14, 15) for three seconds. The child lock symbol ([ ]) appears in the display. The system is locked, no settings can be made. After 2 seconds, the display shows the ambient temperature. In this mode, only the child lock symbol appears each time the key is pressed. Unlocking: Press and hold the two arrow keys (14, 15) for 3 seconds. The device is unlocked. Now any settings can be made again.

Activating the touch-sensitive display keys

During operation, the display keys normally go off. Touch the area below the temperature display to activate the display keys.

ECO mode (economy mode)

Press and hold Settings (16) and the down arrow key (14) for three seconds (or press the ECO key on the remote control to set the unit to economy mode. In this operating mode, only some indications appear on the display (depending on the settings you made before ECO mode).

Sleep mode

If no keys are pressed for 10 seconds when the unit is heating, the display will go into a sleep mode and only ambient temperature will be displayed.

Open window detector

If the ambient temperature drops by 3^ within 2 minutes, the heater activates the open window detector. The symbol appears in the display and it buzzes. The heater switches off.

Day/week timer

Press the "W/24H" key to switch between the settings for the day timer and the week timer. The display shows "DayTimer" and "Weektimer" accordingly.

Day timer: With this setting, the display shows "DayTimer". To set the hours, press "Weektimer" on the remote control. Select an hour with the arrow keys (13, 14). Use the arrow keys (16) to change to the minutes setting. Set the minutes with the arrow keys. Confirm with the OK key and save the settings made.

Weekly timer: The weekly timer allows four operating cycles per day and seven days in a week. Weektimer appears in the display. Press Settings (16) on the remote control to call up a day (display (6) flashes). Use the arrow keys (13, 14) to select the first operating cycle. Press Settings (16) to go to the selection of a start time, which you select with the arrow keys.

Press Settings (16) again to set a switch-off time. Proceed in the same way with the setting

Delete settings

Press and hold the key (16) for 10 seconds to delete all previous settings.

Switch off

Press the on/off button. The heater will stop operating.

CLEANING

It is very easy to clean the back of the unit. To clean the back, hold the convector heater by the sides with both hands and pull it forward. After cleaning, put the heater back in place.

Storage

If you do not use the device for a long time, it is recommended to clean and store it (preferably in the original box) in a cool and dry place.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom
