USER MANUAL 10033017 Klarstein

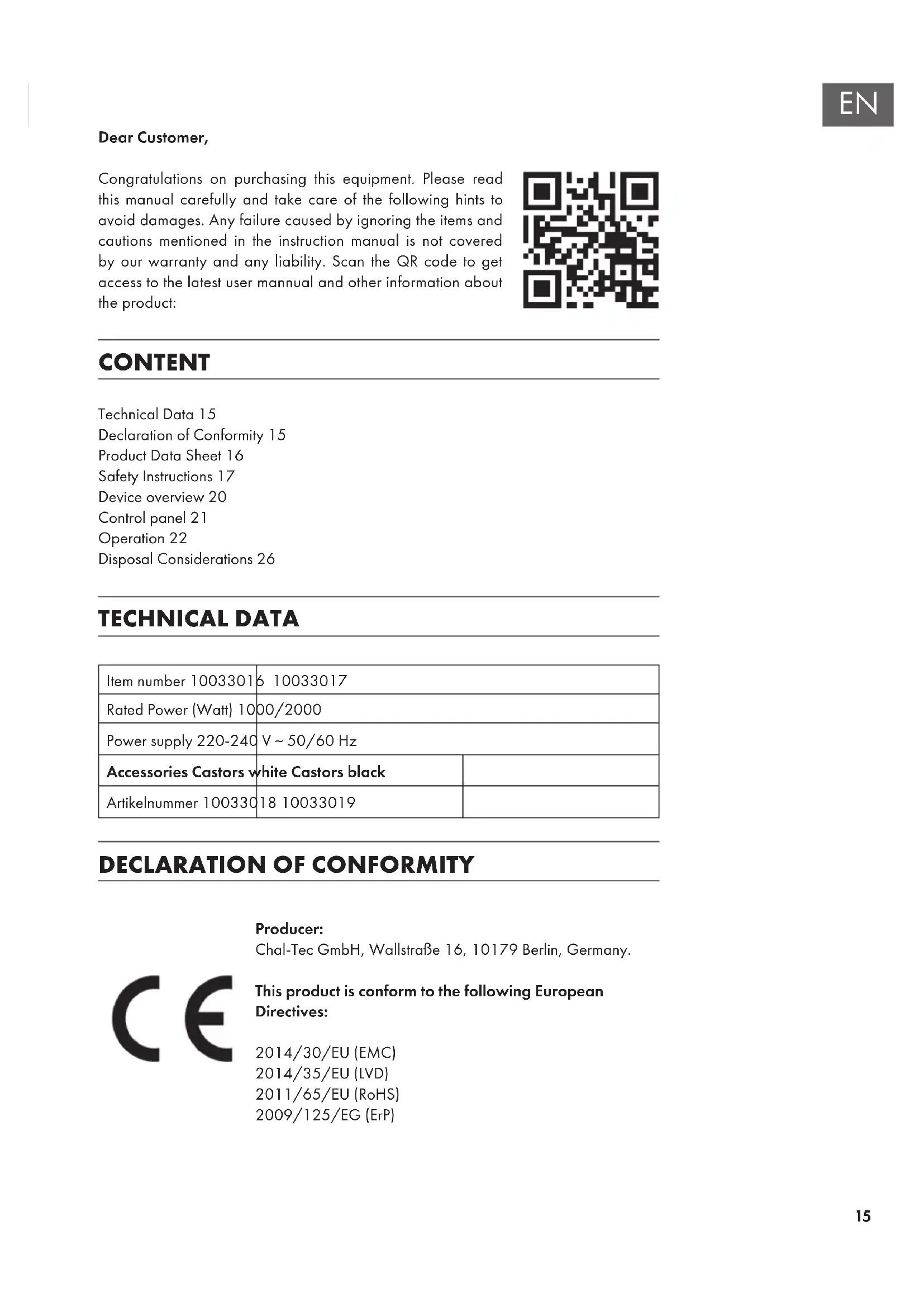

Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannual and other information about the product: CONTENT TECHNICAL DATA Item number 10033016 10033017 Rated Power (Watt) 1000/2000 Power supply 220-240 V ~ 50/60 Hz Accessories Castors white Castors black Artikelnummer 10033018 10033019

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. This product is conform to the following European Directives: 2014/30/EU (EMC) 2014/35/EU (LVD) 2011/65/EU (RoHS) 2009/125/EG (ErP) Technical Data15 Declaration of Conformity15 Product Data Sheet16 Safety Instructions17 Device overview20 Control panel21 Operation22 Disposal Considerations2616

Item number(s): 10033016 10033017 Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output P nom 2,0 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

min 1,0 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

max,c 2,0 kW electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output no At nominal heat output (fan motor)

max 1,890 kW Type of heat output/room temperature control At minimum heat output (fan motor)

min 0,946 kW single stage heat output and no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer

electronic room temperature control plus week timer yes Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection yes with distance control option no with adaptive start control no with working time limitation no with black bulb sensor no Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany17

• Read all instructions before using this unit.

• Do not leave this unit unattended when in use.

• This heater will get hot when in use. Do not touch hot surfaces. CAUTION: Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.

• Position the unit at least 1m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.

• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat. Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not operate the heater if any signs of damage or malfunction manifest themselves.

• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualied electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.18

• Do not handle the element with bare hands. If it is inadvertently touched, remove nger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

• Do not replace or attempt to replace the element in this product.

• This product is suitable for indoor and outdoor use. Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.

• This product must not be left outdoors exposed to the elements for long periods of time.

• Do not touch the plug with wet or damp hands.

• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot trafc and where it will not be tripped over.

• Do not wind the power cable around the unit.

• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, re, or damage to the heater.

• To prevent a possible re, do not block the air vents.

• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or ammable liquids are used or stored. Keep unit away from heated surfaces and open ames.

• Where possible, avoid the use of an extension cable as this may overheat and cause a re. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device tted or attached.

• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.

• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in re, electric shock, or injury to persons.

• The use of attachments on the heater is not recommended.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly.19

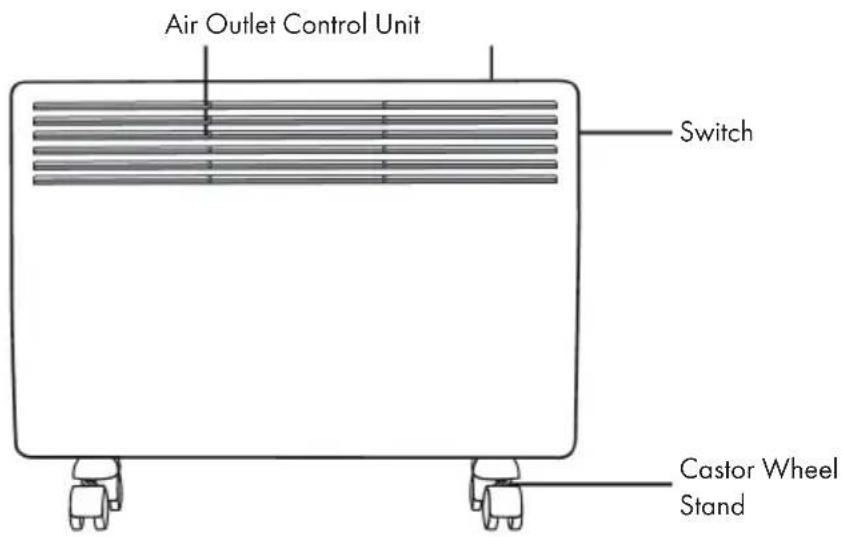

Bathroom metal panel heater white

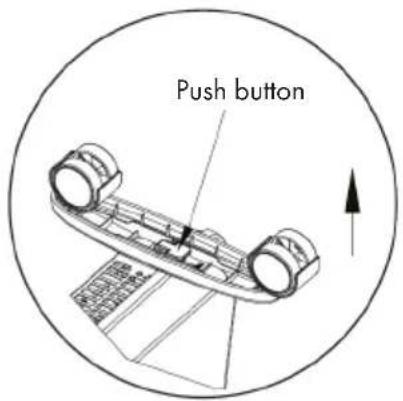

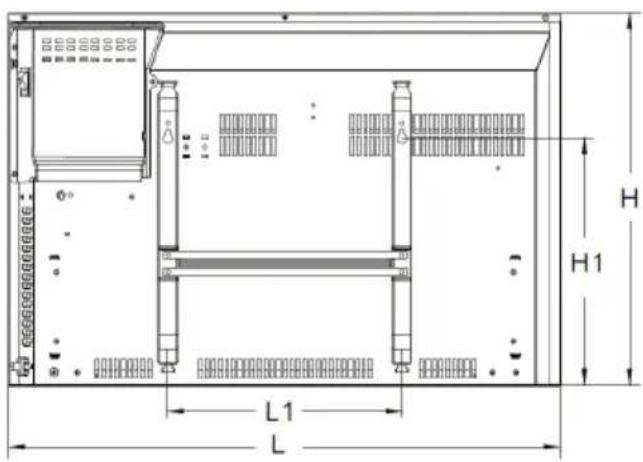

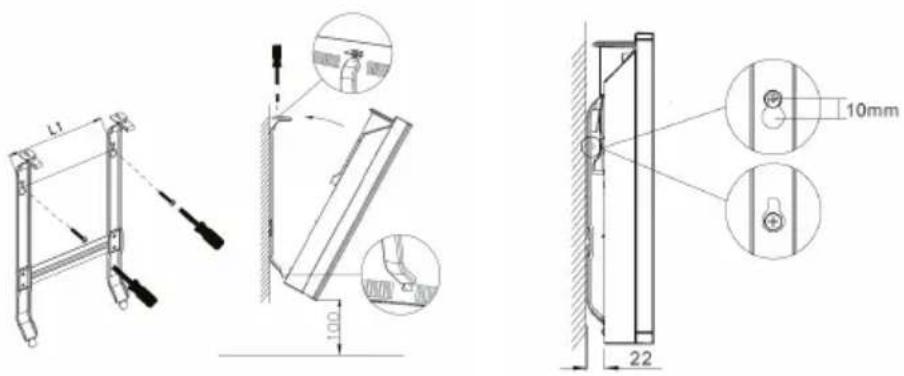

Mounting and dismounting the heater on the wall Wall mounted mode Take down the heater from wall20

• Carefully remove the heater from the box. Please keep the carton for off-season storage.

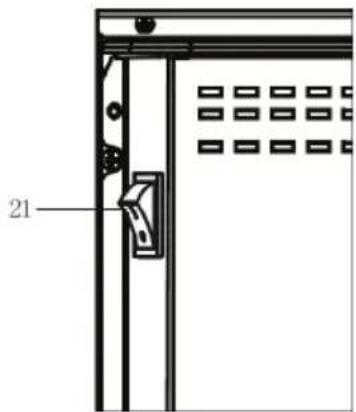

• Make sure the power switch (21) is turned off before pluggin it in.

• Make sure that the heater is completely installed according to the installation instructions.

• It is better not to use the same outlet with other high power electrical equipment to avoid overloading the circuit. Power on

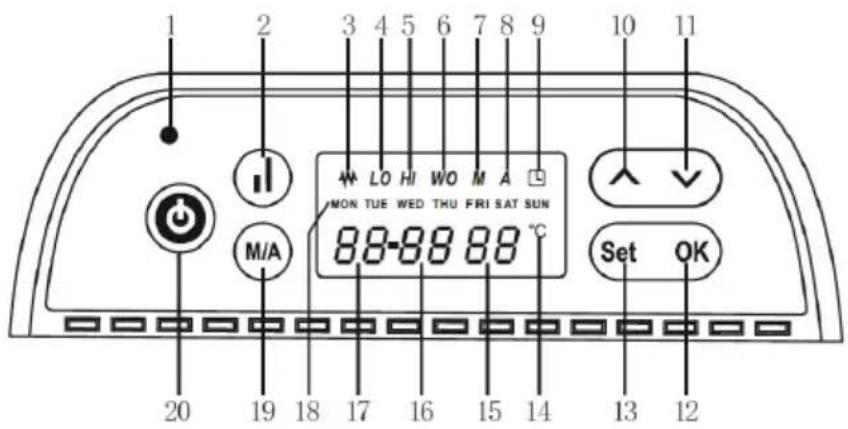

• When the product is connected to the power supply, the red/blue light of the power indicator (1) lights up.

• Press the start/stop button (20), a short buzz sounds and the unit is switched on.

• The display shows the following settings: The day display (18) shows the day of the week (default is MON), the hour display (17) the hours, the minute display (16) the minutes, the temperature display (15) the room temperature, where degrees Celsius (°C) is normally preset. Auto mode (A) is enabled (alarm events, Auto mode default), system default is 35°C. If the device suddenly goes out during operation, the system wakes up again and continues working according to the last setting. Setting the date and time 1 Press the “OK” (12) and “Set” (13) buttons simultaneously for 5 seconds when switching on, the day of the week display (18) ashes. 2 Press the up button (10) and down button (11) to select the date, conrm the date by pressing the “Set” button (13). The weekday indicator (18) stops ashing. 3 Now the hour display (17) starts ashing, press the up button (10) and down button (11) to select the hour. 4 After pressing the “Set” button (13), the minutes can be set, indicated by the ashing minute display (16). 5 Save the settings by pressing the “OK” key (12) and exit the settings menu. Setting the temperature

• Auto mode is identical to manual mode, default unit is °C.

• When the instrument is switched on, you can select the temperature with the up (10) and down keys (11) when the temperature display (15) ashes.

• If no action is taken for 10 seconds after the setting is completed, the system automatically saves the setting and exits the menu.23

Setting the timer Setting the Timer in Manual Mode (24-hour timer) 1 Press the Auto/Manual mode button (19) to select the manual mode. The display shows “M” in manual mode (7). 2 Press the “Set” button (13) to set the hour of the timer to stop the heating. Press the up (10) and down (11) buttons to select the hour (if the selected hour is less than the current hour, the system is automatically activated the next day). 3 Press the “Set” button (13) to set the minute of the timer to stop the heating (if the set hour is identical to the current hour but the selected minute is less than the current minute, the system is automatically activated the next day). 4 Press the “OK“ button (12) to save and exit the timer setting. The system is stopped at the time you set. Setting the Timer in Auto Mode (Time Table Timer) 1 Press the Auto/Manual mode button (19) to select the Auto mode. The display shows “A” in Auto mode (8). 2 Press the “Set” button (13) to set the working timer of the heater. 3 Press the up (10) and down (11) buttons to select the week setting date. 4 Press the “Set” button (13) again to set the rst working timer of the day. 5 Press the up (10) and down (11) buttons to set the hour for the heating start. 6 Press the “Set” button (13) again and use the up (10) and down (11) buttons to select the stop date of the heating. 7 Press the “Set” button (13) to conrm the rst period. The set stop time appears in the day of the week display (18). There are 4 working hours per day. 8 Repeat the above procedure to set the working time for other time periods (if the start time matches the stop time, the system cancels this heating phase). Power on and off

• Press the start/stop button (20) to turn the heater on or off. If you exit the system while it is in automatic mode, it will work according to the default procedure.

• However, if it is to remain off for a long time, you must switch the system to manual mode and then off. If the system is outside the preset working time, it switches off in 1 second after pressing the start/stop button (20) without any action. Part power and full power choose

• Press the heating power button (2) to change the power to partial or full load.

• At full load, full heating capacity (5) is shown in the display and half heating capacity (4) shows “LO”.

• In the case of partial load, “LO” is activated in the display half heating capacity (4) and “HI” is deactivated in the display full heating capacity (4).24

Manual Mode and Auto Mode

• Press the Auto/Manual mode button (19) to change the mode to Manual or Auto.

• In manual mode, the display in manual mode (7) shows an “M” while the “A” is hidden.

• In auto mode, the display in auto mode (8) shows the “A” and the “M” is hidden. Shutdown memory function

• Press the power switch (20) to turn the unit off and on again, or if it is in standby, turn it on. The temperature is the last set.

• Both the Auto Mode Timer and the Manual Mode Timer have a shutdown memory function. Switching off the electrical memory function

• If the unit is unexpectedly turned off or there is a sudden power failure, only the power indicator (1) lights up when the power is back on and the system is turned off.

• Press the start/stop button (20) to turn the system back on. The system operates in the last mode saved. Delete

• Press the “OK” button (12) for 5 seconds until a “di” tone is heard, all previous settings of the week timer or day timer have been deleted. Open Window Detection

• If an open window is detected, the unit stops the heating. Delete Open Window Detection

• Press the start/stop button (20) twice to switch off and on. The “WO” indicator light is deactivated in the window open display (6). The heater is in normal operation. Signal sound

• Each time you press the key, an acoustic signal sounds, a continuous pressure sounds only once. Child lock

• When the unit is in operation, press the up (10) and down (11) buttons simultaneously for 3 seconds. The system is locked. The temperature display (15) rst shows “[ ]“ and switches to room temperature after 5 seconds.

• If you make any entry, it will take 5 seconds “[ ]“ is displayed, the acoustic signal sounds and then the room temperature is displayed again.25

Unlock child lock 1 Switch off the device with the start/stop button (20). 2 The unit switches to the resting stage. 3 Press the up (10) and down (11) buttons for 3 seconds and the child lock is unlocked.26

DISPOSAL CONSIDERATIONS According to the European waste regulation 2012/19/ EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.27
