Tap2Go - Beer dispenser Klarstein - Free user manual and instructions

Product Type	Beer Dispenser
Brand	Klarstein
Model	Tap2Go
Power Supply	220-240 V~ 50/60 Hz (AC) or 12 V DC (cigarette lighter adapter)
Dimensions (L x W x H)	272 x 414 x 430 mm
Weight	Approx. 5.5 kg
Keg Capacity	5 L or 11 L (fresh keg)
Temperature Range	3-6 °C
Lighting	Integrated LED
Drip Tray	Yes, with grid
Materials	Plastic and steel
Usage	Indoor and outdoor (via 12 V), for 5 L or 11 L beer kegs
Cleaning	Do not immerse, use a damp cloth
Safety	Power cord replaceable by professional, check voltage, horizontal surface, ventilation 10 cm around
Additional Functions	Can be used as a beverage cooler without a keg
Compatible Keg Type	5 L or 11 L beer kegs with pressure system (fresh keg type)
Included Accessories	Extension tube, AC cable, 12 V DC cable, drip tray with grid
Number of Manual Pages	44 pages

Frequently Asked Questions - Tap2Go Klarstein

How to assemble the Tap2Go beer dispenser?

Insert the extension tube into the small hole on top of the 5 L beer keg, then install the remaining parts as shown in the manual. Make sure the dispensing tap is properly attached before use.

Why is the beer not coming out?

Check that the extension tube is properly connected and that a filled beer keg is present. If the problem persists, check that the gas line is not leaking.

Why is the beer too foamy?

Excessive foam may be due to a temperature that is too high in the keg (let it cool to 3-6 °C), a shaken keg (let it rest), or pressure that is too high (reduce the adjustable valve by turning the knob clockwise).

How to adjust the temperature?

The temperature is automatically regulated between 3 and 6 °C once the device is plugged in. No manual adjustment is needed. Make sure to leave 10 cm of space around for proper ventilation.

Can I use the device without a keg?

Yes, you can remove the tap and use the device as a beverage cooler for other cans or bottles.

How to clean the dispenser?

Always unplug the device before cleaning. Use a damp cloth and mild detergent. Never immerse the device or plug in water. Do not use scouring pads.

What to do if the beer flows too slowly?

Check that the hose is not damaged and that the pressure in the keg is not too low. Make sure the adjustable valve is open enough.

Can I use it in the car?

Yes, thanks to the included 12 V DC cigarette lighter adapter, you can use the dispenser in a vehicle. Make sure it is placed on a stable and horizontal surface.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for recycling electrical and electronic equipment in accordance with local regulations.

What to do if the power cord is damaged?

The power cord must be replaced by the manufacturer, an authorized specialist, or a similarly qualified person to avoid any danger. Do not use the device until the cord is repaired.

USER MANUAL Tap2Go Klarstein

INHALTSVERZEICHNIS

1 Gehäuse

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 12

Product Overview 13

Assembly 14

Troubleshooting 16

Hints on Disposal 17

Declaration of Conformity 17

TECHNICAL DATA

Item number 10034006
Power supply 220-240 V ~ 50/60 Hz
Power supply (car)	12 V DC Adapter (for the cigarette lighter)
Dimensions (W x D x H) 272 x 414 x 430	mm
Capacity 11 L or 5 L keg

SAFETY INSTRUCTIONS

- Check that the power cord is undamaged before use. If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service center, or a similarly qualified person.

- Before use, check the voltage on the device label. Connect the equipment only to an outlet that is suitable for the voltage of the equipment.

- Do not touch the power plug with wet hands.

- Place the beer cooler on a dry and horizontal surface.

- To ensure good ventilation of the beer cooler, leave at least 10 cm space around the beer cooler on both sides to ensure adequate ventilation of the appliance.

• Never place the beer cooler in direct sunlight.

- Never cover the beer cooler.

- The beer cooler must be installed in an area that is protected from weather conditions such as wind, rain, splashing water or drops of water.

- Before cleaning or servicing the beer cooler, make sure that the plug has been removed from the socket.

- Do not immerse the beer cooler or power plug in water or any other liquid.

- Do not use scouring pads or abrasive cleaners to clean the beer cooler.

- Do not remove the keg from the beer cooler until it has been completely emptied.

- Never let children climb on the beer cooler and make sure that children do not play with the beer cooler.

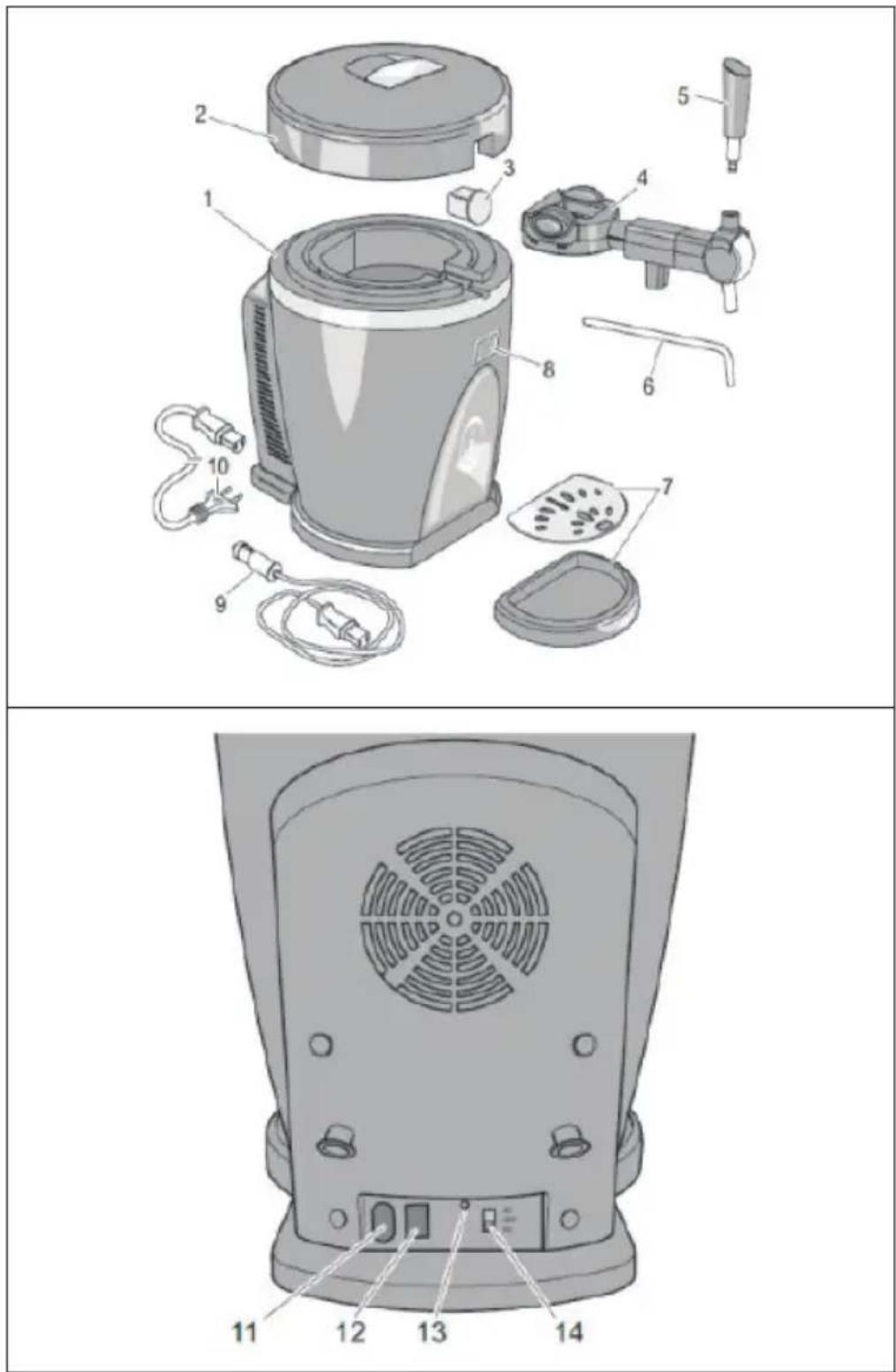

PRODUCT OVERVIEW

1 Housing
2 Cover with hand grip
3 Seal
4 Tap unit
5 Tap handle
6 Extension pipe (5x)
7 Drip tray with grille
8 LED
9 12 V DC cable
10 AC cable with plug

11 AC connection
12 DC connection
13 On/Off indicator light
14 Supply voltage selector switch

ASSEMBLY

1	2
For operation you need a 5 L keg. Insert the extension pipe into the small hole at the top of the beer keg and attach the remaining parts as shown in the picture.
3	4

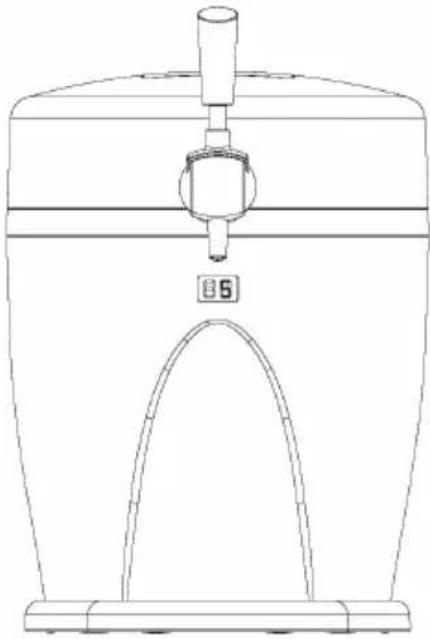

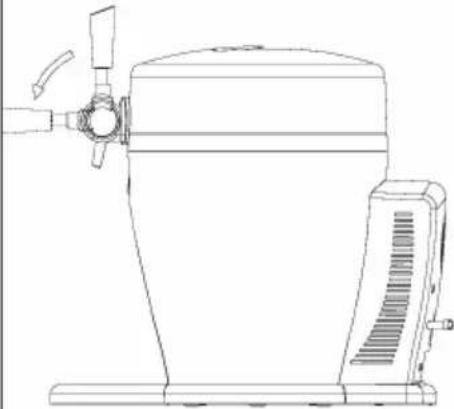

Once the beer dispenser is assembled, plug the unit into a wall outlet or car cigarette lighter. The beer temperature now drops to 3-6 °C and then remains constant.	The tapping unit must be permanently installed before use. Normally, the tap handle should point upwards. In this case the tap is closed. Slowly pull the tap handle down until the beer begins to flow. If you pull the handle down to 90° and release it, it will automatically return to the original position.
5

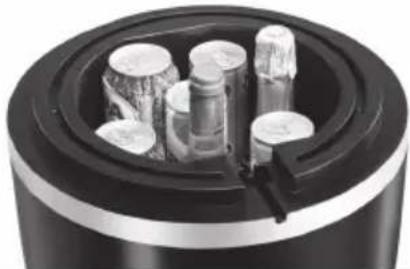

	If there is no beer barrel in the dispenser, remove the dispenser unit. You can now use the unit as a beverage cooler.

TROUBLESHOOTING

Problem Possible cause Suggested solution
There's no beer coming from the pump.	Extension tube on the is not well connected.	Connect the extension tube correctly.
	No keg in the system or no beer in the keg.	Place a new keg in the radiator.
The beer foams too strongly, too little liquid.	The beer is not flowing properly.	Open the power take-off lever completely. Find the best distance between the beer glass and the fitting and hold the beer glass at a slight angle.
	The temperature in the keg is too high.	Let the beer cool down longer up to 3-6 °C.
	The keg was shaken before use.	Leave the keg to stand for some time before using it.
	The beer in the barrel is used up.	Place a new keg in the cooler.
	The pressure in the barrel is too high.	Turn the knob clockwise to turn the adjustable valve down or off.
The beer flows too slowly. The pressure in the barrel is too low.		Check if the pipe is damaged.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
