Product Type	Wristwatch
Brand	Candino
Model	C4408
Category	Quartz chronograph watch
Movement	Quartz (battery)
Battery	Type 395 (SR927SW, Ø 9.5 mm x 2.6 mm)
Timekeeping accuracy	+20 / -10 seconds per month
Main functions	Time display (hours, minutes, seconds), date, chronograph (split time measurement, totalizer, 1/10 sec)
Display	Analog hands (hours, minutes, seconds, date)
Chronograph counters	Minutes (9 o'clock), central seconds, 1/10 seconds (6 o'clock)
Settings	Time, date, quick date correction, chronograph hand zero adjustment
Care and cleaning	Clean with a soft, dry cloth. Avoid contact with solvents or chemicals.
Safety advice	Keep out of reach of children. Do not expose to extreme temperatures or strong shocks.
Recycling	Compliant with WEEE regulations. Dispose of at an approved collection point at end of life.
Warranty	2 years (standard estimate)
Dimensions (approximate)	Case diameter ~40 mm, thickness ~10 mm
Weight (approximate)	~80 g (with steel bracelet)

Frequently Asked Questions - C4408 Candino

How to set the time on the Candino C4408 watch?

Pull the crown out to position III (the seconds hand stops). Turn the crown to the desired time. Push the crown back to position I. For precise setting to the second, perform the operation when the seconds hand is at 60.

How to use the chronograph?

Press pusher A to start and stop timing. Press pusher B to reset the hands to zero. The counters display minutes (9 o'clock), central seconds, and 1/10 seconds (6 o'clock).

How to perform cumulative timing?

Press A to start, then A to stop. Press A again to restart timing, and A for the second stop. The total time is added. Use B to reset to zero.

How to quickly correct the date?

Pull the crown out to position II (the watch continues running). Turn the crown until the correct date is displayed. Push the crown back to position I.

What to do if the chronograph hands are not at zero?

Pull the crown out to position III. Press pushers A and B simultaneously for at least 2 seconds. The central seconds hand rotates 360°. Use A to adjust step by step (brief press) or continuously (hold), then B to move to the next hand. Repeat for the hour counter (6 o'clock) and minute counter (9 o'clock). Push the crown back to position I.

What battery does the Candino C4408 use?

The battery is type 395 (SR927SW), with a diameter of 9.5 mm and a thickness of 2.6 mm.

How to set the time and date simultaneously?

Pull the crown out to position II and turn to display the day before the current date. Then pull to position III (the seconds hand stops). Turn to display the correct date, then continue to set the time. Follow the 24-hour cycle.

Is the watch waterproof?

The instructions do not specify water resistance. It is advisable to avoid any contact with water to preserve the movement.

How to maintain the watch?

Clean the case and bracelet with a soft, dry cloth. Avoid chemicals and solvents.

What to do if the display malfunctions?

Check the battery. If the problem persists, consult a certified watchmaker. The watch is equipped with a quartz movement requiring professional service.

USER MANUAL C4408 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USO

Segundero I II I I

30 45 60 75 80 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300

B

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Quickly changing the date 21
• Setting the date and time 22

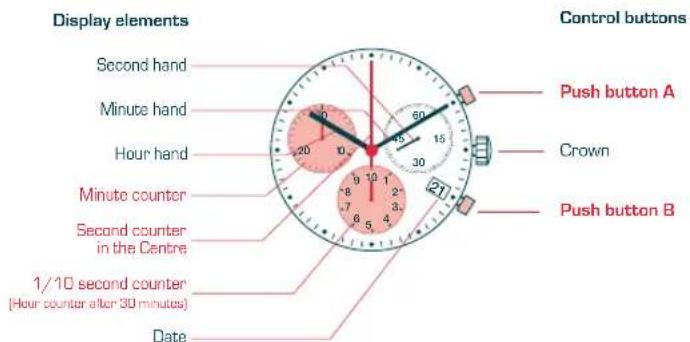

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS

Display elements Second hand Minute hand Hour hand Minute counter Second counter in the Centre 1/10 second counter (Hour counter after 30 minutes) Date Control buttons Push button A Crown Push button B

14

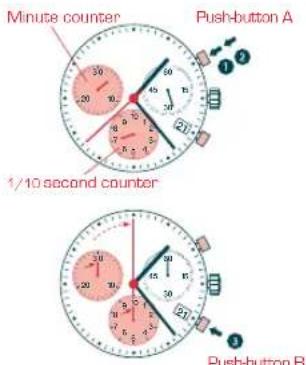

CHRONOGRAPH: BASIC FUNCTION
START/STOP/RESET

Minute counter Push-button A 1/10 second counter Push-button B

Example:

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A again hand read the three chronograph counters: 4 min/38 s/7/10 s
③ Zero positioning:

Press push-button B.

(The three hands of the chronograph go back to zero).

15

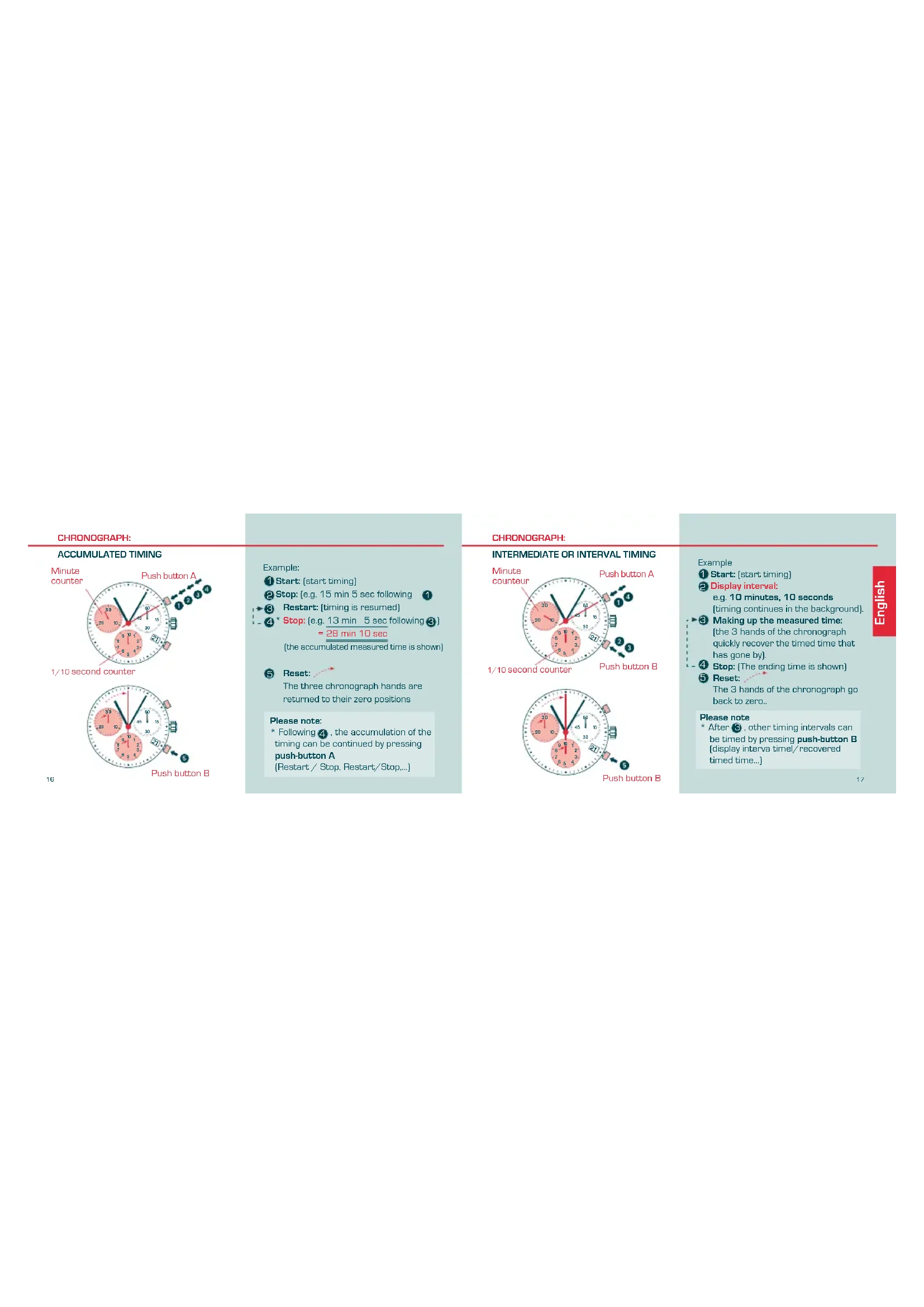

CHRONOGRAPH:

ACCUMULATED TIMING

Minute counter Push button A

1/10 second counter

13

Example:

1 Start: (start timing)

② Stop: [e.g. 15 min 5 sec following ①

3 Restart: (timing is resumed)

- 4* Stop: [e.g. 13 min 5 sec following ③]

28 min 10 sec

[the accumulated measured time is shown]

5 Reset:

The three chronograph hands are

returned to their zero positions

Please note:

* Following 4, the accumulation of the

timing can be continued by pressing

push-button A

[Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Minute counteur 50 20 /10 second counter Push button A Push button B

Push button B

Example

1 Start: (start timing)

2 Display interval:

e.g. 10 minutes, 10 seconds

(timing continues in the background).

▶3 Making up the measured time: (the 3 hands of the chronograph quickly recover the timed time that has gone by).

- 4 Stop: [The ending time is shown]

⑤ Reset:

The 3 hands of the chronograph go

back to zero.

Please note

* After B, other timing intervals can be timed by pressing push-button B (display interval time/ recovered timed time...)

17

ADJUSTING THE HANDS OF THE

CRONOGRAPH TO THE ZERO POSITION

Minute counter Second counter in the centre

1/10 second counter

19 19

Example:

One or more of the hand of the chronograph are not in their correct zero position and must be adjusted (ex. after changing the battery)

1 Pull out the crown to position III (all 3 hand of the chronograph go back to their correct or incorrect zero position).
② Push press button A and B at the same time for at least 2 sec (the second counter hand in the centre turns 360° à the corrective mode is activated)

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second hand counter (position 6h) Single step A=1 x short Continuous A=long
Adjusting the next hand B
Adjusting the minute counter hand (position 9h) Single step A1 x short Continue A
3 Return the crown to position I Finished adjusting the hands of the chronograph (can be done at any time).

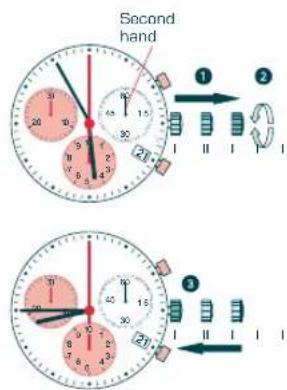

SETTING THE TIME

Second hand 1 2 3

20

1* Pull out the crown to position III [the second hand stops].
② Turn the crown until you reach the correct time 8:45.
3* Return the crown to position 1.

Please Note:

* In order to set the time to the "approximate second", ① must be pulled out when the second hand is in the "60" position (I). After setting hour and minute hands, ③ should be put back in position I at the "approximate second".

QUICKLY CHANGING THE TIME

1 20 10 9 5 3 1 6 7 8 6 4 5 30 5 15 1 2 -3 1 12 11 12 12

1 Pull out the crown to position II (the watch continues to work).
2 Turn the crown until the correct date 1.
3 Push the crown back into position 1.

Please Note:

The date can be changed during the date rollover phase between 9:00 pm and midnight by setting the date of the following day so that the automatic date change does not move ahead automatically from 1 day to midnight.

21

SETTING THE DATE AND TIME

Crown 1 II I II Date 2 II

22 23

Example:

- Date/time on the watch: 17 /1:25 AM

- Current date/time: 4 /8:30 PM

1 Pull the crown out to position II (the watch continues to work).
Turn the crown until you reach yesterday's date 3.

Second hand 35 20 12 9 8 7 6 5 45 30 20 15 10 5 4 3 2 1 Second hand 35 20 12 9 8 7 6 5 45 30 20 15 10 5 4 3 2 1 Second hand

③ * Pull out the crown to position III (the second hand stops).
4 Turn the crown until you reach the current date 4.
5**Keep turning the crown until you reach the current time 8:30pm.
6 Return the crown to position I.

Please note:

* In order to set the time to the "approximate second", see the note in the "Setting the time" section.
**Please observe the AM/PM clock rhythm.

Type of battery: 395 [Ø 9.5 mm x 2.6 mm / SR 927 SW] Accuracy of functioning: +20/-10 seconds per month

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
