C4477 - Wristwatch Candino - Free user manual and instructions

Product type	Quartz chronograph wristwatch
Brand	Candino
Model	C4477
Movement	Battery quartz
Main functions	Time, minutes, seconds, date, day, month, chronograph (intermediate times and cumulative time)
Display	Analog (hands)
Number of pushers	2 pushers (A and B) + crown (button C for quick date)
Time setting	Crown pulled to position II
Date setting (quick mode)	Press button C
Chronograph hands adjustment	Crown in position II, hold A and B for 2 seconds, then adjust step by step
Power source	Battery (type not specified in the manual)
Case material	Stainless steel (common estimate)
Crystal	Mineral crystal (common estimate)
Strap/Bracelet	Leather or metal (interchangeable, not specified)
Manual pages	33 pages
Available manual languages	FR, DE, EN, ES, IT
Maintenance	Clean with a soft cloth, avoid shocks and water (unless waterproof indicated)
Battery replacement	Entrust to an authorized watchmaker
Warranty	2 years (generally, not specified in the manual)

Frequently Asked Questions - C4477 Candino

How to set the time on my Candino C4477?

Pull the crown to position II (the watch stops). Turn the crown until the correct time is displayed. Push the crown back to position I. To set the seconds, pull the crown when the second hand is at 12 o'clock, then push it back at the exact second.

How to quickly set the date?

Press button C (pusher at 2 o'clock) once to advance the date by one day. Caution: do not set the date between 9 PM and 12:20 AM to avoid damaging the mechanism.

How to use the chronograph to measure cumulative time?

Press button A to start. Press A again to stop (e.g., 15 min 5 s). Press A to restart (timing resumes). Cumulative time is displayed (e.g., 28 min 10 s). Press B to reset to zero.

How to use the chronograph to measure intermediate times?

Press A to start. Press B to display an interval (e.g., 10 min 10 s); timing continues in the background. Press B to return to current time. Press A to stop. Press B to reset to zero.

How to reset the chronograph hands if they are misaligned?

Pull the crown to position II. Hold buttons A and B pressed for at least 2 seconds. The stop second hand rotates 360°: adjustment mode is activated. Use button A to adjust step by step (short press) or continuously (long press). Press B to move to the next hand. Push the crown back to position I to finish.

How to replace the battery?

Battery replacement must be done by a professional watchmaker or authorized center. Use a battery of the same type. After replacement, it may be necessary to reset the chronograph hands.

Is my Candino C4477 watch waterproof?

The manual does not specify the degree of water resistance. As a precaution, avoid any contact with water. If your watch is marked 'Water Resistant' (e.g., 3 ATM), it is splash resistant but not suitable for swimming.

How to maintain my watch?

Clean the case and strap with a soft, dry cloth. Avoid chemicals, shocks, strong magnetic fields, and extreme temperatures. Have the water resistance checked periodically.

What to do if the watch stops working?

First check if the battery is dead (replacement needed). If the watch remains stopped after battery change, consult a watchmaker. Make sure the crown is fully pushed in to position I.

Where can I find the complete manual for the Candino C4477?

The complete manual in PDF format is available free of charge on notice-facile.com. You can download it in French, German, English, Spanish, or Italian.

USER MANUAL C4477 Candino

Description of the display and control buttons 16
Chronograph:Basic function. 17

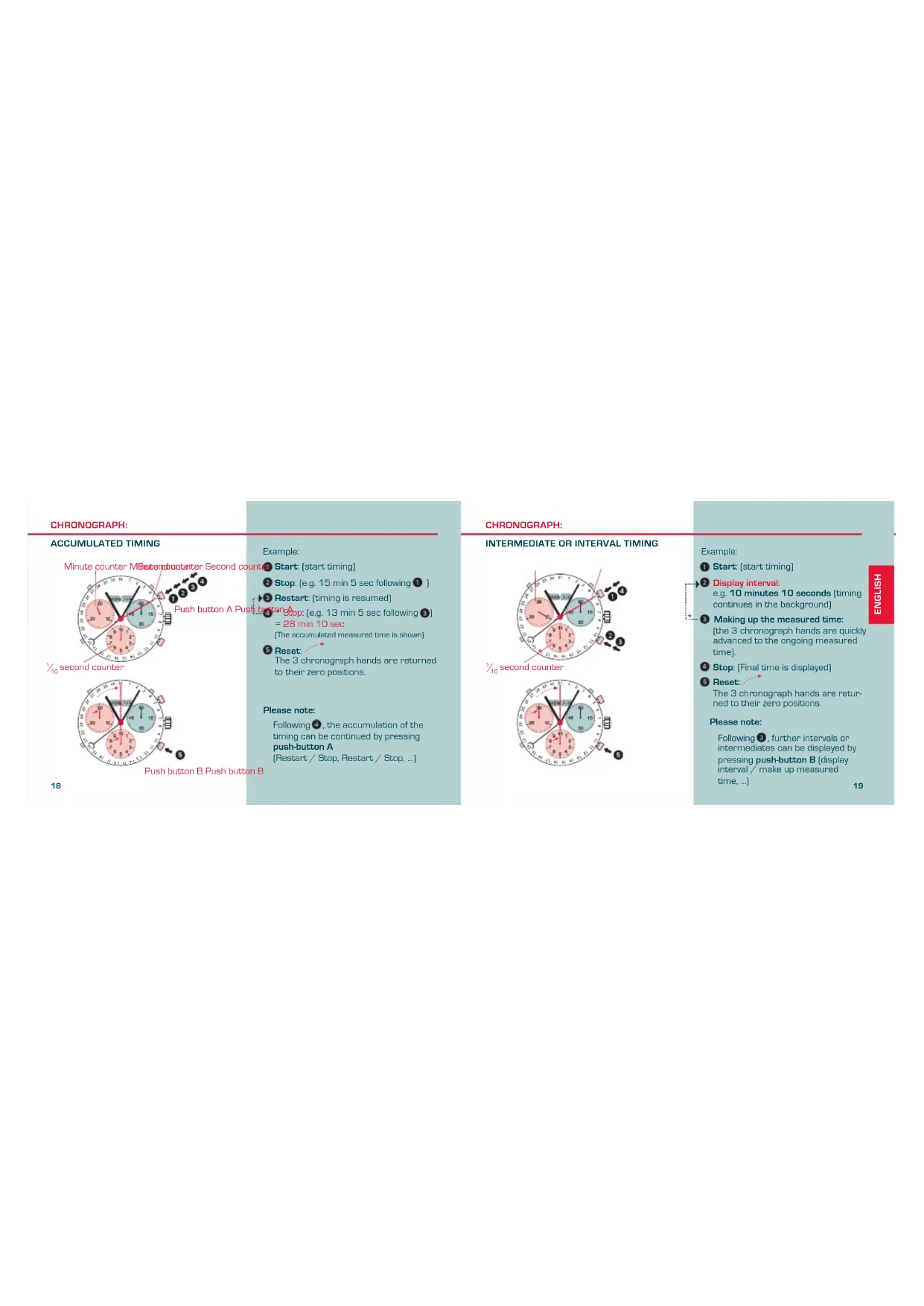

Chronograph:Accumulated timing 18
Chronograph: Intermediate or interval timing. 19
Adjusting the chronograph hands to zero position 2D
Setting the time 22
Setting the date [quick mode] 23
Setting the time, date, day of week and month 24

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz

watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

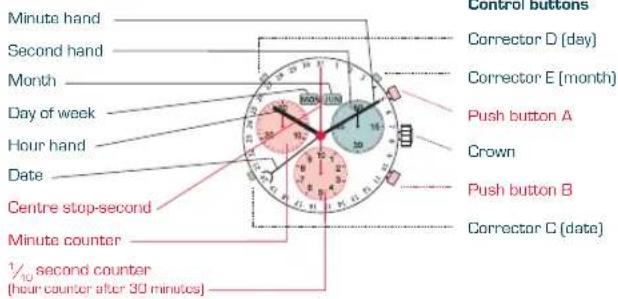

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS
Display elements

16

CHRONOGRAPH: BASIC FUNCTION

[START/STOP/RESET]
Minute counter Second counter

% second counter

Push button B

Example:

Start:Presspush按钮A
Stop: to stop the timing, press push button A once more and read the 3 chronograph counters: 4 min/5 sec/70 sec
Zero positioning:

Press push-button B. [The 3 chronograph hands will be reset to their zero positions].

17

ADJUSTING THE CHRONOGRAPH

HANDS TO ZERO POSITION

Minute counter Centre stop-sencond
%second counter

20

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted [e.g. following a battery change].

Pull out the crown to position II (all 3 chronograph hands are in their correct or incorrect zero position).
Keep push Buttons A and B depressed simultaneously for at least 2 seconds [the centre stop-second rotates by 360^ corrective mode is activated].

图
Adjusting the centre stop second
Single step A 1 x short
Continuous A long
Adjusting the next hand B
Adjusting the %_10 second counter hand (position Bh)
Single step A 1 x short
Continuous A long
Adjusting the next hand B
Adjusting the minute counter
position 9h
Single step A 1 x short
Continuous A long

Returning the crown to position I Termination of the chronograph hands adjustment [can be carried out at any time].

21

SETTING THE TIME SETTING THE DATE [QUICK MODE]

*Pull out the crown to position II (the watch stops).
Turn the crown until you reach the correct time 8.45.
*Push the crown back into position I.

Please note:

In order to set the time to the exact. * second, must be pulled out when the second hand is in position e6D's [1]. Once the hour and minute hands have been set, must be pushed back into position 1 at the exact second.

Example after a change of month:

-Date on watch: 31
-Current date:1

Press the corrector C once to adjust the date 1 day forward.

Please note:

The date for the following day must be set during the date changing phase between 9:00 PM and 00:20 AM.

SETTING THE TIME,

DATE, DAY OF WEEK AND MONTH

Day of week

Example:

• On the watch: 10/MON/AN / 1:25 AM
  Current: 20/ THU/OCT/8:30PM

Pull out the crown to position II (the watch stops).
Turn crown until the current time is shown.
Push crown to position I [watch continues to run].

Please note:

To set your watch to the exact second * please refer to the chapter entitled «Setting the time»

Please observe the AM/PM clock rhythm

Corrector C

Day of week Month
Date

.

Press the corrector C to gradually advance the date hand.
Press the corrector D to gradually advance the day of week.
Press the corrector E to gradually advance the month.

MODE D'EMPLOI

m = 311

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com
