Product Type	Watch
Brand	Candino
Model	C4375
Category	Watch
Movement	Quartz
Display	Analog with hands
Main Functions	Chronograph, date, time
Chronograph	Seconds, minutes and hours counters
Quick date correction	Yes
Time setting	By crown
Adjustment of chronograph hands to zero position	Yes (after battery change)
Power	Battery
Maintenance	Clean with a soft cloth, avoid shocks and water
Repairability	Battery replacement possible by a watchmaker
Recycling	Selective collection of waste electrical and electronic equipment at end of life
Manual available in	French, German, English, Spanish, Italian and others

Frequently Asked Questions - C4375 Candino

How to set the time on my Candino C4375 watch?

Pull the crown to position III (the second hand stops). Turn the crown until the desired time is obtained, then push it back to position I. For precise second adjustment, perform the operation when the second hand is at 60.

How to use the chronograph?

To start timing, press push-button A. To stop, press A again. To reset to zero, press B. The seconds, minutes and hours counters display the elapsed time.

How to quickly correct the date?

Pull the crown to position II (the watch continues to run). Turn the crown until the current date appears, then push back to position I. Avoid correction between 9 PM and midnight.

What to do if the chronograph hands are not at zero?

Pull the crown to position III, then press simultaneously push-buttons A and B for at least 2 seconds. Use A to adjust each hand step by step or continuously, and B to move to the next hand. Push the crown back to position I to finish.

How to perform cumulative timing?

Press A to start, then again A to stop (intermediate time). Press A to restart. The chronograph accumulates times. At the end, press B to reset to zero.

How to measure intermediate times?

Press A to start. To display an intermediate time, press B (timing continues in background). Press B again to catch up to the elapsed time. Stop with A and reset with B.

How to set the date and time after a battery change?

Pull the crown to position II and set the day before the current date. Then pull to position III (the second hand stops). Turn to display the correct date, then continue to adjust the time. Push back to position I.

Is the watch waterproof?

The manual does not specify the water resistance level. As a precaution, avoid any contact with water and shocks. Consult a watchmaker for more information.

How to maintain my Candino C4375 watch?

Clean it regularly with a soft, dry cloth. Avoid exposure to water, chemicals, and strong shocks. For battery replacement, consult a professional watchmaker.

Where can I get the battery replaced?

Battery replacement must be carried out by an authorized watchmaker or at a Candino point of sale. You can also contact any watch repair workshop.

USER MANUAL C4375 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

CANDINO SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USD

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Setting the date (quick mode)....21
• Setting the date time following a battery change....22

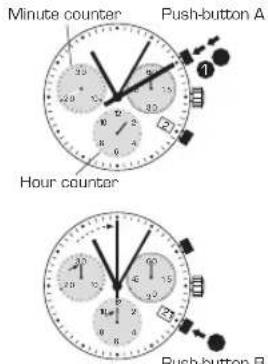

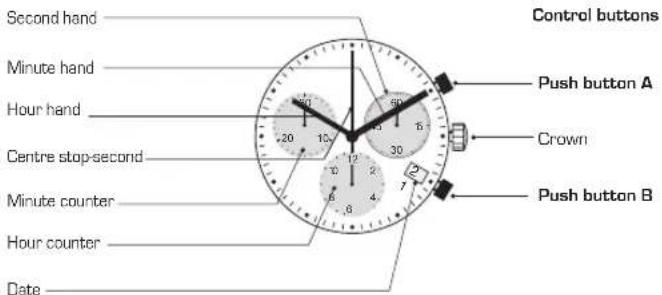

Display elements

START/STOP/RESET

Example:
1 Start: Press push-button A
2 Stop: to stop the timing, press push button A once more and read the three chronograph hand: T 1h/20min/10sec
③ Zero positioning: Press push-button B.II
(The three chronograph hands will be reset to their zero positions).

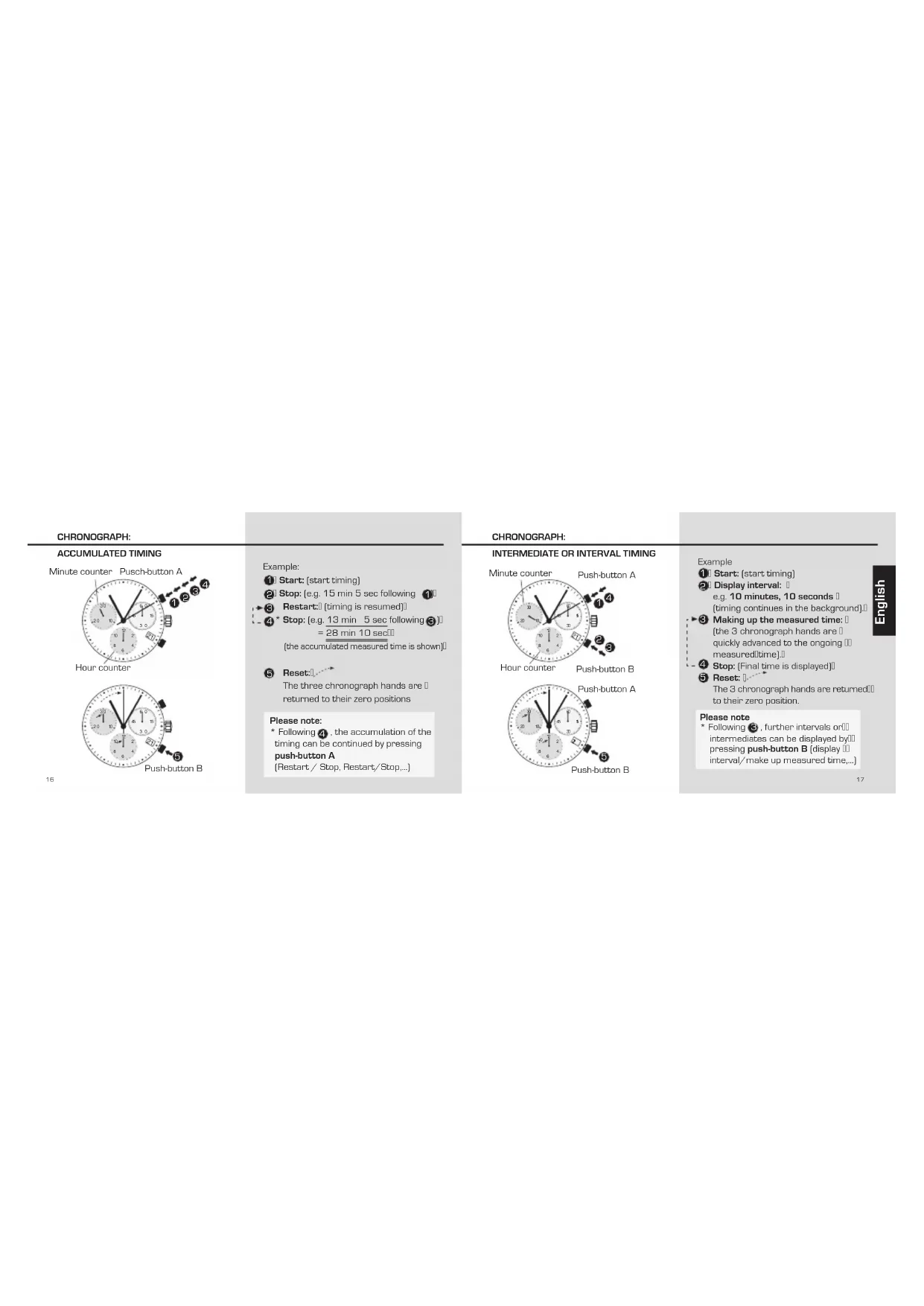

CHRONOGRAPH:

ACCUMULATED TIMING

Minute counter Pusch-button A

13

Example:

11 Start: (start timing)

② Stop: [e.g. 15 min 5 sec following ①]

3 Restart: [timing is resumed]

4* Stop: [e.g. 13 min 5 sec following ③] = 28 min 10 sec[1] [the accumulated measured time is shown]

5 Reset:

The three chronograph hands are returned to their zero positions

Please note:

* Following 4, the accumulation of the timing can be continued by pressing push-button A [Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Minute counter

Push-button A

Hour counter

Push-button B

Push-button B

Example

1 Start: (start timing)

2] Display interval:

e.g, 10 minutes, 10 seconds || (timing continues in the background).

3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).

4 Stop: [Final time is displayed]

5 Reset:

The 3 chronograph hands are returned to their zero position.

Please note

* Following Ⓐ, further intervals or T intermediates can be displayed by U pressing push-button B (display M interval/make up measured time,...)

17

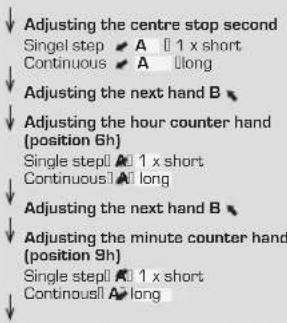

ADJUSTING THE CHRONOGRAPH

HANDS TO ZERO POSITION

19 19

One or several chronograph hand are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

1 Pull out the crown to position III [all 3] chronograph hands are in their correct or incorrect zero position].
2 Keep push-buttons A and B depressed simultaneously for at least 2 seconds [the centre stop-second rotates by] 360^ corrective mode I is activated

③ Returning the crown to position I Termination of the chronograph hands adjustment (can be carried out at any time)

SETTING THE TIME

20

1* [Pull out the crown to position III][the watch stops].

2 Turn the crown until you reach the correct time 8:45.

3* Push the crown back into position 1.

Please note:

*In order to set the time to the exact second, ① must be pullet out when the second hand is in position "60" [I]. Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

SETTING THE DATE (quick mode)

① [Pull out the crown to position III] [the watch continues to run].

2 Turn the crown until the correct date. 1 appears.

③ Push the crown back into position I.

Please note:

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

21

SETTING THE DATE/TIME

FOLLOWING A BATTERY CHANGE

Example:

- Date/time on the watch: 17 /1:25 AM

- Present date/time: 4 /8:30 PMI

1 Pull out the crown to position III (the watch continues to run).
② Turn the crown until yesterday's date appears 3.

Second hand

⑧ * [Pull out the crown to position III] (the watch stops).
4 Turn the crown until the correct date 4 appears
⑤**Continue to turn the crown until the correct time 8:30 PM appears!
6 Push the crown back into position I.

Please note:

* To set your watch to the exact second please refer to the chapter D entitled "setting the time".
**Please observe the AM/PM clock rhythm.
