Product type	Interchangeable lens for digital camera
Brand	Panasonic
Model	Lumix HX1025LP (LEICA DG VARIO-SUMMILUX 10-25mm F1.7 ASPH.)
Mount	Micro Four Thirds
Focal length	10-25 mm (35 mm equivalent: 20-50 mm)
Maximum aperture	F1.7
Minimum aperture	F16
Optical construction	17 elements in 12 groups (3 aspherical, 4 ED, 1 UHR)
Angle of view	94° (wide-angle) to (telephoto)
Minimum focusing distance	0.28 m (0.92 ft)
Maximum magnification	0.14× (35 mm equivalent: 0.28×)
Image stabilizer	No
Filter diameter	77 mm
Maximum diameter	87.6 mm (3.4 in)
Total length	128 mm (5.0 in)
Weight	690 g (1.52 lb)
Dust/moisture resistance	Yes (rubber sealing)
Operating temperature	-10°C to 40°C (14°F to 104°F)
Allowable humidity	10% to 80%
Warranty	1 year (parts and labor, Canada)
Supplied accessories	Case, lens hood, lens cap, rear cap
Recommended cleaning	Soft dry cloth; avoid solvents

Frequently Asked Questions - Lumix HX1025LP PANASONIC

How to install the lens on a camera body?

Turn off the camera, remove the rear cap, align the lens mount index with the camera's, then rotate the lens clockwise until it clicks. Refer to the camera manual for details.

How to switch between autofocus (AF) and manual focus (MF)?

Slide the focus ring forward or backward. If the camera is set to MF, operation remains manual regardless of the ring position.

Is the lens hood necessary?

The lens hood reduces stray light and protects the lens. It can be attached in normal position or reversed for storage. It is recommended to remove it when using the flash to avoid blocking light.

Is this lens compatible with all Micro Four Thirds camera bodies?

Yes, it is compatible with all Micro Four Thirds mount digital cameras. It cannot be mounted on Four Thirds mounts.

Why do I hear a clicking or shifting noise during use?

This noise comes from the movement of the lens elements and the diaphragm during focusing or zooming. It is normal and not a malfunction.

How to safely clean the lens?

Use a soft, dry, lint-free cloth. Never use solvents such as benzene, thinner, alcohol, or household detergents. If there is stubborn dirt, gently blow off particles before wiping.

What is dust and splash resistance?

The lens is designed to resist dust and splashes thanks to a rubber seal on the mount. This does not guarantee full waterproofing; avoid exposure to water jets or extreme environments. Wipe off any liquid immediately.

What is the warranty for this lens?

Panasonic Canada's limited warranty covers defects in materials and workmanship for 1 year from the date of purchase. It does not cover normal wear, cosmetic damage, or accidents. Keep your receipt.

Can I use filters with this lens?

Yes, 77 mm diameter filters can be attached. The lens cap and hood can be installed over the filter. Using multiple filters may cause vignetting. Do not use non-compatible conversion lenses or adapters.

How to store the lens when not in use?

Attach the lens cap and rear cap to protect the optical surfaces. Store in a dry place, away from direct sunlight, extreme temperatures, and humidity. For long-term storage, use a desiccant (silica gel) and check condition before reuse.

USER MANUAL Lumix HX1025LP PANASONIC

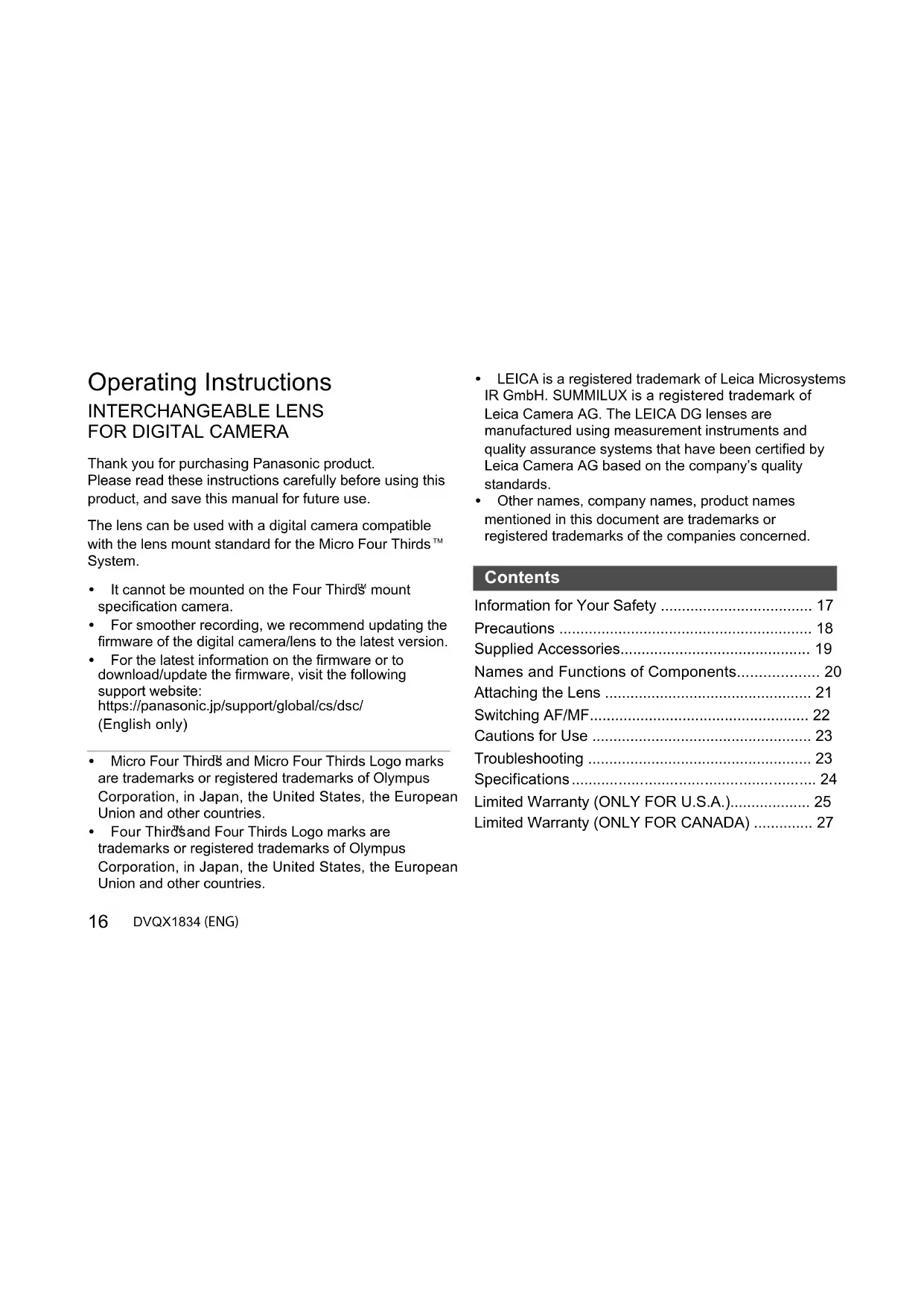

Operating Instructions

If you have any questions, visit:

USA: http://shop.panasonic.com/support

Canada: www.panasonic.ca/english/support

Register online at http://shop.panasonic.com/support

(JPN) DVQX1834

LENSの取付付（续き）

知

The warranty is valid only in Japan.

Thank you for purchasing Panasonic product. Please read these instructions carefully before using this product, and save this manual for future use.

The lens can be used with a digital camera compatible with the lens mount standard for the Micro Four Thirds™ System.

It cannot be mounted on the Four Third's mount specification camera. - For smoother recording, we recommend updating the firmware of the digital camera/lens to the latest version. - For the latest information on the firmware or to download/upload the firmware, visit the following support website: https://panasonic.jp/support/global/cs/dsc/ (English only)

• Micro Four Thirds and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries. Four Thirds and Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries.
• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.
• Other names, company names, product names mentioned in this document are trademarks or registered trademarks of the companies concerned.

Contents

Information for Your Safety 17 Precautions 18 Supplied Accessories 19 Names and Functions of Components 20 Attaching the Lens 21 Switching AF/MF 22 Cautions for Use 23 Troubleshooting 23 Specifications 24 Limited Warranty (ONLY FOR U.S.A.) 25 Limited Warranty (ONLY FOR CANADA) 27

Information for Your Safety

Keep the unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games, radio transmitters, high-voltage lines etc.).

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery and/or the connected AC adaptor. Then reinsert the battery and/or reconnect the AC adaptor and turn the camera on.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

• Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Supplier's Declaration of Conformity

Trade Name: Panasonic

Model No.: H-X1025

Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490

Support Contact: http://shop.panasonic.com/support

THE FOLLOWING APPLIES ONLY IN CANADA.

CAN ICES-3(B)/NMB-3(B)

(ENG) DVQX1834

-If you see this symbol

Disposal of Old Equipment Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to

applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Precautions

■ Handling of the lens

• When using this lens, take care not to drop, bump, or apply undue force to it. Doing so may cause malfunction or damage to this lens and the digital camera.
• When there is dirt (water, oil, fingerprints, etc.) on the

surface of the lens, the images may be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after recording.

• When the lens is not in use, be sure to attach the lens cap and lens rear cap to prevent dust and other particles from accumulating on or entering the lens. To protect the lens contact

points (A) do not do the following. These may cause malfunction.

• Place the lens with its mount surface facing down.
• Dust and splash resistant
• Place the lens with its mount surface facing down.

The dust and splash resistant of the lens will not prevent the entry of dust or water droplets completely. Take the following precautions to provide satisfactory dust and splash resistant performance. If the lens is not working properly, consult the dealer or Panasonic.

• The dust and splash resistance of the lens will not completely prevent the entry of dust or water droplets. Take the following precautions to ensure satisfactory dust and splash resistant performance. If the lens is not working properly, consult the dealer or Panasonic.
• Attach to a digital camera that is dust and splash resistant.
• When attaching or removing the lens, be careful so that foreign objects such as sand, dust, and water droplets do not adhere to or enter the lens mount rubber, contact points, digital camera and lens.
• If the lens is exposed to water droplets or other liquids, wipe them off with a soft, dry cloth.
• To improve the dust and splash resistant performance of the lens, a lens mount rubber is used in the mount.
• The lens mount rubber will leave scuff marks on the digital camera mount, but this does not impact performance.
• For information on changing the lens mount rubber, contact Panasonic.

Condensation (when the lens is fogged up)

• Condensation occurs when the ambient temperature or humidity changes. Please be careful, as it may cause lens stains, mold and malfunction.
• If condensation occurs, turn off the digital camera and leave it for approx. 2 hours. The fog will disappear naturally when the temperature of the digital camera becomes close to the ambient temperature.

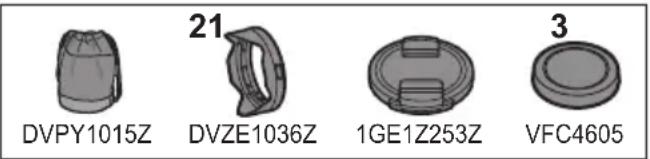

Supplied Accessories

Check that all the accessories are supplied before using the product. Product numbers correct as of May 2019. These may be subject to change.

1 Lens pouch 2 Lens hood 3 Lens cap 4 Lens rear cap

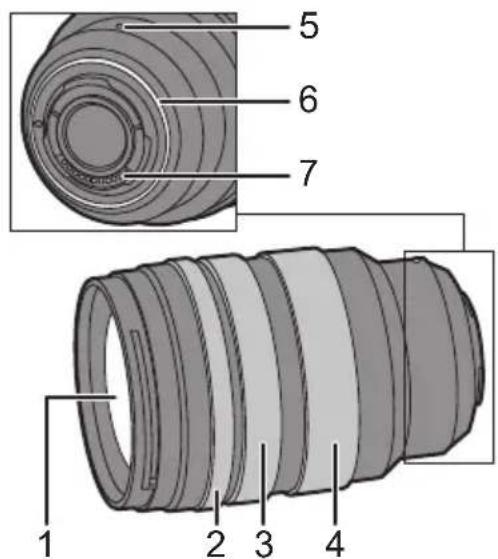

Names and Functions of Components

1 Lens surface 2 Aperture ring (clickless)

Adjusts the aperture value when you set the digital camera to Aperture-Priority AE mode or Manual Exposure mode.

• You can set the aperture value on the digital camera if you set the aperture ring to the [A] position.

3 Focus ring

Switches between AF (auto focus) and MF (manual focus) by sliding the focus ring forwards or backwards. (→ 22)

Rotates the focus ring to focus when set to MF.

4 Zoom ring

Zooms to telephoto or wide-angle.

5 Lens fitting mark 6 Lens mount rubber 7 Contact points

Note

• There may be some vignetting at the edges of the screen when recording using the flash of the digital camera. We recommend using the wide panel on an external flash. There may be differences in focus when you use zoom after focusing. Focus again.
• If the sound of AF operation bothers you during video recording, it is recommended to set to MF.
• The aperture can be adjusted with the aperture ring only when a Panasonic digital camera is attached to the lens. (As of May 2019)

Attaching the Lens

For information on how to attach the lens, refer to the operating instructions for your digital camera.

• Attach the lens after turning off the digital camera.
• Attach the lens after removing the lens rear cap. After removing the lens from the digital camera, be sure to attach the lens cap and lens rear cap to prevent dust and other particles from accumulating on or entering the lens.

Attaching the lens hood

Hold the lens hood with your fingers placed as shown in the picture.

• Do not hold the lens hood in a way that twists or bends it.

1. Align mark A () on the lens hood with the mark on the tip of the lens. 2. Rotate the lens hood in the direction of the arrow to align mark ⑧ (or the lens hood with the mark on the tip of the lens). - Attach the lens hood by rotating it until it clicks.

Removing the lens hood

While pressing the lens hood button, rotate the lens hood in the direction of the arrow and then remove it.

Note

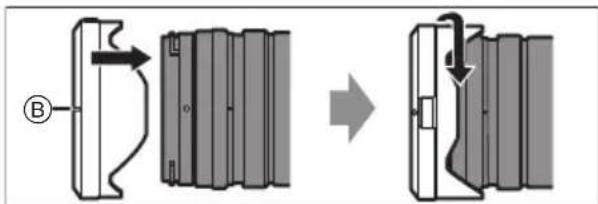

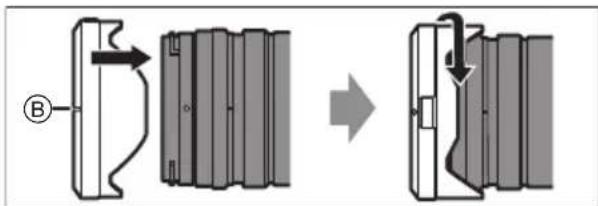

• When carrying, the lens hood can be attached in the reverse direction. 1. Remove the lens hood. 2. Align mark () on the lens hood with the mark on the tip of the lens. 3. Attach the lens hood by rotating it in the direction of the arrow until it clicks.

It is recommended to remove the lens hood during flash photography as the lens hood can block the light from the flash. - To prevent dropping of the lens, you should never carry the lens by just holding the lens hood.

Notes on filter use

It is possible to attach the lens cap or the lens hood with the filter already attached. - There may be some vignetting in recorded images if multiple filters are attached simultaneously. It is not possible to attach any items other than filters such as a conversion lens or adaptor to the front of the lens and use it in combination with this lens. Lens damage may result if such items are attached.

Switching AF/MF

Switch AF/MF by sliding the focus ring forwards or backwards (focus clutch mechanism).

• When the digital camera is set to MF, the operation will be MF irrespective of the position of the focus ring.
• Check the length indication when using MF. Use it as a guide for focusing.

Cautions for Use

• Do not spray the lens with insecticides or volatile chemicals.
• If such substances get onto the lens they can damage the exterior case or cause the paint to peel.
• Do not point the lens at the sun or other strong light sources.
• This may cause the lens to collect an excessive amount of light, resulting in fire and malfunction.
• Do not use while directly touching the lens at low temperatures for a long period of time.
• In cold places (environments below 0°C (32°F), such as ski slopes), prolonged direct contact with the metal parts of the lens may cause skin injury. Use gloves or similar when using the lens for long periods.
• When cleaning, wipe lightly using a soft dry cloth that does not produce dust.
• Do not use solvents such as benzine, thinners, alcohol, kitchen cleansers, etc., as this can cause problems such as deformation of the casing or peeling of the coating.
• Do not use wipes with chemicals.
• Do not keep products made of rubber, PVC or similar materials in contact with the lens for a long period of time.
• Do not disassemble or alter this product.
• When the lens is not going to be used for a prolonged period, we recommend storing it with a desiccant (silica gel).
• Check all the parts before recording when you have not used the lens for a long period of time.
• Avoid using or storing the lens in any of the following locations as this may cause problems in operation or malfunctioning:
• In direct sunlight or on a beach in summer
• In locations with high temperatures and humidity levels or severe changes in temperature and humidity
• In sandy or dusty locations - Where there is fire
• Near heaters, air conditioners or humidifiers
• Where water may make the lens wet - Where there is vibration
• Inside a vehicle

Refer also to the operating instructions for the digital camera.

Troubleshooting

A rattling sound, etc. is heard when the digital camera is turned on or off or the lens is shaken.

There is a sound from the lens when taking pictures.

• This is the sound of the lens moving and aperture operation. It is not a malfunction.

Specifications

The specifications are subject to change for performance enhancement.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA "LEICA DG VARIO-SUMMILUX 10-25 mm/F1.7 ASPH."

Mount

Micro Four Thirds Mount

Focal length

f=10 mm to 25 mm (35 mm film camera equivalent: 20 mm to 50 mm)

Lens construction

17 elements in 12 groups (3 aspherical lenses, 4 ED lenses, 1 UHR lens)

Aperture type

9 diaphragm blades/Circular aperture diaphragm

Maximum aperture

F1.7

Minimum aperture value

F16

Angle of view

94° (Wide) to 47° (Tele)

In focus distance

0.28 m (0.92 feet) to ∞ (from the focus distance reference line)

Maximum image magnification

0.14× (35 mm film camera equivalent: 0.28×)

Optical Image Stabilizer

No

Filter diameter

77 mm

Maximum diameter

Ø87.6 mm (3.4")

Overall length

Approx. 128 mm (5.0") (from the tip of the lens to the base side of the lens mount)

Mass (Weight)

Approx. 690 g (1.52 lb)

Dust and splash resistant

Yes

Recommended operating temperature

-10 °C to 40 °C (14 °F to 104 °F)

Permissible relative humidity

10%RH to 80%RH

Limited Warranty (ONLY FOR U.S.A.)

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or part name Parts Labor
Interchangeable Lens for Digital Camera	1 Year 1 Year
All included Accessories (Except Non-Rechargeable Batteries)	90 Days Not Applicable
Only Non-Rechargeable Batteries	10 Days Not Applicable

During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable

batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold "as is".

Mail-In Service - Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTY EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Corporation of North America

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

As of July 2015

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use for the period stated below from the date of original purchase, and agrees to, at its option, either (a) repair your product with new or refurbished parts, (b) replace it with a new or refurbished product of equivalent value, or (c) refund your purchase price. The decision to repair, replace, or refund will be made by Panasonic Canada Inc.

Interchangeable Lens for Digital Camera

One (1) year, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED.

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries, printer ink cartridges and paper are also excluded from coverage under this warranty. Rechargeable batteries are warranted for ninety (90) days from date of original purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF

ANY EXPRESS OR IMPLIED WARRANTY.

(As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information

assistance, please visit our Support page:

www.panasonic.ca/english/support

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

For CANADA

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in China

Panasonic Warranty

1. Subject to the conditions of this warranty, Panasonic or its Authorised Service Centre will perform necessary service on the product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a manufacturing defect within one (1) year (or 12 months) (the "warranty period") from the date of purchase appearing on your purchase receipt.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, its Authorised Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty cover only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when the warranty service is requested.
3. This warranty only applies if the product has been installed and/or used in accordance with the manufacturer's recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Consumable parts (b) Cosmetic parts

(c) Worn or damaged parts (d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes (e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)

1. Some products may be supplied with Ethernet connection hardware. The warranty is limited to pot covers.

(a) Internet and/or DLNA connection/setup related problems. (b) Access fees and/or charges incurred for Internet connection

(c) Incompatible software or software not specifically stipulated in the product operations manual; and (d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its use on the internet or any other device.

1. To claim warranty service, when required, you should:

Contact Panasonic Customer Care Centre on 132 600 for Service Centre information.

Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt.

Any freight and insurance costs associated with the transport of the product to and/or from your nearest Authorised Service Centre must be arranged and paid for by you.

The warranties hereby conferred do not extend to, and exclude, any costs associated with

installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freight, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia,

however, coverage will vary depending on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES. If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600.

If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187 1 Innovation Road, Macquarie Park NSW 2113

23-01-2018

English

AF/MF switching (MPA/MPM)

Micro Four Thirds mount

Focal length

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in China

Operating Instructions

Parte responsible: Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ

07102-5490

Contact for support: http://shop.panasonic.com/support

THE FOLLOWING APPLIES ONLY IN CANADA.

CANICES-3(B)/NMB-3(B)

(SPA) DVQX1834

-If you see this symbol

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

Printed in China

Micro Four Thirds Mount

Focal length

It bends the light in such a way that it twists or bends.

Align the lens

(On the lens hood, the mark is at the edge of the lens.)

Turn the lens hood

In the direction indicated by the arrow, align the mark ⑥

(On the lens hood, the mark is at the edge of the lens.)

• Attach the lens hood, turning it until it clicks.

Remove the lens hood

While pressing the button on the lens hood, turn the lens hood in the direction indicated by the arrow, and then remove it.

(RUS) DVQX1834

Note

• When carrying the lens hood, it can be attached in the reverse direction. 1 Remove the lens hood. 2 Align the mark ( ) on the lens hood with the mark on the edge of the lens. 3 Attach the lens hood, turning it in the direction indicated by the arrow, until it clicks.

• When shooting with the flash, it is recommended to remove the lens hood, as the lens hood may block the light from the flash.
• To avoid damaging the lens, never carry it by holding only the lens hood.

Using the built-in flash

Together with the installed flash, you can attach the lens cap to the lens. - If you install several flashes at the same time, a slight darkening may appear on the recorded images. In addition to flashes, the front part of the lens

It is impossible to attach any accessories, such as conversion lenses for adapters, to use together with the lens.

Attaching such accessories may lead to damage to the lens.

AF/MF switch

The AF/MF switch is performed by moving the focus ring forward or backward (the focus ring switching mechanism).

If the camera is set to manual focus mode, this mode will work regardless of the position of the focus ring. - When using manual focus, check the distance indicator 8. Use it as a guide for focusing.

Precautions when using the camera

Do not let any chemicals get on the lens. - If such substances get on the lens, they may damage the lens or cause the paint to peel off. Do not point the lens at the sun or other strong light sources. - This may cause excessive light to enter and cause fire or malfunction. If using for a long time at low temperatures, do not touch the lens directly. - In cold places (with temperatures below 0°C, for example, on snowy slopes), direct prolonged contact with the metal parts of the lens may cause damage to the skin. When using the lens for a long time, wear gloves. - To remove dirt, gently wipe the lens with a dry, lint-free cloth. - Do not use cleaners such as benzene, thinner, alcohol, or cleaning agents for lenses, etc., as this may cause deformation of the body or peeling of the coating. - Do not use cleaners with chemicals. Do not allow prolonged contact of the lens with rubber, vinyl, or similar materials. It is forbidden to disassemble or modify

the product.

• If the lens will not be used for a long time, it is recommended to store it with a desiccant (moisture absorber).
• If the lens has not been used for a long time, check all its components before shooting.
• Do not use or store the lens in any of the following places, as this may cause problems in operation or malfunction:

- Under direct sunlight, e.g., on a beach in summer - In places with high temperature and humidity, and with sudden changes in temperature and humidity - In places with a lot of dust or sand - When the flash is triggered - Near heaters, air conditioners, or humidifiers - In places near water where the lens may get wet - Where vibration is present - In a car

See also the instruction manual for the digital camera.

Troubleshooting

When the digital camera is turned on or off, a rattling sound is heard from the lens barrel.

When taking a picture, a sound is heard from the lens barrel.

This sound is caused by the movement of the lens in the working aperture. It does not indicate a malfunction.

Technical Specifications

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site/Site Web: http://www.panasonic.com

© Panasonic Corporation 2019
