MXGR2160 - Croque monsieur clip Mx Onda - Free user manual and instructions

Product type	Croque monsieur machine / press
Brand	Mx Onda
Model	MXGR2160
Dimensions (L x W x H)	230 x 230 x 82 mm
Weight	960 g
Power supply	220-240 V ~ 50/60 Hz
Power consumption	750 W
Cable length	80 cm
Plate material	Non-stick coating
Indicator lights	Power indicator (on) and temperature indicator (heating)
Locking system	Closing clip
Handles	Heat-insulated handles
Preheating	A few minutes until the temperature indicator turns off
Cooking temperature	Thermostatic regulation (indicator turns on and off)
Use	Cooking sandwiches, croque monsieur
Cleaning	Damp cloth, non-abrasive sponge; do not immerse, do not put in dishwasher
Safety	Hot surface (do not touch); do not open the appliance; do not repair yourself
Compliance	European directives (EMC, low voltage, RoHS)
After-sales service	MX ONDA, S.A. - Tel. [phone] - Email [e-mail]

Frequently Asked Questions - MXGR2160 Mx Onda

How to use the croque monsieur machine for the first time?

Place the appliance on a flat, dry surface. Plug it in and let it preheat until the temperature indicator turns off. Unplug, let it cool down, then clean the plates with a damp cloth. Dry thoroughly before first use.

Why does the indicator light turn on and off during use?

This is normal. The temperature indicator shows that the plates have reached the maximum temperature. The thermostat regulates the heat by turning on and off automatically.

Can I use metal utensils on the plates?

No, only use wooden or plastic utensils to avoid scratching the non-stick coating. Metal utensils can damage the plates.

How to clean the machine after use?

Unplug and wait for complete cooling. Wipe off residues with absorbent paper. Clean the plates with a damp sponge and a little mild soap. Never use abrasive pads or harsh cleaners. Never immerse the appliance in water.

What to do if smoke or odor is emitted during first use?

This is normal. It is due to the lubrication of internal components during the first heating. Let the appliance heat empty for a few minutes in a ventilated area. The odor will disappear after a few uses.

Can I repair the appliance myself in case of failure?

No, never attempt to open or repair the appliance yourself. It contains no user-serviceable parts. Contact the authorized MX ONDA technical service.

What voltage is required for this appliance?

The appliance operates on a voltage of 220-240 V ~ 50/60 Hz. Check that your power outlet matches and is properly grounded.

Can I use the appliance near a wall or other objects?

Place the appliance at least 30 cm away from walls, furniture, or any object that could be damaged by heat. Avoid flammable materials like curtains.

How to prevent sandwiches from sticking to the plates?

Lightly butter the plates before each use. You can also use a little vegetable oil. This prevents the bread from sticking and makes cleaning easier.

Is the appliance suitable for children?

This appliance is not a toy. Children under 8 years old must not use it. Older children can use it under adult supervision. Keep the appliance out of reach of children when it is hot.

USER MANUAL MXGR2160 Mx Onda

MANUEL D'INSTRUCTIONS

Mx Onda

MACHINE À SANDWICH ÉLECTRIQUE

MODELE: MX-GR2160

C E

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

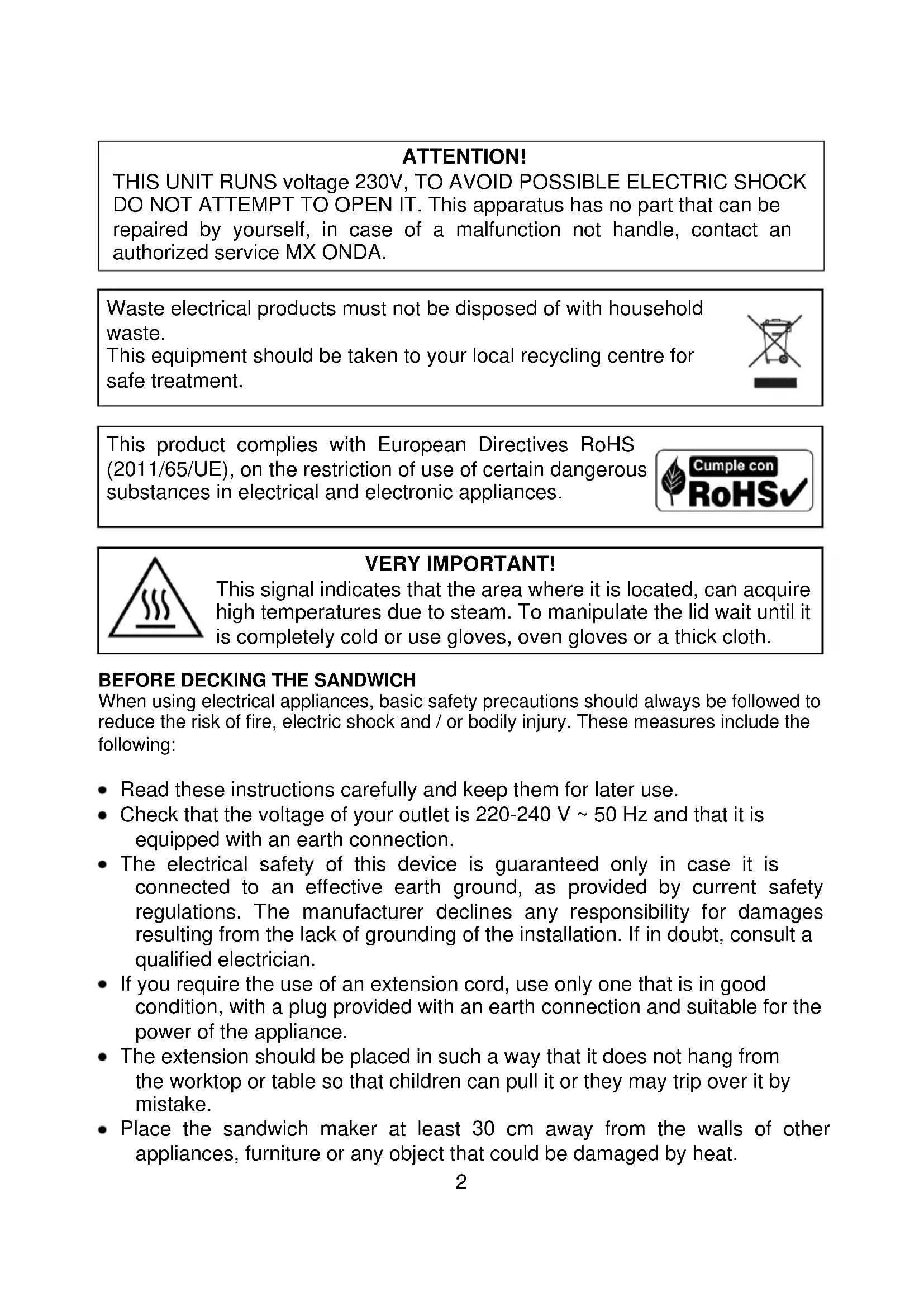

ATTENTION

THIS UNIT RUNS voltage 230V, TO AVOID POSSIBLE ELECTRIC SHOCK DO NOT ATTEMPT TO OPEN IT. This apparatus has no part that can be repaired by yourself, in case of a malfunction not handle, contact an authorized service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

Cumple con

RoHSV

VERY IMPORTANT!

This signal indicates that the area where it is located, can acquire high temperatures due to steam. To manipulate the lid wait until it is completely cold or use gloves, oven gloves or a thick cloth.

BEFORE DECKING THE SANDWICH

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and / or bodily injury. These measures include the following:

• Read these instructions carefully and keep them for later use.
• Check that the voltage of your outlet is 220 - 240V 50Hz and that it is equipped with an earth connection.
• The electrical safety of this device is guaranteed only in case it is connected to an effective earth ground, as provided by current safety regulations. The manufacturer declines any responsibility for damages resulting from the lack of grounding of the installation. If in doubt, consult a qualified electrician.
• If you require the use of an extension cord, use only one that is in good condition, with a plug provided with an earth connection and suitable for the power of the appliance.
• The extension should be placed in such a way that it does not hang from the worktop or table so that children can pull it or they may trip over it by mistake.

• Place the sandwich maker at least 30~cm away from the walls of other appliances, furniture or any object that could be damaged by heat.

• To protect against the risk of electric shock and personal injury, do not put the cord, plug or sandwich maker in water or any other liquid.

• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use it; Contact the technical assistance staff.
• Packaging materials such as plastic bags, polystyrene foam, etc., should not be left within the reach of children, as they are a potential source of danger.
• Before using this appliance for the first time, clean the sandwich maker with a slightly damp cloth, DO NOT use metal scouring pads or abrasive liquid cleaners. Dry all parts carefully.
• The manufacturer declines any responsibility for damages resulting from improper, incorrect or reckless use of the device.

SECURITY MEASURES

• This product is not a toy, children should not play with this device. The cleaning and maintenance to be performed by the user can not be done by children, unless they are over 8 years old and are supervised by an adult.
• This device can not be used by children (under 8 years old) or people with reduced physical, sensory or mental abilities or without experience and knowledge, unless they have received appropriate instructions on the use of the device and are supervised by an adult or responsible person.
• This device is designed only for domestic, non-professional use. MX ONDA will not accept any liability and the guarantee will be invalid in case of improper use or failure to comply with the instructions.
• The sandwich maker incorporates a short length of power cord, to reduce the risk of bodily injury that can occur when entangled in or tripping over long cables.
• Failure to comply with these warnings and safety instructions could result in burns or serious injury.
• This appliance works at high temperatures, so during handling do NOT touch hot surfaces. Hold it by the handles. If necessary, use gloves or oven mitts.
  While the sandwich maker is connected or still hot, do not neglect its vigilance and keep it out of reach of children.
• Always place the sandwich maker on a dry, stable and level surface, do not use it outdoors.
• To disconnect the appliance from the mains, gently pull the plug from the socket. Never do it by pulling the cable.
• Make sure that the cable does not hang over the edge of the table, countertop or counter, or that it touches hot surfaces.

• Unplug the sandwich maker and allow it to cool before moving it or cleaning it.

• When in operation, a fire may occur if the sandwich maker comes into contact or is near flammable material or items such as curtains, net curtains, etc.

• The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or bodily injury.
• Disconnect the sandwich maker, whenever you are not using it or when there is a power failure, or "jump" a fuse or automatic and before proceeding with the maintenance cleaning itself.
• Do not place the sandwich maker on or near gas burners, hot plates, or hot ovens.
• In case of failure, anomalies, if the sandwich maker has fallen, the plug or other parts have deteriorated, or the cable is damaged, do not plug in the appliance and do not try to repair it on your own. Contact the nearest MX ONDA Official Technical Service.

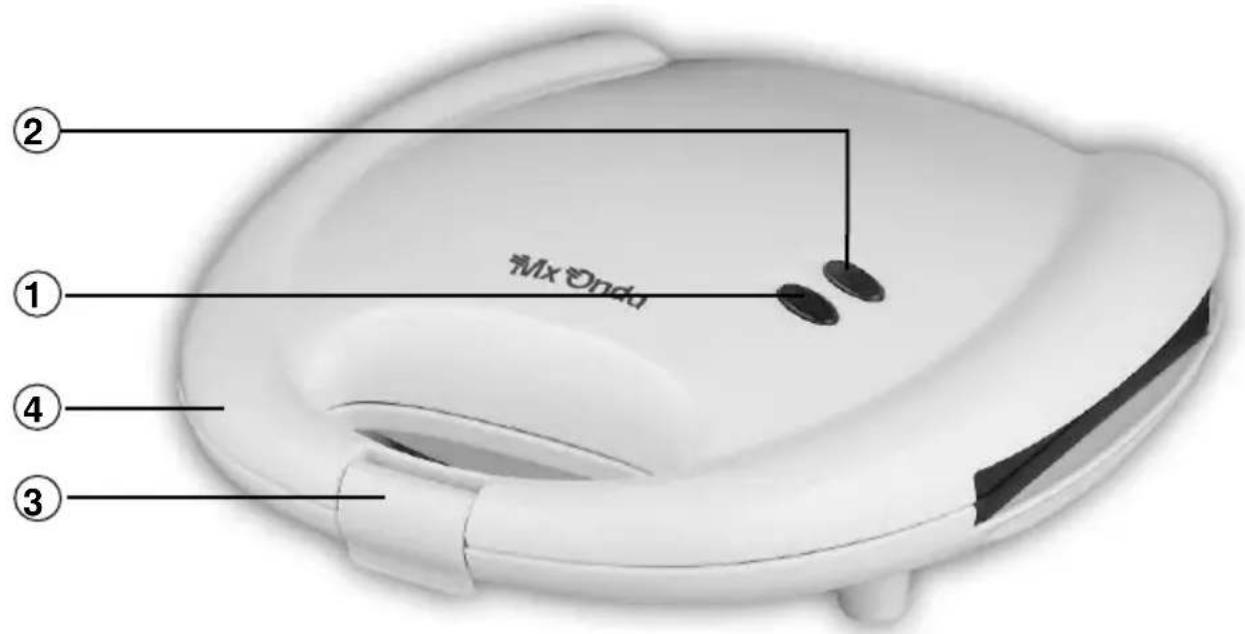

CONTROLS AND ELEMENTS

1. Power indicator
2. Temperature indicator
3. Closing clip
4. Handle

BEFORE USING THE SANDWICH MAKER FOR THE FIRST TIME

• Place the sandwich maker on a firm, dry and level surface.
• Open the top cover and check that there is nothing on the plates, then close the top cover securing it to the bottom cover using the clip 3.
• Plug the plug of the mains cable of the sandwich maker into the mains and the power indicator 1 as well as the temperature indicator 2 will light up, wait a few minutes until the temperature indicator 2 goes out.
• Unplug the sandwich maker and wait for it to cool completely.
• Open the closing clip 3 and lift the top cover.
• Clean all surfaces with a slightly damp cloth, DO NOT use metal scouring pads or abrasive liquid cleaners. Thoroughly dry all surfaces.

Note:

The first few times you use the appliance it is possible that it gives off some smoke or a slight odor, this is caused by the lubrication of the different internal elements. It is normal and does not mean a malfunction.

USE OF THE SANDWICH MAKER

1. Lightly spread the two plates with a little butter or margarine. This will prevent the sandwiches from sticking to the plates.
2. Close the upper cover, fixing it to the lower cover by means of the closing clip 3.
3. Plug the plug of the mains cable of the sandwich maker into the mains, the power indicator 1 as well as the temperature indicator 2 will light up. The appliance will begin to heat up.
4. Allow the unit to preheat for a few minutes, once the maximum temperature has been reached the automatic thermostat will act and the temperature indicator 2 will turn off.

Note:

During use it is normal for the light indicator 2 to turn on and off, this means that the plates have reached the maximum temperature and that the thermostat is controlling the temperature correctly.

1. Open the clip 3 and lift the upper lid of the sandwich maker, holding it by the handle 4. Be careful not to touch the surface of the upper lid of the sandwich maker, as it is hot.
2. Place the sandwiches on the bottom plate. Fully lower the upper cover, grasping it by the handle 4 and joining the two covers with the clip 3.

3. Wait a few minutes until the sandwiches are made to your liking. The cooking time will depend on the type of bread, the filling used, etc.

4. Open the closing clip 3 and lift the top cover. Remove sandwiches using wooden or plastic tongs. Do not use metal tongs or tongs, it could damage the non-stick surface of the plates.

5. If you are going to use the sandwich maker again, repeat the steps described above.
6. After using the unit, disconnect the plug from the socket and close the top cover. Do not move the appliance and allow it to cool completely.
7. Once the sandwich maker is completely cold, proceed as indicated in the "Cleaning the unit" section.

TIPS FOR USE

• Remember that the plates are coated with a non-stick surface and that you should always use wooden or plastic utensils.
  Always preheat the plates before each use.
  Always clean the plates after using the sandwich maker.
• If you never use margarine or butter, spread the plates from time to time with vegetable olive oil, this will prevent sandwiches or food from sticking together and help you to perform the cleaning of the plates more effectively.

CLEANING THE UNIT

1. Unplug the sandwich maker from the mains socket and wait until it is completely cold before cleaning it.
2. Use a paper napkin to remove the remains adhering to the plates, then with a slightly moistened sponge and with a little soap or dish detergent, clean the plates, DO NOT use metal scouring pads or abrasive liquid cleaners.
3. Use a slightly damp cloth to rinse the plates and then dry the plates with a dry cloth.
4. Clean the outside surface with a slightly damp cloth, DO NOT use metal scouring pads or abrasive liquid cleaners, then carefully dry the exterior surface.

Attention: Do not submerge the sandwich maker in water or other liquid, and do not put it in the dishwasher either.

TECHNICAL SPECIFICATIONS

Operating voltage 220 - 240 V ~ 50/60 Hz
Power consumption 750 W
Cable length 80 cm approx.
Dimensions 230 x 230 x 82 mm (l, a, h)
Weight 960 gr

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC - Electromagnetic Compatibility) and the 2006/95/EC (LVD - Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.
Isla de Java, 37
28034 - MADRID (SPAIN)

E-MAIL: [e-mail]
http://www.mxonda.es
