MXPB2441 - Scale Mx Onda - Free user manual and instructions

Product Type	Electronic Bathroom Scale
Brand	Mx Onda
Model	MXPB2441
Dimensions	280 × 280 × 22 mm
Device Weight	1.17 kg
Power Supply	2 AAA 1.5 V batteries
Display Type	6-digit LCD
Maximum Capacity	180 kg (396 lb)
Resolution	50 g (0.11 lb)
Measurement Unit	Kilograms (kg) or Pounds (lb)
Temperature Range	-10 °C to 50 °C
Thermometer Resolution	±1 °C
Material	High-strength tempered glass
Sensors	4 high-precision sensors
Functions	Weight measurement, ambient thermometer, unit selection
Auto-on	Yes, by stepping on the scale
Auto-off	Yes, after a few seconds
Overload indicator	Displays 'IEEE'
Low battery indicator	Displays blank digits
Safety	Do not use with wet feet; place on a stable, horizontal surface
Cleaning	Soft cloth dampened with water or mild detergent; do not use abrasive products
Storage	Cool, dry place, away from moisture and extreme temperatures
Repairability	Do not disassemble; contact Mx Onda technical service
Spare parts	Batteries (not included)
Compliance	Compliant with European directives 2004/108/EC and 2006/95/EC

Frequently Asked Questions - MXPB2441 Mx Onda

How to replace the batteries of the MXPB2441 scale?

Remove the battery compartment cover located at the bottom of the scale. Insert two AAA 1.5 V batteries respecting the indicated polarity. Replace the cover.

How to change the weight unit from kg to lb?

With the scale turned on, press the weight unit selection button located at the bottom of the scale. Each press toggles between Kg and Lb.

What does the 'IEEE' display on the scale mean?

The 'IEEE' display indicates an overload. The maximum capacity of the scale is 180 kg (396 lb). Remove the excess weight.

Why does the scale not turn on?

Check that the batteries are correctly installed and not worn out. If the screen displays blank digits, replace the batteries. Also ensure the scale is on a flat surface.

How to clean the glass scale?

Clean the scale with a soft cloth dampened with water or mild detergent. Do not use abrasive chemicals. Avoid water entering the inside.

Does the scale display the ambient temperature?

Yes, after displaying your weight, the screen shows the room's ambient temperature. The measurement range is -10 °C to 50 °C with a resolution of ±1 °C.

What is the maximum capacity of the scale?

The maximum capacity is 180 kg (396 lb). Beyond that, the screen displays 'IEEE' to indicate overload.

Where to place the scale for accurate measurements?

Place the scale on a solid, stable, and horizontal floor. Avoid soft surfaces like carpets. For an accurate thermometer measurement, wait a few minutes after moving the scale from one room to another.

Is it possible to repair the scale if it falls?

Do not attempt to disassemble or repair the scale yourself. Contact Mx Onda technical service or the nearest distributor for assistance.

How to recycle the scale at the end of its life?

Do not dispose of the scale with household waste. Drop it off at an appropriate collection point for recycling of electrical waste. Remove the batteries and recycle them separately.

USER MANUAL MXPB2441 Mx Onda

MANUEL D'INSTRUCTIONS

Mx Onda

BALANCE ÉLECTRONIQUE DE SALLE DE BAINS

MODELE: MX-PB2441

C E

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. Before disposing of the product remove the batteries from it.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

Cumple con RoHS

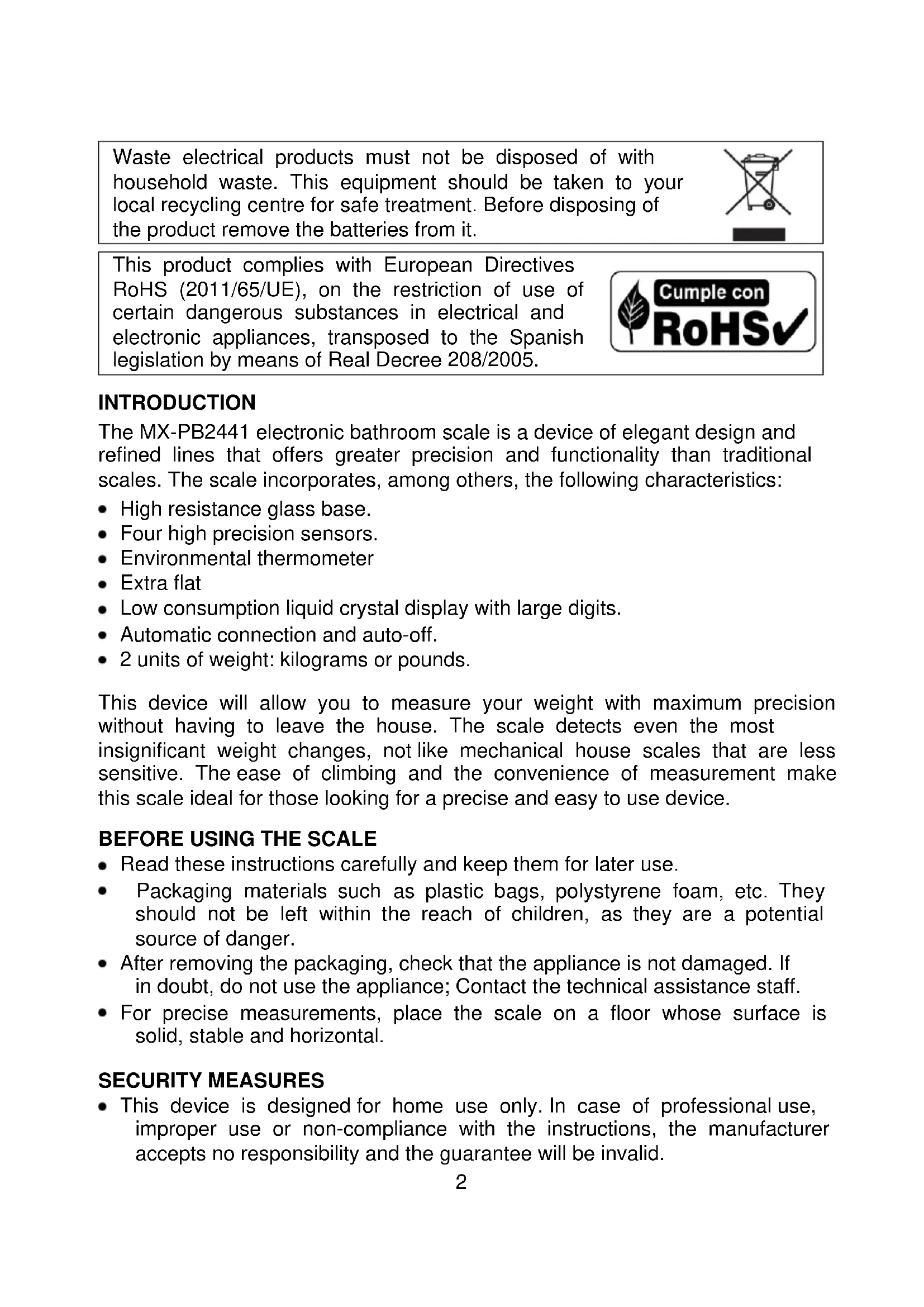

INTRODUCTION

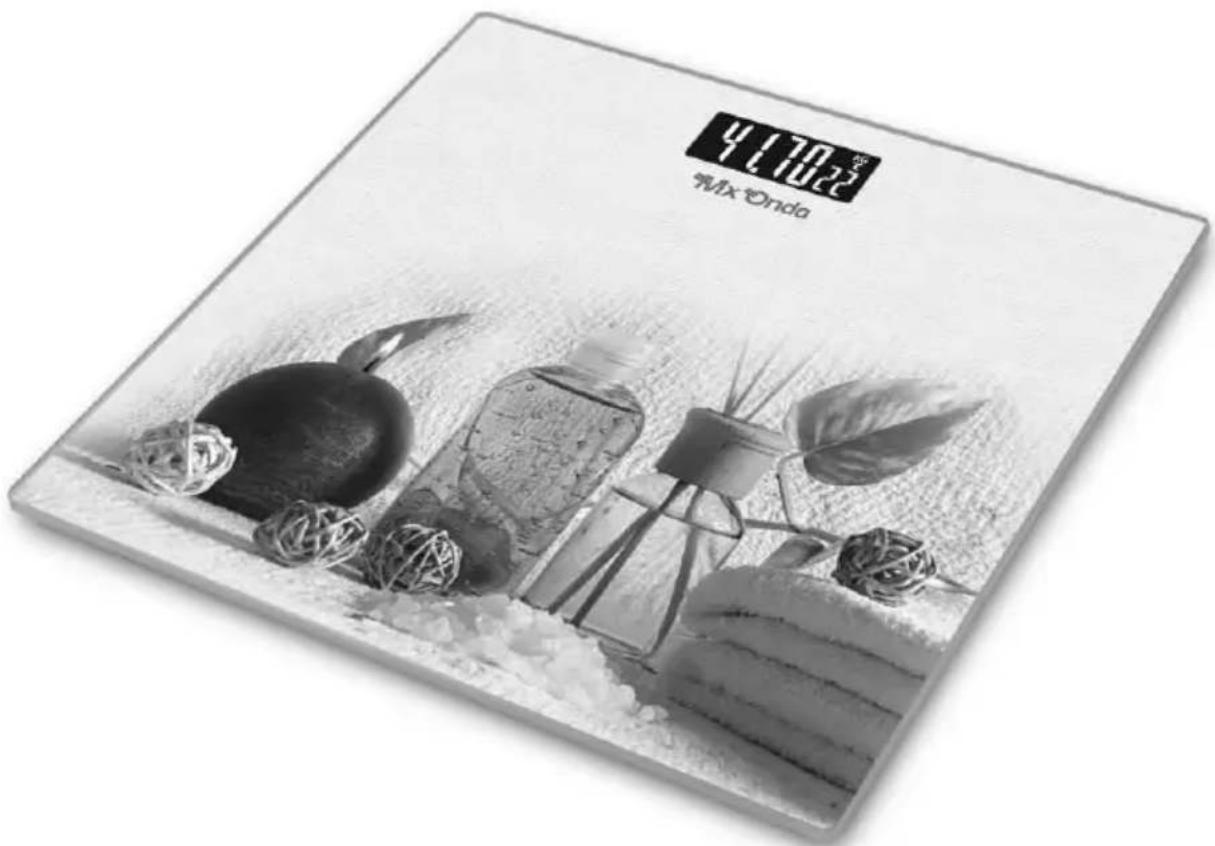

The MX-PB2441 electronic bathroom scale is a device of elegant design and refined lines that offers greater precision and functionality than traditional scales. The scale incorporates, among others, the following characteristics:

High resistance glass base.
- Four high precision sensors.
- Environmental thermometer
- Extra flat
- Low consumption liquid crystal display with large digits.
Automatic connection and auto-off.
- 2 units of weight: kilograms or pounds.

This device will allow you to measure your weight with maximum precision without having to leave the house. The scale detects even the most insignificant weight changes, not like mechanical house scales that are less sensitive. The ease of climbing and the convenience of measurement make this scale ideal for those looking for a precise and easy to use device.

BEFORE USING THE SCALE

• Read these instructions carefully and keep them for later use.
• Packaging materials such as plastic bags, polystyrene foam, etc. They should not be left within the reach of children, as they are a potential source of danger.
• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use the appliance; Contact the technical assistance staff.
• For precise measurements, place the scale on a floor whose surface is solid, stable and horizontal.

SECURITY MEASURES

• This device is designed for home use only. In case of professional use, improper use or non-compliance with the instructions, the manufacturer accepts no responsibility and the guarantee will be invalid.

• To reduce the risk of accidents (slippage or possible falls), DO NOT use the scale with wet feet or if there is water on the glass base, do not stand too close to the edges.

• If the appliance has been dropped or if it does not work properly, refrain from using it and do not attempt to disassemble or repair it. Contact your nearest MX ONDA Technical Service Center or distributor.

PREPARATION

• This device uses two batteries of 1.5V type AAA, for the placement or replacement of the same follow the following steps:

• Remove the battery compartment lidlocated at the base of the scale.

• Insert two 1.5 V AAA batteries, respecting the indicated polarity.

• Replace the battery compartment lid.

• With the scale on, press the selector button of the weight unit located at the base of the scale, each time you press this button you will change the unit of weight Kg (kilograms) or Lb (pounds).

• To avoid errors in the measurement of the ambient temperature, when you move the scale from one room to another, you must wait a while for the thermometer of the scale to measure the temperature of the new room.

HOW TO USE

• Gently climb the scale (for maximum precision, do not move until the screen shows a stable reading), the scale will automatically turn on and start reading the weight.
• After reading the weight, the screen will show the ambient temperature of the room where the scale is located.
• The scale will turn off automatically after a few seconds, thus prolonging the life of the batteries.
• When the weight limit of the scale is exceeded, the display will show the "IEEE" overload indication.

CLEANING AND MAINTENANCE

• When the thermometer shows the digits " EL " it will indicate that the temperature of the room is below -10^ and if it shows the digits " EH " it will indicate that the temperature of the room is above 50^ .
• When the display shows the digits " L_0 " when the scale is turned on, it will indicate that the batteries are exhausted and need to be replaced.

• Do not try to disassemble the batteries, do not short and never heat them or throw them into the fire. Do not mix new batteries with used batteries.

• If you do not intend to use the appliance for a long period of time, remove the batteries and store them in a cool place.

• Batteries contain pollutants from the environment, so, once the life of them is exhausted, DO NOT throw them away, put them in the right place for later recycling.
• Clean the scale with a soft cloth moistened with water or a mild detergent. DO NOT use abrasive chemicals to clean it.
• Avoid exposing the device to extreme temperature and humidity, direct sunlight, water or dust.

TECHNICAL SPECIFICATIONS

Power supply 2 batteries OF 1.5 V type AAA LCD screen 6-digit Maximum weight 180 kg / 396 lb Resolution 50 gr./0,11 lb Temperature range -10 °C ~ 50 °C Resolution ± 1 °C Dimensions 280 x 280 x 22 mm Weight 1.17 kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC - Electromagnetic Compatibility).

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Telephone Information and Service: [phone]

Manual de instrucciones Instruction manual Manual de instruções Benutzerhandbuch Manuel utilisateur Manuale di istruzioni

E-MAIL: [e-mail] http://www.mxonda.es
