Product Type	Electronic bathroom scale
Brand	Mx Onda
Model	MXPB2440
Dimensions	300 x 300 x 22 mm
Weight	1.8 kg
Power supply	2 x 3 V CR2032 batteries
Display	6-digit LCD, large digits
Maximum capacity	150 kg / 330 lb
Resolution	50 g / 0.11 lb
Temperature range	-10 °C to 50 °C
Temperature resolution	±1 °C
Surface material	Stainless steel
Sensors	Four high-precision sensors
Main functions	Environmental thermometer, unit selection kg/lb, automatic on/off, overload and low battery indicator
Care and cleaning	Clean with a soft cloth dampened with water or mild detergent. Do not use abrasive products.
Safety	Do not use with wet feet. Do not disassemble or repair yourself. Remove batteries before prolonged storage.
Recycling	Do not dispose of with household waste. Deposit at an appropriate collection point for WEEE recycling. Remove batteries before disposal.
Compliance	RoHS, directives 2004/108/EC (EMC) and 2006/95/EC (LVD)

Frequently Asked Questions - MXPB2440 Mx Onda

How to replace the batteries of the MXPB2440 scale?

Open the battery compartment cover on the bottom of the scale. Use a pointed object to slide the used battery out of the contact. Insert a new CR2032 battery with the positive terminal (+) facing up, then press lightly until it is retained. Close the cover.

How to change the weight unit between kg and lb?

Once the scale is on, press the unit selection button on the base. Each press alternates between kg (kilograms) and lb (pounds).

What does the 'EEEE' display on the scale mean?

The EEEE display indicates overload: the measured weight exceeds the maximum capacity of 150 kg (330 lb). Remove excess weight to avoid damaging the scale.

Why does the scale display 'L_0' at startup?

The L_0 indication means the batteries are depleted and need to be replaced. Follow the battery replacement procedure (type CR2032).

Does the scale display the ambient temperature?

Yes, after weight measurement, the screen automatically displays the ambient temperature of the room. The measurement range is -10 °C to 50 °C with a resolution of ±1 °C.

How to clean the MXPB2440 scale?

Clean the scale with a soft cloth dampened with water or a mild detergent. Do not use abrasive or chemical products that could damage the surface.

What to do if the scale does not turn on?

Check that the battery protective film has been removed at first use. If the problem persists, replace the batteries with new ones. Ensure the batteries are installed correctly (positive terminal facing up).

Can the scale be used on a carpet?

For accurate measurements, place the scale on a solid, stable, and horizontal surface. A thick carpet may distort measurements. Preferably use a hard floor.

How to know if the scale complies with standards?

This product complies with European directives RoHS, EMC (2004/108/EC), and LVD (2006/95/EC). It respects the limits of hazardous substances and the requirements for electromagnetic compatibility and low voltage safety.

What to do in case of malfunction?

Do not attempt to disassemble or repair the scale yourself. Contact MX ONDA technical service at [phone] or by email at [e-mail].

USER MANUAL MXPB2440 Mx Onda

Silver digital twin-chamber digital scale with a digital display showing 4.7022 (no text or symbols on the device itself)

C E

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

Figura 1

MANUAL DE INSTRUÇÕES

Mx Onda

BALANÇA ELETRÔNICA DE BANHEIRO

MODELO: MX-PB2440

Exterior view of a modern office building (no signage)

C E

ANTES DE USAR LEIA ATENTAMENTE ESTE MANUAL

Figura 1

MANUEL D'INSTRUCTIONS

Mx Onda

BALANCE ÉLECTRONIQUE DE SALLE DE BAINS

MODÉLE: MX-PB2440

Silver digital twin-chamber digital scale with a digital display showing 4.7022 (no text or symbols on the device itself)

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

Diagram of two identical mechanical components with plus signs and a tool, labeled Figure 2 (no text or symbols on the components themselves)

Figure 1

Figura 1

Exterior view of a modern office building (no signage)

C E

A VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIE

Diagram of two identical circular components with plus signs, one with a tool inserted (no text or symbols)

Abb. 2

Silver digital twin-chamber digital scale with a digital display showing 4.7022 (no text or symbols on the device itself)

C E

BEFORE USE CAREFULLY READ THIS MANUAL

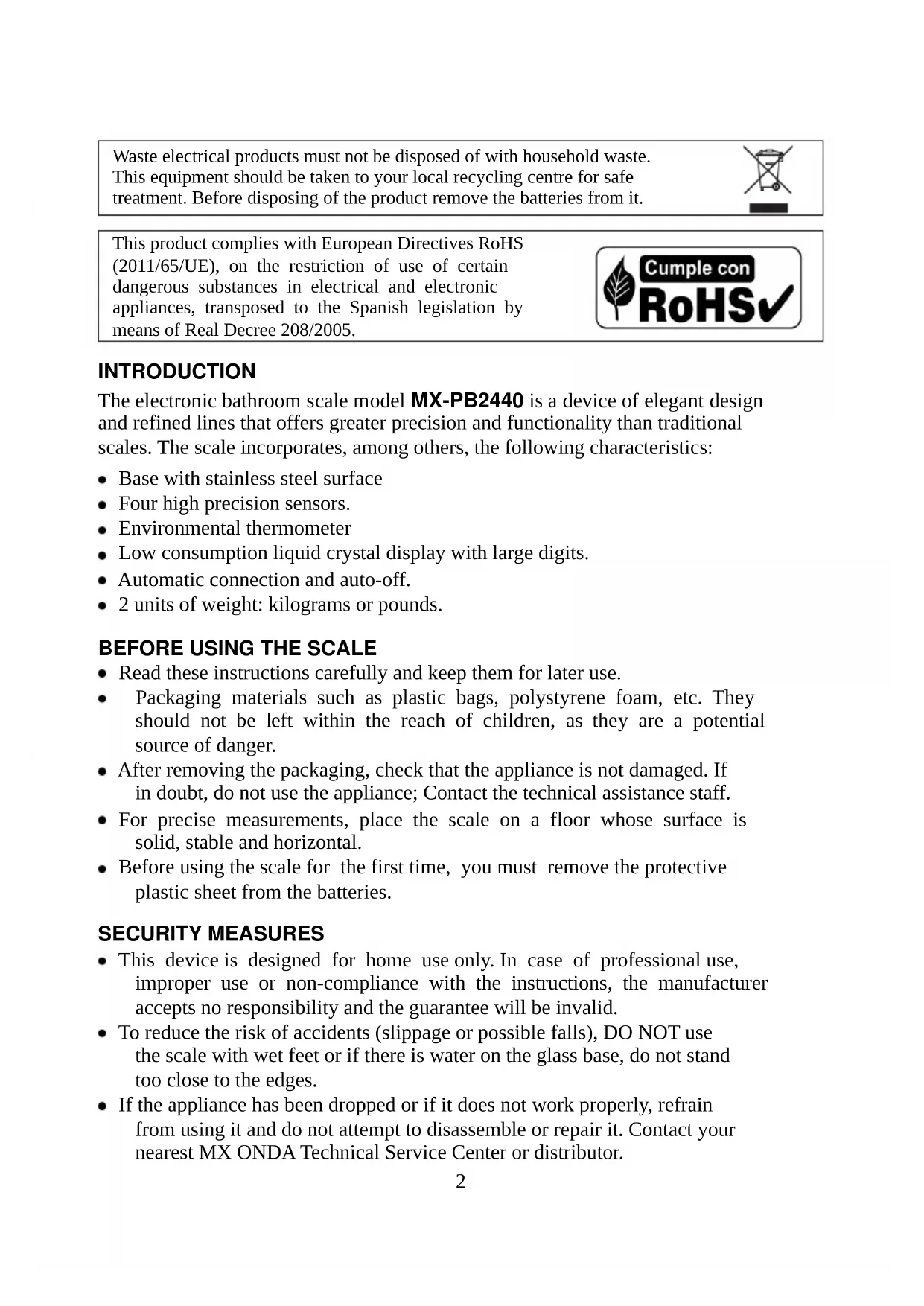

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. Before disposing of the product remove the batteries from it.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

INTRODUCTION

The electronic bathroom scale model MX-PB2440 is a device of elegant design and refined lines that offers greater precision and functionality than traditional scales. The scale incorporates, among others, the following characteristics:

• Base with stainless steel surface
• Four high precision sensors.
  • Environmental thermometer
• Low consumption liquid crystal display with large digits.
  • Automatic connection and auto-off.
• 2 units of weight: kilograms or pounds.

BEFORE USING THE SCALE

• Read these instructions carefully and keep them for later use.
• Packaging materials such as plastic bags, polystyrene foam, etc. They should not be left within the reach of children, as they are a potential source of danger.
• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use the appliance; Contact the technical assistance staff.
• For precise measurements, place the scale on a floor whose surface is solid, stable and horizontal.
• Before using the scale for the first time, you must remove the protective plastic sheet from the batteries.

SECURITY MEASURES

• This device is designed for home use only. In case of professional use, improper use or non-compliance with the instructions, the manufacturer accepts no responsibility and the guarantee will be invalid.
• To reduce the risk of accidents (slippage or possible falls), DO NOT use the scale with wet feet or if there is water on the glass base, do not stand too close to the edges.
• If the appliance has been dropped or if it does not work properly, refrain from using it and do not attempt to disassemble or repair it. Contact your nearest MX ONDA Technical Service Center or distributor.

PREPARATION

- To insert or replace the batteries, follow the steps below:

• Open the lid of the battery compartment located in the base.
• To remove the batteries, use a pointed object to slide the battery towards the electrical contact (see figure 1), then pull it outwards. To place the batteries (type CR2032) with the positive (+) terminal facing up, insert the battery towards the electrical contact (see figure 2), then lightly press the battery until it is retained by the plastic tabs.
• Replace the battery compartment cover.

Fig. 1

Diagram showing two identical circular components with plus signs, one being pointed at by a tool (no text or symbols present)

• With the scale on, press the selector button of the weight unit located at the base of the scale, each time you press this button you will change the unit of weight Kg (kilograms) or Lb (pounds).
• To avoid errors in the measurement of the ambient temperature, when you move the scale from one room to another, you must wait a while for the thermometer of the scale to measure the temperature of the new room.

HOW TO USE

• Gently climb the scale (for maximum precision, do not move until the screen shows a stable reading), the scale will automatically turn on and start reading the weight.
• After reading the weight, the screen will show the ambient temperature of the room where the scale is located.
• The scale will turn off automatically after a few seconds, thus prolonging the life of the batteries.
• When the weight limit of the scale is exceeded, the display will show the "EEEE" overload indication.

CLEANING AND MAINTENANCE

• When the thermometer shows the digits "EL" it will indicate that the temperature of the room is below -10 °C and if it shows the digits "EH" it will indicate that the temperature of the room is above 50 °C.
• When the display shows the digits " L_0 " when the scale is turned on, it will indicate that the batteries are exhausted and need to be replaced.

• Do not try to disassemble the batteries, do not short and never heat them or throw them into the fire. Do not mix new batteries with used batteries.

• If you do not intend to use the appliance for a long period of time, remove the batteries and store them in a cool place.

• Batteries contain pollutants from the environment, so, once the life of them is exhausted, DO NOT throw them away, put them in the right place for later recycling.
• Clean the scale with a soft cloth moistened with water or a mild detergent. DO NOT use abrasive chemicals to clean it.
• Avoid exposing the device to extreme temperature and humidity, direct sunlight, water or dust.

TECHNICAL SPECIFICATIONS

Power supply 2 batteries of 3 V type CR2032

LCD screen 6-digit

Maximum weight 150 kg / 330 lb

Resolution 50 gr./0,11 lb

Temperature range -10 °C \~ 50 °C

Resolution ± 1 °C

Dimensions and weight 300 x 300 x 22 mm / 1.8 kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC – Electromagnetic Compatibility).

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Telephone Information and Service: [phone]

Icon of a person reading a book inside a circle (no text or symbols)

Manual de instrucciones Instruction manual

E-MAIL: [e-mail] http://www.mxonda.es
