MXPB2362 - Scale Mx Onda - Free user manual and instructions

Product Type	Electronic Bathroom Scale
Brand	Mx Onda
Model	MXPB2362
Dimensions (L x W x H)	280 x 280 x 22 mm
Net Weight	1.17 kg
Power Supply	2 AAA 1.5 V batteries
Maximum Capacity	180 kg / 396 lb
Resolution	50 g / 0.11 lb
Display	6-digit LCD display, large digits
Measurement Units	Kilograms (kg) or Pounds (lb)
Built-in Thermometer	Yes, range -10°C to 50°C, accuracy ±1°C
Sensors	4 high-precision sensors
Platform Material	High-strength glass
Automatic Functions	Step-on activation, auto-off
Overload Indicator	Displays "EEEE"
Low Battery Indicator	Displays "L_0"
Cleaning	Soft cloth moistened with water or mild detergent
Safety	Do not use with wet feet or on slippery floor
Repair	Refer to a qualified professional
Compliance	RoHS, EMC (2004/108/EC), LVD (2006/95/EC)
Manufacturer	MX ONDA, S.A., Cabanillas del Campo, Spain

Frequently Asked Questions - MXPB2362 Mx Onda

How to install batteries in the MXPB2362 scale?

Remove the battery compartment cover located under the scale. Insert two AAA 1.5 V batteries, respecting the indicated polarity. Replace the cover.

How to change the weight unit between kg and lb?

Once the scale is on, press the unit selection button located under the device. Each press toggles between kg (kilograms) and lb (pounds).

What does the display 'EEEE' mean on the scale?

The 'EEEE' indication means the maximum capacity of 180 kg has been exceeded. Step off immediately to avoid damaging the scale.

What does 'L_0' mean on the screen?

The 'L_0' display indicates the batteries are depleted. Replace both batteries with new ones, respecting polarity.

How to clean the glass scale?

Use a soft cloth slightly moistened with water or mild detergent. Never use abrasive or chemical products that could scratch or damage the surface.

Can I use the scale on a carpet or rug?

For accurate measurements, always place the scale on a hard, flat, and level surface (tile, wood). Soft surfaces distort the results.

What to do if the scale does not turn on?

Check that the batteries are correctly installed and not depleted. If the problem persists, contact MX ONDA technical support. Do not attempt to disassemble it.

Is the MXPB2362 scale accurate?

Yes, thanks to its 4 high-precision sensors, it detects weight variations of 50 g. Step on gently and remain still until the measurement stabilizes.

How to interpret the displayed temperature?

After weighing, the display shows the ambient temperature. If it is below -10°C, the display shows 'EL'; if above 50°C, it shows 'EH'. Wait for the scale to adapt to the new room.

What to do in case of malfunction or drop?

Stop using the scale and contact the MX ONDA technical service center or distributor. Do not attempt to repair it yourself, as this would void the warranty.

USER MANUAL MXPB2362 Mx Onda

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

MANUAL DE INSTRUÇÕES

Mx Onda

BALANÇA ELETRÔNICA DE BANHEIRO

MODELO: MX-PB2362

CE

ANTES DE USAR LEIA ATENTAMENTE ESTE MANUAL

MANUEL D'INSTRUCTIONS

Mx Onda

BALANCE ÉLECTRONIQUE DE SALLE DE BAINS

MODÉLE: MX-PB2362

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

CE

A VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIE

CE

BEFORE USE CAREFULLY READ THIS MANUAL

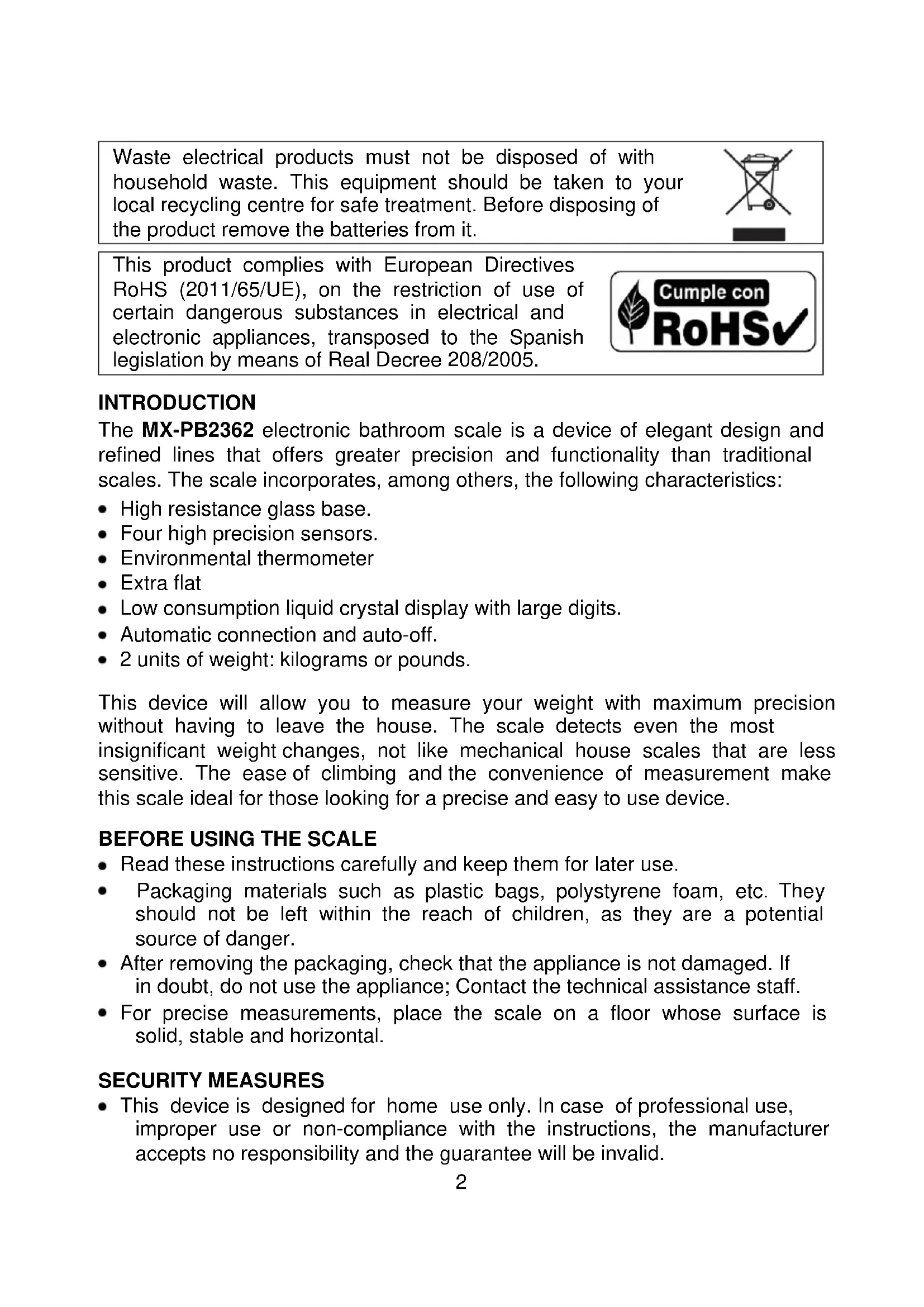

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. Before disposing of the product remove the batteries from it.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

Cumple con

RoHS√

INTRODUCTION

The MX-PB2362 electronic bathroom scale is a device of elegant design and refined lines that offers greater precision and functionality than traditional scales. The scale incorporates, among others, the following characteristics:

• High resistance glass base.
- Four high precision sensors.
• Environmental thermometer
- Extra flat
- Low consumption liquid crystal display with large digits.
• Automatic connection and auto-off.
- 2 units of weight: kilograms or pounds.

This device will allow you to measure your weight with maximum precision without having to leave the house. The scale detects even the most insignificant weight changes, not like mechanical house scales that are less sensitive. The ease of climbing and the convenience of measurement make this scale ideal for those looking for a precise and easy to use device.

BEFORE USING THE SCALE

• Read these instructions carefully and keep them for later use.
• Packaging materials such as plastic bags, polystyrene foam, etc. They should not be left within the reach of children, as they are a potential source of danger.
• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use the appliance; Contact the technical assistance staff.
• For precise measurements, place the scale on a floor whose surface is solid, stable and horizontal.

SECURITY MEASURES

- This device is designed for home use only. In case of professional use, improper use or non-compliance with the instructions, the manufacturer accepts no responsibility and the guarantee will be invalid.

• To reduce the risk of accidents (slippage or possible falls), DO NOT use the scale with wet feet or if there is water on the glass base, do not stand too close to the edges.
• If the appliance has been dropped or if it does not work properly, refrain from using it and do not attempt to disassemble or repair it. Contact your nearest MX ONDA Technical Service Center or distributor.

PREPARATION

- This device uses two batteries of 1.5 V type AAA, for the placement or replacement of the same follow the following steps:

1. Remove the battery compartment lidlocated at the base of the scale.
2. Insert two 1.5 V AAA batteries, respecting the indicated polarity.

3. Replace the battery compartment lid.

4. With the scale on, press the selector button of the weight unit located at the base of the scale, each time you press this button you will change the unit of weight Kg (kilograms) or Lb (pounds).

5. To avoid errors in the measurement of the ambient temperature, when you move the scale from one room to another, you must wait a while for the thermometer of the scale to measure the temperature of the new room.

HOW TO USE

• Gently climb the scale (for maximum precision, do not move until the screen shows a stable reading), the scale will automatically turn on and start reading the weight.
• After reading the weight, the screen will show the ambient temperature of the room where the scale is located.
• The scale will turn off automatically after a few seconds, thus prolonging the life of the batteries.
• When the weight limit of the scale is exceeded, the display will show the "EEEE" overload indication.

CLEANING AND MAINTENANCE

• When the thermometer shows the digits "EL" it will indicate that the temperature of the room is below -10 °C and if it shows the digits "EH" it will indicate that the temperature of the room is above 50 °C.
• When the display shows the digits " L₀ " when the scale is turned on, it will indicate that the batteries are exhausted and need to be replaced.

• Do not try to disassemble the batteries, do not short and never heat them or throw them into the fire. Do not mix new batteries with used batteries.

• If you do not intend to use the appliance for a long period of time, remove the batteries and store them in a cool place.

• Batteries contain pollutants from the environment, so, once the life of them is exhausted, DO NOT throw them away, put them in the right place for later recycling.
• Clean the scale with a soft cloth moistened with water or a mild detergent. DO NOT use abrasive chemicals to clean it.
• Avoid exposing the device to extreme temperature and humidity, direct sunlight, water or dust.

TECHNICAL SPECIFICATIONS

Power supply	2 batteries of 1.5 V type AAA
LCD screen	6-digit
Maximum weight	180 kg / 396 lb
Resolution	50 gr./0,11 lb
Temperature range	-10 °C ~ 50 °C
Resolution	± 1 °C
Dimensions	280 x 280 x 22 mm
Weight	1.17 kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC – Electromagnetic Compatibility).

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

C / Matabueyes, 7 nave 1A

19171 - Cabanillas del Campo (Guadalajara - Spain)

Telephone Information and Service: [phone]

Manual de instrucciones Instruction manual Manual de instruções Benutzerhandbuch Manuel utilisateur Manuale di istruzioni

E-MAIL: [e-mail] http://www.mxonda.es
