GBB71NSDZN - Fridge LG - Free user manual and instructions

Type of refrigerator	Combined refrigerator
Total capacity	340 liters
Cooling system	Ventilated cooling
Energy class	A++
Noise level	39 dB
Dimensions (HxWxD)	2010 x 595 x 650 mm
Weight	75 kg
Additional features	Water dispenser, LED lighting, vegetable drawer
Maintenance	Automatic defrost
Safety	Door locking system
Warranty	2 years

Frequently Asked Questions - GBB71NSDZN LG

The refrigerator is not cooling properly, what should I do?

Check that the temperature is set correctly. Make sure the vents are not blocked and the doors close properly. If the problem persists, unplug the appliance for a few minutes and then plug it back in.

There is condensation inside the refrigerator, why?

Condensation may be due to a door not closing properly or hot food placed inside. Make sure the doors close tightly and let food cool before storing it.

The refrigerator is making unusual noise, what should I do?

A slight noise is normal, but if the noise is loud or unusual, check if the appliance is level. Listen if the noise comes from the compressor or the fan, and contact after-sales service if necessary.

How do I clean the inside of the refrigerator?

To clean the inside, remove all food and shelves. Use a mixture of warm water and baking soda to clean the surfaces. Avoid abrasive products that could damage the surfaces.

How do I set the temperature of my refrigerator?

To set the temperature, use the control panel inside the refrigerator. Consult the user manual for recommended settings for different storage zones.

The lights inside the refrigerator do not turn on, what should I do?

Check if the bulb is burnt out and replace it if necessary. Also make sure the door closes properly, as some models do not turn on the lights if the door is open too long.

The refrigerator emits an unpleasant odor, how do I neutralize it?

Clean all interior surfaces and check for expired food. You can also place an open box of baking soda inside to absorb odors.

Is there a vacation mode on this refrigerator?

Yes, this model may have a vacation mode. Consult the user manual to learn how to activate this function, which saves energy when you are away for a long period.

USER MANUAL GBB71NSDZN LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

EN ENGLISH ES ESPANOL IT ITALIANO PL POLSKI SR SRPSKI

BG 5bJIAPCKN ET EESTI LT LIETUVIU PT PORTUGUES SV SVENSKA

CZ CESTINA FI SUOMI LV LATVIESU RO ROMAN

DA DANSK FR FRANCAIS MK MAKEJOHCKI SK SLOVENCINA

DE DEUTSCH HR HRVATSKI NL NEDERLANDS SL SLOVENSCINA

EL EAHNIKA HU MAGYAR NO NORSK SQ SHQIP

MFL70584303

Rev.06_201210

www/lg.com

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETYINSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS 3

Disposal of Your Old Appliance 10

INSTALLATION 11

Dimensions and Clearances 11

Ambient Temperature 11

Accessories 12

Reversing Doors 12

Leveling the Appliance 12

Connecting the Appliance 12

Moving the Appliance 12

OPERATION 13

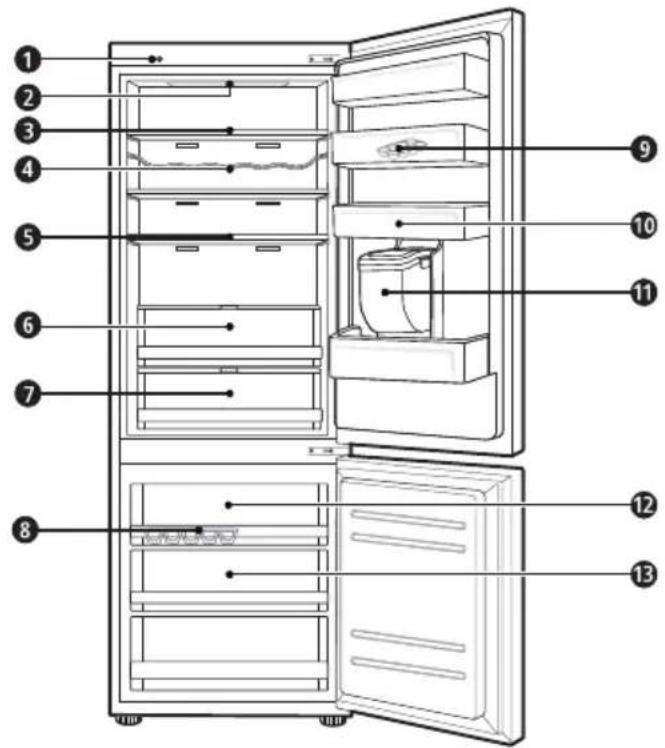

Parts and Functions 13

Notes for Operation 15

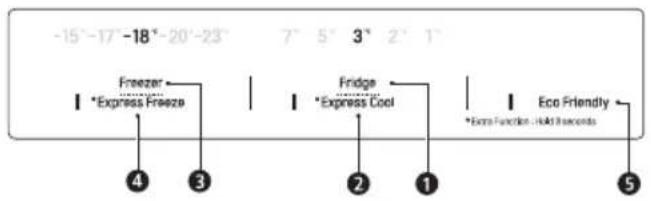

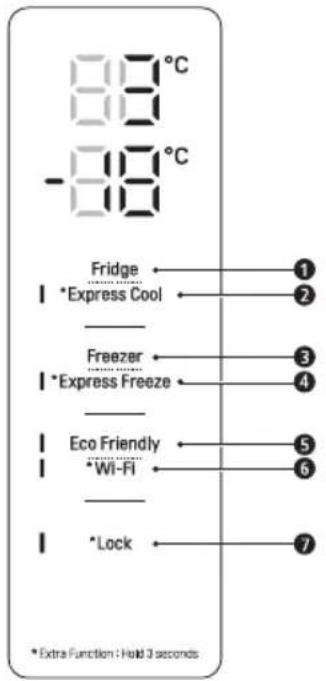

Control Panel 17

Water Dispenser (^*) 19

Water Dispenser Tank 19

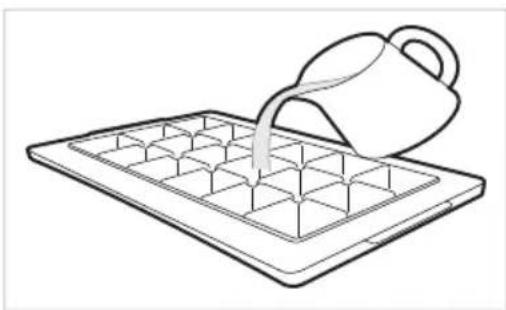

Ice Tray 20

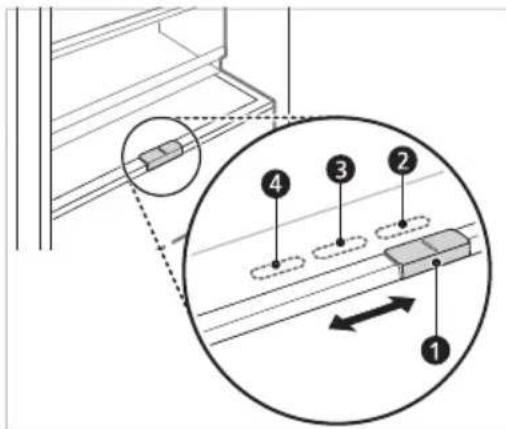

Fresh Converter (^*) 20

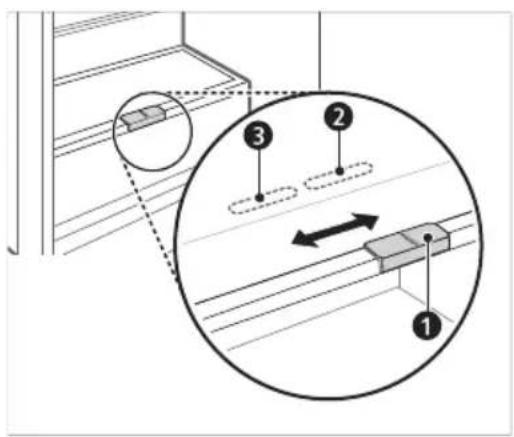

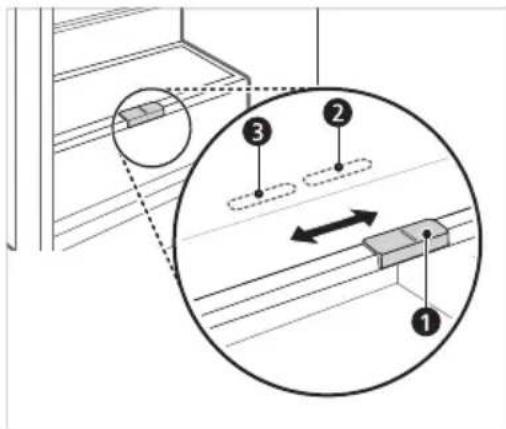

Fresh Vegetable Printer (^*) 21

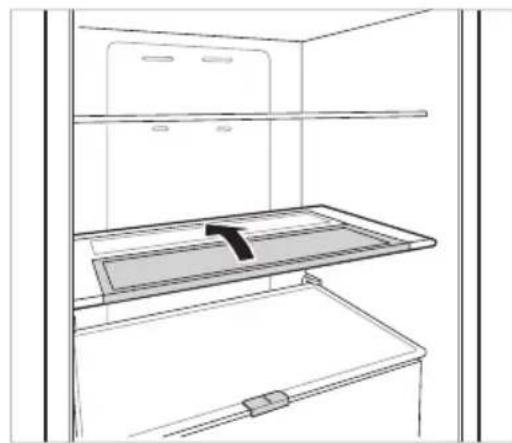

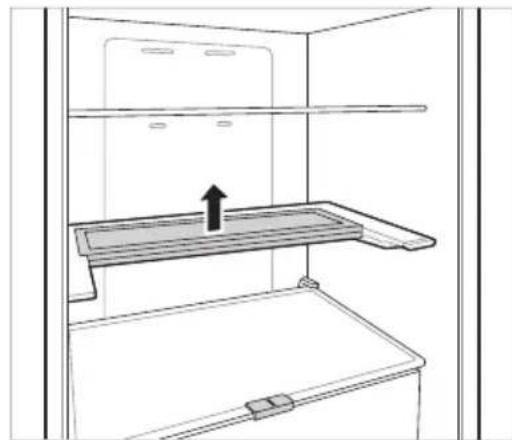

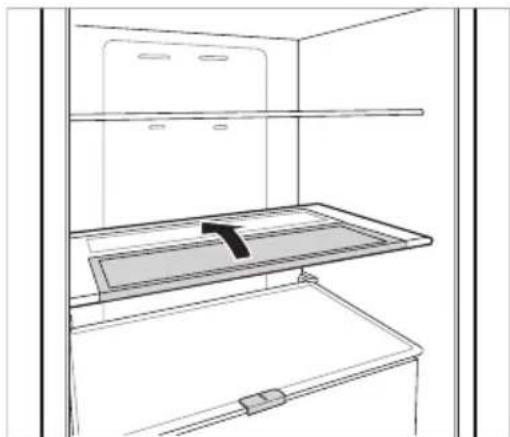

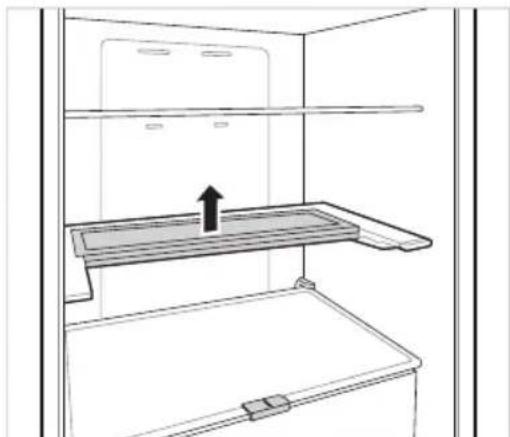

Folding Shelf 21

Other Functions 22

SMART FUNCTIONS 23

LG ThinQ Application 23

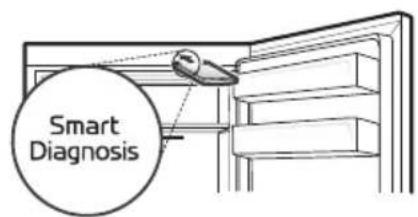

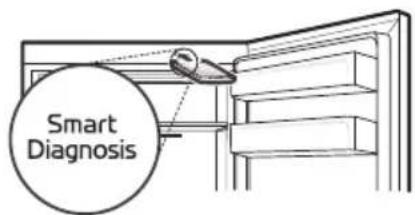

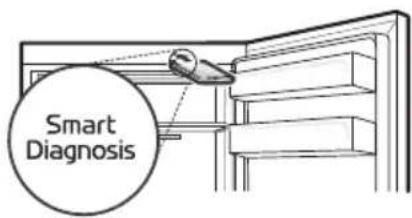

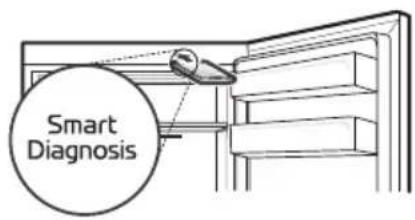

Using Smart DiagnosisTM 25

MAINTENANCE 26

Notes for Cleaning 26

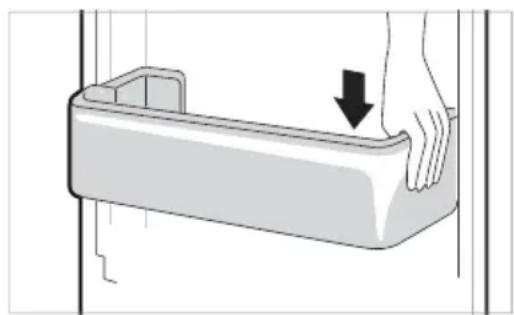

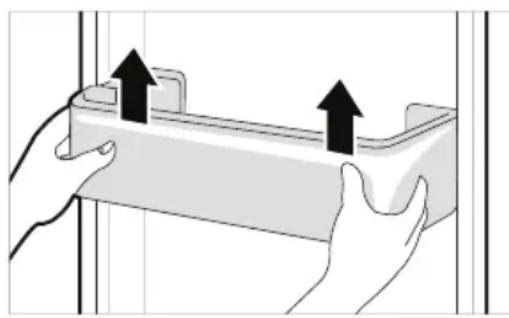

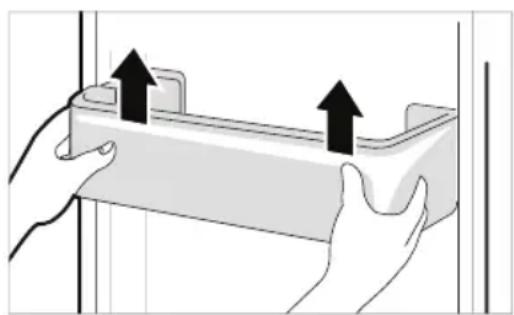

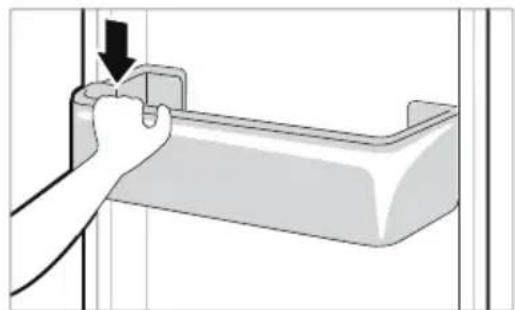

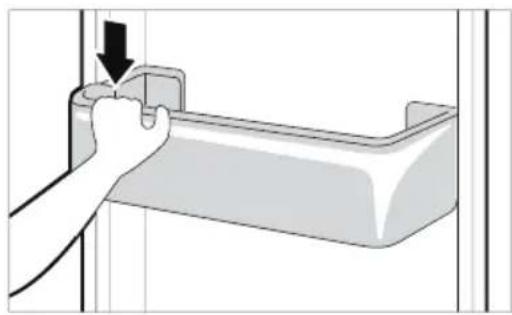

Cleaning the Door Basket 26

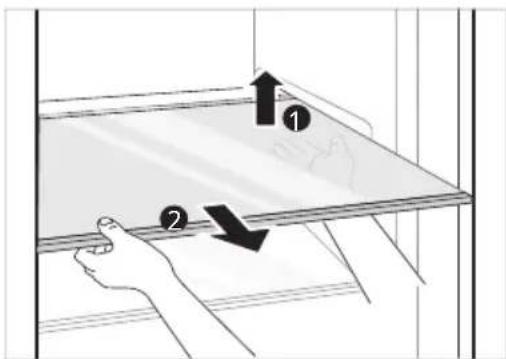

Cleaning the Shelf 27

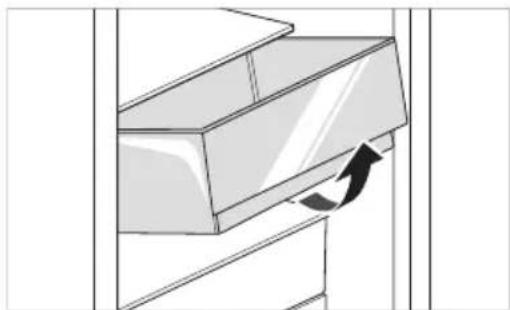

Cleaning the Vegetable Printer 27

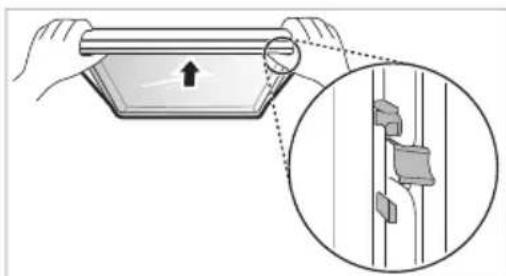

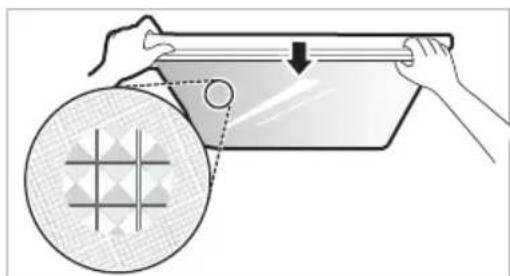

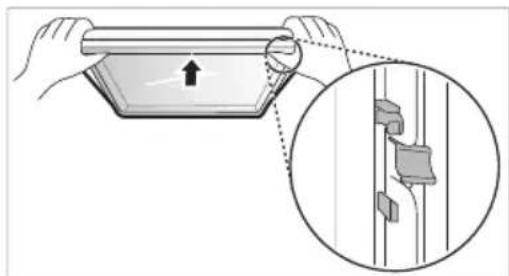

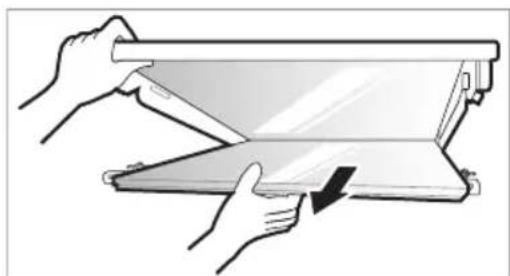

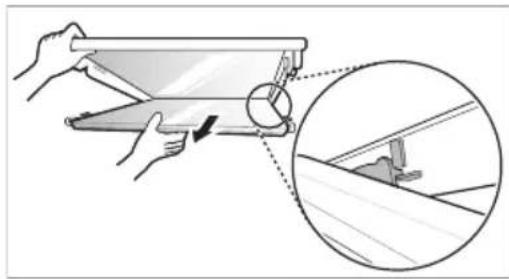

Cleaning the Crisper Cover 27

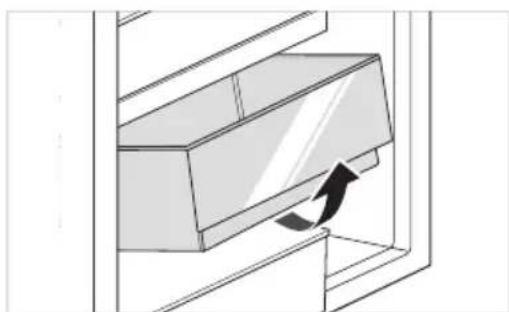

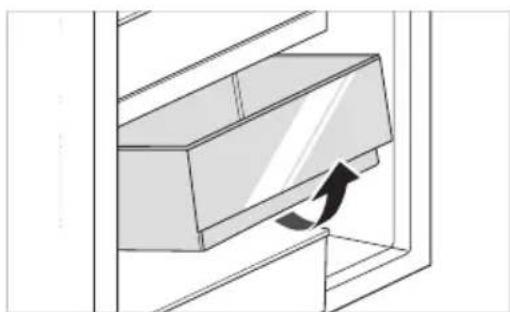

Cleaning the Freezer Drawer 28

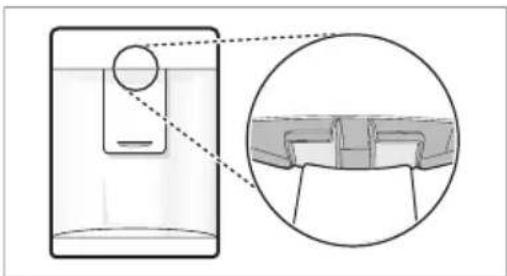

Cleaning the Water Dispenser 28

TROUBLESHOOTING 29

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Installation

• This appliance should only be transported by two or more people holding the appliance securely.

• Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).

• Do not modify or extend the power cable.

• The appliance should be connected to a dedicated power line which is separately fused.

• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.

• Install the appliance in a place where is easy to unplug the power plug of the appliance.

• Be careful not to point the power plug up or let the appliance lean against the power plug.

Install the appliance on a firm and level floor.

• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

• Be careful not to expose the rear of the appliance when installing.
• Be careful not to let the appliance door fall during assembly or disassembly.

• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

• Do not connect a plug adapter or other accessories to the power plug.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.

• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.

• Do not touch the power plug or the appliance controls with wet hands.

• Do not bend the power cable excessively or place a heavy object on it.

• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.

• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

• Do not apply excessive force or impact to the back cover of the appliance.

• Do not put animals, such as pets into the appliance.

• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.

• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.

• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.

• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
• Do not damage the refrigerant circuit.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance.

Contact an LG Electronics customer information cent move and install the appliance in a different location.

• Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

• When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use electrical appliances inside the refrigerator.
• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.
• Refrigerant leaking out of the pipes could ignite or cause an explosion.
• The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1m^2 in size for every 8 g of R600a refrigerant inside the appliance.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.

• Do not hang from the appliance doors, storage room, shelf or climb up into it.

• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.

• Prevent animals from nibbling on the power cable or water hose.

• Do not open or close the appliance door with excessive force.

• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.

• Do not clean glass shelves or covers with warm water when they are cold.

• Never eat frozen foods immediately after they have been taken out in the freezer compartment.

• Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

Maintenance

• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/recycling.

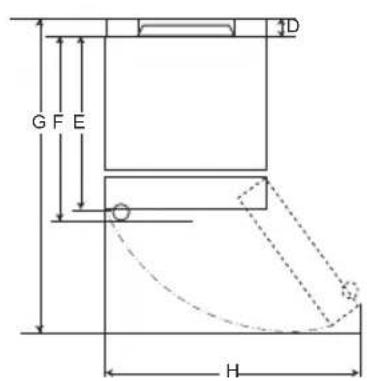

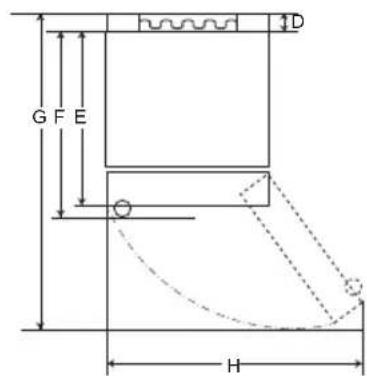

Dimensions and Clearances

Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50mm of clearance from each adjacent wall when installing the appliance.

Type A

Type B

	Type A Type B
	Pocket Handle Bar		Handle Pocket Handle Bar Handle
	Size [mm]
A	595 595 5	95 595 595	595 595 595
B	1860	2030	1860	2030	1860	2030	1860	2030
C	675 675 7	12 712 682	682 718 718
D	9	9	9	9	15	15	15	15
E	667 667 6	67 667 667	667 667 667
F	-	-	703	703	-	-	703	703
G	1124	1124	1124	1124	1130	1130	1130	1130
H	995 995 9	95 995 995	995 995 995

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
• The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.
• The climate class can be found on the rating label.

Climate Class	Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate)	+16 - +32
ST (Subtropical)	+16 - +38
T (Tropical)	+16 - +43 / +10 - +43*

*Australia, India, Kenya

NOTE

The appliances rated from SN to T are intended to be used at an ambient temperature between 10^ and 43^ .

Accessories

1

2

3

1
Hinge cover
2
Lower hinge
3
Sticker

Reversing Doors

Your appliance is designed with reversible doors, do that they may open from either the left of right hand side to suit your kitchen design.

NOTE

• Reversing the doors must be performed by the qualified personnel of LG Electronics. If not, the doors will not be covered by the warranty.

Leveling the Appliance

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Connecting the Appliance

After installing the appliance, connect the power plug into a socket outlet.

NOTE

• After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the Appliance

1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3 Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4 Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5 After installing the appliance, connect the power plug into a socket out to switch on the appliance.

Parts and Functions

Smart Diagnosis Unit (^*)

This function is used when contacting LG Electronics customer information centre to help make an accurate diagnosis when the appliance operates abnormally or a failure occurs.

LED Lamp

The LED lamps inside the appliance light up when you open the door.

Fridge Shelf

This is where refrigerated foods and other items are stored.

• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf.
  The actual number of shelves will differ from model to model.

Bottle Rack (^*)

This is where drinks tall bottles or containers are stored.

Folding Shelf (^*)

This is where refrigerated foods and high items are stored.

Fresh Vegetable Painter (^*)

This is where fruits and vegetables are stored to help maintain freshness by adjusting the humidity controller.

• The appearance or components of the appliance may differ from model to model.

7 Fresh Converter (^*)

As a chill compartment, this is where meat, fish and vegetables are stored. Help maintain freshness by adjusting the humidity controller located in the back of the fridge compartment.

• For more space, you can use chill area without chill compartment drawer.

Ice Tray

This is where ice is produced and stored.

• For more space, you can remove the ice tray or ice cubes bucket.

Movable Egg Tray

This is where eggs are stored.

• You can move it to and use it at a desired position as needed. However, do not use it as the ice bin or place it on the shelf on top of the fridge or the vegetables drawer.

Fridge Door Basket

This is where small packages of refrigerated foods, drinks and sauce containers are stored.

Water Dispenser Tank (^*)

This is where water to supply the dispenser or the automatic icemaker is stored. It requires manual filling. (Non plumbed models only)

Top drawer

To freeze food items quickly, store the food in the top drawer. Food items will freeze most quickly in the drawer.

3 Freezer Drawer

This is for long-term storage of frozen items.

CAUTION

• Do not store short bottles or containers on the bottle rack. The items may fall and cause an injury or appliance damage.

NOTE

• (^*) : This feature varies depending on the model purchased.

Notes for Operation

• Users should keep in mind that frost can form. If the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Suggestion for Energy Saving

• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.

• Store hot food only after it has cooled in order to prevent dew or frost.

• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.

• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3cm from the sensor.

• Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.
• For the most efficient use of energy, make sure that door bins, drawers and shelves are assembled properly.

Storing Foods Effectively

• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.
• Do not store food for a long period of time (more than four weeks) if it spoils easily at a low temperature.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.
• Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.
• Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.
• For more space, you can remove bottle rack, egg tray, ice tray and fresh converter drawer.
• Store raw meat and and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Max Freezing Capacity

• The Express Freeze function will set the freezer to its maximum freezing capacity. This generally takes up to 24 hours and automatically switches off.
  Express freeze must be switched on for 7 hours before fresh products are placed in the freezer compartment.

Maximum Storage

• To get better air circulation, insert all drawers.
• If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance and the food shall be stacked directly on the freezer shelves in the freezer compartment.

NOTE

• To remove the drawers, first pick the food out of drawers. Then use the handle of drawers, pull out the drawers carefully. It may cause injury.
• The shape of each drawer may be different, insert in the right position.

Control Panel

Units and Functions

On the Refrigerator Door Inside the Refrigerator

Fridge Temperature

• This sets the fridge target temperature.

^ 念 Express Cool

• This sets the Express Cool Functions.

3 Freezer Temperature

• This sets the freezer target temperature.

4 \*Express Freeze

• This sets the Express Freeze Functions.

Eco Friendly

• This controls the Power Save mode for lowering energy consumption.

\*Wi-Fi

• This sets the refrigerator to connect to your home's Wi-Fi network.

\*Lock

• This locks the buttons on the control panel.

NOTE

The actual control panel may differ from model to model.

• The control panel will turn off automatically for energy saving.

• If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.

Setting the Temperature

This sets the fridge temperature or freezer temperature.

• Press the Fridge button or Freezer button to adjust the temperature.

The temperature can be adjusted.

• Fridge: from 1^ to 7^
• Freezer: from -15 °C to -23 °C

The initial temperature is set.

• Fridge: 3^ C
• Freezer: -18 °C

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

• The default temperature setting may vary depending on the appliance.
• Wait until 2 or 3 hours have passed after connecting the appliance to the outlet before storing food in the appliance.
• For ice making in normal climates, the freezer temperatures should be set to -18^ or colder.

Setting Express Freeze

The function can quickly freeze a large amount of ice or frozen foods.

• When you press and hold the Express Freeze button for three seconds, the Express Freeze icon lights on the control panel.
  The function is enabled and disabled in turn each time you press the button.
  The Express Freeze function automatically terminates after a specific period has passed.

NOTE

• When Express Freeze is switched on, noise may occur and energy consumption may increase.

Setting Express Cool

The function can quickly cool a large amount of foods such as vegetable, fruit and so on.

• When you press and hold the Express Cool button for three seconds, the Express Cool icon lights on the control panel.

• The function is enabled and disabled in turn each time you press the button.
  The Express Cool function automatically terminates after a specific period has passed.

NOTE

• When Express Cool is switched on, noise may occur and energy consumption may increase.

Setting Eco Friendly

• The function makes the fridge-freezer work in the power saving mode which is useful when you are away on a holiday as it reduces energy consumption.
• Pressing the Eco Friendly button starts the operation with the lamp on, and pressing it again stops the operation.
• When the Eco Friendly mode is on, the other buttons will not operate. When you finish using the Eco Friendly mode, turn it off so that other buttons work and the refrigerator returns to its previous temperature setting.

Setting and Resetting Lock

This locks the buttons on the control panel.
- Press and hold the Lock button for three seconds. When the Lock function is set, all buttons are locked.

NOTE

• You must deactivate Lock function before you can access any other functions.

High Temperature Alarm

When the freezer temperature goes too high due to power failure, the freezer temperature LED lamp blinks and an alarm sounds.

• Press the Freezer button to stop.
  If the temperature is sufficiently cold, the blinking and alarm will automatically stop.
  This function operates:

• When the refrigerator is turned on.

• When the freezer compartment gets too warm.
• When there is a power outage that lasts for a long period of time.
• When large amounts of warm food are placed in the freezer compartment.
• When the freezer door is left open for too long or too frequently.

Water Dispenser (^*)

Press the lever 1 of the water dispenser to get cold water.

CAUTION

• Keep children away from the dispenser to prevent children playing with or damaging the controls.
• To clean the water dispensing system, flush the water through the dispenser about 5 minutes and throw away the first few batches of ice.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

NOTE

• (*): This feature varies depending on the model purchased.

• If you open the freezer door while water is being dispensed, the water supply will stop.

• If you open the fridge door while water is being dispensed, dispensing will be paused.

• If the cup rim is small, water may splash out of the glass or miss it completely.
• Use a cup with a rim of over 68~mm in diameter when dispensing water.

Water Dispenser Tank

1 Open the cap (small cover) on the top of the water tank.

2 Fill the water tank with potable water and close the cap (small cover).
The water tank can hold up to 2.3 L.

CAUTION

• Children should not be allowed near the dispenser tank. If the child drops the water dispenser tank while it is completely filled with water, injury may occur. Do not fill the water tank with drinks other than water or fill with hot water.
• Do not apply excessive force or impact when removing or assembling the water dispenser tank. Doing so can cause appliance damage or injury.

NOTE

• Before using the water dispenser tank after installing the appliance, it should be washed before filling it with water.

• Check if the water dispenser tank has been placed on the appliance correctly. If it is not assembled correctly, water may leak from the tank into the appliance.

• If there is no water in the water dispenser tank, the cold water function of the dispenser cannot be used. Check if there is water in the water dispenser tank and then fill it with water if there is not.

• Wait at least 15 seconds before removing the water tank after having dispensed water.

Sound from the water tank will be normal when supplying water to the dispenser. It is not a sign of malfunction.

Ice Tray

Fill the ice tray with water.

WARNING

• Fill with potable water only.

CAUTION

• Check whether there is any ice remaining in theice tray before putting water into it.

• Do not slam the freezer door after filling the ice tray with water.

If you open and close the freezer door frequently, it may take longer for the water to freeze.

The time it takes for the water to freeze may vary according to the season.

• The temperature inside the appliance can take up to 24 hours to stabilize after initial installation. Water may take longer to freeze because of this.

• Be careful when handling the ice as the edges of the ice may be sharp.

NOTE

• If the ice tray is overfilled, the ice may stick together and be difficult to remove.

• Press the Express Freeze button on the control panel to make ice quickly.

• Do not store ice that has not frozen completely. Unfrozen water could cause the ice to clump together.

• Be careful not to use excessive force when twisting the ice tray. Doing so could break the ice tray.

• To easily remove ice, fill water up the tray in advance.

Fresh Converter (^*)

As a chill compartment, the temperature in the fresh converter can be controlled by sliding the lever 1, where located in front of compartment, in either direction.

When keeping vegetables after setting up Meat or Fish, the cold injury may occur.

For storing vegetables.(Recommended)
For storing fish.
4 For storing meat.

NOTE

• (*): This feature varies depending on the model purchased.

Fresh Vegetable Printer ( c * )

Vegetable compartment can adjust the humidity by moving the knob 1.

For storing vegetables.(Recommended)
For storing fruit.

NOTE

• (^*) : This feature varies depending on the model purchased.

Folding Shelf

Store taller items, such as a gallon container or bottles, by pushing the front half of the shelf underneath the back half the shelf. Pull the front of the shelf forward to return to a full shelf.

1 Lift the front side of the shelf and shift it on its back side.

2 Lift the front side of the shelf and shift it under its back side. From this position, both sides of the shelf can be lifted up to free more space.

Other Functions

Door Open Alarm

The alarm sounds 3 times in a 30 seconds interval if the door (fridge compartment) is left open or not completely closed for one minute.

• Contact an LG Electronics customer information centre if the alarm sound continues even after closing the door.

Failure Detection

The appliance can automatically detect problems during the operation.

• If a problem is detected, the appliance does not operate and an error code is displayed even when any button is pressed.
• When this occurs, do not turn off the power and immediately contact an LG Electronics customer information centre. If you turn off the power, the repair technician from an LG Electronics customer information center may have difficulty finding the problem.

LG ThinQ Application

This feature is only available on models with Wi-Fi

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

• Allows you to set various options on the appliance and in the application.

NOTE

If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
- The application is subject to change for appliance improvement purposes without notice to users.
- Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

• If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

To verify the Wi-Fi connection, check that the icon on the control panel is lit.
- The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
- The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
- The network connection may not work properly depending on the Internet service provider.
- The surrounding wireless environment can make the wireless network service run slowly.
- The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.
- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

• Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

• Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

• Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. If con will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge. com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Smart Diagnosis

This feature is only available on models with the @ or @logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

Display panel is on the Fridge door.

1 Close the freezer and fridge doors, then press and hold the Lock button to activate the lock function.

• If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

2 Press and hold the Freezer button for 3 seconds or longer.

• The control panel will be turned off, and then '3' will be displayed on the fridge temperature display part.

3 Open the fridge door and then hold the phone near the speaker hole.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

Display panel is inside the Fridge door

1 Open the fridge door.

2 Press the Eco Friendly button.

• If the door has been open for longer than 60 seconds, close the door and repeat steps 1 and 2.

3 Hold the phone near the speaker hole.

4 Press and hold the Freezer button for 3 seconds while holding your phone in front of the speaker.
5 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

• For best results, do not move the phone while the tones are being transmitted.

Notes for Cleaning

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance.

• Otherwise, injury may occur due to the weight of stored foods.

• If cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock.

• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet soft towel.
• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
  After cleaning, check if the power cable is damaged, warm or improperly plugged.

• Keep the air vents on the exterior of the appliance clean.

• Restricted air vents can cause fire or appliance damage.

• When cleaning inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.

• This may cause discoloration or damage to the appliance.

• Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

• For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

• Never clean the shelves or containers in the dishwasher.
  The parts may become deformed due to the heat.

• If the appliance is equipped with an LED lamp, do not remove lamp cover and LED lamp in any attempt to repair or service it. Please, contact an LG Electronics customer information centre.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Cleaning the Door Basket

Removing the Fridge Door Basket

Hold both edges of the basket and remove it by lifting it upward.

Refitting the Fridge Door Basket

1 Hold both edges of the door basket, gently push one edge to assemble, and then in the same manner assemble the other edge.

2 After assembling, tap the door basket gently to fix it horizontally.

Cleaning the Shelf Removing the Fridge Shelf

Lift the rear edge of the fridge shelf and then pull it out.

Refitting the Fridge Shelf

Refit the shelf in the reverse order of the removal process.

Cleaning the Vegetable. Drawer

Removing the Vegetable Printer

1 Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.

2 Lift the vegetable drawer up and remove it by pulling it out.

CAUTION

Note that injuries can be caused by the weight of stored foods when removing the vegetable drawer.

Refitting the Vegetable Printer

Refit the vegetable drawer in the reverse order of the removal process.

Cleaning the Crisper Cover Removing the Crisper Cover

1 After removing the vegetable drawer cover, pull the top section of the crisper cover down.

2 Remove the crisper cover by pulling it out.

Refitting the Crisper Cover

1 Place the protrusions inside the risper cover on the grooves inside the shelf.

2 Insert the protrusions in front of the crisper cover into the grooves in front of the shelf and push the crisper cover up to assemble.

Cleaning the Freezer Drawer

1 Remove the contents of the drawer. Hold the handle of the freezer drawer and pull it out completely until it stops.

2 Lift the freezer drawer up and remove it by pulling it out.

Refitting the Freezer Drawer

Refit the freezer drawer in the reverse order of the removal process.

Cleaning the Water Dispenser Cleaning the Dispenser Tray

The dispenser tray may become wet easily due to spilled ice or water. Wipe the entire area with a damp cloth.

Cleaning the Water and Ice Outlet

Wipe the water or ice outlet frequently with a clean cloth as it may get dirty easily. Please note that lint from a cloth may adhere to the outlet.

Symptoms Reason	n&Solution
There is no refrigeration or freezing.	Is there a power interruption?Check the power of other appliances.
	If the power plug unplugged from the outlet?Plug the power plug in the outlet properly.
	A fuse in your homeOr the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Set the circuit breaker on the GFCI. If the problem persists, contact an electrician.
There is poor refrigeration or freezing.	Is the fridge or freezer temperature set to its warmest setting?Set the fridge or freezer temperature to 'Medium'.
	Is the appliance in direct sunlight, or is it near a heat generating object such as cooking oven or heater?Check the installation area and reinstall it away from heat generating objects.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you put in too much food?Maintain an appropriate space between food.
	Are the appliance doors completely closed?Completely close the door and make sure that stored food is not obstructing in the door.
	Is there enough space around the appliance?Adjust the installation position to make enough space around the appliance.
The appliance contains a bad smell.	Is the fridge or freezer temperature set to 'Warm'?Set the fridge or freezer temperature to 'Medium'.
	Did you put in food with a strong smell?Store foods with strong smells in a sealed containers.
	Vegetables or fruit may have spoiled in the drawer?Throw away rotten vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.
The inside lamp in the appliance does not turn on.	Does the inside lamp in the appliance turn off?It is hard for customers to replace the inside lamp in the appliance as they are not serviceable. If the inside lamp does not turn on, please contact the LG Electronics customer information centre.
The appliance door is not closed tightly.	Is the appliance leaning forward?Adjust the front feet to raise the front side slightly.
	Were the shelves properly assembled?Refit the shelves if needed.
	Did you close the door with excessive force?If you apply too much force or speed when closing the door, it may remain briefly open before closing. Make sure that you do not slam the door closed. Close without force.
Вразата на уреда не e пьтуно за ворега.	Уреът наklонен ли e habред? • Коригирaite подоче крачета, за дамовдогге лесу п徕дана част.
	Рафтовete правлно ли са сглобени? • Ако e hyжно, поставе отоно рафтовete.
	Вераяно стve за ворейн Вразата с пекомерна сима? • Ако за воряte вразата Тьрде симно лл рязко, тя може ду OCTанец оторега за мостент, пroduду се за вори. Уberе тс, че не SFьскате вразата по за воряп. 3отварайтse 6e3 сима.
It is difficult to open the appliance door.	Did you open the door right after you closed it? • If you try to open the appliance door within one minute after you closed it, you may have difficulties because of the pressure inside the appliance. Try to open the appliance door again in a few minutes so that the internal pressure stabilizes.
There is condensation inside the appliance or on the bottom of the vegetable drawer cover.	Did you store hot food without cooling it first? • Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you leave the appliance door open? • Although the condensation will disappear soon after you close the appliance door, you can wipe it with a dry cloth.
	Do you open and close the appliance door too frequently? • Condensation can form due to the temperature difference from the outside. Wipe out the dampness with a dry cloth.
	Did you put warm or moist food inside without sealing it in a container? • Store food in a covered or sealed container.
Frost has formed in the freezer compartment.	Doors may not be closed properly? • Check if the food item inside the appliance is blocking the door and make sure that the door is tightly closed.
	Did you store hot food without cooling it first? • Cool the hot food first before putting it in the fridge or freezer compartment.
Frost has formed in the freezer compartment.	Is the air entry or exit of the freezer compartment blocked? • Make sure that air entry or exit is not blocked so that the air can circulate inside.
	Is the freezer compartment overfilled? • Maintain an appropriate space between items.
Frost or condensation has formed inside or outside the appliance.	Did you open and close the appliance door frequently or is the appliance door improperly closed? • Frosts or condensation can form if the outside air penetrates inside the appliance.
	Is the installation environment humid? • Condensation can appear on the exterior of the appliance if the installation area is too humid or on a humid day such as a rainy day. Wipe off any moisture with a dry cloth.
The appliance is noisy and generates abnormal sounds.	Is the appliance installed on a weak floor or improperly leveled? • Install the appliance on a solid and flat area.
	Does the rear of the appliance touch the wall? • Adjust the installation position to allow enough clearance around the appliance.
	Are objects scattered behind the appliance? • Remove the scattered objects from behind the appliance.
	Is there an object on top of the appliance? • Remove the object on top of the appliance.
The side or front of the appliance is warm.	There are anti condensation pipes fitted to these areas of the appliance to reduce condensation forming from around the door area. • The heat releasing pipe to prevent condensation is installed on the front and side of the appliance. You may feel it particularly hot right after the appliance is installed or during the summer. You can be assured that this is not a problem and is quite normal.
There is water inside or outside of the appliance.	Is there water leakage around the appliance? • Check if the water has leaked from a sink or another place.
	Is there water on the bottom of the appliance? • Check if the water is from the thawed frozen food or a broken or dropped container.
Clicking noises	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or appliance control on some models) will also click when cycling on and off. • Normal Operation
Rattling noises	Rattling noises may come from the flow of appliance, the water line on the back of the unit (for plumbed models only), or items stored on top of or around the appliance. • Normal Operation
	Appliance is not resting evenly on the floor. • Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.
	Appliance with linear compressor was moved while operating. • Normal operation. If the compressor does not stop rattling after three minutes, turn the power to the appliance off and then on again.
Whooshing noises	Evaporator fan motor is circulating air through the fridge and freezer compartments. • Normal Operation
	Air is being forced over the condenser by the condenser fan. • Normal Operation
Gurgling noises	Appliance flowing through the cooling system • Normal Operation
Popping noises	Contraction and expansion of the inside walls due to changes in temperature. • Normal Operation
Vibrating	If the side or back of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound. • To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.
Your home appliance and smartphone is not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect. • Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ
	Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly. • The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz. • OAI2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far. • If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

Customer Care and Service

Contact an LG Electronics customer information centre.

To find information on LG authorized service centre, visit our website at www.lg.com.
- Only qualified service personnel from LG authorized service centre should disassemble, repair, or modify the appliance.
- To purchase spare parts, contact an LG Electronics customer information centre or our website at www/lg.com.
- Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are available for 10 years).

NOTE

• For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name (valid from 1st March 2021).
• Regulation EU 2019/2019, valid from 1st March 2021, is related to the Energy Efficiency classes by Regulation EU 2019/2016.
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference and all other documents supplied with the appliance (valid from 1st March 2021).
• The model name can be found on the rating label of the appliance.

Memo

PьКОВОДСТВО 3A ЕКСПЛОATAЦИА

XIIADINJHNK INΦРИ3EP

IpooyetepebKOBOCTBOTO 3a ekCnloataunnoDpo6Ho, npEi da pa6oTne Cypeda, nTo cBxpaHraBaTe Ha ydo6Ho mAcTO 3a cnpaBkn no BcKo BpeMe.

CbДьРЖAHNE

Toba pBKOBOCTBO MOKe Da CbDbpKa H3o6paXeHnI NnCbDbPkaHne, pa3NnHO OT MoDeJa, KOHTO CTe 3aKynnn.

PbKOBOIDCTBOTO noJIeKn Ha peaKzna O T npOn3BOIDNTeJI.

MHCTPYKUN 3A BE3OJACHOCT. 3

BaxHN INCTpyKcnn 3a 6e3oNaChocT 3

I3XbBpJIHe Ha cTapn ypei 10

MOHTUNPAHE 11

Pa3mepn n OTCToHnna 11

OkoHa TemnepaTypa 11

Akecoapu 12

PebepcnBn BpaTn 12

HnBenaunHa ypea 12

Cbbp3BaHe Ha ypeHa 12

IpeMeCTBaHe Ha ypeHa 12

EKCPILOATAU 13

Uactn u yHKun 13

Beneckn no ekcnloataaeta 15

KoHTpOJIeH nAHeI 17

Диспенерза Вда (^*) 19

Pe3epBoap c nncnHcep 3a Boda 19

Tabniuka 3a IeI 20

KoHBeptop 3a npecn npOdykTn (^*) 20

UekmeJke 3a CBexn 3eJeHuyu ( *) 21

CrbBaem paT 21

Дугн Функци.. 22

HHTEINIeHTHn FyHKcNn 23

PpinojKeHneTo LG ThinQ 23

I3noJI3BaHe Ha Smart DiagnosisTM 25

ПОДДРьЖKA 26

3a6eJekn OTHOCHO noHCTBaHeTo 26

3aKJIIOUbaHe Ha HacTpoIKn HynipaHe

OTyK ce 3akIIOUbAT 6yTOHInTe Ha KOHTPOJHHnaHeI.

• HatncheTe n 3aDpBxTe 6yToHa Lock 3a TpuceHydN. Korato e 3aJaDeHa yHKuYraTALock, BCnKn 6yToHc ca 3aknOueHn.

3ABEJIEXKA

Tp6Ba Da DeakTnBnPaTe yHKuNg Lock npedn da moKeTe da n3noJ3BaTe npyIn yHKuN.

Anapma 3a BncoKa TeMnepaTypa

Korato TemnepaTypata Ha pnp3epa ctahe TBbpde BncoKa nopadn cnnpaHe Ha eNektpo3axpaHbAHeTo,JaMnata LED 3a TemnepaTypata npmnrBa n np03ByaBa anapma.

• Hatnche 6yToHa Freezer 3a cnnpaHe.
• Ako TemnepaTpyata e DocTaBHyO CTyHeHa, npMmRbaHTo n aIapMaTa ABTomAtNuHO Ue cnpaT.

-Функцятapa60tN:

-Korato xnaaunHKnbTe BKNIOueH.
-Korato OTdeneHneTo Ha φpnsepa cTaHe TBbpe TOnNo.
-Korato mma npekbcaHe Ha eNeKtpo3axpaHbHeTo 3a npOdbJxKtTeH nepnoD OT BpeMe.
-Korato B OTeJeHneTo Ha cPn3epa Ce NOCTABRT rOJIeM KOnIYeCTBa TOnJa XpaHa.
-Korato BpaTata Ha φpns3epa e ocTaBeHa OTBopeHa 3a TBbpDe IbJiro BpeMe ININ TBbpDe YecTo.

Диспенецьвога（\*）

HaTncheteNocta 1 Ha nucnHecep a 3a BODaTa,3a Da nOnyuTe cTydeHa BOJa.

BHUMAHNE

• Na3ete Deuata DaJneu OT DnCneHcepa, 3a Da He cn IrgaT C Hero NJa Da He nobpejrt KOHTpOJIHNTe KOnHeta.

3a Da Nouchnte CnCTemata 3a Cha6dyaHe C BODa, PpOMnTe C BODa B IpOdbJIxKeHne Ha OKoNo 5 MNHyTN.

3ABEJIEXKKA

() :Ta3nФункцьВарпаВЗвснмocT OТ 3akypeHnMoDEJ.
- Ako OTbOpnte BpaTata Ha φpns3epa DOKaTO ce IODaBA BOda, BOIOChA6dRABaHTo Ue cnpe.

Ako OTBOpHTe BpTaTaHa XnAaHnHnKa DOKaTO Ce IOnaBa BOa, BOOCha6JaBaHeTo Ⅲe HnPaBn Na3a.
AKOOTBOpbTHaYaaataeMaJIbK，BOdaTAMoKe Da ce pa3nNcKa OT YaWata NINBbo6ue Da He yuelen.
-ИЗпОЛЗВаΙеЧааСДиАмЕТБРНаOTВОРа над 68mm пи подаBAHe Ha BODa.

Pe3epBoap c dncnpeHcep 3a Boda

1 OToBopTe KaNaUkata (MaKnA Kanak) B TropHata Yact Ha pe3epBoapa 3a Boda.

2 HanbJIHHe pe3epBoapac nIteHa BODa m 3aTbOpTe KanaKata (MaNka KaNaYka).

• Pe3epBoapbT 3a BOda MoKe Da CbIbPka do 2,3 nItpa.

BHUMAHNE

• He trp6Ba da ce no3B0n8Ba Ha deuca da ce do6nKabat do pe3epBoapac nncnEhcepA Ako DeTeTo u3nyche BoHnpe3epBoap C DnCnEhcepA DOkato Toe u34no PbJeH C BOda,TO MoKe Da ce HapaH.
  He npinaraTe npekomepHa cnna nn Bb3deIcTBne, KOraTO OTCTpaHraBaTe nn crno6BaTe pe3epBoapa 3a BOda. Toba moKe Da npuHH NOBpeDa Ha ypeDa nn HapAHBaHe.

3ABEJIEXKA

• Ppei Da n3POn3BaTe pe3epBoap 3a B0da cIeI INCTaIInpaHe Ha ypeDa, Tp86Ba da ro N3MnTe, Ppei Da rO HAnbJIHnTe C B0da.
• PpOBepTe dAnpe3epBoapbT 3a B0da e nocTaben npabnHbpx ypeHa.Ako He e crNo6eH npabnHO, BOdTa MoKe da IpoteHe ot pe3epBoapa BypeDa.

AkoBpe3epBoapa 3a BOda Hma Boda, cyHKnraTa Ha dncneHcep a 3a CTydeHa Boda He MoKe da ce nIOJI3Ba. PpOBepTe daIN mMa BOda B pe3epBoapa I Go HanbIhete C BOda, Ako Hma.
-Изчakайтпонe 15 cekyнnpeДида CBaNTe pe3epBOapac BOda cneД kaTo cTe OCBO6OJIN BOJa.
3BykBT OT pe3epBOapa C BOda, KOrato DnCneHcepBT Ce Cha6JaBa C BOda, e HopMaJIeH. He e npn3HaK 3a HEn3npaBHOCT.

Ta6nueka 3a nei

HanbJIHeTe Ta6NIuKata 3a JeIc B0Da.

I P E D U N P E X K D E H N E

• PbHHeTa cMo C nTeHa Boga.

BHUMAHNE

• PpOBepeTe DaJIIMa OCTaHaJI NeI B Ta6JNcKata 3a JeI npeIN da NoCTaBNTe BOda B HeJ.
  He xnonBaIte BpaTata Ha ppu3epa, cneKaTo HnblHnte C BODa Ta6nukata 3a neD.
  AkoOTbaprTe 3aTbaprTe BpTaTa Ha oepa YecTo, 3amp3BaHTo Ha BOdaTa MOKe Da OTHE MIO-DJNTO BpeMe.
  BpeMeTo 3a 3ampb3BaHe Ha BOdaTa MoKe Da Bapnpa cnopei ce30Ha.
• Cta6nH3npaHTo Ha TeMnepaTypaTa BbB BbTpewHOCTTa Ha ypeDa MOKe Da OTHeme Do 24 Yaca Cnei NpBBOHaayHnHO To HcTaNpaHe. Iopadn TOBa, 3ampb3BaHTo Ha BOdaTa MOKe Da OTHeme No-DbNro BpeMe.
  -Бдete BHMATEHn, KOrato 6opabnte c IeDa, TbN KaTo p6bOBeTe Ha NeDa MoKe da ca octpn.

3ABEJIEXKA

Ako TaBnukata 3a neJa e npenbHeHa, JeBt MoKe Da 3aJIeHHe 3aeDHO n Da e TpydHO da ce n3BaI.
HaTnCHHe 6yToHa Express Freeze Bbpxy KOHTpONHnnaHeJ, 3a da ce o6pa3yBa 6bp30 JneI.
He cbxpaHraBaIteJe, KOITo He e 3ampb3HaJI HanbIHO. Pa3mpa3eHaTa BOda 6n MORna Da npuHH cIenBaHe Ha JeDa.
BHMaBaIe Da He n3nON3BaTe npeKoMEpa cnna, KOrato n3BbATE Ta6JNqKaTa 3a Jei. Toba 6n Morno da a cyyn.
3a da npemaxhe Te necho nega, HanbneTe Ta6nukata C BODa PpeBapntenHO.

KoHBeptOp 3a npecn npOdykTN (^*)

KATO OXnaJdaaO OTdeJeHne, TempepaTpaTa B KOHBepTopa 3a npesn npoDyKTN MOKe da ce KOHTponpa qpe3 nIb3raHe Ha Nocta 1, HAMnpaS CE B ppeHaTa Yact Ha OTdeJeHneTo BB BCa Nocoka.

Korato cxbpaaBate 3eneHcyu cned kaTO cTe hactponn Meco nn Pu6a, moKe da hactbnn yBpeXdahe OT CTyda.

3a cbxpaHHe Hn 3eHcyu (PpenopbUba ce)
3a cbxpaHeHne Ha pna.
3a cbxpaheHne Ha Meco.

3ABEJIEXKA

(^*) Ta3nФункцьВарupaB3abncmocTOT 3akynehnmoJen.

YeKeMeJxke 3a CBeXn 3eJeHcyu (^*)

BnaKHOCTTa BOTeHEnTo 3a 3eHcyu MoKe Da ce peryInpa Ype3 3aBbPtaHe Ha KOnYeTO 1.

3a cbxpaHHeH He 3eJHcyu (PpenopbUba ce)

3a cbxpaHHeHa nIOdoBe.

3ABeJIeXKKA

(^*) Ta3nФyHKuB BapupaB 3aBucMocT O3aKynHmMoDen.

CrbBaem paT

CbxpaaBaTe NO-BnCOKn IpeDMeTN KaTo raIHOHeN KOHTeHep Hn6yTnIKN, KaTO HaTNCHeTe IpeHaTa NIOBnHa Ha paTa nO3aHaTa NIOBnHa Ha paTa. DpbHete npEHaTa CtpaHa Ha paTa HAnpeD, 3a Da BbPHeTe KbM NIOXKeHne Ha NbNeH paFT.

1 IOBnHHeTe npedHaTa cTpaHa Ha paΦTa n I3MeCTe Bbpxy 3aHaTa My cTpaHa.

2 NOBdHHeTe npedHaTa cTpaHa Ha paΦTa n IIN3MeCTe IOI 3aHaTa My cTpaHa. OT TOBa IIOJKeHne, DBeTe CTPaHn Ha paΦTa MORaT Da Ce NOBdHrHaT, 3a Da ce OCBO6Ou INOBeYe IpocTpaHCTBO.

Дрги Функции

AnapMa 3a OTBopeHa BpaTa

AnapMaTa npo3ByuBa 3 nTn B INTEpeBan OT 30 cekyn, ako Bpata (XnaDnHo OTdienHe) octane OTbOeHa nn He e HanbJHO 3aTbOeHa 3a eHa MNHyTa.

Cbpxte ce c ceHTbpa HOpmaun 3a KnneHTn Ha LG Electronics, ako anapMeHnT cnHa npOdbJnxaba cJeD 3aTbaprHe Ha Bpata.

OTkpNbAHe Ha noBpeDa

UpeBt Moke cam da oKpNb a npo6n m no BpeMe Ha ekCnloatauia.

Ako 6bnde oTKpnt npo6nem, ypeBt Hma da pa60tn uIe ce noka3Ba kOd 3a rpeuka dopn npn HaTnCKaHe Ha HkOJ OT 6yToHInTe.
Korato TOBa Ce Cnyu, He N3KnHouBaIte 3aXpaHbAHeTo n He3a6abHc Ce CbPKeTe C ceHTbpa 3a INHOpMaUa 3a KIneHTn Ha LG Electronics. Ako N3KnIOuHTe 3axpaHbAHeTo, TEXNkBT OT cEHTbPa 3a INHOpMaUa 3a KIneHTn Ha LG Electronics MoKe Da ce 3aTpydHn pR oTKpNbAHe Ha npo6nema.

Приложенeto LG ThinQ

Tazn xapaKTepeNCTnKa e HaNuHa cMoB MoJeIN C Wi-Fi.

PnnoKeHneTo LG ThinQ Bn no3Bolra Da KOMyHKnPaTe CypeDa NocpeDCTBOM CMapTFOH.

XapakTepncTnKn Ha npInJoxKeHneTo Ha LG ThinQ

Komyнкраite c ypeda ot cmaptfoH c nomoTuHa ydo6hnte yMHN xapaKtepncTNKn.

Smart Diagnosis

AkoBb3HnKHe npo6Jem DOkATO n3NOJ3BaTe npuIOKeHHeTO, Ta3n XapaKTepNCtNka 3a yMHa DnaHocCTNka (smart diagnosis) ue BN NOMORHe da DnaHocTnucnPate npo6Jema.

Hactpoyn

-ДаВаВиВьзМожнocT3aЗдаваHeHa pa3ЛчИпОцИN BуpeDAИВпрложeHneTO.

3ABEJIENKKA

Ako CMeHnTe CBo 6e3xKuHe npTep, OoCTaBnK Ha nHTepHe Tnn NapOJa, N3TpniTe peRnCTpnpaHny ypeD OT npNIOKeHneTo LG ThinQ n ropeRnCTpnpaTe oTHOB.
- PpInIOxKeHHeTo e npEiMeT Ha npOMeHc cen IpoIob6paBaHe Ha ypeHa, 6e3 npEiBapuTeHNO yBeDOMBaHe Ha nOTpeBnteNTe.
- ΦyHKUInTe MoKe Ja ca pa3NnHn npu pa3NnHnTe MoDeJI.

Ipei Da H3NoJ3BaTe npJIOxHeNeTo LG ThinQ

TbPBOHaayHapereNCTpaunHa ypeDa

• CtapTupaIte npnIOxKeHHeTo LG ThinQ n
• cIeIbaiTe INCTpyKcUInTe, 3a da peRncTpnpaTe
• ypeDa.

Iobtopno pernctppnaHe Ha ypea nnHa dpyr notpe6nte

• HaTnchTe n 3aApbXTe Wi-Fi 6yToHa 3a 3 ceKyuHn, 3a Da rO u3KnIOuHTe BpeMeHHo. CTaptnpaTe npINOxKeHneTo LG ThinQ n cIeBaIte yKa3aHnraTa B npINOxKeHneTo, 3a da pernctpnpate ypeDa.

3ABEJIENKKA

3a da n3KIOUHTe cyHKUraTa Wi-Fi,HaTnCHte
H 3aIpbXTe 6yToHa Wi-Fi 3a 3cekyHn.
IKoHKata ce ne 3KIOUH.

HOpMaun 3a coTyepe c OTBOpEN KO

3a da noJyHTe n3xOdHnKoD cBflacHo GPL, LGPL, MPL n dpyrI nnueH3n C OTbopeH KoD, cbdbpkaun Ce B To3n npOdyKT, nocetete ye6 caTt http://opensource.lge.com.

BdoIbIHeHHe KbM 3XoDnHn KoD MoKeTe Da n3TeJIInTe N BCNU CNOMeHaT N IuueH3N0HHN ycIOBn,OTKa3N OT rapaHcnn N 3BecTn BbB Bpb3Ka C aBTOpCKn npaba.

LG Electronics cbyo ue Bn npedoctabn OTbopen n3xoeden kod ha CD-ROM cpeu y3aapanlaune, nokpnbauo pa3xodnte 3a n3Bbpwbahe Ha taKaba dNCTpr6bucny (kato hAnpimep ceHaTa Ha HocnteJIte, pa3xodnte ITO TpaHcnpTa), cnei KaTo pOnyu npbUka 3a TOBa IIO NMeIHa aDpec: [e-mail]. Ta3n opepta e BaIndha 3a nepnoD ot Tpr rOdiHn CneI nocJeHaTAt Hi DoctabKa Ha To3n IpOdyKT. Ta3n opepta e BaIndHa 3a BCEKN, noyunl Ta3n INHOpMaunr.

Smart Diagnosis

Ta3n xapaKTepeNTka e HaJIuHa cAmo B MoJeIN C JIOrOTO MIn .

I3noJI3BaIte Ta3nФyHKuIa,3a Da ImaHocTnucpate n pa3peuIte npo6JIeMn C BaIypeI.

3AEBEJEXKA

• ПО пчини, КОТо He ce Дьлжат Ha пponуckn Ha LGE, услгараз можеда He e aktnвн поради Вьншни Фakтори, кATO Ha napimep, Ho He само, Heналуност Ha Wi-Fi, npeкьсна Врьзka c Wi-Fi, мecт ha поитка на app store, Или НЕашиноct Ha ппюхенeto.
  XapakTepeNCTnKaTa MoKe Da noJleKHa npomHa 6e3 npeBapuTeHNo yBeOMneHne N MoKe Da mHa pa3JnUHa fOpMa B 3aBNCmOcT OT MeCToHaxoXKeDeHHeTo BN.

I3noJ3BaHe Ha LG ThinQ 3a DnarHocTnCnpaHe Ha npo6Jemn

AkoBb3HnKHe npo6nem C Baunr Cha6denn C Wi-Fiype,ToM MoKe Da npeJaDe DaHHN 3a OTkpNbAHe NOTCTpaHraBaHe Ha npo6nema KbM cMapTfoh NocpeDCTBOM npuJIOxEHNeTO LG ThinQ.

• CtaptnpaIte npnIOxKeHneTo LG ThinQ n36bepTe xapaKTepeNCTnKaTaN Smart Diagnosis B MeHIOTo. CneBaIte NHCTpyKuNTe, PpeOCTaBeHN B pnpIOxKeHneTo LG ThinQ.

Диспей панелт e Вьрху ВраТаТа нахладинka.

1 HaTnchTe 6yToHa Lock 3a aKtNbUpaHe Ha cyHKunraTa 3a 3akNouBaHe.

• Ako dincnneert e 6n 3aknoueh 3a noBceye ot 5 MNHTN, Tp6Ba da deakTNbnpate 3aknOVAHeto nocne da ro akTNbnpate OTHOBO.

2 HaTnchTe n 3aApbXkTe 6yToHa Freezer 3a TPN CekHyN INI NIO-DbJrO KATO npoBjNxBaTe Da IbpxKe TeJefoHa cn Do BnCOKOrOBOpNTe.

3 OTbopete BpataHa XnaIINHnKa n CneI TOBa 3aIpbXTe TepeOHa 6JIn30 Do OTbopa Ha BUCOKOROBOpnteJa.

4 CneI KaTo npHeocbT Ha daHn e npKIOUHJI, cepBUN3HnT npEcdTaBNTeI Ie Bn o6aCHn peyntaHTe ot Smart DiagnosisTM.

Iucnnei naHenbTe BbB BpaTata Ha XnaHnHaKa.

OTbOpTe BpaTata Ha XJaAnHnHaKa.
2 HaTnchTe 6yToH Eco Friendly.
3 Ako BpaTata e 6nla OTBopeHa 3a NOBeue ot 60 cekyHn, 3aTBopeTe BpaTata n NobTopeTe CTbIKN 1 n 2.
4 3aDpBxTe TelefoHa 6nH3o Do OTbopa Ha BnCOKOrOBOpnteHa. HATncHete n 3aDpBxTe 6yToH Freezer 3a 3ceKHyn, KaTO DbpxTe TelefoHa cn nped BnCOKOrOBOpnteHa.

5 CneI KaTo 3aBbPn IpeDaBaHeTo Ha DaHHNTe, DnaHHO3aTa Ue Ce NOKaKe B PnIOKeHNrTO.

3ABEJIEXKA

3a Han-do6pn pe3yntaTn, He MeCTeTe TenefoHa DOKaTO Ce N3NbYbAT ToHOBe.

3a6eJexKn OTHoCHO nOuHCTBaHeTo

Korato cBaIaTe paTnIyueKeMdxKeOT BbTpewHOCCTHa hypeTa,IN3BaJeTe CraJaTa CbXpaHReBaHa XpaHa OT paTaNII YeKMeJKeTo,3a Da npedeOTBpaTHTe HapaHReBaHe NII NOBpeHa Ha ypeA.
-B npoTnBeH cnyaM MoKe Da ce noNyH HapaHaBaHe nopaTn TeIIOTo Ha CbXpaHaBaHHTe XpaH.
AkoNoHnCTBaTe BbHUnHHe OTBOpn 3a Bb3DyX Ha ypeDa C NOMOuTa Ha npaxOCMyKaHa, eNEKtpnuecknT Ka6e Tp6Ba Da ce OTkaHn OT KOHTaTa, 3a Da ce n36eHne CTatUeH pa3prd Ha eNEKtpnueCTBO, KOITo MoKe Da NOBpeNi eNEKtpOnHKaTa NIN Da pNpHHe EJIeKtpnueckn Ydap.
CbaIepepaTOBeTe NyeKMeJKeTaTaNrNoHCTeTe CBoa, cNeD KoETo rN 3CyUeTeDo6pe, npEn Da rN NoCTaBtE o6pato.
- PeIOBHO n36bpcBaIte yIJIbTHHeHnraHa bpaTata c MOKpa MeKa Kbpna.
-Nethata n pa3nIBaHnra Tno KOuHnUcata 3a Bpata Tpr6Ba Da ce NouchTbA, TbN KaTo Te HapyuBaT cNooc6HoCTTa 3a CbXpaHeHne Ha KOuHnUcata N MoRat DOpn Da r NobpeJr.
CneK KaTo NoHCTnTe, npOBepTe DaJIIN 3axpaHbAunrKa6eI He e NOBpeJeH, daJI IN He e TOnbI INn HEnpaBUNHO BKNIOueH.
-Плдьржайтчистп OTBOPNTe 3a Bb3dYx OT bHnHaTa CtpaHa Ha ypeJa.

-3anyueHn OTBOpn 3a Bb3dyx MoRat da npuynHr noxap nn NobpeHa Ha ypea.

Korato noHCTBaTe ypeDa OTBbTpE nnn OTBbH, He ro n36bpCbaIte C rpy6a Yetka, nacta 3a 3b6n nn 3anaNIM BeuecTBA. He n3noJ3BaIte NoHCTBaUIn npenapatn, CbDbpKaUIN 3anaJIIMM BeuecTBA.

ToBa MoKeHpaHH OBe3cBETraHe nnIOBpeHa Ha ypeHa.

-3anaJIMn BeueCTBa: anKoxon (eTaHOJ, MeaHOJ, n3OpPONn aKoxon, n3OByTNn aKoxon n T.H.), pa3peNtEn, 6eNHa, 6eH3oJ, 3anaJIMn TeHocTn, abpa3NBn np.T.

3a BbHnHaTa YacT Ha ypeDa n3noJ3BaIte YnCTa Tb6a nn MeKa KbpNa m MeK noHcTbaU npenapat, pa3peDen C tonla Boda. He n3noJ3BaIte a6pa3nBn nn rpy6n noHcTbaU n cpeDCTBa. PocSyWe Te Do6pe C MeKa KbPna.

• Hnkora He nouchBaIte paTobete nn CbdoBETe B MnaJIHa MaunHa.
• Yactnte Morat da ce deopmnpat npaTTOJIINHATA.
• Ako ypeBt e cha6dEn c LED lamna, He cBaIaIte kanaKa ha LED lamnata n camata lamna B ONIT da r peMOHTnpate nn 06cnyknte. CbpxeTe ce c eHTbpa 3a INHΦopMaunr 3a KIneHTn Ha LG Electronics.
• Почиствашие рedingовноьрхон'tи, конт мождд влгзатВ Контakт CхранИС дocьнITE сnteMu 3a Дpeнж.

XBaHete DbTa Kpa Ha KoUHnUcaTa nЯ n3BaTe TE KaTo I NOBdHrHeTe Harope.

Noctabraye Ha KooshncaTaHa BpaTaTa Ha XlaadnHnka

1 XbaheTe Dbata KaPa Ha KoUHnuaTaHa BpaTata,JeKO 6yTHeTe eDHHa Kpa,3a Da crIIO6nte,a NocLe No CbunHaun Hcno6eTe dpytna Kpa.

2 CneI kaTo crNoBnte, notynaiTe neko KOuHnUcaTa, 3a Da r 3akpenTe XOpN3OHTaJIHO.

IocTaBHe Ha YekMeJxKeTo Ha 6pn3epa

IocTabraHTo Ha YekMeJKeTo Ha φpns3epa ce n3BbPwBa B o6paTeH peiHa npoueca Ha cBaJIaHe.

Tryk pa knappen Fridge erer Freezer for at justere temperature.

Installation of LG ThinQ-application

Sog after LG ThinQ-appen fra Google Play Store, eller Apple's App Store pa en smartphone.

MnV xTUTATE TNY TIOPTA TOU KAATUOKTN, apou YEUIAETE TOV DIAKO TAYOU ME VEPo.

Eav avoiyete kai kLeivete ouxva TnV TnOpta Tou katayuktn, mTopei va xpeiaotei TEPIOOTepoc Xpovoc ia va TAYWoei To Vepo.

O xpovoc Tou xpeiaZeTai yia va Taywoei To vepo mTopei va diaqepei avaloya u Tnv ETOXn.

MTOpei va xpeiaotouv EwC kai 24 wpec yia va otahepoTointheta i n thepuokpaoia mea a tno oukeun e ta nvy apxikn totoetnon. Ia tov loyo auto mTOpei va xpeiaotei TepiooTepos cxpvoc ia va panewei to vepo.

• PooEeTe oTav xeiPiZeote Tov TAYo KaOwC or akpeTou mTopei va eivai aixmnpes.

ZHMEIΩsH

Eav o biokoc panyou evai napayeioevoc, O
Tayoc mTnpei va koanoei kai va eivai
duokolo va aqapieo.

• Patnote To Koupti Express Freeze oTov Tivaka eLeyxou yia va 8nmuOpynoTe ypnyopa Tayo.

Mny aTOnOKeUeTe TAYo Tou EV Exi katauuxEviEvAeC.EavTOVEPOEVEXI TAYwOeTA TAYAKIA MTopeiva KOLAnouv MUeTuouc.

• PpooEeTE va uny xpnoiouoieu utepboikn duvaun otav oTpiBETe Tov biKO npou. KATI TEIO 0a mTPOUoe va OTAOEI Tov biKO npou.

Tia va aapaipoeote eukoataov Trayo, ymuote vepo tov bioko ek twv Tpotepwv.

Eco-Friendly (Modo Eco)

OLULISED OHUTUSJUHISED 3

Teie vana seadme havitamine 10

PAIGALDAMINE 11

OLULISED OHUTUSJUHISED

OHT

Plateau a oeufs mobile

Application LG ThinQ

VAZNE SIGURNOSNE UPUTE 3

Zbrinjavanje starog ureda 10

POSTAVLJANJE 11

Dimenzije i slobodan prostor 11

Temperatura okoline 11

Pribor 12

Preokretanjevrata 12

VAŽNE SIGURNOSNE UPUTE

UPOZORENJE

Kako biste smanjili opasnost od eksplozije, požara, smrti, strujnog udara, ozljede ili opekotina osoba prilikom upotrebe ovog proizvoda, slijedite osnovne mjere opreza, uključujuci sljedeće:

Djeca u kućanstvu

• Ovim se uredağem ne bi trebale koristiti osobe (uključujuci djecu) smanjenih tjelesnih, osjetilnih ili mentalnih sposobnosti, ili s manjkom iskustva i znanja, osim ako ih osoba koja je odgovorna za njihovu sigurnost ne nadzire ili im daje upute u vezi s upotrebam uredağaj. Djecu treba nadgledati kako bi se osiguralo da se ne igraju s uredağem.

• Ako je urejad opremljen bravom (samo kod nekih modela), držite ključ izvan dosega djece.

Za uporabu u Europi:

HnBeIipaHe Ha ypeDoT

YpeoT Mopa da e HnBepnPan 3a da HeMa Bn6paun.

ДOKOLKY e NOTpe6Ho, OdBpTeTe ИИЗ 3aBpTeTe Ги 3aBpTKuTe 3a ИИБeПира№ Б ДOKOLKY ypeIOT ro NOCTaByBaTe Ha HepaMeH NOД.

IpeHnOT dEHa ypeoT Tpe6a da e nocTaBeH MaIKy NOBcOKO OJ 3aDHnOT 3a NOECHO 3aTBopaHe Ha BpaTaTa.

Habane ro anapatot 3a necho da npuctannte do 3aBPTKNTe 3a HNBenipahe.

BpTe Tn 3aBPTKITe CnpOTuBHO Ha HAcOKaTa Ha CTpeJIKITE Ha YacOBHKnOT 3a Da ro NODIrHeTe ypeIoT, a o6paTHo 3a Da ro cnuytnte noHnCKO.

Pobp3yBaHbe Ha ypeDoT

IIO nHCTaJaujata Ha ypeIoT, npNKnyeTe ro Bo WTekep npNKlyOkoT 3a HanojyBaHe.

HANOMEHA

• IIO NOBp3yBaHbETo Ha Ka6eIOT 3a HanojyBaHe (nnn npNKnyOkoT) co uTekePOT, npuekajTe 2 nnn 3 yaca nped Da cTabNTe xpaHa BO ypeDTo. DOKONky cTabNTe xpaHa BO ypeDTo npd ToJ ceNoCHO da Ce n3JaDi, XpaHaTa MOKe Da ce pacIne.

PpeMeCTyBaHbe

1 OtctpaHeTe ja ceTa xpaHa.
2 Ⅱ3BaTeTo npKnyOKOT 3a ctpya, BMeTHeTe To nΦHKcapajTe To BO KyKaTa 3a npKnyOKOT Ha 3aHaTcTpaHa NJIHa roPHNOT DeI OJ anapaTOT.
3 Co nomou Ha JennBa JeHTa, 3aeneTe rH noIuTe n paKaTa Ha BpaTata 3a Da He naHaT npn npemecTyBaHeTo Ha ypeDTo.
4 IpnemecTyBaJTe cmo aKO cTe NOBeKeMnHa. Kora ro npehecyBaTe Ha noDOnrnpactoJaHnja, dpxTe ro nCnpaBeH.
5 OTKaKO ke ce noCTaBn, NOBp3eTe ro co cTpyja co npNKnyyBaHbe BO wTeKepe n BKnyteTe ro.

KapakTepncTnKn Ha anIIkaunjaTa LG ThinQ

KomyuicpajTe co anapatOT od namteH TelepoH CO nOMoH Ha npaKTnHnTe NaMeTHn FyHKun.

Pametha DnjarHoctnka

Ako nckycnte npo6nem dokeka ja Kopucntte annkaunjata, onnjaata 3a naMeTHa DnjarHOCTNkKe Bn NOMORHe da ro DnjarHOCTuNPate npo6nemOT.

NoDecyBaHa

• Bn obo3moxyBa da noodeCte pa3nHn onuKaj anapaTOn BO annkaunjata.

HANOMEHA

Ako ro npomeHnte cbojoT 6e3Kuueh pyTepeBabByBaOT Ha nHTepHET ycnyr nnNnIO3HHkata, n36pniweTe ro perncTpupaHnot anapat od annkaunjata LG ThinQ n nobTopho pernctpapajre.
Annkaunjata noJnxHa npomeH 3apan noobpyBaHe Ha anapaToT,6e3 da im ce dae npedynpeDyBaBe Ha KOpNCnUTe.
- KapakTePncTnKnte MoKe Da BapuPaat Bo 3aBnCHOCT OJ MOJeNOT.

IpeД користelve на anлкauцида LG ThinQ

1 IpoBepete ro pactojaHneTo nomery anapatot n 6e3KmHnOpyTe (Wi-Fi mpeXkata).

Ako e nperoIeMo pactoJHnETo nomery anapatot n 6e3xNHyNt pyTe,doar do cna6eeHe ha cnHaIOT. MoKe da 6nDe notpe6en noD0JIr BpemeHcN nepno3a perncTpaunja,nn MoKe da DOBeJe Do HeycneuHa Hnctalaunja.

2 Ncknyte rMo6nHnTe nOaTouN nn KeNcKte nOaToUHa BaUNOT NaMeTeH TeJeOH.

3 Iobp3eTe ro Baunot nAmTeH TeJefoH co 6e3KnHnot pyTeP.

HANOMEHA

3a da ja notbprnte Wi-Fi KOHeKunjata, npoBepe DaJIncBETN IKOHATA Ha KOHTPOJHNO T NaHEn.
Anapatot noDpkyBa eHnCTBeHO 2,4 GHz WiFiMpexn.3a da ja npOBepnte ppeKBeHunjataHa BaAata MpeKa, KOHTaKTnpajTe ro BaWnot Ch6dyBauch CO HHTepHET ycIyH, INN NOrJeHHeTo BO yNaTcBOTO 3a BaWnOT 63KuHen pyTeP.
LG ThinQ He oOroBopeH 3a 6nIO KaKBN npo6IeMn OKOJy KOHeKTnpaHbeto Ha MPeKaTa Nn KaKBN n da 6nIO rpeuKN, DepeKTn Nn rpeuKn npedN3BnKaHN OD KOHeKTnpaHbeto Ha MPeKaTa.
- Ako anapaTOT nma npo6Iemn Okony KOHeKTIpaHBeTo Ha Wi-Fi mpeXaTa, MoKe6u e npedaleky od pyTePoT. Ha6abete Wi-Fi 3acnnyBauch (3acnnyBauch Ha doCTpeNOT) 3a da ja na noDobpnte jaunHaT ha Wi-Fi cnHaNOT.
Wi-Fi KOHeKunjata MoXe6n He ce NOBp3yBa NIMoXe6n e IpeKnHaT a nopadn OnkpykYBaHbeto Ha Domaushata Mpeka.
MpexHTo IOBp3yBaHe MoXe6n Hema da pa60TN IpaBnHO BO 3aBnCHOCT O npOBajdepot Ha INHTepHET ycnyrnte.
- OkonHTo 6e3KNUHO NOBp3yBaHe MoKe6n - npDoHecyBa 6e3KNUHNO T MpeKeH cepBnC da - pa60Tn 6aBHo.
AnapatOT He Moke da ce peRnCTpnpa, npaPi npo6IeMn co npeHocot Ha 6e3KuHnO T CnHaI. N3Bneye To Ka6eNoT od anapaTOn n OuekajTe OKJy eHa MNHyTa, nped NoBTOpHO da ce oNndeTe.
Ako e OBO3MOXeH 3aHTTNTHNOT SnHa BaUNOT 6e3KHeH pyTeP, OHeBO3MOXeTe rO nIIN DOJaTeE NCKJlyQK BO HeRo.

• Imeto Ha 6e3xuHaTa MpeXa (SSID) Tpe6a da 6nde KOMbHaCuJa od aHrnnckn 6yKbN n 6poEBN. (He KopucTeTe rncneunjannHte kapaTepn)
  KopnchNCHKNOT INHTeppejc (UI) Ha naMeTHNOT TepeOH MoKe Da Bapnpa, BO 3aBnCHOC T Od MObHnHOT onepaTneBc nCTeM (OS) n Ipn3BODNTeNt.
  Ako 6e36eHOCnOT npOTOKoHa pyTePOte noCTaBeH Ha WEP,MOKe Da He ycneete BO noDecyBaHeTo Ha MpeXata. Be monime npomHeTe Ro Ha dpyrN 6e36eHocn npOTOKo (Ce npenopayBa WPA2) n NOBTOpHO pernctpnpajTe ro npOn3BOIoT.

Инста的答案 Ha anikaanjaLG ThinQ

Побapajte ja anпикauиjaTa LG ThinQ Ha Google Play Store & Apple App Store п配电у ванnotnamete6 телфон.

CneTe Tn HNCTpyKUInTE 3a npEeMaHe INHCTaINpaHBe Ha anNIkauNJata.

UncTeHbe Ha 3aWTNTHOTOCTaKNo

BaedeHa 3aWHTHOTO cTaKIO

1 OTKako Ke ro n3BaIte KaIakOT Ha 0nokata 3a 3eNeHcyK, HADOny NOBneHTe Ro rOpHnot dN od 3aWNTHTOcTakNo.

2 NOBJIeHTe rO 3aWTnTHOTo CTAKIO 3a Da rO n3BaJNTe.

Повторно мостеные на 3аштITHOTO CTaKIO

1 Ctabete rN nCnakHaTne DeIOBn Ha 3aHTnTHOTo CTAKNO BO XJIe6OBnTe Ha nOIIuata.

2 NocTaBete rN nCnakHaTnte DeNoBN npE3aHTHTOTo CTAKNO BO XNe6oBnTe npEINuCaTa I TpyHeTe Ro 3aHTHTOTo CTAkNO3a Da rnoCTaBnTe Ha MecTO.

YncteHe Ha QnOKaTa Ha 3amp3HyBaQOT

1 N3BaTe ja coOpXnHaTa od fnoKaTa. DpKeTe ja paKaTa Ha fnoKaTa Ha 3aMp3HyBaOt n NOleKa, cIeNoCHO N3BneTe ja HAnBOp, ce DoNeKa He 3anpe.
2 IOnnHHeTe ja 0nOKaTa Ha 3amp3HyBaOHaIrope n 3BaJeTe ja NOBNeKyBajKn Ja HAdBOp.

Verbinding makes met Wi-Fi

Anbefalinger for strømsparing

• Start - temperatureer innstilt.

Kjoleskap: 3^
Fryser: -18 °C

Den faktiske innvendige temperaturen varierer, avhengig av matstatus, selv om den angitte innstilte temperaturen er en mältemperatur, er det/DDke den virkelige temperaturen i Produktet.

MERK

Reverter as Portas 12

Prateleira rebativel 21

Outras Funções 22

FUNÇÖES SMART 23

Aplicacao LG ThinQ 23

Utilizar o Smart DiagnosisTM 25

MANUTENÇA 26

Observacoes relativamente a limpeza 26

Para Inverter as portas

Limar as saidas de agua e gelo

Eco Friendly (Ecologic)

RIESENIE PROBLEMOV 29

VAŽNA BEZBEDNOSNA UPUTSTVA

UPOZORENJE

Fridge Temperature (Kyltemperatur)

• Medenna knapp stalls kylskapstemperaturen in.

^ 念 Express Cool (Snabbkylning)

Stalla in temperature

Medenna knapp stalls kylskaps-ller frystemperaturen in.

Tryck pa knappen Fridge erer knappen Freezer for att justera temperatures.

• Temperaturen kan justeras.

Kylskap: frän 1^ till 7^
- Frys: fran -15 °C till -23 °C

• Den initiala temperaturen ar installd.

Kylskap: 3^
- Frys: -18 °C
