USER MANUAL DO212SV DOMO

www.domo-elektro.be RECYCLING INFORMATION This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

• Only in Belgium, the Netherlands, Luxemburg, France and Germany.

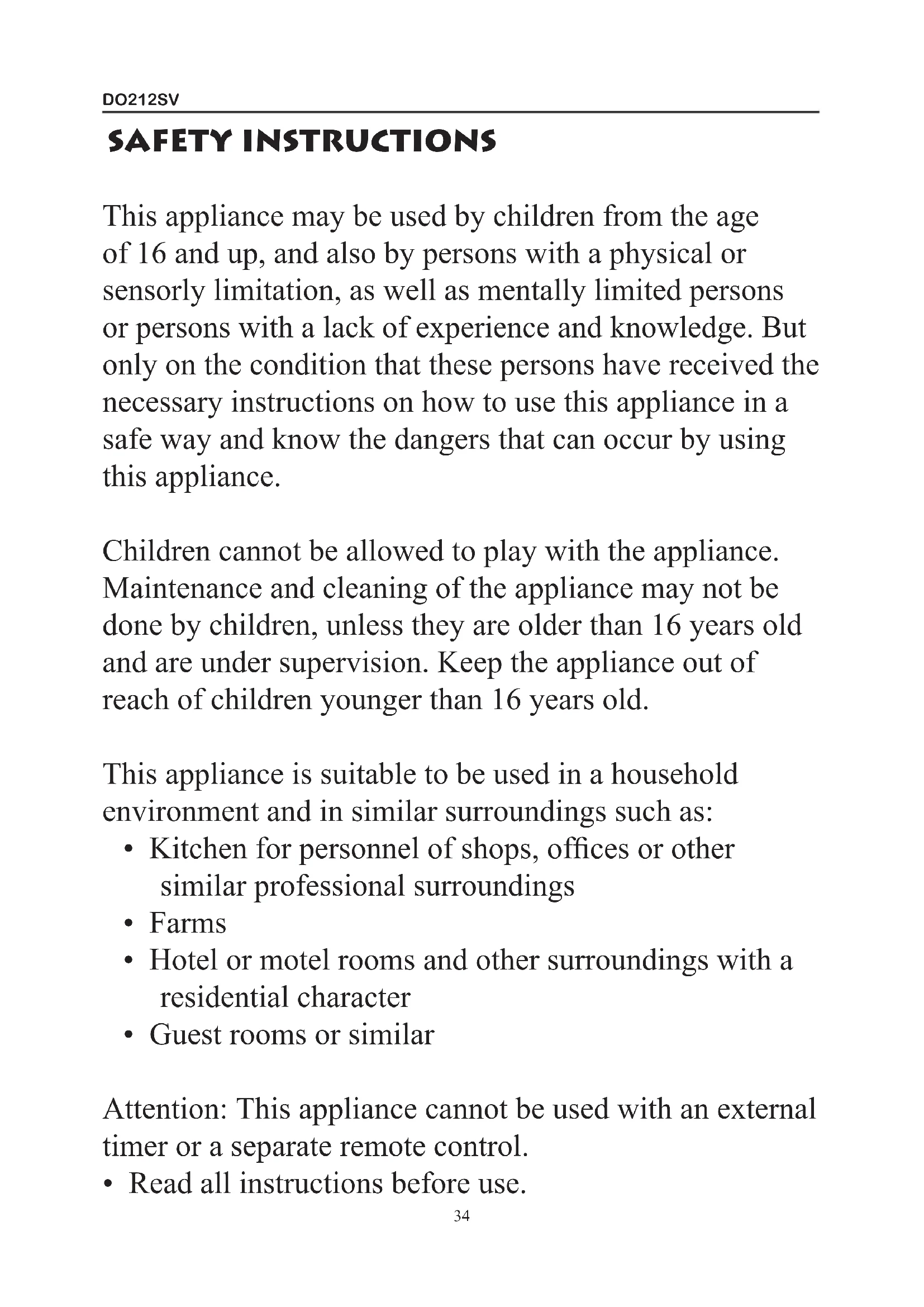

SAFETY INSTRUCTIONS This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance. Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old. This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, ofces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.DO212SV

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. TheDO212SV

manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

www.domo-elektro.be manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

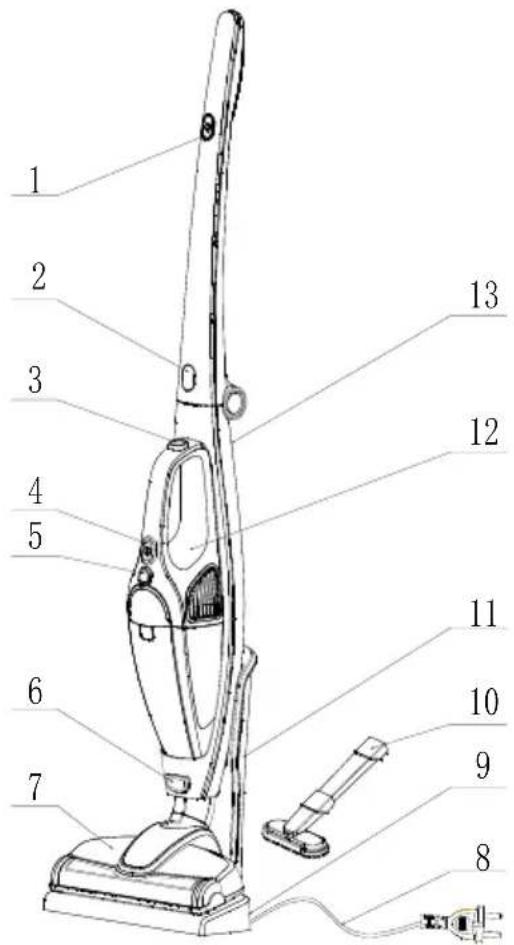

2. Button to bend the handle

3. Release button hand-held vacuum cleaner

4. On-off switch for hand-held vacuum

8. Charging station cord

10. 3-in-1 accessory

11. Support with contact points

12. Hand-held vacuum cleaner

13. Upright vacuum cleaner

• Straighten the handle of the stick vacuum until it clicks into position.

• Make sure that the oor nozzle is clicked on tightly to the stick vacuum cleaner.

• Place the hand-held vacuum into the stick vacuum cleaner so that it clicks into place. CHARGING STATION

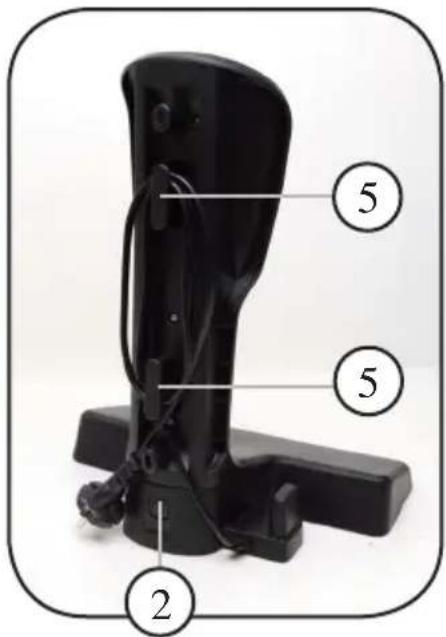

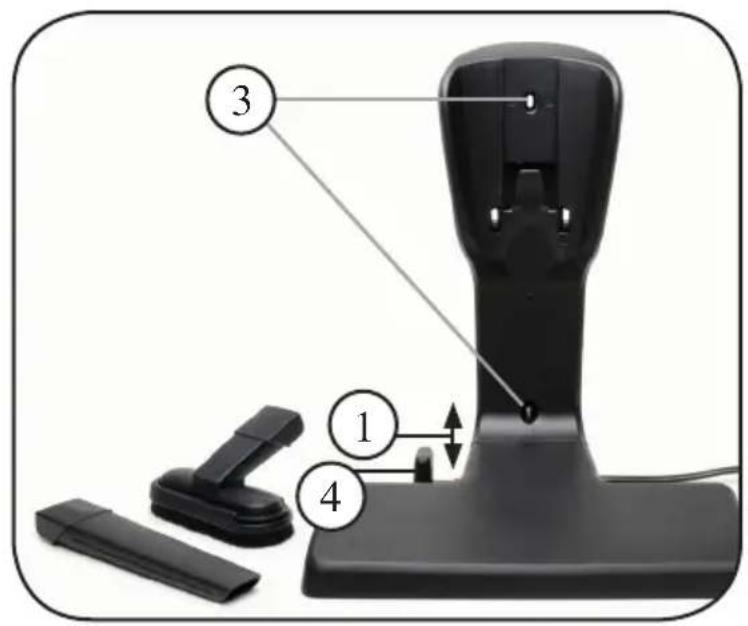

• Make sure that the support with the contact points is clicked tightly into the charging station (1). When you want to remove the support again, press on the button at the back of the charging station (2).

• The charging station may be attached to the wall for extra stability (3).

• The charging station has a holder for the accessories included (4).

• There are 2 hooks behind the support for storing the cord (5).DO212SV

1. Place the hand-held vacuum into the stick vacuum cleaner.

2. Put the stick vacuum cleaner into the charging station, so that the contact points on

the vacuum cleaner are aligned with the contact points on the charging station. Push the vacuum cleaner and the charging station together so that the stick vacuum cleaner remains standing vertically on the station. Make sure it all is stable.

3. Put the plug in the mains.

4. The light is red when the machine is charging. When charging is complete, the lamp

5. Then pull the plug from the outlet.

The machine cannot be started during charging. Note: the rst three times, the machine must be charged for 12 hours. Then the battery must always be completely empty before the machine is recharged. So wait until the machine stops during use before recharging it. Repeat this full battery charge cycle regularly, followed by complete draining of it to extend the life of the battery. Note: when the lamp blinks (2 times per second) there is something wrong and the machine must be taken in for repair.

• Press the on-off switch on the handle to turn the machine on. When you switch on the machine, the rotating oor brush at the bottom of the oor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. The dirt will be collected in the dust reservoir of the hand-held vacuum cleaner.

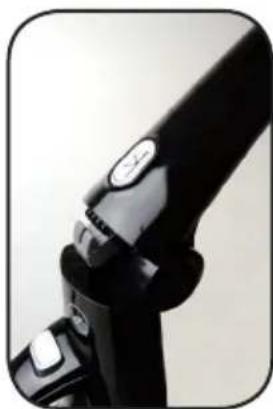

• Press the swivel button to bend the machine to better reach difcult places or for compact storage.

• Press the release button on the hand-held vacuum cleaner to remove the hand-held vacuum cleaner and only use the hand-held vacuum cleaner. To use just the hand- held vacuum, press the on-off switch on the hand-held vacuum cleaner.

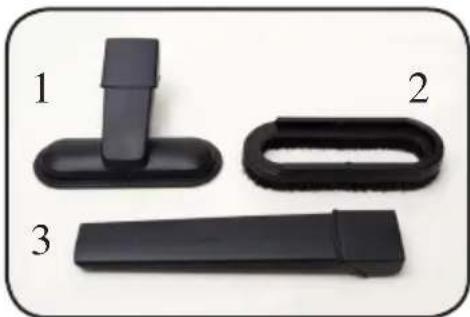

• The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if ngers become tangled in the oor brush. This is for personal safety and to protect the motor. Accessories You can attach the following accessories to the hand- held vacuum for more precise vacuuming tasks: Upholstery brush (1): for sofa, bed and other furniture Dust brush accessory (2), to be attached to the upholstery brush: for furniture, bookshelves, curtains and hard to clean surfaces. Crevice tool (3): for crevices, corners, stairs, keyboards,...

CLEANING AND MAINTENANCE

Cleaning the dust reservoir: Clean the dust reservoir after every use.

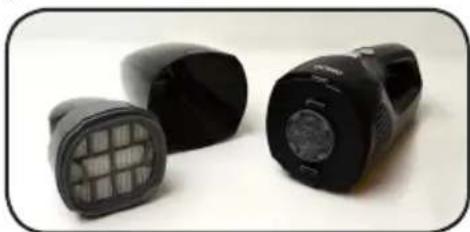

1. Remove the hand-held vacuum cleaner from the

stick vacuum and press the release button on the dust reservoir on the hand-held vacuum cleaner. Remove the dust reservoir from the motor section.

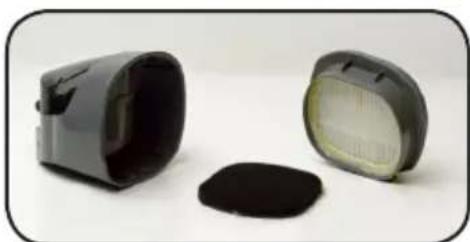

2. Then take the lters out of the dust reservoir.

3. Empty the dust reservoir.

4. Remove the dirt from the lters. The lters may be

cleaned under running water.

5. Do take care to dry them completely before using them again

We advise replacing the lters regularly to ensure an optimal operation of the machine. Dirty lters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the lter to extend the life span of your machine. Cleaning the oor brush:

1. Remove the oor nozzle from the upright vacuum

cleaner. Press the release button at the back of the oor n¬ozzle and remove it from the machine.

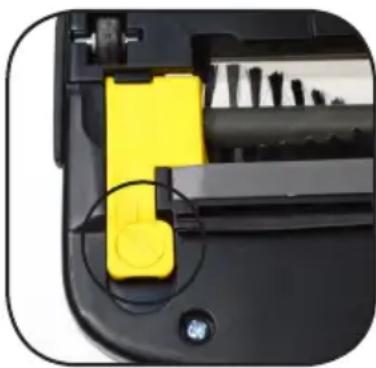

2. Turn the release under the oor nozzle to the left using a

screwdriver or coin, and remove the closure ap.

3. Remove the rotating oor brush from the oor nozzle.

4. Remove hairs and other dirt that have wrapped around

the oor b-rush. If you do not clean the oor brush regularly, it will become damaged and your machine will become unusable.

5. The rotating oor brush may be rinsed off under running water. Make sure that it is

completely dry before using it.

6. Place the oor brush back into the oor nozzle when it is clean.

7. But the closure ap back in place and secure by turning the release clockwise.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your oor. Always remove the hairs stuck on the brushes. Cleaning the machine: Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water! Storing the machine:

• Store the machine in a dry and clean place. Avoid extreme temperatures and long- term exposure to sunlight.

• To store the machine in a compact manner, you can fold up the stick by pressing on the button.DO212SV

The machine does not start up. - The battery is empty - Charge the machine. - The hand-held vacuum cleaner is not correctly mounted on the stick vacuum cleaner. Make sure that the hand-held vacuum cleaner is correctly installed. The machine does not vacuum. - The lters are dirty/ the dust reservoir is full. - The oor nozzle is clogged/the oor brush is blocked. - The nozzle opening is clogged - Clean the machine as described in this manual. The indicator light does not burn while charging. - The hand-held vacuum cleaner is not correctly mounted on the stick vacuum cleaner. Make sure that the hand-held vacuum cleaner is correctly installed. The running time of the machine is shorter and shorter - The machine is not sufciently charged. - The battery is broken or old. - Charge the machine fully and try again - Replace the battery.DO212SV
