USER MANUAL KM 7280 W GRUNDIG

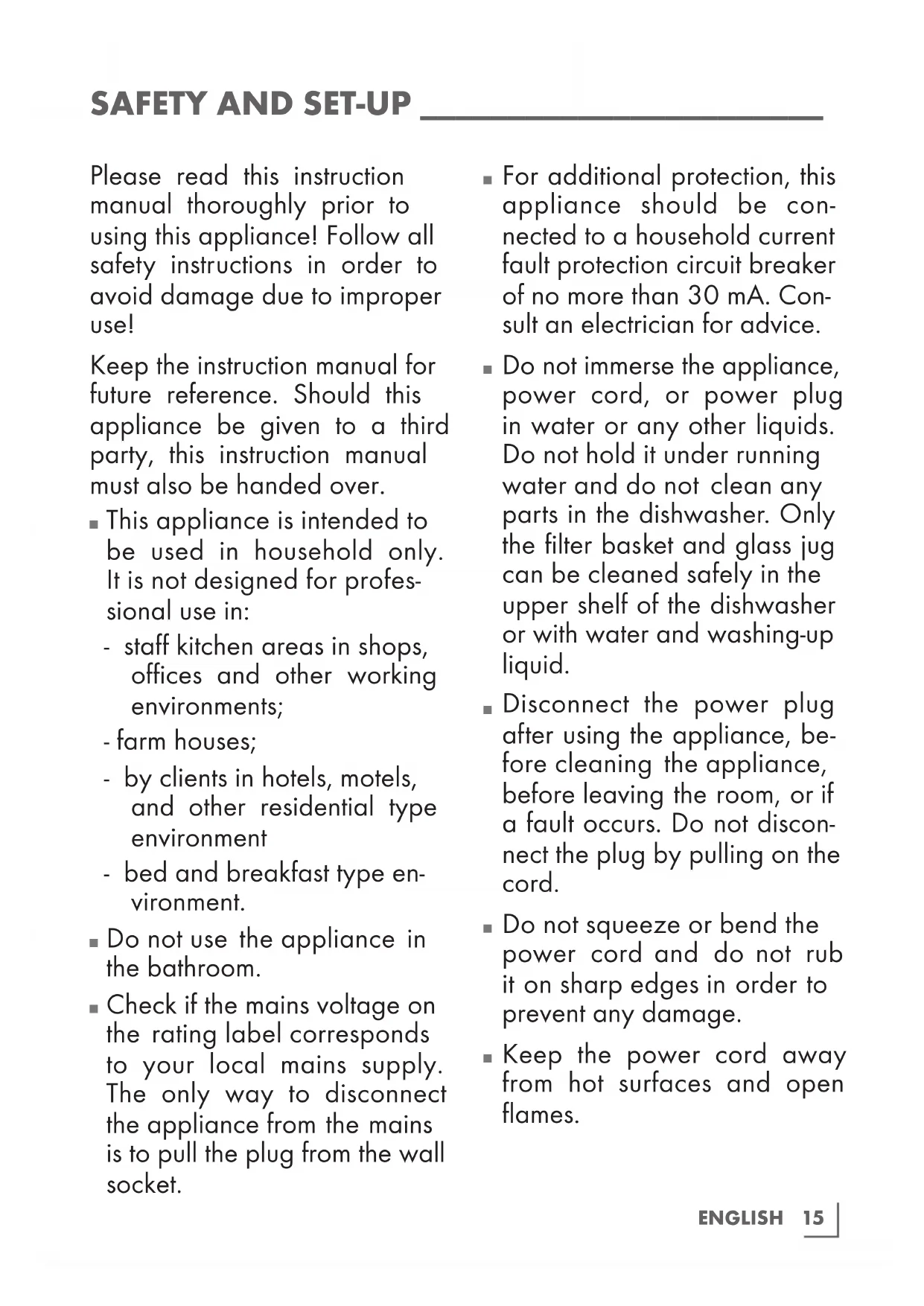

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, this instruction manual must also be handed over.

This appliance is intended to be used in household only. It is not designed for profes- sional use in: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels, and other residential type environment - bed and breakfast type en- vironment.

Do not use the appliance in the bathroom.

Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull the plug from the wall socket.

For additional protection, this appliance should be con- nected to a household current fault protection circuit breaker of no more than 30 mA. Con- sult an electrician for advice.

Do not immerse the appliance, power cord, or power plug in water or any other liquids. Do not hold it under running water and do not clean any parts in the dishwasher. Only the filter basket and glass jug can be cleaned safely in the upper shelf of the dishwasher or with water and washing-up liquid.

Disconnect the power plug after using the appliance, be- fore cleaning the appliance, before leaving the room, or if a fault occurs. Do not discon- nect the plug by pulling on the cord.

Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.

Keep the power cord away from hot surfaces and open flames.16 ENGLISH

Do not use an extension cord with the appliance.

Never use the appliance if the power cord or the appliance is damaged.

Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by an authorised service centre to avoid any dangers. Faulty or unqualified repair work may be danger- ous and cause risk to the user.

Do not dismantle the ap- pliance under any circum- stances. No warranty claims are accepted for damage caused by improper handling.

Always keep the appliance and its cord out of reach of children aged less than 8 years.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and super- vised.

Children shall not play with the appliance.

Before using the appliance for the first time, clean all parts which come into contact with water or coffee carefully. Please see full details in the “Cleaning and Care” section.

Dry the appliance and all ac- cessories before connecting it to mains supply and before at- taching any parts.

Never operate or place any part of this appliance on or near hot surfaces such as a gas burner, hotplate or heated oven.

Do not use the appliance for anything other than its in- tended use. The coffee maker is designed for preparing coffee. Do not use the appli- ance to heat any other liquids or tinned, jarred, and bottled foods.

Never use the appliance in or near to combustible or inflam- mable places and materials.

Operate the appliance only with the delivered parts.

Do not use the appliance with damp or wet hands.

Always use the appliance on a stable, flat, clean dry, and non-slip surface.

Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.

Position the appliance in such a way that the plug is always accessible.

Avoid contact with hot sur- faces and hold the glass jug by the handle only as there is the danger of burning. The glass jug becomes hot during use.

Do not move the appliance while there is hot liquid in the glass jug or if the appliance is still hot.

Do not open the cover or fil- ter basket during the brewing process.

Never fill the appliance above the maximum level indicator. If it is filled above the maxi- mum level, water flows out of the appliance through safety drainage.

Never operate the appliance if no coffee is brewed or kept warm.

Only fill the appliance with cold and fresh drinking water.

The appliance should not be operated with an external clock timer or separate remote control system.

Use the glass jug only with the coffee maker.

Never operate the appliance without water inside.

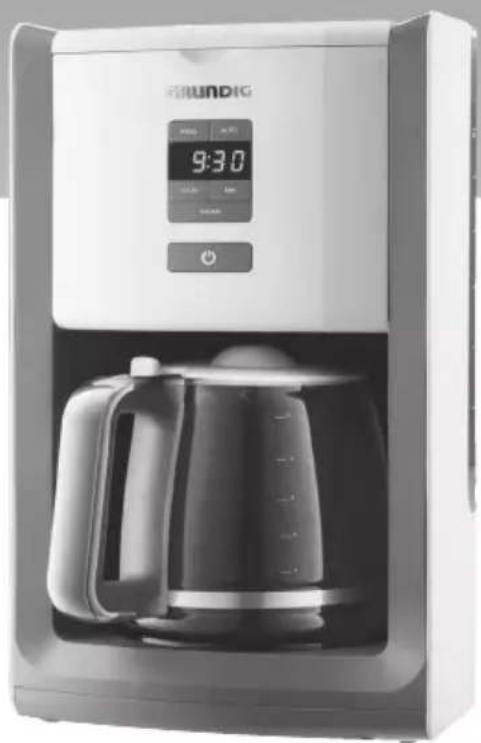

Do not use a cracked glass jug or a glass jug with a loose or weakened handle.18 ENGLISH Dear Customer, Congratulations on the purchase of your new GRUNDIG Programmable Coffee Maker KM 7280 / KM 7280 W/G. Please read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come. A responsible approach! GRUNDIG focuses on contractu- ally agreed social working condi- tions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our acces- sories are available for at least 5 years. For a future worth living. For a good reason. Grundig. Controls and parts See the figure on page 3.

Setting button for minutes

Setting button for hours

On/Off button Accessories Coffee measuring spoon

AT A GLANCE _____________________________19

ENGLISH Preparation Caution

First time use: Run the appliance at least 4 times without adding coffee.

Please follow the steps 1 - 2 and 7 - 12 in the “Brewing Coffee” section. 1 Remove all packaging and stickers and dispose of them according to applicable legal regulations. 2 Before using the appliance for the first time, clean all parts which come into contact with water carefully. Please see full details in the “Cleaning and Care” section. 3 Make sure that the appliance is placed in an upright position and on a stable, flat, clean, dry and non-slip surface. Brewing Coffee 1 Pull off and fill the water tank

with the required amount of water, but do not fill past the “12” mark. The brewed amount of coffee will be 10% less than the filled water, because it is absorbed by the coffee grounds and the fillter. The scale on the glass jug is marked in coffee cups, e.g. 4 = 4 cups. For the good coffee taste it is suggested to operate the appliance with at least 4 cups coffee serving. Notes

Use only clean, cold and fresh drinking water.

There is a drip hole on the back of the water reservoir to prevent exceeding the capacity of the coffee maker. If you add too much water, it will drip out from the back of the unit. 2 Close the water tank cover

and open the filter basket cover

4 Take a suitable paper filter (1 x 4) and insert the paper filter into the filter basket

and close the filter basket cover

Use only one paper filter at each time. Make sure that the paper filter does not bend or fold. 5 Fill the filter with the desired amount of ground coffee. To do this, you may use the supplied measuring spoon. 6 Insert the filter basket

back into the housing. 7 Place the glass jug

on the warming plate

is not closed or the glass jug

is not placed accurately, the drip-stop function will not work properly. It could cause hot water or work hot coffee to overflow. 8 Connect the plug to the wall socket. 9 Turn the appliance on by pushing the On/Off button

illuminates and the brewing process begins. Notes

The brewing process can be stopped at any time by pushing the On/Off button

allow the steam output. Do not block these during use.

The coffee machine has a stay-warm function and can keep the brewed coffee warm for up to 30 minutes when the machine is switched on. In accordance with eco design guidelines, the machine will automatically switch itself off after this time.

The appliance is equipped with a drip-stop

located underneath the filter basket

Make sure to place the glass jug

on the warming plate

quickly (max. 30 seconds). Otherwise the brewed coffee from the filter could overflow. If you want to use the glass jug for more than 30 seconds switch off the appliance.

during the brewing process even if no water is draining from the filter. Extremely hot water or coffee can spill out from the filter basket and cause injury.

If water/coffee is not draining from the filter basket

after several seconds with the glass jug

immediately un- plug the unit and wait 10 minutes before open- ing and checking the filter basket

When the brewing process ends and the water level indicator

is empty, there will still be hot liquid in the filter basket

. Wait a few minutes for the rest of the liquid to drip into the glass jug

from the warming plate

as soon as the brewing process has finished and the glass jug

is filled. The coffee is ready. 11 To turn the appliance off, push the On/Off button

12 Disconnect the appliance from the wall socket. Notes

If you want to continue the brewing process, repeat the procedure from 1 to 12. Let the ap- pliance cool down at least 15 minutes between each brewing process.

which activates a unique brewing process that en- hances the flavor and aroma of your coffee. To reach this rich flavor, the coffee maker ad- vances through several continuous cycles. This special time-release process saturates grounds gradually to extract the best favor and aroma. Hints and Tips

Use softened or filtered water to prevent lime build-up.

Store unused coffee in a cool, dry place. After opening a package of coffee reseal it tightly to maintain its freshness.

Do not reuse the coffee sediment in the filter since this will reduce the flavour.

Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing. Automatic brewing Note

In order to use the auto brew function you must first set the clock. Setting the clock 1 Press the settings button for hours

to set the current hour. – Press and hold the button to advance the numbers quickly. 2 Press the settings button for minutes

to set the current minute. – Press and hold the button to advance the numbers quickly. Setting the auto brew function 1 Follow the steps 1 - 8 in the “Brewing Coffee” section. 2 Press the Program button

to set the desired auto brew time. – Program button illuminates. 3 Set the time you want the appliance to begin brewing by using the Settings button for hours

and the Settings button for minutes

To check your auto brew start time, simply press the Program button

. The set time will be dis- played for a few seconds on the display

. It will automatically return to current time.21 ENGLISH Cleaning and care Caution

Never use petrol, solvents, abrasive cleaners, or metal objects and hard brushes to clean the appliance.

Never put the appliance or power cord in water or any other liquid. 1 Turn the appliance of and disconnect it from the wall socket. 2 Allow the appliance to cool down. 3 Remove the glass jug

4 Open the filter basket cover

. Remove the paper filter with the coffee sediment and dispose of it. 6 Clean the filter basket

by placing under running water and using a small amount of mild cleanser. The filter basket

can be cleaned in the upper shelf of the dishwasher or under running water. 7 Use a damp soft cloth and some mild cleanser to clean the exterior of the appliance. 8 Insert the filter basket

back into the housing and close the filter basket cover

onto the warming plate

Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel. INFORMATION ___________________________ 4 Press the Auto on button

will illuminate. 5 The coffee maker will automatically begin brewing at the preset time. Notes

will turn off and the On/Off button

will illuminate to indicate the coffee maker is in operation.

To shut the auto brew function off, simply press the Auto on button

again. The light will turn off. OPERATION ______________________________ 6 Remove the glass jug

from the warming plate

, as soon as the brewing process has finished and the glass jug

is filled. The coffee is ready. 7 To turn the appliance off, push the On/Off button

which activates a unique brewing process that en- hances the flavor and aroma of your coffee. To reach this rich flavor, the coffee maker ad- vances through several continuous cycles.22 ENGLISH INFORMATION ___________________________ Descaling the appliance Descaling extends the life of your appliance. Descale your coffee maker at least 4 times per year. The period depends on the water hardness in your area. The harder the water is, the more often the appliance has to be descaled. 1 Purchase a suitable descaler from a speciality store. Please ask naming the device. 2 Prior to commencing the descaling process thoroughly read the manufacturer’s package insert of the descaler. Should the manufacturer’s instructions differ from the ones listed below, then follow the manufacturer’s instructions. Note

You can also use white vinegar and lemon acid instead of a commercially available descaler. 3 Fill the water tank to the “12” mark and add descaler. Mixing ratio: 4 parts water to 1 part descaler. 4 Turn the appliance on and allow approximately one large coffee cup to run through the appliance. 5 Turn the appliance off. 6 Let the mixture soak for about 15 minutes. 7 Repeat steps 4 – 6. 8 Now turn the appliance on and let the entire mixture run through. 9 Fill the water tank with cold, fresh drinking water and run all the water through. 10 Repeat step 9 four times. 11 Now you may brew coffee again. Storage If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged and completely dry. Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of chil- dren. Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of elec- trical and electronic equipment. Please consult your local authorities to learn about these collec- tion centers. Compliance with RoHS Di- rective The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials speci- fied in the Directive. Package information Packaging materials of the product are manufactured from recyclable materi- als in accordance with our National Environment Regulations. Do not dis- pose of the packaging materials together with the domestic or other wastes. Take them to the pack- aging material collection points designated by the local authorities. Technical data

, 50/60 Hz Power: 840 -1000 W Max. water volume: 1.8 L Technical and design modifications reserved.23
