Product type	Hair dryer
Brand	Grundig
Model	HD 4880
Power supply	220-240 V~, 50/60 Hz
Power	2100-2400 W
Insulation class	II
Technology	Ionic
Included accessories	Fine concentrator nozzle
Temperature levels	3 (low, moderate, high)
Fan speed levels	3 (off, gentle, strong)
Cool air function	Yes (lock button)
Safety	Overheating protection
Air intake grille	Removable for cleaning
Power cord	With hanging loop
Cable length	Approx. 1.8 m (estimated)
Weight	Approx. 500 g (estimated)
Care and cleaning	Clean with a soft, dry cloth; do not immerse

Frequently Asked Questions - HD 4880 GRUNDIG

Can the Grundig HD 4880 hairdryer be used in a bathroom?

Use in a bathroom is not recommended unless it is safe. Never use near a bathtub, shower, or sink filled with water. Always unplug after use and install an FI circuit breaker (30 mA) for additional protection.

How to clean the Grundig HD 4880 hairdryer?

Unplug the appliance and let it cool down. Clean the exterior with a soft, dry cloth. The removable air intake grille can be removed and cleaned separately. Do not immerse in water or use harsh cleaning agents.

What to do if the hairdryer stops during use?

The appliance is equipped with overheating protection. If it stops, unplug it, let it cool down for a few minutes, then check that the air intake grilles are not blocked. You can then plug it back in.

Is the Grundig HD 4880 suitable for children?

This appliance can be used by children aged 8 and above under supervision. Children must not play with it. Cleaning and maintenance should not be performed by children without supervision.

What is the required voltage for the Grundig HD 4880?

The appliance operates on a power supply of 220-240 V~, 50/60 Hz. Check that your mains socket matches the voltage indicated on the appliance's rating plate.

What accessories are included with the Grundig HD 4880 hairdryer?

The hairdryer comes with a fine concentrator nozzle (A) for precise drying. No other accessories are included.

How to use the cool shot function?

The cool shot function (C) allows you to turn off the heating and blow cold air to set the hairstyle. Press the button on the handle to activate this function.

How to maintain the power cord?

Never wrap the cord around the appliance to avoid damage. Check its condition regularly. If the cord is damaged, have it replaced by an authorized service center.

Does the Grundig HD 4880 produce ions?

Yes, this model features ionic technology (Ionic) which helps reduce frizz and make hair shinier.

How to recycle the hairdryer at the end of its life?

Do not dispose of the appliance with household waste. It is subject to the WEEE directive (2012/19/EU). Take it to a collection point for electrical and electronic equipment.

USER MANUAL HD 4880 GRUNDIG

Abstract line drawing of a human head profile with curved lines (no text or symbols)

HD 4880

Illustration of a woman holding her breast with a red prohibition symbol (no text or labels)

Safety warning sign showing no protection for a hand holding a device, with an electrical outlet above.

Diagram of a handheld device with red directional arrows indicating motion (no text or symbols)

3

4 2 1

Illustration of a person holding a tool, no text or symbols present

7 2 1 ✓

8

1

Prohibition sign with a hand holding a tool and a red circle containing an arrow symbol, indicating no prohibition or disapproval.

Prohibition sign with crossed-out electrical plug and plug, indicating no protection or resistance

Illustration of a hand holding a medical device with a no-smoking symbol (no text or labels)

Illustration of a hand holding a medical device with a no-smoking symbol (no text or labels)

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

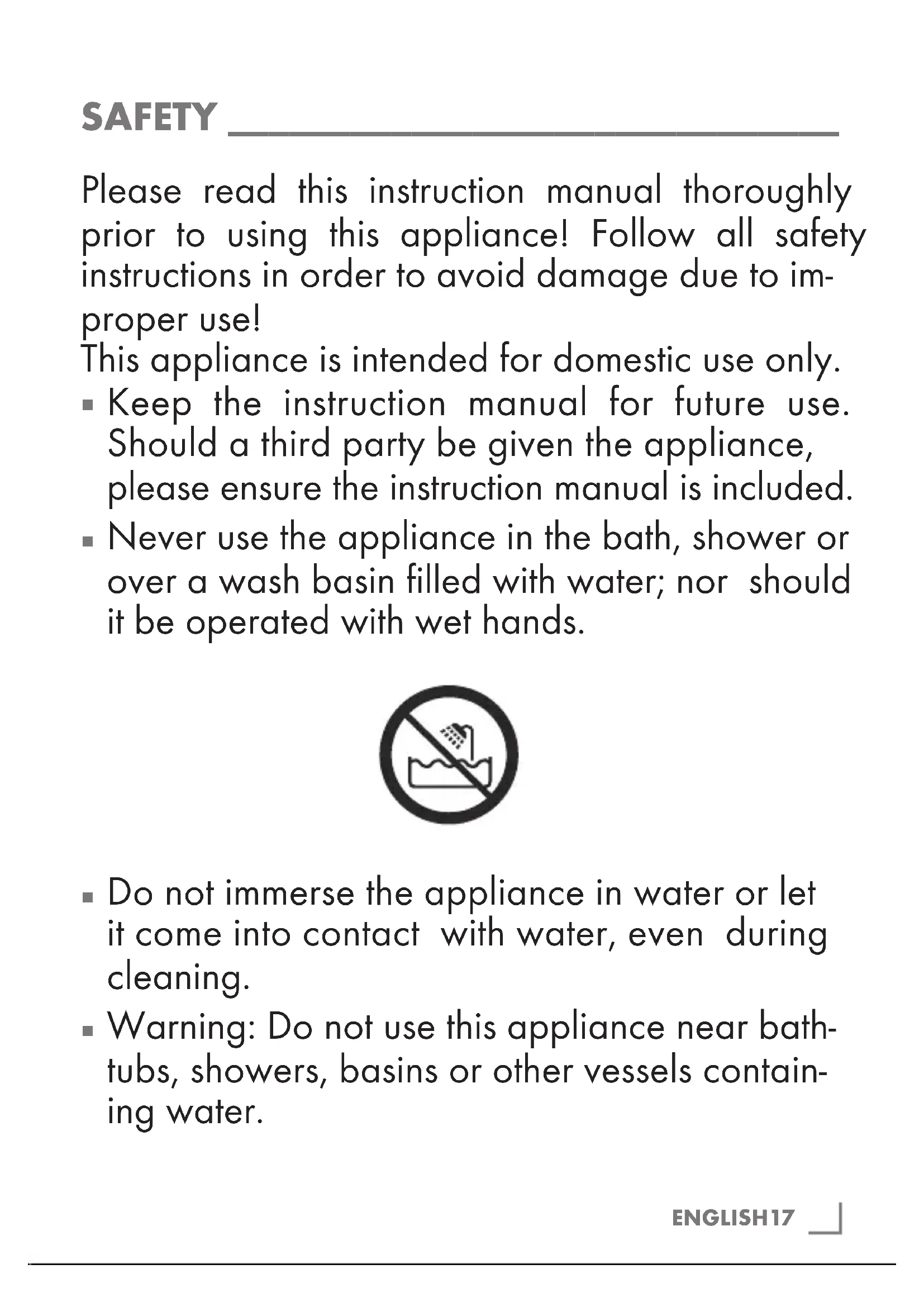

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

This appliance is intended for domestic use only.

• Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.
  ■ Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Prohibition sign showing a shower stroke over water with no text or symbols

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
  ■ Warning: Do not use this appliance near bath-tubs, showers, basins or other vessels containing water.

■ Before cleaning or user maintenance operation first plug out.
- If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.
- For additional protection, It is recommended you to install a residual current device (RCD) having a rated residual operating current not exceeding 30 mA in the electrical circuit supplying the bathroom. Ask your installer for advice.
■ Never place the appliance on soft cushions or blankets during operation.
- Ensure that the air induction and output openings are not covered during operation.
■ The appliance is equipped with an overheating protection system.

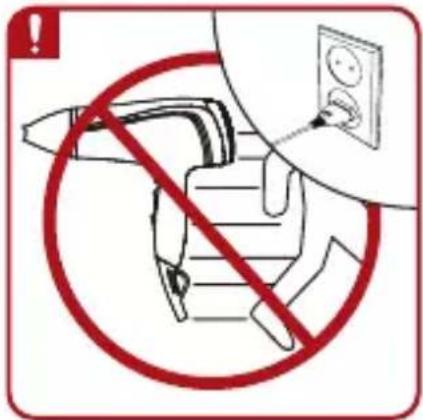

■ Unplug the appliance after use. Do not disconnect the plug by pulling on the cord.
■ Never use the appliance if it or the power cord is visibly damaged.

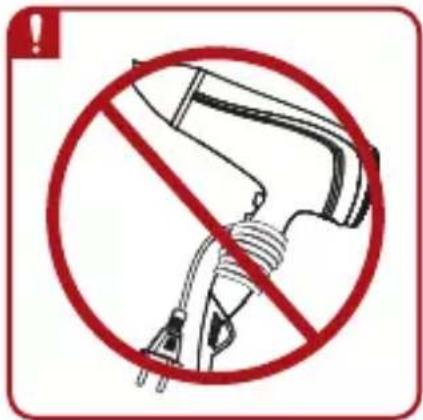

• Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
  ■ Always keep the appliance out of the reach of children.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

• A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, adjust the usage time of the appliance to the accessory being used.

Dear customer,

congratulations on the purchase of your GRUNDIG Ionic Hair Dryer HD 4880.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:

Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

Controls and parts

See the figure on page 3.

A Slim concentrator nozzle
B Detachable air inlet grille
Cool Shot
D Temperature level
E Speed level
F Power cord with hanging loop

Settings

Your appliance has the following settings:

Cool Shot C

- ✱ Disconnects the hot air flow and lets cold air flow out

Temperature level D

• ) : Low temperature
• : Moderate temperature for gently drying and styling
• : high temperature for fast drying

Speed level E

-0 : off
- * : gentle air flow
- ✗: strong air flow

Notes

• Check if the mains voltage on the type plate on the handle of the appliance corresponds to your local mains supply.
  ■ The Cool Shot interrupts the hot air with a flow of cold air. This allows you to fix your hairstyle better and more lastingly.

- At first use, an odor may occur due to the lubricant on the parts, this odor will pass over time.

Caution

■ Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

INFORMATION

Cleaning and care

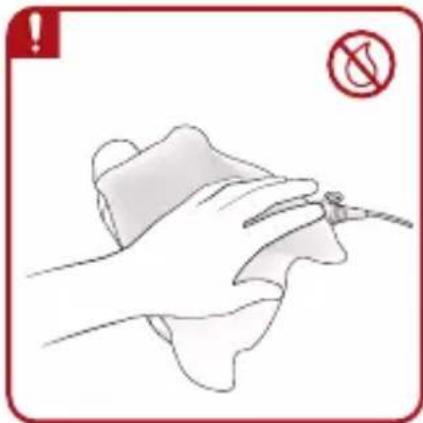

■ Turn the appliance off and unplug the power cord from the wall socket.
■ Before cleaning, allow the appliance to cool down. The appliance can become very hot.

Note

■ Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged, has completely cooled down and is completely dry.
- Do not wrap the power cord around the appliance.
- Keep the appliance in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance.

Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240 V\~, 50/60Hz

Power: 2100-2400 W

Electrical insulation class: II

Technical and design modifications reserved.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

Prohibition sign showing a shower stroke over water with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Prohibition sign showing a showerhead spraying water, enclosed in a circle with no text

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Prohibition sign showing a shower stroke over water with no text or symbols

Cher client, chère cliente,

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Prohibition sign showing a showerhead spraying water, enclosed in a circle with no text.

- Ne uranjajte uređaj u vodu i pazite da ne dođe u kontakt s vodom, čak i tijekom čišćenja.

- Upozorenje: ne upotrebljavajte uređaj blizu kada, tuševa, umivaonika ni drugih posuda koji sadrže vodu.

Razina temperature D

• }: Niska temperatura
  – : Umjerena temperatura za nježno sušenje i oblikovanje frizure
• visoka temperatura za brzo sušenje

Razina puhanja E

Symbol of a trash bin crossed with diagonal lines and a black rectangular base (no text or numbers)

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpadom na kra- ju njegovog radnog vijeka.

Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskorištenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

Sukladnost s Direktivom RoHS

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)
