USER MANUAL CSMTZ16TKE PANASONIC

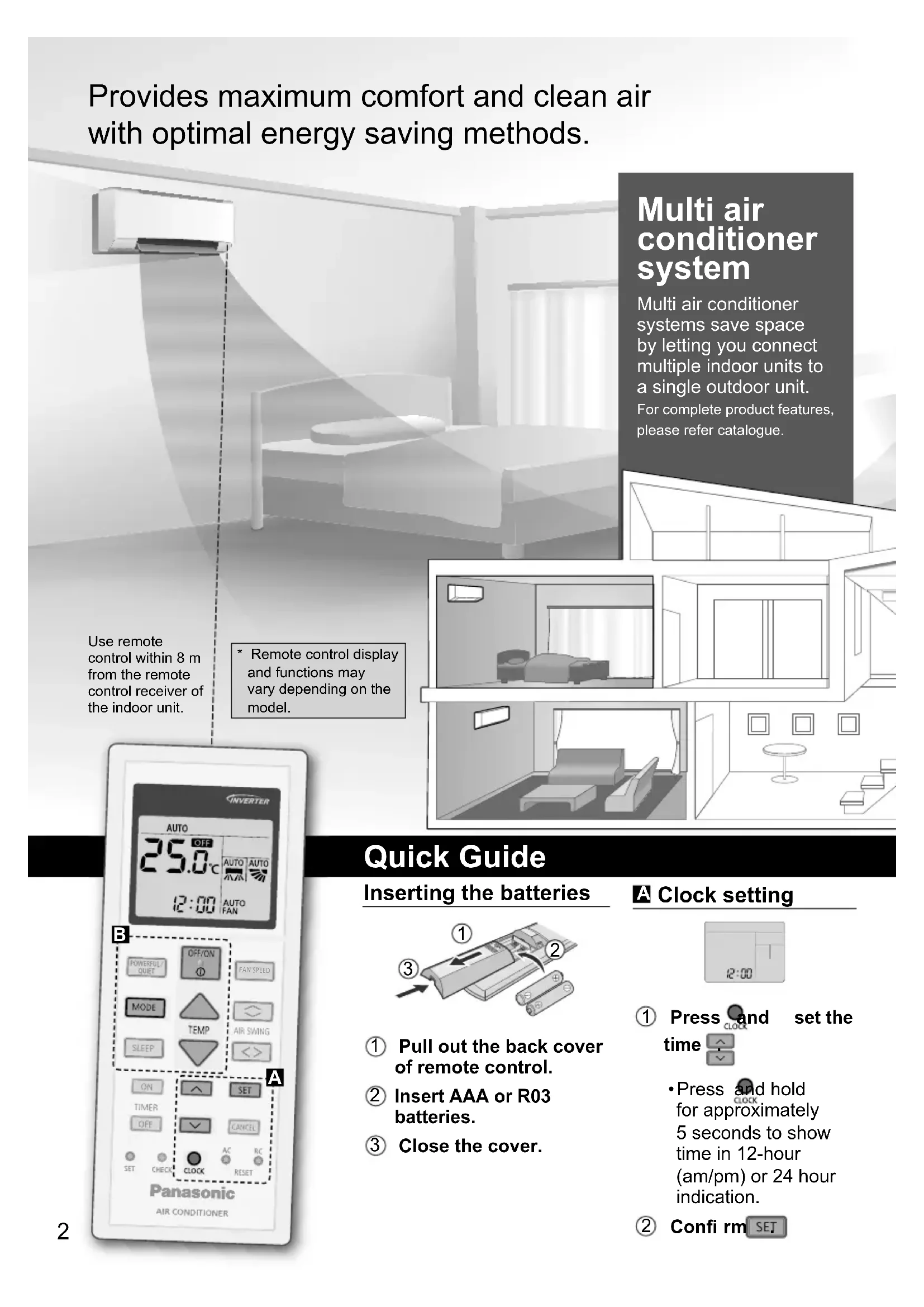

Pull out the back cover of remote control.

Press and set the time .

• Press and hold for approximately 5 seconds to show time in 12-hour (am/pm) or 24 hour indication.

• Remote control display and functions may vary depending on the model. FAN SPEED FAN SPEED

10-11 Cleaning instructions

• Remote control holder

• Screws for remote control holder × 2 The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

Press to start/ stop the operation. POWER

• Please note that the indication is on display to start the unit.

Select the desired temperature.

• Press and hold for approximately 10 seconds to switch the temperature indication in °C or °F. Thank you for purchasing Panasonic Air Conditioner. ACXF55-04100_01EN.indd 3ACXF55-04100_01EN.indd 3 12/19/2016 5:29:55 PM12/19/2016 5:29:55 PM4 Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: This appliance is not intended for accessibility by the general public. For appliance fi lled with R32 (mild fl ammable refrigerant). If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fi re. WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classifi ed by the following symbols: This symbol denotes an action that is PROHIBITED.These symbols denote actions COMPULSORY. WARNING Indoor unit and outdoor unit This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re. Confi rm with authorised dealer or specialist on usage of any specifi ed refrigerant type. Using refrigerant type other than the specifi ed may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re. Do not insert your fi ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Indoor unitOutdoor unitPower supplyRemote controlAir inletAir inletAir inletAir inletAir outletAir outletAir outletAir outlet ACXF55-04100_01EN.indd 4ACXF55-04100_01EN.indd 4 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM5 EnglishSafety precautions Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Remote control Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Power supply Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. To prevent overheating, fi re or electric shock:

• Do not share the same power outlet with other equipment.

• Do not operate with wet hands.

• Do not over bend the power supply cord.

• Do not operate or stop the unit by inserting or pulling out the power plug. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualifi ed persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re. To prevent overheating, fi re or electric shock:

• Insert the power plug properly.

• Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure

• The ELCB trips frequently.

• Burning smell is observed.

• Abnormal noise or vibration of the unit is observed.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is switched on for operation.

• The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/ repair. This equipment must be earthed to prevent electrical shock or fi re. Prevent electric shock by switching off the power supply and unplug: -Before cleaning or servicing, -When extended non-use, or -During abnormally strong lightning activity. ACXF55-04100_01EN.indd 5ACXF55-04100_01EN.indd 5 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM6 Safety precautions WARNING Precaution for appliance fi lled with R32 Pay careful attention to the following points when operating the appliances and dealing with different refrigerants. The appliance shall be installed, and/or operated in a room with fl oor area larger than A min (m²) and keep away from ignition sources, such as heat/sparks/ open fl ame or hazardous areas such as gas appliances, gas cooking, reticulated gas supply systems or electric cooking appliances, etc. (Refer to Table A of Installation instructions table for A min (m²)) Be aware that refrigerant may not contain an odour, highly recommended to ensure suitable fl ammable refrigerant gas detectors are present, operating and able to warn of a leak. Since the working pressure is higher than that of refrigerant R22 models, some of the piping and installation and service tools are special. Especially, when replacing a refrigerant R22 model with a new refrigerant R32 model, always replace the conventional piping and fl are nuts with the R32 and R410A piping and fl are nuts on the outdoor unit side. The R32 fl are nut and pipe on the outdoor unit side can also be used for a R410A model. Models that use refrigerant R32 and R410A have a different charging port thread diameter to prevent erroneous charging with refrigerant R22 and for safety. Therefore, check beforehand. [The charging port thread diameter for R32 and R410A is

12.7 mm (1/2 inch).]

Be extra careful so that foreign matter (oil, water, etc.) does not enter the piping. Also, when storing the piping, securely seal the opening by pinching, taping, etc. (Handling of R32 is similar to R410A.) This appliance shall be stored in a well ventilated area. This appliance shall be stored in a room without continuously operating open fl ames and ignition sources. This appliance shall be stored so as to prevent mechanical damage from occurring. Do not use means to accelerate the defrosting process or to clean, other than those recommended by manufacturer. Any unfi t method or using incompatible material may cause product damage, burst and serious injury. Do not pierce or burn as the appliance is pressurized. Do not expose the appliance to heat, fl ame, sparks, or other sources of ignition. Else it may explode and cause injury or death. ACXF55-04100_01EN.indd 6ACXF55-04100_01EN.indd 6 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM7 English CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airfl ow outlet to avoid fi re propagation. Do not expose plants or pet directly to airfl ow to avoid injury, etc. Do not touch the sharp aluminium fi n, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during operation, it may lead to ineffi cient power usage and uncomfortable temperature changes. Safety precautions Prevent water leakage by ensuring drainage pipe is: -Connected properly, - Kept clear of gutters and containers, or -Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:

• Remove the batteries if the unit is not going to be used for a long period of time.

• New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock. ACXF55-04100_01EN.indd 7ACXF55-04100_01EN.indd 7 12/19/2016 5:29:56 PM12/19/2016 5:29:56 PM8 How to use To adjust airfl ow direction To adjust fan speed To switch between powerful/quiet POWERFUL: To reach the preset temperature quickly

• This operation stops automatically after 20 minutes. QUIET: To enjoy quiet operation

• This operation reduces airfl ow noise.

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

• To have low noise priority operation, select the lowest fan speed (

• Do not adjust the fl ap by hand. To adjust airfl ow direction To adjust airfl ow direction AIR SWINGUpper direction (CS-TE/TZ20/25/35/42TKEW, CS-MTZ16TKE) To adjust airfl ow direction AIR SWINGUpper directionLateral direction (CS-TE50/60TKEW, CS-TZ50/60/71TKEW)

• For lateral direction, it is manually adjustable as shown.

• Do not adjust the fl ap by hand. CS-TE50/60TKEW CS-TZ50/60/71TKEW FAN SPEED Not used in normal operations. Press to restore the remote control to default setting.

• Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time.

• Each time pressed: Cancel 2 Set the time 3 Confi rm

• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing or to select respective or then press .

• The nearest timer setting will be displayed and will activate in sequence.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick Guide. 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times. How to use To maximise comfort while sleeping

This operation can be set together with timer. Sleep operation has the priority over OFF timer.

This operation can be cancelled by pressing the respective button when the sleep timer reaches 0.0h. This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period. The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed. SLEEP (Cancel) This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours). ACXF55-04100_01EN.indd 9ACXF55-04100_01EN.indd 9 12/19/2016 5:29:57 PM12/19/2016 5:29:57 PM10 Operation mode AUTO : During operation, the POWER indicator will blinks at initial. Single

• Unit selects operation mode every 10 minutes according to the setting and room temperatures. Multi

• Unit selects operation mode every 3 hours according to setting temperature, outdoor temperature and room temperature.

• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the fi rst unit that turned on.

• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.

• The power indicator blinks to indicate the indoor unit is standing by for different operation mode. HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while to warm up. Multi

• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks. COOL : Provides effi cient comfort cooling to suit your needs. DRY : Unit operates at low fan speed to give a gentle cooling operation. Energy saving temperature setting Operating the unit within the recommended temperature range may save energy.

f AUTO is set, the fl ap swings left/right and up/down automatically. In HEAT mode: If AUTO is set, the horizontal fl ap is fi xed at the predetermined position. The vertical fl ap swings left/right after the temperature rises. Auto restart control If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airfl ow direction.

• This control is not applicable when TIMER is set. To learn more... ACXF55-04100_01EN.indd 10ACXF55-04100_01EN.indd 10 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM11 English Operating conditions Use this air conditioner in the temperature range indicated in the table. Temperature °C (°F) Indoor Single split outdoor unit

Multi split outdoor unit *

DBT WBT DBT WBT DBT WBT

DBT WBT COOL Max. 43 (109.4) 26 (78.8) Min. 16 (60.8) 11 (51.8) HEAT Max. 24 (75.2) 18 (64.4) Min. -10 (14.0) -11 (12.2) DBT: Dry bulb temperature, WBT: Wet bulb temperature

CU-2RE15SBE, CU-2RE18SBE, CU-3RE18SBE, CU-2TZ41TBE, CU-2TZ50TBE, CU-3TZ52TBE To learn more... ACXF55-04100_01EN.indd 11ACXF55-04100_01EN.indd 11 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM12 Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H 99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap ( pH 7) or neutral household detergent.

• Do not use water hotter than 40 °C / 104 °F. Indoor unit Wipe the unit gently with a soft, dry cloth. Outdoor unit Make sure the air outlet of the outdoor unit is not blocked by fallen leaves or snow. Clear any blockage from the drain pipe. Air fi lters Once every 2 weeks

• Wash/rinse the fi lters gently with water to avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under shade, away from fi re or direct sunlight.

• Replace any damaged fi lters. Remove air fi lter Attach air fi lter Insert into the unit Front panel Wash gently and dry. Remove the front panel Close it securely

Release the hooks at both ends.

Pull out and lift up.

Insert at both sides.

Press both ends and center of the front panel. Indoor unit Aluminium fi n Front panel Air fi lters Air Purifying Filter

• Do not wash/rinse the fi lter with water.

• Replace the fi lter every 2 years or replace any damaged fi lter. Part no.: CZ-SA31P Air Purifying Filter Air Purifying Filter (CS-TE50/60TKEW, CS-TZ50/60/71TKEW) Air Purifying Filter (CS-TE/TZ20/25/ 35/42TKEW, CS-MTZ16TKE) ACXF55-04100_01EN.indd 12ACXF55-04100_01EN.indd 12 12/19/2016 5:29:58 PM12/19/2016 5:29:58 PM13 English The following symptoms do not indicate malfunction. Symptom Cause Mist emerges from indoor unit. • Condensation effect due to cooling process. Water fl owing sound during operation. • Refrigerant fl ow inside the unit. The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic fan speed setting.

• This helps to remove the surrounding odour. Airfl ow continues even after operation has stopped.

• Extraction of remaining heat from the indoor unit (maximum 30 seconds). Operation is delayed a few minutes after restarting.

• The delay is a protection to the unit’s compressor. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. TIMER indicator is always on. • The timer setting repeats daily once set. POWER indicator blinks during HEAT mode with no warm air supply (and fl ap is closed).

• The unit is in defrost mode (and AIR SWING is set to AUTO). Indoor fan stops occasionally during heating operation.

• To avoid unintended cooling effect. POWER indicator blinks before the unit is switched on.

• This is a preliminary step in preparation for the operation when the ON timer has been set. When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time. Cracking sound during operation. • Changes of temperature caused the expansion/ contraction of the unit. Dusts accumulated on the wall. • Due to air circulation or static electricity generated by the air conditioner. Some types of wall paper may collect dusts easily (recommended to clean the area around the air conditioner frequently). During COOL/DRY mode, the indoor unit stops and POWER indicator blinks.

• The system has locked to operate in HEAT model only. Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light or environmental factor. Cooling/heating capacity reduced during the lowest fan speed setting.

• The low fan speed is low noise priority operation, so cooling/heating capacity may be reduced (depending on the condition). Increase the Fan Speed to increase the capacity. Check the following before calling for servicing. Symptom Check Operation in HEAT/COOL mode is not working effi ciently.

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

• Clear any obstruction at the air inlet and air outlet vents. Noisy during operation. • Check if the unit has been installed at an incline.

• Close the front panel properly. Remote control does not work. (Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries. The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set. The unit does not receive the signal from the remote control.

• Make sure the receiver is not obstructed.

• Certain fl uorescent lights may interfere with signal transmitter. Please consult authorised dealer. Troubleshooting Cleaning instructions / Troubleshooting ACXF55-04100_01EN.indd 13ACXF55-04100_01EN.indd 13 12/19/2016 5:30:00 PM12/19/2016 5:30:00 PM14 Troubleshooting When... ■The remote control is missing or a malfunction has occurred AUTO OFF/ON 1.Raise the front panel. 2.Press the button once to use in AUTO mode.

3. Press and hold the button until you hear 1 beep, then release to use in

4. Repeat step 3. Press and hold the button until you hear 2 beeps, then

release to use in forced HEAT mode. 5.Press the button again to turn off. ■The indicators are too bright

• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds. ■ Conducting a seasonal inspection after extended non-use

• Check the remote control batteries.

• Check that there is no obstruction around the air inlet and outlet vents.

• Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between the air inlet and outlet vents:

■ The units are not going to be used for a long period of time

Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised dealer when in following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly. ACXF55-04100_01EN.indd 14ACXF55-04100_01EN.indd 14 12/19/2016 5:30:00 PM12/19/2016 5:30:00 PM15 English Troubleshooting Diagnostic display Abnormality/Protection control H 00 No memory of failure H 11 Indoor/outdoor abnormal communicationH 12 Indoor unit capacity unmatched H 14 Indoor intake air temperature sensor abnormality H 15 Outdoor compressor temperature sensor abnormality H 16 Outdoor current transformer (CT) abnormalityH 19 Indoor fan motor mechanism lock H 21 Indoor fl oat switch operation abnormality H 23 Indoor heat exchanger temperature sensor 1 abnormality H 24 Indoor heat exchanger temperature sensor 2 abnormality H 25 Indoor ion device abnormality H 27 Outdoor air temperature sensor abnormality H 28 Outdoor heat exchanger temperature sensor abnormality H 30 Outdoor discharge pipe temperature sensor abnormality H 32 Outdoor heat exchangertemperature sensor 2 abnormality H 33 Indoor/outdoor misconnection abnormality H 34 Outdoor heat sink temperature sensor abnormality H 35 Indoor/outdoor water adverse current abnormality H 36 Outdoor gas pipe temperaturesensor abnormality Diagnostic display Abnormality/Protection control H 37 Outdoor liquid pipe temperaturesensor abnormality H 38 Indoor/outdoor mismatch (brand code) H 39 Abnormal indoor operating unit orstandby units H 41 Abnormal wiring or pipingconnectionH 59 Eco sensor abnormality H 64 Outdoor high pressure sensorabnormalityH 67 nanoe abnormalityH 70 Light sensor abnormalityH 97 Outdoor fan motor mechanism lockH 98 Indoor high pressure protectionH 99 Indoor operating unit freeze protectionF 11 4-way valve switching abnormality F 17 Indoor standby units freezingabnormality F 90 Power factor correction (PFC)circuit protectionF 91 Refrigeration cycle abnormality F 93 Outdoor compressor abnormal revolution F 94 Compressor discharge pressureovershoot protection F 95 Outdoor cooling high pressure protection F 96 Power transistor module overheating protectionF 97 Compressor overheating protectionF 98 Total running current protection F 99 Outdoor direct current (DC) peak detection How to retrieve error codes If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code.

Press for 5 seconds Press for 5 seconds to quit checking Press until you hear beep sound, then write down the error code Turn the unit off and reveal the error code to authorised dealer

DBT WBT DBT WBT DBT WBT

DBT WBT DBT WBT DBT WBT

DBT WBT DBT WBT DBT WBT

DBT WBT DBT WBT DBT WBT

Bij bepaalde fouten moet u, als er 4 pieptonen klinken bij het opstarten, de unit opnieuw opstarten met beperkte functies. Problemen oplossen ACXF55-04100_06NL.indd 85ACXF55-04100_06NL.indd 85 12/19/2016 5:31:26 PM12/19/2016 5:31:26 PM86 Information English Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
