USER MANUAL DWC114BLSDD DANBY

• OWNER'S MANUAL
  -LE MANUEL DU PROPRIÉTAIRE
  DWC114BLSSDD

CAUTION

Read and follow all safety rules and operating instructions before first use of this product.

PRECAUTION

Safety Precautions 3

Grounding Instructions 4

location 4

Operating Instructions

Features of Your Wine cooler 5

The Controls of Your Wine cooler 6

Setting the Temperature 6

Wine Storage 7

Shelf Instructions 7

Installation Instructions

Door Swing Reversal 8

Care and Cleaning

Helpfull Hints 9

How to Clean the Inside 9

How to Clean the Outside 9

Trouble Shooting

Before Your Call For Service 10

Warranty

3

5

8

9

10

11

WELCOME

Welcome to the Danby family. We're proud of our quality products and we believe in dependable service.

You'll see it in this easy-to-use manual and you'll hear it in the friendly voices of our consumer service department.

Tel:1-800-26-Danby

Best of all, you'll experience these values each time you use your Wine cooler. That's important, because your new appliance will be part of your family for a long time.

Start Here!...Before using your Wine cooler

Write down the model and serial numbers here. They are on a label located on the back of the unit

Model number DWC114BLSDD

Serial number

Date purchased

Staple your receipt to the inside back cover of this manual. You will need it to obtain service under warranty.

NEED HELP?

Before you call for service, there are a few things you can do to help us serve you better...

Read this manual

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance

Immediately contact the dealer (or builder) that sold you the Wine cooler.

Save time and money

Check the Trouble Shooting section before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax knowing help is only a phone call away.

Tel: 1-800-26-Danby

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING

WARNING

DANGER, RISK OF CHILD ENTRAPMENT!

An empty refrigerator is a very dangerous attraction to children. Remove either the gasket, latches, lids, lock and/or doors from unused or discarded appliances, or take some other action to guarantee it harmless.

DON'T WAIT, DO IT NOW!

To reduce the risk of fire, burns, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following sections;

SAFETY PRECAUTIONS

• This appliance must be grounded. Connect only to a properly grounded outlet. See "Grounding Instructions" section on page 4.
• Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.
• Do not splice the power cord that is equipped with this appliance.

• Keep power cord away from heated surfaces.

• Do not immerse power cord, plug or the appliance itself in water.

• Do not use this product near water-for example, in a wet basement, near a swimming pool or near a sink.
• Do not use corrosive chemicals or vapors in this appliance.
• Use this appliance only for it's intended use, as described in this manual.

• Do not store perishable food items such as (but not limited to) meats and dairy products in your Wine cooler.

• Store Wine in sealed containers only.

• See door surface cleaning instructions in the Care and Cleaning section(s) of this manual.
• Do not cover or block any openings on the appliance.
• This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.
• This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.

IMPORTANT SAFETY INFORMATION

GROUNDING INSTRUCTIONS

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

noitac

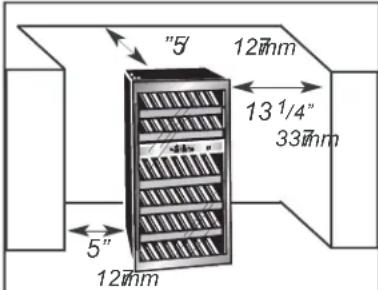

Allow 1314 (33.7 cm) of space between the (hinge) side of the door and any adjacent wall to accommodate door swing.

...OD

• Select a location with a strong, level floor.
• Allow 5 inches of space between the back of the appliance and any adjacent wall.
• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating, heat sources nearby will cause higher electricity consumption.

ODD

• Use this appliance outdoors: This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.
• Build this appliance into an enclosure: This appliance is designed for a free-standing application only and is not intended to be "built-in".

Operating Instructions

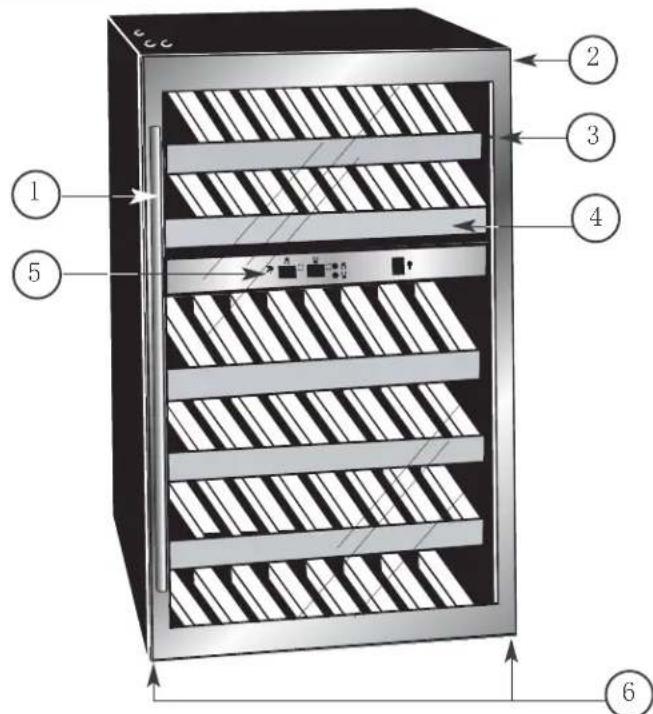

Features of your Wine cooler

1.Handle

1. Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.
2. Tempered Glass Door: Tinted for UV protection while still allowing for easy interior viewing.

4. Stainless Steel Trim Shelves

1. Electronic Display and Controls: For viewing and regulating the temperature for both compartments of the wine cooler.

6.

gnilevel

gs

e

L

S		ns	o	i	t
Width	19.4 in. / 493 mm	Temperature Range (Minimum ~Maximum)		39~64°F / 4~18°C
Height	33.2 in. / 843.3 mm	Net Weight		97 lbs / 44 kg
Depth	23.3 in. / 633 mm	Refrigerant		a4B1

Operating Instructions

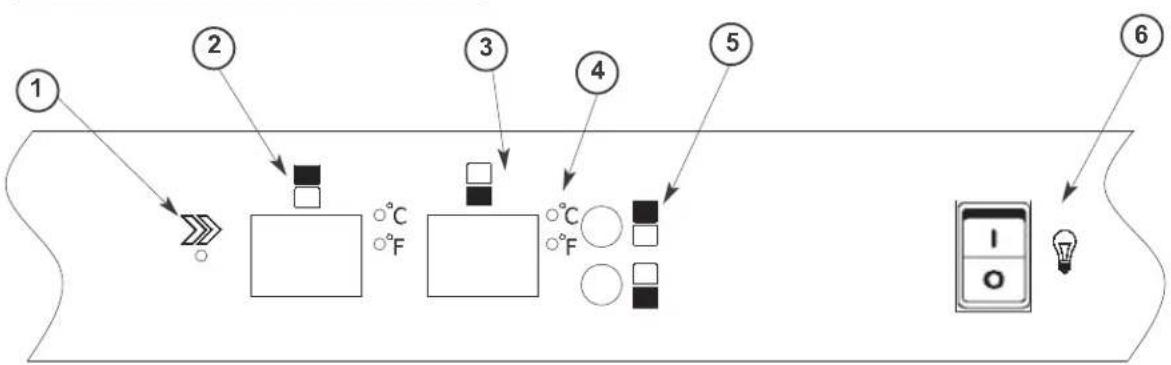

The Controls of your Wine cooler

1. : Indicator light illuminates to signify the cooling mode is currently in operation.
2. Window:For viewing the temperature of the upper zone.
3. Window: For viewing the temperature of the lower zone.

4. ^ C / ^ : Adjacent indicator light denotes which scale of temperature is displayed.

5. ' ' Button : Used to set the temperature in the upper zone (see 'Setting the Temperature' below).

' Button: Used to set the temperature in the lower zone (see 'Setting the Temperature' below).

1. :To control the inner light turn ON/OFF.

' Switch:Continuous illumination.

O'Switch:illumination only when the door is open.

Setting the Temperature

In the event of a power failure, wait 3 to 5 minutes before restarting.

To switch the display between the Fahrenheit (^) and Celsius (^) scale, depress the and control buttons simultaneously for approximately five(5) seconds.
- The temperature range can be set as low as 39^ (4^) or as high as 64^ (18^) to suit your specific storage requirements. Each depres

sion of the or button will allow you adjust the temperature in 1^ degree increments within the aforementioned range.

Operating Instructions

VV

ega

IMPORTANT!

Store wine in sealed bottles.

The maximum* wine capacity of your wine cooler is 38 (750 ml) bottles.

*When stocked as per instruc-sndi

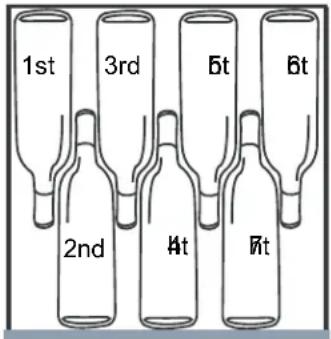

In order to achieve the maximum capacity of thirty-eight (38) bottles, it will be necessary to position the bottles alternately on the upper four (4) racks, as shown in Fig. A This will allow for the storage of seven (7) 750 ml bottles per rack in each of the top four (4) racks, and five (5) bottles on the bottom two (2) racks (Fig. B).

Full depth racks (x4)
AgIF

Half depth racks (x2)

sr

To remove a rack from its locked position, tilt the rack as shown in Fig. C and pull out.dwa

IMPORTANT!

Do not cover racks with aluminum foil or any other material that will prevent adequate air circulation within the cabiten

To re-install, ensure the rack is resting securely on the support brackets and push the rack inward until it locks into .atp

.gF

Installation Instructions - Door Swing Reversal

TOOLS REQUIRED

Phillips #2 screwdriver and an adjustable wrench.

WARNING!

Excessive Weight Hazard Use two or more people when moving the wine cooler.

① Rubber cover
② Screws
③ Decorative cover
(4) Screws
⑤ Top hinge
6 Decorative nail
⑦ Screws
⑧ Lower hinge
⑨ Cabinet leg
10 Extrusion-board of lamp switch
11 Screws
12 Decorative nail

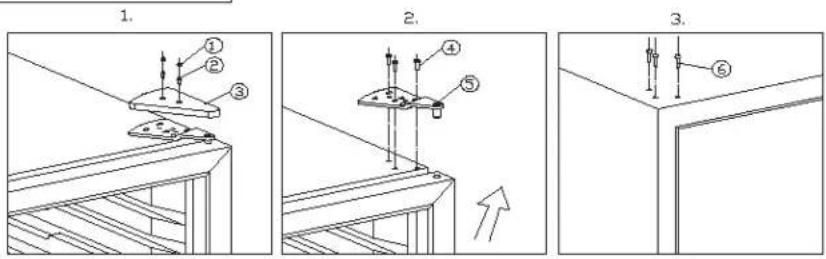

1. Close the door and take out rubber cover (1), unscrew two screws (2) and remove decorative cover (3). (Fig.1)
2. Unscrew screws (4) and take out top hinge (5), then remove the door. (Fig. 2)

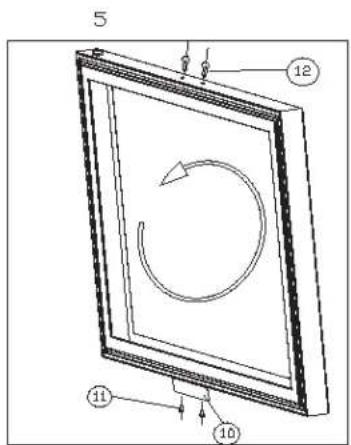

3. Put door safety, unscrew decorative nail (12) and take out 2 screws (11) at bottom, pull out extrusion-board of lamp switch (10) and fix it at top of door. Block holes at bottom of door with spare decorative nail. (Fig. 5)
4. Pull out decorative nail (6) from left top of cabinet. (Fig.3)
5. Unscrew 3 screws (7) from right bottom of cabinet and remove lower hinge (8). (Fig.4)
6. Pull out cabinet leg (9) from left bottom of cabinet and fix it onto right bottom of cabinet. (Fig.4)
7. Fix the lower hinge (8) onto left bottom of cabinet with screws (7). (Fig. 4)
8. The door revolves 180 degrees, put lower door axis to aim at lower hinge (8) and install the door onto lower hinge (8), then close the door carefully. (Fig.5)

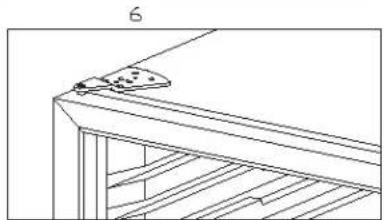

9. Fix top hinge (5) onto left top of cabinet with screws (4), adjust door and install decorative cover (3) and rubber cover (1). (Fig.6)
10. Block 3 screw holes at right top of cabinet with spare decorative nail.

Care and Cleaning

Helpful Hints

Allow the Wine cooler door to remain open for a few minutes after manual cleaning to air out and dry the inside of the wine cooler cabinet

NOTE: Be certain the power is off before cleaning any part of this appliance.

How to Clean the Inside

Never use any commercial or abrasive cleaners or sharp objects on any part of the Wine cooler.

Walls, Floor, Inside Window, and Shelves

Some water deposits and dust can be removed with a dry paper towel, others may require a damp cloth.

How to Clean the Outside

Do not use cleaners containing ammonia or alcohol on the Wine cooler.

Ammonia or alcohol can damage the appearance of the appliance.

Outer Case

It's important to keep the area clean where the door seals against the cabinet. Clean this area with a sudsy cloth. Rinse and then dry.

Door surface

Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Control Panel and Door

Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasive or sharp objects on the panel-they can damage it. Some paper towels may also scratch the control panel and door glass.

Trouble Shooting

Before You Call For Service

Problem Possible Cause What to do
No Power. A fuse in your home may Replace fuse or reset circuit breaker. be blown or the circuit breaker tripped. Power surge. Unplug the Wine cooler, wait a few seconds and then plug it back in. Plug not fully inserted into Make sure the 3-prong plug is fully wall outlet inserted into outlet.
Cabinet Temperature Temperature setting Verify the temperature control setting. too High adjust if necessary
	Door not shut properly or opened excessively	Ensure that the door is fully closed and that the gasket is sealing. against the cabinets. Open the doors only as needed and for short periods of time
	Interior lights toggled on	The interior lights are intended for temporary lighting of cabinets for display purposes only. They are not intended to be left on for prolonged time periods
	Exhaust vent is obstructed	Verify there is nothing blocking the front mounted exhausting vent.
	Recently added a large quantity of warm bottles to the cabinet	Limit the quantity of warm bottles being introduced to the cabinet at the same time. Attempt to stagger the load introduction if possible.
Condensation on the cabinet and/or doors	High humidity conditions in the home.	The condensation will subside once humidity conditions return to normal.
	Door not shut properly or opened excessively	Ensure that the door is fully closed and that the gasket is sealing. against the cabinets. Open the door only as needed and for short periods of time

If none of the above rectify the situation please contact our customer care department at 1-800-26-Danby (1-800-263-2629)

Danby Designer

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First 18 Months During the first eighteen (18) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an Authorized Service Depot. Any appliance service requires service outside the limited boundaries of "In Home Service", it will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See "Boundaries of In Home Service" below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).

Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

In-home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

04/09

TABLE DES MATIÈRES

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Danby Designer

For service, contact your nearest service depot or call:

1-800-26-Danby (1-800-263-2629)

to recommend a depot in your area.

The model number can be found on the serial plate located on the back panel of the unit.

All repair parts available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE NUMBER.

When requesting service or ordering parts, always provide the following information:

Product Type
- Model Number
- Part Description
