USER MANUAL WS 1707 ADE

22089 Hamburg, Germany

22089 Hamburg, Germany

Garantie

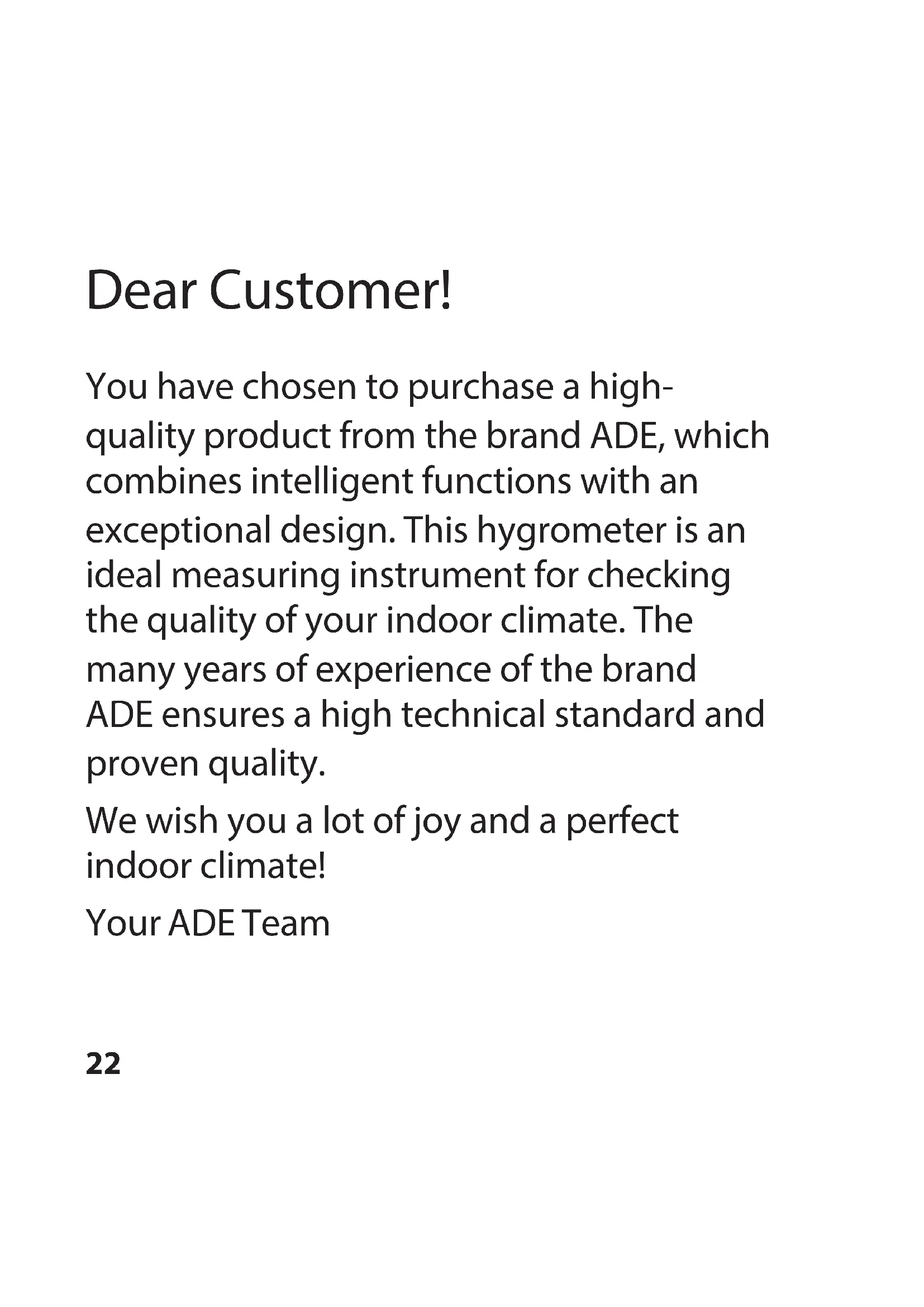

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. This hygrometer is an ideal measuring instrument for checking the quality of your indoor climate. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you a lot of joy and a perfect indoor climate!

Your ADE Team

Scope of delivery

Thermometer/Hygrometer
- Battery type CR2032, 3 ~V = (1 x)
- Operating Manual

General information

About this manual

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

Scope of delivery. 23
General information. 23
Intended Use 26
Safety 26
At a glance (scope of delivery) 30
Start-up 32
Use 33
Fault and remedy 37
Technical Data 37
Declaration of Conformity 38
Guarantee 39
Disposal 40

Intended Use

This thermometer/hygrometer is used to measure room temperature and humidity and thus to control the room climate. It is not suitable for commercial use.

Safety

• This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
  Children must not play with the item.
• Cleaning and user maintenance must not be carried out by children, unless they

are 8 years of age or older and are being supervised.

• Batteries, when swallowed, can be life-threatening. Thus, keep the item and battery out of reach of small children. If the battery is swallowed, seek medical help immediately.

DANGER for children

• Keep children away from packaging material. Risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace batteries only with the same or equivalent battery type. Observe the "Technical Data".

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.

Otherwise there is an increased risk of explosion and leakage; furthermore, gases may escape!

• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.

BEWARE of material damage

• Do not immerse the item in water or other liquids and protect it from strong shocks and vibrations.
• Remove the battery when it is exhausted or if you will not use the item for an extended period of time. This prevents damage that may be caused by leakage.

• When inserting and changing batteries, pay attention to the correct polarity (+/-).

• Do not subject the batteries to extreme conditions by e.g. storing them on heaters or exposed to direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the product. Repairs must only be carried out by a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

At a glance (scope of delivery)

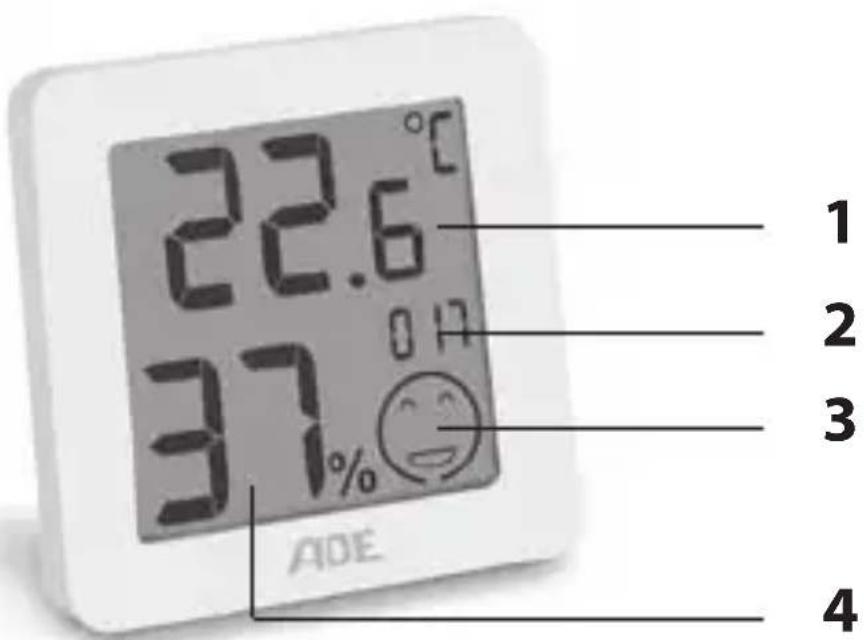

1 Temperature in ^ C or ^ F
2 Time (12 or 24 hour display)
3 Comfort indicator
4 Humidity in percentage

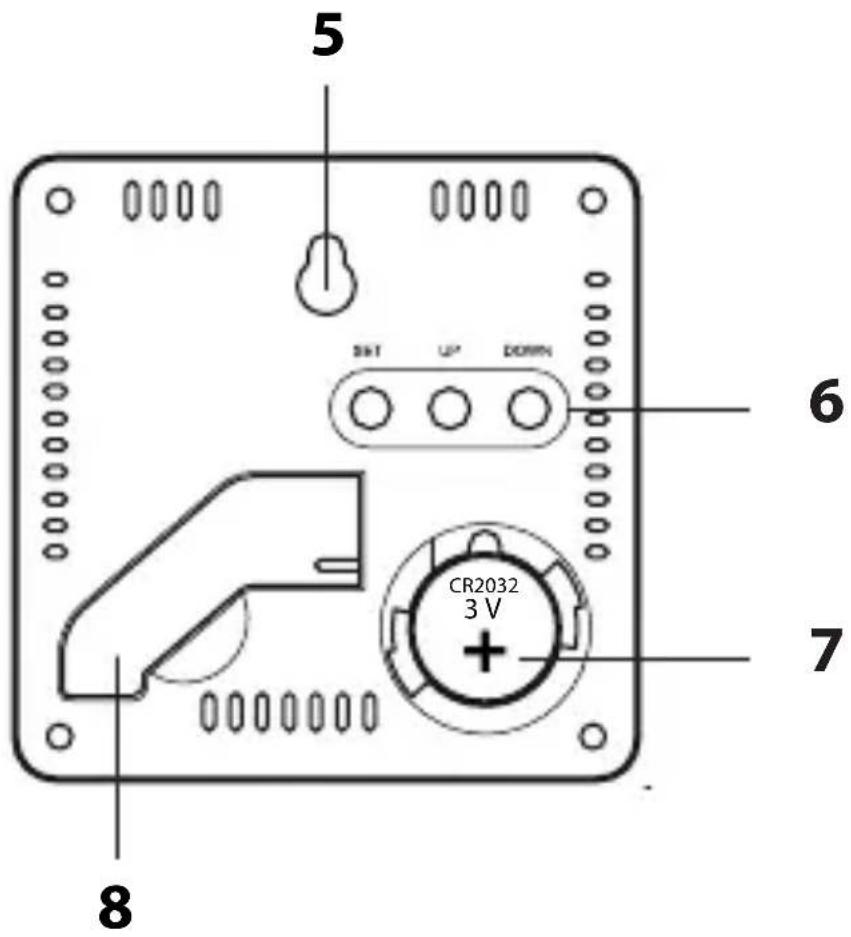

5 Hanging loop
6 SET, UP and DOWN control buttons
7 Battery compartment, 1x CR2032, 3 V
8 Fold out support foot

Start-up

Removing iso-strips

1. Turn the battery cover counterclockwise and remove it with a coin or similar object all the way to the stop.
2. Remove the iso-strip.
3. Place the battery compartment cover and turn it clockwise all the way to the stop.

Inserting/changing batteries

1. Turn the battery cover counterclockwise and remove it with a coin or similar object all the way to the stop.

2. Slide the battery (CR 2032) against the contact spring under the two metal retaining brackets and push downwards. The plus pole (+) must point upwards.

3. Place the battery compartment cover and turn it clockwise all the way to the stop. Suggestions for changing the battery:

4. The batteries must be changed when nothing is shown on the display.

5. Only use the battery type specified in the "Technical Data".
6. Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Use

As soon as the thermometer/hygrometer is supplied with power, the display shows the following:

• Room temperature in ^ C
• Humidity in percentage
• Comfort indicator in the form of a smiley

Time (after manual setting)

Setting the time

1. Press SET until the hour indicator flashes.
2. Use UP or DOWN to set the hour.
3. Press SET 1x.
4. Use UP or DOWN to set the minute.
5. Press SET to exit.

Setting up the device

The device has a base and a hanging loop for wall mounting.

Change temperature unit

• Press the DOWN button 1x to display the temperature in ^ C elsius or ^ F ahrenheit.

Changing the time display (12-/24-hour)

• Press the UP button 1x to display the time in 12-hour (AM/PM) or 24-hour format.

Comfort indicator

The comfort indicator consists of temperature (T) and humidity (L).

T: very pleasant

L: very pleasant

T: pleasant

L: pleasant

T: a little too cool or warm

L: a little too dry or wet

T: too cold or warm

L: considerably too dry or wet

T: much too cold or hot

L: much too dry or wet

Resetting the thermometer/hygrometer

Only required if abnormal or apparently false values are displayed.

1. Remove the batteries and wait for a moment.
2. Insert the batteries correctly again (+ / - )
3. Reset the time.

Cleaning

Do not immerse the item in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

-If necessary, dust the item with a soft, dry cloth or wipe it with a slightly moistened cloth.

Fault and remedy

No function.

• Battery empty or inserted the wrong way around?

Temperature indication appears too high.

• Check whether the thermometer/ hygrometer is exposed to direct sunlight.

Technical Data

Model: Thermometer/Hygrometer

WS 1706 (white)

WS 1707 (black)

Battery: 1x CR2032, 3 V

Rated current: < 30 mA

Temperature: approx. 0^ C - 50^ C

approx. 32^ F - 122^ F

• Humidity: 20% - 95% (relative)

Dimensions: approx. 80 × 80 × 12 ~mm

Distributor (no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed

and improved. For this reason, design and

technical modifications are possible at any time.

Declaration of Conformity

This item has been manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EU directives cited below:

EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU

in the currently valid versions.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, May 2017

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
