WS 1813 - Thermometer Hygrometer ADE - Free user manual and instructions

Product type	Analog thermometer hygrometer
Brand	ADE
Model	WS 1813
Temperature measurement range	-30 °C to +50 °C
Temperature resolution	1 °C
Humidity measurement range	20 % to 100 % RH
Humidity resolution	2 %
Power supply	None (mechanical)
Display	Analog (needles)
Mounting	Stand or hanging eyelet
Functions	Measurement of ambient temperature and relative humidity
Maintenance	Dust with a dry cloth; clean with a slightly damp cloth
Safety	Do not immerse in water; do not let children play with the packaging
Warranty	2 years (material and manufacturing defects)
Repairability	Repairs only by a specialized workshop
Disposal	According to local regulations
Included accessories	Instruction manual

Frequently Asked Questions - WS 1813 ADE

How to install the device?

The thermometer hygrometer can be placed on its stand or hung by the eyelet on the back. To hang it, remove the stand using a Phillips screwdriver. Place it in a location away from direct sunlight and with good air circulation.

What is the measurement accuracy?

Accuracy is not specified in the manual, but the device is a classic analog model. The resolution is 1 °C for temperature and 2 % for relative humidity.

Does the device need batteries?

No, this device is entirely mechanical and requires no batteries or electrical power source.

How to clean the thermometer hygrometer?

Dust the device with a dry cloth. If necessary, use a slightly damp cloth. Never immerse the device in water or any other liquid as it is not waterproof.

What to do if the display seems incorrect?

Check that the device is not exposed to a source of heat or extreme humidity. If the problem persists, contact customer service. The device cannot be calibrated by the user.

Where to place the device for accurate measurements?

Place the device in a location away from direct sunlight, away from heat sources such as radiators, and in a room with good natural air circulation.

Can the device be used outdoors?

The device is designed for indoor use. Although its measurement range is from -30 °C to +50 °C, it is not protected against weather conditions and should not be exposed to rain or excessive humidity.

What is the lifespan of the device?

With proper maintenance, the device can last for many years. There are no specific wear parts. The warranty is 2 years against manufacturing defects.

What to do in case of malfunction?

If the device does not work properly, first check that it is not damaged. If the problem persists, contact the retailer or manufacturer with proof of purchase for warranty service.

How to dispose of the device at the end of its life?

Dispose of the device in accordance with local electronic waste regulations. Do not throw it in household waste. Consult your local council or recycling center for appropriate collection points.

USER MANUAL WS 1813 ADE

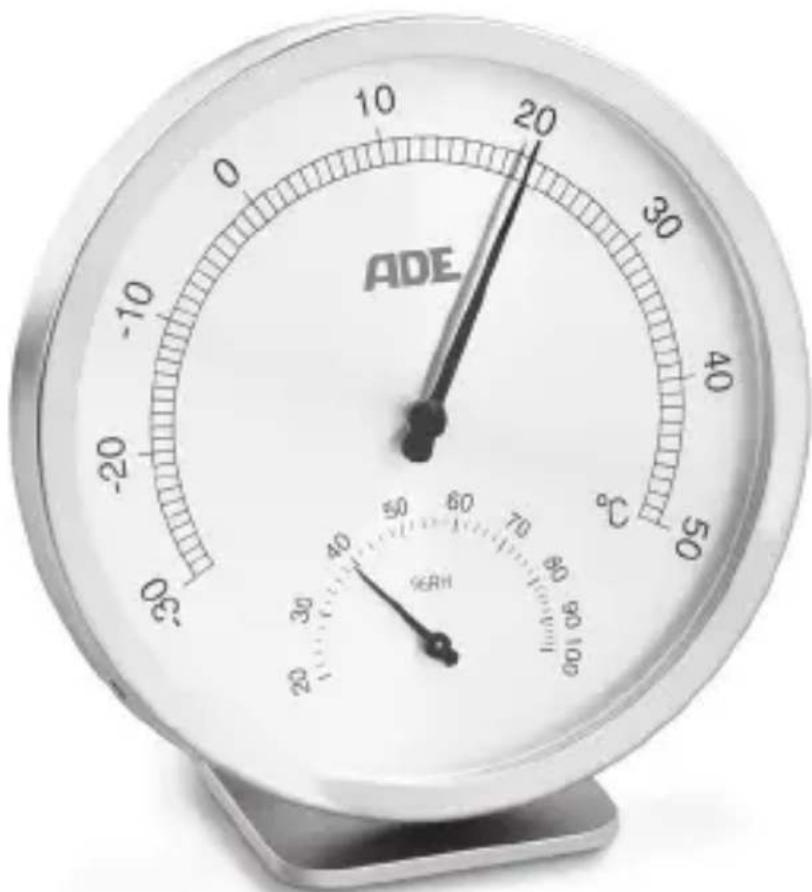

Analogges Thermo-/Hygrometer

Analogue thermometer/hygrometer | Termohigrometro análogico | Thermomètre/hygromètre analogique | Termoigrometro analogico | Termometr/ higrometr analogowy

Bedienungsanleitung

WS 1813

Operating instructions | Instrucciones de operación Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

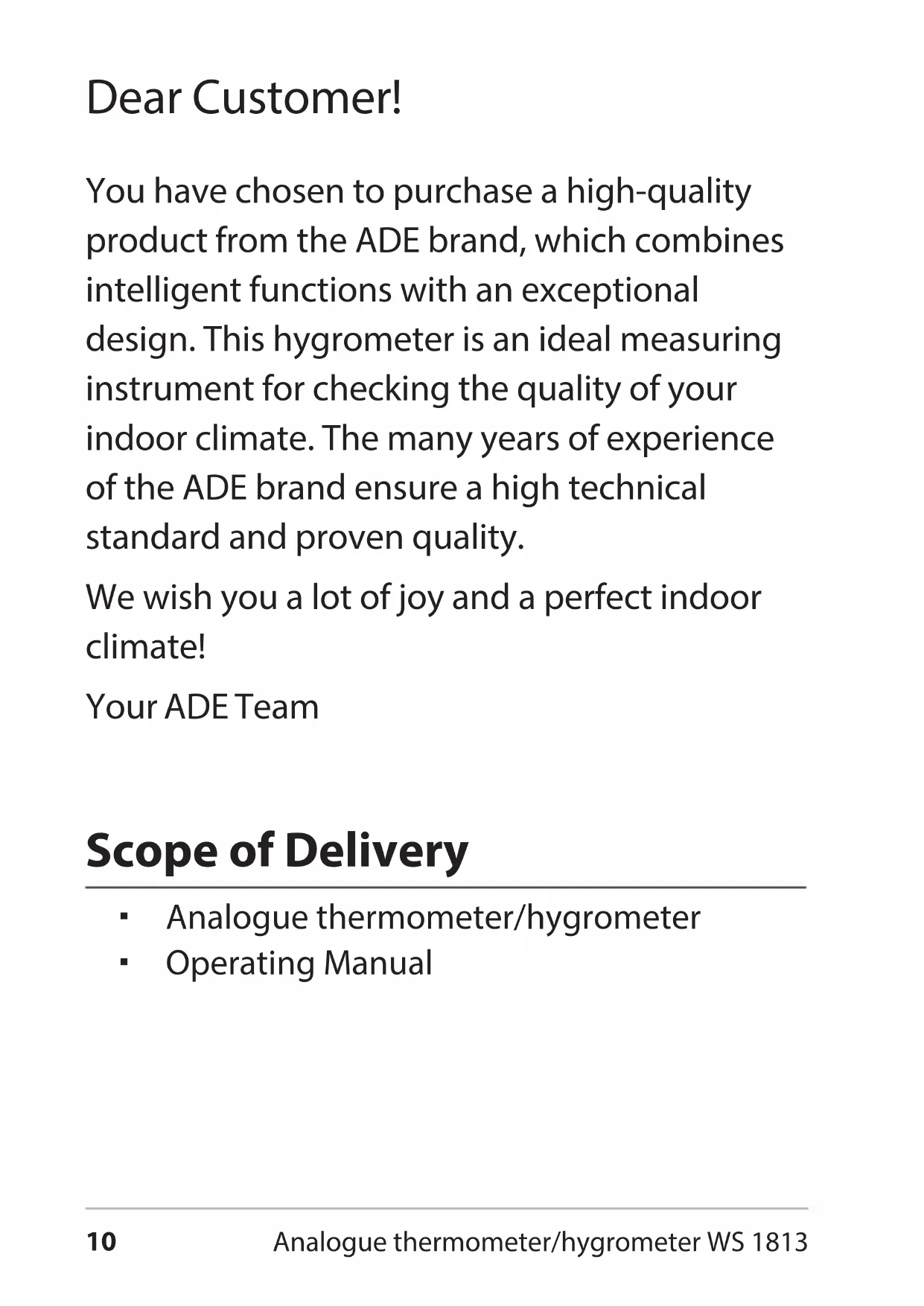

You have chosen to purchase a high-quality product from the ADE brand, which combines intelligent functions with an exceptional design. This hygrometer is an ideal measuring instrument for checking the quality of your indoor climate. The many years of experience of the ADE brand ensure a high technical standard and proven quality.

We wish you a lot of joy and a perfect indoor climate!

Your ADE Team

Scope of Delivery

• Analogue thermometer/hygrometer
• Operating Manual

Table of Contents

Scope of Delivery 10

Intended Use 12

Safety 12

Overview 13

Setting up/hanging the device 14

Cleaning. 14

Technical Data 15

Warranty 16

Disposal 16

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Intended Use

• This thermometer/hygrometer is used to measure room temperature and humidity and thus to control the room climate.
  The hygrometer is not suitable for commercial use.

Safety

DANGER for Children

• Keep children away from packaging material. Risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

BEWARE of material damage

• Protect the item against sharp jolts and vibrations.
• Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

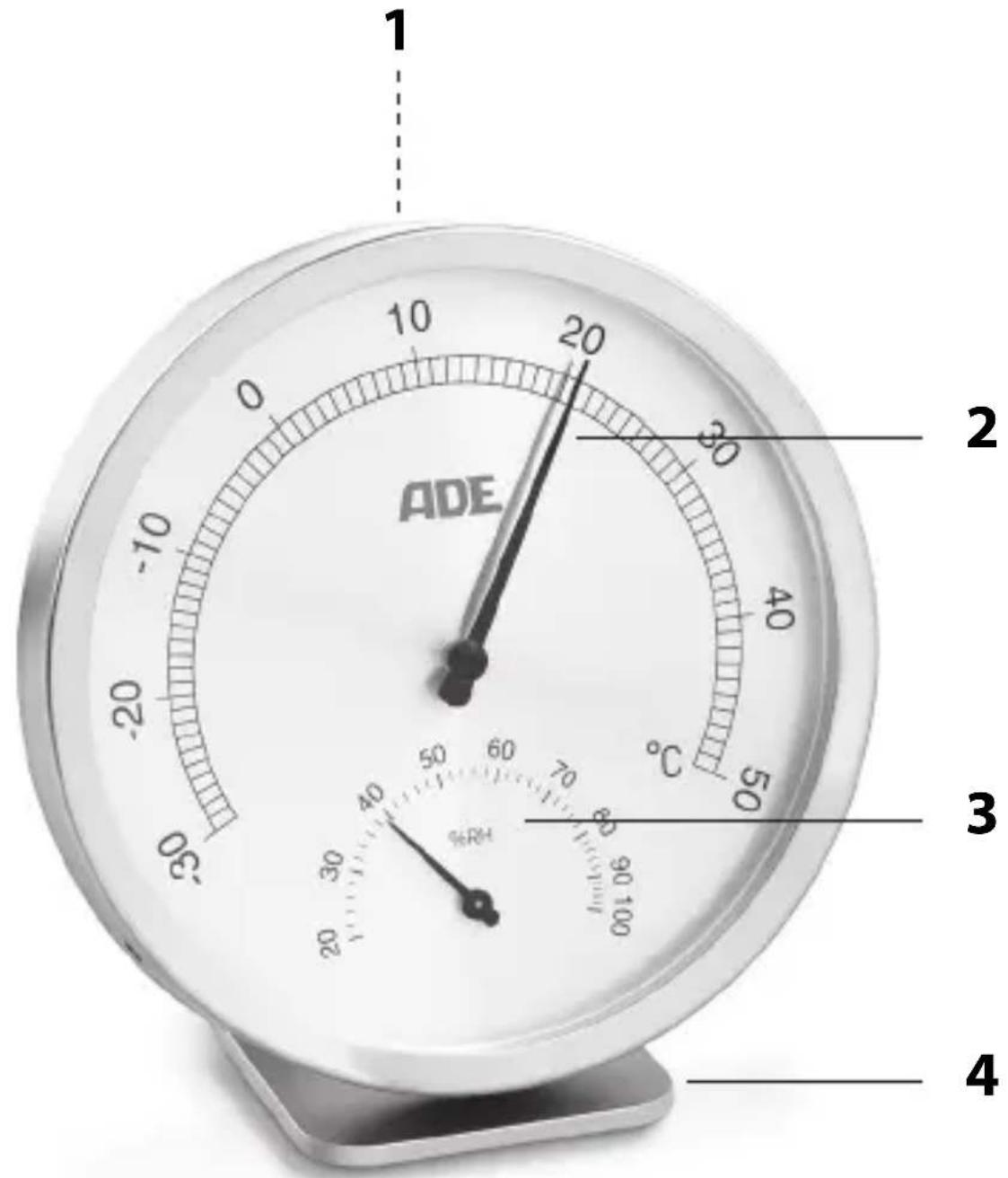

1 Hanging loop
2 Temperature in degrees Celsius
3 Relative humidity in percent
4 Foot

Setting up/hanging the device

• You can either place the thermometer/ hygrometer on its foot or use the hanging loop on its back. In the latter case, you must first remove the foot using a crosstip screwdriver.
  If possible, choose a location where the device will not be exposed to direct sunlight and with good air circulation.

Cleaning

• Remove dust from the thermometer/ hygrometer with a soft, dry cloth, if necessary. If necessary, you can also wipe the device with a slightly damp cloth.
• Do not immerse the thermometer/ hygrometer in water or other liquids. The device is not waterproof.

Model: Analogue thermometer/ hygrometer WS 1813

Measuring range

• Temperature: -30^ C to +50^ C
• Resolution: 1^ C
• Relative humidity: 20% to 100%
  Resolution: 2 %

Distributor: Waagen-Schmitt GmbH
Hammer Steindamm 27-29
22089 Hamburg, Germany
Hamburg, April 2018

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Warranty

Dear Valued Customer,

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.
