Product type	Fan heater
Brand	DOMO
Model	DO7348H
Supply voltage	220-240 V ~ 50/60 Hz
Maximum power	1500 W
Minimum power	1000 W
Functions	2 power levels, oscillation, adjustable thermostat
Control type	Manual (rotary knobs)
Indicator light	Yes (indicates the appliance is on)
Heating zone	Medium-sized room (occasional use)
Safety distance	50 cm around the appliance
Overheat safety	Yes, automatic shut-off in case of overheating
Tip-over protection	Yes, automatic shut-off if the device tips over
Removable filter	Yes, washable in warm water
Air intake grille	With removable cover for cleaning
Regular maintenance	Filter cleaning and dusting of grilles
Warranty	2 years (device), 6 months (accessories and wear parts)
Customer service	Linea 2000 – [phone] (Mon-Fri 8:30 AM - 5:00 PM)
Spare parts available	Yes, Domo accessories and parts online
Intended use	Domestic, indoor, well-insulated spaces
Repairability index	Not reported, but parts available

Frequently Asked Questions - DO7348H DOMO

What is the difference between positions 1 and 2 on the function button?

Position 1 corresponds to maximum power (1500 W) with oscillation, while position 2 corresponds to minimum power (1000 W) with oscillation. Positions 4 and 5 are similar but without oscillation.

How to clean the filter of the DO7348H heater?

Turn off and unplug the appliance, then remove the air inlet cover by sliding it horizontally. Remove the filter and wash it in warm water with a mild detergent. Make sure it is completely dry before putting it back.

What to do if the appliance suddenly turns off during use?

This may be due to overheating. Turn off the appliance, wait 10 minutes, remove any objects blocking the grilles, then turn it back on. If the problem persists, contact customer service.

Can the heater be used in a bathroom?

No, the appliance should not be used in a humid room like a bathroom, laundry room, or shower. It is designed for dry, well-insulated spaces.

What is the warranty of the DO7348H?

The warranty is 2 years from the date of purchase for the device, and 6 months for accessories and wear parts. The warranty requires presentation of the receipt.

Can I use an external timer with this heater?

No, the appliance should not be used with an external timer or separate remote control, in accordance with the safety instructions.

How to adjust the temperature?

Use the rotary temperature knob to choose between MIN and MAX. Power can be adjusted via the function button (high/low power with or without oscillation).

Can the heater be used outdoors?

No, the appliance is designed exclusively for indoor domestic use. Do not use it outdoors.

What to do in case of abnormal odor during first use?

A slight odor is normal during first use. Air the room well and the odor will disappear quickly.

How to get spare parts?

You can order authentic Domo accessories and parts online. For after-sales service, contact customer service at [phone].

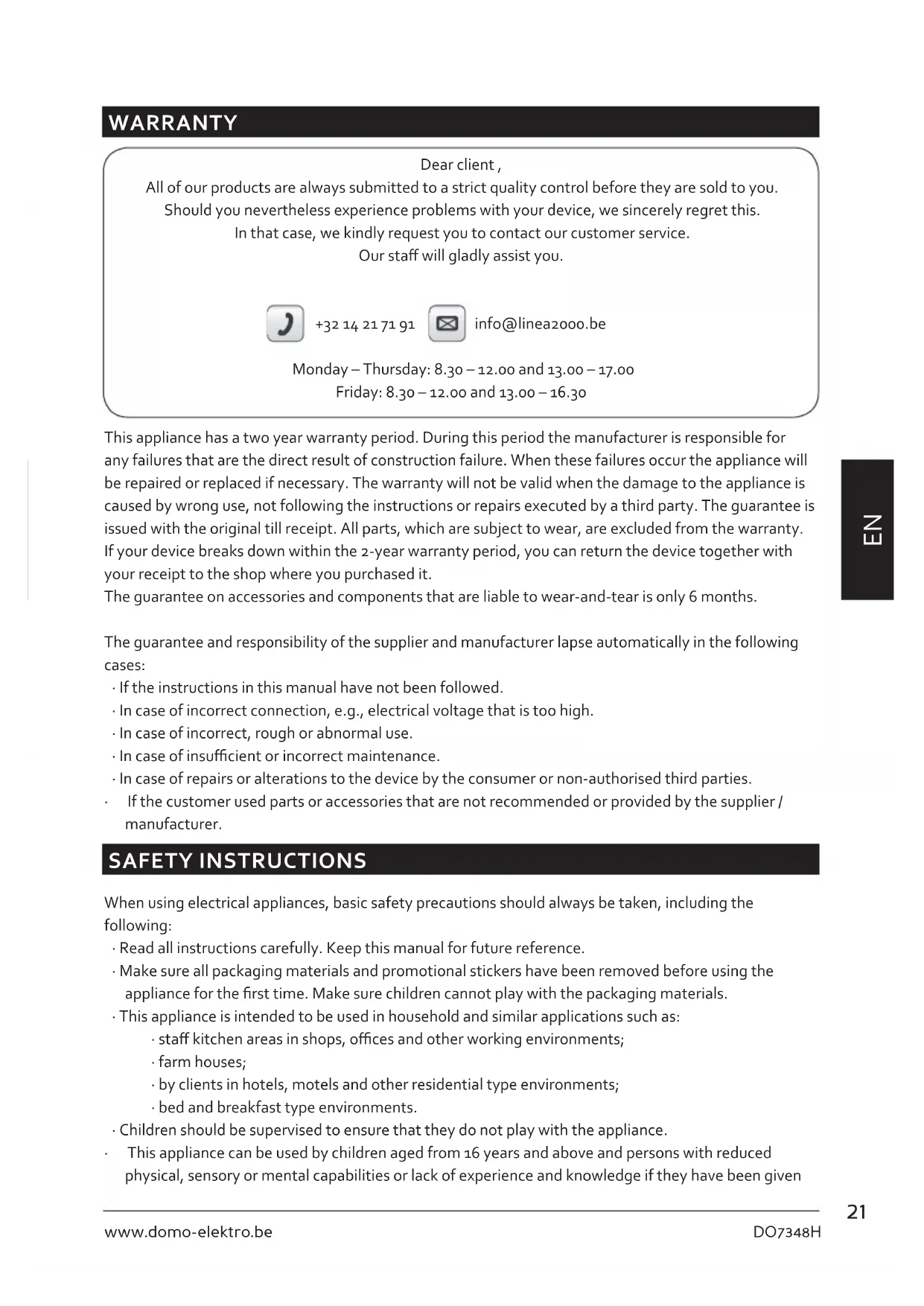

USER MANUAL DO7348H DOMO

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.oo and 13.00-17.00

Friday: 8.30-12.00 and 13.00-16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.
In case of repairs or alterations to the device by the consumer or non-authorised third parties.

If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts.

Don't cover the appliance.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• This product is only suitable for well insulated spaces or occasional use.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
  Before use, remove all packaging materials and any promotional stickers.
• The appliance is not intended for use in the bathroom, washing area or other damp areas. A person who is in the bathtub or shower should not be able to touch the appliance, the power cord or the control knobs.
• This product is only suitable for well insulated spaces or occasional use. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

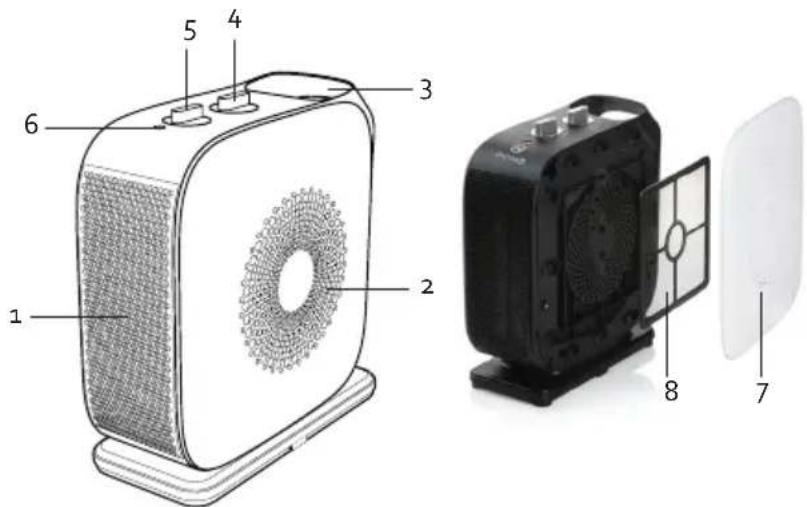

PARTS

1. Air outlet grille
2. Air intake grille
3. Handle
4. Mode knob
5. Temperature knob
6. Indicator light
7. Cover for the air intake
8. Removable filter

BEFORE THE FIRST USE

• The heater should only be operated at a minimum distance of 50~cm from any wall or other object that could disturb its operation.
  Position the air flow in order to optimise the heating of the room. Avoid corners, small volumes, floors and ceilings.

• Place the appliance on a smooth, stable surface.

• When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

USE

Set the temperature knob to MIN and the mode knob to o. Plug the power cord into a socket. Turn the knobs to the desired position. A red indicator light indicates that the unit is switched on.

TEMPERATURE KNOB

Turn this knob to the desired position between MIN and MAX.

MODE KNOB

You can set the unit to high or low power, with or without oscillation.

The higher the wattage, the faster the space will be heated.

1 The unit works at its highest power (1500 W) with oscillation. The unit will disperse heat from left to right and vice versa.
② The unit operates at its lowest power (1000 W) with oscillation. The unit will disperse heat from left to right and vice versa.
③ Turn the knob to this position to turn the power off.
The unit operates at its lowest power (1000 W).
5 The unit operates at its highest power (1500 W).

Turn the temperature knob back to MIN and the mode knob to o to turn off the unit. Pull the plug out of the socket.

SAFETY DEVICES

This heater is protected with an overheat protection that switches off the heater automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. The overheating shut-off switches off the temperature inside when the appliance exceeds the normal running temperature. The heating element will automatically stop working, the motor will continue to operate, the internal heat shed. This protective device applies only to the appliance itself and has no influence on room temperature regulation. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

The appliance is also equipped with a tip-over safety, which is integrated in the appliance. The appliance will turn off when it tips over.

CLEANING AND MAINTENANCE

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth.

• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance. Dust particles in the appliance may cause over-heating.

• For a thorough cleaning, remove the cover of the air intake with a horizontal sliding movement. Take out the filter. This filter and the cover can be cleaned in lukewarm water with a mild detergent. Make sure the filter and cover are completely dry before putting them back in the unit. This can be done on both sides of the unit. Make sure that you correctly replace the parts in the unit before using the unit again.

• Allow the unit to cool down completely before storing it.

• Store the appliance in a clean and dry place.

SPECIFICATIONS

Model identifier(s): DO7348H
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage				local space heaters only
Nominal heat output Pnom	1.5 kW manual heat charge control			with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin 1.0	kW manual heat charge control with room and/or outdoor temperature feedback			N/A
Maximum continuous heat output	Pmax 1.5	kW electro nic heat charge control with room and/or outdoor temperature feedback			N/A

Auxiliary electricity consumption	--- --- --- f an assisted heat output N/A
At nominal heat output	elmax 1.5 kW Type of heat output/room temperature control
At minimum heat output	elmin 1.0 kW single stage heat output and no room temperature control	N/A
In standby mode eLSB N/A	KW Two or more manual stages, no room temperature control	N/A
		with mechanic thermostat room temperature control
		with electronic room temperature control
		electronic room temperature control plus day timer
		electronic room temperature control plus week timer
		Other control options
		room temperature control, with presence detection
		room temperature control, with open window detection
		with distance control option N/A
		with adaptive start control N/A
		with working time limitation N/A
		with black bulb sensor
Contact details	Linea 2000 bvba Dompel g - 2200 Herentals - Belgium

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
