USER MANUAL DO7344H DOMO

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular5 DO7344H www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular12 DO7344H

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular19 DO7344H www.domo-elektro.be

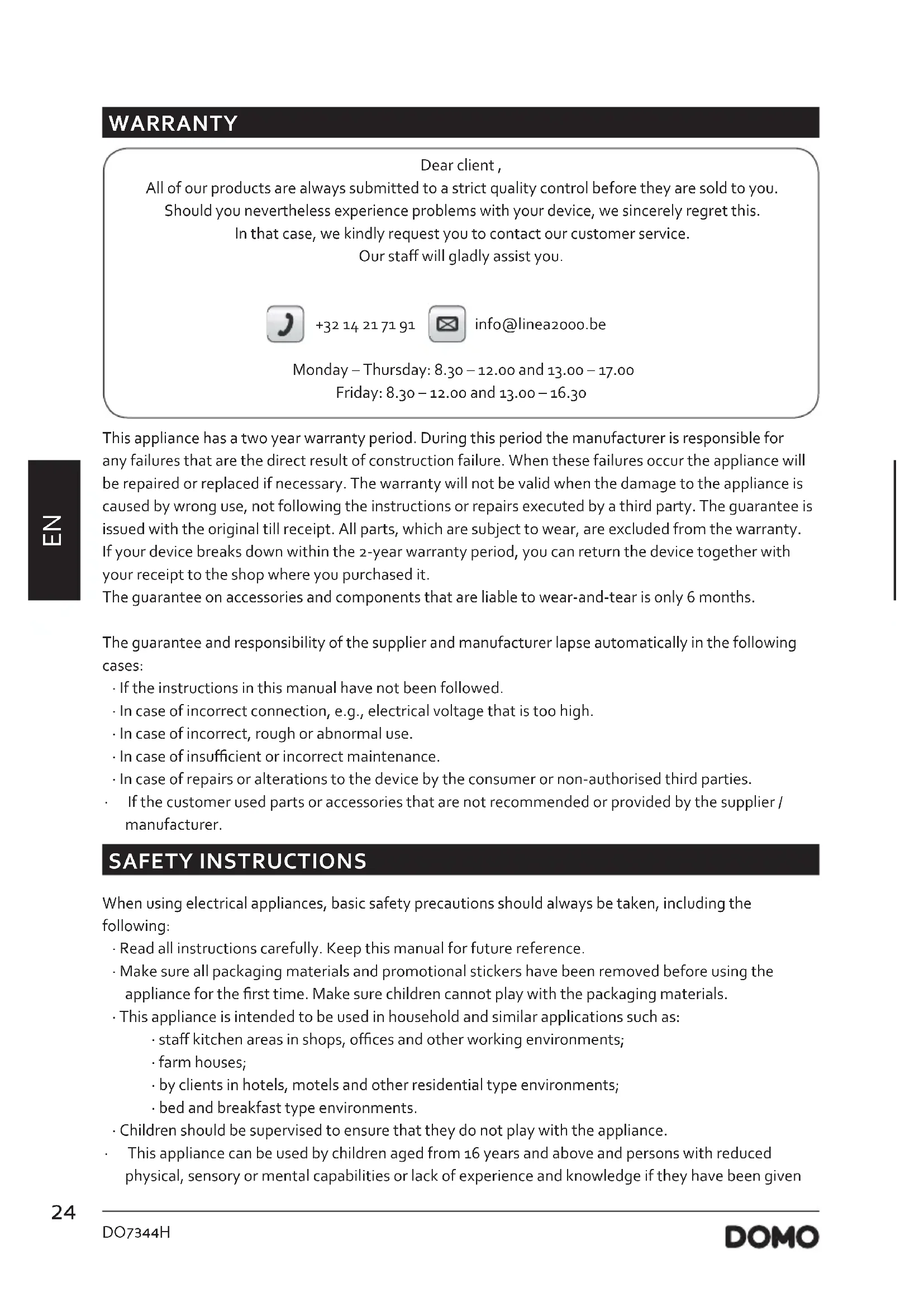

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given25 DO7344Hwww.domo-elektro.be supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised. · Keep the appliance and its cord out of reach of children younger than 16 years. · Attention: This appliance cannot be used with an external timer or a separate remote control.The appliance can become hot during use. Keep the power cord away from hot parts.Don’t cover the appliance. · Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home. · Do not let the cord hang on a hot surface or on the edge of a table or counter top. · Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair. · Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. · Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord. · Do not leave a working appliance unattended. · Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. · Do not use the appliance outdoors. · Only use the appliance for its intended use. · Always use the appliance on a steady, dry and level surface. · This product is only suitable for well insulated spaces or occasional use. · Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual. · All repairs should be carried out by the manufacturer or its aftersales service. · Never immerse the appliance, the cord or the plug in water or any other liquid. · Make sure that children do not touch the cord or appliance. · Keep the cord away from sharp edges and hot parts or other heat sources. · Before use, remove all packaging materials and any promotional stickers. · The appliance is not intended for use in the bathroom, washing area or other damp areas. A person who is in the bathtub or shower should not be able to touch the appliance, the power cord or the control knobs. · This product is only suitable for well insulated spaces or occasional use.

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular26 DO7344H

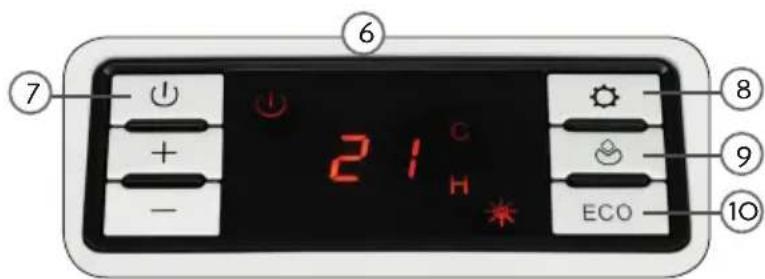

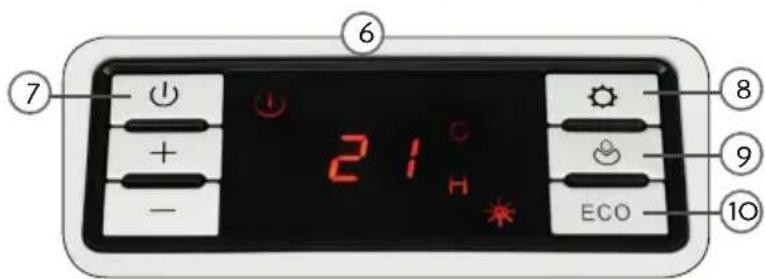

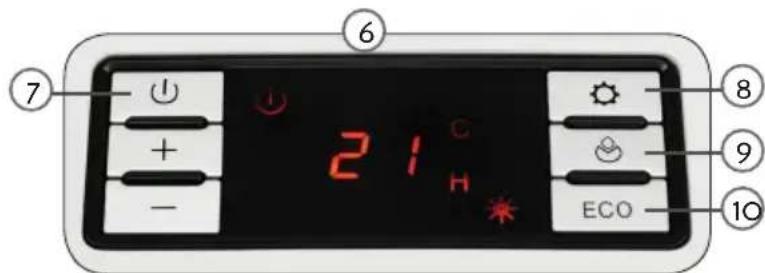

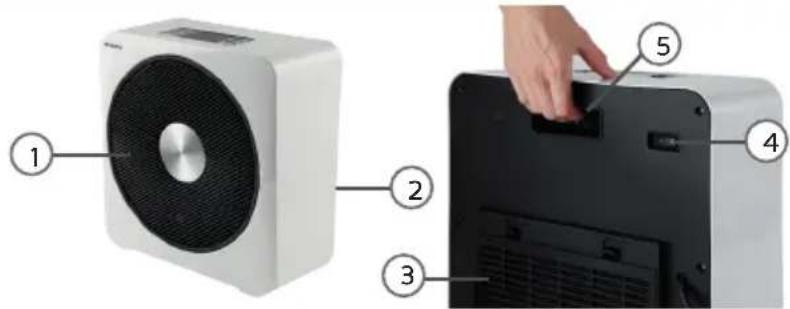

6. Control panel with display

8. Timer and temperature setting

• The heater should only be operated at a minimum distance of 50 cm from any wall or other object that could disturb its operation.

• Position the air ow in order to optimise the heating of the room. Avoid corners, small volumes, oors and ceilings.

• Place the appliance on a smooth, stable surface.

• When the appliance is switched on for the rst time, a slight smell may be emitted. Please ensure sucient ventilation. This smell will disappear very quickly. REMOTE CONTROL Before using the appliance with the remote control, a coin cell battery (CR2032) must be placed in the remote control. This is provided. Follow the instructions below.

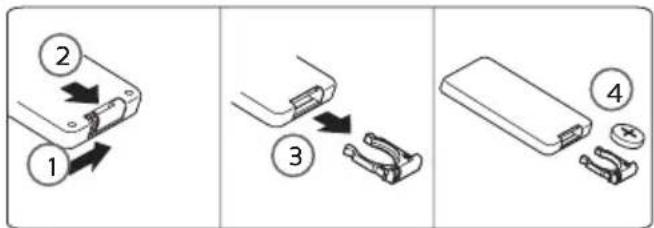

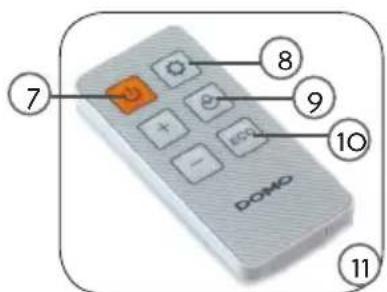

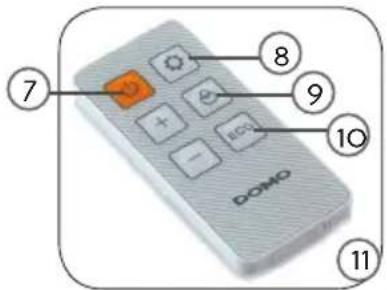

The remote control has a range of 5 metres.

USE Before you use the appliance: plug in the appliance and turn on the on/o switch at the back of the device. The heater is now in stand-by mode. You can set the appliance using the control panel, but also using the remote control. You can make the settings in the same way. The display will show you the selected settings.

Push the on/o switch to turn on or o the appliance. A signal will indicate that the appliance is operating. After switching o, the appliance will cool itself for a while. The heater remembers the last settings made. So when you switch on the device again, the last made settings will appear on the display. POWER SETTING

1. Push once this button to set the timer.

2. The timer can be set between 1 and 12 hours. Use the + and - button to select the desired time. By

pressing the + or - button you set the time with one hour more or less. You can also press and hold this button until you reach the desired setting.

3. When the selected time has been expired, the appliance will enter the stand-by mode and will no

longer emit heat. Temperature

1. Press twice this button to set the temperature.

2. Temperature can be set between 5°C and 35°C. Use the + and - button to select the desired

temperature. By pressing the + or - button you set the temperature one degree higher or lower. You can also press and hold this button until you reach the desired setting. If you have set the timer and temperature, press the settings button a third time. Now, the display will show the ambient temperature. Now the settings are xed and you can not adjust them unless you push this button again to set the timer or temperature. Note: if both the timer and temperature are set, both settings will appear alternately on the display. ECO MODE Push this button to enter eco mode. This function ensures that the set temperature will be maintained in an as energy-ecient way as possible.

• If the ambient temperature is maximum 2°C lower than the set temperature, the appliance will make sure that the set temperature is reached at the lower power of 1500 W.

• If the ambient temperature is more than 2°C lower than the set temperature, the appliance will make sure that the set temperature is reached at the higher power of 2500 W. If the temperature is reached, the appliance will enter the stand-by mode. If the temperature is decreasing again, the appliance will re-enter the eco-mode.28 DO7344H

• This heater is protected with an overheat protection that switches o the heater automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. The overheating shut-o switches o the temperature inside when the appliance exceeds the normal running temperature. The heating element will automatically stop working, the motor will continue to operate, the internal heat shed. This protective device applies only to the appliance itself and has no inuence on room temperature regulation. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

• The appliance is also equipped with a tip-over safety, which is integrated in the appliance. The appliance will turn o when it tips over.

CLEANING AND MAINTENANCE

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth.

• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance. Dust particles in the appliance may cause over-heating.

• Store the appliance in a clean and dry place. SPECIFICATIONS Model identier(s): Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output Pnom 2,5 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin 1,5 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output Pmax,c 2,5 kW electronic heat charge control with room and/or outdoor temperature feedback

At minimum heat output elmin 1,518 kW single stage heat output and no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control Yes electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options room temperature control, with presence detection

room temperature control, with open window detection

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular31 DO7344H www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular38 DO7344H

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular46 DO7344H

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular53 DO7344H www.domo-elektro.be

OHĽAD NA ŽIVOTNÉ PROSTREDIE
