DO7318R - Pan DOMO - Free user manual and instructions

Product Type	Fan Heater
Brand	Domo
Model	DO7318R
Maximum Power	1500 W
Power Levels	3 (600 W, 900 W, 1500 W)
Temperature Adjustment	Temperature knob (MIN to MAX)
Indicator Light	Indicates preheating; flashes in case of overheating
Power Supply	230 V ~ 50 Hz
Heating Element Material	Heating resistor
Control Type	Mechanical knobs
Overheat Protection	Yes (flashing indicator)
Mounting	Wheels to be attached under the device
Cord Storage	Yes
Recommended Use	Indoor, on a flat and stable surface
Safety Distance	60 cm around the device
Maintenance and Cleaning	Slightly damp cloth; do not immerse
Warranty	2 years (accessories: 6 months)
Customer Service	[phone], [e-mail]
Recycling	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - DO7318R DOMO

What should I do if an odor occurs during first use?

It is normal for a slight odor to occur during first use. Ensure good ventilation of the room; the odor will disappear quickly.

How to assemble the wheels of the DO7318R heater?

Place the device upside down, loosen the wing nuts of the bracket, place the bracket between the resistors, fix the wheel plates with the nuts, then turn the device back over.

How to clean the heater?

Unplug the device and wait for it to cool down. Clean the exterior with a slightly damp cloth. Never immerse in water.

What does the flashing indicator light mean?

Flashing indicates overheating. Turn off the device, check that it is not covered and that there is enough space around it.

How to adjust the temperature?

Use the temperature knob: turn towards MAX to heat more, then turn back towards MIN when the desired temperature is reached. The indicator then turns off.

What are the available power levels?

Three positions: 1 (600 W), 2 (900 W) and 3 (1500 W). Position 3 heats faster.

Can I use the heater in a bathroom?

No, the device must not be used in a bathroom, laundry room or humid room to avoid any risk of electric shock.

How to turn off the device completely?

Set the temperature knob to MIN and the power knob to OFF (0). Then unplug the device from the outlet.

What to do in case of malfunction?

Contact customer service at [phone] or by email at [e-mail]. Do not attempt to repair yourself.

How to recycle the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic waste.

USER MANUAL DO7318R DOMO

White industrial air conditioner unit with multiple cooling fins and black wheels (no visible text or symbols)

DO7318R

Handleiding Olieradiator
Mode d'emploi Radiateur à bain d'huile
Gebrauchsanleitung Ölheizung
Instruction booklet Oil filled radiator
Manual de instrucciones Radiador de aceite
Návod k použití Olejový radiator
Návod na použitie Olejový radiátor

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Circular dial indicator with MIN and MAX labels (no additional text or symbols)

Vermogensknop

Close-up of a circular mechanical knob with numbered dial (0 to 3) and a small notch on the ring (no text or symbols beyond numbers)

REINIGING EN ONDERHOUD

Warning sign with crossed-out trash bin and a blank rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a circular mechanical knob with 'MIN' and 'MAX' labels (no additional text or symbols)

Close-up of a circular knob with numbered dial (0 to 3) and a small notch, no readable text or symbols beyond the dial markings.

NETTOYAGE ET ENTRETIEN

Prohibition sign with crossed-out trash bin and black rectangular block below, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a circular mechanical knob with 'MIN' and 'MAX' labels (no additional text or symbols)

Close-up of a circular mechanical knob with numbered dial (no text or symbols visible)

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

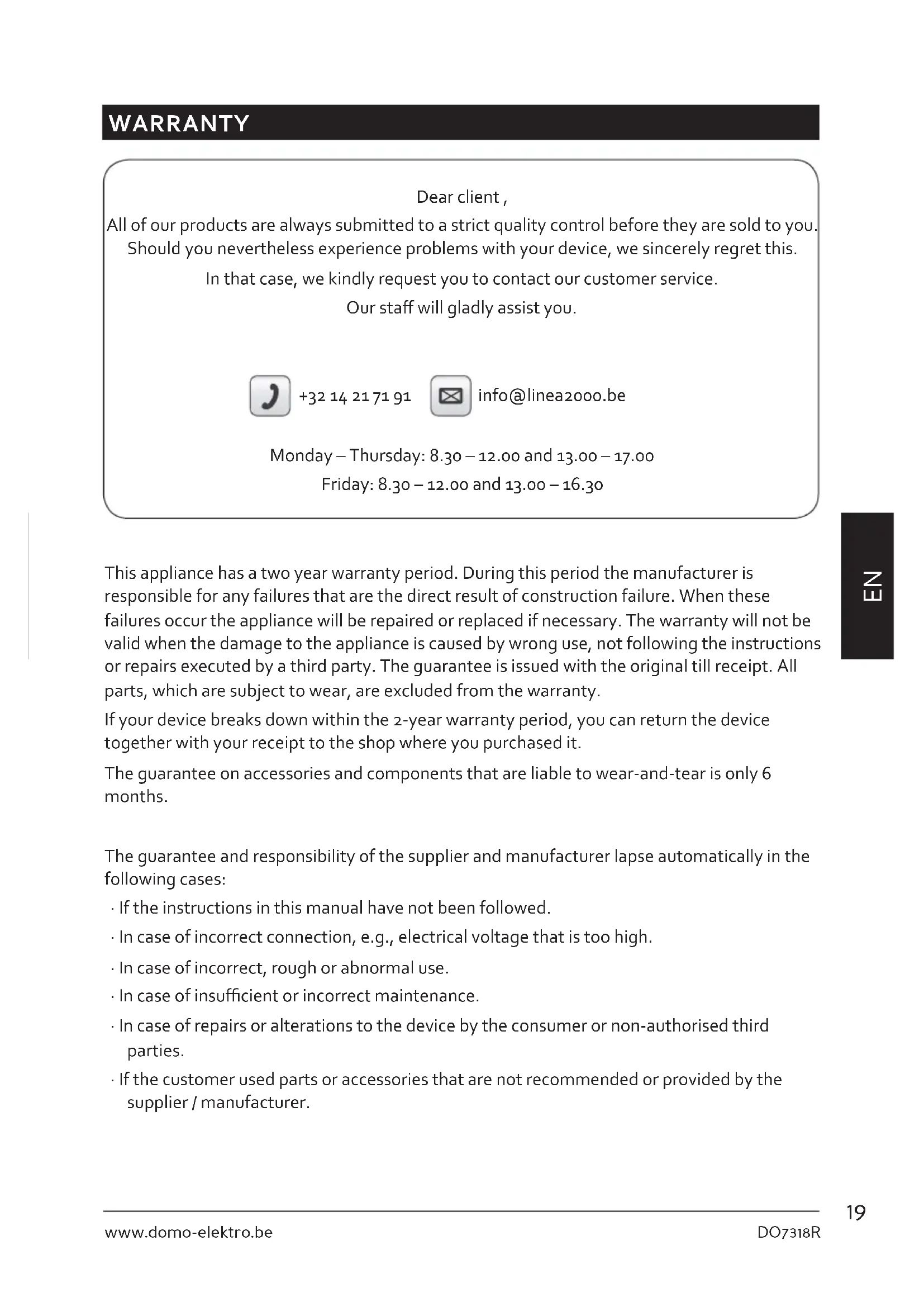

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• Read all instructions before use.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.
• This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

- Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts.

Don't cover the appliance.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

· Never place this appliance near a gas stove or electrical stove or in a place where it may

come into contact with a warm appliance.

· Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

· Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- The appliance is not intended for use in the bathroom, washing area or other damp areas. A person who is in the bathtub or shower should not be able to touch the appliance, the power cord or the control knobs.

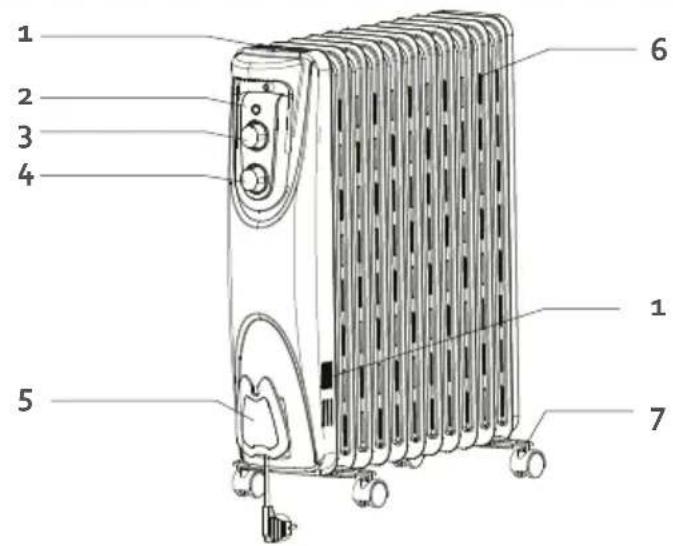

PARTS

1. Air inlet

2. Indicator light

3. Temperature button

4. Power button

5. Cord storage

6. Heating element

7. Swivelling wheels

1 2 3 4 5 6 1 7

BEFORE THE FIRST USE

- The heater should only be operated at a minimum distance of 60 cm from any wall or other object that could disturb its operation.

- Position the air flow in order to optimise the heating of the room. Make sure sufficient air can circulate under the appliance.

- Place the appliance on a smooth, stable surface. Do not place the appliance on deep-pile carpeting.

- When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

· Only use the appliance upright, with the wheels underneath.

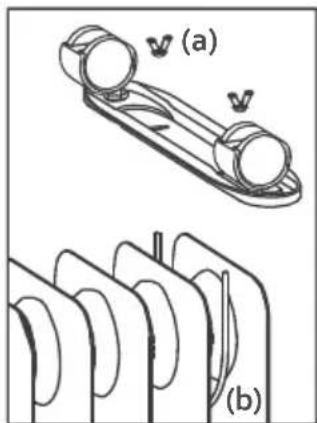

ASSEMBLY

1. Carefully turn the appliance upside down and place it on a smooth surface.
2. Remove the wingnuts (a) from the bracket (b).
3. Place the bracket (b) between the last and second-last heating elements and secure a plate with swivelling wheels on the bracket (b) using the wingnuts (a).
4. Place the other plate with swivelling wheels on the pre-mounted screws. Secure the wingnuts on the screws.
5. Turn the appliance upright, with the wheels underneath.

(a) (b)

USE

• Set the temperature button to MIN and the power button to o. Put the plug in the socket.
• Turn the buttons to the required position. A red indicator light indicates that the appliance is heating. If the indicator light flashes, turn the appliance off. This is a warning that it is overheating. Make sure that the appliance is not covered, and that there is enough free space around it for ventilation.

Temperature button

• Use this button to control the temperature. When set to MIN, the appliance is off.
• Turn the button towards MAX. The further you turn the button, the hotter the oil radiator.

- If you set the knob to the MAX position, when the desired temperature has been reached, the knob can be turned down to MIN. Stop turning when the light goes out. The room will then be maintained at this temperature.

Circular dial indicator with MIN and MAX labels (no additional text or symbols)

Power button

• You can use the power button to select between three different settings: 1 (600 W), 2 (900 W), 3 (1500 W).
• Position 3 will heat the area more quickly than position 1.
• Switch the appliance off by setting the temperature button to MIN and the power button to o. Remove the plug from the socket.

Close-up of a rotary dial with three numbered terminals (0, 1, 2, 3) and a central knob (no text or symbols beyond labels)

CLEANING AND MAINTENANCE

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it.
• Clean the housing with a damp cloth.

ENVIRONMENTAL GUIDELINES

Warning sign with crossed-out trash bin and a blank symbol below

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

V (a) V (b)

USO

Close-up of a circular mechanical knob with numbered terminals (0, 1, 2, 3) and a small notch on the ring (no text or symbols beyond numbers)

LIMPIEZAY MANTENIMIENTO

Warning sign with crossed-out trash bin and a black rectangle below, indicating no waste or pollution.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a circular mechanical knob with three numbered terminals (0, 1, 2, 3) and a small notch on the ring (no text or symbols beyond labels)

ČIŠTĚNÍ A ÚDRŽBA

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Circular dial indicator with MIN and MAX labels (no additional text or symbols)

Nastavenie výkonu

Close-up of a circular mechanical knob with numbered terminals (0, 1, 2, 3) and a small notch on the knob surface (no text or symbols beyond numeric labels)

ČISTENIE A ÚDRŽBA

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)
