USER MANUAL 10032196 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 16

Product Description 18

Installation 19

Operation 22

Care and Cleaning 23

Troubleshooting 24

Hints on Disposal 25

TECHNICAL DATA

Item number 10032195, 10032196, 10032853

Power supply 220-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)

SAFETY INSTRUCTIONS

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
• To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.
• It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
• When positioning the appliance, ensure that there is at least a 5~cm clearance at the sides and a 10~cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.
• Do not place hot food or drink into the refrigerator before it cools down to room temperature.
• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
• Keep appliance away from any heat source or direct sunlight.
• To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
• Do not place any other appliance on top of the refrigerator, and do not wet it.
• Do not store something like ether, methanol, gasoline, which is easy to evaporate, burn or explode.
  Do not use outdoors or in wet conditions.
• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
• Keep the cord away from heated surfaces.
  This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• Connect your refrigerator to an independent electrical socket and use a safe ground wire.
• Defrost the freezer at least once a month because too much frost may affect refrigeration.
• Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

Special Notes

Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
- When positioning the unit, make sure that the power cord is not pinched or damaged.
- Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip on other foods.

Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen foods, storing or making ice cream and making ice cubes.
• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.
• If the refrigerator remains empty for an extended period, turn it off, defrost it, clean it, dry it and leave the door open to prevent mould from forming in the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fi res. There are fl ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

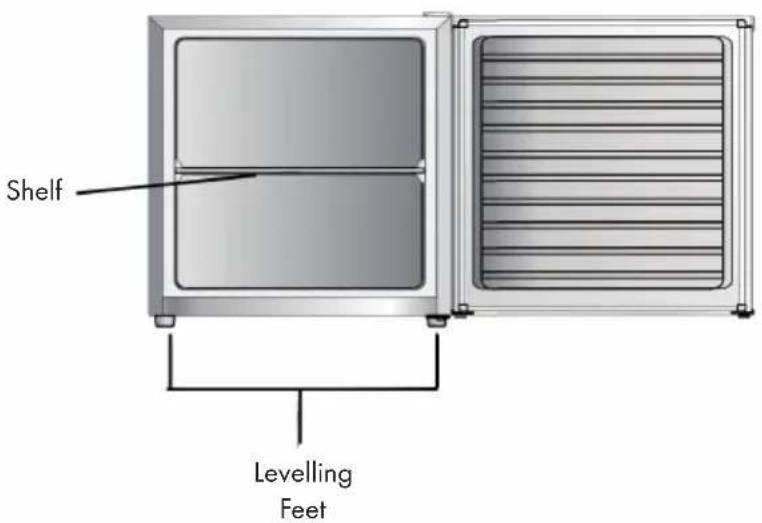

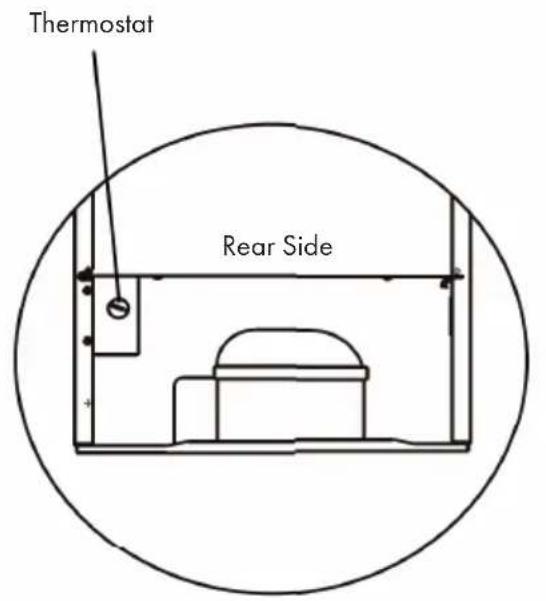

PRODUCT DESCRIPTION

INSTALLATION

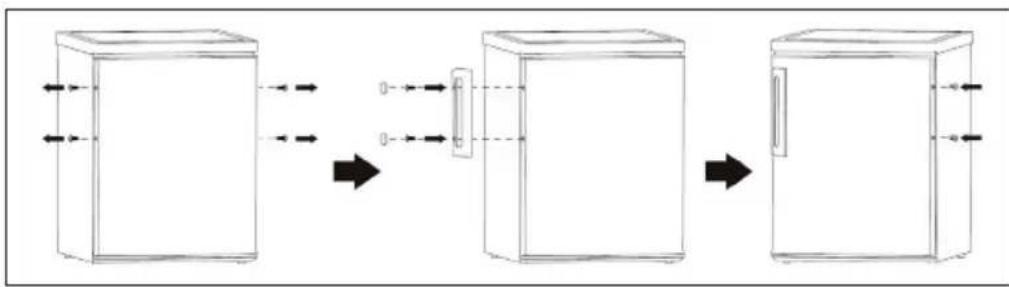

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  It's better that 2 people handle the unit during assembly.

1 2 3
Carefully remove the top hinge cover with a flat screw driver.	Unscrew the top hinge with a philips screw driver.	Remove the hole cover with a flat screw driver.
45
Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.	Lie down the rear of cabinet on a soft pad. And unscrew the bottom hinge and leveling foot. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
67 8
Install the hinge at left side and foot base at right side. Then screw two leveling feet with their orig in al parts.	Install the upper door with the upper hinge.	Clap in the hinge cover and hole cover on the top of unit.

Install door external handle (if external handle is present)

Rear spacer

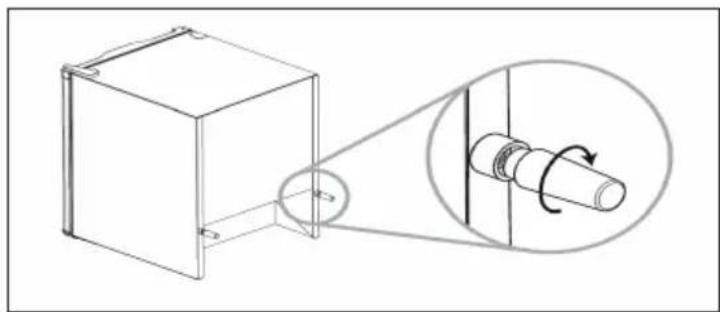

Screw the rear spacers at the rear of the unit.

Space Requirement

• Keep enough space of door open.
• Keep at least 50~mm gap at two sides.
• To level the unit adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

OPERATION

Before first Use

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

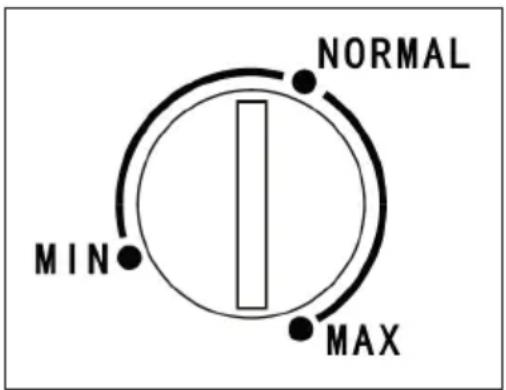

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 3 settings MIN, NORMAL and MAX. MIN is warmest setting and MAX is coldest setting.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

NOTE: In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

CARE AND CLEANING

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION

Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.

• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock!
• Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.
• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid. Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

1 Pull out the plug from the socket.
2 Remove all stored food and put it in a cool place.
3 Keep the door open, and placing a basin underneath of the appliance to collect the defrost water.
4 When defrosting is completed, dry the interior thoroughly.
5 Replace the plug in the power socket to run the appliance again.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective Check	heck fuse, replace if necessary.
	Socket is defective Mains malfunctions are to be corrected by an electrician.
Appliance cools too much	Temperature is set too cold. Turn the temperature to a warmer setting.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Unusual noises Appliance	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
