USER MANUAL UM020 TANITA

Monitoring Your Health

Body Fat Monitor / Scale - UM Series -

GB Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

The Barn, Philpots Close. Yiewsley,

Middlesex, UB7 TRY UK

Tel: [phone]

Fac: [phone]

www.tanita.co.uk

Tanita Corporation

14-2, 1-Chome, Maeno-Cho

Itabashi-Ku, Tokyo, Japan 174-9630

Tel: [phone]

Fax: (81(0))-3-3967-3766

www.lanila.co.jp

ISO 9001 Certified

Tanita Europe GmbH

Dresdener Strasse 25

D-71065 Sindelfingen

Germany

Tel: [phone]

Fax [phone]

www.tanita.do

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA

Tel: [phone]

Fax: [phone]

www.lanila.com

Tanita France S.A.

Villa Labrouste

68 Boulevard Bourdon

92200 Neuilly-Sur-Seine France

Tel: [phone]

Fax: [phone]

www.tanila.fr

Tanita Health Equipment H.K. Ltd.

Unil 301-303 3/F Wing On Plaza

62 Mody Road, Tsimshalsui East

Kawloon, Hong Kong

Tel: [phone]

Fax: [phone]

©2002 Tanla Corporation

UM0127801(2)

GB Table of Contents

Introduction

Safety Precautions

Important Notes for Users

Principles of Estimating Body Fat Percentage....2

What is Body Fat Percentage?

Body Fat Range

The BIA Method

Body Fat Percentage Fluctuations in a Day

Features and Functions 3

Measuring Platform

Accessories

Preparations Before Use 3

Inserting the Balleries

Positioning the Monitor

Handling Tips

Useful Features 4

Switching the Weight Mode

Automatic Shut-Down Function

How to Determine Body Fat Percentage 5

Setting and Storing Data in Memory

Getting Accurate Readings

Taking Weight and Body Fat Readings....6

Get Your Readings

Taking Weight Measurement Only 7

Replacing the Batteries 7

Troubleshooting....7

Note: Read this Instruction Manual carefully and keep it handy for future reference.	Thank you for soliciting a Tanita Body Fat Monitor/Scale. This model uses the BIA (Bioelectrical Impedance Analysis) technique, a state-of-the-art technology for body fat assessment.
	▲Safety Precautions• Persons with implanted electronic medical equipment, such as a pacemaker, should not use the Body Fat Monitor feature on this Tanita Body Fat Monitor/Scale. This Body Fat Monitor/Scale passes a low-level electrical signal through the body, which may interfere with the operation of a pacemaker.• The Tanita Body Fat Monitor/Scales are intended for home use only. This unit is not intended for professional use in hospitals or other medical facilities; it is not equipped with the quality standards required for heavy usage experienced under professional conditions.• Do not use this unit on slippery surfaces such as wet floors.
	Important Notes for UsersThis Body fat monitor is intended for adults and children (ages 7-17) with inactive to moderately active lifestyles.It is not intended for people with athletic body types. Tanita defines "athletes" as a person involved in intense physical activity of at least 10 hours per week and who has a resting heart rate of approximately 60 beats per minute or loss.People with athletic body types should use Tanita Body Fat Monitor/Scales equipped with Athlete mode.This scale is not intended for pregnant women, professional athletes or bodybulbors.Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data.Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person.

PRINCIPLES OF ESTIMATING BODY FAT PERCENTAGE

Tanita Body Fat Monitor/Scales allow you to determine your body fat percentage at home as easily as you measure your weight.

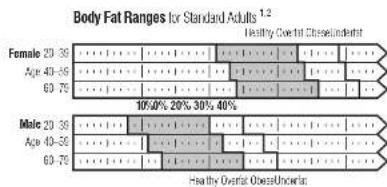

What is Body Fat Percentage?

Body fat percentage is the percentage of fat in your body. Too much body fat has been linked to conditions such as high blood pressure, heart disease, diabetes, cancer, and other disabling conditions.

^1 Based on NIH-WHO BIWI Guidelines. ^2 As reported by Gallagher, et al. at NY Obesity Research Center. To determine the percentage of body fat that is appropriate for your body, consult your physician.

The BIA Method

Tanita Body Fat Monitor/Scales use the BIA (Bioelectrical Impedance Analysis) technique. In this method, a safe, low-level electrical signal is passed through the body. It is difficult for the signal to flow through fat in the human body, but easy to flow through moisture in the muscle and other body tissues. The difficulty with which a signal flows through a substance is called impedance. So the more resistance, or impedance, the signal encounters, the higher the body fat reading.

Tanita's patented "foot pad" design sends a sale, low-level electrical signal through the body to determine its composition.

Body Fat Percentage Fluctuations in a Day

Hydration levels in the body may affect body fat readings. Readings are usually highest in the early waking hours, since the body tends to be dehydrated after a long night's sleep. For the most accurate reading, a person should take a body fat percentage reading at a consistent time of day under consistent conditions.

Besides this basic cycle of fluctuations in the daily body fat readings, variations may be caused by hydration changes in the body due to eating, drinking, menstruation, illness, exercising, and bathing. Daily body fat readings are unique to each person, and depend upon one's lifestyle, job and activities.

GB

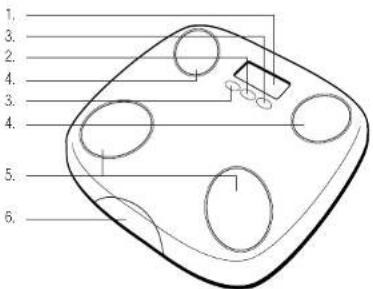

FEATURES AND FUNCTIONS

1. 2. 3. 4. 5. 6.

了.

Measuring Platform

1. Display Screen

2. Set Button

3. Arrow (Select) Buttons

4. Ball-of-Foot Electrodes

5. Heel Electrodes

6. Weight-Only Key

( See Specification sheet to determine if your model has this feature. )

Accessories

1. AA-Size Batteries (4)

PREPARATIONS BEFORE USE

▲Inserting the Batteries

Open the battery cover on the back of the measuring platform. Insert the supplied AA-batteries as indicated.

Note: Be sure that the polarity of the batteries is not properly. If the batteries are

incorrectly positioned the field may leak and damage floors. If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries before storage.

Please note that since the batteries were inserted at the factory, their energy levels may have decreased.

▲ Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Note: To avoid possible injury, do not stop on the edge of the platform.

Handling Tips

This monitor is a precision instrument utilizing state-of-the-art technology.

To keep the unit in the best condition, follow these instructions carefully.

• Do not attempt to disassemble the measuring platform.
• Store the unit horizontally, and place it so that the buttons will not be pressed accidentally.
• Avoid excessive impact or vibration to the unit.
• Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
• Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shiny: avoid soaps.
• Do not stop on the platform when wet.
• Do not drop any objects onto the platform.

USEFUL FEATURES

• Tanita Body Fat Monitor/Scales allow you to measure both weight and body fat percentage simultaneously and easily, simply by stepping on a scale.
• Your Body Fat Monitor/Scale can be set for Adults or Children (ages 7-17). Male or Female.
• Personal data (Female/Male, Age, Height) can be pre-set and stored in personal data memories.
• The unit emits a helpful "beep" when activated, and also at various stages in the programming and measuring process. Listen for these sounds which will prompt you to step on the unit, look at your readings, or confirm a setting.

SWITCHING THE WEIGHT MODE

You can switch the unit indication by using the switch on the back of the scale as shown in the figure.

Note: If weight mode is set to pounds or stone pounds, the height programming mode will be automatically set to feet and inches. Similarly, if kilograms is selected, height will be automatically set to centimeters.

AUTOMATIC SHUT-DOWN FUNCTION

The automatic shut-down function shuts off the power automatically in the following cases:

• If you interrupt the measurement process. The power will shut down automatically within 10 to 20 seconds, depending upon the type of operation.
• If an extraordinary weight is applied to the platform.
• If you make a mistake during measurement or a key or button operation.
• During programming, if you do not touch any of the keys or buttons within 60 seconds.
  • After you have completed the measuring process.
  Note: If the power shuts oil automatically, repeat the steps from "Setting and Sloring Data in Memory" (p.5).

GB

GB

HOW TO DETERMINE BODY FAT PERCENTAGE

Setting and Storing Data in Memory

The unit can be operated only if data has been programmed into one of the personal data memories or the Guest mode

1. Turn on the Power

Press the Set button to turn on the unit. The unit will beep to confirm activation, the Personal data number will be displayed, and the display will flash. Note: If you don't operate the unit for sixty seconds after the unit has been turned on, the unit will turn off automatically.

2. Select a Personal data Number

Press the Up/Down buttons to select a Personal data number. Once you reach the Personal data number you wish to use, press the Set button. The unit will beep once to confirm.

3. Set Age

The display defaults to Age 30 (range of user age is between 7-99). An arrow icon appears on the lower left side to indicate Age setting. Use the Up/Down buttons to scroll through numbers. When you reach your age, press the Set button. The unit will beep once to confirm.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female (Male) settings, then press the Set button. The unit will beep once to confirm.

5. Specify the Height

The display defaults to 5' 7.0" (170cm) (range of user is from 3' 4.0" - 7' 3.0" or 100cm - 220cm). Use the Up/Down buttons to specify Height and then press the Sel button. The unit will beep once to confirm.

The unit will beep twice and the display will flash all data (MalayFemale, Ago, Height.) three times to confirm the programming. The power will then shut down automatically

Note: If you make a mistake or want to turn the unit off before you have finished programming it, press the Weight-Only Key (A) force quit. (for models with the Weight-Only Key.)

GETTING ACCURATE READINGS

Heels centered on electrodes

Toes may overhang measuring platform

Note: An accurate reading will not be possible if the soles of your feet are not clean, or if your knees are bent or you are in a sitting position.

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the solos of your feet are clean before stopping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feel appear too large for the unit - accurate readings can still be obtained if your toes overhang the platform. It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements. While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

TAKING WEIGHT AND BODY FAT READINGS

After programming your personal data you are ready to take a reading.

Select Personal Data Number

Press the Up button turn on. Use the Up/Down buttons to select your Personal data number. Press the Set button to confirm. (Release the key within 3 seconds or the display will show "Error".) The unit will beep and the display will show the programmed data. The unit will beep again and the display will show "0.0". Now step onto the platform.

Note:

- If you step onto the platform before "0.0" appears the display will show "Error" and you will not obtain a reading. Furthermore, if you do not stop onto the measuring platform within about 60 seconds after "0.0" appears, the power is shut-off automatically. - When using the "Up" button to turn the unit on, the personal data number last used will appear first.

- Numbers that are not pre-programmed are automatically skipped.

Get Your Readings

Your weight will be shown first. Continue to stand on the platform. "00000" will appear on the display and disappear one by one from left to right. Your body fat percentage will appear on the display screen. The display will then flash your weight and body fat percentage alternately three times.

Note: Do not step off until Body Fat % is shown.

Note: Even if you stop off the platform after all the results are displayed, the alternating display of body weight and body fat percentage will be repeated three times. The unit will then shut down automatically.

PROGRAMMING THE GUEST MODE

The Guest mode allows you to use the monitor without losing the information already assigned to a Personal Data Number. To program the Guest mode, use the Down button marked with a "G" to turn on the power. Then follow steps 3 through 5 in "Selling and Storing Data" (p.5.). The unit will beep twice and the display will show "0.0". Stop onto the platform. Next follows the directions for "Got Your Reading" (p.6). Note: If you step onto the platform before "0.0" appears the display will show "Error" and you will not coise a reading.

(See Specification sheet to determine if your model has this feature.)

Select Weight-Only Mode

Using your toe, tap the Weight-only key. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, stop onto the platform. The body weight value will appear. If you remain on the platform, the display will flash for about 30 seconds, and then the power will automatically turn off. If you stop off the platform, the weight will continue to show for about 5 seconds, then "0.0" will appear and the unit will shut off automatically.

REPLACING THE BATTERIES

When the batteries run low, the "Lo" message will appear on the display window. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new AA-size batteries. Note: Your settings will not be erased from the memory when you remove the batteries.

TROUBLESHOOTING

If the following problems occur... then...

A wrong weight format appears followed by kg, lb, or st-lb Refer to "Switching the Weight Mode" on p.4.

“Lo” appears on the display, or all the data appears and immediately disappears. Batteries are low. Replace batteries immediately.

The display reads "Error" or "----" appears or the power shuts off while measuring.

Be sure that you have selected the correct user mode (Male/Female, Age, Height). Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the measuring platform. Consider whether or not you have selected the correct Personal data number and make sure that you wait for "0.0" to appear before stepping on the platform. Step off and repeat steps on p.6.

"OL" appears while measuring.

Reading cannot be obtained if the weight capacity is exceeded.

Note: If body fat percentage is more than 75%, readings cannot be obtained from the unit.

The body fat percentage measurement does not appear after the weight is measured.

Vibration will interfere with measurement of the fat percentage. Be sure to stand and still on the measuring platform. Do not bend your knees. Be sure that shoes and socks are removed and check fool alignment. Step off and repeal steps on p.6.
