USER MANUAL CMP420V2 HITACHI

VGA y XGA son marcas registradas de International Business Machines Corporation. APPLE y Macintosh son marcas registradas de Apple Computer, Inc. VESA es una marca comercial de una organización sin fines de lucro, Video Electronics Standard Association. Todas las marcas y nombres de productos son marcas comerciales o registradas de sus respectivos titulares.ENGLISH USER'S MANUAL Thank you very much for purchasing the HITACHI Plasma Display Monitor. Before using your monitor, please carefully read the "SAFETY INSTRUCTIONS" and this "USER'S MANUAL" so you will know how to operate the monitor properly. Keep this manual in a safe place. You will find it useful in the future. Notes on lnstallation Work: This product is marketed assuming that it is installed by qualifed personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. HITACHI cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster. Note for Dealers: After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.IMPORTANT SAFETY INSTRUCTIONS

Our reputation has been built on the quality, performance, and ease of service of HITACHI Plasma monitor. Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI Plasma monitor. Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your product model. Follow all warnings and instructions marked on this monitor. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS MONITOR TO RAIN OR MOISTURE.

• THE MONITOR SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE MONITOR. NOTE: • There are no user serviceable parts inside the monitor.

• Model and serial numbers are indicated on back side of the monitor. CAUTION: Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by HITACHI could void the user's authority to operate the monitor. MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user's authority to operate the equipment. POWER SOURCE THIS MONITOR IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE POWER CORD INTO A 120 VOLT 60Hz OUTLET. TO PREVENT ELECTRIC SHOCK, DO NOT USE THE MONITOR'S (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NEVER CONNECT THE MONITOR TO DIRECT CURRENT OR ANYTHING OTHER THAN THE SPECIFIED VOLTAGE. CAUTION: Never remove the back cover of the monitor as this can expose you to very high voltages and other hazards. If the monitor does not operate properly, unplug the monitor and call your authorized dealer or service center.ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment Follow all warnings and instructions marked on this monitor.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Monitors are designed to comply with the recommended

safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet which could cause the product to overturn resulting in product damage and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as

recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of

overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure the

antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Do not place any objects on the top of the monitor which may fall or cause a child to climb to retrieve the objects. Disposal of this product may require specific instructions pertaining to your resident state. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

PREVENTION OF SCREEN BURN

Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (non-moving) patterns can cause permanent damage to the monitor. Such “SCREEN BURNS” constitute misuse and are NOT COVERED by your HITACHI Factory Warranty.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material. ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT

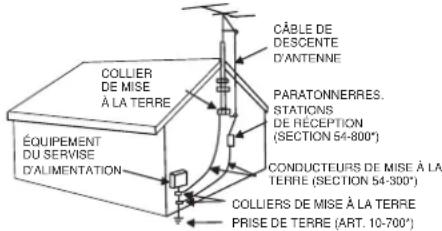

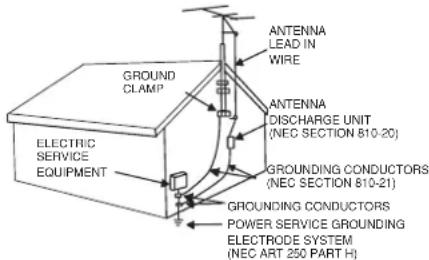

ELECTRODE SYSTEM (NEC ART 250 PART H)Important Please read this User's Manual thoroughly, especially the Important Safety Instructions on Page 2 to 3 and 6 to 10. Mis-use may cause damage to your plasma monitor, which could shorten its lifespan, or cause injury to yourself. Should you encounter any difficulty in the set-up or operation of your monitor, firstly refer to the Troubleshooting guide at the rear of this manual. In the unlikely event of a problem occurring with your plasma monitor, switch off at the mains sockets, pull out the plugs, and contact your dealer immediately. CAUTION Under no circumstances remove the rear cover of your plasma monitor. Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry! Software Notice It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein, save to the extent permitted by law. Plasma Monitor After the plasma monitor has been on for any length of time, you will notice that the screen becomes warm. Please note that this is normal. Sometimes the screen might have some tiny bright or dark spots. Please note that this is normal. CAUTION To prevent scratches or damages to the plasma screen, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. A mild soap may be used if the screen is extremely dirty. Do not use harsh or abrasive cleaners! CAUTION Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks. Large-screen, high-definition plasma display panel The 42-inch color plasma display panel, with a resolution of 852 (H) x 480 (V) pixels, creates a high-definition, large-screen (aspect ratio : 16:9) and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces high-quality display images free from color misconvergence and display distortion. High Performance Digital Processor A wide range of personal computer signals can be handled, from 640 x 400, 640 x 480 VGA to 1600 x 1200 UXGA.(RGB Analog input) Easy-to-use remote control and on screen display system The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion. Power saving system The International ENERGY STAR® power saver feature saves power consumption automatically when input signals are not available. When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle. TruBass TruBass, SRS and (O) symbol are trademarks of SRS Labs, Inc. TruBass technology is incorporated under license from SRS Labs, Inc. About the Optional Video Unit The following functions can be obtained by connecting the optional video unit. (1) A composite/S terminal and two component terminals have been added. A composite video output terminal is also provided as a monitoring output. (2) A wide range of devices other than personal computers can also be connected. (3) A component input is possible to switch to RGB signals from the Menu screen. (4) A SCART terminal is also provided for the signal of the European standard. It operates as composite/S/RGB input terminal, or video output terminal. Options Ask your local retail dealer for further details.

• CMPAD05 (for CMP420V2)

2. Plasma monitor speaker:

• CMPAS14W(for CMP420V1) 2 way speaker unit with one

An expansion unit for viewing video with this device. FEATURESENGLISH CONTENTS

• The information in this manual is subject to change without notice.

• While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any comments, views or questions about our product.

• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the product. We are not held liable for damages caused by improper handling of the product.

• Reproduction of this manual in whole or in part without our prior written permission is prohibited.

• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners. OTHER FEATURES ....................................24 Automatic Store ................................................................24 Signal Check ....................................................................25 Power Save Mode..............................................................25

IMAGE RETENTION OF PLASMA DISPLAY

• NOTES p. 26
• TROUBLESHOOTING p. 27
• Symptoms That Seemingly Appear to be Failures p. 27
• Actions to Correct Abnormal Displays p. 29
• PRODUCT SPECIFICATIONS p. 30

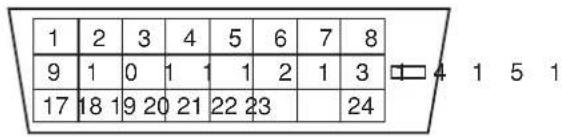

• Signal Input p. 30
• Recommended Signal List p. 31
• SUPPLEMENT p. 33
• Optional Video Unit Function SAFETY INSTRUCTIONS This Plasma monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions. This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling. CAUTION Typical Symbols WARNING Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents. About the Symbols This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents. This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited). This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet). Never use the monitor if a problem should occur. Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous. Do not insert liquids or foreign objects. Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present. If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer. p. 34

• Do not place the monitor in a bathroom.

• Do not expose the monitor to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.

• Do not place metals, combustibles, etc on or around the monitor. Never disassemble or modify the monitor. The monitor contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover. Do not give the monitor any shock or impact. If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock. If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer. Do not place the monitor on an unstable surface. If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the monitor on an unstable, slant or vibrant surface such as a wobbly or inclined stand. Do not obstruct the ventilation of the monitor. If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.

• Do not place anything around ventilation openings of the monitor.

• Never block ventilation openings.

• Do not put the plasma screen side up.

• Do not cover the monitor with a tablecloth, etc.

• Do not place the monitor on a carpet or bedding, or near a curtain. Use only the correct power outlet. Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the monitor and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used. WARNING Disconnect the plug from the power outlet. Do not disassemble.ENGLISH SAFETY INSTRUCTIONS(continued) Be cautious of the power cord connection. Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position. Be sure to keep safety ground connection. Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet. Be careful in handling the power cord and external connection cables. If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables. If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they exit from the apparatus.

• Do not modify the power cord. Be careful in handling the battery of the remote control. Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this monitor.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water.

• Obey the local laws on disposing the battery. WARNING Surely connect the ground wire.PRECAUTIONS

• Installation environment Do not obstruct a ventilation hole. Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor. Do not put the monitor in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

• How to view the monitor If you use the monitor in too dark a room, your eyes may become tired. Please use it in a reasonably bright room. Avoid direct rays of the sun to the screen in order to prevent eye fatigue. Your eyes will get fatigued after viewing the monitor for long period of time. Relax your eyes by viewing away from the monitor from time to time. Please watch the monitor in downward direction.

• Note on image retention The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the brightness of the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as grayed-out images. Tips to prevent such image retention are: - Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns, for long. - Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen saver function. - Turn down the contrast and brightness controls.

• How to clean the plasma screen panel of the monitor Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

• How to clean the cabinet of the monitor Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks. CAUTION Be careful in moving the monitor. Neglect could result in an injury or damage.

• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the monitor with two persons.

• Avoid any impact or shock to the monitor; particularly take care of glass screen. Do not put anything on top of the monitor. Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present. Avoid a humid or dusty place. Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity. Avoid a high temperature environment. The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.

• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the monitor in a place where the temperature is widely changing. Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock. SAFETY INSTRUCTIONS(continued) Disconnect the plug from the power outlet.ENGLISH SAFETY INSTRUCTIONS(continued)

• Prevention of an obstacle to Radio receivers This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers. - Keep the monitor away from Radio. - Adjust Radio antennas in order for the monitor not to receive interference. - The antenna cable of Radio should be kept away from the monitor. - Use a coaxial cable for antenna. You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor. If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.

• Precautions for the cable connection - Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections. - Confirm the connector is fixed tightly when the signal cable is connected. Also confirm the screws on the connector are tightened. - Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc.. - Use a plug with ground terminal and make sure that it connects to the ground.

• Precaution during transportation Please pay attention when you transport this monitor because it is heavy. Furthermore, use the original carton box and its packaging materials when the monitor is transported. Failure to transport the monitor in any carton except the original carton may result in damage to the monitor. Save the original carton box and all packing material. Do not physically impact the remote control. A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control. Avoid strong rays. Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control. Avoid radio interference. Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor. Set the sound volume at a suitable level. It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

• Precautions for the installation - Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs with the fixings provided according to the instructions. - Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. - This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury. - Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer. - Only use the attachments/accessories specified by the manufacturer. - Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

• Other precautions - Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people. - Disposal of this product may require specific instructions pertaining to your resident region. - Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!SAFETY INSTRUCTIONS(continued)

• FCC (Federal Communications Commission) STATEMENT WARNING For model CMP420V PW1A ( = 0 9, A Z or Blank ) WARNING : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a paricular installation. If this equipment does cause harmful inerference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from where the receive is connected. - Consult the dealer or an experienced radio / TV technician for help. Instructions to Users : This equipment complies with the requirements of FCC (Federal Communication Commission) regulations, provided that following conditions are met. Video inputs : The input signal amplitude must not exceed the specified level. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Declaration of Conformity According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and / or CPU Boards and Power Supplies used with Class B Personal Computers: We: Hitachi America, Ltd. Home Electronics Division Located at: 900 Hitachi Way. Chula Vista, CA 91914, U.S.A. Telephone: 1-800-HITACHI Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR § 2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR § §1 5.101 to 15.109. Trade name: Plasma Display Monitor Model Number: CMP420V PW1A ( = 0 9,A Z or Blank)ENGLISH Caution when moving the main unit

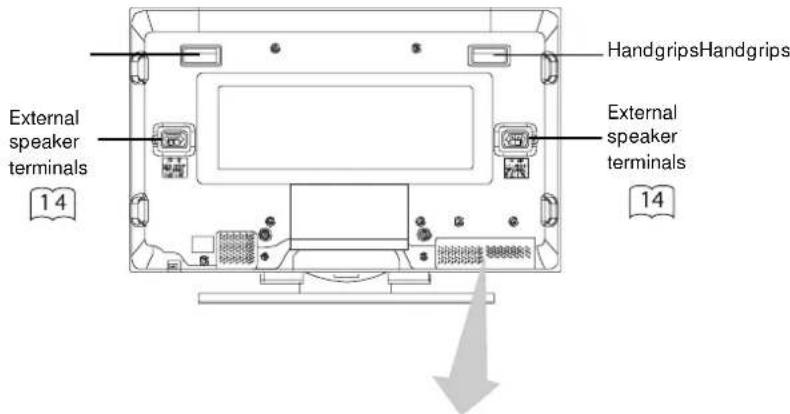

• As this product is heavy, whenever it is moved, two people are required to transport it safely.

• Whenever the unit is moved it should be lifted forwards using the two handgrips at the back, and the unit should then be held at the base on both sides for stability. COMPONENT NAMES Front Cabinet (front frame) Panel Remote-control receiver SIZE button ( SELECT button) INPUT SELECT button (OK button) RECALL button ( SELECT button)

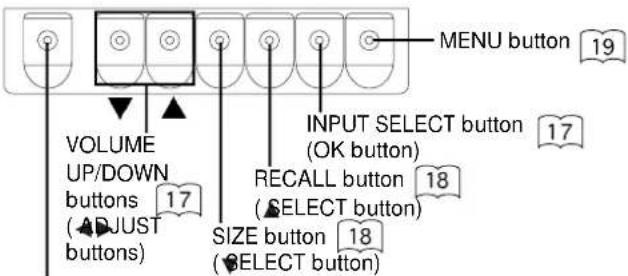

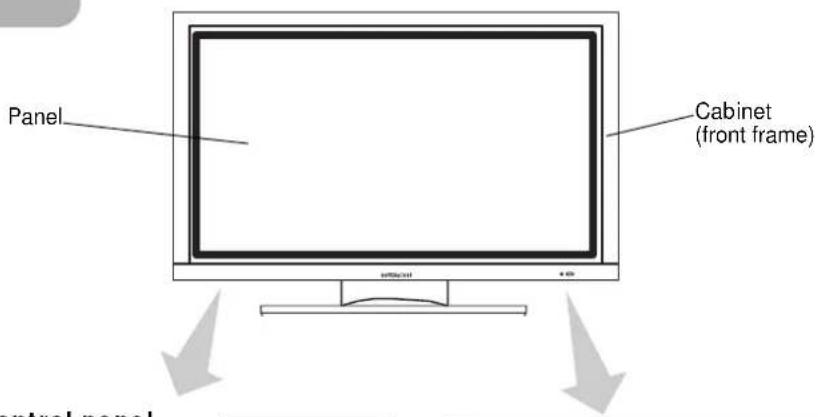

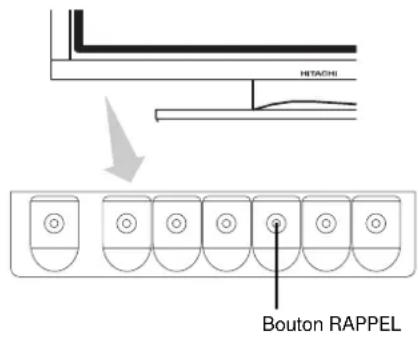

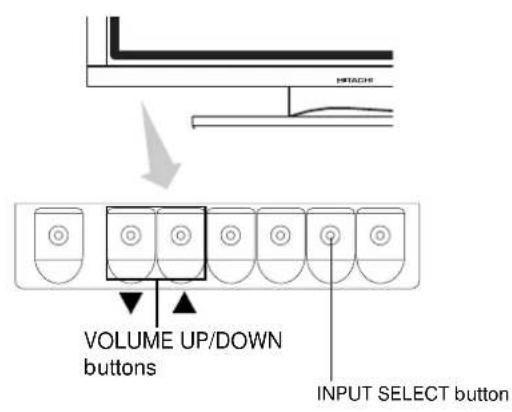

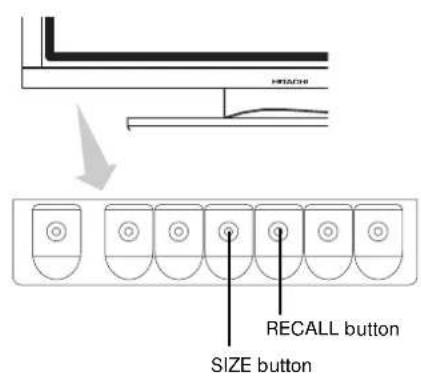

• Adjustment buttons are located on the bottom.

• The back cover is provided with indications to distinguish the adjustment buttons. SUB-POWER button Control panel VOLUME UP/DOWN buttons ( ADJUST buttons) Main power switch

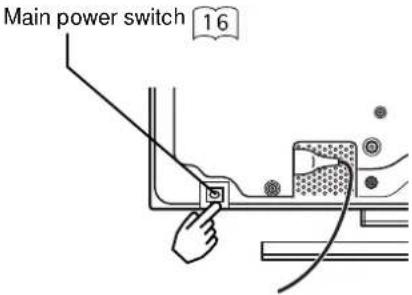

• The main power switch is located at the back, on the lower surface. Indicating lamp External device connection terminals Rear RGB input terminals External speaker terminals Handgrips HandgripsHandgrips Main Unit External speaker terminals MENU button

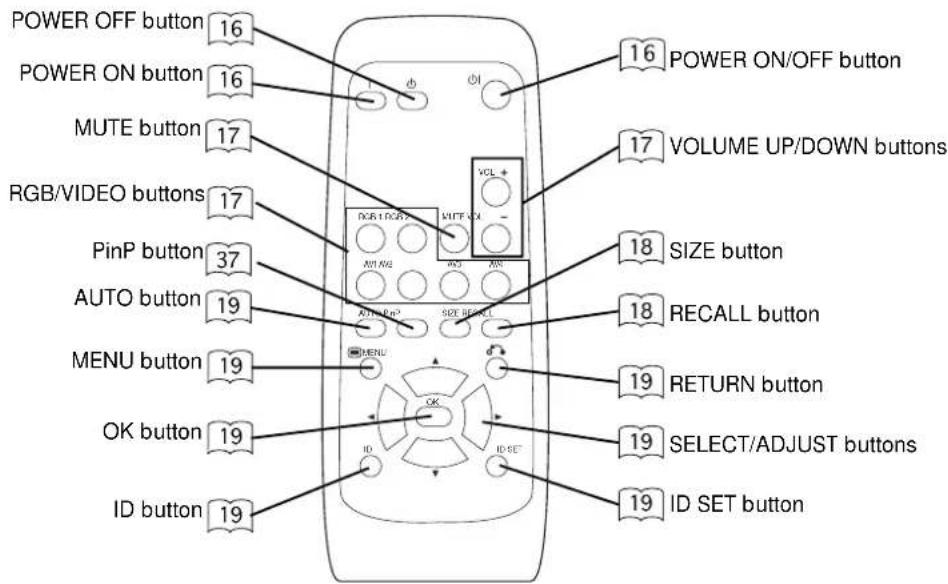

• ( ) indicates the function while the MENU is displayed on the screen.Remote control ID SET button POWER OFF button POWER ON button POWER ON/OFF button MENU button MUTE button VOLUME UP/DOWN buttons RETURN button RECALL button AUTO button PinP button ID button SELECT/ADJUST buttons OK button Loading Batteries

1. Open the battery cover.

• Slide back and remove the batterycover in the direction of the arrow.
• Load two Size AA batteries included observing the correctpolarities.

3. Close the battery cover.

• Replace the battery cover in the direction of the arrow and snapit back into place.Use the remote control within about 5 m from front of the unit’sremote-control sensor and within 30 degrees on both sides. With in 30 degrees About 5m About 3m With in 30 degrees About 3m

• Do not use new and old batteries together. The batteries couldexplode or leak, resulting in fires, physical injury, or stains.• When loading batteries, observe their correct polarities asmarked on the product. If loaded in the wrong direction, thebatteries could explode or leak, resulting in fires, physical injury,or stains. CAUTION ATTENTION

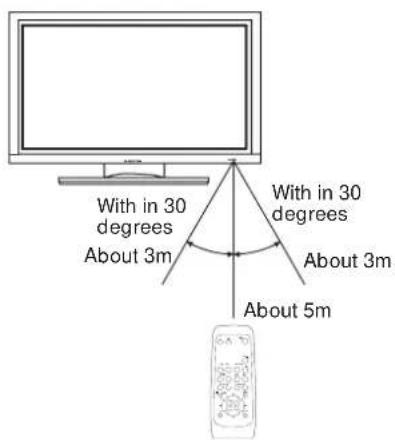

• Do not drop or impact the remote control.• Do not splash the remote control with water or put it on a wetobject to avoid possible failures.• Before leaving the remote control out of use for an extendedperiod of time, remove the batteries from it.• If the remote control begins to lack responsiveness, replace thebatteries.• Strong light such as direct sunlight impinging on thephotoreceptor of the remote control can cause operational failure.Position this unit to avoid direct contact with such light. Handling the Remote Control COMPONENT NAMES (continued) SIZE button RGB/VIDEO buttons

ID SETENGLISH Anti-tumble measures Securing to a wall or pillar Using a commercially available cord, chain and clamp, secure the set to a firm wall or pillar. Securing desktop

1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown.

2) Using commercially available wood screws, secure the set firmly in position.

• If you have purchased the model without the stand attached: When installing the monitor, use the optional Desk-top Stand (CMPAD05B,05). The Desk-top Stand has been used for the illustrations in this manual. INSTALLATION INSTRUCTIONS Installation

• Installation of the wall mount unit and ceiling mount unit can be dangerous, so do not attempt this work yourself. Ask your dealer to provide the name of a qualified installer.

• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches : For a desktop set- up) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not blocked.(

CAUTION Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury. CAUTION 10cm (4 inches) or more* Cord

chain Clamp Two places Wood screw Hook Chaincord or chainclampWall or Pillar Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries or property damage caused by use of other mount units or improper installation. WARNINGRead SAFETY INSTRUCTIONS ( to ) carefully to ensure maximum safety before proceeding to these steps:

• Choose an appropriate site and install the product on a level table where the stand is secure.

• Install the monitor to have ready access to a power socket available.

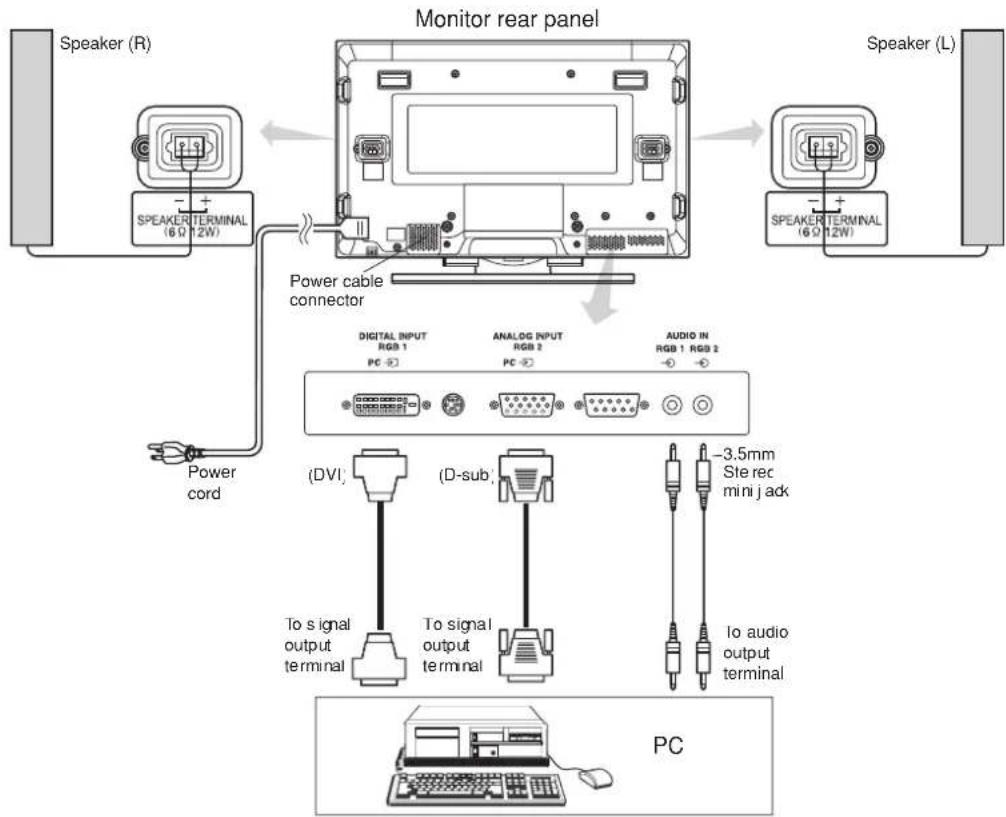

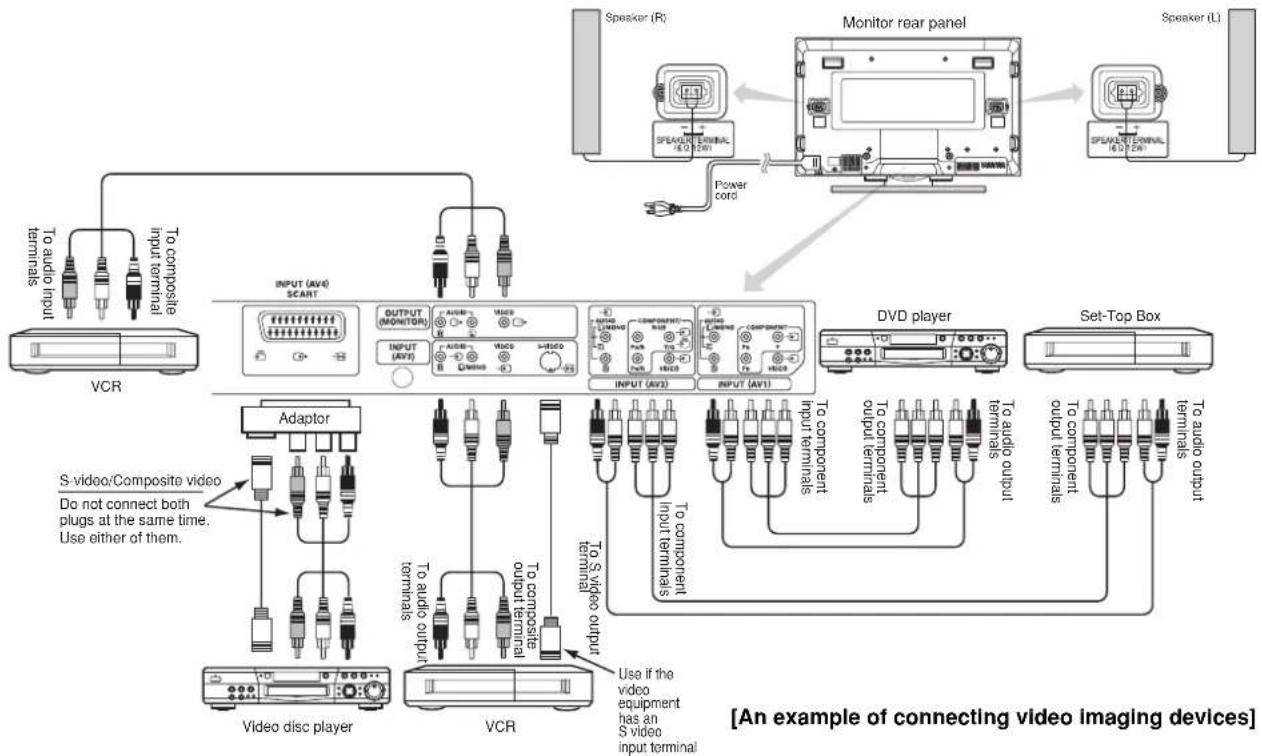

• Make sure that the power switch of this device is turned off. INSTALLATION INSTRUCTIONS (continued) (1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this device.

• See "Product Specifications" concerning the specifications of this device. (2) Make sure that the power switch of the personal computer is turned off. (3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output terminal of the personal computer.

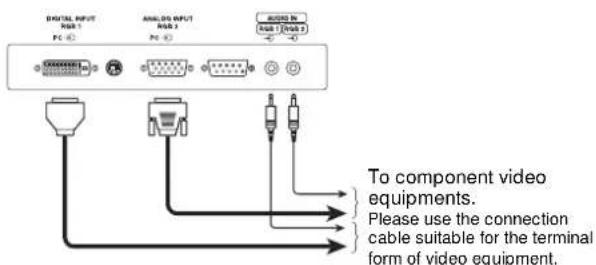

• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.

• Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer or ask the personal computer manufacturer or your local retail dealer. Connecting to a PC Monitor rear panel Power cord Power cableconnectorSpeaker (R)Speaker (L)

Connect the power cord to this device.

Connect the power cord plug to the power outlet. (The type of plug is different from this drawing for some countries.) Connect the power cord, after completing all other connections.

INSTALLATION INSTRUCTIONS (continued) Power Cord Connection

• Use only the power cord provided.

• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock. CAUTION Mounting the Speaker Unit (option) Refer to the instruction manual concerning mounting of the optional speaker unit.OPERATING INSTRUCTIONS Turning Power On and Off

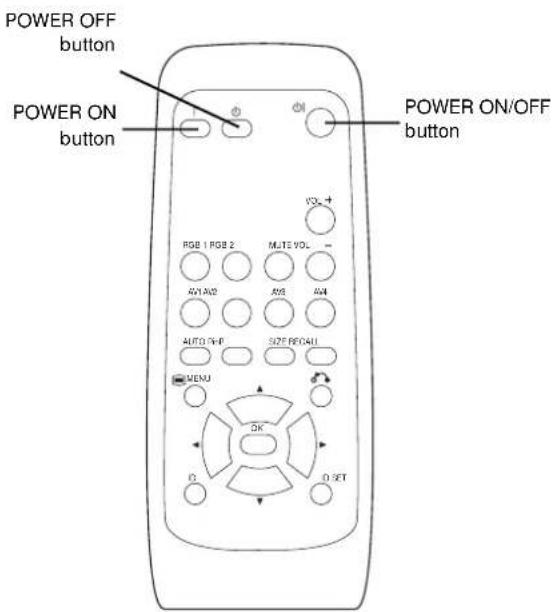

To turn the monitor power ON, press the main power switch on the monitor main unit to ON, and then press the SUB POWER button or the ON/OFF or ON button on the remote control.

To turn the monitor power OFF, press the SUB POWER button or the ON/OFF or OFF button on the remote control, and then press the main power switch on the monitor main unit to OFF.

• During normal use, the main power switch is set in the ON position, and the monitor can then be turned ON/OFF using the SUB POWER button or the ON/OFF button on the remote control. Indicating lamp Indicating lamp Power status Operating Off Off When the main power switch is set to OFF. Lights red Off (standby) When the main power switch is ON, and the OFF button on the remote control or the SUB POWER button on the underside of the front of the frame is OFF. Lights green On When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON. Lights orange Off (Power Save) When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON. However, the state in POWER SAVE mode When the indicating lamp lights in orange or the message “No Sync. Signal”, “Power Save” or “Invalid Scan Freq.” appears on the screen, there is something unusual about the status of reception. See “Power Save Mode” or “Symptoms That Seemingly Appear to be Failures.” AV1 AV2 RGB 1 RGB 2 AV3 MUTE VOL VOL AV4 AUTO PinP

• Avoid repeatedly turning the monitor on and off at short time intervals. Failures might result from such operation.

• Turn off the main power switch before leaving the monitor out of use for an extended period of time.

• If a power failure occurs while the main unit is running, it would be powered on upon recovery from the failure. Turn off the unit main power switch before leaving the main unit.ENGLISH

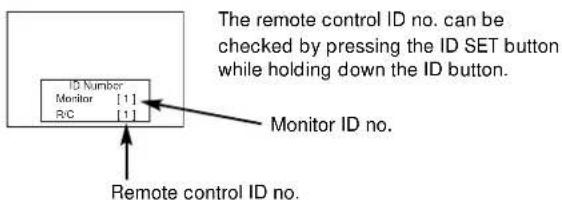

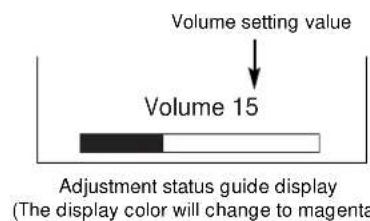

ID SET OPERATING INSTRUCTIONS (continued) Audio Mute The audio volume can be temporarily mute by pressing the MUTE button of the remote control.

• When a button is pressed, the volume adjustment status guide (magenta) will be displayed.

• The volume setting can be lowered by pressing the VOL- button while the audio is mute.

• The muting can be cancelled by pressing the VOL+ button or MUTE button while the audio is mute. When the MUTE button of the remote control is pressed again, the audio will be restored and the volume display (green) will appear. MUTE button Input Switching Input can be switched by pressing the RGB1, RGB2, buttons of the remote control. Input can be switched in the sequence of RGB1 RGB2 by pressing the INPUT SELECT button of the monitor.

• When a button is pressed, the volume adjustment status guide will be displayed.

• The volume will increase when the VOL+ (or

) button is pressed while the guide is being displayed.

• The volume will decrease when the VOL- (or

) button is pressed while the guide is being displayed. Volume Adjustment The volume can be adjusted by pressing the VOL+ and VOL- buttons of the remote control (or the

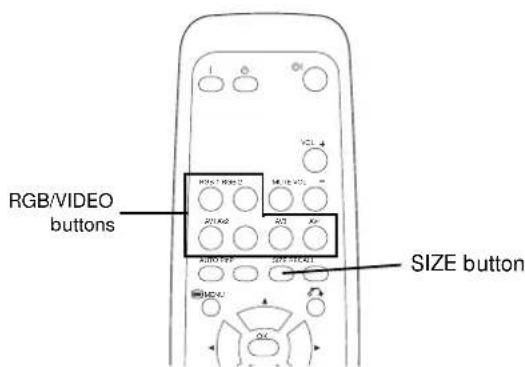

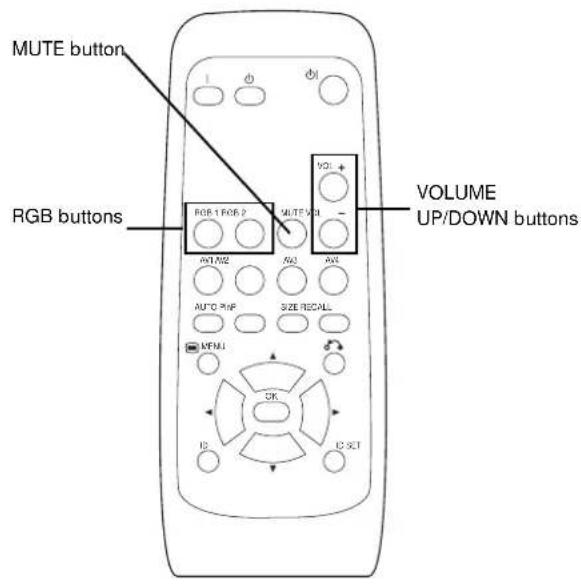

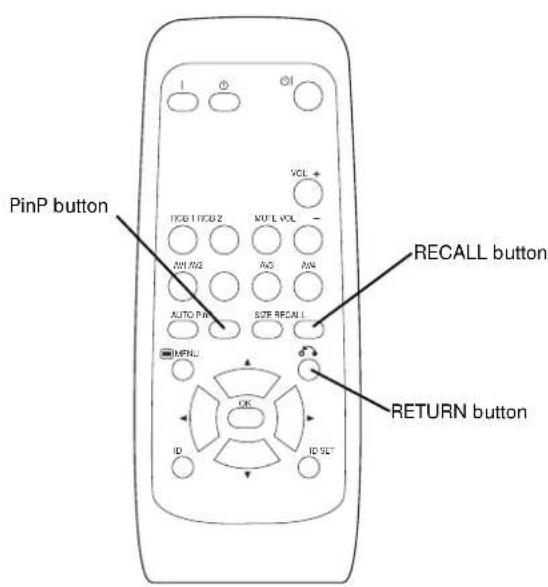

buttons RGB1 RGB2 Volume 15 Volume setting valueSize Switching Each time the SIZE button of the remote control or the monitor is pressed, the screen display area will change in sequence and the status will be displayed at the bottom of the screen.

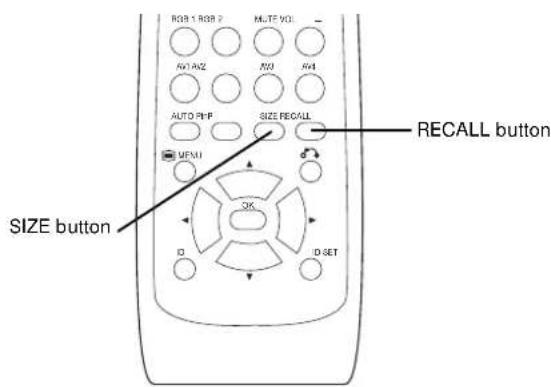

• Real mode gives the image of the same shape as it is displayed on a computer monitor. This mode is only available for VGA (640 X 480) and WVGA (864 X 480). Normal Full Zoom1 Real Zoom3 Zoom2 SIZE button

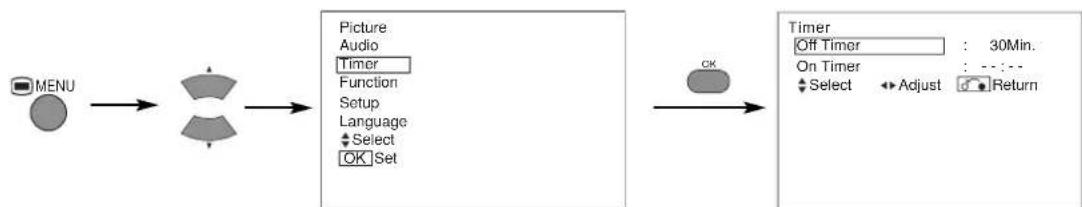

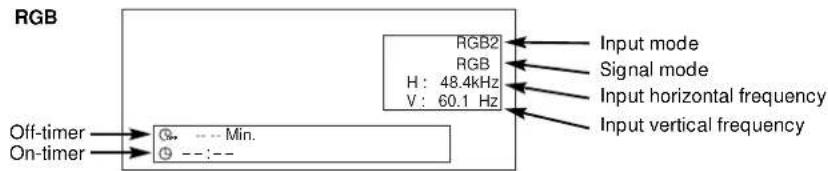

• The display will go out in approximately 6 seconds. Off-timer On-timer RGB OPERATING INSTRUCTIONS (continued) RECALL button

Display area selection diagram (RGB input) Resolution Full display Circular display Display Full Normal Real Zoom1 Zoom2 Zoom3 640 X 480 (VGA) 800 X 600 (SVGA) 1024 X 768 (XGA) 1280 X 1024 (SXGA) 1600 X 1200 (UXGA) Processes such as compression (thinning) and expansion are performed for the above signal display. Because of this, there is a possibility that flicker may become noticeable on Zoom (1 ~ 3) depending on the display contents. If this occurs, turning the Vertical Filter On can reduce the flicker.

• VGA and W-VGA onlyENGLISH

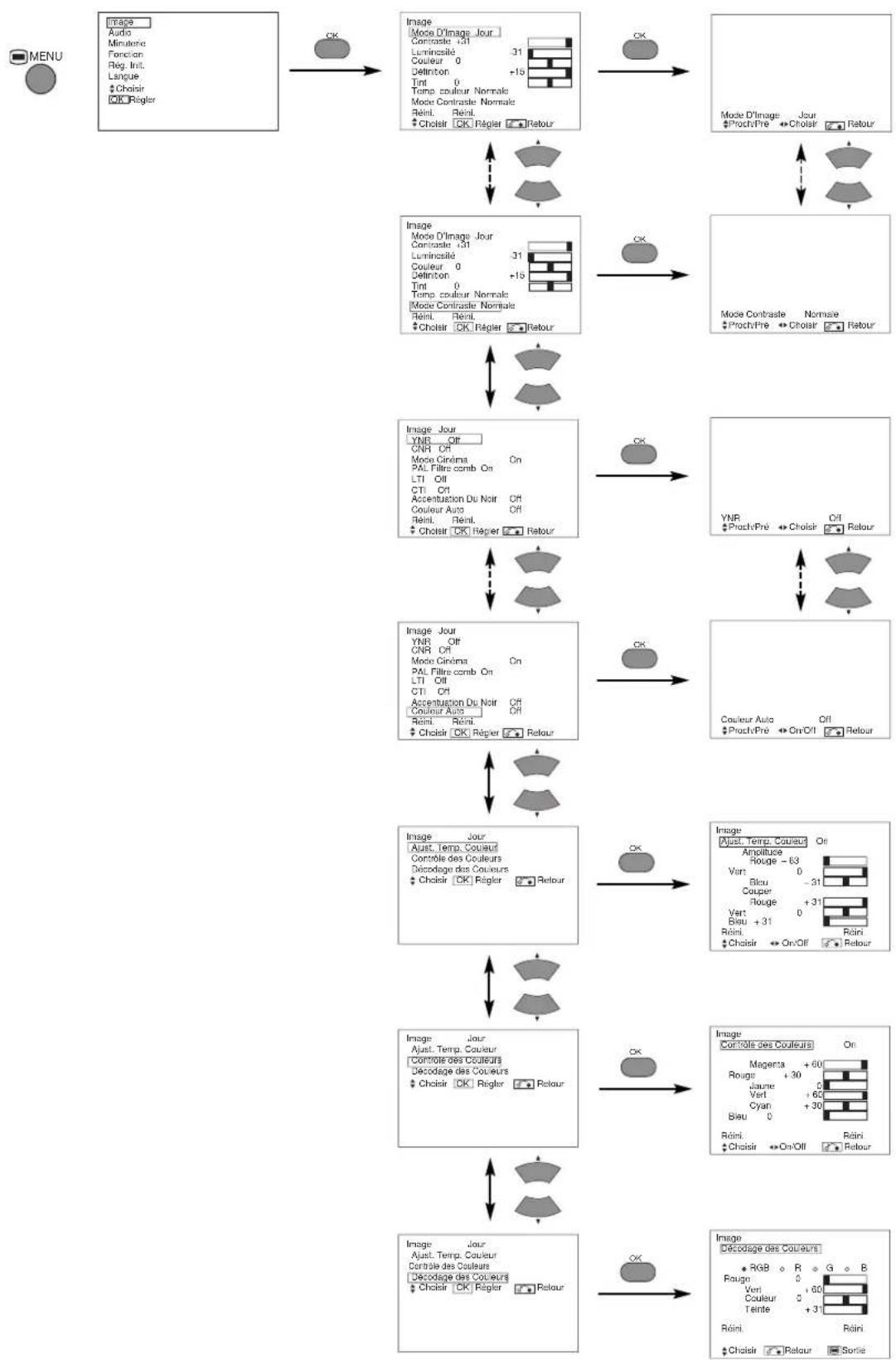

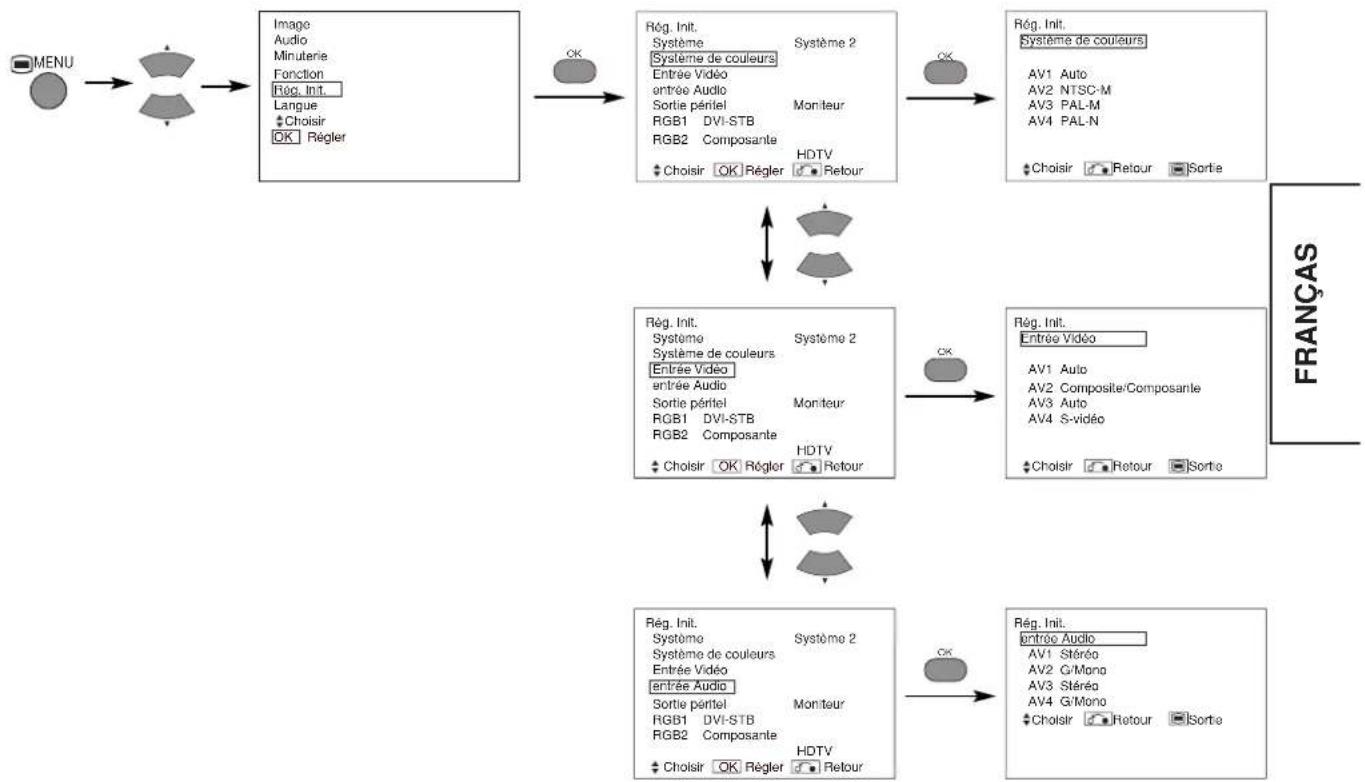

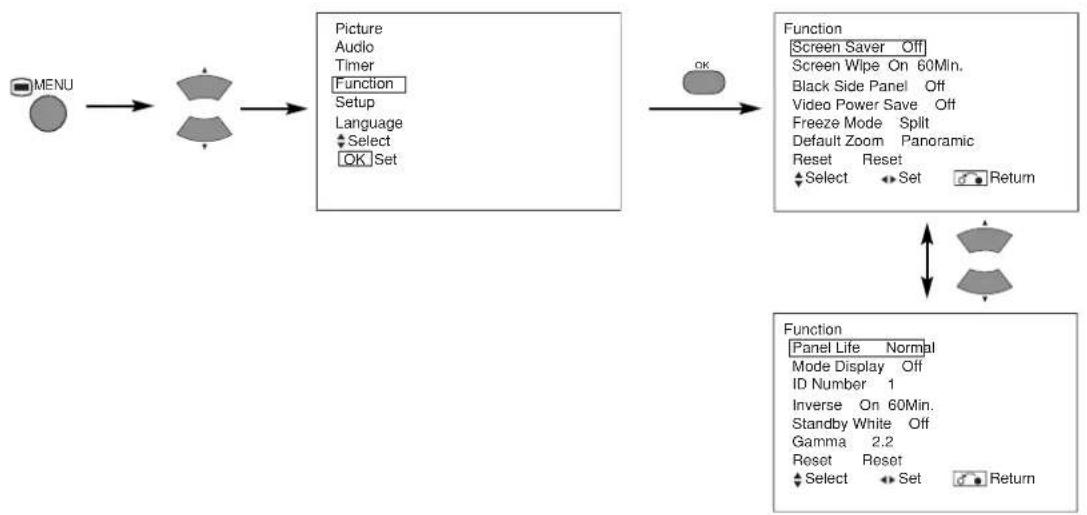

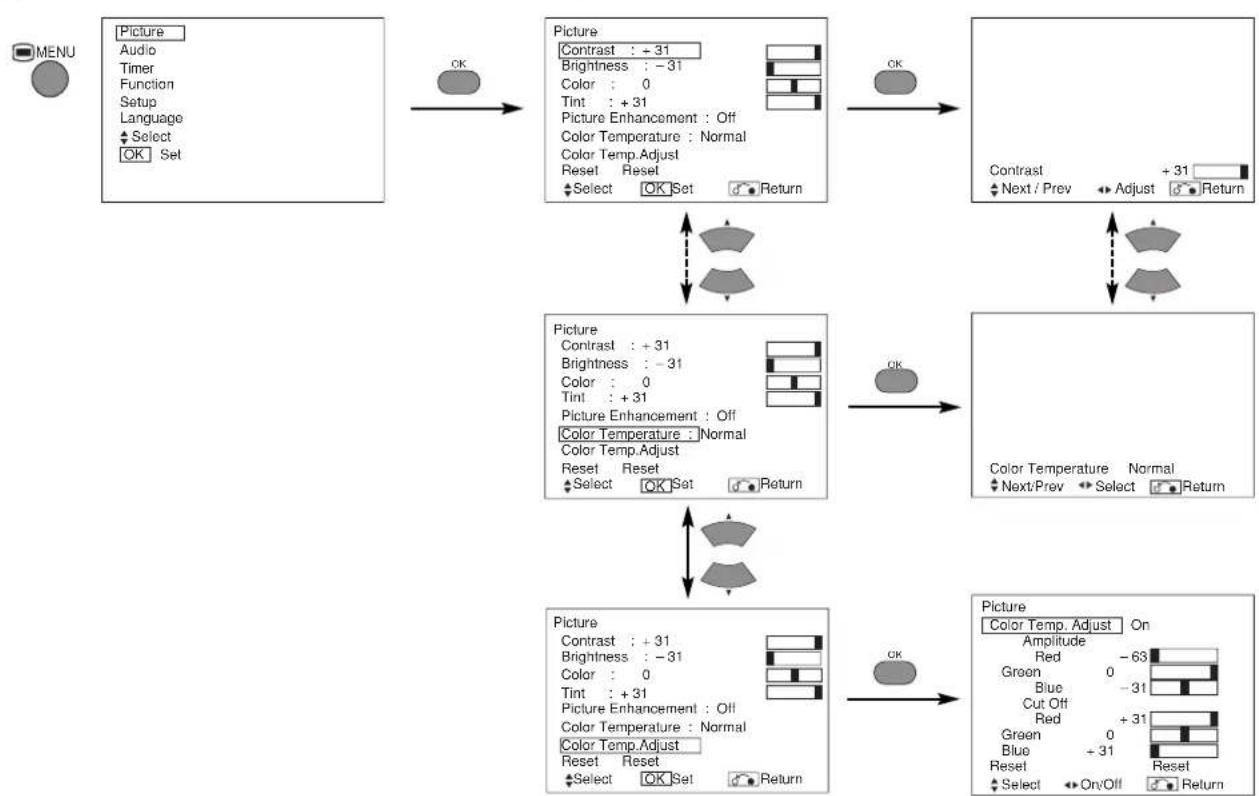

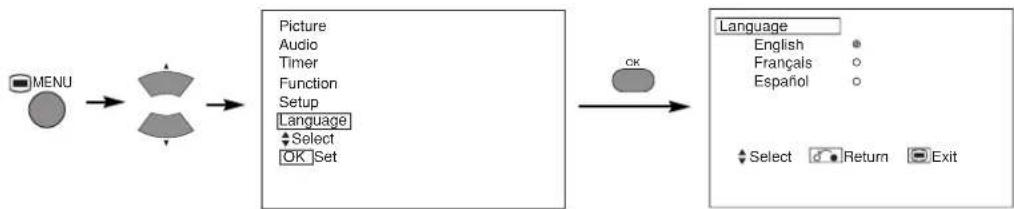

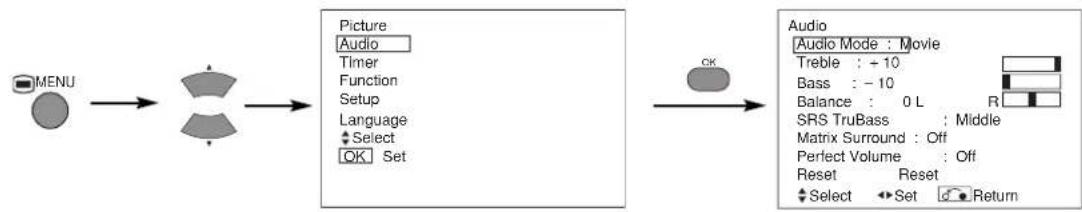

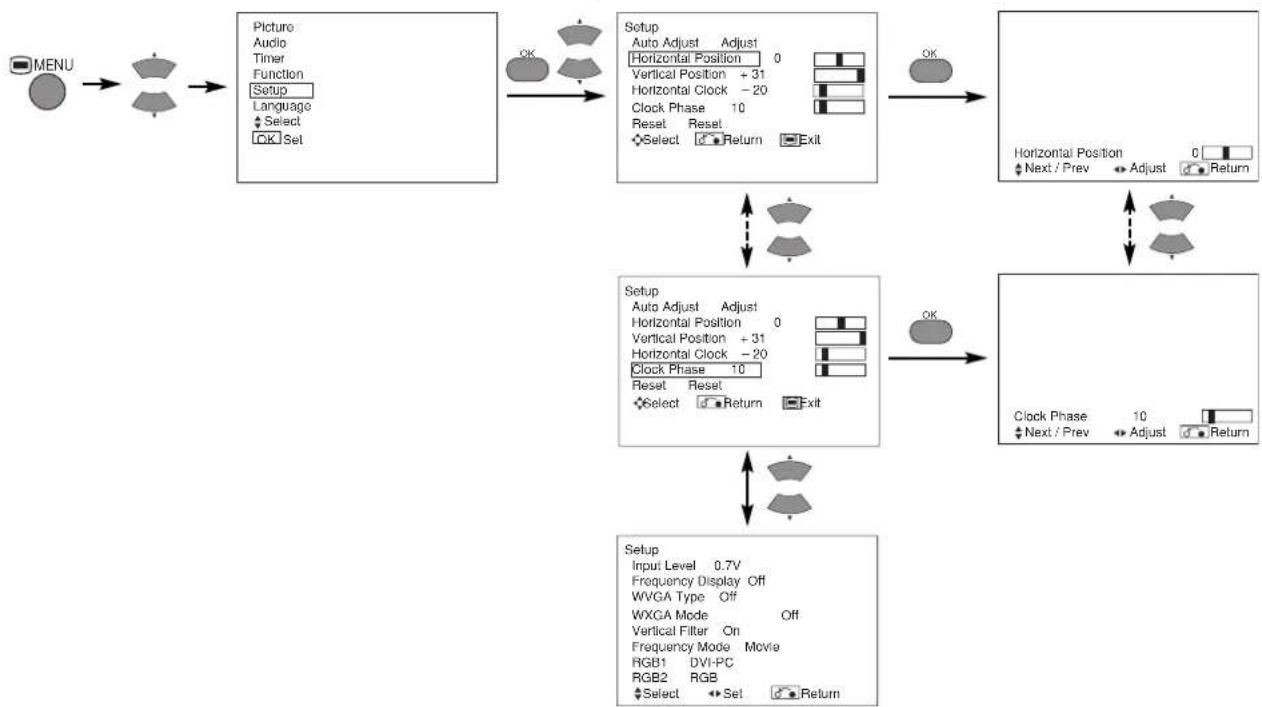

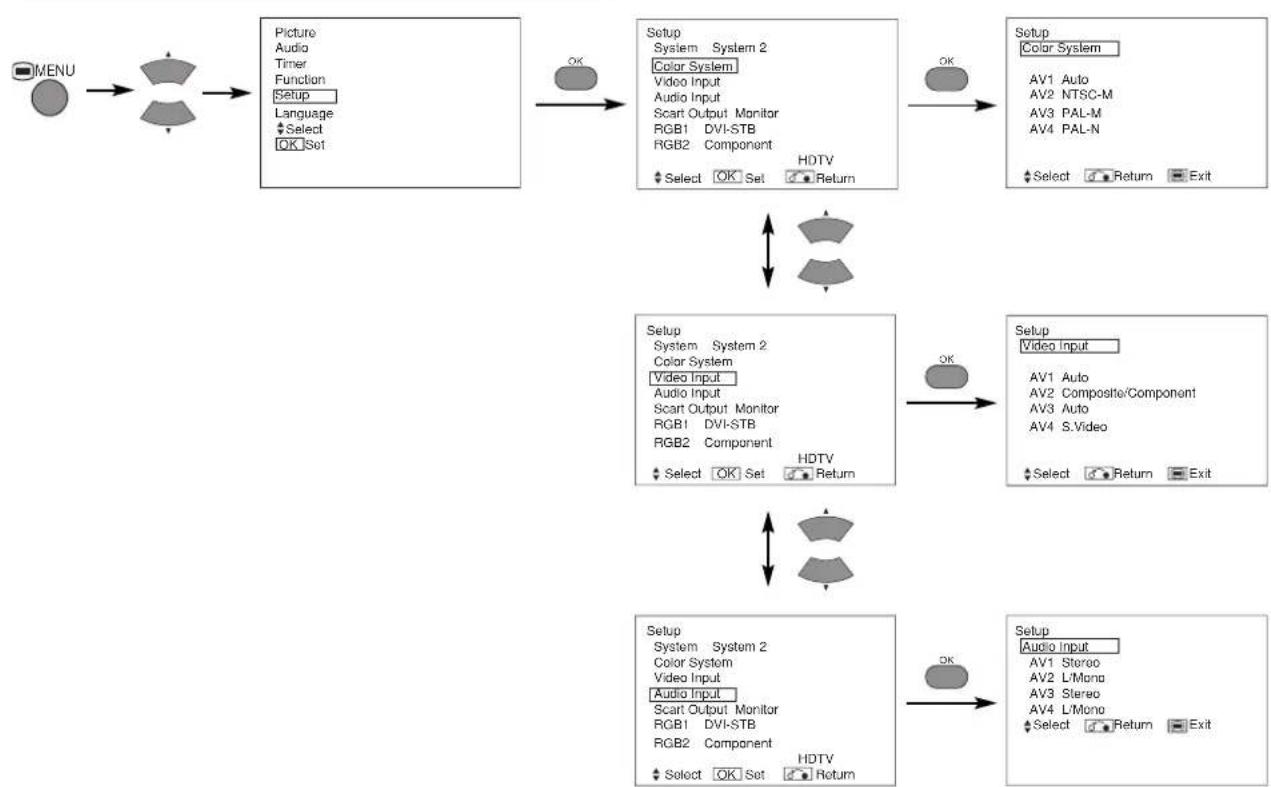

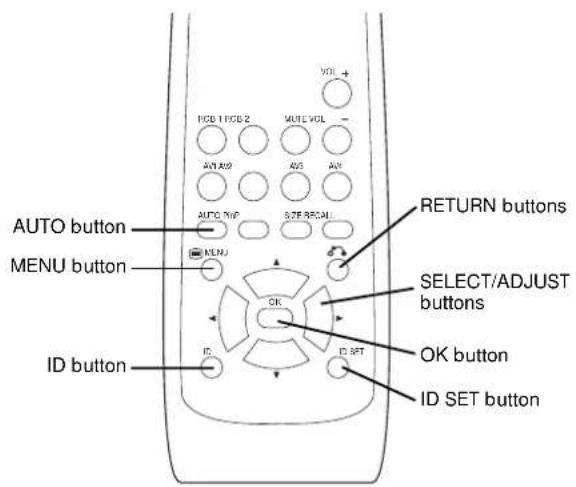

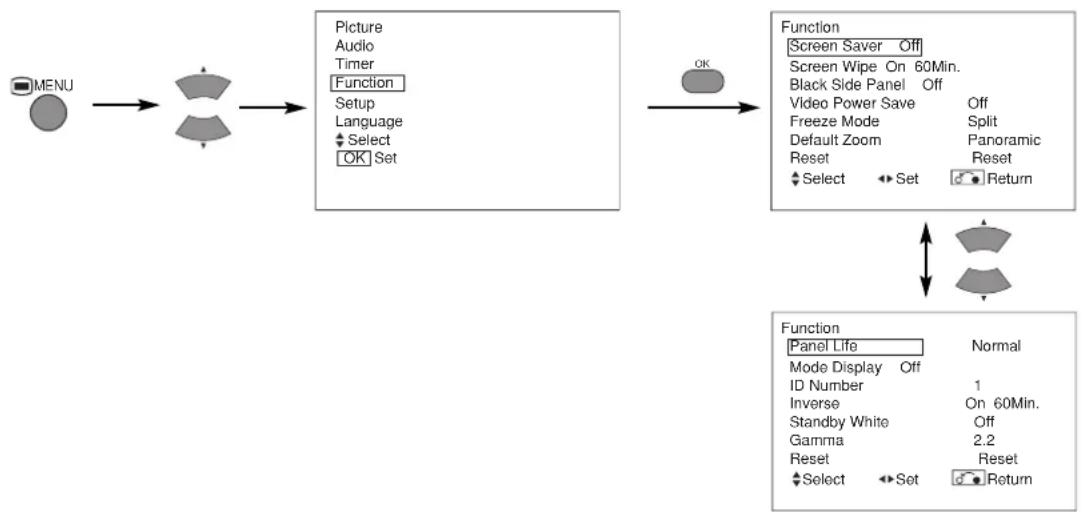

ID SET ID SET button ID button AUTO button Using the Menu Screen (On-screen display system) When the MENU button is pressed, the adjustment menu screen will be displayed; from there, PC signal adjustment and setting is possible by using the SELECT button, ADJUST button and OK button.

• Refer to - concerning the adjustment items and the settings. Example: Selecting the Picture screen

screen. (Use the and SELECT buttons to select other items.)

3. Use the and SELECT buttons to select the item to

be adjusted and then use the and ADJUST buttons to adjust (example: Contrast).

• Press the RETURN button to return to the previous screen.

• If there is no operation for a period of one minute, the Adjustment Menu screen will be closed automatically. MENU

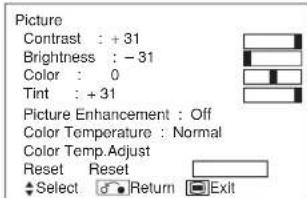

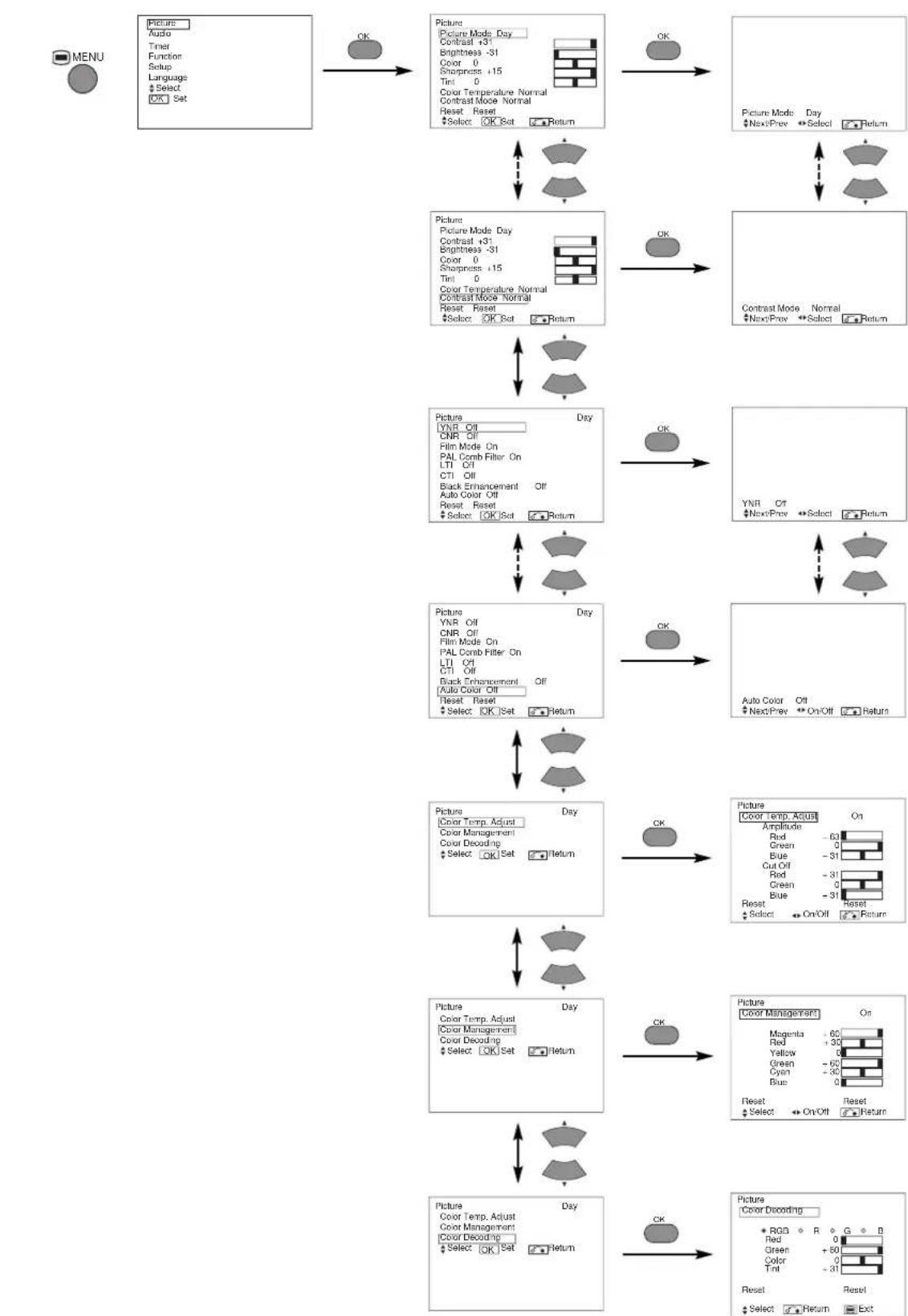

Picture Contrast : + 31 Brightness : – 31 Color : 0 Tint : + 31 Picture Enhancement : Off Color Temperature : Normal Color Temp.Adjust Reset Reset Select Return Exit OPERATING INSTRUCTIONS (continued) Independent Operation of Multiple Monitors (ID No) Setting the ID No. of the remote control allows separate control of up to a maximum of seven monitors. Remote control ID No. 2 (initially ID no. 1) can be set by pressing the ID SET button for 2 sec. or more while holding down the ID button. The number will be incremented (2 6 7 1 2) when this button pressed continuously. The ID remote control is operated by pressing the various buttons while holding down the ID button; Operation is possible only when the remote control and monitor ID nos. are the same.

• The remote control can be operated normally by pressing the various remote control buttons without holding down the ID button.

• Set the monitor using the ID No. of Function MENU. Automatic Adjustment of Screen Position and the Clock Adjustment of the screen to a position suitable for the PC signal and the clock adjustment can be performed automatically by pressing the AUTO button of the remote control.

Color Temperature Normal Next/Prev Select Return

Selected characters Setup hint Contrast Narrows the gap between brightness and darkness. Broadens the gap between brightness and darkness. Adjust for maximum visibility to suit the ambient brightness. This can adjust further till [+40] by pressing and holding cursor button at [+31]. The color for [+32] to [+40] numbers will change from white to magenta. This special mode is better for dark scenes. For brighter scene some parts of the picture might not be clear. We recommend to set at [+31]. "Panel Life" in the Function Menu should be set to Normal when Contrast setting is adjusted. Brightness Black is subdued for increased overall darkness. Black is set off for increased overall brightness. Adjust to taste. Color Darkens colors. Lightens colors. Adjust to taste. Tint Enhances red and weakens green. Enhances green and weakens red. This is not available to adjust when receiving PAL/SECAM signal. In this case the character will be grayed out. Adjust for most realistic skin color. Picture Enhancement Off Low Middle High Sets the clarity of small details to the desired level. Color Temperature Cool Normal Warm Black / White Normally set to Normal. Color Temp. Adjustment Off On Turn On when you wish to change color temperature depending on the user's preference. Amplitude Red Brighter scene is decreased in reddish color. Brighter scene is increased in reddish color. Adjust color temperature depending on the user’s preference. These settings are independently stored in each of the 4 Color Temperature modes. Green Brighter scene is decreased in greenish color. Brighter scene is increased in greenish color. Blue Brighter scene is decreased in bluish color. Brighter scene is increased in bluish color. Cut Off Red Dark scene is decreased in reddish color. Dark scene is increased in reddish color. Green Dark scene is decreased in greenish color. Dark scene is increased in greenish color. Blue Dark scene is decreased in bluish color. Dark scene is increased in bluish color. Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be restored by pressing the OK button.ENGLISH Selected characters Setup hint Audio Mode Movie Music Speech Favorite Movie: This selects the audio suitable for Movie.Music: This selects the audio suitable for Music.Speech: This selects the audio suitable for News, Talk show etc.Favorite: This mode should be adjusted depending on user’spreference. Treble Suppresses treble. Enhances treble. Adjust to taste. Bass Suppresses bass. Enhances bass. Adjust to taste. Balance Suppresses right-side sound. Suppresses left-side sound. Adjust to taste. SRS TruBass Off Low Middle High SRS TruBass takes advance of the ability of the human ear to be ableto distinguish between two different tones. By using this ability,TruBass gives enhanced bass sound that otherwise would not beheard. Adjust it depending on the user’s preference. Matrix Surround Off On This features the spacious sound effects of a stadium. Perfect Volume Off On This will automatically adjust volume so each channel and input hasthe same average volume level. Reset (off the function) (waiting to reset)The original factory settings for the items of this Menu page can berestored by pressing the OK button. Picture Audio Timer Function Setup Language Select OK SetAudio Audio Mode : Movie Treble : + 10 Bass : – 10 Balance : 0 L R SRS TruBass : Middle Matrix Surround : Off Perfect Volume : Off Reset Reset Select Set Return MENU AUDIO MENU Picture Audio Timer Function Setup Language Select OK SetTimer Off Timer : 30Min. On Timer : - - : - - Select Adjust Return MENU TIMER MENU Selected characters Setup hint Off Timer

-Min. 30Min. 60Min. 120Min. 90Min. This function automatically sets the power to standby status when theindicated time period has elapsed. On Timer - - ( : - - )hours(- - : )- - minutesThis automatically sets the power from standby to ON when theindicated time period has elapsed. The settable time is 00:00~11:59.Input the required time by SELECT buttons on the remotecontrol. OPERATING INSTRUCTIONS (continued)Picture Audio Timer Function Setup Language Select OK Set Function Screen Saver Off Screen Wipe On 60Min. Black Side Panel Off Video Power Save Off Freeze Mode Split Default Zoom Panoramic Reset Reset Select Set Return

MENU FUNCTION MENU Function Panel Life Normal Mode Display Off ID Number 1 Inverse On 60Min. Standby White Off Gamma 2.2 Reset Reset Select Set Return Selected characters Setup hint Screen Saver Off 5Min. 10Min. 60Min. 40Min. 20Min. This moves the picture around the screen in small amounts, at set intervals, to reduce the panel image retention. This is where stationary objects, such as screen logos, leave a slight image visible after they should have disappeared. Screen Wipe On 60Min. This is used to reduce the panel image retention that can occur with stationary pictures by the white field signal. Select On (continuous operation) or 60 Min. (time limit operation) and press the OK button. Press the MENU or RETURN button on the remote control to return to normal viewing. Black Side Panel Off On This turns the gray sidebars On/Off when watching normal mode screen size area. It is always set to Off when the monitor powered On. It is recommended to set to Off to reduce the panel image retention. Video Power Save Optional (grayed out) Freeze Mode Optional (grayed out) Default Zoom Optional (grayed out) Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be restored by pressing the OK button. Panel Life Normal Extend 1 Extend 2 This function is to suppress the contrast of the screen regardless of the Contrast setting in the Picture Menu. By this control, power consumption can be reduced or degradation of a panel can be mitigated. The order of power consumption is Extend 2 < Extend 1 < Normal. If the Contrast setting is changed when this item is set to Extend 1 or 2, it will be changed to Normal automatically. Mode Display Off On This can display the Input Signal Screen Display every time the input mode and signal mode are changed. Set to OFF if the Input Signal Screen Display is not needed when switching signals. ID Number

Assigns ID nos. to the monitors so that they can be controlled individually (up to 7 monitors can be controlled). Inverse On 60Min. This function can change each level of RGB signal invert to reduce the panel image retention. When this function is required to use, select On (continuous operation) or 60Min. (time limit operation) and press the OK button. And press the Menu or Return button to exit. Standby White Off 15Min. 30Min. 120Min. 60Min. This function is also provided against the image retention. If time is set for this item, the screen changes into the white pattern when the monitor enters power save mode, and it will continue for the period of setting time. Gamma

• Depending on the type of signal displayed, displays may not be optimized through automatic adjustment. Adjust manually to optimize them. Horizontal Position 0 Next / Prev Adjust Return

MENU Select a language by

SELECT buttons and press the OK button. OTHER FEATURES Automatic Store Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.

• The previously recorded items will be lost.

• The signal mode can be identified by the horizontal/vertical sync frequency and the sync signal polarity. Different signals with which all the elements are the same or similar will be handled as the same signal.ENGLISH Signal Check Status Display Action When Mode Display is set to ON,the input signal is switched orwhen the RECALL button ispressed.A guide is displayed for the inputterminal and the horizontal andvertical sync frequency.When the sync signal is no longerdetected.• A guide displays No Sync.Signal, and Power Save (forapprox. 5 sec.)• When the condition continueswhere the sync signal cannot bedetected, indicator lamp ofpower source changes inorange and the mode switchesto power save mode. Recheck the personal computerpower switch status and theconnection status.When the input signal does notmatch the monitor specificationsor is in an unstable status.A guide displays Invalid ScanFreq.Recheck the input signalspecifications. ! No Sync. Signal Changes in the signal status are displayed on the screen as they arise. OTHER FEATURES (continued) RGB2 RGB H : 48.4kHzV : 60.1 Hz -- -- Min.-- -- : -- -- OFF RGB ! Invalid Scan Freq. Power Save Mode When the RGB1, RGB2 input is selected

• When this unit is connected to a VESA DPMS computer, the Power Save (Off) mode can be set to be activated automatically when the computer is not being used to reduce power consumption by this unit. RGB sync signal Horizontal Yes No Yes No Vertical Yes Yes No No PC signal Active (normal display) Blank (no display) Operation mode On Off Indicating lamp Lights green Lights orange Power consumption 310W 3W or less (RGB1) 1W or less (RGB2 ; 100V

• Operate the personal computer, or press either the INPUT SELECT button of the main unit or the RGB1/RGB2 buttons of the remote control.NOTES About screen defects

• High precision technology is used in the making of plasma panels but there may be dark spots (points that do not illuminate) and bright spots (points that are too bright) in some cases. These do not indicate a malfunction. About residual images

• In some cases, residual images may remain after the short-term display of still images and another image is displayed, but these will disappear and return to normalcy. This is not a malfunction. About the panel screen

• Plasma displays display images by means of electrical discharges inside the panel. Because of this, the temperature of the panel surface may rise in some cases.Also, plasma displays are made of finely processed glass. A reinforced glass filter is installed over the panel surface but avoid strong impact because there is still danger of glass breakage.

IMAGE RETENTION OF PLASMA DISPLAY

There are different characteristics that result in panel image retention depending on how the plasma display is used. Situations and effective usage methods related to ghosting are provided below. Image retention characteristics of a plasma display The image retention phenomenon of a plasma panel occurs due to partial phosphor degradation arising from partial character and figure display. For example, when the character image as shown in Fig. A at the right is continuously displayed for a long period of time, the only part of the phosphor (Red,Green, Blue) that will degrade will be the color of the applicable character display portion. Consequently, when a white image is displayed on the entire screen as shown in Fig. a, the character marks displayed up to that time will become a color difference visible to the eye, but the phosphor will never burn. The degree of image retention is proportional to the brightness of the characters and figures displayed as well as the display time.

• The tendency of the phosphor is to degrade more the brighter the characters and figures are displayed. When images of figures with different levels of brightness, as shown in Fig. B, are continuously displayed for a long period of time, it becomes easier for image marks at locations when the brighter figures are displayed to be noticeable. The image retention images in this document are exaggerated for the purpose of explanation. The actual manner in which the image retention is seen differs depending on the operation time and brightness. Methods to Reduce the Occurrence of Image Retention

• Lower the Contrast and Brightness settings of the plasma display as much as possible. A function is provided in the display that controls the brightness of the screen to reduce degradation of the panel. Using this function makes it possible to reduce image retention. (Refer to Panel Life (Extend 1.or Extend 2 shown on )

• Set the plasma monitor to an “Screen Wipe” or “Inverse” display. The occurrence of image retention when displaying images of identical patterns, such as static images, for long periods of time can be reduced by displaying a reversed color or completely white screen for about 1 ~ 2 hours after terminating the display. (Settings can be made using Screen Wipe and Inverse of Function MENU shown on )

• Using in combination with moving images Since the degradation of the fluorescent material progresses comparatively uniform for moving images, the occurrence of partial image retention can be controlled. We recommend to use in combination with moving images such as a DVD.

• Please be careful since image retention will occur if display is left in a two screen display state for a long period of time.

• Television broadcasts include images displayed for long periods of time in which the left and right or top and bottom of the image are cut and broadcast station name or time are displayed for a long period of time at the same portion of the screen. Image retention in these portions can be expected to occur, so please be aware. Fig. A Fig. a Fig. B Fig. bENGLISH Symptoms That Seemingly Appear to be Failures Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer. TROUBLESHOOTING Customer servicing can be hazardous. WARNING Symptom Point to check See page

• No picture with the power-indicating lamp off.

• Check the way the power cable is connected.

• Press the power switch.

• The message “No Sync. Signal” or “Power Save” is displayed.

• No picture with the power indicating lamp lights in orange. ! No Sync. Signal No sync signal is detected.

• Check the way the signal cable is connected.

• Make sure that the switch of the computer, imaging equipment , etc., is turned on.

• Make sure the computer is not in the power-save mode.

• Check to see if the input selection matches the connection terminal.

• The message “Invalid Scan Freq.” is displayed. ! Invalid Scan Freq. An input signal is not received normally.

• Check to see if the input signal matches the monitor specifications.

• Check the way the signal cable is connected.

• The power indicating lamp is normally lit but no picture .

• Check the contrast and brightness settings (adjust them for higher contrast and brightness).

• Check the way the signal cable is connected.

• The display image appears flowing slantwise.

• Text displayed across the screen appears vertically streaked, with the characters in vertical columns blurred.

• Adjust the dot clock frequency and phase. (Adjust the dot clock frequency first, the dot clock phase next.) (RGB input)

• Text displayed across the screen appears blurred.

• A fine pattern flickers when displayed on the screen.

• Adjust the dot clock phase for the clearest viewing. (RGB input)

• The remote control does not work. • Check to see if the batteries are loaded in the remote control in opposite direction.

• Check to see if the batteries in the remote control are OK.TROUBLESHOOTING (continued) Symptoms That Seemingly Appear to be Failures (continued)ENGLISH Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the adjustments suggested below. (only for RGB2) Actions to Correct Abnormal Displays Symptom 1 Text displayed across the screen appears vertically streaked, with some characters blurred (figure 1). The display image appears flowing (figure 2) (RGB input). Example ABC

ABCDEFGHIJabcdefgABCDEFGabcdABCDEFGHIJabcdefgABCDEFGabcd Vertical streaks Before adjustment Some characters are blurred. After adjustment All characters appea

crisp now. After adjustment All characters are blurred. ABC ABC ABC Adjustment procedure

1) Press the AUTO button on the remote control.

When adjustment is not possible with Auto Adjust

(Display fine patterns as characters or a vertical striped pattern over the entire screen during Horizontal Clock adjustment.)

6) Press the or ADJUST buttons and search for clear characters over the entire screen.

7) Perform adjustment for symptom 2 below, when the characters are blurred on the entire screen.

• The display image may be momentarily disturbed during clock adjustment but this is not a failure. Symptom 2 Text displayed across the screen appears blurred in its entirety (figure 2). A fine pattern flickers when displayed on the screen (figure 3). Example ABCDEFGHIJabcdefgABCDEFGabcdABCDEFGHIJabcdefgABCDEFGabcd Before adjustment After adjustment ABC ABC ABC Before adjustment After adjustment Adjustment procedure

1) Press the AUTO button on the remote control.

When adjustment is not possible with Auto Adjust

(Display fine patterns as characters or a vertical striped pattern over the entire screen during Clock Phase adjustment.)

6) Press or ADJUST buttons to make the text appear

clean across the screen.

6) Press or ADJUST buttons to make the text appear

without flickering. TROUBLESHOOTING (continued) Figure 2 Figure 3 Figure 1Product specifications and designs are subject to change without notice. PRODUCT SPECIFICATIONS

• The monitor takes at least 30 minutes to attain the status of optimal picture quality. Signal Input RGB terminal (D-sub 15-pin connector)

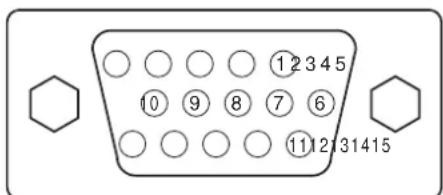

PRODUCT SPECIFICATIONS (continued) DVI terminal (DVI-D) Pin Input signal Pin Input signal

T.M.D.S. Clock Shield

T.M.D.S. Data1/3 Shield

• Make sure that the signal of the equipment to be connected is compatible with the specifications of this list.• The type of video board or connecting cable used may not allow for correct displays adjustment of Horizontal Position, Vertical Position, Horizontal Clock and Clock Phase.

• The monitor may fail to display an animation image correctly when a signal having a vertical frequency of 85Hz or higher is input to it.

• The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal polarities. Note that different signals having all these elements alike may be handled as the same signal.

• Displaying images with more than 480 lines of vertical resolution at Full diplay (compressed display) can result in the interpolation of stripes. PRODUCT SPECIFICATIONS (continued) Recommended Signal List (continued) With Analog RGB signal input (RGB2 input)ENGLISH SUPPLEMENTOptional Video Unit Function Additional functions when the optional video unit is installed are as follows: ( ) Monitor rear panelSpeaker (R)Speaker (L)Power cord (1) Make sure that the power switch of the monitor is turned off. (2) Make sure that the power switch of the imaging device is turned off. (3) Use a commercially available cable and connector to connect the signal input terminal on the rear panel of this device and the signal output terminal of the imaging device. INSTALLATION INSTRUCTIONS Connecting to a Video Imaging Device

• If video equipment with an S video output terminal is used, cabling by the S video cable is recommended to provide finer video quality. (If the S video input terminal and the video input terminal of AV3 connect to the monitor at the same time, S video input would govern.)

• If the OUTPUT (MONITOR) terminal is connected to an external monitor with a 75 Ohm terminal, it is possible to view the same image as on the main unit. But it is possible to monitor only the composite video signal from AV1, AV2, AV3 or AV4 input that is displayed on the screen at the time.

• If the adaptor is applied to AV4 input as shown in the drawing, it is impossible to receive RGB signal. With DVI-STB and RGB component setup To component video equipments. Please use the connection cable suitable for the terminal form of video equipment. Applicable video signals for each input terminal (See PRODUCT SPECIFICATIONS for details. ) Terminal RCA/SCART DVI D-sub Remarks Signal CVBS S-video Component RGB PC STB RGB Component AV1 AV2 Refer to Setup Menu. AV3 AV4 Refer to Setup Menu. RGB1 Refer to Setup Menu. RGB2 Refer to Setup Menu.

VCR VCR DVD player Set-Top BoxVideo disc playerAdaptorTo compositeoutput terminalS-video/Composite videoDo not connect bothplugs at the same time.Use either of them. [An example of connecting video imaging devices]ENGLISH OPERATING INSTRUCTIONS Input Switching

Input can be switched by pressing the AV1, AV2, AV3, AV4, RGB1 or RGB2 buttons of the remote control. Input can be switched in the sequence of AV1 AV2 AV3 AV4 RGB1 RGB2 by pressing the INPUT SELECT button of the monitor. AV1 AV2 AV3

INPUT SELECT buttonRGB/VIDEObuttonsSIZE button Each time the SIZE button of the remote control or the monitor is pressed, the screen display size will change in sequence and the status will be displayed at the bottom of the screen. Full Size Switching

• During VIDEO signal input (AV1, AV2, AV3, AV4, RGB1(set to [DVI-STB]) and RGB2 (set to [Component]))• The size will fix as Full mode and not change when receiving thecomponent signal of 1080i/50, 1080i/60 or 720p/60. 4:3 Panoramic Zoom Full Cinema Display size selection diagram When you want to Set the display size Input signal Display screen Remarks Play a 4:3 image in a 16:9 screen faithfully.

Blanking occurs on both sides.Play a 4:3 image in a 16:9 screen with theheight and width of the middle of thescreen enlarged on equal scales and withboth sides appearing somewhat enlarged.PanoramicPlay a 16:9 VISTA size image in the 4:3image faithfully reproduced on the 16:9screen. Zoom

• The 4:3 image is called a letterboximage.• In some cases, some slight blanking mayremain at the top and bottom.Play a 21:9 Cinema size image in the 4:3image expanded vertically on the 16:9screen.CinemaIn some cases, some slight blanking mayremain at the top and bottom.Play a 4:3 image faithfully in a 16:9 screenin the standard vertical size andhorizontally squeezed.* Full
• An image with an aspect ratio of 16:9shrunk horizontally to 4:3 to display in a4:3 screen(4:3 signal)(Squeeze)(Vista)(Cinema) SIZE buttonATTENTION Using a wide-screen monitor

• This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program, the image would appear different from the original. Take this into consideration when making screen mode choices.

• Use of this monitor in its enlarged display mode with the wide feature enabled in coffee shops, hotels and other establishments for commercial or pubic viewing purposes could infringe on the copyright holder’s right protected by Copyright Law.

• When a normal 4:3 image is displayed over the entire screen in the Panoramic mode, parts of the periphery of the image may disappear and/or appear distorted in some cases. Use the 4:3 mode to view images, which were created in 4:3 mode. This mode allows 4:3 content to be viewed without picture distortion. Press Vertical picture position can be adjusted for [Panoramic], [Zoom] and [Cinema] mode as follows.

1. Press SIZE button and SELECT buttons during picture size display.

2. Position display will appear.

3. Adjustment range of each picture size are as shown below.

[Panoramic] - 12 to + 12 [Zoom] and [Cinema] - 31 to + 31 4. When 1080i/50 or 1080i/60 component signal is received, vertical position can be adjusted only one step up. (The range: 0 to +1) Position + 31 Position - 31 PressENGLISH OPERATING INSTRUCTIONS (continued) Displaying MULTI PICTURE If the PinP button on the remote control is pressed MULTI PICTURE will display. Activating the P-in-P mode from the RGB input screen Pressing the PinP button one time will display 2 pictures.

• This mode can be available from RGB1(DVI-PC) and RGB2(RGB) input.

• The speaker icon can be shifted up and down by pressing the and SELECT buttons; the audio of the video will be output from the side on which the speaker icon is located.

• The sub-screen position can be selected up and down by pressing SELECT buttons.

• The sub-screen can be selected with the AV1, AV2, AV3, and AV4 buttons from the status that the speaker icon appears on the left side of AV

shown in the diagram to the right.

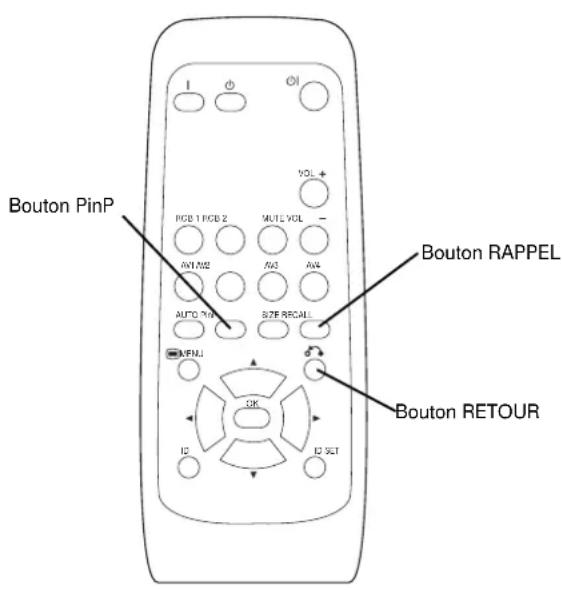

• Pressing the PinP button again or the RETURN button will cancel the 2 pictures display.

• "Frequency Mode" in the Setup Menu should be set to Movie when sub-screen is the component signal of 1080i/50 or 1080i/60. AV1: Displays the VIDEO input signal of the sub-screen. Activating the Split mode from the video input screen Pressing the PinP button one time will display 2 pictures.

• The speaker icon can be shifted left and right by pressing the and SELECT buttons; the audio of the video will be output from the side on which the speaker icon is located.

• The same video input mode cannot be selected for both screens at the same time.

When the Video input is set to RGB Video, this Split mode is not possible.

ID SET RECALL button RGB2 AV1 (Sub-screen)AV1 AV2 RECALL button 2 Pictures (Split) Main Sub The input signal status can be displayed on the screen by pressing the RECALL button of the remote control or the monitor.

• The display will go out in approximately 6 seconds. AV1 Composite -- -- Min.-- -- : -- -- OFF Input Signal Screen Display Input mode Signal mode Off-timer On-timer VIDEO NOTE

• Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the MULTI PICTURE display, the mode will not change to power save mode.

• Please be careful since image retention will occur if display is left in a MULTI PICTURE display state for a long period of time. Input terminal AV1 AV4

YNR Off Next/Prev Select Return

OKENGLISH OPERATING INSTRUCTIONS (continued) PICTURE MENU (continued) Selected characters Setup hint Picture Mode Day Night Day: This setting is best for very bright ambient lighting.Night: This setting is for normal lighting conditions. Contrast Narrows the gap betweenbrightness and darkness.Broadens the gap betweenbrightness and darkness.Adjust for maximum visibility to suit the ambient brightness.This can adjust further till [+40] by pressing and holding cursorbutton at [+31]. The color for [+32] to [+40] numbers will change fromwhite to magenta. This special mode is better for dark scenes.For normal viewing we recommend that the Contrast is set to [+31]."Panel Life" in the Function Menu should be set to Normal when thisContrast setting is adjusted. Brightness Black is subdued forincreased overall darkness.Black is set off for increasedoverall brightness.Adjust to taste. Color Darkens colors. Lightens colors. Adjust to taste. Sharpness Soft SharpNormally set to Centre position Shift to the minus (-) side for a softereffect and plus (+) for sharper picture. Tint Enhances red and weakensgreen.Enhances green and weakens red. This is not available to adjust when receiving PAL/SECAM signal.Then the character will be grayed out.Adjust for most realistic skin color. Color Temperature Cool Normal Warm Black / White Normally set to Cool. Contrast Mode Normal Auto Dynamic Dynamic:Emphasizes the differences between video shadings toimprove the feeling of contrast. Normal : The gradation of an image is reproduced as faithfully aspossible.Auto:Detects image brightness and automatically adjusts for naturalbrightness. Reset (off the function) (waiting to reset)The original factory settings for the items of this Menu page can berestored by pressing the OK button. YNR Off Low High Performs picture signal noise reduction. Turn up to reduce noise. CNR Performs color signal noise reduction. Turn up to reduce noise.And it will be fixed as Off only when selecting DVI-STB mode. Film Mode Off On On:Automatically detects the movie film material and faithfullyreproduces the original film image.Off:Set to OFF when switching between images does not appearnatural. PAL Comb Filter Off On This is available only when receiving a PAL composite signal. Turn Onto reduce the discolorations in fine picture detail and provides purercolor. LTI Off Low Middle High Adjusts the sharpness of the picture signal. CTI Adjusts the sharpness of the color signal. Black Enhancement Adjusts the black level compensation. Auto Color Off On This is available only when receiving an NTSC composite/S.Videosignal. This monitors and adjusts the color to maintain constant colorlevels. It also maintains natural flesh tones while preserving fidelity ofbackground colors. Color Temp. Adjustment Off On Turn On when you wish to change color temperature depending onthe user's preference. Amplitude Red Brighter scene is decreased inreddish color.Brighter scene is increased inreddish color.Adjust color temperature depending on the user’s preference. Thesesettings are independently stored in each of the 4 Color Temperaturemodes. Green Brighter scene is decreased ingreenish color.Brighter scene is increased ingreenish color. Blue Brighter scene is decreased inbluish color.Brighter scene is increased inbluish color. Cut Off Red Dark scene is decreased inreddish color.Dark scene is increased inreddish color. Green Dark scene is decreased ingreenish color.Dark scene is increased ingreenish color. Blue Dark scene is decreased inbluish color.Dark scene is increased inbluish color.OPERATING INSTRUCTIONS (continued) PICTURE MENU (continued) Selected characters Setup hint Color Management Off On Turn On when the original balance of each color is required to adjust depending on the user’s preference. Magenta Magenta is weakened. Magenta is strengthened. This adjusts listed colors individually to make them either deeper or more pure. These settings are independently stored in each of the 4 Color Temperature modes. Red Red is weakened. Red is strengthened. Yellow Yellow is weakened. Yellow is strengthened. Green Green is weakened. Green is strengthened. Cyan Cyan is weakened. Cyan is strengthened. Blue Blue is weakened. Blue is strengthened. Color Decoding

Select the single color screen when that is required to adjust R/G/B level individually depending on the user’s preference. And set it back to RGB mode that indicates all color after adjusting. Press the OK button every time the setting is changed. Red Darkens red only. Lightens red only. This adjusts R/G/B level or tint to make the color appear natural for the user’s preference. These settings are independently stored in each of the 4 Color Temperature modes. Green Darkens green only. Lightens green only. Color Darkens colors. Lightens colors. Tint Enhances red and weakens green. Enhances green and weakens red. FUNCTION MENU 1 item is added to the Menu shown in the page . Picture Audio Timer Function Setup Language Select OK Set Function Screen Saver Off Screen Wipe On 60Min. Black Side Panel Off Video Power Save Off Freeze Mode Split Default Zoom Panoramic Reset Reset Select Set Return

Setup Video Input AV1 Auto AV2 Composite/Component AV3 Auto AV4 S.Video Select Return Exit Setup Audio Input AV1 Stereo AV2 L/Mono AV3 Stereo AV4 L/Mono Select Return Exit Selected characters Setup hint System System1 System2 Do not change the original setting.(System1 : Europe/Asia, System2 : North America) Color System AV1 Auto NTSC-M PAL-N PAL-M This should correspond to the color system of the signal from theequipment that is connected to AV1 video input terminal.• Normally, set this to Auto. The system of the input signal will beautomatically recognized.• If the input signal contains much noise or has a low level at Auto and theoperation is found erratic, set this to match the input signal.• When the component signal is received, this would be not available(grayed out). AV2 (Same to AV1) AV3 AV4 Video Input AV1 Auto HDTV SDTV/DVD This should correspond to the signal mode of the signal from theequipment that is connected to AV1 video input terminal.• Normally, set this to Auto. The signal mode of the input signal will beautomatically recognized.• If the input signal contains much noise or has a low level at Auto and theoperation is found erratic, set this to match the input signal. AV2 (1st step) RGB Composite/Component This should correspond to the signal mode of the signal from theequipment that is connected to AV2 video input terminal. AV2 (2nd step) Auto HDTV SDTV/DVD This step should be set only when [Composite/Component] is selected onthe 1st step. And the procedure is same to AV1. AV4 S.Video Composite

• If the signal from the equipment that is connected to AV4 Scart inputterminal is S.Video or Composite, set this to correspond to that signal.• If the signal is RGB, it will be automatically recognized and this settingwill have no effect.OPERATING INSTRUCTIONS (continued) SETUP MENU (continued) Selected characters Setup hint Audio Input AV1 Stereo L/Mono This should correspond to the audio signal from the equipment that is connected to AV1 audio input terminal. If it is monaural audio, set this to L/Mono. AV2 (Same to AV1) AV3 AV4 Scart Output Not Available (grayed out) RGB1 DVI-PC DVI-STB This should correspond to the signal mode of the signal from the equipment that is connected to RGB1 DVI terminal. RGB2 (1st step) RGB Component This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal. RGB2 (2nd step) Auto HDTV SDTV/DVD This step should be set only when [Component] is selected on the 1st step. This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.

• Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal. Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below. OTHER FEATURES Automatic Store Menu Display Registration condition Picture Picture Mode 1 setting is registered. Contrast For every input function and every Picture Mode, 1 setting is registered. Brightness Color Sharpness Tint Color Temperature Contrast Mode YNR CNR Film Mode PAL Comb Filter LTI CTI Black Enhancement Auto Color Color Temp. Adjust R Amplitude For every Color Temperature, 1 setting is registered. G Amplitude B Amplitude R Cut Off G Cut Off B Cut Off Color Management For every input function and every Picture Mode, 1 setting is registered. Magenta 1 setting is registered. Red

• The previously recorded items will be lost. Menu Display Registration condition Picture Yellow 1 setting is registered. Green Cyan Blue Color Decoding

Red For every Color Temperature, 1 setting is registered. Green Color For every input function and every Picture Mode, 1 setting is registered. Tint Function Video Power Save 1 setting is registered. Setup System 1 setting is registered. Color System 1 setting is registered. AV1 AV2 AV3 AV4 Video Input - AV1 1 setting is registered. AV2 AV4 Audio Input - AV1 1 setting is registered. AV2 AV3 AV4 RGB1 RGB2ENGLISH Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer. Customer servicing can be hazardous. WARNING Symptom Point to check See page

• The screen becomes dark and the images cannot be seen during VCR special playback (fast forward, rewind).

• This sometimes occurs when a component output VCR such as the 480i is connected. This is not a malfunction; therefore, please take note that this may occur. When it does occur, change to composite output, or S.video output.

TROUBLESHOOTING Symptoms That Seemingly Appear to be Failures This table shows the specifications when the optional video unit has been inserted. PRODUCT SPECIFICATIONS

• The monitor takes at least 30 minutes to attain the status of optimal picture quality. Panel Display dimensions Approx. 42 inches (920 (H) x 518 (V) mm, diagonal 1059mm) Resolution 852 (H) x 480 (V) pixels Net dimensions (excluding Speakers/Stand) 1030 (W) x 636 (H) x 91 (D) mm Net weight (excluding Speakers/Stand)

0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)

No. Signal mode Horizontal frequency (kHz) Dot clock frequency (MHz) Remarks Signal Name Resolution Vertical frequency (Hz)

• The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal polarities. Note that different signals having all these elements alike may be handled as the same signal.

Interruptor principal
