KP 0946 - Electric cooktop Ideeo - Free user manual and instructions

Product type	Electric hot plate
Brand	Ideeo
Model	KP 0946
Power supply	220-240 V, 50/60 Hz
Power	1500 W (estimated)
Dimensions (approx.)	30 x 30 x 5 cm
Weight (approx.)	2.5 kg
Temperature setting	6-position thermostat (1-6)
Indicator light	Yes, lights up during heating
Plate material	Steel with anti-corrosion coating
Care	Wipe with a damp cloth, avoid abrasive products
Safety	Hot surfaces, unplug before cleaning, do not immerse
Warranty	2 years against material and manufacturing defects
After-sales service	Addresses provided in the appendix of the manual
Use	Household use only

Frequently Asked Questions - KP 0946 Ideeo

How to clean the hot plate?

Unplug the appliance and let it cool down. Wipe up splashes with a damp cloth. Do not use abrasive products or strong detergents. For regular maintenance, use a suitable cleaning product.

Why does the indicator light stay on?

The indicator light stays on while the hot plate is heating. It turns off when the selected temperature is reached. This is normal operation.

What is the warranty of the appliance?

The appliance is warranted for 2 years from the date of purchase against any material defect and manufacturing defect. Normal wear, breakable parts (glass, bulbs) and damage due to improper use are not covered.

Can I use glass utensils on this hot plate?

It is recommended to use flat-bottomed pans designed for hot plates. Glass utensils may be suitable if they are adapted for cooking on an electric hot plate.

What to do if the hot plate does not heat?

First check that the appliance is properly plugged into a functional grounded outlet and that the thermostat is set to a position other than '●'. If the problem persists, contact the authorized after-sales service.

Can I leave the appliance unattended?

No, it is imperative to never operate the appliance unattended due to the risk of fire, especially with fatty foods.

How to dispose of the appliance at the end of its life?

Do not throw the appliance away with household waste. Dispose of it at a selective collection center for electrical and electronic waste.

Can I use an extension cord?

It is not recommended to use an extension cord. Plug the appliance directly into a grounded wall outlet to avoid any risk of overheating or short circuit.

What is the maximum power of the hot plate?

The approximate power is 1500 W. Setting 6 corresponds to the maximum power for pre-cooking and quick roasting.

Can children use the appliance?

This appliance should not be used by children or persons without supervision. Children should be supervised to ensure they do not play with the appliance.

USER MANUAL KP 0946 Ideeo

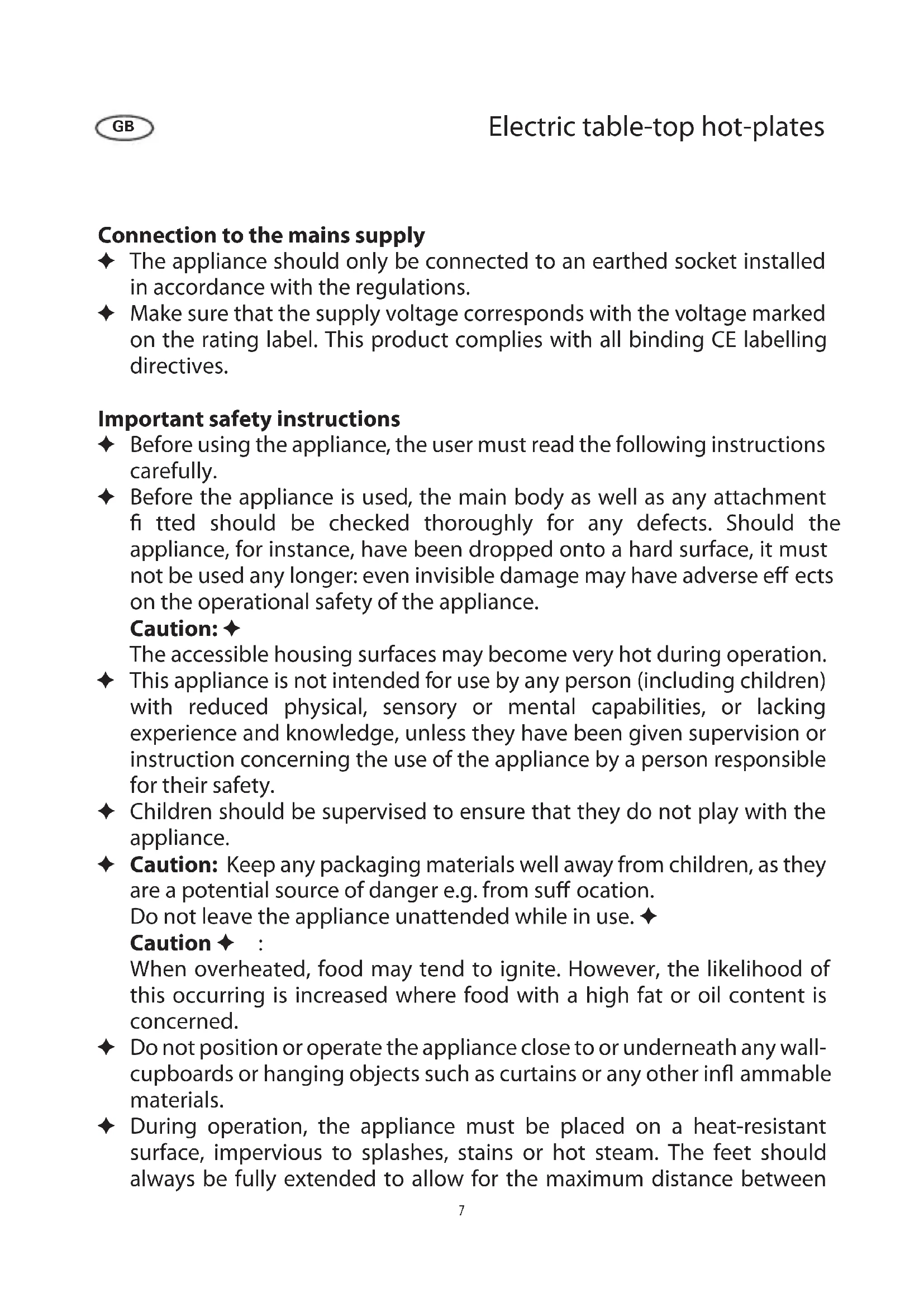

Connection to the mains supply

- The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Important safety instructions

Before using the appliance, the user must read the following instructions carefully.

Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must not be used any longer: even invisible damage may have adverse effects on the operational safety of the appliance.

Caution: ♦

The accessible housing surfaces may become very hot during operation.

This appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

◆ Children should be supervised to ensure that they do not play with the appliance.

◆ Caution: Keep any packaging materials well away from children, as they are a potential source of danger e.g. from suffocation.

Do not leave the appliance unattended while in use.

Caution ♦ :

When overheated, food may tend to ignite. However, the likelihood of this occurring is increased where food with a high fat or oil content is concerned.

Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any other infl ammable materials.

During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes, stains or hot steam. The feet should always be fully extended to allow for the maximum distance between

the appliance and the work surface.

Always remove the plug from the wall socket ♦ in case of any malfunction, ♦ after use, and also ♦ before cleaning the appliance. ♦

When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
Do not let the power cord hang free.

◆ Keep its power cord, or that of any other appliances well away from any hot parts of the plate at all times.

◆ The appliance is not intended to be operated by means of an external timer or separate remote-control system

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

- This appliance is intended for domestic use only and not for commercial applications.

Use only original accessory parts; the use of any attachments other than those provided by the manufacturer may cause serious hazards to the user.

In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.

Start up

Before using the appliance for the first time, let it heat up for approximately 3 minutes at maximum power (but without using a pot or saucepan), while ensuring sufficient ventilation. This will help to burn in' the protective coating which safeguards the hot-plate against corrosion. During this process, a slight smell and a little smoke may be emitted. This is normal and will only last for a very short time.

- Clean the appliance afterwards as described in section General care and cleaning) below.

Operation

◆ Always place a pot / saucepan on the hot-plate before the appliance is switched on.
◆ Ensure that the pot is clean and dry on the outside. Do not use stain covered pots / saucepans.
◆ To prevent damage to the hot-plate, only use pots / saucepans with flat

bottoms. Most suitable are pots specifically designed for use on electric plates (see picture I).

◆ Always make sure that the pot / saucepan used is of at least the same diameter as the plate; this minimises the loss of heat and prevents the plate from being damaged as a result of uneven heat distribution.

Thermostat setting

6 : Pre-cooking and quick frying ♦

4-5 : Regular cooking, frying ♦

3-4 : Simmering ♦

1-2 : Keeping warm ◆

Set the thermostat knob to the '●' position after use.

To ensure that the appliance is completely switched off, always remove the plug from the wall socket.

Indicator light

The indicator light stays on while the hot-plate is heating up. It goes out once the pre-set temperature has been reached.

General care and cleaning

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
Do not use abrasives or harsh cleaning solutions.
◆ After use, a wet cloth may be used to remove any spills from the plates.
◆ A special cleaning agent should be used to treat the plate from time to time.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or

interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
