USER MANUAL HI 20.A IX INDESIT

Electrical connections

GR

EAAnvikα,45

Espanol, 56

Description of the appliance, 5

Overall view

Control panel

Start-up and use, 6

Starting the oven

Using the cooking timer

Cooking modes, 7-8

Cooking modes

Practical cooking advice

Cooking advice table

HI 150.B

HI 150.B IX

HI 20.B

HI 20.A IX

HIN 150

HIN 150 IX

HI 20.A

Hob, 9

Type of hob

Switching on the glass ceramic hob

Practical advice on using the glass ceramic hob

Precautions and tips, 10

General safety

Disposal

Respecting and conserving the environment

Maintenance and care, 11

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assistance

INDESIT

Installation

GB

Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).

The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.
  Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100^

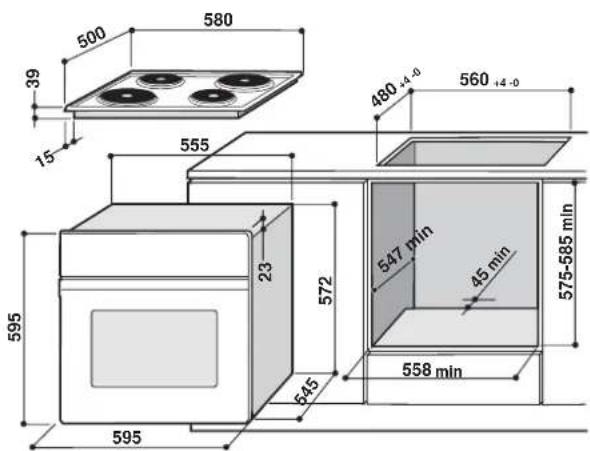

• To install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation.

Ventilation

To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 × 560 ~mm (see diagrams).

Centring and fastening

Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below:

thickness of 20mm : take off the removable part of the tab (see diagram)

thickness of 18mm use the first groove, which has already been set in the factory (see diagram)

thickness of 16mm use the second groove (see diagram)

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame.

All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connections

The cooker must be connected to the mains electricity supply. It is designed to operate with alternating current at the voltage and frequency indicated on the data plate (see the following page).

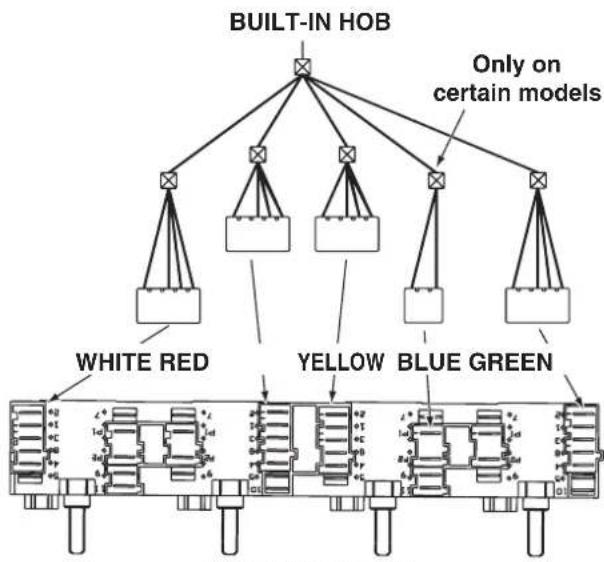

The hob is connected to the cooker using a special connector.

BUILT-IN COOKER

Replace the metal protection after performing all the necessary hob connections. If the hob is removed from its position, the red cap which was originally protecting the red connector must be replaced.

Fitting the power supply cable

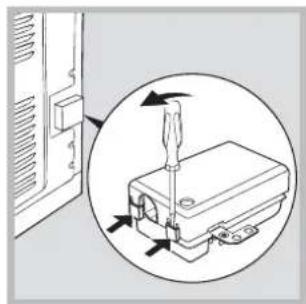

1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

2. Install the power supply cable by loosening the cable clamp screw and the wire contact screws L-N- Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow Green wire to the terminal marked 1±

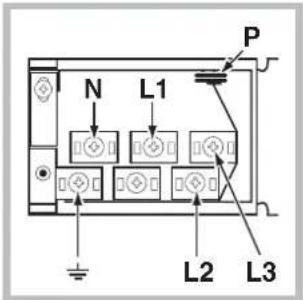

The terminal board is designed for a 400V three-phase connection (see diagrams below).

400V 3N~H05RR-F
5x2.5 CEI-UNEL 35363
3 L 2

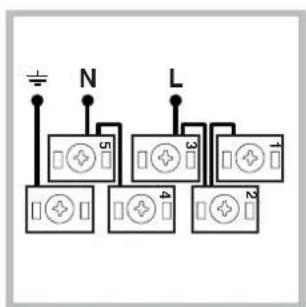

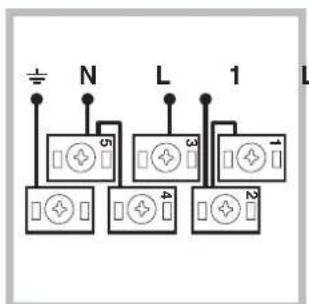

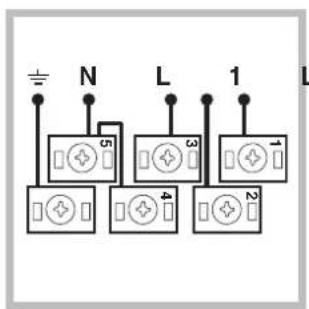

If the electrical system has other characteristics (see diagrams below), carry out the electrical connection using the connection supports provided in the box P.

230V\~H05RR-F 3x4 CEI-UNEL 35363

400V 2N~H05RR-F 4x4 CEI-UNEL 35363 2

1. Secure the power supply cable by fastening the clamp screw.
2. Close the cover of the terminal board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate (see side).

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below).
The voltage must be in the range between the values indicated on the data plate (see below).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

The cable must not be bent or compressed.

The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

The manufacturer declines any liability should these safety measures not be observed.

DATA PLATE
Dimensions	width 43.5 cm height 32 cm depth 43,5 cm
Volume	lt. 60
Electrical connections	voltage: 230V/400V~ 3N 50/60Hz maximum power absorbed 8400W
ENERGY LABEL	Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Energy consumption Class certification Natural convection heating mode: TRADITIONAL
CE	This appliance conforms to the following European Economic Community directives: 2006/95/EEC of 12/12/06 (Low Voltage) and subsequent amendments; - 2004/108/EEC of 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC of 22/07/93 and subsequent amendments. - 2002/96/EC and subsequent amendments.

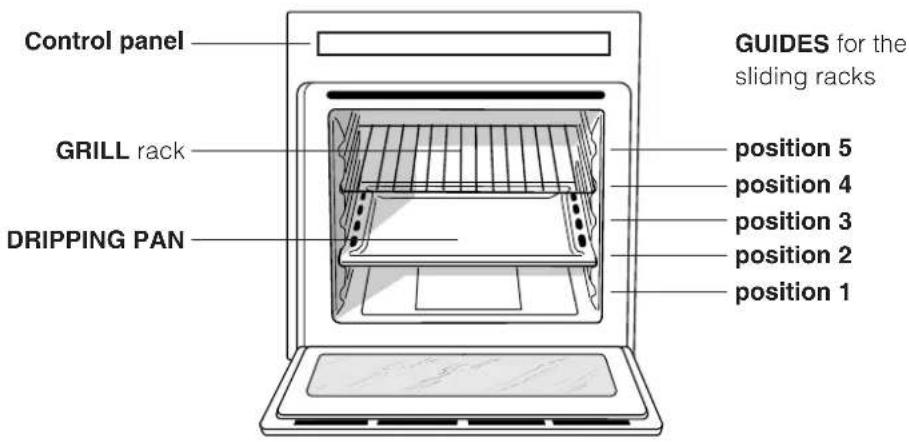

Overall view

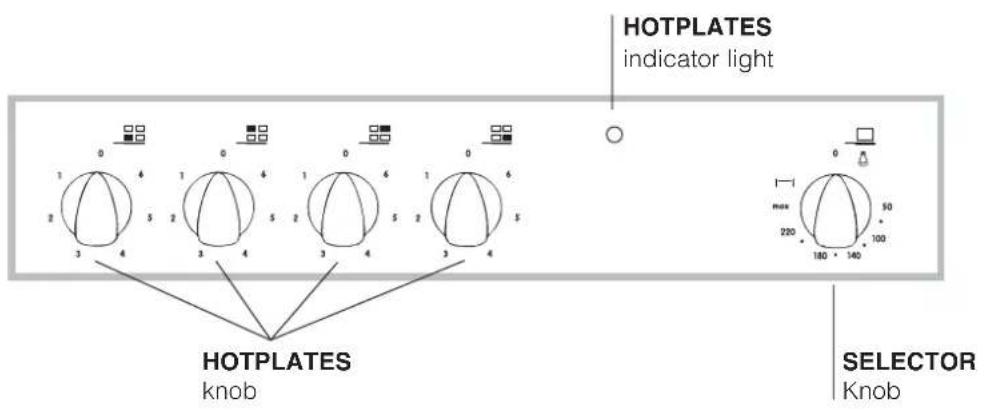

Control panel

GB

Start-up and use

GB

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process.

Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.
2. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes).

3. You may do the following during cooking:

4. change the cooking mode by turning the SELECTOR knob

5. stop cooking by turning the SELECTOR knob to the "0" position

! Never put objects directly on the oven bottom to avoid damaging the enamel coating.
! Always place cookware on the rack(s) provided.

Oven light

When selecting with the SELECTOR knob the oven light goes on. It remains on when a cooking mode is selected.

Cooking modes

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly. The oven will automatically reach the temperature set, and the thermostat, which is controlled by the SELECTOR knob, will keep it constant.

TOPOVENmode

The top heating element comes on. This mode can be used to brown food at the end of cooking. Always cook in this mode with the oven door closed.

Practical cooking advice

In the GRILL cooking mode, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

GRILL

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.
• The top heating element is regulated by a thermostat and may not always be on.

PIZZA

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Cooking advice table

Foods	Weight (in kg)	Rack position	Pre-heating time (min)	Recommended temperature	Cooking time (minutes)
Pasta
Lasagne	2.5	3	-	210	75-80
Cannelloni	2.5	3	-	210	75-80
Tagliatelle	2.5	3	-	210	75-80
Meat
Veal	1.7	3	-	220	85-90
Chicken	1.5	3	-	220	110-115
Turkey	3.0	3	-	220-Max	95-100
Duck	1.8	3	-	220	120-125
Rabbit	2.0	3	-	220	105-110
Pork	2.1	3	-	220	100-110
Lamb	1.8	3	-	220	90-95
Fish
Mackerels	1.1	3	-	210-230	55-60
Dentex	1.5	3	-	210-230	60-65
Trout baked in foil	1.0	3	-	210-230	40-45
Pizza
Napolitan	1.0 3 15 Max 30-35
Pies
Biscuits	0.5	3	15	180	30-35
Tart	1.1	3	15	180	30-35
Chocolate cake	1.0	3	15	200	45-50
Leavened cake	1.0	3	15	200	50-55

Type of hob

The oven is combined with a hob that can be made up of two types of heating elements: cast-iron electric plates (see diagram 1) or glass ceramic hobs (see diagram 2).

Switching on the glass ceramic hob

Traditional cooking zones

Traditional cooking zones are made up of circular heating elements. They turn red approximately ten seconds after they have been turned on.

Each cooking zone is fitted with a control knob allowing you to select from 6 different temperature settings from a minimum of 1 to a maximum of 6.

Residual heat indicator lights*

The indicator lights (C) indicate that the temperature of the corresponding cooking zones have exceeded 60^ , even after the heating element has been switched off.

Recommended power levels for various types of cooking:

Setting	Normal or Fast Plate
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time.

Practical advice on using the glass ceramic hob

! The glue that is applied on the gaskets leaves some traces of grease on the glass. Before using the appliance, we recommend you eliminate these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

To obtain the best results with your hob:

Use flat-bottomed pans to ensure that they adhere to the cooking zone perfectly.

Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat.

Make sure that the bottom of the cookware is always dry and clean to guarantee correct adherence and long life, not only for the cooking zones but also for the cookware itself.

Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may deform the base of the pan, causing it not to adhere correctly.

Never leave a cooking zone on without cookware on it because as it heats up and rapidly reaches the maximum level, it could damage the heating elements.

Precautions and tips

GB

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• When handling the appliance, always use the handles provided on the sides of the oven.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
  The appliance must be used to cook food by adults only and according to the instructions in this manual.
• Do not touch the heating elements and parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.
• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.
  The openings used for ventilation and dispersion of heat must never be covered.
  Always grip the oven door handle in the centre: the ends may be hot.
  Always use oven gloves to place cookware in the oven or when removing it.
• Do not use aluminium foil to line the bottom of the oven.
• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.
  Always make sure the knobs are in the / / 出 O position when the appliance is not in use.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
• Do not rest heavy objects on the open oven door.
• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens,

disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• Remember that the temperature of the cooking zones remains relatively high for at least thirty minutes after they have been switched off.
• Keep any object that could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Keep plastic or aluminium objects away from the hob: if you forget them on surfaces that are still hot, they may cause serious damage to the hob.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.
  Always keep the oven door closed when using the GRILL mode to attain best results and to save energy (approximately 10% ).
• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

• The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery (even in your dishwasher).

! Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. To clean more thoroughly, you can remove the oven door.

1. Open the oven door fully (see diagram).

1. lift up and turn the small levers situated on the two hinges; (see diagram).

1. Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram).

To replace the door, reverse this sequence.

Inspecting the seals

Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced.

Replacing the light bulb

To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder.
2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.
3. Replace the glass cover (see diagram).

Assistance

Communicating:

• appliance model (Mod.)
• serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

Sommaire

Installation, 13-15

Positionnement

Raccordement electrique

Ppoulaeic kai ouuoue

GR

I H ouakeun oxediaoTke kai kataokeuaoTKE oumuva me touc diEvic kavoeC aopaeiaC. OITPOeIOToInOeis autes TApexovta iia oyou C aopaeiaC kai TTpeTei va diaBaoTuV TTPOEKTkA.

Fevikn aσφαλεια

H ouakeun autn oxeiaotnke yia un eTTayeaatikn xpon oTo EOWTEPIKO KATOKIAc.
H oukeun dev yekaiotatai oe ewtepiokxwpo, k OTE av O xwpockettacetai, biotivraTlu Etnikivduvo va nV aqnoete EKTEeivn e Bpoxn kai KAKOKaipia.
Tia va metakivnoete Tn oukeun va xpoaiotioite tavta tic avtoixes aies Tou pikovtata ta Taaivou
Mny ayyicTe Tn unxavn e TRObia yuva n e Ta xepia n ta TRObia bpeyueva.
H oukeun npentei va xnpoiotoeitai yia to payeipaa trooivu,movo ato atoua evnaika kai oupwa u Tc onyie tsou avapepovta oTnapov eyxepidio.
Kata tn xpnon tsoukeun ta 0epmuvtka oToixea kai opioeva heptn tsnpotac tou poupvou kaiotavtaTolu 0epua. Ppoexete va mny Ta ayyicete kai kpatate ta Tnaidia pacia.
- ATTOPEUYETO KAUBOI TPOPOBOIAC AALW OIKAIKAUV OUKUUV VA AYYIeI Ta ΘEPμA Μερι Tou φούρvou.
Mn Boulwve Ta avoiyata aepioou kai attaywyns TNS 0epoTntac.
Na naveTe Tn aBn aoivuatoC Tns npTac 0Kevtpo: Ota Tlaivia uTpei va eivai zetnh.
Xpnoiotioite Tavta yavvia qoupvou yia va baçete n va byaçete okeun.
MnV kaAunTETe T haon Tou ooupovu e aauivoxapro.
MnyTTOBETEITE EUPAEKTO UAIKO OTO FOUPVO:av n OUAKEUN TEoIgAVPIKA Oe AITOUPYIA Oa IITOPOUOE VA TAPei QWtIa.
Na 8eBaiuveote nVAtoIoiEIIAOyeic evai otn eoan "T/1" otav n oukeun dev xnpoiotioietai.
Mn ByaZeTe to BuOua aTTO nV nAekpiKn TpiCi TpaBwVtac To Kaawio, aaia TiavovTaTo BuOua.
Mny kavete kaabapioo n ouvtnpon xwpi Tponyouevwc va exete byaale to Bua a to n Nktpki npia.
Σε περιπτωπ βλαβης, μη επεμβαίνε οε καία περιπτωπ ΟΟΥS ΣΕωτερικός μχανιούς για σεπεχρίσητε τήν επιοκευ. Eπικούνησε με τήν ἀνγική Αγθουπήρίη (βλέτε Αγθουπήρίη).
Mny aTOBETET BApia avIKEiEvA OTNV aOvoItn TOpTa Tou pOUPVou.
H uaokepaikn ETTpavieia evai avtkekiT otis mnxavikcs kpoaeic, wotooo mtopei va payoei (nvvdoxouevwscva OTAE) av xuttnthe iue aixunpo avtikejveo,OTWC eva epyaio. T1C TEPINTWoei autc, attoovdeote qeowcT

ouakeun aTo to diktuo nAekptko kai ateunvthe oynyTTOOTnIg.

Mny ExxvATE OI n 3epuokpaa Twv Cwuvv maayepmuTtapauei apketa uynn yia Toulaxiotov triavta aetto To oBnoio.
Na Kpatate OE loyikn attoataon atto tny etipaveia
muayepmuato oTOIOBDHTOTE AVTKEIevo Tou 0a mTPOpuoe va
Aeiooi, ia TAPadEiyma TAAOTIKA AVTKEIeva, aouuivio n
TPOiovta me uynAn oukyktpwn caxapns. PpoeeTe idaitepa
OTc Ouakeuaiecs kai ta qiuAtto TAAOTIKo n aoouivio: av Ta
5exaote OTc ETIPaveies akoum CEOTES hXIApeC mTPOei va
TPOKnEoi COpapn Znuiia otNtIPaveia.
E vv TPOBETTAEi n xphon TnS OUAKEUns aTIO aTOJA (ouuTEPIaIaBavOeVwv TwV TAIBIWv) ME EIWUEVC OUAKEc, aioNTIKES n vontIKES IKAVOTNEc, aTIO aTOJa N EMTIEpa n XwpiE Eoikeiwn o To TTPOiOv, EKTOS K AV EITOTTEUovTa iTTO ATOPO UTEUBOV yia Tnv aoPaeia TouS h EXOV DEXTI TPOKATAPKTKECs ONYIEc yia Tn xphon TnS OUAKEUns.
- Attopeuyete va taiouv taiaidiae Tn oukeun.

iαθεση

• iaeon Tou ulikou ouakeuaiaac: va eapuioe touc totikouc kavovioouc, etoi ouakeuaies oitopoov va etravaxpnoiotoinouv.
  H Eupwtaikn obnyia 2002/96/EK ia Ta AToBAnTa HAeKpIKOU KAI HAEKtpovIKOU EoTIAOu (AHHE), aTtatei otoi Taaie c OIKaKe c NkEeuec SuKEuec dev TpeTei va atoalovtai nazi e Ta uToAolTA aToBAn ta Tou dnoitkoou DkTuO. O Taaies oukeuec TpeTEI VA oUAAxOuv xWpiotat POKeEvou v BAtIOToTOnBoUV n Atokataoan KAI n avakukawonTwv UAIKW TTO TPEIxouv KAI ME OKOTTO mEiowon Twv BApewv ETITIWooewv OTNV AVPwTNV uyia KaI TO Tpeipalov. To sujoLo o To dieypaMuEvo "doxio attoBNTW" oTo TPOiov UTvehuiei OE aoc tnv UTOxpewn oas, TTOSAV ETIIbueite va TETaTe Tn OuaKEun ,TpeTEI VA OuaXeTei Xwiota.

Oi katavaawtcs 0a tpietie va atteuovovta otis totikcs apxes n ota kataotnmuata iaviokns yia npanpopopies tro apopov tn owat diaeon tow taaiow nektpikw oukeuwv.

Egoikovouonn evpyeiaac kai oepaogocto Tepiabaaov
