IO 235H B - Oven INDESIT - Free user manual and instructions

Oven Type	Built-in multifunction electric oven
Usable Capacity	66 liters
Energy Class	A
Consumption (natural convection)	0.79 kWh per cycle
Consumption (forced convection)	0.88 kWh per cycle
Number of Cooking Functions	6 functions
Cleaning Mode	Hydrolysis
Color	Black
Controls	Mechanical knobs
Timer	Mechanical timer
Interior Lighting	1 lamp (front left position)
Product Dimensions (H x W x D)	595 x 595 x 551 mm
Recess Dimensions	600 x 555 x 560 mm
Weight	26.4 kg
Power Supply	220-240 V / 13 A / 50-60 Hz
Included Accessories	1 rack, 1 drip tray

Frequently Asked Questions - IO 235H B INDESIT

What is the capacity of the INDESIT IO 235H B oven?

The INDESIT IO 235H B oven has a useful volume of 66 liters, making it a standard-sized oven suitable for most families. It can accommodate large dishes or multiple cooking levels simultaneously.

What cooking functions are available on this oven?

This multifunction oven offers 6 cooking functions in total, including natural convection (top and bottom heat), forced convection (fan heat), grill, ventilated grill, and defrosting. This versatility allows for cooking both roasted meats and pastries or bread.

How does the hydrolysis cleaning function of this oven work?

The hydrolysis cleaning system involves pouring a little water at the bottom of the oven, then running a low-temperature heating cycle (around 90°C for 30 minutes). The steam produced softens grease residues, which can then be easily wiped off with a sponge. This process is less powerful than pyrolysis but saves energy and does not emit strong odors.

What are the dimensions of the oven and the built-in niche?

The product dimensions are 595 mm (height) x 595 mm (width) x 551 mm (depth). The built-in niche should measure 600 mm (height) x 555 mm (width) x 560 mm (depth). Check these measurements before any installation.

Is the IO 235H B oven built-in or freestanding?

This oven is exclusively built-in. It is installed in a kitchen cabinet designed for this purpose. It comes with a power cable but does not have a plug: the connection must be made on a dedicated 220-240 V / 13 A circuit by a qualified electrician if no suitable socket is already in place.

Why doesn't the oven reach the correct cooking temperature?

Several causes are possible:

• The heating element or thermostat is faulty.
• The door seal is worn and lets heat escape.
• The convection fan is not spinning properly.

If the problem persists after checking the door and controls, it is advisable to contact an authorized INDESIT technician or replace the thermostat (part available on specialized sites like Spareka or FixPart).

The oven door doesn't close properly or doesn't latch correctly, what should I do?

Start by checking the condition of the door seal: if it's hard, cracked, or deformed, it needs to be replaced. Also check the hinges which can loosen over time. This oven has a removable double-glazed door, making maintenance easier. Replacement parts are available from specialized appliance parts retailers.

The oven fan makes an abnormal noise, is it serious?

A slight humming noise from the fan in forced convection mode is normal. However, a scraping or intense vibration noise often indicates that the fan wheel is dirty or the bearing is worn. Turn off the oven, let it cool, and then clean the interior. If the noise persists, the fan motor may need to be replaced by a technician.

How much does the INDESIT IO 235H B oven consume per cooking cycle?

Its energy class A indicates good efficiency. The measured consumption is 0.79 kWh in natural convection mode and 0.88 kWh in forced convection mode for a standard cooking cycle. These values are defined by the European measurement standard.

What accessories are provided with this oven?

The INDESIT IO 235H B oven comes with 1 grid and 1 drip tray (oven tray). These accessories are installed on the internal rails. Additional accessories (extra grids, trays, telescopic rails) can be ordered from INDESIT or spare parts retailers.

Does the oven have interior lighting?

Yes, the oven is equipped with an interior lamp, positioned at the front left of the cavity. It turns on automatically during cooking to monitor food without opening the door. In case of failure, the bulb can be replaced (standard oven halogen model 25-40 W, E14 socket).

How do you use the mechanical timer on this oven?

This oven is equipped with a mechanical timer (without digital display). Turn the timer knob clockwise to the desired duration. At the end of cooking, a bell rings and the oven stops automatically. For unlimited cooking time, set the knob to the bell or buzzer symbol (depending on the model, continuous manual position).

USER MANUAL IO 235H B INDESIT

THANK YOU FOR BUYING AN INDESIT PRODUCT
In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

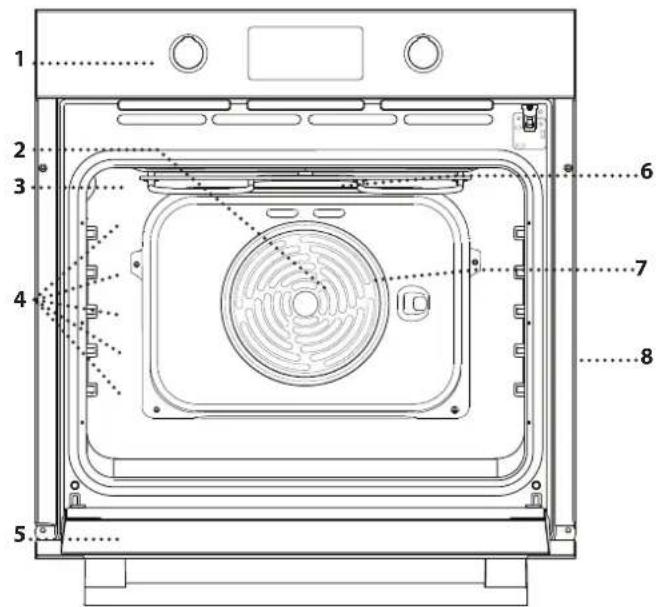

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8

1. Control panel
2. Fan (not visible)
3. Lamp
4. Shelf guides (the level is indicated on the wall of the cooking compartment)
5. Door
6. Upper heating element/grill
7. Circular heating element (not-visible)
8. Identification plate (do not remove)

CONTROL PANEL DESCRIPTION

0 60 5 10 50 45 15 40 20 35 30 25 2

°C 0 60 80 100 120 140 160 180 200 220 250 F0 3

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the 0 position to switch the oven off.

2. TIMER KNOB

Useful as a timer.

3. THERMOSTAT KNOB

Turn to select a desired temperature, activating the selected function.

4. LED THERMOSTAT/PREHEATING

Switches on during the heating process. Switches off once the desired temperature reached.

Please note: Type of knob may vary from model type. If the knobs are push-activated, push down on the center of the knob to release it from seating.

Please note: Type of knob may vary from model type. If the knobs are push-activated, push down on the center of the knob to release it from seating.

ACCESSORIES

Simple line drawing of a rectangular grid or panel with horizontal lines, no text or symbols present.

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.

3D rendering of a rectangular tray with a gray inner area and a separate U-shaped outline on the right (no text or symbols)

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.

To facilitate inserting or removing accessories.

* Available only on certain models

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.

Then slide it horizontally along the runners as far as possible.

Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners.

SLIDING SHELVES AND SHELF GUIDES

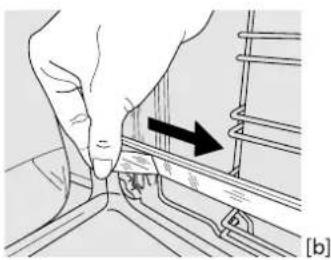

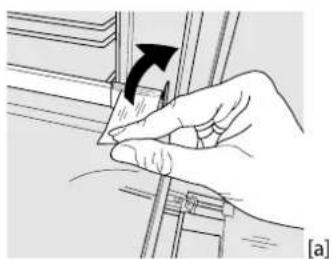

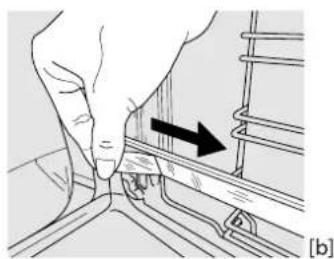

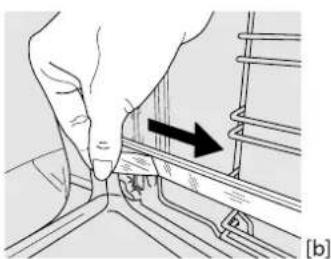

Before using the oven remove the protective tape [a] and then remove the protective foil [b] from the sliding runners.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

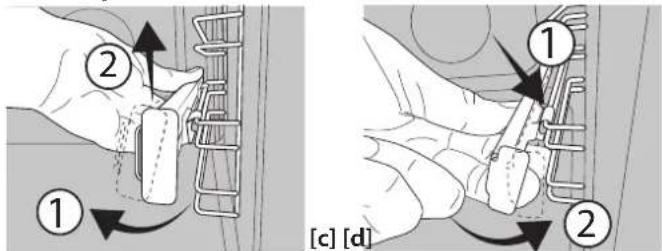

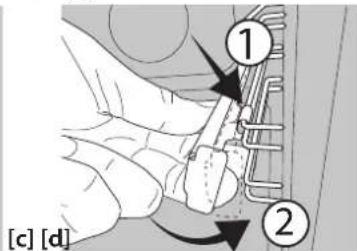

REMOVING THE SLIDING RUNNERS [c]

Pull the lower part of the sliding runner to uncouple the lower hooks (1) and pull the the sliding runners upwards, removing them from the upper hooks (2).

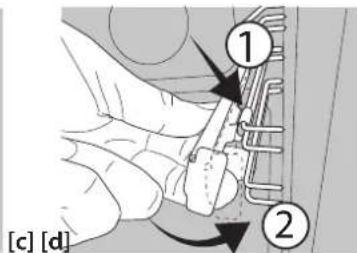

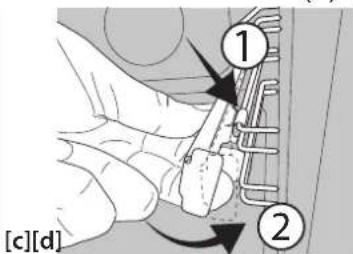

REFITTING THE SLIDING RUNNERS [d]

Hook the upper hooks on the shelf guides (1) then press the lower part of the sliding runners against the shelf guides, until the lower hooks are clicking (2).

Diagram showing a hand holding a device with two numbered steps indicating process flow

[c] [d] ① ②

REMOVING AND REFITTING THE SHELF GUIDES

1. To remove the shelf guides, firmly grip the external part of the guide, and pull it towards you to extract the support and the two internal pins from the lodging.

2. To reposition the shelf guides, position them near the cavity and initially insert the two pins into their lodgings. Next, position the external part near its lodging, insert the support, and firmly press towards the wall of the cavity to make sure the shelf guide is properly secured.

FIRST TIME USE

A new oven may release odours that have been left behind during manufacturing: this is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 250 °C for about one hour. The oven must be empty during this time.

Please note: It is advisable to air the room after using the appliance for the first time.

FUNCTIONS

OFF

For switching off the oven.

LIGHT

For switching on the light in the compartment.

CONVENTIONAL

For cooking any kind of dish on one shelf only.

ECOCLEAN

The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. To activate the "EcoClean" function pour 100-120ml of drinking water into the bottom of the oven then turn the selection knob and the thermostat knob to the icon. It is best to use the function for 35 minutes. The position of the icon does not correspond to the temperature reached during the cleaning.

CONVECTION BAKE

To cook on a maximum of two shelves at the same time. It is a good idea to swap the position of the baking trays halway though cooking.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

DEFROST

For defrosting food more quickly. To activate the defrosting function turn the selection knob to the icon ☑ then turn the thermostat knob clockwise to any temperature. This function does not heat so any temperature can be used. When defrosting is completed turn the two controls to the 0 position.

DAILY USE

SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require

ACTIVATE A FUNCTION

To start the function you have selected, turn the thermostat knob to set the temperature you require. To interrupt the function at any time, switch off the oven, turn the selection knob and the thermostat knob to 0.

PREHEATING

Once the function has been activated, the LED thermostat will switch on signalling that the preheating process has begun. At the end of this process, the LED thermostat switches off indicating that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking.

SETTING THE TIMER

This option does not interrupt or activate cooking but allows you to use the minute minder both while a function is active and when the oven is off.

To activate the timer, turn the timer knob to the desired length of time:

An acoustic signal will warn you when the count-down is finished.

NOTES

• Do not cover the inside of the oven with aluminium foil.
• Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
• Do not place heavy weights on the door and do not hold on to the door.

COOKING TABLE

RECIPE FUNCTION PREHEAT			TEMPERATURE(°C)	DURATION(MIN)	LEVEL AND ACCESSORIES
Leavened cakes		Yes 150 - 170 30 - 90			2√
		Yes 150 - 170 30 - 90 ***			4√	1√
Filled cake(cheese cake, strudel, fruit pie)		Yes 160 - 200 35 - 90			2√
		Yes 160 - 200 35 - 90***			4√	2√
Biscuits/tartlets		Yes 160 - 180 15 - 35			2/3√
		Yes 150 - 170 20 - 40***			4√	2√
		Yes 180 - 200 40 - 60			2√
Choux buns		Yes 170 - 190	35 - 50***		4√	2√
		Yes	90	150 - 200	2√
		Yes	90	140 - 200***	4√	2√
Meringues		Yes 220 - 250 10 - 25			1/2√
		Yes 200 - 240	15 - 30***		4√	2√
		Yes 180 - 200	30 - 45		2√
Bread loaf 500 g		Yes	180	50 - 70	1/2√
Bread		Yes 180 - 200 30 - 80***			4√	2√
Frozen pizza		Yes	250	10 - 20	2√
		Yes	250	10 - 20***	4√	2√
Salty cakes(vegetable pie,quiche)		Yes 180 - 200 30 - 45			2√
		Yes	170 - 200	40 - 60***	4√	2√
Vols-au-vents / puff pastry crackers		Yes-	190 - 200 20 - 30		2√
		Yes-	180 - 190	15 - 40***	4√	2√
Lasagne / baked pasta / canneloni / flans		Yes	190 - 200	45 - 65	2√
Lamb / veal / beef /pork 1 kg		Yes	190 - 200	80 - 110	2√

FUNCTIONS
	Conventional	Grill	Turbo grill	Convection bake

ACCESSORIES
	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water

COOKING TABLE

RECIPE FUNCTION PREHEAT			TEMPERATURE(°C)	DURATION(MIN)	LEVEL AND ACCESSORIES
Roast pork with cracking Yes 180 - 190 110 - 150					2
Chicken/rabbit/duck 1 kg		Yes	200 - 230	50 - 100	2
Turkey / goose 3 kg		Yes	180 - 200	150 - 200	2
Baked fish/en papillote (fillets, whole)		Yes	170 - 190	30 - 45	2
Stuffed vegetables(tomatoes, courgettes, aubergines)		Yes 180 - 200	50 - 70		2
Toasted bread		5'	250	2 - 6	5
Fish fillets/slices		5'	250	250	4	3
Sausages/kebabs/spare ribs/hamburgers		5'	250	15 - 30*	5	4
Roast chicken 1-1,3 kg		-	200 - 220	55 - 70**	2	1
Roast beef rare 1 kg		-	200	35 - 50**	3
Leg of lamb/knuckle		-	200	60 - 90**	3
Roast potatoes		-	200 - 220	35 - 55**	3
Vegetable gratin		-	200 - 220	25 - 55	3
Meat and potatoes Yes 190 - 200 45 - 100***					4	1
Fish and vegetables		Yes	180	30 - 50***	4	1
Lasagne and meat		Yes	200	50 - 100***	4	1

* Turn food halfway through cooking
** Turn food two thirds of the way through cooking (if necessary).
*** Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
The time indicated does not include the preheating phase: we recommend placing the food in the oven and setting the cooking time only after the required temperature has been reached.

FUNCTIONS	[KKSY]	[SW3T]
	Conventional	Grill	Turbo grill	Convection bake

ACCESSORIES
	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.

• If there is stubborn dirt on the interior surfaces, we recommend running the automatic cleaning function for optimal cleaning results. Avoid activating the pyrolitic cycle cleaning in the presence of limescale residues. Before activating, perform limescale cleaning as described above.
• The door can be easily removed and refitted to facilitate cleaning of the glass.

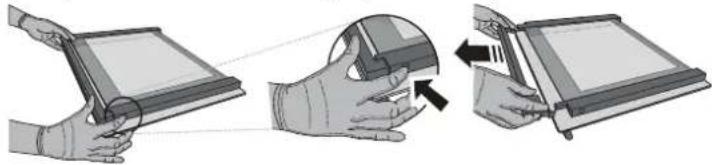

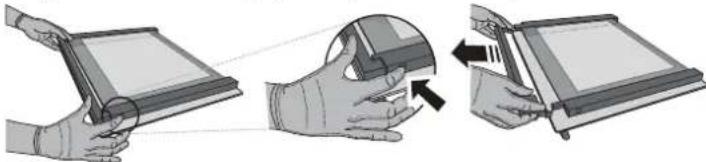

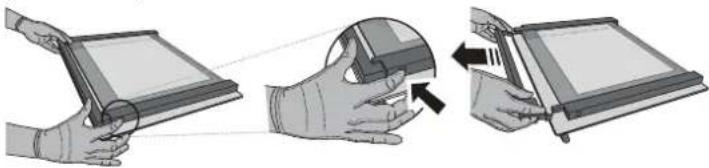

• Clean the glass in the door with a suitable liquid detergent.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

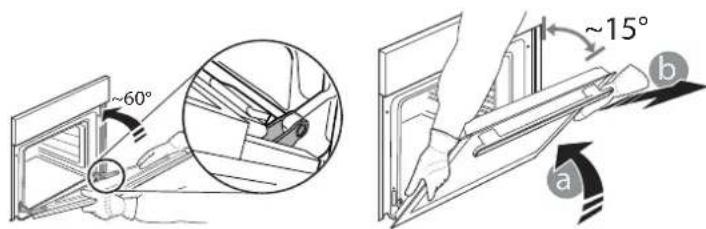

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards (a) at the same time until it is released from its seating (b). Put the door to one side, resting it on a soft surface.

~60° ~15° a b

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

2. Lower the door and then open it fully.

Lower the catches into their original position: Make sure that you lower them down completely.

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above.

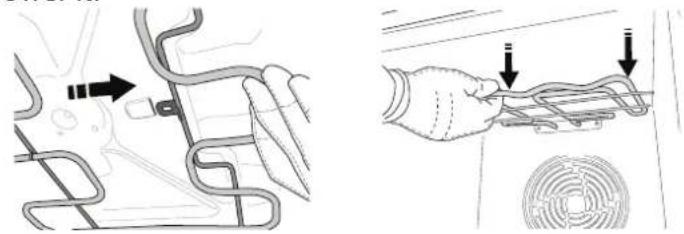

1. Extract the heating element from its seating, then lower it.

Diagram showing a car interior with winding roads and a hand holding a tool, alongside a circular fan or vent (no text or symbols)

1. To return the heating element to its position, lift it up, pull it slightly towards you and make sure that the tab support is in its proper seating.

Diagram of a vehicle's internal structure with no visible text or symbols

CLICK & CLEAN - CLEANING THE GLASS

1. After removing the door and resting it on a soft surface with the handle downwards, simultaneously press the two retaining clips and remove the upper edge of the door by pulling it towards you.

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and inserting a clip into a device (no text or symbols)

1. Lift and firmly hold the inner glass with both hands, remove it and place it on a soft surface before cleaning it.

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

1. Refit the intermediate pane (marked with "1R") before refitting the inside pane: To position the panes of glass correctly, make sure that the "R" mark can be seen in the left-hand corner. First insert the long side of the glass marked "R" into the support seats, then lower it into position. Repeat this procedure for both panes of glass.

Diagram showing a mechanical assembly with an inset view of a person operating a device (no text or symbols present)

1. Refit the upper edge: A click will indicate correct positioning. Make sure the seal is secure before refitting the door.

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

REPLACING THE LAMP

Disconnect the oven from the power supply, unscrew the cover from the light, replace the bulb and screw the cover back on the light.

Reconnect the oven to the power supply. Do not use the oven until the light cover has been refitted.

Please note: Use 25 W/230 V type G9, T300 °C halogen lamps.

The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your fingerprints could damage them. Do not use the oven until the light cover has been refitted.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not work.	Power cut. Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance

- Visiting our website docs.indesit.eu

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT INDESIT

Simple line drawing of a rectangular grid or panel with a horizontal bar at the top (no text or symbols)

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped outline on the right side (no text or symbols)

Simple line drawing of a square frame with a small protrusion on the right side (no text or symbols)

Illustration of a hand holding a metal sheet with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

ENLÈVEMENT DES PATINS COULISSANTS [c]

Diagram showing hand positioning a component with numbered annotations (1, 2) indicating directional movement.

① ② [c] [d]

ENLEVER ET REPLACER LES SUPPORTS DE GRILLE

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a vehicle's internal structure with an arrow indicating direction (no text or labels)

Hand holding a flexible hose with arrows pointing to the cable (no text or symbols visible)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

CLICK & CLEAN - NETTOYER LA VITRE

Illustration of three-step hands performing a manual task: holding a tablet, adjusting a face mask, and inserting a device into a screen (no text or symbols present)

Diagram of a mechanical assembly with a rectangular component and a black arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with an inset view of a person operating a device (no text or symbols present)

Illustration of hands using a digital tablet to interact with a screen (no text or symbols visible)

REEMPLACEMENT DE L'AMPOULE

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right side (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or assembly.

① ② [c] [d]

RIMUOVERE E RIMONTARE LE GRIGLIE LATERALI

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a car interior showing hand positioning and directional arrow (no text or labels)

Hand holding a flexible hose with two arrows pointing to the handle, next to a circular fan (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

CLICK & CLEAN - PULIZIA DEL VETRO

Illustration of three-step hand tool application: holding a tablet, adjusting a face mask, and opening a screen (no text or symbols)

Diagram of a mechanical device with a rectangular frame and an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with an inset view of a person using a device (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

Simple line drawing of a square frame with a small protrusion at the bottom right (no text or symbols)

Upotrebljava se za pečenje kruha i peciva, ali i pečenki, ribe u ovitku itd.

Two metallic cylindrical metal bars with flanges, shown against a white background (no text or symbols)

Two technical diagrams showing hand positioning of a mechanical component, labeled (a) and (b), with no visible text or symbols.

UKLANJANJE KLIZNIH VODILICA [c]

Povucite donji dio klizne vodilice da biste odvojili donje kuke (1) i klizne vodilice povucite prema gore skidajući ih s gornjih kuka (2).

PONOVNO POSTAVLJANJE KLIZNIH VODILICA [d]

Zakvačite gornje kuke na vodilice rešetki (1) pa zatim pritisnite donji dio kliznih vodilica na vodilice rešetki sve dok donje kuke ne kliknu (2).

Technical diagram showing two-step assembly steps of a mechanical component, labeled with arrows and numbered parts.

UKLANJANJE I PONOVNO POSTAVLJANJE VODILICA REŠETKI

1. Vodilice rešetki skinite tako da čvrsto uhvatite vanjski dio vodilice i povučete je prema sebi da biste potporu i dva interna zatika izvukli iz ležišta.

2. Ponovno ih postavite tako da ih postavite blizu unutrašnjosti i najprije umetnete dva zatika u njihova ležišta. Zatim vanjski dio postavite u blizinu njegovog ležišta, umetnete nosač i čvrsto ga pritisnete prema stijenci unutrašnjosti da biste provjerili je li vodilica rešetke dobro učvršćena.

PRVA UPOTREBA

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram showing a hand holding a component with two downward arrows and a circular inset labeled 'FMC' (Functional Control Panel).

1. Grijač vratite u njegov položaj tako da ga podignete, lagano povučete prema sebi i provjerite je li nosač jezičca u odgovarajućem sjedištu.

Diagram of a vehicle's internal structure with no visible text or symbols

CLICK & CLEAN - ČIŠĆENJE STAKLA

1. Nakon skidanja vrata i njihovog postavljanja na meku površinu s ručkom okrenutom prema dolje, istovremeno pritisnite dvije pričvrsne kopče i izvadite gornji rub vrata tako da ga povučete prema sebi.

Illustration of three-step hand tool application: holding a flat sheet, adjusting a circular component, and opening a rectangular device (no text or symbols)

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

1. Ponovno postavite srednju staklenu plohu (označeni slovom "1R") prije postavljanja unutarnje staklene plohe: Kako biste pravilno postavili staklene plohe provjerite može li se oznaka "R" vidjeti u lijevom kutu. Najprije umetnite dugu stranu stakla označenu slovom "R" u potporna ležišta, pa je zatim spustite u položaj. Ponovite postupak za obje staklene plohe.

Diagram showing a mechanical assembly with a slide and a printer, no text or symbols present

Illustration of hands holding a tablet device with a screen, no text or symbols visible

ZAMJENA ŽARULJE

Simple line drawing of a rectangular grid or panel with a horizontal support (no text or symbols)

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped outline on the right side (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a metal bracket with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram showing hand positioning a component with numbered annotations (1, 2) indicating directional movement.

① ② [c] [d]

Diagram of a car door handle with an arrow indicating direction (no text or symbols)

Diagram of a road intersection with a directional arrow and a vehicle silhouette (no text or labels)

Hand holding a flexible hose with two arrows pointing to it, next to a circular fan (no text or symbols)

Diagram of a mechanical or electrical component with curved lines and a central circular feature, no visible text or symbols.

CLICK & CLEAN - KAΘΑΡΙΣΜΟΣ TZAMIOY

Illustration of three-step hand tool application: holding a tablet, adjusting a face mask, and opening a screen (no text or symbols)

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a magnified inset of a device (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right side (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a metal object with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

DEMONTAŻ PROWADNIC WYSUWANYCH [c]

PONOWNY MONTAŻ PROWADNIC WYSUWANYCH [d]

Diagram showing a hand holding a device with numbered annotations indicating step 1 and step 2, likely illustrating a process or operation.

① ② [c] [d]

WYJMOWANIE I PONOWNY MONTAŻ DRABINEK

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration showing a car interior with pipe routing and a hand adjusting a component (no text or symbols present)

Diagram of a mechanical or electrical component with curved lines and a central circular feature, no visible text or symbols.

CLICK & CLEAN - CZYSZCZENIE SZYBY

Illustration of three-step hand tool application: holding a tablet, adjusting a face mask, and opening a screen (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an inset view of a person operating a device (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

WYMIANA ŻARÓWKI

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols)

DEMONTAREA GHIDAJELOR CULISANTE [c]

Diagram showing a hand holding a device with two labeled arrows indicating rotation or adjustment steps.

[c] [d] ① ②

DEMONTAREA ŞI REMONTAREA GHIDAJELOR PENTRU GRĂTAR

Diagram of a car door handle with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Hand holding a mechanical component with two arrows pointing to it, next to a circular fan-like object (no text or symbols)

Diagram of a mechanical or electrical component with curved lines and a central circular feature, no visible text or symbols.

CLICK & CLEAN - CURĂȚAREA GEAMULUI DIN STICLĂ

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and closing the screen (no text or symbols)

Diagram of a mechanical assembly with a rectangular frame and an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with an inset view of a device labeled 'F1' (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

ÎNLOCUIREA BECULUI

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right (no text or symbols)

Koristi se kao pleh za pečenje mesa, ribe, povrća, fokače itd. ili je možete postaviti ispod žičane rešetke ako želite da prikupite saft od pečenja.

PLEH ZA PEČENJE* KLIZNE VOĐICE*

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Koristi se za pečenje svih vrsta hleba i peciva, kao i pečenja, ribe u sopstvenom soku itd.

KLIZNE POLICE I VOĐICE

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

UKLANJANJE KLIZNIH VODICA [c]

Povucite donji deo klizne vođice da biste otkačili donje kuke (1) i povucite klizne vođice nagore, skidajući ih sa gornjih kuka (2).

PONOVNO POSTAVLJANJE KLIZNIH VODICA [d]

Zakačite gornje kuke na vodice police (1), a zatim pritisnite donji deo kliznih vodica na vodice police, dok donje kuke ne kliknu (2).

Diagram showing a hand holding a device with labeled parts, including numbered callouts ① and ②.

[c] [d] ① ②

UKLANJANJE I PONOVNO POSTAVLJANJE VODICA

1. Da biste uklonili vodice, čvrsto uhvatite spoljašnji deo vodice i povucite je ka sebi da biste izvukli nosač i dva unutrašnja pina iz ležišta.

2. Da biste ponovo postavili vodice, postavite ih uz šupljinu i prvo umetnite dva pina u ležište. Zatim, postavite spoljašnji deo blizu ležišta, umetnite nosač i čvrsto pritisnite prema zidu šupljine da bi se vodica pravilno pričvrstila.

PRVA UPOTREBA

Nova pećnica može ispuštati mirise zaostale nakon procesa proizvodnje: to je sasvim normalno. Pre nego što započnete pripremu hrane, preporučujemo vam da zagrejete praznu pećnicu kako biste eliminisali sve neprijatne mirise.

Uklonite zaštitne kartone i folije iz pećnice i uklonite sav dodatan pribor iz unutrašnjosti pećnice. Zagrejte pećnicu na 250 °C na otprilike sat vremena. Tokom ovog procesa, pećnica mora biti prazna. Obratite pažnju na sledeće: Preporučuje se provetravanje prostorije nakon prve upotrebe uređaja.

FUNKCIJE

ISKLJUČENO

Koristi se za isključivanje rerne.

OSVETLJENJE

Koristi se za paljenje svetla unutar rerne.

KONVENCIONALNO

Diagram of a car door handle with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Hand holding a component with arrows pointing to a circular fan (no text or symbols)

1. Da biste vratili grejač na svoju poziciju, podignite ga, povucite lagano ka sebi i proverite da li je žljeb na svom ležištu.

Diagram of a mechanical or electrical component with curved lines and a black arrow pointing to a component (no text or symbols present)

CLICK & CLEAN - ČIŠĆENJE STAKLA

1. Nakon što ste skinuli vrata i postavili ih na mekanu površinu sa drškom okrenutom nadole, istovremeno pritisnite dva držača i skinite gornju ivicu vrata povlačeći je ka sebi.

Illustration showing three-step steps of a hand holding a tablet, with no visible text or symbols

Diagram of a mechanical device with a rectangular frame and an arrow indicating direction (no text or symbols)

1. Namestite srednje okno (označeno slovom „1R“) pre nego što vratite unutrašnje okno: Da biste pravilno postavili staklena okna, vodite računa da oznaka „R“ može da se vidi u levom uglu. Prvo ubacite dužu stranu stakla obeleženu slovom „R“ u ležišta, a potom ga spustite na položaj. Ovu proceduru ponovite za oba staklena okna.

Diagram showing a mechanical assembly with an inset view of a person operating a device (no text or symbols present)

1. Vraćanje gornje ivice vrata: Kliknuće ukoliko ste je pravilno postavili. Proverite da li je dobro pričvršćena pre nego što vratite vrata na mesto.

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

ZAMENA LAMPICE

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray inner square and a separate U-shaped outline on the right side (no text or symbols)

Simple line drawing of a square frame with a small protrusion at the bottom right (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

DEMONTAŽA DRSNIH VODIL [c]

Diagram showing a hand holding a device with two numbered steps and directional arrows indicating process flow.

① ② [c] [d]

ODSTRANJEVANJE IN PONOVNO VSTAVLJANJE VODIL ZA PEKAČE

1. Če želite odstraniti vodila za pekače, čvrsto primite zunanji del vodila in ga potegnite proti sebi, tako da iz lukenj izvlečete nosilec in dva notranja zatiča.

2. Če želite vodila za pekače ponovno vstaviti, jih postavite blizu vdolbine in najprej v ustrezni luknji vstavite dva zatiča. Nato blizu ustrezne luknje postavite zunanji del, vstavite nosilec in močno pritisnite proti steni vdolbine tako, da se prepričate, da je vodilo pravilno pritrjeno.

PRVA UPORABA

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Vrata zaprite, kolikor je mogoče.

Diagram of a vehicle's rearview and side profile showing road markings and a directional arrow (no text or labels)

Hand holding a mechanical component with two arrows pointing to it, next to a circular fan (no text or symbols)

1. Da grelnik znova namestite v prvotni položaj, ga dvignite in rahlo potegnite proti sebi, pri čemer mora biti jeziček v pravem vpetju.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

CLICK & CLEAN – ČIŠČENJE STEKLA

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and closing the screen (no text or symbols)

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

1. Preden ponovno namestite notranje steklo, namestite vmesno steklo (označeno z „1R“): Za ustrezno ponovno namestitev notranjega stekla se prepričajte, da je v levem vogalu vidna črka „R“. V držali najprej vstavite dolgo stranico stekla, označeno z „R“, in steklo nato spustite v ustrezni položaj. Ta postopek ponovite za obe stekli.

Diagram showing a mechanical device with an inset view of a device emitting force (no text or symbols present)

1. Ponovno namestite zgornji rob: će zaslišite klik, to pomeni, da se je rob pravilno zaskočil. Prepričajte se, da je tesnilo na pravem mestu, preden namestite vrata.

Illustration of hands using a digital tablet to interact with a screen (no text or symbols visible)

MENJAVA ŽARNICE V PEČICI

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right side (no text or symbols)

Simple line drawing of a square frame with a small protrusion on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

ЗНЯТТЯ ТЕЛЕСКОПИЧНИХ НАПРЯМНИХ [с]

Diagram showing a hand holding a device with numbered instructions for adjustment or repair steps

[c] [d] ① ②

Diagram of a car door handle with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Hand holding a component with arrows pointing to a fan-like structure (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Illustration of three-step hand manipulation process: holding a tablet, adjusting a mask, and adjusting a flat panel (no text or symbols)

Diagram of a mechanical assembly with a rectangular frame and an arrow indicating direction (no text or symbols)

Diagram showing a printer with an arrow pointing to its screen, and a close-up of the printer's side view (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

ЗАМИНА ЛАМПИ

Pure geometric diagram of a square plate with side notches and a small curved line below (no text or symbols)

3D rendering of a rectangular tray with a shaded interior and a small bracket at the bottom (no text or symbols)

Conversion: Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text → Text

Simple line drawing of a rectangular plate with horizontal slats (no text or symbols)

Diagram showing a hand holding a device with numbered annotations (1 and 2) indicating process steps.

① ② [c][d]

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand turning a valve with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Pure mechanical diagram showing curved and straight components without any text, numbers, or symbols

Diagram of a vehicle's steering wheel and dashboard with an arrow indicating direction (no text or labels)

Hand holding a tool with two arrows pointing to a component, next to a circular fan (no text or symbols)

Diagram showing a printer or printer interacting with a sheet of paper, with an arrow indicating motion (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

Illustration showing three-step steps of a device being handled, with no visible text or symbols.

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)
