USER MANUAL SAFK3003AL SHARP

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the below:

1. To protect against fire, electric shock and injury to persons do not immerse cord, plug, or in water or other liquid.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
4. The use of accessories not recommended by the appliance manufacturer as it may result in fire, electric shock or injury to persons.
5. Do not use outdoors.
6. Do not let cord hang over edge of table or counter, or touch hot surface.
7. Do not place on or near a hot gas or electric burner, or in a heated oven.
8. Do not use appliance for other than intended use.
9. Do not clean container with cleansers, steel wool pads, or other abrasive material.
10. To disconnect, turn/press any control to "Off", remove plug from the power socket. Always hold the plug. But never pull the cord.
11. Some parts of appliance are hot when operated, so do not touch with your hand. Use handles or buttons, dial controls only.
12. Close supervision is necessary when any appliance is used by or near children
13. Children should not to play with the appliance.
14. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
15. This appliance is intended for household use only.
16. To reduce the risk of fire or electric user shock, do not attempt to disassemble the product. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

17. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use

18. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils, away from beater, whisk or dough hooks during operation to prevent injury and / or damage to the mixer.

19. Mixing flammable non-food substances can be harmful.

Electrical Cord

a) A short power-supply cord {or detachable power-supply cord} is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over.

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

*Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

Important

1. Never run the mixer for longer than 10 minutes – it will overheat.
2. If overheating occurs, the mixer will automatically activate the overheating protection device and switch itself off. Switch the mixer off and unplug it from the power point. Release the mixer head and tilt it back until it is locked into the tilt back position. Let the mixer rest for 30 min.
3. Don't use the Balloon Whisk tool for heavy mixtures - you could damage it.
4. After cleaning, re-fit the bowl. This keeps the mechanism underneath covered.

Specifications

AC Line Voltage 50/60 Hz, 220-240 V
Output power 1000 W
Product weight 7.2 kg
Capacity 4.6 l

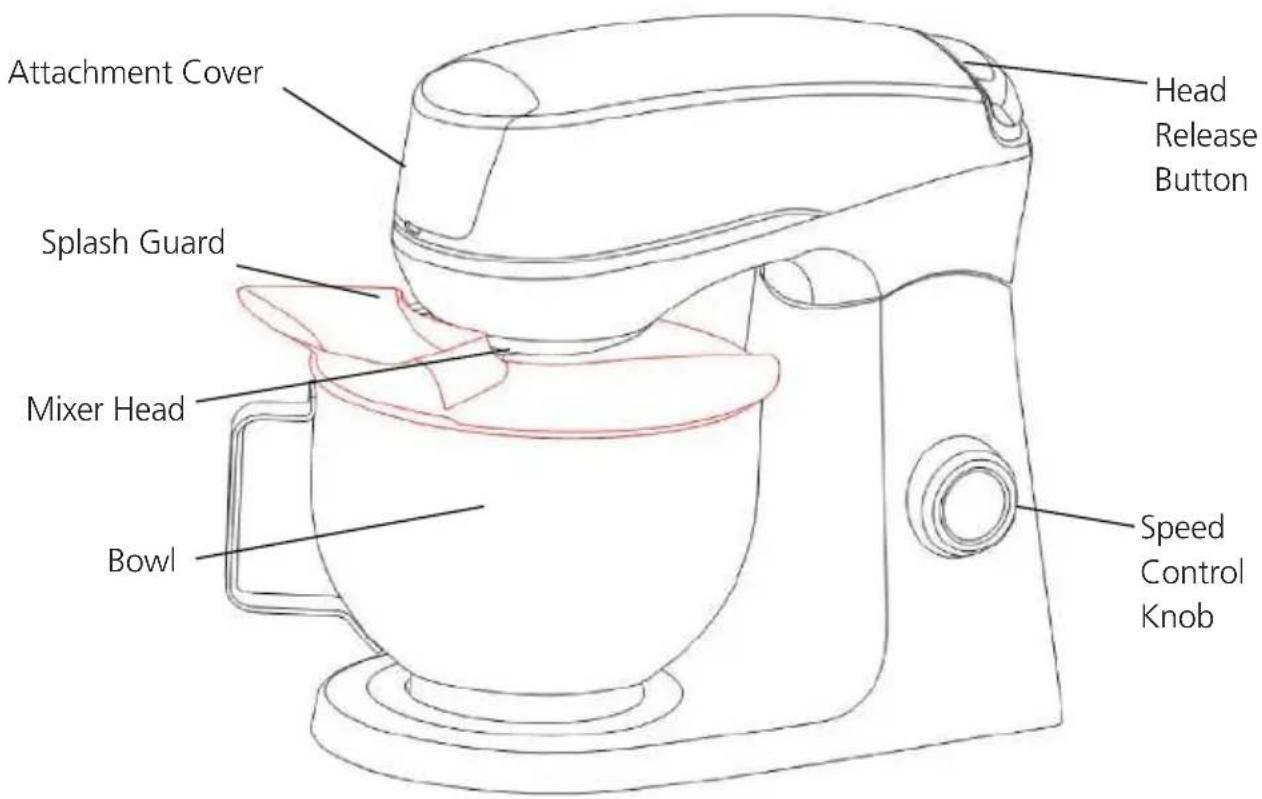

Part names

乙

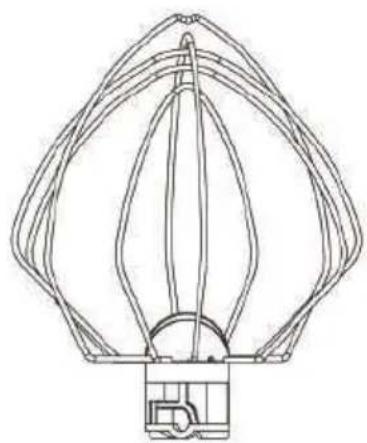

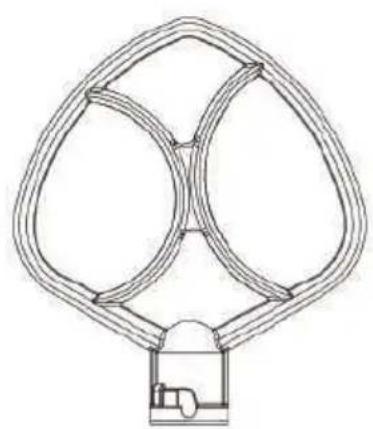

Balloon WhiskDough HookBeater

Before First Use

• Remove all packaging materials from the product
• Clean the mixer base with a damp cloth and dry thoroughly. Wash the Flat beater, Dough hook, Balloon whisk and the 4.6L Mixing Bowl in warm, soapy water and dry thoroughly

Using your mixer

How to Attach Bowl

1. Turn speed control to OFF
2. Unplug Stand Mixer or disconnect power
3. Tilt motor head back
4. Place bowl on bowl clamping plate.

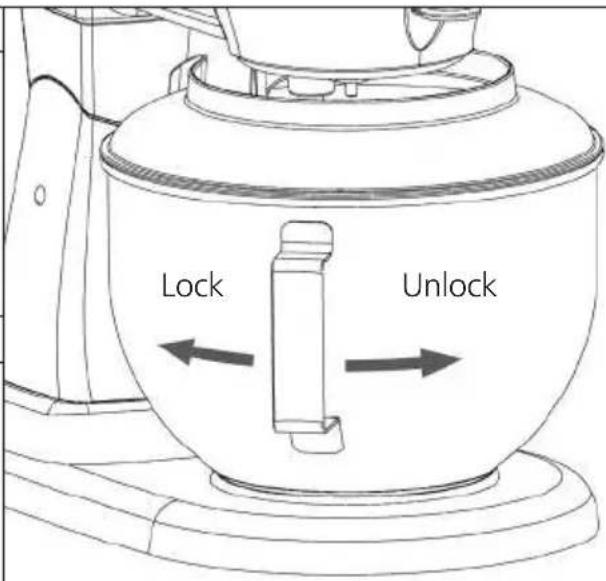

5. Turn bowl clockwise to lock into base

How to Remove Bowl

1. Turn speed control to OFF
2. Unplug Stand Mixer or disconnect power
3. Tilt motor head back
4. Turn bowl counterclockwise to unlock from base

How to Attached Beater, Dough Hook or Balloon Wisk

1. Turn speed control to OFF.
2. Unplug Stand Mixer or disconnect power.
3. Tilt motor head back.
4. Slip beater onto beater shaft and press upward as far as possible.
5. Turn beater counterclockwise, hooking beater over pin on shaft.
6. Plug into a 2-prong outlet.

How to Review Beater, Dough Hook or Balloon Wisk

1. Turn speed control to OFF.
2. Unplug Stand Mixer or disconnect power.
3. Tilt motor head back.
4. Press beater upward as far as possible and turn clockwise.
5. Pull beater from beater shaft.

How to Operate Speed Control

Speed control knob should always be set on lowest speed for starting, then gradually moved to desired higher speed to avoid splashing ingredients out of bowl.

How to Lock & Unlock the Motor Head

1. Make sure motor head is completely down
2. Before mixing, test lock by attempting to raise head Press Head Release button down to UNLOCK the motor head, tilt motor head back gently

How to Attach Splash Guard How to Remove Splash Guard

1. Turn speed control to OFF
2. Unplug Stand Mixer or disconnect power
3. Unlock and pull up the motor head
4. Attach Flat Beater, Dough Hook, or Wire Whip and bowl

5. Place the splash guard over the opening of the bowl with the opened end of the splash guard away from you.

6. Turn speed control to OFF

7. Unplug Stand Mixer or disconnect power
8. Pull out the splash guard

How to Select Accessories for Use

	Beater - for normal to heavy mixtures Cakes Creamed/butter frostings Candies Cookies Pie Pastry Biscuits Quick breads Mashed potatoes
	Balloon whisk – for mixtures that need air incorporated: Eggs Egg whites Heavy cream Boiled frostings Sponge cakes Mayonnaise
	Dough hook – for mixing and kneading yeast dough: Bread Rolls Buns Pasta dough

Speed Control Guide

Speed Use for Description
1 Stirring • Start all mixing at speed 1		for stirring Combine dry ingredient prior to adding liquid ingredient
2-3 Slow Mixing • Combine dry ingredient and	ingredient and	liquid ingredient. • Mashing potatoes • Kneading yeast dough
4-7	Beating	• Mixing Semi-heavy batter e.g. Cookie dough • Finish cake mix, doughnut and other batters
8-10	Creaming, Beating	• Creaming butter • Beating egg
11-12	Whipping	• Whipping cream • Beating egg white and boiled frostings

CAUTION

1. For kneading yeast dough, always select Speed 3 or lower. Using other speed higher than speed 3 may damage the mixer
2. Do not scrape the bowl while the Stand Mixer is operating.
3. The bowl and beater are designed to provide thorough mixing without frequent scraping. Scraping the bowl once or twice during mixing is usually sufficient.
4. Turn the Stand Mixer off before scraping.
5. The Stand Mixer may warm up during use. Under heavy load with extended mixing time, you may not be able to comfortably touch the top of the Stand Mixer. This is normal.

Using Accessory Attachment

ASSEMBLING OPTIONAL FRONT POWER HUB ATTACHMENTS

1. Ensure stand mixer is turned off and the unit is unplugged.
2. Pushing up the "Attachments cover" and then press down and hold the accessory release tab while inserting the accessory into the hub as far as it will go.
3. Let go of the accessory release tab and rotate the attachment slightly left and right until you hear the locking pin click into place.
4. To ensure your attachment is locked into place try pulling it out while not pressing down on the accessory release tab.

REMOVING FRONT POWER HUB ATTACHMENTS

1. Turn stand mixer off and unplug from outlet.
2. Press the attachment lock down and hold while pulling the accessory attachment out of the hub.

Care and Cleaning

Before cleaning your Stand Mixer, ensure that the power is turned off at the power outlet, and then remove the plug. Wipe over the outside area of the Stand Mixer including the head and base, with a dampened cloth and polish with a soft dry cloth. Wipe any excess food particles from the power cord.

We recommend to wash the mixing bowl, beater, whisk and dough hook in warm soapy water and wipe dry - use a brush if necessary to remove any sticky food particles.

Storage

Keep your Stand Mixer in a convenient position on your kitchen bench ready for use at all times. Place the beater, whisk and dough hook in the mixing bowl as storage of these attachments in a drawer with other kitchen equipment may cause damage.

Note: Never wind the power cord around the mixer after use as the warmth from the motor may cause damage to the power cord. For added convenience the unused cord length can easily be pushed into the base of the mixer for storage.

Guarantee

Please keep your receipt as this will be required for any claims under this guarantee.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Sharp Home Appliances (Europe) has the right to change these terms.

Further Terms & conditions of the warranty, please visit www.sharphomeappliances.com

Troubleshooting Guide

Problem Possible Cause What to do
Motor will not start. Motor is over-heated.Mixer head is not locked down properly.	Unplug and allow motor to cool, (the mixer head should be cool to touch).Move mixture in mixing bowl to the side of the attachment, to allow the attachment to go all the way into the bowl.
Motor will over-heated. Use of a high speed for a long time.Mixture too heavy.Mixing quantity too large.	Unplug and allow motor to cool, (the mixer head should be cool to touch).Try mixing in batches.
Mixer head does not lock down properly.	Thick mixture is preventing the attachment from going all the way down into the bowl.	Move mixture in mixing bowl to the side of the attachment, to allow the attachment to go all the way into the bowl.
Attachment is hitting the bowl.	Attachment is not inserted correctly.Mixing bowl is not locked into the base properly.	Remove the attachment and try inserting again. Refer to the instructions in this booklet if needed.Lock bowl into position. Refer to the instructions in this booklet if needed.
Mixer is moving on the bench top.	Chosen speed is too high for the mixture.Mixture caught up in the attachment. Flour or spills on bench top.	Lower the speed or mix in batches.Srape down the attachment and continue mixing.Clean and dry bench top as well as the mixer base.
