USER MANUAL FP1610S BLACK & DECKER

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

VEUILLEZ LIRE ET CONSERVER CE GUIDE D'ENTRETIEN ET D'UTILISATION.

BLACK&DECKER

PowerPro II

Food Processors

Accessories/Parts (USA/Canada) 1-800-738-0245

Accessoires/Pieces (C.U./Canada)

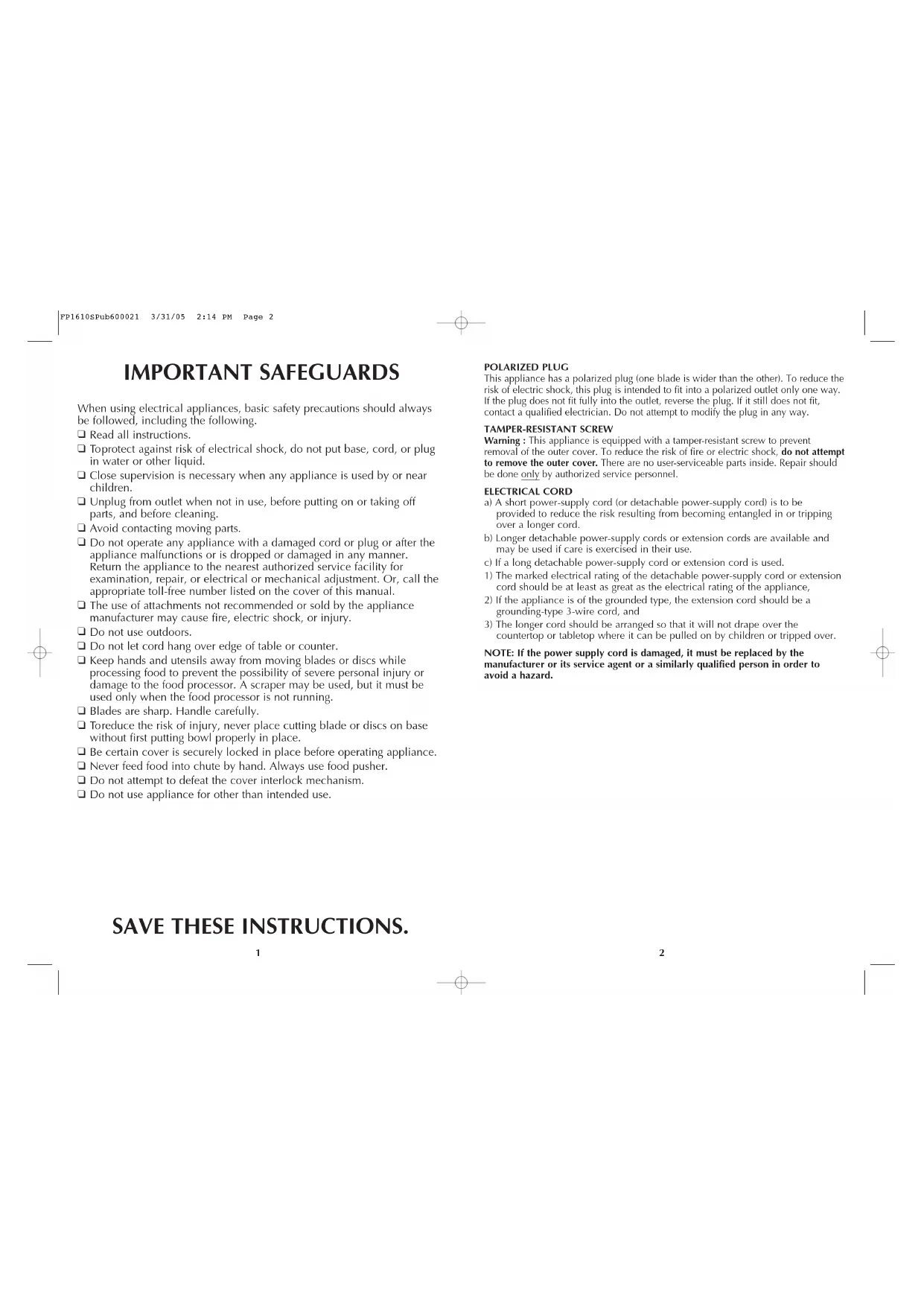

When using electrical appliances, basic safety precautions should always be followed, including the following.

Read all instructions.
Toprotect against risk of electrical shock, do not put base, cord, or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
Avoid contacting moving parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
- Keep hands and utensils away from moving blades or discs while processing food to prevent the possibility of severe personal injury or damage to the food processor. A scraper may be used, but it must be used only when the food processor is not running.
Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.
Be certain cover is securely locked in place before operating appliance.
Never feed food into chute by hand. Always use food pusher.
Do not attempt to defeat the cover interlock mechanism.
Do not use appliance for other than intended use.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used.
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

NOTE: If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS.

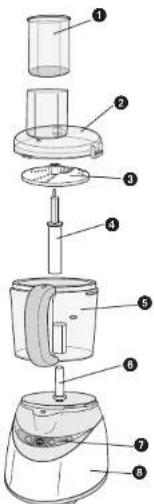

Product may vary slightly from what is illustrated.

+1. Food pusher (Part # MP12-3-102)
† 2. Food chute/cover
(Part # MP12-2-600)
+3.Slice/Shred disc (Part # MP12-2-500)
+4.Disc stem (Part # 210204-100)
+5.10-cup (2365 ml) container Part # MP12-2-200)
6. Center post
7. Control panel

1. Base

+9.Doughblade
(Part # MP12-3-017)
+10. Chopping blade (Part # MP12-3-400)
†11. Extra-thin slice/Fine shred disc
(Part # 211704-100)
+12. Storage lid (Part # 211801-002)
tConsumer replaceable

CONTROL PANEL

3

1. OFF/Pulse control
2. High and Low speed controls
3. Power indicator light

How to Use

This product is for household use only.

• Before first use, unpack the product and remove packing material. Handle sharp chopping blade and slice/shredd discs carefully.
• W ash all parts except base.

Important: For warranty verification, please do not remove line cord sticker.

Note: Do not attempt to chop ice in this food processor; it will damage container and dull chopping blade. This unit will not whip cream, beat egg whites to a desirable volume, grind coffee beans or spices with a high oil content, or slice or shred hard-cooked eggs, marshmallows, or soft cheeses.

CONTROLS

HIGH or LOW - When these buttons are pressed, unit runs continuously until OFF button is pressed.

OFF - Processor should always be left in OFF position when unit is not in use.
PULSE - PULSE button must be pressed and held for unit to operate. When released, unit will stop. Use PULSE for short processing tasks, such as chopping nuts, raw meats, or vegetables. This lets you check processed results and control the fineness.

Important: For your protection, this unit has an Interlock system. The processor won't operate unless container is properly locked onto base. Be sure to attach the container to the base before attaching the food chute/cover. The tab on cover must be correctly locked into the slot on base. Be sure cover is turned fully into slot toward LOCK until you hear it click into place. Do not attempt to operate unit without container and cover correctly locked in place. Be sure base is on a flat, dry, clean surface before you begin processing.

SLICING/SHREDDING DISCS

Either the slice/shredd disc or the extra-thin slice/fine shredd disc may be used for slicing or shredding, depending on consistency desired.

1. Place container over center post in base with handle at left. Turn container toward base until it drops down into place. Turn container counterclockwise until it locks into place (Handle aligns with HIGH speed button) (A).
2. Place the disc stem onto the center post in the container, then grasp the slice/shredd disc by its hub and push it down onto the disc stem.

For slicing - Slicing blade is raised (B).
For shredding - Shredding holes are raised (C).
3. Place food chute/cover onto container with food tube to the left of the handle. Twist food chute/cover
counterclockwise until you hear it click into place and LOCK. Arrow on handle aligns with arrow on the chute/cover (D).
4. Plug cord into an electrical outlet. Use the Food Guide to help you prepare food for slice/shredd processing.
5. Fill food chute with food and position the pusher over food.

1. Firmly press the HIGH or LOW speed button, then press down lightly but firmly on food pusher.
   Note: Let processor do the work. Heavy pressure will not speed up operation.
2. Alter processing food, press the control to OFF. Allow disc to stop rotating. Twist food chute/cover clockwise to UNLOCK and remove.
3. Carefully pull slice/shred disc off the stem, remove stem, unlock container by turning it clockwise, and lift it off.

CHOPPING BLADE (E)

1. Place container over center post in base with handle at the left. Turn container toward base until it drops down into place. Turn container counterclockwise until it locks into place (Handle aligns with HIGH speed button) (A).
2. Grasp chopping blade by its center shaft and slide it down onto center post (F).
3. Place food into container.
4. Place food chute/cover onto container with food tube to the left of the handle. Twist food chute/cover counterclockwise until you hear it click into place and LOCK (D).
5. Plug cord into an electrical outlet.

6. Press HIGH, LOW or PULSE. When pulsing, hold pulse position for about 2-3 seconds at a time. Check results and repeat for desired consistency. It is better to use several short operations rather than a single long one, unless mixing ingredients that require longer processing times.

7. After processing food, press control to OFF or release PULSE button. Allow chopping blade to stop rotating. Twist food chute/cover clockwise to UNLOCK and remove cover.

8. Grasp blade by its shaft and remove. Unlock container by turning it clockwise, and lift it off. Empty the processed food.
   Note: You can empty the contents of the container without removing the chopping blade. From the bottom place one finger through the center opening to hold the blade in place. Invert container or use a spatula to remove food.

DOUGH BLADE (G)

IMPORTANT: Follow the instructions under "CHOPPING BLADE" to install and remove the dough blade.

1. The dough blade can be used to make yeast breads, pizza dough, or yeast rolls that are made with 3 cups (750ml) of flour or more. Use the 2 dough recipes in this manual as a guide when making bread or pizza dough. Be sure to add liquid ingredients slowly as the dough will not form properly if liquid is added too fast.

2. You may have to slop the unit at times to scrape down the sides of the processing bowl.

3. Do NOT use the dough blade to make pie crust. Use the chopping blade for pie pastry (see recipes).

Bread Making Tips for the Dough Blade

1. For best results, use ingredients at room temperature and be sure the butter is soft.
2. Check the date on the yeast package to be sure it hasn't expired. Measure flour accurately by spooning it into a measuring cup designed for dry ingredients. Level it off with the straight side of a knife or metal spatula. Do not pack flour by tapping the cup when measuring.

Note: Maximum amount of flour to be used is 6 cups (1500 ml) of all-purpose or bread flour or 3 1/2 cups (875 ml) of whole grain flour.
3. You may use bread flour, if you'd prefer. Breads will be taller.

FOOD PROCESSING TIPS

Liquids

• Hot liquids (not boiling) and hot foods can be processed in container.
• Be sure to process small amounts of liquids — 2 cups or less at a time. Larger amounts will leak from container.

Dry Ingredients

• When preparing cookie, cake batter or quick bread, use the chopping blade to cream butter or shortening and sugar first. Add dry ingredients last. Place nuts and fruits on top of dry ingredients to prevent over chopping. Process using short pulses until blended. Do not over process.

Meat

• When using the chopping blade for processing meat, cut the meat into 1^ (2.54cm) cubes. Do not put more than 1/2 lb. (227g) of meat into the container at a time. Chop on pulse to the size desired.

Food Size, Preparation and Loading

• W hen using different foods in a recipe, process dry ingredients first and moist ingredients later. This reduces the number of times container must be washed and dried.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Note: Do not attempt to sharpen the cutting edges of the blades or discs. They are permanently sharpened at the factory and will be ruined by attempted sharpening.

CLEANING

1. Before cleaning, be sure unit is off and cord is unplugged.
2. Whenever possible, rinse parts immediately after processing for easy cleanup.
3. Wipe base and feet with a damp cloth and dry thoroughly. Stubborn spots can be removed by rubbing with a damp cloth and a mild, non-abrasive cleaner. Do not immerse base in liquid.
4. All removable parts can be washed by hand or in a dishwasher.
5. If washing by hand, wash in sudsy water, rinse, and dry thoroughly. If necessary, use a small nylon bristle brush to thoroughly clean container and food chute.

6. If washing in a dishwasher, place removable parts on top rack only.

7. Some staining of parts may occur. Use a paste of 2 tablespoons (60 ml) baking soda 1 tablespoon (30 ml) water, then apply to stains and let stand overnight. Rinse and dry.

8. Do not use rough scouring pads or cleansers on any plastic or metal parts.
9. Do not allow blades or discs to soak in water for long periods of time.

Storage

For keeping just processed foods fresh use the included storage lid.

CHOPPING GUIDE
FOOD AMOUNT COMMENTS

BABY FOOD Up to 4 cups Add up to 4 cups (1000 ml) (1000 ml) cooked vegetables and/or meat to container, along with 1/4 cup (60 ml) liquid per cup of solid food, process continuously to desired fineness.

BREAD CRUMBS Up to 5 slices Cut either fresh or dry bread slices into 1 1/2-2 inch pieces (3.75 & 5 cm). Add to container and process to fine crumbs.

COOKIF/CRACKER Up to 5 cups Use for crumbing graham crackers, CRUMBS (1250 ml) chocolate or vanilla wafers. Break larger crackers into 1 1/2-2 inch (3.75 & 5 cm) pieces. Add to container and process until fine.

CRANBERRYs, 3 cups Pulse to chop to desired fineness.

MINCED (750 ml) Can also add sugar to make

cranberry relish.

EGGS, CHOPPED

Up to 12 Peel, dry and halve hard-cooked eggs. Add to container. Pulse to chop, checking fineness after 4 - 5 pulses.

GARLIC, MINCED Up to 12 Be sure container is dry.

(1)	Drop clove(s) down food Chute while unit is running.
(2)
(3)

MEAT, CHOPPED	Up to 2 cups Cut the very cold meat into 1" (500 ml) (2.54 cm) cubes. Add to bowl and pulse to chop.
(RAW OR COoked)

MUSHROOMS,CHOPPED

Up to 12 medium

Halve large ones and addto container. Pulse to desiredfinesse.

NUTS, CHOPPED 3 cups Add to container and pulse (750 ml) to chop.

FOOD AMOUNT COMMENTS

ONIONS, CHOPPED	Up to 2 large	Quarter, and add to container. Pulse 1 or 2 times to coarsely chop. For green onions, up to 2 cups (500 ml) cut into \( {1}^{\prime \prime }\left( {{2.54}\mathrm{\;{cm}}}\right) \) pieces.
PARMESAN OR ROMANO CHEESE, GRATED	Up to 1-1/2 cups (375 ml) temperature.	Allow cheese to reach room Cut into \( {1}^{\prime \prime }\left( {{2.54}\mathrm{\;{cm}}}\right) \) cubes. Add to container and pulse to coarse chop; process continuously to finely grate.
PARSLEY, HERBS CHOPPED	Up to 2 cups (500 ml) and pulse	Add to dry, clean container to desired fineness. Process other fresh herbs in same manner.
PEPPER, GREEN, RED, YELLOW CHOPPED	Up to 1 pepper	Cut into \( {1}^{\prime \prime }\left( {{2.54}\mathrm{\;{cm}}}\right) \) pieces. Add to container and pulse to chop.
PIE DOUGH	Up to \( {29}^{\prime \prime }\left( {{23}\mathrm{\;{cm}}}\right) \) pie crusts	Follow food processor recipe for 1 or 2 standard size pie crusts. See Pastry Crust recipe.
SOUPS, PUREED OR CREAMED	2 cups (500 ml)	Add up to 2 cups (500 ml) hot (not boiling) vegetable mixture for pureeing and creaming. Process to desired smoothness.
SQUASH (BUTTERNUT), PUMPKIN OR SWEET POTATOES PUREED	Up to 5 cups, (1250 ml) \( {1}^{\prime \prime } \) (2.54 cm) cubes	Add 1/4 cup (60 ml) of cooking liquid per cup of food. Pulse to finely chop then process continuously to puree.
STRAWBERRIES, PUREED	2 cups (500 ml)	Hull and halve large berries. Add to container and pulse to chop. Process continuously to puree.
TOMATOES, CHOPPED	4 medium	Quarter tomatoes. Add up to 4 and pulse to desired size.

SHREDDING GUIDE

FOOD	COMMENTS
CABBAGE	Use shredding disc for very fine cabbage or slaw. Cut into pieces to fit chute. Shred using light pressure. Empty container as cabbage reaches disc.
CARROTS	Position in chute and shred.
CHEESE, CHEDDER	Cheese must be well chilled. Cut to fit chute.
CHEESE, Cheese must be chilled inMOZZARELLA freezer for 30 minutes prior	to shredding. Cut to fit chute.Use light pressure.
POTATOES Cut potatoes to fit chute.ZUCCHINI Cut to fit chute, either	lengthwise or horizontally.
YELLOW SQUASH Use light pressure.
Slicing GUIDE
FOOD	COMMENTS
APPLE Quarter and stack horizontally	in chute. Use firm pressure.
CABBAGE For coarsely shredded results, use	slicing side of disc. Cut into pieces to fit chute.Environment container as cabbage reaches disc.
CARROTS Cut into \(4"\)(10 cm) lengths and	pack in chute, alternating thick and thin ends.
CELERY Remove strings. Cut stalks	vertically into thirds. Pack chute for best results.
CUCUMBER If necessary, cut to fit chute.MUSHROOMS Stack chute with mushrooms on	their sides for lengthwise slices.
NUTS For coarsely chopped results, fill	chute with nuts and slice.
ONIONS Quarter and fill chute, positioning	onions upright for coarsely chopped results.
PEACHES/PEARS Halve or quarter and core. Position	upright in chute and slice using light pressure.
PEPPERS, Halve and seed. Cut large ones	on desired results. Slice using moderate pressure.
GREEN, RED, into quarters or strips, depending	(Cut into \(3"\)(8 cm) lengths. Remove inedible casing. Slice 2 pieces at a time using firm pressure.
YELLOW ETC.
PEPPERONI

FOOD	COMMENTS
POTATOES	Peel if desired, and cut to fit chute.
STRAWBERRYES	Hull. Arrange berries on their sides for lengthwise slices.
TOMATOES	Use small tomatoes for whole slices; halve if necessary.Use gentle, but firm pressure.
TURNIPS Peel. Cut turnips to fit chute.
ZUCCHINI, YELLOW SquASH for whole slices; halve larger ones to fit chute.

Recipe for Black & Decker Food Processor

PASTRY CRUST

1 cup (240 ml) unsifted all-purpose flour
1/2 teaspoon (2.5 ml) salt
1/4 cup (60 ml) shortening
2 tablespoons (30ml) cold butter or margarine, cut into small pieces
2 to 4 tablespoons (30-60 ml) ice water
1. Position chopping blade in container of processor. Add flour, salt, shortening and butter. Pulse 3 or 4 times, for about 3 to 4 seconds each, until mixture is crumbly.
2. With processor running, drizzle in just enough water until mixture pulls away from sides of bowl and forms a loose ball.
3. Gently shape dough into ball. Roll out on lightly floured surface to a circle 2 inches (5 cm) larger than the inverted pie plate.
4. Transfer pastry to pie plate. To bake empty, pierce generously with fork. Bake at 425^ (220^) until golden, about 12 minutes.
Yield: 1-9-inch (23 cm) pie crust.

SPEEDY PROCESSOR PIZZA DOUGH

1-1/4 teaspoons (7 ml) active dry yeast
1-1/3 cups (315 ml) warm water 105°F - 115°F (40°C to 46°C)
1/4 teaspoon (1 to 2 ml) sugar
3-1/2 to 3-3/4 cups (830 to 890 ml) unsifted all-purpose flour
1 teaspoon (5 ml) salt
2 tablespoons (30ml) olive oil

1. Sprinkle yeast over water; add sugar and let stand until yeast is dissolved, about 5 minutes.
2. Position dough blade in container of processor. Add 3 cups (750 ml) flour, salt and olive oil. With processor running, gradually add yeast mixture down food chute. Add additional flour to make a soft dough. Continue processing dough for 1 to 1-1/2 minutes. Stop and let dough rest for 10 minutes.
3. On lightly floured board, knead several times and form into ball. Place in greased bowl, turning to grease top.
4. Cover and let rise at room temperature until doubled in bulk, about 1 hour.
5. Punch dough down. For thin crust pizza divide dough in half. Roll out on lightly floured board to about 12 inch (30 cm) circle. Transfer to pizza pan or baking stone sprinkled with corn meal. Lift edges to form a crust around edge of pan.
6. Spoon desired sauce onto crust and spread evenly. Top with desired toppings.
7. Bake at 450^ 230C)12 minutes or until crust is golden and filling is hot.

Yield: 2 pizza crusts

BASIC WHITE BREAD

3/4 cup (185 ml) water
1/2 cup (125 ml) milk
3 tablespoons (45 ml) butter or margarine
1-1/4 teaspoons (7 ml) active dry yeast
3-1/2 to 3-3/4 cups (830 to 890 ml) unsifted all-purpose flour
1 tablespoon (15 ml) sugar
1 teaspoon (5 ml) salt
1. In small saucepan, combine water, milk and butter. Heat to lukewarm 105^ to 115^ (40^ to 45^) . Stir in yeast to dissolve. Let rest 5 minutes.
2. Position dough blade in container of processor. Add 3 cups (750ml) flour, sugar and salt. With processor running, gradually add yeast mixture down food chute. Add additional flour to make a soft dough. Continue processing dough for 1 to 1-1/2 minutes.
3. On lightly floured board, knead several times and form into ball. Place in greased bowl, turning to grease top.
4. Cover and let rise at room temperature until doubled in bulk, about 1 hour.
5. Punch dough down and shape into a loaf. Place in greased 9 × 5 × 3 -inch (23 × 13 × 8 ~cm) loaf pan. Cover and let rise at room temperature until doubled in bulk, about 1 hour.
6. Bake at 375^ (190^) for 35 minutes or until loaf is deep golden brown and sounds hollow when tapped. Remove from pan and cool on wire rack.

Yield: 1 loaf

Note: This recipe should not be doubled in the food processor.

IMPORTANT MISES EN GARDE

Recipes for Black & Decker Food Processor

CROUTE A PATISSERIE

240 ml (1 t) de farine tout-usage

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Guatemala City, Guatemala

Tel.: [phone] / 360-

0521

Honduras

Lady Lee
Centro Comercial Mega Plaza
Carreera la Lima
San Pedro Sula, Honduras
Tel.: [phone]

Mexico

Copyright © 2005 Applica Consumer Products, Inc. Pub. No. 600021-00-RV00 Made in People's Republic of China Printed in People's Republic of China

Importado por: Applica de Mexico S. de R.L. de C.V. Blvd. Manuel Avila Camacho 2900 Int. Los Pirules, Tlalnepantla,

Edo, Mex.
C.P. 54040
Mexico
Teléfon: (55) 1106-1400

Del interior marque sin custo 01 [phone] la Republiica Popular de China la Republiica Popular de China
