SABC2002A - Coffee machine SHARP - Free user manual and instructions

Product type	Drip coffee maker
Brand	SHARP
Model	SABC2002A
Power supply	220-240 V ~ 60 Hz
Power	900 W
Capacity	1.8 L (about 12 cups)
Weight	1.83 kg
Color	Black (estimated)
Materials	Plastic, glass (carafe)
Main functions	Delayed programming, strong coffee, automatic shut-off after 40 min, keep warm
Filter type	Paper coffee filter (not included)
Carafe	Glass carafe with handle and lid
Hot plate	Yes, keeps coffee warm
Display	LCD with clock and timer
Cleaning and maintenance	Removable parts washable with soapy water; regular descaling
Safety	Automatic shut-off, short cord, hot surface indicated
Warranty	Check with retailer (duration not specified)

Frequently Asked Questions - SABC2002A SHARP

How to set the time on the Sharp SABC2002A coffee maker?

Press the HOUR button to display CLOCK on the screen. Then use the HOUR and MIN buttons to set the current time (24-hour format).

How to program the delayed start?

After setting the clock, press PROG to display TIMER. Use HOUR and MIN to set the desired start time, then press ON/OFF to activate the timer (the AUTO indicator lights up).

What to do if coffee is not brewing or brews slowly?

Check that the water reservoir is not empty, the filter is not clogged, and the carafe is correctly positioned. Descaling may be necessary if mineral deposits have accumulated.

How to make stronger coffee?

Press the STRENGTH button before starting the brew. The corresponding indicator lights up, then press ON/OFF. Both indicators (STRENGTH and ON/OFF) light up and the machine brews a stronger coffee.

How to clean the coffee maker?

Unplug the appliance. Wash the removable parts (carafe, funnel, filter) with warm soapy water. Wipe the exterior with a damp cloth. Never immerse the main body in water.

How to descale the machine?

Fill the reservoir with a water/descaler mixture (4:1) or citric acid (100:3). Start a cycle and stop after one cup. Let it sit for 15 minutes, then complete the cycle. Rinse by running 3 cycles with clean water.

Can I use the coffee maker without ground coffee?

Yes, for rinsing or descaling. Fill the reservoir with water and run a cycle without coffee. Discard the water afterwards.

Is the carafe fragile?

Yes, the carafe is made of glass. Handle it with care and do not use it if it is cracked or the handle is loose. Do not place it empty on the hot plate.

What does the AUTO indicator mean?

The AUTO indicator means the delayed start function is active. The machine will automatically start at the programmed time.

How to turn off the coffee maker after use?

Press the ON/OFF button to turn off the machine. Unplug it if not in use. The machine automatically turns off after 40 minutes if forgotten.

USER MANUAL SABC2002A SHARP

Line drawing of a modern coffee maker with a digital display and 'SHARP' label (no text or symbols on the device itself)

READ THIS USER MANUAL CAREFULLY BEFORE YOU USE THE APPLIANCE AND SAVE IT FOR FUTURE REFERENCE

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the below:

1. To protect against fire, electric shock and injury to persons do not immerse cord, plug, or in water or other liquid.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
4. The use of accessories not recommended by the appliance manufacturer as it may result in fire, electric shock or injury to persons.
5. Do not use outdoors.
6. Do not let cord hang over edge of table or counter, or touch hot surface.
7. Do not place on or near a hot gas or electric burner, or in a heated oven.
8. Do not use appliance for other than intended use.
9. Do not clean container with cleansers, steel wool pads, or other abrasive material.
10. To disconnect, turn/press any control to "Off", remove plug from the power socket. Always hold the plug. But never pull the cord.
11. Some parts of appliance are hot when operated, so do not touch with your hand. Use handles or buttons, dial controls only.
12. Close supervision is necessary when any appliance is used by or near children
13. Children should not to play with the appliance.
14. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
15. This appliance is intended for household use only.
16. To reduce the risk of fire or electric user shock, do not attempt to disassemble the product. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.
17. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.

18. Scalding may occur if the cover is removed during the brewing cycles. Be careful not to get burned by the steam.

19. Never leave the empty carafe on the warming plate otherwise the carafe is liable to crack.

20. Never use the appliance if the carafe shows any signs of cracks or carafe having a loose or weakened handle. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.
21. Do not let the coffee maker operate without water.
22. Please do not open the top cover and make sure the glass cup is placed on the warming plate correctly during the brewing.

Electrical Cord

a) A short power-supply cord {or detachable power-supply cord} is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.

2. The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over.

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

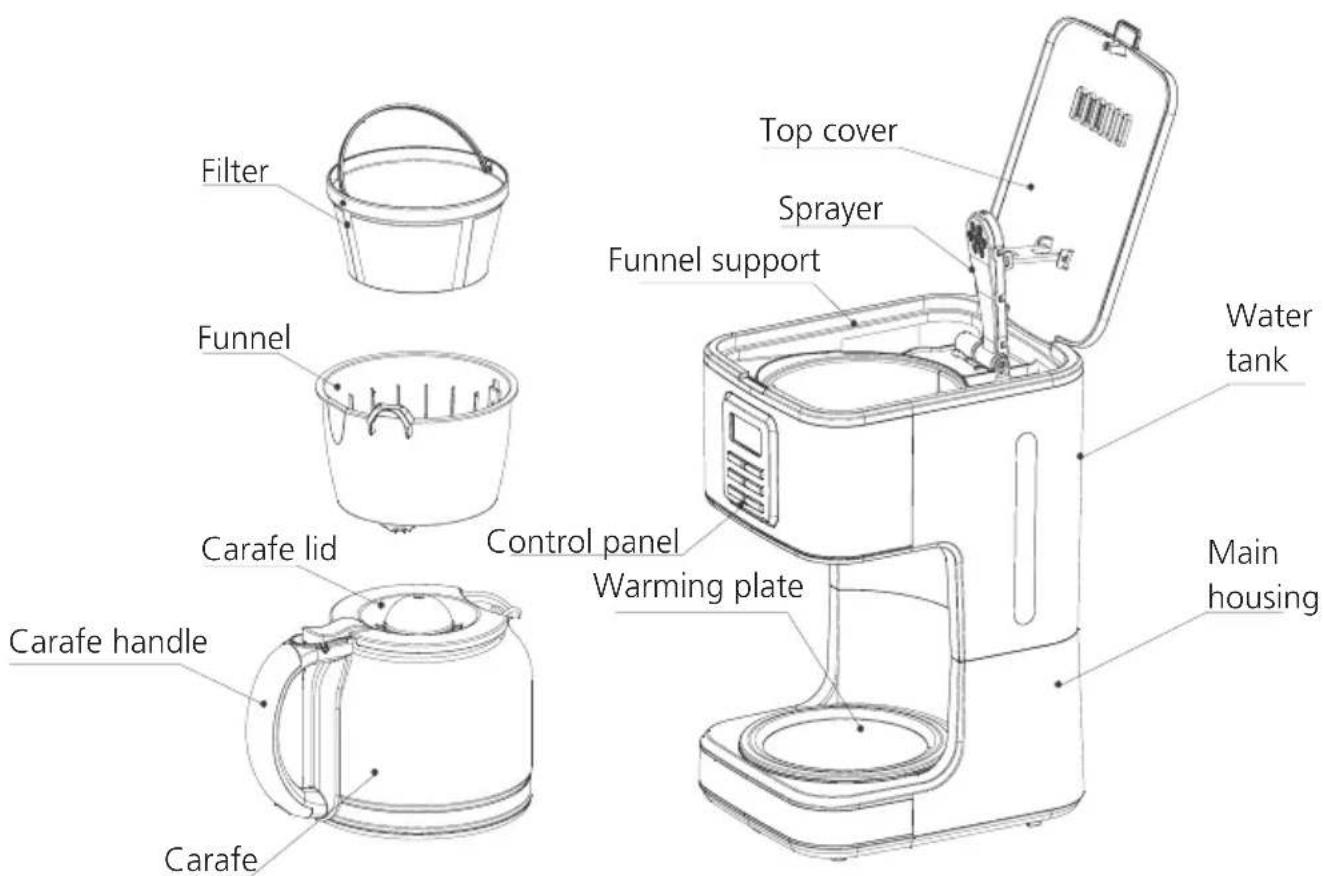

Know your Coffee Maker

Control Panel

Before First Use

Check that all accessories are complete and the unit is not damaged. Add water into water tank to the MAX level of water gauge and brew water for several times without coffee powder, then discard the water. Clean all detachable parts thoroughly with warm water.

Using your Coffee Machine

1. Open the top cover and fill the water tank with drinking water. The water level should not exceed MAX level as indicated in the water tank.
2. Place the funnel into the funnel support, make sure it is assembled correctly, otherwise the top cover will not be closed. Place the filter in the funnel.
3. Add coffee powder. Usually a cup of coffee needs a level spoon of coffee powder, but you may adjust according to personal taste. Close the top cover completely.
4. Insert the carafe on the warming plate.
5. Plug the power cord into the outlet. The LCD will display "12:00" together with the ":" flashing.
6. Press the ON/OFF button, its corresponding indicator illuminates and the appliance begins working.
7. If you want to brew strong coffee, press the "STRENGTH" button, its corresponding indicator turns on, and then press "ON/OFF" button once, at that time, both the indicators of "STRENGTH" and "ON/OFF" buttons illuminate. The appliance starts to brew strong coffee.
8. The brewing process can be interrupted by pressing the "ON/OFF" button once at any time. Then, the appliance will turn off, and the "ON/OFF" indicators will go out. The appliance will continue brewing once "ON/OFF" is pressed again.

NOTE:

1) When the indicator "AUTO" is on, you can set a delay function to start coffee brewing at your desired time. If you do not want to use delay function, you can cancel the automatic start function by pressing the "ON/OFF" button, the indicator "AUTO" will be extinguished.
2) You can take out the carafe, pour and serve at any time. The appliance will stop dripping automatically. The carafe should not be removed for longer than 30 seconds or leakage may occur.

1. Remove the carafe to serve when finished brewing (about one minute after the coffee stops dripping out.)

NOTE: The coffee you get will be less than the water you have added, as some water is absorbed by coffee grounds.

1. When the process is finished, if you do not want to serve immediately, keep the coffee maker energized, the coffee can be kept warm on the warming plate. The appliance will shut off automatically after 40 minutes from the "ON/OFF" button being activated if it has not been manually disconnected at the completion of brewing. For an optimum coffee taste, serve just after brewing.

2. Always turn the coffee maker off and disconnect the power supply when not use.

NOTE: Please take care when pouring hot liquids.

Delay Function

If you do not want the coffee maker to start operation immediately: for example now it is 8:10, and you would like the coffee maker to start automatically at 13:00, first follow steps 1 to 5 of above section, and then you can set the automatic start function as follows:

1. Press the "HOUR" button, the word "CLOCK" will be shown in the up-right corner of the display.
2. Press the "HOUR" and "MIN" button continuously to set the present time (real clock), that is 8:10 (See Fig. 1).

NOTE: The time cycle is 24 hours.

1. Press "PROG" button and the word "TIMER" shows on up-left corner of display.
2. Set the delayed starting time by pressing "HOUR" and "MIN" buttons repetitively, that is 13:00 (see Fig. 2).
3. Press "AUTO" button. The indicator of "AUTO" button illuminates. The LCD will display the current clock. You may see the automatic start time by pressing "PROG". NOTE: You may cancel the automatic start function by pressing "ON/OFF" button. If you want to change the automatic start time, only following the above 1-4 steps again.
4. When the time is due, the indicator of "AUTO" button will turn off and the unit starts brewing. The appliance will shut off automatically after 40 minutes from the ON/OFF button being activated if it has not been manually disconnected at the completion of brewing.

Fig. 1

Fig. 2

Cleaning and Maintenance

CAUTION: Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid. After each use, always make sure that the plug is removed from wall outlet.

1. Clean all detachable parts after each use in hot, sudsy water.
2. Wipe the product's exterior surface with a soft, damp cloth to remove stains.
3. Water droplets may buildup in the area above the funnel and drip onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.
4. Use a damp cloth to gently wipe the warming plate. Never use abrasive cleaner to clean it.
5. Replace all parts and keep for next use.

Removing Mineral Deposits

To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly depending upon the water quality and hardness in your area and the frequency of use of the appliance, the cleaning detail is as follows:

1. Fill the water tank with water and descaler to the MAX level as indicated on the water tank. The usual ratio of water to descaler is 4:1, unless otherwise instructed on descaler. Please use "household descaler", you can use the citric acid instead of descaler (use one hundred parts of water and three parts of citric acid).
2. Put the carafe on the warming plate and ensure it is placed in position.
3. Press the "ON/OFF" button once, its indicator illuminates. After a while, water will start dripping automatically.
4. After percolating the equivalent of one cup, switch off the appliance by pressing the "ON/OFF" button again.
5. Leave the solution to work for 15 minutes. Repeat the steps 3-5 again.
6. Turn the appliance on by pressing the "ON/OFF" button once and continue the cycle until the water tank is completely empty.
7. Rinse by operating the appliance with fresh water at least 3 times.

Hints for Great-tasting Coffee

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "CLEANING AND MAINTENANCE" section. Always

2. use fresh, cold water in the coffee maker.

3. Store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.
4. For an optimum coffee taste, buy whole coffee beans and finely grind them just before brewing.
5. Do not reuse coffee powder since this will greatly reduce the coffee' flavor. Reheating coffee is not recommended as coffee is at its peak flavor immediately after brewing.
6. Clean the coffee maker when over-extraction causes oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the coffee powder.
7. Oiliness may occur more frequently if heavily roasted coffees are used.

Specifications

AC Line Voltage 50/60 Hz, 220-240 V
Output power 900 W
Product weight 1.83 kg
Capacity 1.8 l

Guarantee

Please keep your receipt as this will be required for any claims under this guarantee.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Sharp Home Appliances (Europe) has the right to change these terms.

Further Terms & conditions of the warranty, please visit www.sharphomeappliances.com
