USER MANUAL SABK2002A SHARP

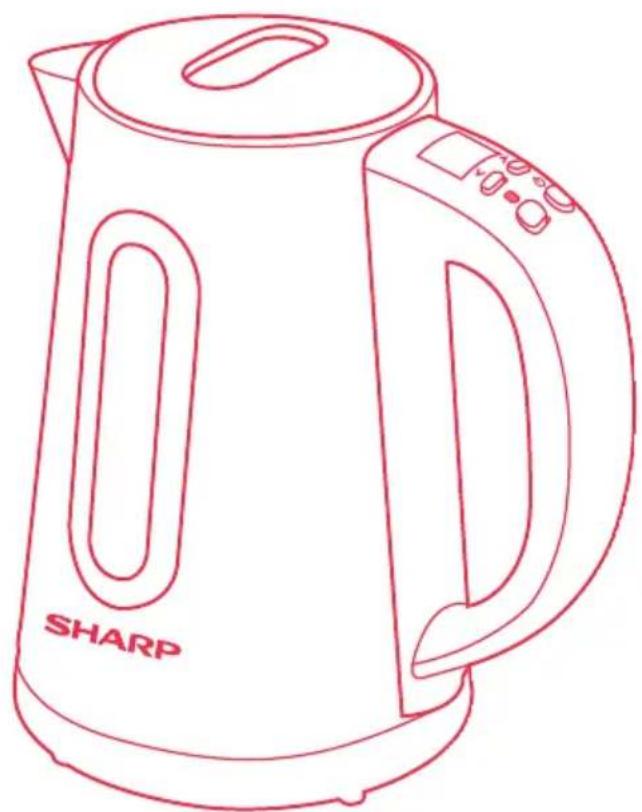

Digital Cordless Electric Kettle

EN Operation Manual
FR Mode d'emploi
DE Bedienungsanleitung
NL Gebruiksaanwijzing
PL Instrukcja obslugi
ES Manual de instrucciones

READ THIS USER MANUAL CAREFULLY BEFORE YOU USE THE APPLIANCE AND SAVE IT FOR FUTURE REFERENCE

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the below:

1. To protect against fire, electric shock and injury to persons do not immerse cord, plug, or in water or other liquid.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.
4. The use of accessories not recommended by the appliance manufacturer as it may result in fire, electric shock or injury to persons.
5. Do not use outdoors.
6. Do not let cord hang over edge of table or counter, or touch hot surface.
7. Do not place on or near a hot gas or electric burner, or in a heated oven.
8. Do not use appliance for other than intended use.
9. Do not clean container with cleansers, steel wool pads, or other abrasive material.
10. To disconnect, turn/press any control to "Off", remove plug from the power socket. Always hold the plug. But never pull the cord.
11. Some parts of appliance are hot when operated, so do not touch with your hand. Use handles or buttons, dial controls only.
12. Close supervision is necessary when any appliance is used by or near children
13. Children should not to play with the appliance.
14. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
15. This appliance is intended for household use only.
16. To reduce the risk of fire or electric user shock, do not attempt to disassemble the product. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.
17. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use
18. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils, away from beater, whisk or dough hooks during operation to prevent injury and / or damage to the mixer.
19. Mixing flammable non-food substances can be harmful.

Electrical Cord

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over.

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

*Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

Before using your appliance for the first time

• To clean the kettle thoroughly, fill with clear water, bring to the boil and repeat. The first time you fill the kettle, add a tablespoon of household vinegar.

Before using your appliance for the first time

Please fold out the illustrated page! Do not switch an appliance on when empty as it could be damaged. Observe the max mark! Before boiling water, close the lid and insert the filter, otherwise the automatic steam stop will not function!

Risk of scalding! Do not open lid whilst it is hot. Leave the appliance to cool down for 5 minutes before refilling with water.

Information:

The appliance switches off as soon as the boiling process ends.

Note:

For physical reasons condensation may form on the base. Thissisanormalprocessand thekettle isnotleaking

Cleaning and descending

Electric shock risk

Never immerse the kettle or the base in water or put in the dishwasher!

Do not use a steam cleaner.

• Pull out the mains plug.
• Descale the kettle with vinegar or a commercially available descaling agent.
• Do not use sharp or abrasive detergents.
• Rinse out the kettle and scale filter with clear water.

Regular descending

• Prolongs the service life of the appliance,
• Ensure that the kettle functions properly,
• Reduces the boiling time,
• Saves energy.
  Descale the kettle with vinegar or a commercially available descaling agent.
• Fill the kettle up to the max mark with water and bring to the boil. Then add approx. 1 cup of household vinegar and leave to react for several hours.
• Or use descending agent according to the manufacturer's instructions, never bring to the boil.
• Remove the scale filter and place in a little vinegar.
• Then rinse the kettle and scale filter with clear water.

Attention: Never remove calcification residue with hard implements, otherwise the seal will be damaged

Troubleshooting

The appliance is not heating up. The indicator light does not come on -> the overheating protection system has actuated.

• Switch in Off position, take the kettle off the base (after the kettle has cooled down for a fairly long time) and put back on again. The appliance switches off before the boiling process ends the appliance is calcified.
• Descale the appliance according to the instructions.

Disposal

This appliance has been identified in accordance with the European directive 2002/96/EG on Waste Electrical and Electronic Equipment (WEEE). The directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Specifications

AC Line Voltage 50/60 Hz, 220-240 V
Output power 2400 W
Product weight 1,17 kg
Capacity 1.7 l
Temperature range 40°C - 100°C

Guarantee

Please keep your receipt as this will be required for any claims under this guarantee. During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Sharp Home Appliances (Europe) has the right to change these terms.

Further Terms & conditions of the warranty, please visit www.sharphomeappliances.com

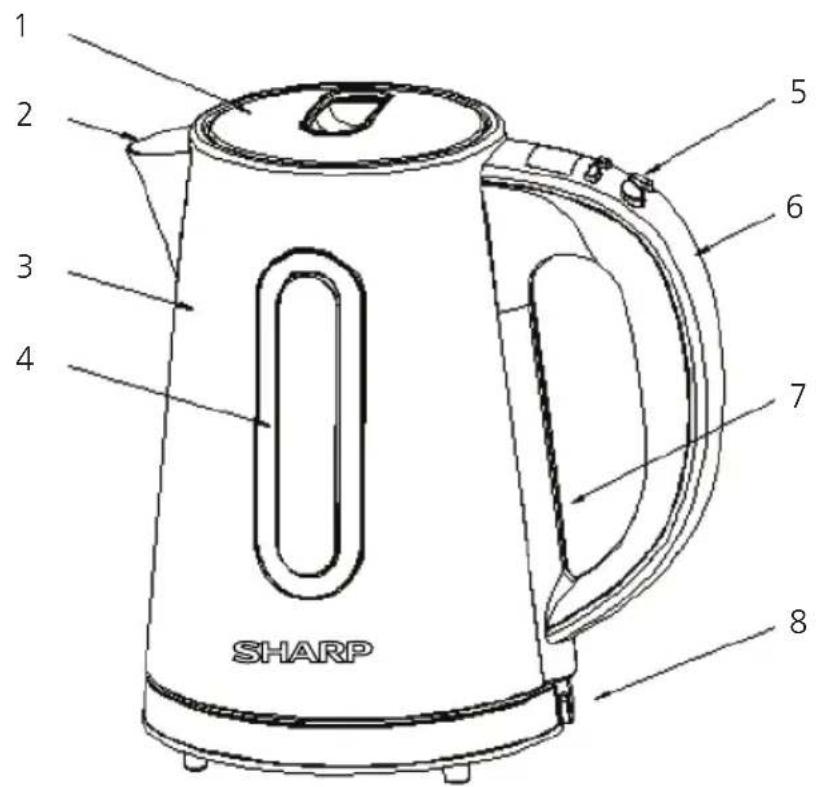

Part names

1.Lid
2.Spout
3. Body
4. Water Measure
5. Control Panel (see below for details)
6. Handle Cover
7.Handle
8. Base

Keep warm

Control panel

Boiling extended

Display of temperature

Function instruction

This kettle has three kinds of function: boiling water, keep warm and boiling extend.

Function setting

1. State instruction:

There are two states for this electric kettle: setting state and working state. At setting state, the icon of the function which is selected will be light and then parameters can be set. At working state, the icon of working function is flashing. Set water temperature is shown on LCD.

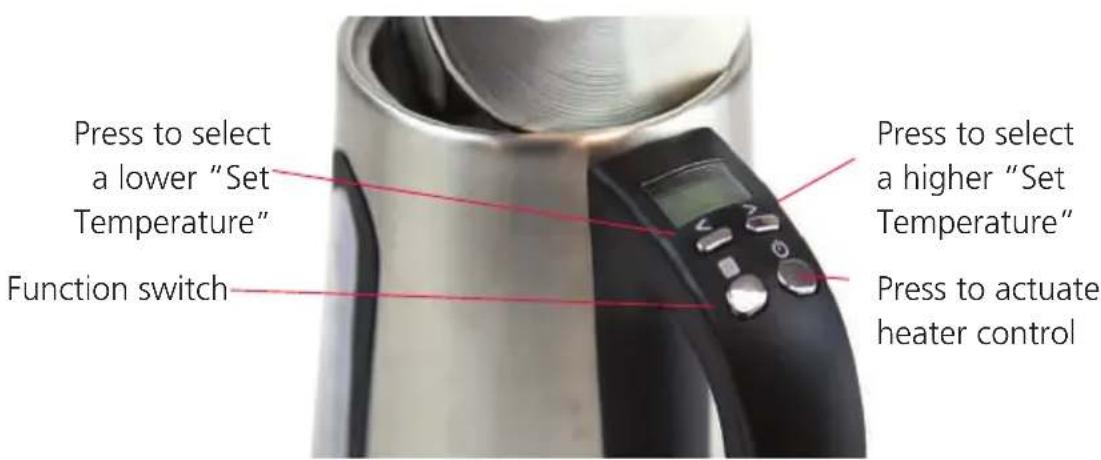

2. Control panel instruction:

At setting stage, the set parameter will increase after pressing. When parameter is at the max, it will go back to the min. If you press on all the time, parameter increases continuously.

At setting stage, the set parameter will reduce after pressing When the parameter reaches the min, it will go back to the max; If you press all the time, parameter reduces continuously.

At setting stage, change function by pressing will change to the selected function. Press and unit will go to working state or back to setting state.

3. Parameter setting instruction:

With power on, default setting of above three functions are as follow: boiling water to 100, boiling extend to 3s. Press the switch to other parameter settings and the corresponding icon will be light.

a) When set to boil parameter, the water temperature can be adjusted from 40^ to 100^ ; by 5^ intervals.
b) When set to keep warm temperature, the kettle can be adjusted from 40^ to 90^ ; by intervals of 5^ ; Keeping warm is up to 30 mins. If you do not need to keep warm, set parameter to "0", (Keep warm temperature should be lower than boiling water temperature, otherwise unit will adjust it by itself.)
